8 |

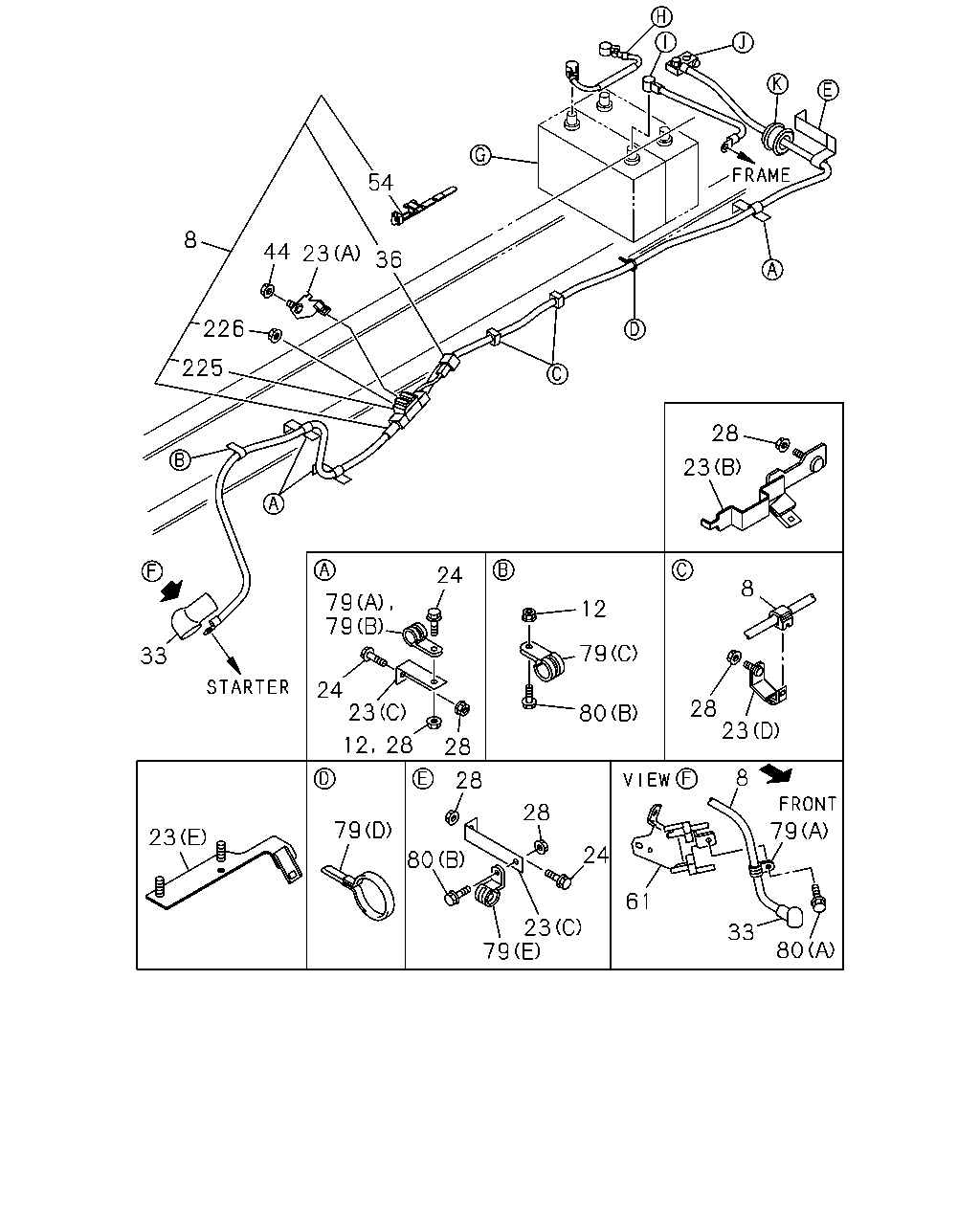

CABLE; BATTERY,STARTER
WHEEL BASE 5000MM(50W)
EURO2 SPECIFICATION<NT2>
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
VIN MODEL YEAR 2011<VZB>
L=2760
|
8-98174-094-0 |
01 |
1 |
1012-1502 |
|
● |
| |
8 |
CABLE; BATTERY,STARTER
WHEEL BASE 5000MM(50W)
EURO2 SPECIFICATION<NT2>
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
VIN MODEL YEAR 2011<VZB>
|
8-98295-572-0 |
01 |
1 |
1503- |
|
● |
| |
8 |
CABLE; BATTERY,STARTER
WHEEL BASE 5000MM(50W)
EURO2 SPECIFICATION<NT2>
VIN MODEL YEAR 2011<VZB>
BATTERY 115E41L<8MA>
L=2960
|
8-98174-099-0 |
01 |
1 |
1012-1502 |
|
● |
| |
8 |
CABLE; BATTERY,STARTER
WHEEL BASE 5000MM(50W)
EURO2 SPECIFICATION<NT2>
VIN MODEL YEAR 2011<VZB>
BATTERY 115E41L<8MA>
|
8-98295-573-0 |
01 |
1 |
1503- |
|
● |
| |
8 |
CABLE; BATTERY,STARTER
WHEEL BASE 6300MM(63W),WHEEL BASE 7100MM(71W)
EURO2 SPECIFICATION<NT2>
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
VIN MODEL YEAR 2011<VZB>
L=2770
|
8-98174-091-0 |
01 |
1 |
1012-1502 |
|
● |
| |
8 |
CABLE; BATTERY,STARTER
WHEEL BASE 6300MM(63W),WHEEL BASE 7100MM(71W)
EURO2 SPECIFICATION<NT2>
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
VIN MODEL YEAR 2011<VZB>
|
8-98295-570-0 |
01 |
1 |
1503- |
|
● |
| |
8 |
CABLE; BATTERY,STARTER
WHEEL BASE 6300MM(63W),WHEEL BASE 7100MM(71W)
EURO2 SPECIFICATION<NT2>
VIN MODEL YEAR 2011<VZB>
BATTERY 115E41L<8MA>
L=2970
|
8-98174-097-0 |
01 |
1 |
1012-1502 |
|
● |
| |
8 |
CABLE; BATTERY,STARTER
WHEEL BASE 6300MM(63W),WHEEL BASE 7100MM(71W)
EURO2 SPECIFICATION<NT2>
VIN MODEL YEAR 2011<VZB>
BATTERY 115E41L<8MA>
|
8-98295-571-0 |
01 |
1 |
1503- |
|
● |
| |
8 |
CABLE; BATTERY,STARTER
AUSTRALIA EQUIPMENT(B13)
BATTERY 115E41L<8MA>
|
8-98078-207-1 |
01 |
1 |
0809-1004 |
|
● |
| |
8 |
CABLE; BATTERY,STARTER
AUSTRALIA EQUIPMENT(B13)
BATTERY 115E41L<8MA>
|
8-98159-412-0 |
01 |
1 |
1005-1502 |
|
● |
| |
8 |
CABLE; BATTERY,STARTER
AUSTRALIA EQUIPMENT(B13)
BATTERY 115E41L<8MA>
|
8-98295-513-0 |
01 |
1 |
1503- |
|
● |
| |
8 |
CABLE; BATTERY,STARTER
WHEEL BASE 5000MM(50W)
EURO2 SPECIFICATION<NT2>
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
L=2820
|
8-98121-966-0 |
01 |
1 |
0809-1004 |
|
● |
| |
8 |
CABLE; BATTERY,STARTER
WHEEL BASE 5000MM(50W)
EURO2 SPECIFICATION<NT2>
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
L=2820
|
8-98159-432-0 |
01 |
1 |
1005-1011 |
|
● |
| |
8 |
CABLE; BATTERY,STARTER
WHEEL BASE 5000MM(50W)
EURO2 SPECIFICATION<NT2>
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
EXC. VIN MODEL YEAR 2011<VZB>
L=2820
|
8-98159-432-0 |
01 |
1 |
1012-1502 |
|
● |
| |
8 |
CABLE; BATTERY,STARTER
WHEEL BASE 5000MM(50W)
EURO2 SPECIFICATION<NT2>
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
EXC. VIN MODEL YEAR 2011<VZB>
|
8-98295-530-0 |
01 |
1 |
1503- |
|
● |
| |
8 |
CABLE; BATTERY,STARTER
WHEEL BASE 5000MM(50W)
EURO2 SPECIFICATION<NT2>
BATTERY 115E41L<8MA>
L=3020
|
8-98121-967-0 |
01 |
1 |
0809-1004 |
|
● |
| |
8 |
CABLE; BATTERY,STARTER
WHEEL BASE 5000MM(50W)
EURO2 SPECIFICATION<NT2>
BATTERY 115E41L<8MA>
L=3020
|
8-98159-433-0 |
01 |
1 |
1005-1011 |
|
● |
| |
8 |
CABLE; BATTERY,STARTER
WHEEL BASE 5000MM(50W)
EURO2 SPECIFICATION<NT2>
BATTERY 115E41L<8MA>
EXC. VIN MODEL YEAR 2011<VZB>
L=3020
|
8-98159-433-0 |
01 |
1 |
1012-1502 |
|
● |
| |
8 |
CABLE; BATTERY,STARTER
WHEEL BASE 5000MM(50W)
EURO2 SPECIFICATION<NT2>
BATTERY 115E41L<8MA>
EXC. VIN MODEL YEAR 2011<VZB>
|
8-98295-531-0 |
01 |
1 |
1503- |
|
● |
| |
8 |
CABLE; BATTERY,STARTER
WHEEL BASE 6300MM(63W)
EURO2 SPECIFICATION<NT2>
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
L=2830
|
8-98121-964-0 |
01 |
1 |
0809-1001 |
|
● |
| |
8 |
CABLE; BATTERY,STARTER
WHEEL BASE 6300MM(63W),WHEEL BASE 7100MM(71W)
EURO2 SPECIFICATION<NT2>
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
L=2830
|
8-98121-964-0 |
01 |
1 |
1002-1004 |
|
● |
| |
8 |
CABLE; BATTERY,STARTER
WHEEL BASE 6300MM(63W),WHEEL BASE 7100MM(71W)
EURO2 SPECIFICATION<NT2>
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
L=2830
|
8-98159-430-0 |
01 |
1 |
1005-1011 |
|
● |
| |
8 |
CABLE; BATTERY,STARTER
WHEEL BASE 6300MM(63W),WHEEL BASE 7100MM(71W)
EURO2 SPECIFICATION<NT2>
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
EXC. VIN MODEL YEAR 2011<VZB>
L=2830
|
8-98159-430-0 |
01 |
1 |
1012-1502 |
|
● |
| |
8 |
CABLE; BATTERY,STARTER
WHEEL BASE 6300MM(63W),WHEEL BASE 7100MM(71W)
EURO2 SPECIFICATION<NT2>
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
EXC. VIN MODEL YEAR 2011<VZB>
|
8-98295-528-0 |
01 |
1 |
1503- |
|
● |
| |
8 |
CABLE; BATTERY,STARTER
WHEEL BASE 6300MM(63W)
EURO2 SPECIFICATION<NT2>
BATTERY 115E41L<8MA>
L=3030
|
8-98121-965-0 |
01 |
1 |
0809-1001 |
|
● |
| |
8 |
CABLE; BATTERY,STARTER
WHEEL BASE 6300MM(63W),WHEEL BASE 7100MM(71W)
EURO2 SPECIFICATION<NT2>
BATTERY 115E41L<8MA>
L=3030
|
8-98121-965-0 |
01 |
1 |
1002-1004 |
|
● |
| |
8 |
CABLE; BATTERY,STARTER
WHEEL BASE 6300MM(63W),WHEEL BASE 7100MM(71W)
EURO2 SPECIFICATION<NT2>
BATTERY 115E41L<8MA>
L=3030
|
8-98159-431-0 |
01 |
1 |
1005-1011 |
|
● |
| |
8 |
CABLE; BATTERY,STARTER
WHEEL BASE 6300MM(63W),WHEEL BASE 7100MM(71W)
EURO2 SPECIFICATION<NT2>
BATTERY 115E41L<8MA>
EXC. VIN MODEL YEAR 2011<VZB>
L=3030
|
8-98159-431-0 |
01 |
1 |
1012-1502 |
|
● |
| |
8 |
CABLE; BATTERY,STARTER
WHEEL BASE 6300MM(63W),WHEEL BASE 7100MM(71W)
EURO2 SPECIFICATION<NT2>
BATTERY 115E41L<8MA>
EXC. VIN MODEL YEAR 2011<VZB>
|
8-98295-529-0 |
01 |
1 |
1503- |
|
● |
| |
8 |
CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
|
8-98078-206-4 |
01 |
1 |
0710-0808 |
● |
● |
| |
8 |
CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
|
8-98078-206-4 |
01 |
1 |
0809-1004 |
● |
|
| |
8 |
CABLE; BATTERY,STARTER
AUSTRALIA EQUIPMENT(B13)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
|
8-98078-206-4 |
01 |
1 |
0809-1004 |
|
● |
| |
8 |
CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
|
8-98159-411-0 |
01 |
1 |
1005-1502 |
● |
|
| |
8 |
CABLE; BATTERY,STARTER
AUSTRALIA EQUIPMENT(B13)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
|
8-98159-411-0 |
01 |
1 |
1005-1502 |
|
● |
| |
8 |
CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
|
8-98295-512-0 |
01 |
1 |
1503- |
● |
|
| |
8 |
CABLE; BATTERY,STARTER
AUSTRALIA EQUIPMENT(B13)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
|
8-98295-512-0 |
01 |
1 |
1503- |
|
● |
| |
8 |
CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA>
|
8-98078-207-0 |
01 |
1 |
0710-0710 |
● |
● |
| |
12 |
NUT; BATTERY CABLE CLIP
WHEEL BASE 6300MM(63W)
EURO4 SPECIFICATION<NT4>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0809-1010 |
|
● |
| |
12 |
NUT; BATTERY CABLE CLIP
EURO2 SPECIFICATION<NT2>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0809-1010 |
|
● |
| |
12 |
NUT; BATTERY CABLE CLIP
EURO2 SPECIFICATION<NT2>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
1011- |
|
● |
| |
12 |
NUT; BATTERY CABLE CLIP
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0710-0710 |
● |
● |
| |
12 |
NUT; BATTERY CABLE CLIP
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0711-0808 |
● |
● |
| |
12 |
NUT; BATTERY CABLE CLIP
WHEEL BASE 7100MM(71W)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0809- |
● |
|
| |
12 |
NUT; BATTERY CABLE CLIP
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W)
AUSTRALIA EQUIPMENT(B13)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0809- |
|
● |
| |
12 |
NUT; BATTERY CABLE CLIP
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0710-0710 |
|
● |
| |
12 |
NUT; BATTERY CABLE CLIP
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0710-0710 |
|
● |
| |
12 |
NUT; BATTERY CABLE CLIP
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
0711-1105 |
● |
● |
| |
12 |
NUT; BATTERY CABLE CLIP
ZF9S1110 M/T(Y5E)
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
1106- |
● |
|
| |
12 |
NUT; BATTERY CABLE CLIP
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
1106- |
|
● |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 7100MM(71W)
EURO2 SPECIFICATION<NT2>
(C)
L=95
|
1-82699-085-0 |
02 |
1 |
1002- |
|
● |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 5000MM(50W)
EURO2 SPECIFICATION<NT2>
(C)
L=55
|
1-47475-304-0 |
01 |
1 |
0809- |
|
● |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 5000MM(50W)
EURO2 SPECIFICATION<NT2>
(C)
L=65
|
1-47479-064-1 |
01 |
1 |
0809- |
|
● |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 6300MM(63W)
(C)
L=65
|
1-47479-064-1 |
01 |
1 |
0809- |
|
● |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
(C)
L=95
|
1-82699-085-0 |
03 |
1 |
0711-1105 |
● |
● |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
ZF9S1110 M/T(Y5E)
(C)
L=95
|
1-82699-085-0 |
03 |
1 |
1106- |
● |
|
| |
23 |
BRACKET; CABLE CLIP TO FRAME
(C)
L=95
|
1-82699-085-0 |
03 |
1 |
1106- |
|
● |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
(D)
|
8-97612-957-1 |
02 |
1 |
0710-0712 |
● |
● |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
(B)
|
8-98085-160-4 |
01 |
1 |
0710-1111 |
● |
● |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
(E)
|
8-98201-025-0 |
01 |
1 |
1112- |
● |
● |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
(C)
L=95
|
1-82699-085-0 |
02 |
1 |
0710-0710 |
● |
● |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
(C)
L=95
|
1-82699-085-0 |
02 |
1 |
0710-0710 |
● |
● |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 7100MM(71W)
(C)
L=95
|
1-82699-085-0 |
01 |
1 |
0711-0808 |
● |
● |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 7100MM(71W)
(C)
L=95
|
1-82699-085-0 |
01 |
1 |
0809-1010 |
● |
|
| |
23 |
BRACKET; CABLE CLIP TO FRAME
EURO4 SPECIFICATION<NT4>
(C)
L=95
|
1-82699-085-0 |
01 |
1 |
0809-1010 |
|
● |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 6300MM(63W)
EURO2 SPECIFICATION<NT2>
(C)
L=95
|
1-82699-085-0 |
01 |
1 |
0809-1010 |
|
● |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 7100MM(71W)
(C)
L=95
|
1-82699-085-0 |
01 |
1 |
1011- |
● |
|
| |
23 |
BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 6300MM(63W)
EURO2 SPECIFICATION<NT2>
(C)
L=95
|
1-82699-085-0 |
01 |
1 |
1011- |
|
● |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W)
EURO4 SPECIFICATION<NT4>
(C)
L=95
|
1-82699-085-0 |
01 |
1 |
1011- |
|
● |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
(A)
|
8-98044-882-0 |
01 |
1 |
0710- |
● |
● |
| |
24 |
BOLT; BRKT TO FRAME
WHEEL BASE 7100MM(71W)
EURO2 SPECIFICATION<NT2>
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
1002- |
|
● |
| |
24 |
BOLT; BRKT TO FRAME
WHEEL BASE 5000MM(50W),WHEEL BASE 6300MM(63W)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0809- |
|
● |
| |
24 |
BOLT; BRKT TO FRAME
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
0710-0710 |
● |
● |
| |
24 |
BOLT; BRKT TO FRAME
WHEEL BASE 7100MM(71W)
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
0710-0710 |
● |
● |
| |
24 |
BOLT; BRKT TO FRAME
M8X30 FLANGE
|
0-28650-830-0 |
03 |
1 |
0711-1105 |
● |
● |
| |
24 |
BOLT; BRKT TO FRAME
ZF9S1110 M/T(Y5E)
M8X30 FLANGE
|
0-28650-830-0 |
03 |
1 |
1106- |
● |
|
| |
24 |
BOLT; BRKT TO FRAME
M8X30 FLANGE
|
0-28650-830-0 |
03 |
1 |
1106- |
|
● |
| |
24 |
BOLT; BRKT TO FRAME
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0710-0710 |
● |
● |
| |
24 |
BOLT; BRKT TO FRAME
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
0711-0808 |
● |
● |
| |
24 |
BOLT; BRKT TO FRAME
WHEEL BASE 7100MM(71W)
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
0809-0912 |
● |
|
| |
24 |
BOLT; BRKT TO FRAME
WHEEL BASE 5000MM(50W),WHEEL BASE 6300MM(63W)
EURO2 SPECIFICATION<NT2>
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
0809-0912 |
|
● |
| |
24 |
BOLT; BRKT TO FRAME
WHEEL BASE 6300MM(63W),WHEEL BASE 7100MM(71W)
EURO4 SPECIFICATION<NT4>
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
0809-0912 |
|
● |
| |
24 |
BOLT; BRKT TO FRAME
WHEEL BASE 7100MM(71W)
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
1001- |
● |
|
| |
24 |
BOLT; BRKT TO FRAME
WHEEL BASE 5000MM(50W),WHEEL BASE 6300MM(63W)
EURO2 SPECIFICATION<NT2>
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
1001- |
|
● |
| |
24 |
BOLT; BRKT TO FRAME
WHEEL BASE 7100MM(71W)
EURO4 SPECIFICATION<NT4>
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
1001- |
|
● |
| |
28 |
NUT; BRKT TO FRAME
WHEEL BASE 6300MM(63W)
EURO4 SPECIFICATION<NT4>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0809-1010 |
|
● |
| |
28 |
NUT; BRKT TO FRAME
EURO2 SPECIFICATION<NT2>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0809-1010 |
|
● |
| |
28 |
NUT; BRKT TO FRAME
EURO2 SPECIFICATION<NT2>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
1011- |
|
● |
| |
28 |
NUT; BRKT TO FRAME
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0710-0710 |
● |
● |
| |
28 |
NUT; BRKT TO FRAME
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0710-0710 |
● |
● |
| |
28 |
NUT; BRKT TO FRAME
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0710-0710 |
● |
● |
| |
28 |
NUT; BRKT TO FRAME
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0711-0712 |
● |
● |
| |
28 |
NUT; BRKT TO FRAME
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0711-0712 |
● |
● |
| |
28 |
NUT; BRKT TO FRAME
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0801-0808 |
|
● |
| |
28 |
NUT; BRKT TO FRAME
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0801-0808 |
|
● |
| |
28 |
NUT; BRKT TO FRAME
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0809-1111 |
● |
● |
| |
28 |
NUT; BRKT TO FRAME
WHEEL BASE 7100MM(71W)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0809-1111 |
● |
|
| |
28 |
NUT; BRKT TO FRAME
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W)
AUSTRALIA EQUIPMENT(B13)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0809-1111 |
|
● |
| |
28 |
NUT; BRKT TO FRAME
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
1112- |
● |
● |
| |
28 |
NUT; BRKT TO FRAME
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
1112- |
● |
● |
| |
28 |
NUT; BRKT TO FRAME
WHEEL BASE 7100MM(71W)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
1112- |
● |
|
| |
28 |
NUT; BRKT TO FRAME
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W)
AUSTRALIA EQUIPMENT(B13)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
1112- |
|
● |
| |
28 |
NUT; BRKT TO FRAME
WHEEL BASE 7100MM(71W)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0710-0710 |
● |
● |
| |
28 |
NUT; BRKT TO FRAME
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
0711- |
● |
● |
| |
33 |
CAP; INSULATOR
|
1-82699-431-0 |
01 |
1 |
0710- |
● |
● |
| |
36 |
FUSIBLE LINK; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY
115E41L<8MA>
|
8-97615-498-1 |
01 |
1 |
0710-0710 |
● |
● |
| |
36 |
FUSIBLE LINK; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
|
8-97615-498-1 |
01 |
1 |
0710-0808 |
● |
● |
| |
36 |
FUSIBLE LINK; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
|
8-97615-498-1 |
01 |
1 |
0809-1001 |
● |
|
| |
36 |
FUSIBLE LINK; BATTERY
AUSTRALIA EQUIPMENT(B13)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY
115E41L<8MA>
MANUAL TRANSMISSION<X9C>
|
8-97615-498-1 |
01 |
1 |
0809-1001 |
|
● |
| |
36 |
FUSIBLE LINK; BATTERY
WHEEL BASE 5000MM(50W),WHEEL BASE 6300MM(63W)
EURO2 SPECIFICATION<NT2>
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY
115E41L<8MA>
|
8-97615-498-1 |
01 |
1 |
0809-1001 |
|
● |
| |
36 |
FUSIBLE LINK; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
|
8-97615-498-1 |
01 |
1 |
1002-1502 |
● |
|
| |
36 |
FUSIBLE LINK; BATTERY
AUSTRALIA EQUIPMENT(B13)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY
115E41L<8MA>
MANUAL TRANSMISSION<X9C>
|
8-97615-498-1 |
01 |
1 |
1002-1502 |
|
● |
| |
36 |
FUSIBLE LINK; BATTERY
EURO2 SPECIFICATION<NT2>
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY
115E41L<8MA>
|
8-97615-498-1 |
01 |
1 |
1002-1502 |
|
● |
| |
36 |
FUSIBLE LINK; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
|
8-98295-762-0 |
01 |
1 |
1503- |
● |
|
| |
36 |
FUSIBLE LINK; BATTERY
AUSTRALIA EQUIPMENT(B13)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY
115E41L<8MA>
MANUAL TRANSMISSION<X9C>
|
8-98295-762-0 |
01 |
1 |
1503- |
|
● |
| |
36 |
FUSIBLE LINK; BATTERY
EURO2 SPECIFICATION<NT2>
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY
115E41L<8MA>
|
8-98295-762-0 |
01 |
1 |
1503- |
|
● |
| |
44 |
NUT; BRKT
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
0710-0804 |
● |
● |
| |
44 |
NUT; BRKT
M10 FLANGE
|
0-91180-210-0 |
01 |
1 |
0805- |
● |
● |
| |
54 |
CLIP; BAND,BATTERY CABLE
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY
115E41L<8MA>
L=175
|
1-09707-176-1 |
01 |
1 |
0710-0710 |
● |
● |
| |
54 |
CLIP; BAND,BATTERY CABLE
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
L=175
|
1-09707-176-1 |
01 |
1 |
0710-0808 |
● |
● |
| |
54 |
CLIP; BAND,BATTERY CABLE
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
L=175
|
1-09707-176-1 |
01 |
1 |
0809-1001 |
● |
|
| |
54 |
CLIP; BAND,BATTERY CABLE
AUSTRALIA EQUIPMENT(B13)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY
115E41L<8MA>
MANUAL TRANSMISSION<X9C>
L=175
|
1-09707-176-1 |
01 |
1 |
0809-1001 |
|
● |
| |
54 |
CLIP; BAND,BATTERY CABLE
WHEEL BASE 5000MM(50W),WHEEL BASE 6300MM(63W)
EURO2 SPECIFICATION<NT2>
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY
115E41L<8MA>
L=175
|
1-09707-176-1 |
01 |
1 |
0809-1001 |
|
● |
| |
54 |
CLIP; BAND,BATTERY CABLE
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
L=175
|
1-09707-176-1 |
01 |
1 |
1002-1004 |
● |
|
| |
54 |
CLIP; BAND,BATTERY CABLE
AUSTRALIA EQUIPMENT(B13)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY
115E41L<8MA>
MANUAL TRANSMISSION<X9C>
L=175
|
1-09707-176-1 |
01 |
1 |
1002-1004 |
|
● |
| |
54 |
CLIP; BAND,BATTERY CABLE
EURO2 SPECIFICATION<NT2>
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY
115E41L<8MA>
L=175
|
1-09707-176-1 |
01 |
1 |
1002-1004 |
|
● |
| |
61 |
BRACKET; BATTERY CABLE
|
8-98051-379-1 |
01 |
1 |
0710- |
● |
● |
| |
79 |
CLIP; BATTERY CABLE
WHEEL BASE 5000MM(50W)
EURO2 SPECIFICATION<NT2>
(B)
ID=19 L=40
|
0-95235-876-0 |
01 |
1 |
0809- |
|
● |
| |
79 |
CLIP; BATTERY CABLE
WHEEL BASE 5000MM(50W)
EURO2 SPECIFICATION<NT2>
(E)
ID=19 L=24 H=21
|
1-09700-109-1 |
01 |
1 |
0809-1010 |
|
● |
| |
79 |
CLIP; BATTERY CABLE
WHEEL BASE 6300MM(63W)
EURO4 SPECIFICATION<NT4>
(E)
ID=19 L=24 H=21
|
1-09700-109-1 |
01 |
1 |
0809-1010 |
|
● |
| |
79 |
CLIP; BATTERY CABLE
WHEEL BASE 5000MM(50W)
EURO2 SPECIFICATION<NT2>
(E)
ID=19 L=24 H=21
|
1-09700-109-1 |
01 |
1 |
1011- |
|
● |
| |
79 |
CLIP; BATTERY CABLE
WHEEL BASE 6300MM(63W)
EURO2 SPECIFICATION<NT2>
(B)
ID=21 L=24
|
8-98019-191-0 |
02 |
1 |
0809-1001 |
|
● |
| |
79 |
CLIP; BATTERY CABLE
WHEEL BASE 6300MM(63W),WHEEL BASE 7100MM(71W)
EURO2 SPECIFICATION<NT2>
(B)
ID=21 L=24
|
8-98019-191-0 |
02 |
1 |
1002- |
|
● |
| |
79 |
CLIP; BATTERY CABLE
(B)
ID=21 L=24
|
8-98019-191-0 |
01 |
1 |
0803-0808 |
● |
● |
| |
79 |
CLIP; BATTERY CABLE
(B)
ID=21 L=24
|
8-98019-191-0 |
01 |
1 |
0809- |
● |
|
| |
79 |
CLIP; BATTERY CABLE
EURO4 SPECIFICATION<NT4>
(B)
ID=21 L=24
|
8-98019-191-0 |
01 |
1 |
0809- |
|
● |
| |
79 |
CLIP; BATTERY CABLE
(B)
ID=21 L=24
|
8-98019-191-0 |
02 |
1 |
0710-0710 |
● |
● |
| |
79 |
CLIP; BATTERY CABLE
(B)
ID=21 L=24
|
8-98019-191-0 |
03 |
1 |
0711-1105 |
● |
● |
| |
79 |
CLIP; BATTERY CABLE
ZF9S1110 M/T(Y5E)
(B)
ID=21 L=24
|
8-98019-191-0 |
03 |
1 |
1106- |
● |
|
| |
79 |
CLIP; BATTERY CABLE
(B)
ID=21 L=24
|
8-98019-191-0 |
03 |
1 |
1106- |
|
● |
| |
79 |
CLIP; BATTERY CABLE
(E)
ID=19 L=24 H=21
|
1-09700-109-1 |
01 |
1 |
0710-0712 |
● |
● |
| |
79 |
CLIP; BATTERY CABLE
(E)
ID=13-18 L=26
|
1-09709-293-0 |
02 |
1 |
0801- |
● |
● |
| |
79 |
CLIP; BATTERY CABLE
(A)
ID=16 L=28
|
1-09700-872-0 |
01 |
1 |
0710-1004 |
● |
● |
| |
79 |
CLIP; BATTERY CABLE
(A)
ID=15 L=28
|
1-09701-216-0 |
01 |
1 |
1005- |
● |
● |
| |
79 |
CLIP; BATTERY CABLE
(C)
ID=21 L=24
|
8-98019-191-0 |
01 |
1 |
0710-0710 |
● |
● |
| |
79 |
CLIP; BATTERY CABLE
(D)
ID=20 L=50
|
9-09917-430-0 |
01 |
1 |
0710- |
● |
● |
| |
80 |
BOLT; BATTERY CABLE CLIP
WHEEL BASE 6300MM(63W)
EURO4 SPECIFICATION<NT4>
(B)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0809-1010 |
|
● |
| |
80 |
BOLT; BATTERY CABLE CLIP
EURO2 SPECIFICATION<NT2>
(B)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0809-1010 |
|
● |
| |
80 |
BOLT; BATTERY CABLE CLIP
EURO2 SPECIFICATION<NT2>
(B)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
1011- |
|
● |
| |
80 |
BOLT; BATTERY CABLE CLIP
(B)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0710-0710 |
● |
● |
| |
80 |
BOLT; BATTERY CABLE CLIP
(B)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0711-0808 |
● |
● |
| |
80 |
BOLT; BATTERY CABLE CLIP
WHEEL BASE 7100MM(71W)
(B)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0809- |
● |
|
| |
80 |
BOLT; BATTERY CABLE CLIP
WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W)
AUSTRALIA EQUIPMENT(B13)
(B)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0809- |
|
● |
| |
80 |
BOLT; BATTERY CABLE CLIP
(A)
M8X16 FLANGE
|
0-28050-816-0 |
01 |
1 |
0710- |
● |
● |
| |
80 |
BOLT; BATTERY CABLE CLIP
(B)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0710-0710 |
|
● |
| |
80 |
BOLT; BATTERY CABLE CLIP
(B)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0710-0710 |
|
● |
| |
80 |
BOLT; BATTERY CABLE CLIP
(B)
M8X25 FLANGE
|
0-28650-825-0 |
03 |
1 |
0711-1105 |
● |
● |
| |
80 |
BOLT; BATTERY CABLE CLIP
ZF9S1110 M/T(Y5E)
(B)
M8X25 FLANGE
|
0-28650-825-0 |
03 |
1 |
1106- |
● |
|
| |
80 |
BOLT; BATTERY CABLE CLIP
(B)
M8X25 FLANGE
|
0-28650-825-0 |
03 |
1 |
1106- |
|
● |
| |
225 |
BLOCK; TERMINAL
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY
115E41L<8MA>
|
8-98029-689-0 |
01 |
1 |
0710-0710 |
● |
● |
| |
225 |
BLOCK; TERMINAL
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
|
8-98029-689-0 |
01 |
1 |
0710-0808 |
● |
● |
| |
225 |
BLOCK; TERMINAL
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
|
8-98029-689-0 |
01 |
1 |
0809-1001 |
● |
|
| |
225 |
BLOCK; TERMINAL
AUSTRALIA EQUIPMENT(B13)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY
115E41L<8MA>
MANUAL TRANSMISSION<X9C>
|
8-98029-689-0 |
01 |
1 |
0809-1001 |
|
● |
| |
225 |
BLOCK; TERMINAL
WHEEL BASE 5000MM(50W),WHEEL BASE 6300MM(63W)
EURO2 SPECIFICATION<NT2>
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY
115E41L<8MA>
|
8-98029-689-0 |
01 |
1 |
0809-1001 |
|
● |
| |
225 |
BLOCK; TERMINAL
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
|
8-98029-689-0 |
01 |
1 |
1002-1502 |
● |
|
| |
225 |
BLOCK; TERMINAL
AUSTRALIA EQUIPMENT(B13)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY
115E41L<8MA>
MANUAL TRANSMISSION<X9C>
|
8-98029-689-0 |
01 |
1 |
1002-1502 |
|
● |
| |
225 |
BLOCK; TERMINAL
EURO2 SPECIFICATION<NT2>
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY
115E41L<8MA>
|
8-98029-689-0 |
01 |
1 |
1002-1502 |
|
● |
| |
225 |
BLOCK; TERMINAL
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
|
8-98294-524-0 |
01 |
1 |
1503- |
● |
|
| |
225 |
BLOCK; TERMINAL
AUSTRALIA EQUIPMENT(B13)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY
115E41L<8MA>
MANUAL TRANSMISSION<X9C>
|
8-98294-524-0 |
01 |
1 |
1503- |
|
● |
| |
225 |
BLOCK; TERMINAL
EURO2 SPECIFICATION<NT2>
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY
115E41L<8MA>
|
8-98294-524-0 |
01 |
1 |
1503- |
|
● |
| |
226 |
NUT; FUSIBLE LINK
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY
115E41L<8MA>
M6 W/LK WASHER
|
8-94424-179-0 |
01 |
1 |
0710-0710 |
● |
● |
| |
226 |
NUT; FUSIBLE LINK
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
M6 W/LK WASHER
|
8-94424-179-0 |
01 |
1 |
0710-0808 |
● |
● |
| |
226 |
NUT; FUSIBLE LINK
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
M6 W/LK WASHER
|
8-94424-179-0 |
01 |
1 |
0809-1001 |
● |
|
| |
226 |
NUT; FUSIBLE LINK
AUSTRALIA EQUIPMENT(B13)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY
115E41L<8MA>
MANUAL TRANSMISSION<X9C>
M6 W/LK WASHER
|
8-94424-179-0 |
01 |
1 |
0809-1001 |
|
● |
| |
226 |
NUT; FUSIBLE LINK
WHEEL BASE 5000MM(50W),WHEEL BASE 6300MM(63W)
EURO2 SPECIFICATION<NT2>
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY
115E41L<8MA>
M6 W/LK WASHER
|
8-94424-179-0 |
01 |
1 |
0809-1001 |
|
● |
| |
226 |
NUT; FUSIBLE LINK
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
M6 W/LK WASHER
|
8-94424-179-0 |
01 |
1 |
1002-1502 |
● |
|
| |
226 |
NUT; FUSIBLE LINK
AUSTRALIA EQUIPMENT(B13)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY
115E41L<8MA>
MANUAL TRANSMISSION<X9C>
M6 W/LK WASHER
|
8-94424-179-0 |
01 |
1 |
1002-1502 |
|
● |
| |
226 |
NUT; FUSIBLE LINK
EURO2 SPECIFICATION<NT2>
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY
115E41L<8MA>
M6 W/LK WASHER
|
8-94424-179-0 |
01 |
1 |
1002-1502 |
|
● |
| |
226 |
NUT; FUSIBLE LINK
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
M6 FLANGE STAINLESS
|
8-98297-112-0 |
01 |
1 |
1503- |
● |
|
| |
226 |
NUT; FUSIBLE LINK
AUSTRALIA EQUIPMENT(B13)
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY
115E41L<8MA>
MANUAL TRANSMISSION<X9C>
M6 FLANGE STAINLESS
|
8-98297-112-0 |
01 |
1 |
1503- |
|
● |
| |
226 |
NUT; FUSIBLE LINK
EURO2 SPECIFICATION<NT2>
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY
115E41L<8MA>
M6 FLANGE STAINLESS
|
8-98297-112-0 |
01 |
1 |
1503- |
|
● |
