Sayfa 0-42 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11105 - FVM(RHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-42 - FUEL PUMP AND PIPE ▶

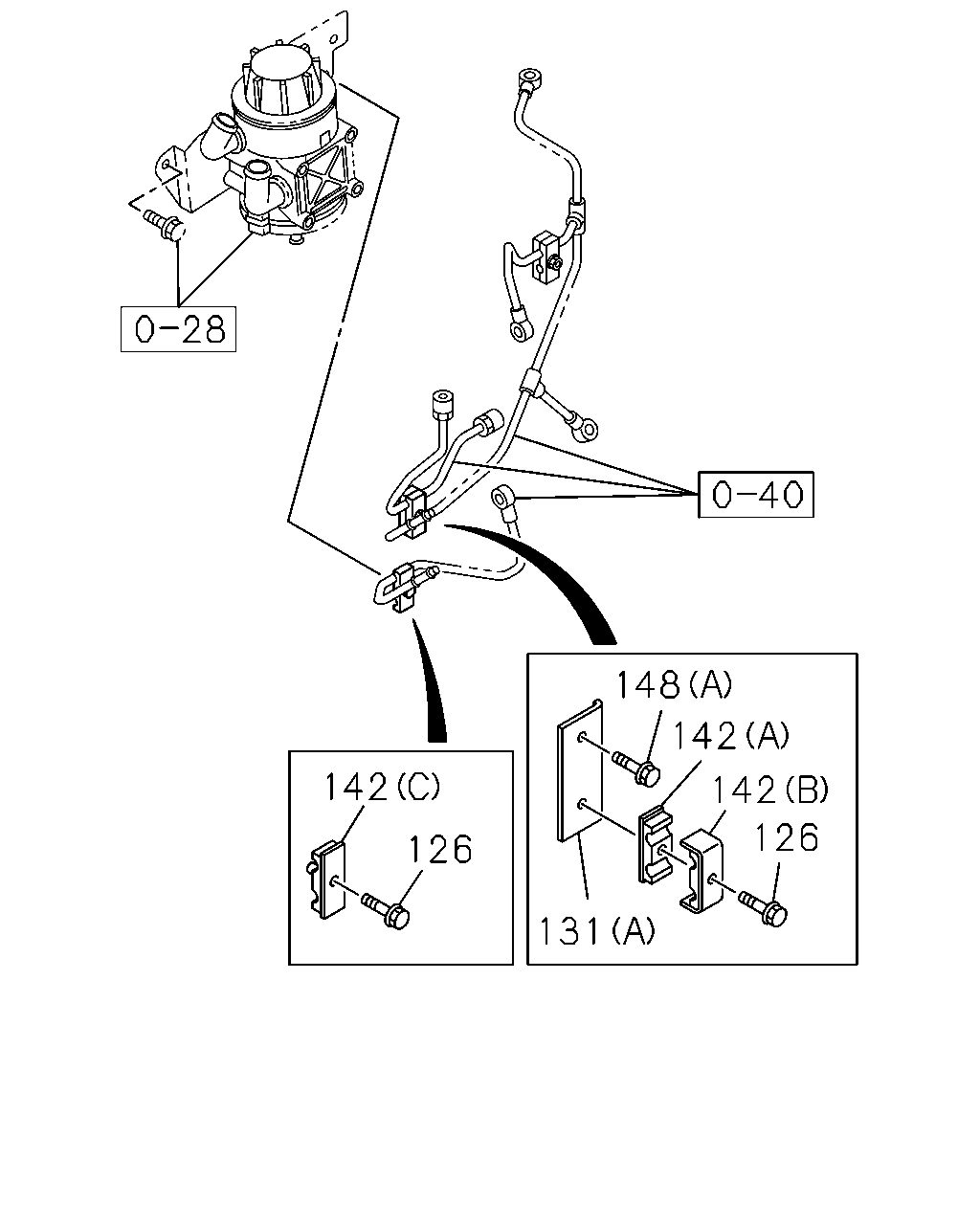

0-42 — FUEL PUMP AND PIPE (#33943) — 58 parça

142 142 126 142 142 126 131 148 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
126	BOLT; CLIP,FUEL PIPE EURO2 SPECIFICATION<NT2> M6X35 FLANGE	0-28650-635-0	01	1	0911-	●
126	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28650-635-0	01	1	0911-		●
126	BOLT; CLIP,FUEL PIPE M10X25 FLANGE	0-28151-025-0	01	1	0710-0808	●
126	BOLT; CLIP,FUEL PIPE EURO4 SPECIFICATION<NT4> M10X25 FLANGE	0-28151-025-0	01	1	0809-	●
126	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28650-635-0	03	1	0710-0808	●
126	BOLT; CLIP,FUEL PIPE EURO4 SPECIFICATION<NT4> M6X35 FLANGE	0-28650-635-0	03	1	0809-0809	●
126	BOLT; CLIP,FUEL PIPE EURO4 SPECIFICATION<NT4> M6X35 FLANGE	0-28650-635-0	02	1	0809-	●
126	BOLT; CLIP,FUEL PIPE EURO2 SPECIFICATION<NT2> M6X35 FLANGE	0-28650-635-0	02	1	0809-	●
126	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28650-635-0	02	1	0809-		●
131	BRACKET; FUEL PIPE CLIP EURO2 SPECIFICATION<NT2> (B)	8-98059-806-0	01	1	0809-	●
131	BRACKET; FUEL PIPE CLIP (B)	8-98059-806-0	01	1	0809-		●
131	BRACKET; FUEL PIPE CLIP (A)	1-15419-391-1	01	1	0710-0808	●
131	BRACKET; FUEL PIPE CLIP EURO4 SPECIFICATION<NT4> (A)	1-15419-391-1	01	1	0809-	●
142	CLIP; FUEL PIPE EURO2 SPECIFICATION<NT2> (D) ID=9 & 9 L=25	1-09701-180-0	01	1	0809-	●
142	CLIP; FUEL PIPE (D) ID=9 & 9 L=25	1-09701-180-0	01	1	0809-		●
142	CLIP; FUEL PIPE (C) L=48	5-09709-103-0	01	1	0710-0808	●
142	CLIP; FUEL PIPE EURO4 SPECIFICATION<NT4> (C) L=48	5-09709-103-0	01	1	0809-	●
142	CLIP; FUEL PIPE EURO2 SPECIFICATION<NT2> (E) ID=9 & 9 L=25	8-94393-280-3	01	1	0809-	●
142	CLIP; FUEL PIPE (E) ID=9 & 9 L=25	8-94393-280-3	01	1	0809-		●
142	CLIP; FUEL PIPE (B) ID=7 & 9 L=25	8-98000-010-2	01	1	0710-0808	●
142	CLIP; FUEL PIPE (B) ID=7 & 9 L=25	8-98000-010-2	01	1	0809-	●	●
142	CLIP; FUEL PIPE (A) ID=7 & 9 L=25	8-98000-011-2	01	1	0710-0808	●
142	CLIP; FUEL PIPE (A) ID=7 & 9 L=25	8-98000-011-2	01	1	0809-	●	●
148	BOLT; BRKT EURO2 SPECIFICATION<NT2> (B) M10X16 FLANGE	0-28151-016-0	01	1	0809-	●
148	BOLT; BRKT (B) M10X16 FLANGE	0-28151-016-0	01	1	0809-		●
148	BOLT; BRKT EURO2 SPECIFICATION<NT2> (C) M10X25 FLANGE	0-28151-025-0	01	1	0809-	●
148	BOLT; BRKT (C) M10X25 FLANGE	0-28151-025-0	01	1	0809-		●
148	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	01	1	0710-0808	●
148	BOLT; BRKT EURO4 SPECIFICATION<NT4> (A) M8X12 FLANGE	0-28050-812-0	01	1	0809-	●

148 142 142 142 126 126 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
126	BOLT; CLIP,FUEL PIPE EURO2 SPECIFICATION<NT2> M6X35 FLANGE	0-28650-635-0	01	1	0911-	●
126	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28650-635-0	01	1	0911-		●
126	BOLT; CLIP,FUEL PIPE M10X25 FLANGE	0-28151-025-0	01	1	0710-0808	●
126	BOLT; CLIP,FUEL PIPE EURO4 SPECIFICATION<NT4> M10X25 FLANGE	0-28151-025-0	01	1	0809-	●
126	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28650-635-0	03	1	0710-0808	●
126	BOLT; CLIP,FUEL PIPE EURO4 SPECIFICATION<NT4> M6X35 FLANGE	0-28650-635-0	03	1	0809-0809	●
126	BOLT; CLIP,FUEL PIPE EURO4 SPECIFICATION<NT4> M6X35 FLANGE	0-28650-635-0	02	1	0809-	●
126	BOLT; CLIP,FUEL PIPE EURO2 SPECIFICATION<NT2> M6X35 FLANGE	0-28650-635-0	02	1	0809-	●
126	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28650-635-0	02	1	0809-		●
131	BRACKET; FUEL PIPE CLIP EURO2 SPECIFICATION<NT2> (B)	8-98059-806-0	01	1	0809-	●
131	BRACKET; FUEL PIPE CLIP (B)	8-98059-806-0	01	1	0809-		●
131	BRACKET; FUEL PIPE CLIP (A)	1-15419-391-1	01	1	0710-0808	●
131	BRACKET; FUEL PIPE CLIP EURO4 SPECIFICATION<NT4> (A)	1-15419-391-1	01	1	0809-	●
142	CLIP; FUEL PIPE EURO2 SPECIFICATION<NT2> (D) ID=9 & 9 L=25	1-09701-180-0	01	1	0809-	●
142	CLIP; FUEL PIPE (D) ID=9 & 9 L=25	1-09701-180-0	01	1	0809-		●
142	CLIP; FUEL PIPE (C) L=48	5-09709-103-0	01	1	0710-0808	●
142	CLIP; FUEL PIPE EURO4 SPECIFICATION<NT4> (C) L=48	5-09709-103-0	01	1	0809-	●
142	CLIP; FUEL PIPE EURO2 SPECIFICATION<NT2> (E) ID=9 & 9 L=25	8-94393-280-3	01	1	0809-	●
142	CLIP; FUEL PIPE (E) ID=9 & 9 L=25	8-94393-280-3	01	1	0809-		●
142	CLIP; FUEL PIPE (B) ID=7 & 9 L=25	8-98000-010-2	01	1	0710-0808	●
142	CLIP; FUEL PIPE (B) ID=7 & 9 L=25	8-98000-010-2	01	1	0809-	●	●
142	CLIP; FUEL PIPE (A) ID=7 & 9 L=25	8-98000-011-2	01	1	0710-0808	●
142	CLIP; FUEL PIPE (A) ID=7 & 9 L=25	8-98000-011-2	01	1	0809-	●	●
148	BOLT; BRKT EURO2 SPECIFICATION<NT2> (B) M10X16 FLANGE	0-28151-016-0	01	1	0809-	●
148	BOLT; BRKT (B) M10X16 FLANGE	0-28151-016-0	01	1	0809-		●
148	BOLT; BRKT EURO2 SPECIFICATION<NT2> (C) M10X25 FLANGE	0-28151-025-0	01	1	0809-	●
148	BOLT; BRKT (C) M10X25 FLANGE	0-28151-025-0	01	1	0809-		●
148	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	01	1	0710-0808	●
148	BOLT; BRKT EURO4 SPECIFICATION<NT4> (A) M8X12 FLANGE	0-28050-812-0	01	1	0809-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
