◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11105 - FVM(RHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-36 - TURBOCHARGER SYSTEM ▶
0-36 — TURBOCHARGER SYSTEM (#33938) — 273 parça

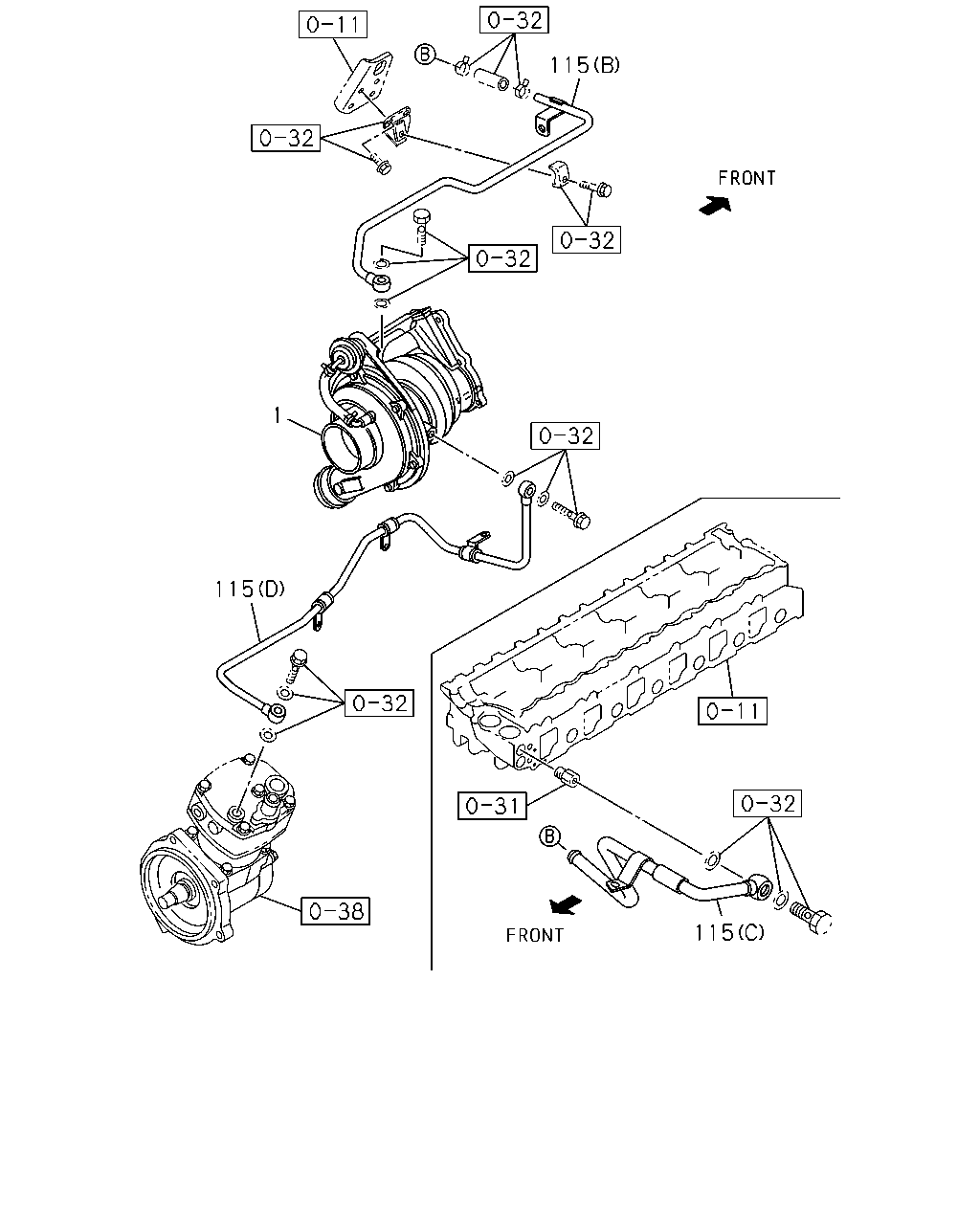

çizim 179139
115 1 115 115
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> 		8-98153-480-0 01 1 0911- ●
1 TURBOCHARGER ASM
HIGHLAND ZONE PACKAGE<W02> 		8-98153-480-0 01 1 0911- ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> 		8-98078-779-1 01 1 0809-0910 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0809-0910 ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> EXC. HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0911- ●
1 TURBOCHARGER ASM
EXC. HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0911- ●
1 TURBOCHARGER ASM 8-97604-975-7 01 1 0710-0808 ●
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-97604-975-9 01 1 0809- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (B) 		8-94392-950-0 01 1 0809- ●
115 PIPE; WATER,TURBOCHARGER OUT
(B) 		8-94392-950-0 01 1 0809- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (C) 		8-94395-454-4 01 1 0809- ●
115 PIPE; WATER,TURBOCHARGER OUT
(C) 		8-94395-454-4 01 1 0809- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (D) 		8-97618-807-0 01 1 0809- ●
115 PIPE; WATER,TURBOCHARGER OUT
(D) 		8-97618-807-0 01 1 0809- ●
115 PIPE; WATER,TURBOCHARGER OUT
(A) 		8-97610-087-2 01 1 0710-0808 ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> (A) 		8-97610-087-2 01 1 0809- ●

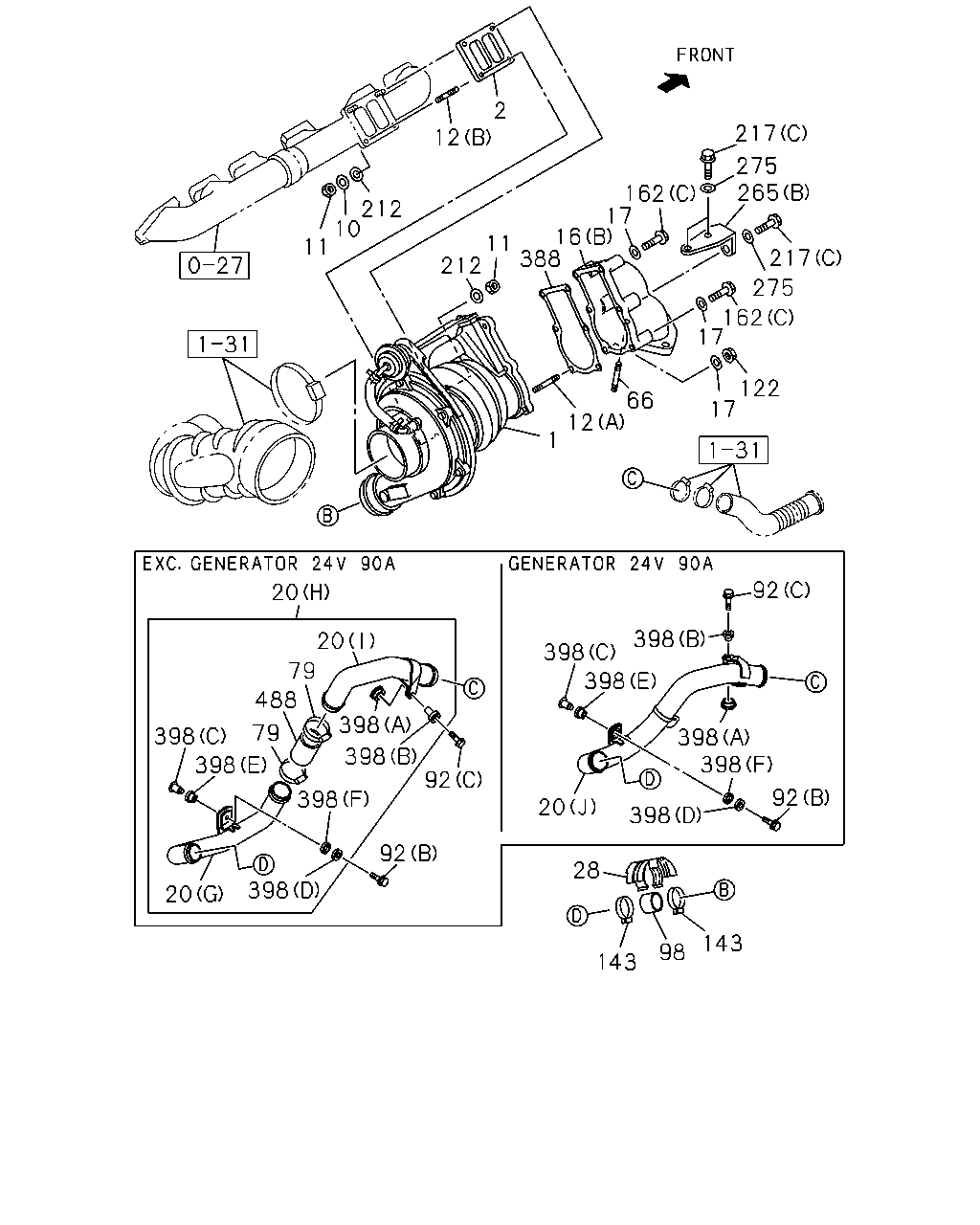

çizim 179154
2 12 212 10 11 217 275 265 217 275 162 17 122 17 162 17 16 388 11 212 66 12 1 92 398 398 398 398 398 92 20 398 28 143 143 98 20 20 79 488 398 398 92 92 398 398 398 398 20 79
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> 		8-98153-480-0 01 1 0911- ●
1 TURBOCHARGER ASM
HIGHLAND ZONE PACKAGE<W02> 		8-98153-480-0 01 1 0911- ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> 		8-98078-779-1 01 1 0809-0910 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0809-0910 ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> EXC. HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0911- ●
1 TURBOCHARGER ASM
EXC. HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0911- ●
1 TURBOCHARGER ASM 8-97604-975-7 01 1 0710-0808 ●
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-97604-975-9 01 1 0809- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-044-0 01 1 0809- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-044-0 01 1 0809- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97024-124-0 01 1 0710-0808 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4> 		8-97024-124-0 01 1 0809- ●
10 WASHER; LK,TURBOCHARGER
EURO2 SPECIFICATION<NT2> T=2.2 		1-09556-015-0 02 1 0809- ●
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 02 1 0809- ●
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 04 1 0710-0808 ●
10 WASHER; LK,TURBOCHARGER
EURO4 SPECIFICATION<NT4> T=2.2 		1-09556-015-0 04 1 0809- ●
11 NUT; TURBOCHARGER
EURO2 SPECIFICATION<NT2> M10 		1-09420-005-0 04 1 0809- ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 04 1 0809- ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (A) M8X25 		9-04130-825-0 01 1 0809- ●
12 STUD; TURBOCHARGER
(A) M8X25 		9-04130-825-0 01 1 0809- ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (B) M10X80 		9-04731-080-0 02 1 0809- ●
12 STUD; TURBOCHARGER
(B) M10X80 		9-04731-080-0 02 1 0809- ●
12 STUD; TURBOCHARGER
(C) M8X25 L=36 		8-94476-282-0 02 1 0710-0808 ●
12 STUD; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (C) M8X25 L=36 		8-94476-282-0 02 1 0809- ●
16 ADAPTER; EXH PIPE
EURO2 SPECIFICATION<NT2> (B) 		8-98069-083-0 01 1 0809- ●
16 ADAPTER; EXH PIPE
(B) 		8-98069-083-0 01 1 0809- ●
16 ADAPTER; EXH PIPE
(A) 		8-98018-241-1 01 1 0710-0808 ●
16 ADAPTER; EXH PIPE
EURO4 SPECIFICATION<NT4> (A) 		8-98018-241-1 01 1 0809- ●
17 WASHER; PL,ADAPTER
EURO2 SPECIFICATION<NT2> T=1.9 		5-09500-012-0 06 1 0809- ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 06 1 0809- ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 04 1 0710-0808 ●
17 WASHER; PL,ADAPTER
EURO4 SPECIFICATION<NT4> T=1.9 		5-09500-012-0 04 1 0809- ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) EURO2 SPECIFICATION<NT2> (J) 		8-98230-568-0 01 1 1405- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (G) 		8-97606-675-1 01 1 0809- ●
20 PIPE; INL,TURBOCHARGER OUT
(G) 		8-97606-675-1 01 1 0809- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (H) 		8-97618-726-2 01 1 0809-1408 ●
20 PIPE; INL,TURBOCHARGER OUT
(H) 		8-97618-726-2 01 1 0809-1408 ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (H) 		8-98251-577-0 01 1 1409- ●
20 PIPE; INL,TURBOCHARGER OUT
(H) 		8-98251-577-0 01 1 1409- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (I) 		8-97618-734-0 01 1 0809- ●
20 PIPE; INL,TURBOCHARGER OUT
(I) 		8-97618-734-0 01 1 0809- ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) 		8-98046-167-3 01 1 0710-0808 ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO4 SPECIFICATION<NT4> (A) 		8-98046-167-4 01 1 0809-1408 ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO4 SPECIFICATION<NT4> (A) 		8-98251-581-0 01 1 1409- ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) 		8-98046-168-1 01 1 0710-0808 ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO4 SPECIFICATION<NT4> (B) 		8-98046-168-1 01 1 0809- ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (C) 		8-98046-169-1 01 1 0710-0808 ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO4 SPECIFICATION<NT4> (C) 		8-98046-169-2 01 1 0809- ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (D) 		8-97617-214-2 01 1 0710-1408 ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (D) 		8-98251-580-0 01 1 1409- ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (E) 		8-97617-215-0 01 1 0710- ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (F) 		8-97617-216-0 01 1 0710- ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT
EURO2 SPECIFICATION<NT2> 		8-94393-182-0 01 1 0809- ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT 8-94393-182-0 01 1 0809- ●
66 STUD; EXH PIPE
EURO2 SPECIFICATION<NT2> M12X30 L=48 		8-98059-951-0 03 1 0809- ●
66 STUD; EXH PIPE
M12X30 L=48 		8-98059-951-0 03 1 0809- ●
79 CLIP; RUBBER HOSE
ID=58-76 		1-09707-203-0 02 1 0710-0808 ●
79 CLIP; RUBBER HOSE
ID=58-76 		1-09707-203-0 02 1 0809-0811 ● ●
79 CLIP; RUBBER HOSE
ID=58-79 		1-09707-136-0 02 1 0903- ● ●
92 BOLT; INL PIPE
(A) M8X30 FLANGE 		0-28650-830-0 03 1 0710-0808 ●
92 BOLT; INL PIPE
EURO4 SPECIFICATION<NT4> (A) M8X30 FLANGE 		0-28650-830-0 03 1 0809- ●
92 BOLT; INL PIPE
(B) M8X35 FLANGE 		0-28650-835-0 01 1 0710-0808 ●
92 BOLT; INL PIPE
(B) M8X35 FLANGE 		0-28650-835-0 01 1 0809- ● ●
92 BOLT; INL PIPE
(C) M8X40 FLANGE 		0-28650-840-0 01 1 0710-0808 ●
92 BOLT; INL PIPE
(C) M8X40 FLANGE 		0-28650-840-0 01 1 0809- ● ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET
EURO2 SPECIFICATION<NT2> ID=62 L=70 		1-09360-797-1 01 1 0809-1408 ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET
ID=62 L=70 		1-09360-797-1 01 1 0809-1408 ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET
EURO2 SPECIFICATION<NT2> ID=62 L=70 		8-98245-240-0 01 1 1409- ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET
ID=62 L=70 		8-98245-240-0 01 1 1409- ●
122 NUT; ADAPTER
EURO2 SPECIFICATION<NT2> M8 		1-09400-118-1 01 1 0809- ●
122 NUT; ADAPTER
M8 		1-09400-118-1 01 1 0809- ●
122 NUT; ADAPTER
M8 		1-09400-118-1 02 1 0710-0808 ●
122 NUT; ADAPTER
EURO4 SPECIFICATION<NT4> M8 		1-09400-118-1 02 1 0809- ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
EURO2 SPECIFICATION<NT2> ID=58-76 		1-09707-203-0 02 1 0809-0902 ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
ID=58-76 		1-09707-203-0 02 1 0809-0902 ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
EURO2 SPECIFICATION<NT2> ID=58-79 		8-94126-771-0 02 1 0903- ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
ID=58-79 		8-94126-771-0 02 1 0903- ●
162 BOLT; ADAPTER
EURO2 SPECIFICATION<NT2> (C) M8X57 		5-09000-275-0 05 1 0809- ●
162 BOLT; ADAPTER
(C) M8X57 		5-09000-275-0 05 1 0809- ●
162 BOLT; ADAPTER
(A) M10X60 FLANGE 		0-28051-060-0 01 1 0710-0808 ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (A) M10X60 FLANGE 		0-28051-060-0 01 1 0809- ●
162 BOLT; ADAPTER
(B) M8X60 		1-09000-464-0 02 1 0710-0808 ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (B) M8X60 		1-09000-464-0 02 1 0809-0910 ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (B) M8X60 		8-98158-604-0 02 1 0911- ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 0710-0808 ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 0809- ● ●
217 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (C) M12X30 		8-94394-324-0 03 1 0809- ●
217 BOLT; BRKT
(C) M12X30 		8-94394-324-0 03 1 0809- ●
217 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0808 ●
217 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE 		0-28650-820-0 01 1 0809- ●
217 BOLT; BRKT
(B) M10X25 FLANGE 		0-28751-025-0 01 1 0710-0808 ●
217 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (B) M10X25 FLANGE 		0-28751-025-0 01 1 0809- ●
265 BRACKET; EXH PIPE
(A) 		8-98260-415-0 01 1 0710-0808 ●
265 BRACKET; EXH PIPE
EURO4 SPECIFICATION<NT4> (A) 		8-98260-415-0 01 1 0809- ●
265 BRACKET; EXH PIPE
EURO2 SPECIFICATION<NT2> (B) 		8-94395-764-2 01 1 0809- ●
265 BRACKET; EXH PIPE
(B) 		8-94395-764-2 01 1 0809- ●
275 WASHER; PL
EURO2 SPECIFICATION<NT2> ID=12.2 		1-09503-008-0 03 1 0809- ●
275 WASHER; PL
ID=12.2 		1-09503-008-0 03 1 0809- ●
388 GASKET; EXH PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94394-248-2 01 1 0809- ●
388 GASKET; EXH PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94394-248-2 01 1 0809- ●
398 MOUNTING
(F) ID=19 OD=26 		8-94160-177-0 01 1 0710-0808 ●
398 MOUNTING
(F) ID=19 OD=26 		8-94160-177-0 01 1 0809- ● ●
398 MOUNTING
(C) OD=28 		8-94390-551-0 01 1 0710-0808 ●
398 MOUNTING
(C) OD=28 		8-94390-551-1 01 1 0809- ● ●
398 MOUNTING
(D) ID=13 OD=28 		8-94394-504-0 01 1 0710-0808 ●
398 MOUNTING
(D) ID=13 OD=28 		8-94394-504-0 01 1 0809- ● ●
398 MOUNTING
(E) OD=26 		8-94394-529-0 01 1 0710-0808 ●
398 MOUNTING
(E) OD=26 		8-94394-529-0 01 1 0809- ● ●
398 MOUNTING
(A) OD=32 		8-94395-766-0 01 1 0710-0808 ●
398 MOUNTING
(A) OD=32 		8-94395-766-0 01 1 0809- ● ●
398 MOUNTING
(B) OD=23 		8-97105-689-6 01 1 0710-0808 ●
398 MOUNTING
(B) OD=23 		8-97105-689-6 01 1 0809- ● ●
488 HOSE; RUBBER
EURO2 SPECIFICATION<NT2> ID=62 L=70 		1-09360-797-1 01 1 0809-1408 ●
488 HOSE; RUBBER
ID=62 L=70 		1-09360-797-1 01 1 0809-1408 ●
488 HOSE; RUBBER
EURO2 SPECIFICATION<NT2> ID=62 L=70 		8-98245-240-0 01 1 1409- ●
488 HOSE; RUBBER
ID=62 L=70 		8-98245-240-0 01 1 1409- ●
488 HOSE; RUBBER 8-98046-356-0 01 1 0710-0808 ●
488 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> 		8-98046-356-0 01 1 0809-1408 ●
488 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> 		8-98245-242-0 01 1 1409- ●

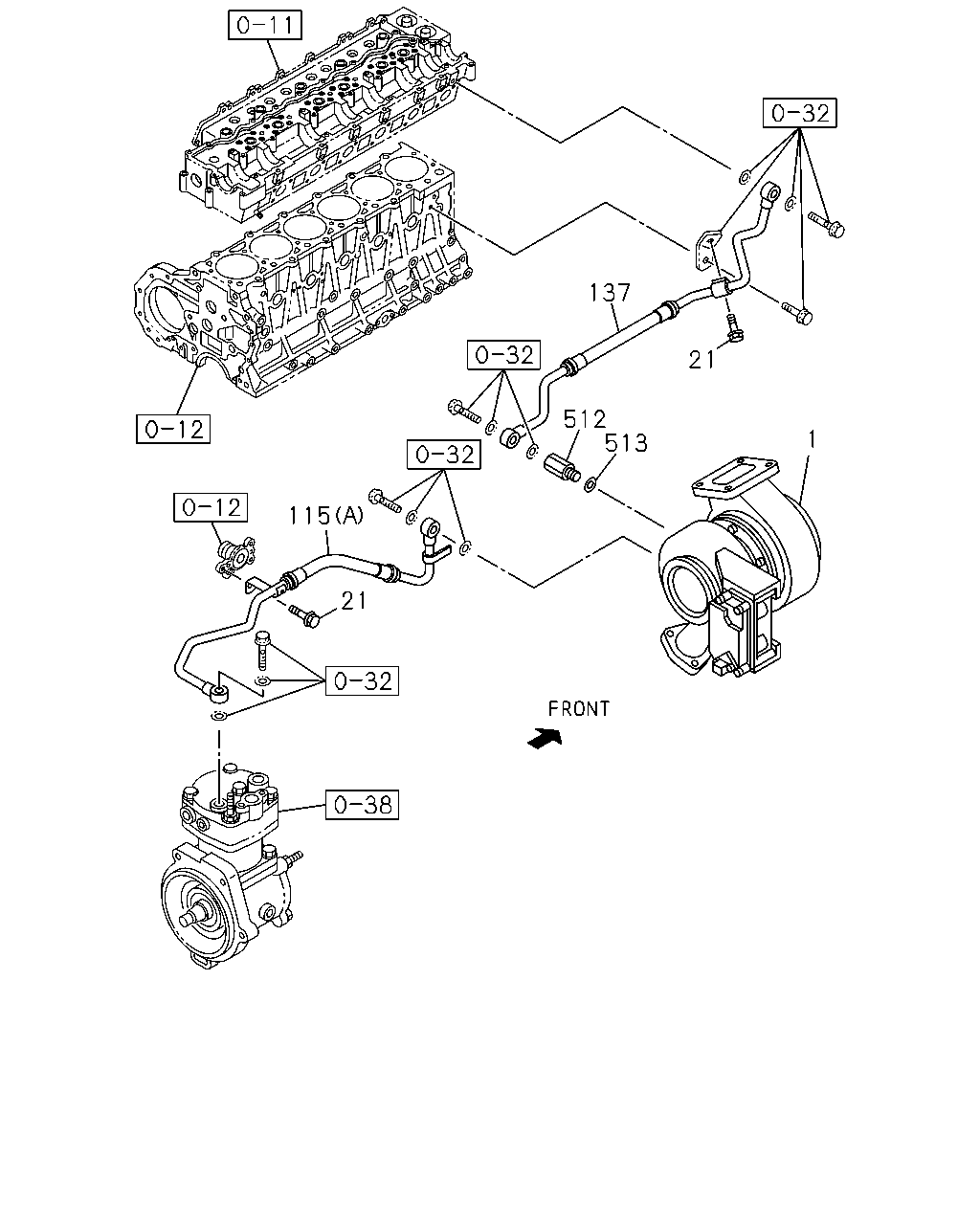

çizim 179216
137 21 512 513 1 115 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> 		8-98153-480-0 01 1 0911- ●
1 TURBOCHARGER ASM
HIGHLAND ZONE PACKAGE<W02> 		8-98153-480-0 01 1 0911- ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> 		8-98078-779-1 01 1 0809-0910 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0809-0910 ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> EXC. HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0911- ●
1 TURBOCHARGER ASM
EXC. HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0911- ●
1 TURBOCHARGER ASM 8-97604-975-7 01 1 0710-0808 ●
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-97604-975-9 01 1 0809- ●
21 BOLT; PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 0710-0808 ●
21 BOLT; PIPE
EURO4 SPECIFICATION<NT4> M8X16 FLANGE 		0-28050-816-0 02 1 0809- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (B) 		8-94392-950-0 01 1 0809- ●
115 PIPE; WATER,TURBOCHARGER OUT
(B) 		8-94392-950-0 01 1 0809- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (C) 		8-94395-454-4 01 1 0809- ●
115 PIPE; WATER,TURBOCHARGER OUT
(C) 		8-94395-454-4 01 1 0809- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (D) 		8-97618-807-0 01 1 0809- ●
115 PIPE; WATER,TURBOCHARGER OUT
(D) 		8-97618-807-0 01 1 0809- ●
115 PIPE; WATER,TURBOCHARGER OUT
(A) 		8-97610-087-2 01 1 0710-0808 ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> (A) 		8-97610-087-2 01 1 0809- ●
137 PIPE; WATER,TURBOCHARGER IN 8-98046-783-0 01 1 0710-0808 ●
137 PIPE; WATER,TURBOCHARGER IN
EURO4 SPECIFICATION<NT4> 		8-98046-783-0 01 1 0809- ●
512 CONNECTOR; TURBO 8-98031-856-0 01 1 0710-0808 ●
512 CONNECTOR; TURBO
EURO4 SPECIFICATION<NT4> 		8-98031-856-0 01 1 0809- ●
513 GASKET; CONNECTOR
ID=14.2 OD=19.2 		1-09630-085-0 01 1 0710-0808 ●
513 GASKET; CONNECTOR
EURO4 SPECIFICATION<NT4> ID=14.2 OD=19.2 		1-09630-085-0 01 1 0809-1312 ●
513 GASKET; CONNECTOR
EURO4 SPECIFICATION<NT4> ID=14.2 OD=19.2 		8-98251-345-0 01 1 1401- ●

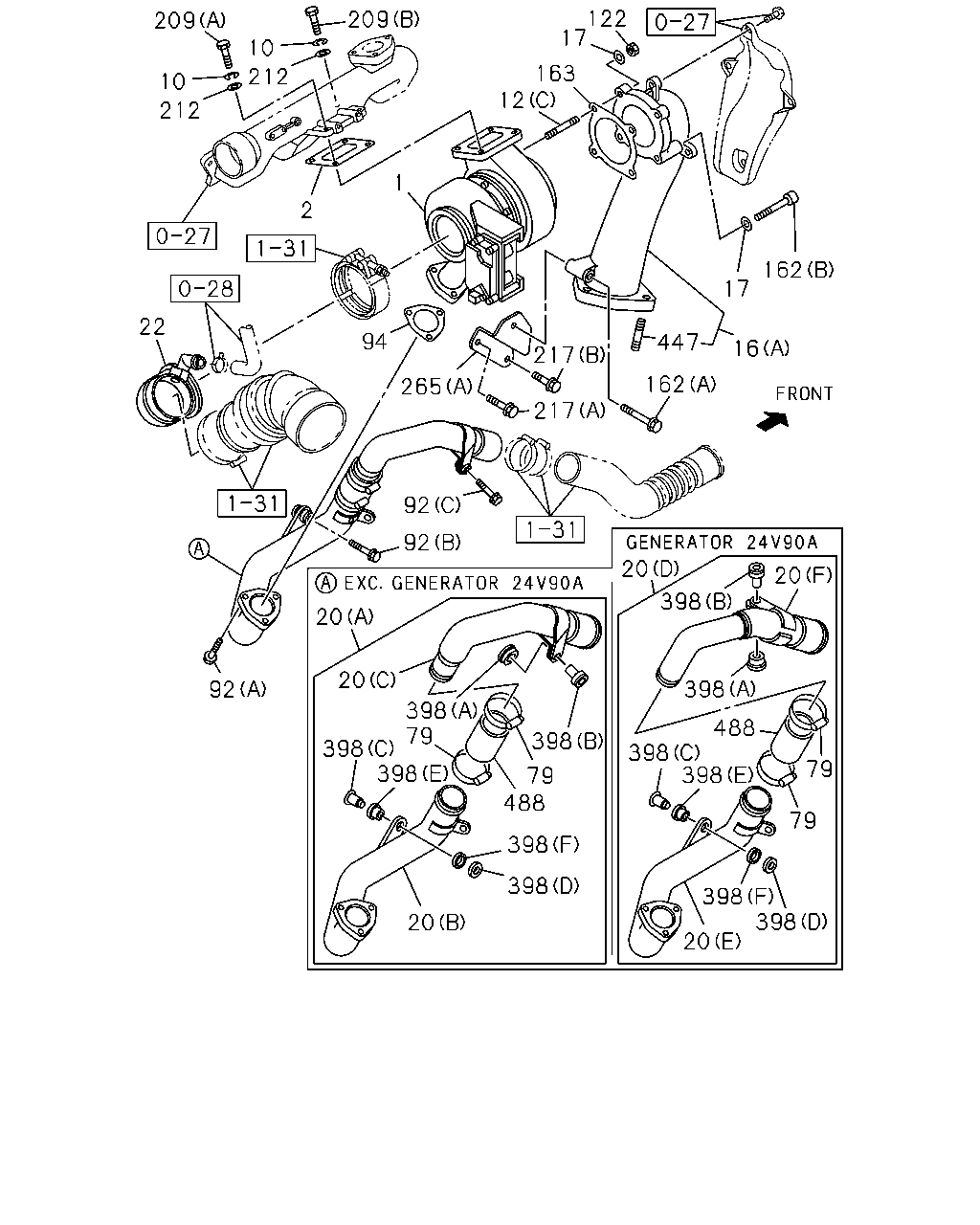

çizim 179267
122 17 209 209 10 163 12 212 10 212 1 2 162 17 22 94 447 16 217 162 265 217 92 92 20 20 398 20 20 398 488 92 398 79 398 398 398 398 398 79 79 488 79 398 398 398 398 20 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> 		8-98153-480-0 01 1 0911- ●
1 TURBOCHARGER ASM
HIGHLAND ZONE PACKAGE<W02> 		8-98153-480-0 01 1 0911- ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> 		8-98078-779-1 01 1 0809-0910 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0809-0910 ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> EXC. HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0911- ●
1 TURBOCHARGER ASM
EXC. HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0911- ●
1 TURBOCHARGER ASM 8-97604-975-7 01 1 0710-0808 ●
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-97604-975-9 01 1 0809- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-044-0 01 1 0809- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-044-0 01 1 0809- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97024-124-0 01 1 0710-0808 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4> 		8-97024-124-0 01 1 0809- ●
10 WASHER; LK,TURBOCHARGER
EURO2 SPECIFICATION<NT2> T=2.2 		1-09556-015-0 02 1 0809- ●
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 02 1 0809- ●
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 04 1 0710-0808 ●
10 WASHER; LK,TURBOCHARGER
EURO4 SPECIFICATION<NT4> T=2.2 		1-09556-015-0 04 1 0809- ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (A) M8X25 		9-04130-825-0 01 1 0809- ●
12 STUD; TURBOCHARGER
(A) M8X25 		9-04130-825-0 01 1 0809- ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (B) M10X80 		9-04731-080-0 02 1 0809- ●
12 STUD; TURBOCHARGER
(B) M10X80 		9-04731-080-0 02 1 0809- ●
12 STUD; TURBOCHARGER
(C) M8X25 L=36 		8-94476-282-0 02 1 0710-0808 ●
12 STUD; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (C) M8X25 L=36 		8-94476-282-0 02 1 0809- ●
16 ADAPTER; EXH PIPE
EURO2 SPECIFICATION<NT2> (B) 		8-98069-083-0 01 1 0809- ●
16 ADAPTER; EXH PIPE
(B) 		8-98069-083-0 01 1 0809- ●
16 ADAPTER; EXH PIPE
(A) 		8-98018-241-1 01 1 0710-0808 ●
16 ADAPTER; EXH PIPE
EURO4 SPECIFICATION<NT4> (A) 		8-98018-241-1 01 1 0809- ●
17 WASHER; PL,ADAPTER
EURO2 SPECIFICATION<NT2> T=1.9 		5-09500-012-0 06 1 0809- ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 06 1 0809- ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 04 1 0710-0808 ●
17 WASHER; PL,ADAPTER
EURO4 SPECIFICATION<NT4> T=1.9 		5-09500-012-0 04 1 0809- ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) EURO2 SPECIFICATION<NT2> (J) 		8-98230-568-0 01 1 1405- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (G) 		8-97606-675-1 01 1 0809- ●
20 PIPE; INL,TURBOCHARGER OUT
(G) 		8-97606-675-1 01 1 0809- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (H) 		8-97618-726-2 01 1 0809-1408 ●
20 PIPE; INL,TURBOCHARGER OUT
(H) 		8-97618-726-2 01 1 0809-1408 ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (H) 		8-98251-577-0 01 1 1409- ●
20 PIPE; INL,TURBOCHARGER OUT
(H) 		8-98251-577-0 01 1 1409- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (I) 		8-97618-734-0 01 1 0809- ●
20 PIPE; INL,TURBOCHARGER OUT
(I) 		8-97618-734-0 01 1 0809- ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) 		8-98046-167-3 01 1 0710-0808 ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO4 SPECIFICATION<NT4> (A) 		8-98046-167-4 01 1 0809-1408 ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO4 SPECIFICATION<NT4> (A) 		8-98251-581-0 01 1 1409- ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) 		8-98046-168-1 01 1 0710-0808 ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO4 SPECIFICATION<NT4> (B) 		8-98046-168-1 01 1 0809- ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (C) 		8-98046-169-1 01 1 0710-0808 ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO4 SPECIFICATION<NT4> (C) 		8-98046-169-2 01 1 0809- ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (D) 		8-97617-214-2 01 1 0710-1408 ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (D) 		8-98251-580-0 01 1 1409- ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (E) 		8-97617-215-0 01 1 0710- ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (F) 		8-97617-216-0 01 1 0710- ●
22 DUCT; INL,ACL TO TURBOCHARGER 8-98036-164-1 01 1 0710-0808 ●
22 DUCT; INL,ACL TO TURBOCHARGER
EURO4 SPECIFICATION<NT4> 		8-98036-164-1 01 1 0809- ●
79 CLIP; RUBBER HOSE
ID=58-76 		1-09707-203-0 02 1 0710-0808 ●
79 CLIP; RUBBER HOSE
ID=58-76 		1-09707-203-0 02 1 0809-0811 ● ●
79 CLIP; RUBBER HOSE
ID=58-79 		1-09707-136-0 02 1 0903- ● ●
92 BOLT; INL PIPE
(A) M8X30 FLANGE 		0-28650-830-0 03 1 0710-0808 ●
92 BOLT; INL PIPE
EURO4 SPECIFICATION<NT4> (A) M8X30 FLANGE 		0-28650-830-0 03 1 0809- ●
92 BOLT; INL PIPE
(B) M8X35 FLANGE 		0-28650-835-0 01 1 0710-0808 ●
92 BOLT; INL PIPE
(B) M8X35 FLANGE 		0-28650-835-0 01 1 0809- ● ●
92 BOLT; INL PIPE
(C) M8X40 FLANGE 		0-28650-840-0 01 1 0710-0808 ●
92 BOLT; INL PIPE
(C) M8X40 FLANGE 		0-28650-840-0 01 1 0809- ● ●
94 GASKET; INL PIPE 8-98053-830-0 01 1 0710-0808 ●
94 GASKET; INL PIPE
EURO4 SPECIFICATION<NT4> 		8-98053-830-0 01 1 0809- ●
122 NUT; ADAPTER
EURO2 SPECIFICATION<NT2> M8 		1-09400-118-1 01 1 0809- ●
122 NUT; ADAPTER
M8 		1-09400-118-1 01 1 0809- ●
122 NUT; ADAPTER
M8 		1-09400-118-1 02 1 0710-0808 ●
122 NUT; ADAPTER
EURO4 SPECIFICATION<NT4> M8 		1-09400-118-1 02 1 0809- ●
162 BOLT; ADAPTER
EURO2 SPECIFICATION<NT2> (C) M8X57 		5-09000-275-0 05 1 0809- ●
162 BOLT; ADAPTER
(C) M8X57 		5-09000-275-0 05 1 0809- ●
162 BOLT; ADAPTER
(A) M10X60 FLANGE 		0-28051-060-0 01 1 0710-0808 ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (A) M10X60 FLANGE 		0-28051-060-0 01 1 0809- ●
162 BOLT; ADAPTER
(B) M8X60 		1-09000-464-0 02 1 0710-0808 ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (B) M8X60 		1-09000-464-0 02 1 0809-0910 ●
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (B) M8X60 		8-98158-604-0 02 1 0911- ●
163 GASKET; ADAPTER TO EXH PIPE 8-94392-553-2 01 1 0710-0808 ●
163 GASKET; ADAPTER TO EXH PIPE
EURO4 SPECIFICATION<NT4> 		8-94392-553-2 01 1 0809- ●
209 BOLT; BRACE,TURBOCHARGER
(B) M10X80 		8-98049-825-0 02 1 0710-0808 ●
209 BOLT; BRACE,TURBOCHARGER
EURO4 SPECIFICATION<NT4> (B) M10X80 		8-98049-825-0 02 1 0809- ●
209 BOLT; BRACE,TURBOCHARGER
(A) M10X40 		9-09604-007-0 02 1 0710-0808 ●
209 BOLT; BRACE,TURBOCHARGER
EURO4 SPECIFICATION<NT4> (A) M10X40 		9-09604-007-1 02 1 0809- ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 0710-0808 ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 0809- ● ●
217 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (C) M12X30 		8-94394-324-0 03 1 0809- ●
217 BOLT; BRKT
(C) M12X30 		8-94394-324-0 03 1 0809- ●
217 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0808 ●
217 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE 		0-28650-820-0 01 1 0809- ●
217 BOLT; BRKT
(B) M10X25 FLANGE 		0-28751-025-0 01 1 0710-0808 ●
217 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (B) M10X25 FLANGE 		0-28751-025-0 01 1 0809- ●
265 BRACKET; EXH PIPE
(A) 		8-98260-415-0 01 1 0710-0808 ●
265 BRACKET; EXH PIPE
EURO4 SPECIFICATION<NT4> (A) 		8-98260-415-0 01 1 0809- ●
265 BRACKET; EXH PIPE
EURO2 SPECIFICATION<NT2> (B) 		8-94395-764-2 01 1 0809- ●
265 BRACKET; EXH PIPE
(B) 		8-94395-764-2 01 1 0809- ●
398 MOUNTING
(F) ID=19 OD=26 		8-94160-177-0 01 1 0710-0808 ●
398 MOUNTING
(F) ID=19 OD=26 		8-94160-177-0 01 1 0809- ● ●
398 MOUNTING
(C) OD=28 		8-94390-551-0 01 1 0710-0808 ●
398 MOUNTING
(C) OD=28 		8-94390-551-1 01 1 0809- ● ●
398 MOUNTING
(D) ID=13 OD=28 		8-94394-504-0 01 1 0710-0808 ●
398 MOUNTING
(D) ID=13 OD=28 		8-94394-504-0 01 1 0809- ● ●
398 MOUNTING
(E) OD=26 		8-94394-529-0 01 1 0710-0808 ●
398 MOUNTING
(E) OD=26 		8-94394-529-0 01 1 0809- ● ●
398 MOUNTING
(A) OD=32 		8-94395-766-0 01 1 0710-0808 ●
398 MOUNTING
(A) OD=32 		8-94395-766-0 01 1 0809- ● ●
398 MOUNTING
(B) OD=23 		8-97105-689-6 01 1 0710-0808 ●
398 MOUNTING
(B) OD=23 		8-97105-689-6 01 1 0809- ● ●
447 STUD; ADAPTER
M12X30 L=48 		0-44011-230-0 03 1 0710-0808 ●
447 STUD; ADAPTER
EURO4 SPECIFICATION<NT4> M12X30 L=48 		0-44011-230-0 03 1 0809- ●
488 HOSE; RUBBER
EURO2 SPECIFICATION<NT2> ID=62 L=70 		1-09360-797-1 01 1 0809-1408 ●
488 HOSE; RUBBER
ID=62 L=70 		1-09360-797-1 01 1 0809-1408 ●
488 HOSE; RUBBER
EURO2 SPECIFICATION<NT2> ID=62 L=70 		8-98245-240-0 01 1 1409- ●
488 HOSE; RUBBER
ID=62 L=70 		8-98245-240-0 01 1 1409- ●
488 HOSE; RUBBER 8-98046-356-0 01 1 0710-0808 ●
488 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> 		8-98046-356-0 01 1 0809-1408 ●
488 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> 		8-98245-242-0 01 1 1409- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
