1 |

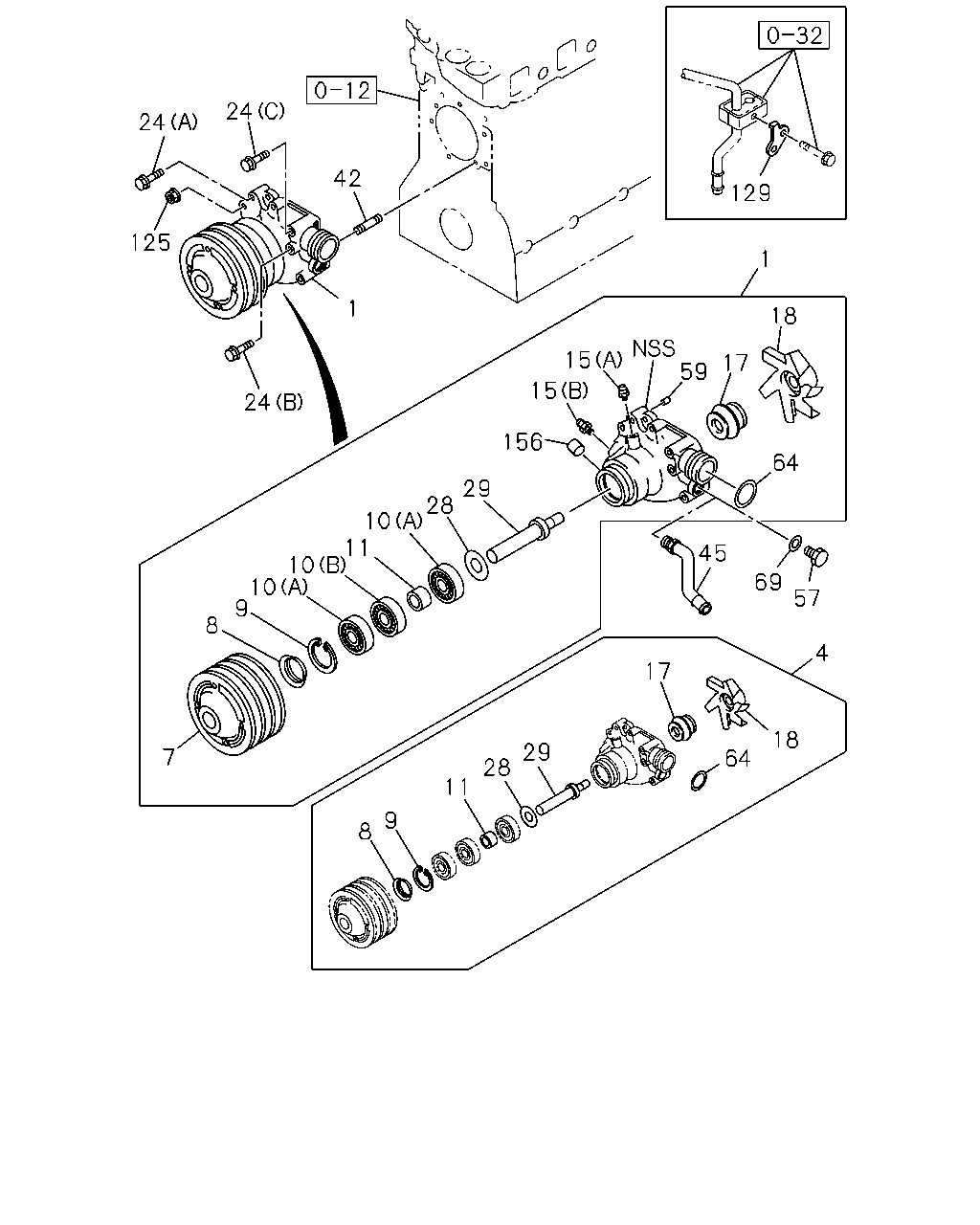

PUMP ASM; WATER,W/GASKET
|
8-98042-848-1 |
01 |
1 |
0710-0808 |
● |
|
| |
1 |
PUMP ASM; WATER,W/GASKET
|
8-98042-848-2 |
01 |
1 |
0809-1208 |
● |
● |
| |
1 |
PUMP ASM; WATER,W/GASKET
|
1-87310-835-0 |
01 |
1 |
1209-1312 |
● |
● |
| |
1 |
PUMP ASM; WATER,W/GASKET
|
1-87310-902-0 |
01 |
1 |
1401-1405 |
● |
● |
| |
1 |
PUMP ASM; WATER,W/GASKET
|
1-87310-974-0 |
01 |
1 |
1406- |
● |
● |
| |
4 |
REPAIR KIT; WATER PUMP
|
1-87812-040-1 |
01 |
1 |
0710-0808 |
● |
|
| |
4 |
REPAIR KIT; WATER PUMP
|
1-87812-040-1 |
01 |
1 |
0809-1208 |
● |
● |
| |
4 |
REPAIR KIT; WATER PUMP
|
1-87813-949-0 |
01 |
1 |
1209-1312 |
● |
● |
| |
4 |
REPAIR KIT; WATER PUMP
EURO2 SPECIFICATION<NT2>
|
1-87813-949-0 |
01 |
1 |
1401-1401 |
● |
|
| |
4 |
REPAIR KIT; WATER PUMP
|
1-87813-949-0 |
01 |
1 |
1401-1401 |
|
● |
| |
4 |
REPAIR KIT; WATER PUMP
|
1-87814-167-0 |
01 |
1 |
1401-1405 |
● |
● |
| |
4 |
REPAIR KIT; WATER PUMP
|
1-87814-615-0 |
01 |
1 |
1406- |
● |
● |
| |
7 |
PULLEY; WATER PUMP
|
8-97616-657-0 |
01 |
1 |
0710-0808 |
● |
|
| |
7 |
PULLEY; WATER PUMP
|
8-97616-657-0 |
01 |
1 |
0809-1405 |
● |
● |
| |
7 |
PULLEY; WATER PUMP
|
8-98281-099-0 |
01 |
1 |
1406- |
● |
● |
| |
8 |
THROWER; DUST,WATER PUMP
|
8-94399-457-0 |
01 |
1 |
0710-0808 |
● |
|
| |
8 |
THROWER; DUST,WATER PUMP
|
8-94399-457-0 |
01 |
1 |
0809- |
● |
● |
| |
9 |
RING; SNAP,WATER PUMP
ID=57.9
|
9-09180-162-0 |
01 |
1 |
0710-0808 |
● |
|
| |
9 |
RING; SNAP,WATER PUMP
ID=57.9
|
9-09180-162-0 |
01 |
1 |
0809- |
● |
● |
| |
10 |
BEARING; WATER PUMP
(A)
|
8-94391-298-0 |
02 |
1 |
0710-0808 |
● |
|
| |
10 |
BEARING; WATER PUMP
(A)
|
8-94391-298-0 |
02 |
1 |
0809- |
● |
● |
| |
10 |
BEARING; WATER PUMP
(B)
|
8-94391-299-0 |
01 |
1 |
0710-0808 |
● |
|
| |
10 |
BEARING; WATER PUMP
(B)
|
8-94391-299-0 |
01 |
1 |
0809- |
● |
● |
| |
11 |
SPACER; BRG,WATER PUMP
|
1-13634-040-0 |
01 |
1 |
0710-0808 |
● |
|
| |
11 |
SPACER; BRG,WATER PUMP
|
1-13634-040-0 |
01 |
1 |
0809- |
● |
● |
| |
15 |
NIPPLE; GREASE,WATER PUMP
(B)
PT1/8 STRAIGHT
|
0-90301-410-0 |
01 |
1 |
0710-0808 |
● |
|
| |
15 |
NIPPLE; GREASE,WATER PUMP
(B)
PT1/8 STRAIGHT
|
0-90301-410-0 |
01 |
1 |
0809- |
● |
● |
| |
15 |
NIPPLE; GREASE,WATER PUMP
(A)
PT1/8 STRAIGHT
|
1-09380-002-0 |
01 |
1 |
0710-0808 |
● |
|
| |
15 |
NIPPLE; GREASE,WATER PUMP
(A)
PT1/8 STRAIGHT
|
1-09380-002-0 |
01 |
1 |
0809- |
● |
● |
| |
17 |
SEAL UNIT; WATER PUMP
|
8-94392-090-0 |
01 |
1 |
0710-0808 |
● |
|
| |
17 |
SEAL UNIT; WATER PUMP
|
8-94392-090-0 |
01 |
1 |
0809-1208 |
● |
● |
| |
17 |
SEAL UNIT; WATER PUMP
|
8-98221-159-0 |
01 |
1 |
1209-1312 |
● |
● |
| |
17 |
SEAL UNIT; WATER PUMP
|
8-94392-090-0 |
01 |
1 |
1401-1405 |
● |
● |
| |
17 |
SEAL UNIT; WATER PUMP
|
8-98272-791-0 |
01 |
1 |
1406- |
● |
● |
| |
18 |
IMPELLER; WATER PUMP
|
8-94392-922-0 |
01 |
1 |
0710-0808 |
● |
|
| |
18 |
IMPELLER; WATER PUMP
|
8-94392-922-0 |
01 |
1 |
0809- |
● |
● |
| |
24 |
BOLT; WATER PUMP
(B)
M8X80 FLANGE
|
0-28050-880-0 |
01 |
1 |
0710-0808 |
● |
|
| |
24 |
BOLT; WATER PUMP
(B)
M8X80 FLANGE
|
0-28050-880-0 |
01 |
1 |
0809- |
● |
● |
| |
24 |
BOLT; WATER PUMP
(A)
M8X58 FLANGE
|
8-94130-055-1 |
03 |
1 |
0710-0808 |
● |
|
| |
24 |
BOLT; WATER PUMP
(A)
M8X58 FLANGE
|
8-94130-055-1 |
03 |
1 |
0809- |
● |
● |
| |
24 |
BOLT; WATER PUMP
(C)
M10X85 FLANGE
|
8-94397-359-1 |
01 |
1 |
0710-0808 |
● |
|
| |
24 |
BOLT; WATER PUMP
(C)
M10X85 FLANGE
|
8-94397-359-1 |
01 |
1 |
0809- |
● |
● |
| |
28 |
WASHER; WATER PUMP
ID=25.5 OD=50
|
8-94397-097-0 |
01 |
1 |
0710-0808 |
● |
|
| |
28 |
WASHER; WATER PUMP
ID=25.5 OD=50
|
8-94397-097-0 |
01 |
1 |
0809- |
● |
● |
| |
29 |
SHAFT; WATER PUMP
|
8-94396-130-1 |
01 |
1 |
0710-0808 |
● |
|
| |
29 |
SHAFT; WATER PUMP
|
8-94396-130-1 |
01 |
1 |
0809-1405 |
● |
● |
| |
29 |
SHAFT; WATER PUMP
|
8-98280-700-0 |
01 |
1 |
1406- |
● |
● |
| |
42 |
STUD; WATER PUMP
M8X30 L=46
|
0-40110-830-0 |
01 |
1 |
0710-0808 |
● |
|
| |
42 |
STUD; WATER PUMP
M8X30 L=46
|
0-40110-830-0 |
01 |
1 |
0809- |
● |
● |
| |
45 |
JOINT; HTR HOSE,WATER PUMP
EURO2 SPECIFICATION<NT2>
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
|
8-94392-827-1 |
01 |
1 |
0809- |
● |
|
| |
45 |
JOINT; HTR HOSE,WATER PUMP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
|
8-94392-827-1 |
01 |
1 |
0809- |
|
● |
| |
45 |
JOINT; HTR HOSE,WATER PUMP
|
8-94396-180-0 |
01 |
1 |
0710-0808 |
● |
|
| |
45 |
JOINT; HTR HOSE,WATER PUMP
EURO4 SPECIFICATION<NT4>
|
8-94396-180-0 |
01 |
1 |
0809- |
● |
|
| |
57 |
PLUG; HTR,WATER PUMP
EURO2 SPECIFICATION<NT2>
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER
MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
M20
|
9-99202-320-0 |
01 |
1 |
0809- |
● |
|
| |
57 |
PLUG; HTR,WATER PUMP
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER
MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
M20
|
9-99202-320-0 |
01 |
1 |
0809- |
|
● |
| |
59 |
DOWEL; WATER PUMP
OD=12 L=9
|
1-13119-003-0 |
02 |
1 |
0710-0808 |
● |
|
| |
59 |
DOWEL; WATER PUMP
OD=12 L=9
|
1-13119-003-0 |
02 |
1 |
0809- |
● |
● |
| |
64 |
GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=44.7
|
1-09623-383-0 |
01 |
1 |
0710-0808 |
● |
|
| |
64 |
GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=44.7
|
1-09623-383-0 |
01 |
1 |
0809- |
● |
● |
| |
69 |
GASKET; PLUG,HTR
EURO2 SPECIFICATION<NT2>
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER
MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
ID=20.5 OD=28.0
|
9-09571-420-0 |
01 |
1 |
0809- |
● |
|
| |
69 |
GASKET; PLUG,HTR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER
MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
ID=20.5 OD=28.0
|
9-09571-420-0 |
01 |
1 |
0809- |
|
● |
| |
125 |
NUT; WATER PUMP
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0710-0808 |
● |
|
| |
125 |
NUT; WATER PUMP
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0809- |
● |
● |
| |
129 |
BRACKET; CLIP
|
8-98066-087-0 |
01 |
1 |
0710-0808 |
● |
|
| |
129 |
BRACKET; CLIP
EURO4 SPECIFICATION<NT4>
|
8-98066-087-0 |
01 |
1 |
0809- |
● |
|
| |
156 |
CUP; SEALING
OD=25
|
1-09600-016-0 |
01 |
1 |
0710-0808 |
● |
|
| |
156 |
CUP; SEALING
OD=25
|
1-09600-016-0 |
01 |
1 |
0809- |
● |
● |
