0-28 — VENTILATION SYSTEM (#33932) — 72 parça

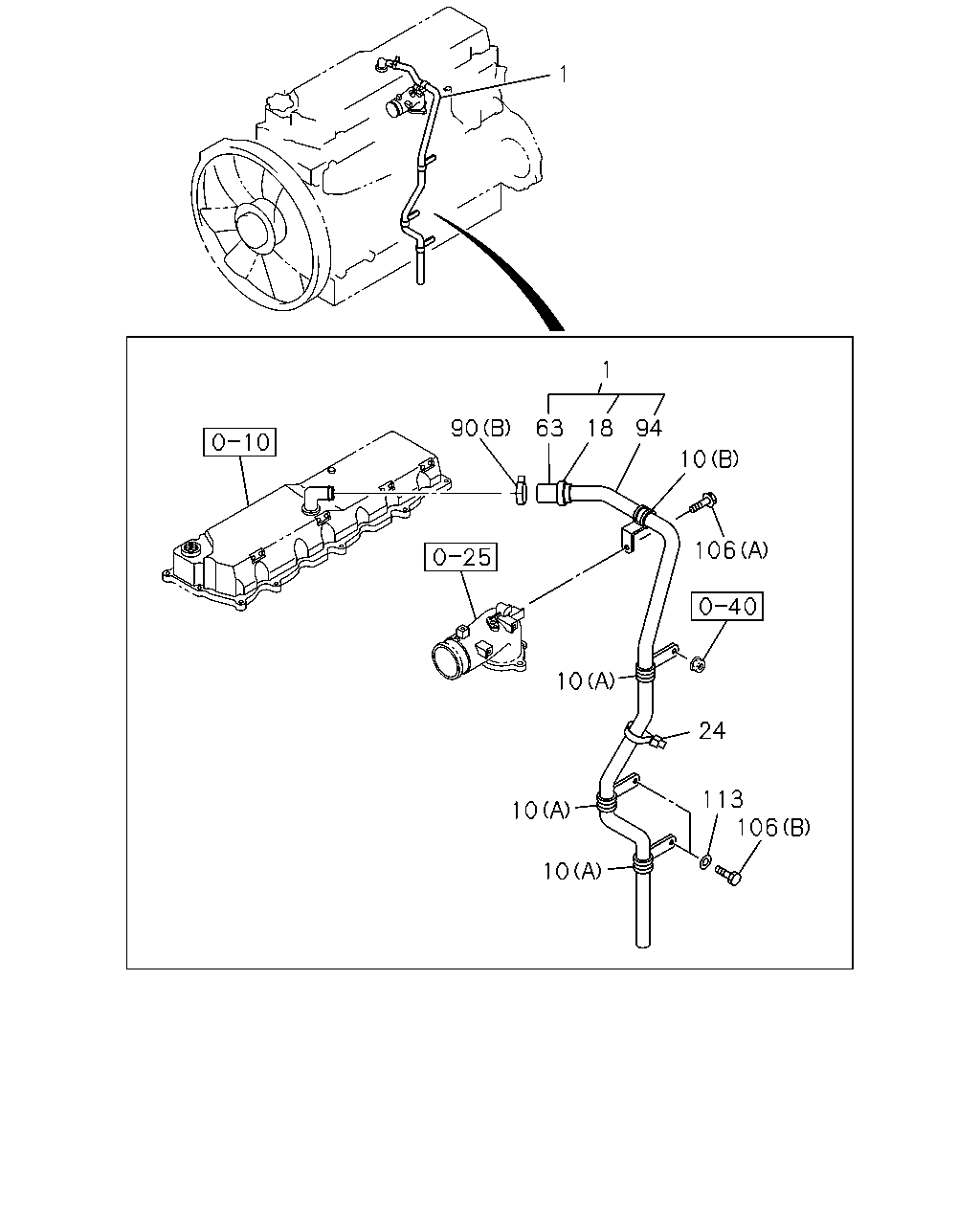

1 1 90 63 18 94 10 106 10 24 113 106 10 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BREATHER; AIR EURO2 SPECIFICATION<NT2>	8-94392-083-3	01	1	0809-	●
1	BREATHER; AIR	8-94392-083-3	01	1	0809-		●
10	CLIP; AIR BREATHER EURO2 SPECIFICATION<NT2> (A) ID=32 L=75	1-09700-704-1	03	1	0809-	●
10	CLIP; AIR BREATHER (A) ID=32 L=75	1-09700-704-1	03	1	0809-		●
10	CLIP; AIR BREATHER EURO2 SPECIFICATION<NT2> (B) ID=31 H=30 L=35	1-09700-994-0	01	1	0809-	●
10	CLIP; AIR BREATHER (B) ID=31 H=30 L=35	1-09700-994-0	01	1	0809-		●
18	CLIP; RUBBER HOSE,AIR BREATHER EURO2 SPECIFICATION<NT2> ID=33.6	8-94362-518-0	01	1	0809-	●
18	CLIP; RUBBER HOSE,AIR BREATHER ID=33.6	8-94362-518-0	01	1	0809-		●
24	CLIP; RUBBER HOSE,VENTILATOR EURO2 SPECIFICATION<NT2> L=250	5-09707-030-1	01	1	0903-1205	●
24	CLIP; RUBBER HOSE,VENTILATOR L=250	5-09707-030-1	01	1	0903-1205		●
24	CLIP; RUBBER HOSE,VENTILATOR EURO2 SPECIFICATION<NT2> L=250	8-98216-430-0	01	1	1206-	●
24	CLIP; RUBBER HOSE,VENTILATOR L=250	8-98216-430-0	01	1	1206-		●
63	HOSE; RUBBER,AIR BREATHER EURO2 SPECIFICATION<NT2> L=70	0-02828-070-0	01	1	0809-1005	●
63	HOSE; RUBBER,AIR BREATHER L=70	0-02828-070-0	01	1	0809-1005		●
63	HOSE; RUBBER,AIR BREATHER EURO2 SPECIFICATION<NT2> L=70	0-02728-070-0	01	1	1006-	●
63	HOSE; RUBBER,AIR BREATHER L=70	0-02728-070-0	01	1	1006-		●
90	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> (B) ID=33.6	8-94362-518-0	01	1	0809-	●
90	CLIP; RUBBER HOSE (B) ID=33.6	8-94362-518-0	01	1	0809-		●
90	CLIP; RUBBER HOSE (A) ID=14	1-09704-102-0	02	1	0710-0808	●
90	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> (A) ID=14	1-09704-102-0	02	1	0809-	●
94	HOSE; BREATHER TO PIPE EURO2 SPECIFICATION<NT2> L=1260	8-94392-082-0	01	1	0809-	●
94	HOSE; BREATHER TO PIPE L=1260	8-94392-082-0	01	1	0809-		●
106	BOLT; DRAIN PIPE EURO2 SPECIFICATION<NT2> (A) M6X12 FLANGE	0-28050-612-0	01	1	0809-	●
106	BOLT; DRAIN PIPE (A) M6X12 FLANGE	0-28050-612-0	01	1	0809-		●
106	BOLT; DRAIN PIPE EURO2 SPECIFICATION<NT2> (B) M10X16 FLANGE	0-28151-016-0	02	1	0809-	●
106	BOLT; DRAIN PIPE (B) M10X16 FLANGE	0-28151-016-0	02	1	0809-		●
113	WASHER; PL,CLIP EURO2 SPECIFICATION<NT2> ID=10.5	0-91610-510-0	02	1	0809-	●
113	WASHER; PL,CLIP ID=10.5	0-91610-510-0	02	1	0809-		●

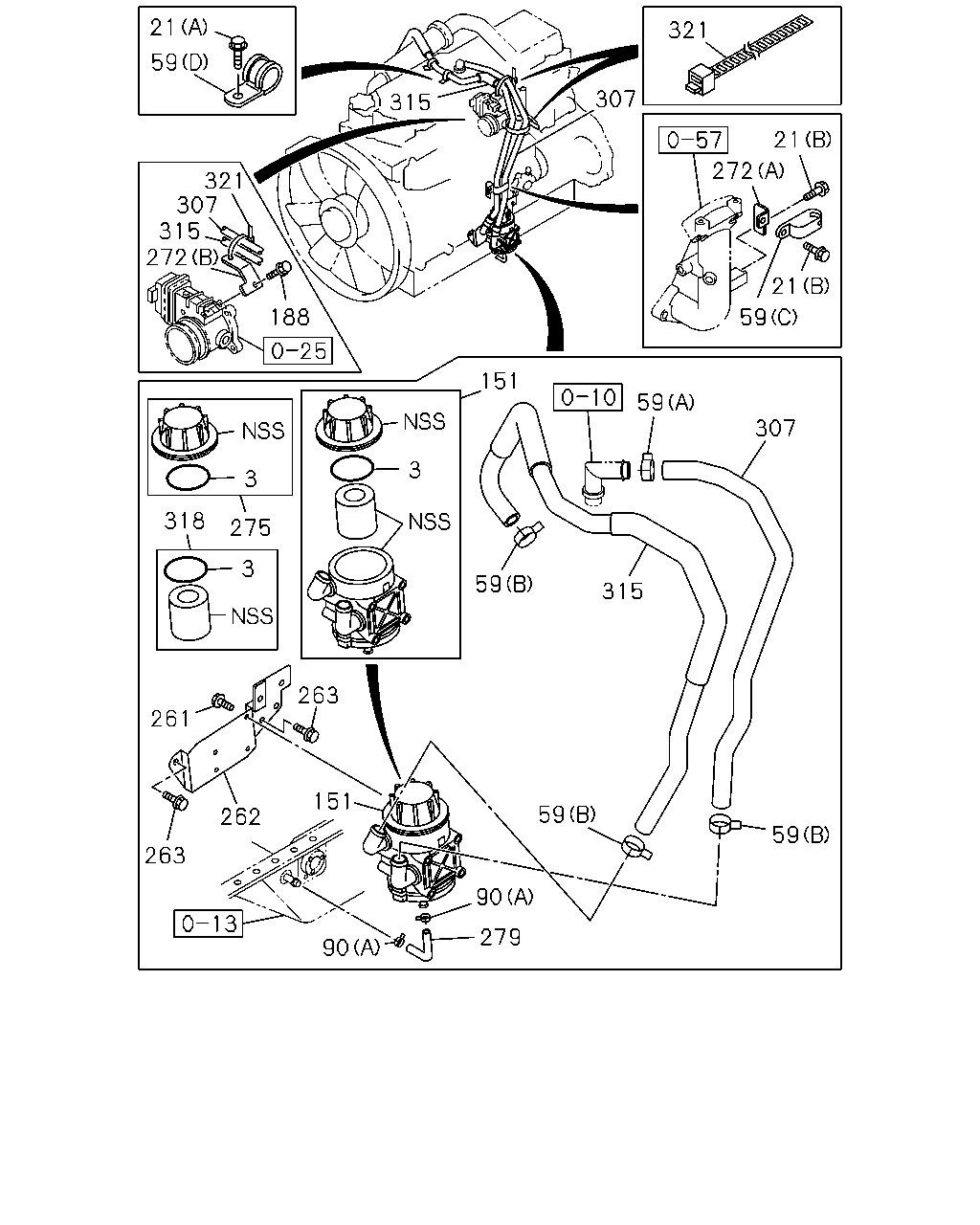

21 59 321 307 315 272 188 3 3 275 318 3 263 261 262 151 263 90 279 90 59 59 315 59 151 59 307 59 21 272 21 321 307 315

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	GASKET; BODY TO CAP	8-97385-921-0	01	1	0710-0808	●
3	GASKET; BODY TO CAP EURO4 SPECIFICATION<NT4>	8-97385-921-0	01	1	0809-	●
21	BOLT; CLIP (A) M8X12 FLANGE	0-28050-812-0	02	1	0710-0808	●
21	BOLT; CLIP EURO4 SPECIFICATION<NT4> (A) M8X12 FLANGE	0-28050-812-0	02	1	0809-	●
21	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	02	1	0710-0808	●
21	BOLT; CLIP EURO4 SPECIFICATION<NT4> (B) M8X16 FLANGE	0-28050-816-0	02	1	0809-	●
59	CLIP; HOSE (D) ID=35 L=33	1-09700-945-0	02	1	0710-0808	●
59	CLIP; HOSE EURO4 SPECIFICATION<NT4> (D) ID=35 L=33	1-09700-945-0	02	1	0809-	●
59	CLIP; HOSE (C) ID=30X2 L=28	1-09701-266-0	01	1	0710-0808	●
59	CLIP; HOSE EURO4 SPECIFICATION<NT4> (C) ID=30X2 L=28	1-09701-266-0	01	1	0809-	●
59	CLIP; HOSE (B) ID=28.5	1-09707-150-0	03	1	0710-0808	●
59	CLIP; HOSE EURO4 SPECIFICATION<NT4> (B) ID=28.5	1-09707-150-0	03	1	0809-	●
59	CLIP; HOSE (A) ID=31.2	8-97237-146-0	01	1	0710-0808	●
59	CLIP; HOSE EURO4 SPECIFICATION<NT4> (A) ID=31.2	8-97237-146-0	01	1	0809-	●
90	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> (B) ID=33.6	8-94362-518-0	01	1	0809-	●
90	CLIP; RUBBER HOSE (B) ID=33.6	8-94362-518-0	01	1	0809-		●
90	CLIP; RUBBER HOSE (A) ID=14	1-09704-102-0	02	1	0710-0808	●
90	CLIP; RUBBER HOSE EURO4 SPECIFICATION<NT4> (A) ID=14	1-09704-102-0	02	1	0809-	●
151	SEPARATOR; OIL,PCV	8-97602-262-2	01	1	0710-0808	●
151	SEPARATOR; OIL,PCV EURO4 SPECIFICATION<NT4>	8-97602-262-2	01	1	0809-	●
188	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	01	1	0710-0808	●
188	BOLT; BRKT EURO4 SPECIFICATION<NT4> M8X16 FLANGE	0-28050-816-0	01	1	0809-	●
261	BOLT; SEPARETOR M8X16 FLANGE	0-28050-816-0	04	1	0710-0808	●
261	BOLT; SEPARETOR EURO4 SPECIFICATION<NT4> M8X16 FLANGE	0-28050-816-0	04	1	0809-	●
262	BRACKET; OIL SEPARETOR	8-97610-919-1	01	1	0710-0808	●
262	BRACKET; OIL SEPARETOR EURO4 SPECIFICATION<NT4>	8-97610-919-1	01	1	0809-	●
263	BOLT; BRKT,OIL SEPARETOR M10X25 FLANGE	0-28751-025-0	02	1	0710-0808	●
263	BOLT; BRKT,OIL SEPARETOR EURO4 SPECIFICATION<NT4> M10X25 FLANGE	0-28751-025-0	02	1	0809-	●
272	BRACKET; PIPE (A)	8-97607-396-1	01	1	0710-0808	●
272	BRACKET; PIPE EURO4 SPECIFICATION<NT4> (A)	8-97607-396-1	01	1	0809-	●
272	BRACKET; PIPE (B)	8-97607-397-0	01	1	0710-0808	●
272	BRACKET; PIPE EURO4 SPECIFICATION<NT4> (B)	8-97607-397-0	01	1	0809-	●
275	CAP; PCV	8-97606-319-0	01	1	0710-0808	●
275	CAP; PCV EURO4 SPECIFICATION<NT4>	8-97606-319-0	01	1	0809-	●
279	HOSE; RUBBER,OIL DRAIN	0-02709-190-0	01	1	0710-0808	●
279	HOSE; RUBBER,OIL DRAIN EURO4 SPECIFICATION<NT4>	0-02709-190-0	01	1	0809-	●
307	HOSE; RUBBER,HEAD COVER TO OIL SEPARAT	8-98054-285-1	01	1	0710-0808	●
307	HOSE; RUBBER,HEAD COVER TO OIL SEPARAT EURO4 SPECIFICATION<NT4>	8-98054-285-2	01	1	0809-	●
315	HOSE; RUBBER	8-98054-286-1	01	1	0710-0808	●
315	HOSE; RUBBER EURO4 SPECIFICATION<NT4>	8-98054-286-2	01	1	0809-	●
318	ELEMENT KIT; PCV	8-97606-318-0	01	1	0710-0808	●
318	ELEMENT KIT; PCV EURO4 SPECIFICATION<NT4>	8-97606-318-0	01	1	0809-	●
321	CLIP; HOSE,SEPARATOR L=300	1-09707-001-1	02	1	0710-0808	●
321	CLIP; HOSE,SEPARATOR EURO4 SPECIFICATION<NT4> L=300	1-09707-001-1	02	1	0809-	●
