0-27 — EXHAUST MANIFOLD (#33931) — 85 parça

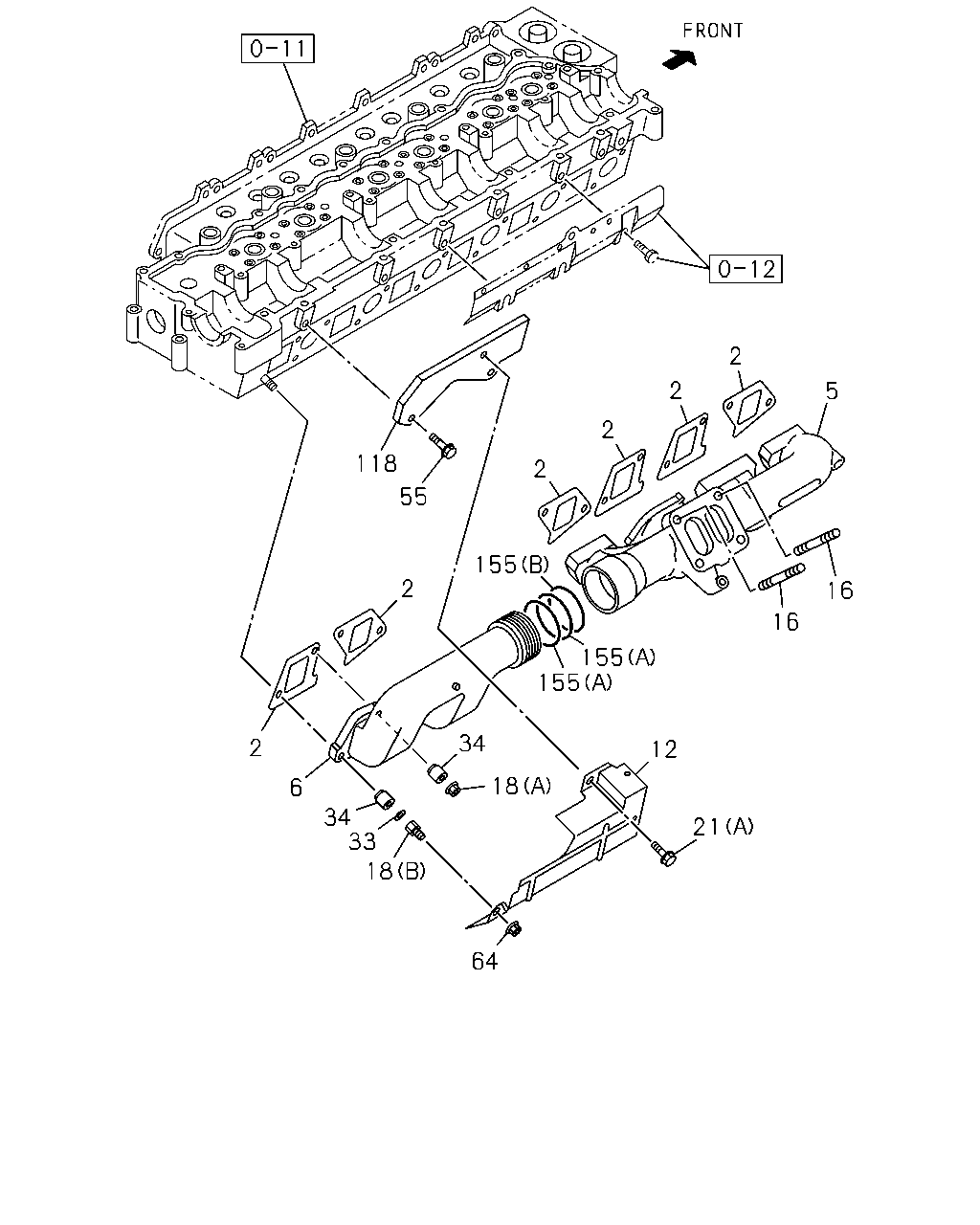

2 2 5 2 118 2 55 155 2 16 16 155 155 34 2 12 18 6 34 33 18 21 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-2	06	1	0710-0808	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-4	06	1	0809-	●	●
5	MANIFOLD; EXH,FRT EURO2 SPECIFICATION<NT2>	8-97602-056-0	01	1	0809-	●
5	MANIFOLD; EXH,FRT	8-97602-056-0	01	1	0809-		●
5	MANIFOLD; EXH,FRT	8-97604-942-1	01	1	0710-0808	●
5	MANIFOLD; EXH,FRT EURO4 SPECIFICATION<NT4>	8-97604-942-1	01	1	0809-	●
6	MANIFOLD; EXH,RR EURO2 SPECIFICATION<NT2>	8-97600-970-0	01	1	0809-	●
6	MANIFOLD; EXH,RR	8-97600-970-0	01	1	0809-		●
6	MANIFOLD; EXH,RR	8-97604-944-0	01	1	0710-0808	●
6	MANIFOLD; EXH,RR EURO4 SPECIFICATION<NT4>	8-97604-944-0	01	1	0809-	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EURO2 SPECIFICATION<NT2>	8-97601-632-0	01	1	0809-	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF	8-97601-632-0	01	1	0809-		●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF	8-97610-717-3	01	1	0710-0808	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EURO4 SPECIFICATION<NT4>	8-97610-717-3	01	1	0809-	●
16	STUD; EXH PIPE TO MANIF EURO2 SPECIFICATION<NT2> M10X25 L=40	9-04731-025-0	02	1	0809-	●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	0809-		●
18	NUT; EXH MANIF (A) M10 LOCK NUT	0-91370-010-0	10	1	0710-0808	●
18	NUT; EXH MANIF (A) M10 LOCK NUT	0-91370-010-0	10	1	0809-	●	●
18	NUT; EXH MANIF (B) M10 L=51	8-94394-991-1	02	1	0710-0808	●
18	NUT; EXH MANIF (B) M10 L=51	8-94394-991-1	02	1	0809-1202	●	●
18	NUT; EXH MANIF (B) M10	8-98205-394-0	02	1	1203-	●	●
21	BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<NT2> (A) M8X16 FLANGE	0-28050-816-0	01	1	0809-	●
21	BOLT; HEAT PROTECTOR (A) M8X16 FLANGE	0-28050-816-0	01	1	0809-		●
21	BOLT; HEAT PROTECTOR (A) M8X16 FLANGE	0-28050-816-0	02	1	0710-0808	●
21	BOLT; HEAT PROTECTOR EURO4 SPECIFICATION<NT4> (A) M8X16 FLANGE	0-28050-816-0	02	1	0809-	●
21	BOLT; HEAT PROTECTOR (B) M8X14 FLANGE	8-97378-075-0	04	1	0710-0808	●
21	BOLT; HEAT PROTECTOR EURO4 SPECIFICATION<NT4> (B) M8X14 FLANGE	8-97378-075-0	04	1	0809-	●
33	WASHER; EXH MANIF T=2.2	1-09556-015-0	02	1	0710-0808	●
33	WASHER; EXH MANIF T=2.2	1-09556-015-0	02	1	0809-	●	●
34	COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	12	1	0710-0808	●
34	COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	12	1	0809-	●	●
55	BOLT; BRKT EURO2 SPECIFICATION<NT2> M8X16 FLANGE	0-28050-816-0	02	1	0809-	●
55	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	02	1	0809-		●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91180-210-0	02	1	0710-0808	●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91180-210-0	02	1	0809-	●	●
118	BRACKET; HEAT PROTECTOR EURO2 SPECIFICATION<NT2>	8-97603-366-0	01	1	0809-	●
118	BRACKET; HEAT PROTECTOR	8-97603-366-0	01	1	0809-		●
155	RING; SEAL,EXH MANIF (A)	1-14149-184-0	02	1	0710-0808	●
155	RING; SEAL,EXH MANIF EURO2 SPECIFICATION<NT2> (B)	1-14149-151-0	01	1	0809-	●
155	RING; SEAL,EXH MANIF (B)	1-14149-151-0	01	1	0809-		●
155	RING; SEAL,EXH MANIF (A)	1-14149-184-0	02	1	0809-	●	●

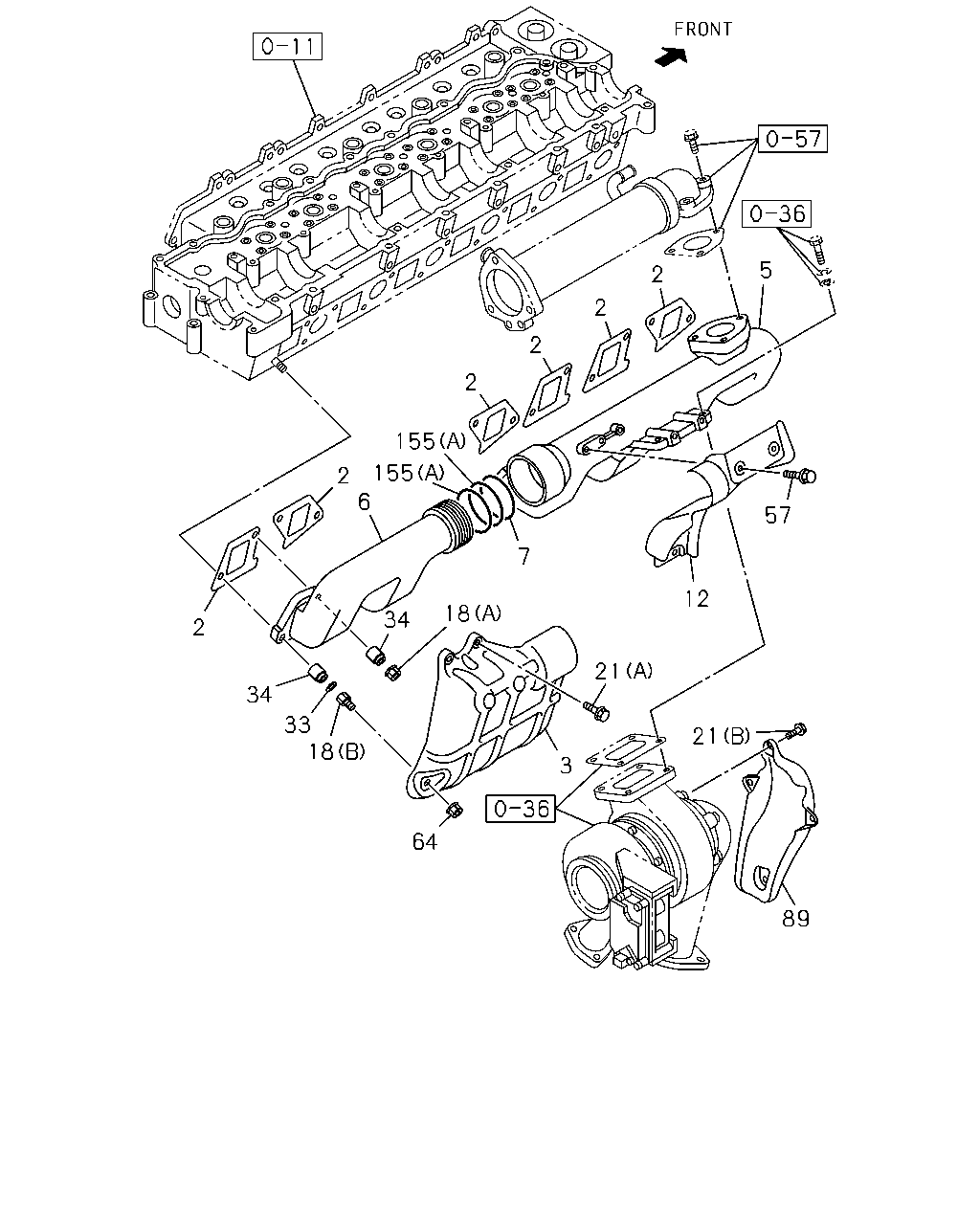

5 2 2 2 2 155 155 2 6 57 7 12 18 34 2 21 34 33 18 21 3 64 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-2	06	1	0710-0808	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-4	06	1	0809-	●	●
3	PROTECTOR; HEAT,EXH MANIF	8-97611-986-1	01	1	0710-0808	●
3	PROTECTOR; HEAT,EXH MANIF EURO4 SPECIFICATION<NT4>	8-97611-986-1	01	1	0809-1202	●
3	PROTECTOR; HEAT,EXH MANIF EURO4 SPECIFICATION<NT4>	8-98205-395-0	01	1	1203-	●
5	MANIFOLD; EXH,FRT EURO2 SPECIFICATION<NT2>	8-97602-056-0	01	1	0809-	●
5	MANIFOLD; EXH,FRT	8-97602-056-0	01	1	0809-		●
5	MANIFOLD; EXH,FRT	8-97604-942-1	01	1	0710-0808	●
5	MANIFOLD; EXH,FRT EURO4 SPECIFICATION<NT4>	8-97604-942-1	01	1	0809-	●
6	MANIFOLD; EXH,RR EURO2 SPECIFICATION<NT2>	8-97600-970-0	01	1	0809-	●
6	MANIFOLD; EXH,RR	8-97600-970-0	01	1	0809-		●
6	MANIFOLD; EXH,RR	8-97604-944-0	01	1	0710-0808	●
6	MANIFOLD; EXH,RR EURO4 SPECIFICATION<NT4>	8-97604-944-0	01	1	0809-	●
7	RING; SEAL,EXH MANIF	1-14149-151-0	01	1	0710-0808	●
7	RING; SEAL,EXH MANIF EURO4 SPECIFICATION<NT4>	1-14149-151-0	01	1	0809-	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EURO2 SPECIFICATION<NT2>	8-97601-632-0	01	1	0809-	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF	8-97601-632-0	01	1	0809-		●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF	8-97610-717-3	01	1	0710-0808	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EURO4 SPECIFICATION<NT4>	8-97610-717-3	01	1	0809-	●
18	NUT; EXH MANIF (A) M10 LOCK NUT	0-91370-010-0	10	1	0710-0808	●
18	NUT; EXH MANIF (A) M10 LOCK NUT	0-91370-010-0	10	1	0809-	●	●
18	NUT; EXH MANIF (B) M10 L=51	8-94394-991-1	02	1	0710-0808	●
18	NUT; EXH MANIF (B) M10 L=51	8-94394-991-1	02	1	0809-1202	●	●
18	NUT; EXH MANIF (B) M10	8-98205-394-0	02	1	1203-	●	●
21	BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<NT2> (A) M8X16 FLANGE	0-28050-816-0	01	1	0809-	●
21	BOLT; HEAT PROTECTOR (A) M8X16 FLANGE	0-28050-816-0	01	1	0809-		●
21	BOLT; HEAT PROTECTOR (A) M8X16 FLANGE	0-28050-816-0	02	1	0710-0808	●
21	BOLT; HEAT PROTECTOR EURO4 SPECIFICATION<NT4> (A) M8X16 FLANGE	0-28050-816-0	02	1	0809-	●
21	BOLT; HEAT PROTECTOR (B) M8X14 FLANGE	8-97378-075-0	04	1	0710-0808	●
21	BOLT; HEAT PROTECTOR EURO4 SPECIFICATION<NT4> (B) M8X14 FLANGE	8-97378-075-0	04	1	0809-	●
33	WASHER; EXH MANIF T=2.2	1-09556-015-0	02	1	0710-0808	●
33	WASHER; EXH MANIF T=2.2	1-09556-015-0	02	1	0809-	●	●
34	COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	12	1	0710-0808	●
34	COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	12	1	0809-	●	●
57	BOLT; HEAT PROTECTOR,EXH MANIF M8X14 FLANGE	8-97378-075-0	03	1	0710-0808	●
57	BOLT; HEAT PROTECTOR,EXH MANIF EURO4 SPECIFICATION<NT4> M8X14 FLANGE	8-97378-075-0	03	1	0809-	●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91180-210-0	02	1	0710-0808	●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91180-210-0	02	1	0809-	●	●
89	PROTECTOR; HEAT	8-97611-985-2	01	1	0710-0808	●
89	PROTECTOR; HEAT EURO4 SPECIFICATION<NT4>	8-97611-985-3	01	1	0809-	●
155	RING; SEAL,EXH MANIF (A)	1-14149-184-0	02	1	0710-0808	●
155	RING; SEAL,EXH MANIF EURO2 SPECIFICATION<NT2> (B)	1-14149-151-0	01	1	0809-	●
155	RING; SEAL,EXH MANIF (B)	1-14149-151-0	01	1	0809-		●
155	RING; SEAL,EXH MANIF (A)	1-14149-184-0	02	1	0809-	●	●
