8-71 — COMPRESSOR; AIR CONDITIONING (#33914) — 27 parça

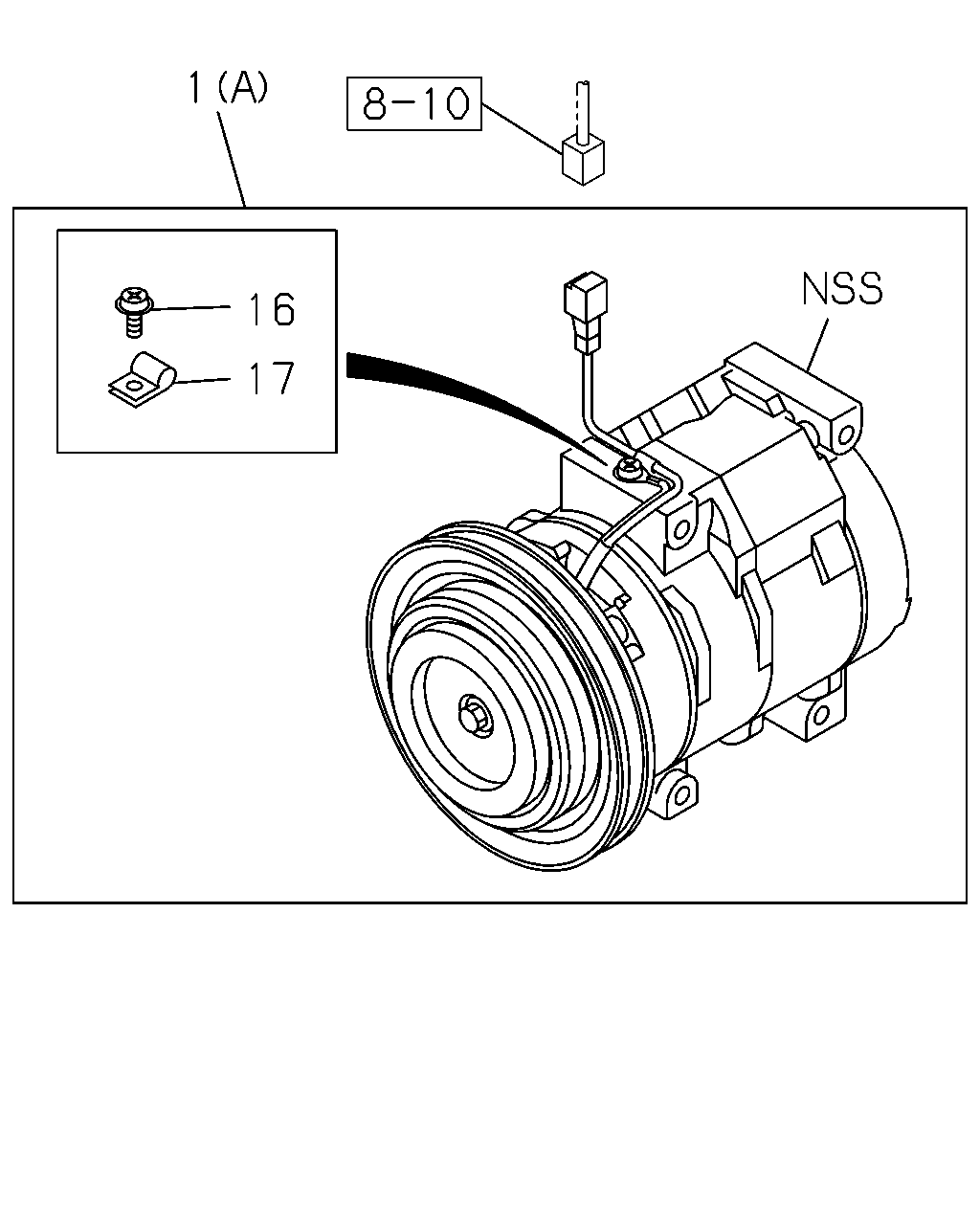

1 16 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; A/C 4HK1-TCS ENG(RJS) (B)	1-83532-326-1	01	1	1012-1306	●
1	COMPRESSOR ASM; A/C 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	1-83532-326-1	01	1	1307-	●
1	COMPRESSOR ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	1-83532-328-0	01	1	0710-1011	●	●
1	COMPRESSOR ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	1-83532-328-0	01	1	1012-		●
1	COMPRESSOR ASM; A/C 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	1-83532-328-0	01	1	1012-	●
16	CLIP; WIRE,MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	1-83579-893-0	01	1	0710-1311	●	●
16	CLIP; WIRE,MAGNET CLU 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	1-83579-893-0	01	1	1312-		●
16	CLIP; WIRE,MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	1-83579-893-0	01	1	1312-	●
17	SCREW; WIRE CLIP MAGNET CLU 4HK1-TCS ENG(RJS)	5-81129-130-0	02	1	1012-1306	●
17	SCREW; WIRE CLIP MAGNET CLU 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	5-81129-130-0	02	1	1307-	●
17	SCREW; WIRE CLIP MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	5-81129-130-0	01	1	0710-1011	●	●
17	SCREW; WIRE CLIP MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	5-81129-130-0	01	1	1012-		●
17	SCREW; WIRE CLIP MAGNET CLU 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	5-81129-130-0	01	1	1012-	●

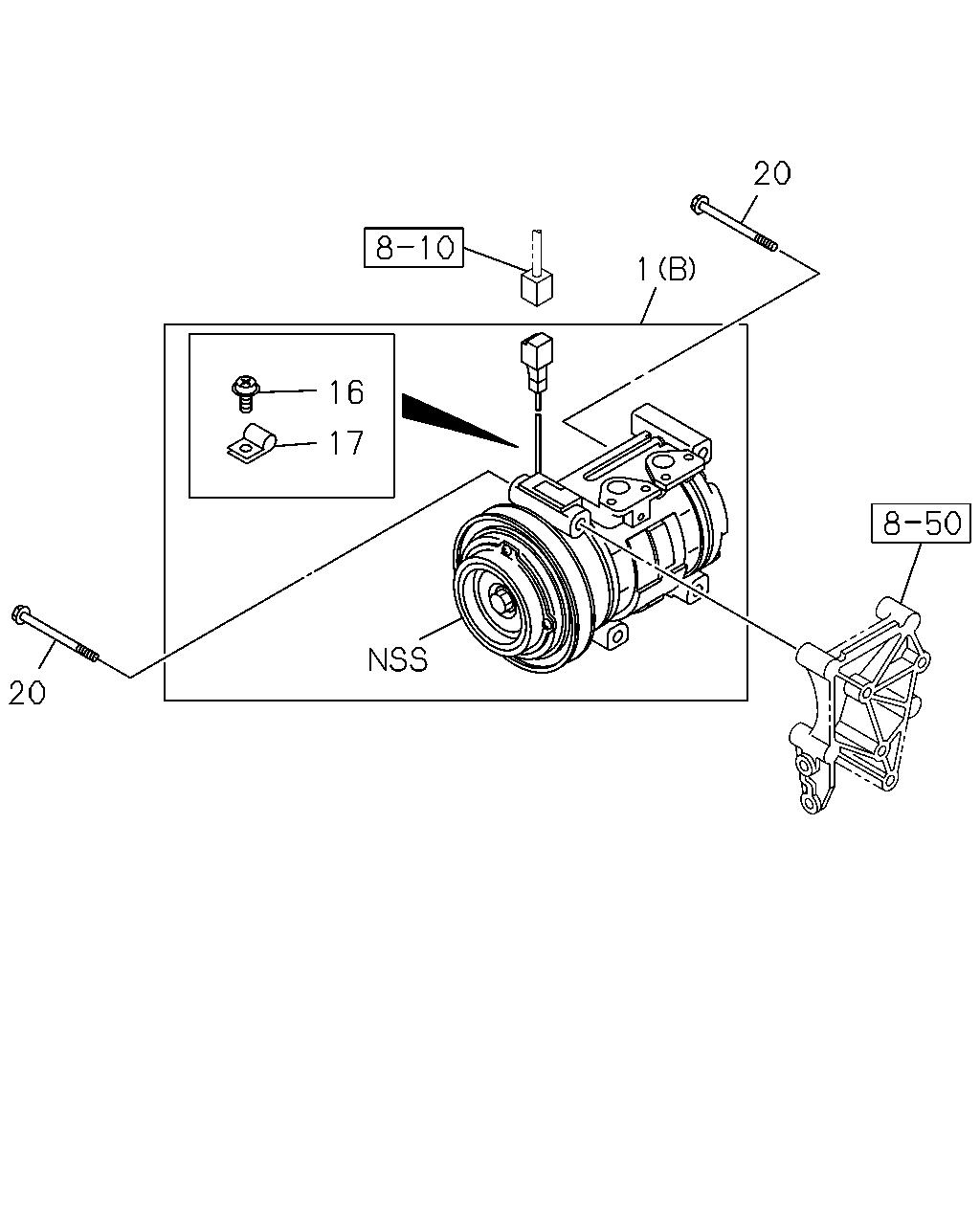

20 1 16 17 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; A/C 4HK1-TCS ENG(RJS) (B)	1-83532-326-1	01	1	1012-1306	●
1	COMPRESSOR ASM; A/C 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	1-83532-326-1	01	1	1307-	●
1	COMPRESSOR ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	1-83532-328-0	01	1	0710-1011	●	●
1	COMPRESSOR ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	1-83532-328-0	01	1	1012-		●
1	COMPRESSOR ASM; A/C 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	1-83532-328-0	01	1	1012-	●
16	CLIP; WIRE,MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	1-83579-893-0	01	1	0710-1311	●	●
16	CLIP; WIRE,MAGNET CLU 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	1-83579-893-0	01	1	1312-		●
16	CLIP; WIRE,MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	1-83579-893-0	01	1	1312-	●
17	SCREW; WIRE CLIP MAGNET CLU 4HK1-TCS ENG(RJS)	5-81129-130-0	02	1	1012-1306	●
17	SCREW; WIRE CLIP MAGNET CLU 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	5-81129-130-0	02	1	1307-	●
17	SCREW; WIRE CLIP MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	5-81129-130-0	01	1	0710-1011	●	●
17	SCREW; WIRE CLIP MAGNET CLU AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	5-81129-130-0	01	1	1012-		●
17	SCREW; WIRE CLIP MAGNET CLU 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	5-81129-130-0	01	1	1012-	●
20	BOLT; CMPR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X75 FLANGE	1-09044-073-0	04	1	1102-	●
