Sayfa 4-25 - Isuzu EPC

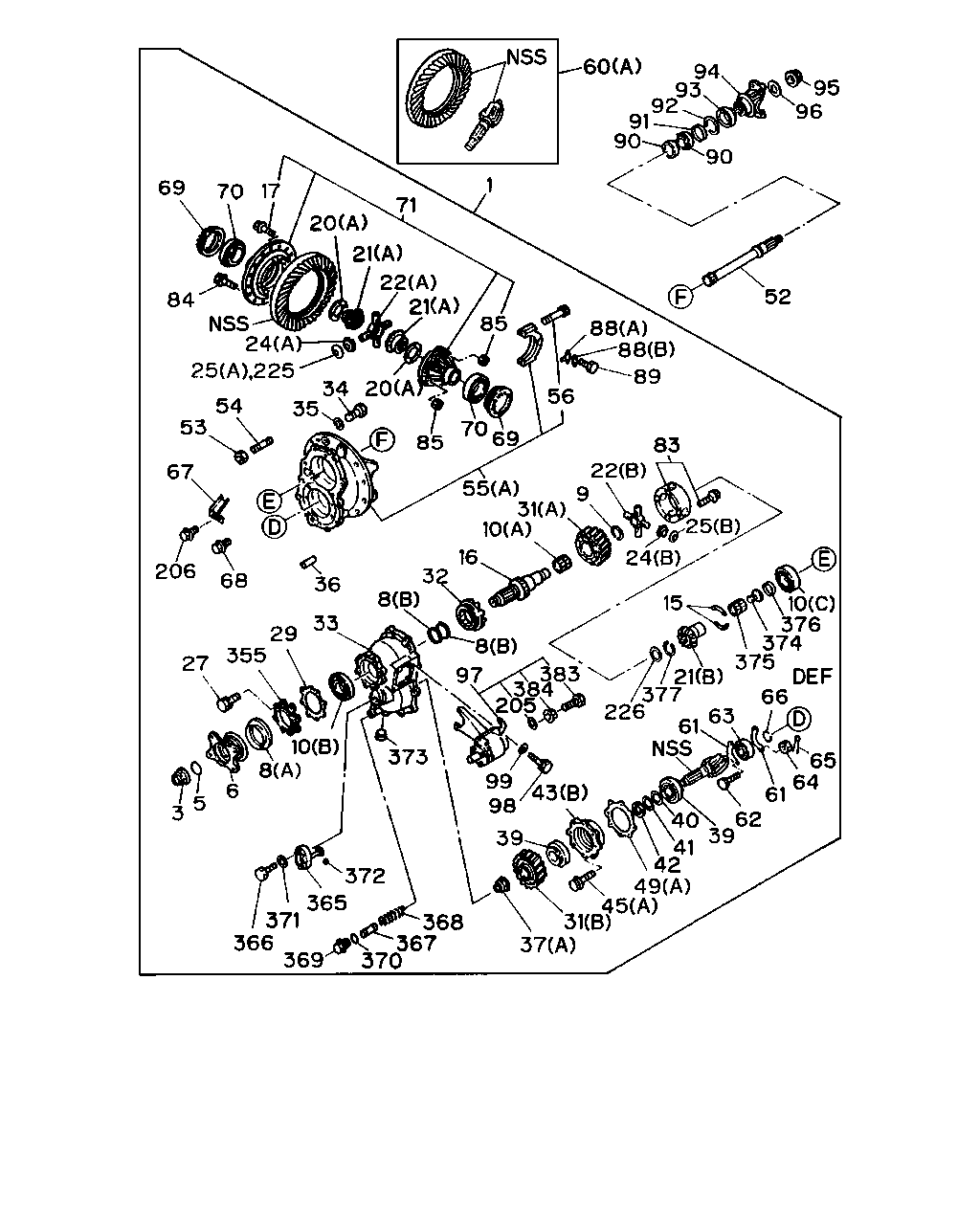

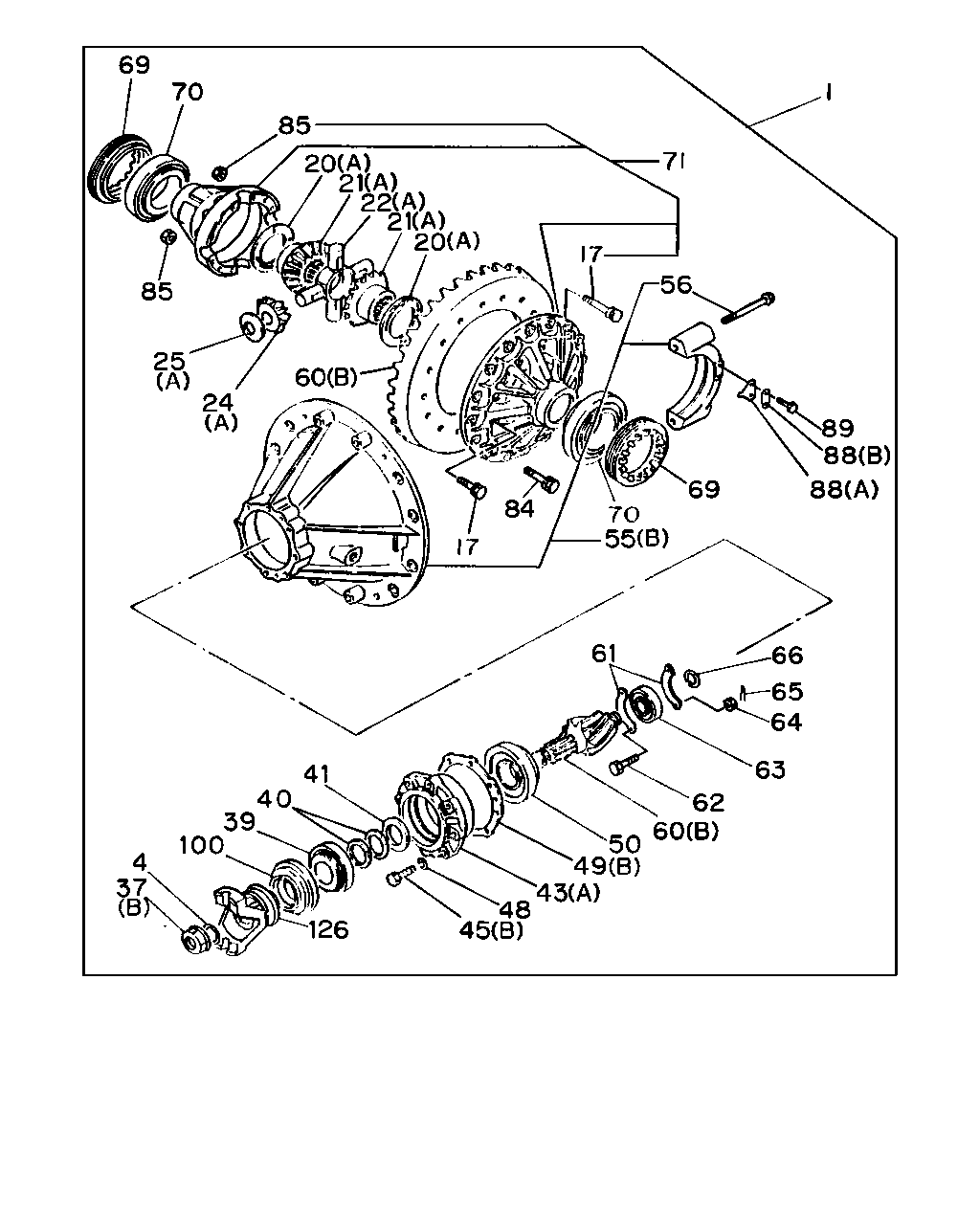

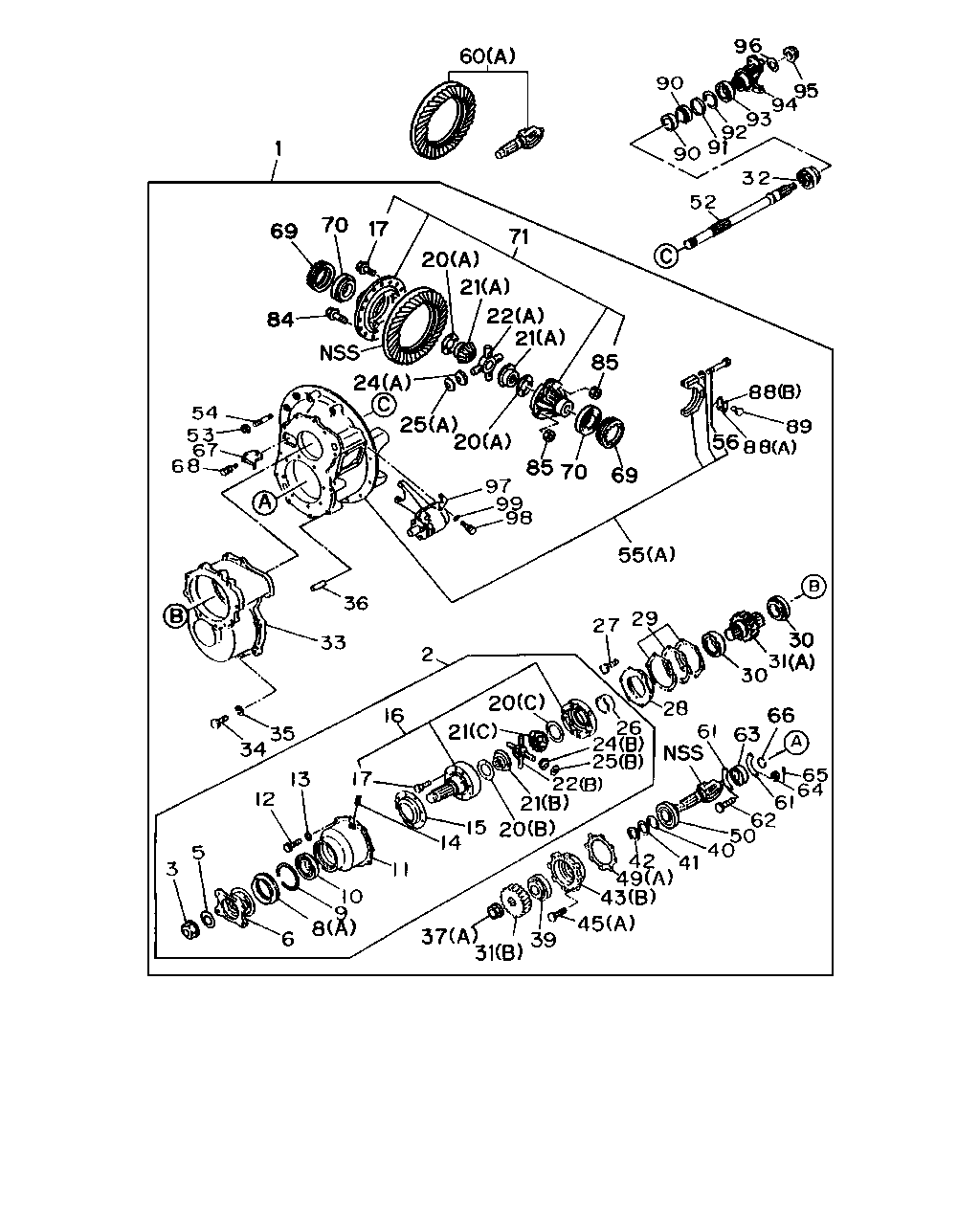

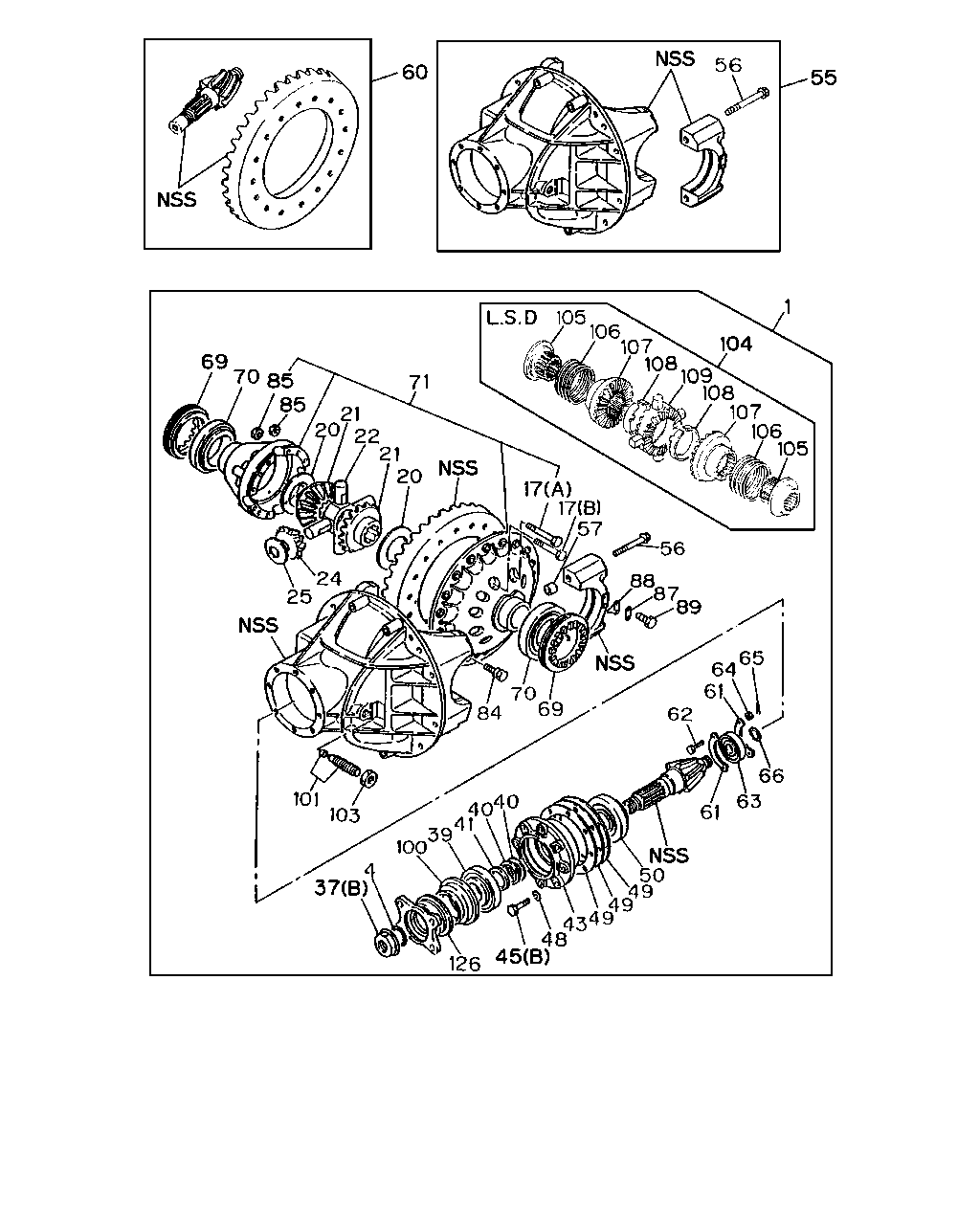

4-25 — REAR FINAL DRIVE (#3391) — 1196 parça

1 71 17 56 89 88 69 88 70 55 84 61 17 66 65 64 63 62 60 50 49 43 48 45 126 37 39 100 4 40 41 60 24 25 85 20 21 22 21 20 85 70 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> FORWARD 41/8	1-41001-043-0	01	1	9002-9306	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 41/8	1-41000-862-0	01	1	9002-9306	●
1	DRIVE ASM; FINAL,RR FORWARD 38/7	1-41000-853-0	01	1	9307-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> FORWARD 38/7	1-41001-042-0	01	1	9002-9306		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 38/7	1-41000-853-0	01	1	9002-9306		●
1	DRIVE ASM; FINAL,RR REARWARD 43/6	1-41001-390-0	01	1	9002-			●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT<C5X> FORWARD 43/6	1-41001-497-0	01	1	9002-9306			●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT<C5X> FORWARD 43/6	1-41001-566-0	01	1	9307-			●
1	DRIVE ASM; FINAL,RR P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 43/6	1-41000-829-0	01	1	9002-9306			●
1	DRIVE ASM; FINAL,RR P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 43/6	1-41001-564-0	01	1	9307-			●
1	DRIVE ASM; FINAL,RR REARWARD 43/7	1-41001-392-0	01	1	9002-				●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT<C5X> FORWARD 43/7	1-41001-424-0	01	1	9002-9306				●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT<C5X> FORWARD 43/7	1-41001-605-0	01	1	9307-				●
1	DRIVE ASM; FINAL,RR P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 43/7	1-41000-803-0	01	1	9002-9306				●
1	DRIVE ASM; FINAL,RR P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 43/7	1-41001-652-0	01	1	9307-				●
1	DRIVE ASM; FINAL,RR REARWARD 39/7	1-41001-393-0	01	1	9002-					●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT<C5X> FORWARD 39/7	1-41001-426-0	01	1	9002-9306					●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT<C5X> FORWARD 39/7	1-41001-558-0	01	1	9307-					●
1	DRIVE ASM; FINAL,RR P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 39/7	1-41000-802-0	01	1	9002-9306					●
1	DRIVE ASM; FINAL,RR P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 39/7	1-41001-556-0	01	1	9307-					●
1	DRIVE ASM; FINAL,RR REARWARD 39/8	1-41001-395-0	01	1	9002-						●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT<C5X> FORWARD 39/8	1-41001-430-0	01	1	9002-9306						●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT<C5X> FORWARD 39/8	1-41001-614-0	01	1	9307-						●
1	DRIVE ASM; FINAL,RR P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 39/8	1-41000-800-0	01	1	9002-9306						●
1	DRIVE ASM; FINAL,RR P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 39/8	1-41001-656-0	01	1	9307-						●
1	DRIVE ASM; FINAL,RR REARWARD 41/6	1-41001-290-0	01	1	9002-							●
1	DRIVE ASM; FINAL,RR FORWARD 41/6	1-41001-568-0	01	1	9307-							●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT<C5X> FORWARD 41/6	1-41001-499-0	01	1	9002-9306							●
1	DRIVE ASM; FINAL,RR P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 41/6	1-41001-287-0	01	1	9002-9306							●
4	GASKET; FLANGE,FINAL PINION ID=57	1-09623-386-0	01	1	9002-	●	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X141 FLANGE	1-09070-013-0	08	1	9002-	●	●
17	BOLT; DIFF CAGE SETTING (B) M16X105 FLANGE	1-09070-014-0	04	1	9002-	●	●
17	BOLT; DIFF CAGE SETTING M16X125	1-09070-007-0	04	1	9002-			●	●	●	●	●
17	BOLT; DIFF CAGE SETTING M14X75 FLANGE	1-09070-008-0	08	1	9002-9306			●	●	●	●	●
17	BOLT; DIFF CAGE SETTING M16X113	1-09070-018-0	08	1	9002-			●	●	●	●	●
17	BOLT; DIFF CAGE SETTING M10X55	1-09070-108-0	08	1	9307-			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.8	1-41562-183-0	AR	1	9002-9009	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.8	1-41562-260-0	AR	1	9010-9306	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.9	1-41562-184-0	AR	1	9002-9009	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.9	1-41562-261-0	AR	1	9010-9306	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.0	1-41562-185-0	AR	1	9002-9009	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.0	1-41562-262-0	AR	1	9010-9306	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.1	1-41562-186-0	AR	1	9002-9009	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.1	1-41562-263-0	AR	1	9010-9306	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.2	1-41562-187-0	AR	1	9002-9009	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.2	1-41562-264-0	AR	1	9010-9306	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.3	1-41562-188-0	AR	1	9002-9009	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.3	1-41562-265-0	AR	1	9010-9306	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.4	1-41562-189-0	AR	1	9002-9009	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.4	1-41562-266-0	AR	1	9010-9306	●	●
20	WASHER; THRUST,SIDE GEAR T=2.8	1-41562-260-0	AR	1	9307-		●
20	WASHER; THRUST,SIDE GEAR T=2.9	1-41562-261-0	AR	1	9307-		●
20	WASHER; THRUST,SIDE GEAR T=3.0	1-41562-262-0	AR	1	9307-		●
20	WASHER; THRUST,SIDE GEAR T=3.1	1-41562-263-0	AR	1	9307-		●
20	WASHER; THRUST,SIDE GEAR T=3.2	1-41562-264-0	AR	1	9307-		●
20	WASHER; THRUST,SIDE GEAR T=3.3	1-41562-265-0	AR	1	9307-		●
20	WASHER; THRUST,SIDE GEAR T=3.4	1-41562-266-0	AR	1	9307-		●
20	WASHER; THRUST,SIDE GEAR (A) T=2.8	1-41562-112-0	AR	1	9002-			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=2.9	1-41562-113-0	AR	1	9002-			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.0	1-41562-114-0	AR	1	9002-			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.1	1-41562-115-0	AR	1	9002-			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.2	1-41562-116-0	AR	1	9002-			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.3	1-41562-117-0	AR	1	9002-			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.4	1-41562-118-0	AR	1	9002-			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=2.8	1-41562-120-0	AR	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=2.9	1-41562-121-0	AR	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.0	1-41562-122-0	AR	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.1	1-41562-123-0	AR	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.2	1-41562-124-0	AR	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.3	1-41562-125-0	01	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.4	1-41562-126-0	01	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=2.7	1-41562-127-0	01	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=2.8	1-41562-128-0	01	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=2.9	1-41562-129-0	01	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.0	1-41562-130-0	01	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.1	1-41562-131-0	01	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.2	1-41562-132-0	01	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.3	1-41562-133-0	01	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.4	1-41562-134-0	01	1	9002-9306			●	●	●	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF VAR2<G86>	1-41561-081-0	02	1	9002-9306	●	●
21	GEAR; SIDE,DIFF	1-41561-081-0	02	1	9307-9312		●
21	GEAR; SIDE,DIFF Z=16	1-41561-111-0	02	1	9401-		●
21	GEAR; SIDE,DIFF (B)	1-41561-036-0	01	1	9002-9306			●	●	●	●	●
21	GEAR; SIDE,DIFF (C) Z=16	1-41561-037-2	01	1	9002-9306			●	●	●	●	●
21	GEAR; SIDE,DIFF (A)	1-41561-086-0	02	1	9002-			●	●	●	●	●
21	GEAR; SIDE,DIFF (B) Z=16	1-41561-103-1	01	1	9307-			●	●	●	●	●
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF VAR2<G86>	1-41521-005-0	01	1	9002-9306	●	●
22	SPIDER; DIFF PINION	1-41521-005-0	01	1	9307-9312		●
22	SPIDER; DIFF PINION OD=35	1-41521-052-0	01	1	9401-		●
22	SPIDER; DIFF PINION (B)	1-41521-019-0	01	1	9002-9306			●	●	●	●	●
22	SPIDER; DIFF PINION (A) OD=35	1-41521-037-0	01	1	9002-			●	●	●	●	●
22	SPIDER; DIFF PINION (B)	1-41521-049-1	01	1	9307-			●	●	●	●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF VAR2<G86>	1-41551-023-0	04	1	9002-9306	●	●
24	GEAR; PINION,DIFF	1-41551-023-0	04	1	9307-9312		●
24	GEAR; PINION,DIFF Z=10	1-41551-034-0	04	1	9401-		●
24	GEAR; PINION,DIFF (B)	1-41551-016-0	04	1	9002-9306			●	●	●	●	●
24	GEAR; PINION,DIFF (A)	1-41551-025-0	04	1	9002-			●	●	●	●	●
24	GEAR; PINION,DIFF (B) Z=10	1-41551-031-0	04	1	9307-			●	●	●	●	●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF VAR2<G86> T=1.6	1-41552-003-0	04	1	9002-9306	●	●
25	WASHER; THRUST,PINION T=1.6	1-41552-003-0	04	1	9307-		●
25	WASHER; THRUST,PINION (A) T=1.6	1-41552-017-0	04	1	9002-			●	●	●	●	●
25	WASHER; THRUST,PINION (B) ID=29 OD=60	1-41562-119-0	04	1	9002-9306			●	●	●	●	●
25	WASHER; THRUST,PINION (B) T=1.6	1-41552-023-0	04	1	9307-			●	●	●	●	●
37	NUT; DRIVING PINION (B) M46	1-09449-062-0	01	1	9002-9110	●	●	●	●	●	●	●
37	NUT; DRIVING PINION (B) M46 FLANGE	1-09449-071-0	01	1	9111-	●	●	●	●	●	●	●
37	NUT; DRIVING PINION (A) M42 FLANGE	1-09449-043-1	01	1	9002-			●	●	●	●	●
39	BEARING; FINAL PINION NSK	1-09812-075-0	01	1	9002-	●	●	●	●	●	●	●
39	BEARING; FINAL PINION NSK	1-09812-075-0	01	1	9002-			●	●	●	●	●
39	BEARING; FINAL PINION KOYO	1-09812-076-0	01	1	9002-	●	●	●	●	●	●	●
39	BEARING; FINAL PINION KOYO	1-09812-076-0	01	1	9002-			●	●	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	9002-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	9002-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	9002-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	9002-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	9002-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	9002-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	9002-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	9002-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	9002-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	9002-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	9002-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	9002-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	9002-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	9002-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	9002-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	9002-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	9002-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	9002-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	9002-	●	●	●	●	●	●	●
43	CAGE; FINAL PINION	1-41151-036-0	01	1	9002-9111	●	●
43	CAGE; FINAL PINION T=82	1-41151-057-0	01	1	9112-9306	●	●
43	CAGE; FINAL PINION T=82	1-41151-057-0	01	1	9307-		●
43	CAGE; FINAL PINION (A)	1-41151-030-0	01	1	9002-			●	●	●	●	●
43	CAGE; FINAL PINION (B) T=56	1-41151-035-0	01	1	9002-9306			●	●	●	●	●
43	CAGE; FINAL PINION (B) T=53	1-41151-053-0	01	1	9307-			●	●	●	●	●
45	BOLT; FINAL PINION CAGE (B) M16X55	9-91656-655-0	08	1	9002-9005	●	●	●	●	●	●	●
45	BOLT; FINAL PINION CAGE (B) M16X55	0-16806-655-0	08	1	9006-	●	●	●	●	●	●	●
45	BOLT; FINAL PINION CAGE (A) M16X45	9-92361-645-0	08	1	9002-9207			●	●	●	●	●
45	BOLT; FINAL PINION CAGE (A) M16X40	1-09070-107-0	08	1	9208-			●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=16.2	9-09150-516-0	08	1	9002-	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-007-0	AR	1	9002-9111	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-077-0	AR	1	9112-	●	●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-008-0	AR	1	9002-9111	●	●
49	SHIM; FINAL PINION CAGE T=1.000	1-41154-078-0	AR	1	9112-	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-060-0	AR	1	9002-9111	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-079-0	AR	1	9112-	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-061-0	AR	1	9002-9111	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-080-0	AR	1	9112-	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.50	1-41154-024-0	AR	1	9002-			●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=1.00	1-41154-025-0	AR	1	9002-			●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.50	1-41154-030-0	AR	1	9002-9306			●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=1.00	1-41154-031-0	AR	1	9002-9306			●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-054-0	AR	1	9002-9306			●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-055-0	AR	1	9002-9306			●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.30	1-41154-057-0	AR	1	9002-			●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.40	1-41154-058-0	AR	1	9002-			●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.50	1-41154-071-0	AR	1	9307-			●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=1.000	1-41154-072-0	AR	1	9307-			●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-073-0	AR	1	9307-			●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-074-0	AR	1	9307-			●	●	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-073-0	01	1	9002-	●	●	●	●	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-073-0	01	1	9002-			●	●	●	●	●
50	BEARING; FINAL PINION KOYO	1-09812-074-0	01	1	9002-	●	●	●	●	●	●	●
50	BEARING; FINAL PINION KOYO	1-09812-074-0	01	1	9002-			●	●	●	●	●
55	CARRIER; DIFF	1-41110-072-0	01	1	9002-9111	●	●
55	CARRIER; DIFF	1-41110-102-0	01	1	9112-	●	●
55	CARRIER; DIFF (B)	1-41110-071-1	01	1	9002-9602			●	●	●	●	●
55	CARRIER; DIFF (B)	1-41110-109-0	01	1	9603-			●	●	●	●	●
55	CARRIER; DIFF (A)	1-41310-037-0	01	1	9002-9306			●	●	●	●	●
55	CARRIER; DIFF (A)	1-41310-050-0	01	1	9307-			●	●	●	●	●
56	BOLT; BRG CAP M20X125 FLANGE	1-09070-015-0	04	1	9002-	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	9002-			●	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR 41/8	1-41210-324-1	01	1	9002-9306	●
60	GEAR SET; FINAL DRIVE,RR 38/7	1-41210-319-1	01	1	9002-9310		●
60	GEAR SET; FINAL DRIVE,RR 38/7	1-41210-456-1	01	1	9311-		●
60	GEAR SET; FINAL DRIVE,RR (A) 43/6	1-41210-293-1	01	1	9002-9208			●
60	GEAR SET; FINAL DRIVE,RR (A) 43/6	1-41210-437-0	01	1	9209-9310			●
60	GEAR SET; FINAL DRIVE,RR (A) 43/6	1-41210-472-0	01	1	9311-			●
60	GEAR SET; FINAL DRIVE,RR (B) 43/6	1-41210-406-1	01	1	9002-9310			●
60	GEAR SET; FINAL DRIVE,RR (B) 43/6	1-41210-461-0	01	1	9311-			●
60	GEAR SET; FINAL DRIVE,RR (A) 43/7	1-41210-308-1	01	1	9002-9208				●
60	GEAR SET; FINAL DRIVE,RR (A) 43/7	1-41210-440-0	01	1	9209-9310				●
60	GEAR SET; FINAL DRIVE,RR (A) 43/7	1-41210-475-0	01	1	9311-				●
60	GEAR SET; FINAL DRIVE,RR (B) 43/7	1-41210-408-1	01	1	9002-9310				●
60	GEAR SET; FINAL DRIVE,RR (B) 43/7	1-41210-464-0	01	1	9311-				●
60	GEAR SET; FINAL DRIVE,RR (A) 39/7	1-41210-291-1	01	1	9002-9208					●
60	GEAR SET; FINAL DRIVE,RR (A) 39/7	1-41210-436-0	01	1	9209-9310					●
60	GEAR SET; FINAL DRIVE,RR (A) 39/7	1-41210-476-0	01	1	9311-					●
60	GEAR SET; FINAL DRIVE,RR (B) 39/7	1-41210-409-1	01	1	9002-9310					●
60	GEAR SET; FINAL DRIVE,RR (B) 39/7	1-41210-465-0	01	1	9311-					●
60	GEAR SET; FINAL DRIVE,RR (A) 39/8	1-41210-306-1	01	1	9002-9208						●
60	GEAR SET; FINAL DRIVE,RR (B) 39/8	1-41210-411-1	01	1	9002-9310						●
60	GEAR SET; FINAL DRIVE,RR (B) 39/8	1-41210-467-0	01	1	9311-						●
60	GEAR SET; FINAL DRIVE,RR (A) 39/8	1-41210-443-0	01	1	9209-9310						●
60	GEAR SET; FINAL DRIVE,RR (A) 39/8	1-41210-478-0	01	1	9311-						●
60	GEAR SET; FINAL DRIVE,RR (A) 41/6	1-41210-381-1	01	1	9002-9208							●
60	GEAR SET; FINAL DRIVE,RR (A) 41/6	1-41210-435-0	01	1	9209-9310							●
60	GEAR SET; FINAL DRIVE,RR (A) 41/6	1-41210-473-0	01	1	9311-							●
60	GEAR SET; FINAL DRIVE,RR (B) 41/6	1-41210-416-1	01	1	9002-9310							●
60	GEAR SET; FINAL DRIVE,RR (B) 41/6	1-41210-462-0	01	1	9311-							●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-008-0	02	1	9002-	●	●
61	RETAINER; PILOT BRG,PINION	1-41227-003-0	02	1	9002-9204			●	●	●	●	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-012-0	02	1	9205-			●	●	●	●	●
62	BOLT; RET	9-01155-842-0	02	1	9002-9005	●	●
62	BOLT; RET M8X42 W/PIN HOLE	1-09042-037-0	02	1	9006-	●	●
62	BOLT; RET	9-01145-838-0	02	1	9002-9005			●	●	●	●	●
62	BOLT; RET M8X38 W/PIN HOLE	1-09042-036-0	02	1	9006-9204			●	●	●	●	●
62	BOLT; RET M8X40 W/PIN HOLE	1-09042-038-1	02	1	9205-			●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-152-0	01	1	9002-	●	●
63	BEARING; PINION PILOT KOYO	1-09810-153-0	01	1	9002-	●	●
63	BEARING; PINION PILOT KOYO	1-09810-182-0	01	1	9002-			●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-183-0	01	1	9002-			●	●	●	●	●
64	NUT; RET M8	9-09117-408-0	02	1	9002-	●	●	●	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	9002-	●	●	●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=45.9	1-09588-061-0	01	1	9002-	●	●
66	RING; SNAP,PILOT BRG OD=37.2	1-09588-086-1	01	1	9002-			●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-004-0	01	1	9002-	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-003-2	01	1	9002-	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-002-0	01	1	9002-			●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-001-0	01	1	9002-			●	●	●	●	●
70	BEARING; DIFF CAGE NSK ID=101 OD=168 T=41.3	9-00093-119-0	01	1	9002-	●	●
70	BEARING; DIFF CAGE NSK ID=100 OD=157 T=36.5	9-00093-120-0	01	1	9002-	●	●
70	BEARING; DIFF CAGE NSK ID=92 OD=152 T=39.7	1-09812-156-0	02	1	9002-			●	●	●	●	●
70	BEARING; DIFF CAGE KOYO ID=92 OD=152 T=39.7	1-09812-158-0	02	1	9002-			●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-155-0	01	1	9002-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-141-0	01	1	9002-			●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	18	1	9002-	●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	16	1	9002-			●	●	●	●	●
85	NUT; DIFF CAGE SETTING M16	9-99110-516-0	12	1	9002-	●	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT	1-41124-001-0	01	1	9002-	●	●
88	PLATE; LK,ADJ NUT	9-41124-013-0	01	1	9002-	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	02	1	9002-			●	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	9002-			●	●	●	●	●
89	BOLT; LK PLATE M10X20	9-02341-020-0	04	1	9002-9204	●	●
89	BOLT; LK PLATE M10X20	0-23801-020-0	04	1	9205-	●	●
89	BOLT; LK PLATE M8X16	9-02040-816-0	04	1	9002-9204			●	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	9205-			●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-322-0	01	1	9002-	●	●	●	●	●	●	●
126	COUPLING; DRIVING PINION	1-37245-143-2	01	1	9002-	●	●
126	COUPLING; DRIVING PINION	1-37245-225-1	01	1	9002-			●	●	●	●	●

366 369 370 371 367 365 368 372 37 31 45 49 42 41 39 62 40 61 64 65 66 63 61 43 39 98 99 3 5 6 8 373 97 205 384 383 226 377 21 375 374 376 15 10 24 25 83 31 22 16 10 8 9 55 32 8 33 29 355 27 68 206 6 53 54 35 34 20 69 85 70 56 89 88 88 85 21 22 21 20 17 70 69 71 1 52 90 90 91 92 93 94 96 95 60 84 25 225 36 10 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> FORWARD 41/8	1-41001-043-0	01	1	9002-9306	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 41/8	1-41000-862-0	01	1	9002-9306	●
1	DRIVE ASM; FINAL,RR FORWARD 38/7	1-41000-853-0	01	1	9307-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> FORWARD 38/7	1-41001-042-0	01	1	9002-9306		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 38/7	1-41000-853-0	01	1	9002-9306		●
1	DRIVE ASM; FINAL,RR REARWARD 43/6	1-41001-390-0	01	1	9002-			●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT<C5X> FORWARD 43/6	1-41001-497-0	01	1	9002-9306			●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT<C5X> FORWARD 43/6	1-41001-566-0	01	1	9307-			●
1	DRIVE ASM; FINAL,RR P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 43/6	1-41000-829-0	01	1	9002-9306			●
1	DRIVE ASM; FINAL,RR P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 43/6	1-41001-564-0	01	1	9307-			●
1	DRIVE ASM; FINAL,RR REARWARD 43/7	1-41001-392-0	01	1	9002-				●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT<C5X> FORWARD 43/7	1-41001-424-0	01	1	9002-9306				●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT<C5X> FORWARD 43/7	1-41001-605-0	01	1	9307-				●
1	DRIVE ASM; FINAL,RR P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 43/7	1-41000-803-0	01	1	9002-9306				●
1	DRIVE ASM; FINAL,RR P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 43/7	1-41001-652-0	01	1	9307-				●
1	DRIVE ASM; FINAL,RR REARWARD 39/7	1-41001-393-0	01	1	9002-					●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT<C5X> FORWARD 39/7	1-41001-426-0	01	1	9002-9306					●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT<C5X> FORWARD 39/7	1-41001-558-0	01	1	9307-					●
1	DRIVE ASM; FINAL,RR P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 39/7	1-41000-802-0	01	1	9002-9306					●
1	DRIVE ASM; FINAL,RR P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 39/7	1-41001-556-0	01	1	9307-					●
1	DRIVE ASM; FINAL,RR REARWARD 39/8	1-41001-395-0	01	1	9002-						●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT<C5X> FORWARD 39/8	1-41001-430-0	01	1	9002-9306						●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT<C5X> FORWARD 39/8	1-41001-614-0	01	1	9307-						●
1	DRIVE ASM; FINAL,RR P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 39/8	1-41000-800-0	01	1	9002-9306						●
1	DRIVE ASM; FINAL,RR P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 39/8	1-41001-656-0	01	1	9307-						●
1	DRIVE ASM; FINAL,RR REARWARD 41/6	1-41001-290-0	01	1	9002-							●
1	DRIVE ASM; FINAL,RR FORWARD 41/6	1-41001-568-0	01	1	9307-							●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT<C5X> FORWARD 41/6	1-41001-499-0	01	1	9002-9306							●
1	DRIVE ASM; FINAL,RR P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 41/6	1-41001-287-0	01	1	9002-9306							●
3	NUT; INPUT SHAFT M46	1-09449-062-0	01	1	9002-9110			●	●	●	●	●
3	NUT; INPUT SHAFT M46 FLANGE	1-09449-071-0	01	1	9111-			●	●	●	●	●
5	GASKET; INPUT SHAFT ID=57	1-09623-386-0	01	1	9002-			●	●	●	●	●
6	FLANGE ASM; INPUT SHAFT P115 PROP SHAFT<C5X>	1-37245-211-2	01	1	9002-9306			●	●	●	●	●
6	FLANGE ASM; INPUT SHAFT P115 PROP SHAFT<C5X>	1-37245-267-2	01	1	9307-			●	●	●	●	●
6	FLANGE ASM; INPUT SHAFT P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T>	1-37245-143-2	01	1	9002-9306			●	●	●	●	●
6	FLANGE ASM; INPUT SHAFT P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T>	1-37245-265-2	01	1	9307-			●	●	●	●	●
8	SEAL; OIL,INPUT SHAFT (A)	1-09625-323-0	01	1	9002-			●	●	●	●	●
8	SEAL; OIL,INPUT SHAFT (B)	1-41349-145-0	02	1	9307-			●	●	●	●	●
9	RING; SNAP,BRG,INPUT	1-09587-058-0	01	1	9002-9306			●	●	●	●	●
9	RING; SNAP,BRG,INPUT	1-09588-192-0	01	1	9307-			●	●	●	●	●
10	BEARING; INPUT SHAFT NSK	1-09800-173-0	01	1	9002-9306			●	●	●	●	●
10	BEARING; INPUT SHAFT KOYO	1-09800-174-0	01	1	9002-9306			●	●	●	●	●
10	BEARING; INPUT SHAFT (A) KOYO	1-09811-346-0	01	1	9307-			●	●	●	●	●
10	BEARING; INPUT SHAFT (A) NSK	1-09811-347-0	01	1	9307-			●	●	●	●	●
10	BEARING; INPUT SHAFT (B) NSK	1-09812-094-0	01	1	9307-			●	●	●	●	●
10	BEARING; INPUT SHAFT (C) KOYO	1-09812-182-0	01	1	9307-			●	●	●	●	●
10	BEARING; INPUT SHAFT (C) NSK	1-09812-183-0	01	1	9307-			●	●	●	●	●
10	BEARING; INPUT SHAFT (B) KOYO	1-09812-198-0	01	1	9307-			●	●	●	●	●
15	CATCHER; OIL	1-41349-028-1	01	1	9002-9306			●	●	●	●	●
15	CATCHER; OIL	1-41129-007-0	01	1	9307-			●	●	●	●	●
16	SHAFT ASM; INPUT	1-41340-046-0	01	1	9002-9306			●	●	●	●	●
16	SHAFT ASM; INPUT	1-41341-025-0	01	1	9307-			●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X141 FLANGE	1-09070-013-0	08	1	9002-	●	●
17	BOLT; DIFF CAGE SETTING (B) M16X105 FLANGE	1-09070-014-0	04	1	9002-	●	●
17	BOLT; DIFF CAGE SETTING M16X125	1-09070-007-0	04	1	9002-			●	●	●	●	●
17	BOLT; DIFF CAGE SETTING M14X75 FLANGE	1-09070-008-0	08	1	9002-9306			●	●	●	●	●
17	BOLT; DIFF CAGE SETTING M16X113	1-09070-018-0	08	1	9002-			●	●	●	●	●
17	BOLT; DIFF CAGE SETTING M10X55	1-09070-108-0	08	1	9307-			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.8	1-41562-183-0	AR	1	9002-9009	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.8	1-41562-260-0	AR	1	9010-9306	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.9	1-41562-184-0	AR	1	9002-9009	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.9	1-41562-261-0	AR	1	9010-9306	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.0	1-41562-185-0	AR	1	9002-9009	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.0	1-41562-262-0	AR	1	9010-9306	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.1	1-41562-186-0	AR	1	9002-9009	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.1	1-41562-263-0	AR	1	9010-9306	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.2	1-41562-187-0	AR	1	9002-9009	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.2	1-41562-264-0	AR	1	9010-9306	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.3	1-41562-188-0	AR	1	9002-9009	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.3	1-41562-265-0	AR	1	9010-9306	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.4	1-41562-189-0	AR	1	9002-9009	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.4	1-41562-266-0	AR	1	9010-9306	●	●
20	WASHER; THRUST,SIDE GEAR T=2.8	1-41562-260-0	AR	1	9307-		●
20	WASHER; THRUST,SIDE GEAR T=2.9	1-41562-261-0	AR	1	9307-		●
20	WASHER; THRUST,SIDE GEAR T=3.0	1-41562-262-0	AR	1	9307-		●
20	WASHER; THRUST,SIDE GEAR T=3.1	1-41562-263-0	AR	1	9307-		●
20	WASHER; THRUST,SIDE GEAR T=3.2	1-41562-264-0	AR	1	9307-		●
20	WASHER; THRUST,SIDE GEAR T=3.3	1-41562-265-0	AR	1	9307-		●
20	WASHER; THRUST,SIDE GEAR T=3.4	1-41562-266-0	AR	1	9307-		●
20	WASHER; THRUST,SIDE GEAR (A) T=2.8	1-41562-112-0	AR	1	9002-			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=2.9	1-41562-113-0	AR	1	9002-			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.0	1-41562-114-0	AR	1	9002-			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.1	1-41562-115-0	AR	1	9002-			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.2	1-41562-116-0	AR	1	9002-			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.3	1-41562-117-0	AR	1	9002-			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.4	1-41562-118-0	AR	1	9002-			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=2.8	1-41562-120-0	AR	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=2.9	1-41562-121-0	AR	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.0	1-41562-122-0	AR	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.1	1-41562-123-0	AR	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.2	1-41562-124-0	AR	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.3	1-41562-125-0	01	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.4	1-41562-126-0	01	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=2.7	1-41562-127-0	01	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=2.8	1-41562-128-0	01	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=2.9	1-41562-129-0	01	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.0	1-41562-130-0	01	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.1	1-41562-131-0	01	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.2	1-41562-132-0	01	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.3	1-41562-133-0	01	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.4	1-41562-134-0	01	1	9002-9306			●	●	●	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF VAR2<G86>	1-41561-081-0	02	1	9002-9306	●	●
21	GEAR; SIDE,DIFF	1-41561-081-0	02	1	9307-9312		●
21	GEAR; SIDE,DIFF Z=16	1-41561-111-0	02	1	9401-		●
21	GEAR; SIDE,DIFF (B)	1-41561-036-0	01	1	9002-9306			●	●	●	●	●
21	GEAR; SIDE,DIFF (C) Z=16	1-41561-037-2	01	1	9002-9306			●	●	●	●	●
21	GEAR; SIDE,DIFF (A)	1-41561-086-0	02	1	9002-			●	●	●	●	●
21	GEAR; SIDE,DIFF (B) Z=16	1-41561-103-1	01	1	9307-			●	●	●	●	●
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF VAR2<G86>	1-41521-005-0	01	1	9002-9306	●	●
22	SPIDER; DIFF PINION	1-41521-005-0	01	1	9307-9312		●
22	SPIDER; DIFF PINION OD=35	1-41521-052-0	01	1	9401-		●
22	SPIDER; DIFF PINION (B)	1-41521-019-0	01	1	9002-9306			●	●	●	●	●
22	SPIDER; DIFF PINION (A) OD=35	1-41521-037-0	01	1	9002-			●	●	●	●	●
22	SPIDER; DIFF PINION (B)	1-41521-049-1	01	1	9307-			●	●	●	●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF VAR2<G86>	1-41551-023-0	04	1	9002-9306	●	●
24	GEAR; PINION,DIFF	1-41551-023-0	04	1	9307-9312		●
24	GEAR; PINION,DIFF Z=10	1-41551-034-0	04	1	9401-		●
24	GEAR; PINION,DIFF (B)	1-41551-016-0	04	1	9002-9306			●	●	●	●	●
24	GEAR; PINION,DIFF (A)	1-41551-025-0	04	1	9002-			●	●	●	●	●
24	GEAR; PINION,DIFF (B) Z=10	1-41551-031-0	04	1	9307-			●	●	●	●	●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF VAR2<G86> T=1.6	1-41552-003-0	04	1	9002-9306	●	●
25	WASHER; THRUST,PINION T=1.6	1-41552-003-0	04	1	9307-		●
25	WASHER; THRUST,PINION (A) T=1.6	1-41552-017-0	04	1	9002-			●	●	●	●	●
25	WASHER; THRUST,PINION (B) ID=29 OD=60	1-41562-119-0	04	1	9002-9306			●	●	●	●	●
25	WASHER; THRUST,PINION (B) T=1.6	1-41552-023-0	04	1	9307-			●	●	●	●	●
27	BOLT; BRG RET M8X22 HEX SOCKET	9-05820-822-0	02	1	9002-9306			●	●	●	●	●
27	BOLT; BRG RET M12X35 W/LK WASHER	0-50051-235-0	08	1	9307-			●	●	●	●	●
29	SHIM; BRG RET T=1.00	1-41355-029-0	AR	1	9002-9306			●	●	●	●	●
29	SHIM; BRG RET T=0.50	1-41355-030-0	AR	1	9002-9306			●	●	●	●	●
29	SHIM; BRG RET T=0.20	1-41355-031-0	AR	1	9002-9306			●	●	●	●	●
29	SHIM; BRG RET T=0.15	1-41355-032-0	AR	1	9002-9306			●	●	●	●	●
29	SHIM; BRG RET T=0.30	1-41349-146-0	AR	1	9307-			●	●	●	●	●
29	SHIM; BRG RET T=0.40	1-41349-147-0	AR	1	9307-			●	●	●	●	●
29	SHIM; BRG RET T=0.50	1-41349-148-0	AR	1	9307-			●	●	●	●	●
29	SHIM; BRG RET T=1.000	1-41349-149-0	AR	1	9307-			●	●	●	●	●
31	GEAR; DRIVEN,HELICAL (A) Z=31	1-41351-025-0	01	1	9002-9306			●	●	●	●	●
31	GEAR; DRIVEN,HELICAL (A) Z=16	1-41351-030-0	01	1	9307-			●	●	●	●	●
31	GEAR; DRIVEN,HELICAL (B) Z=31	1-41352-029-0	01	1	9002-			●	●	●	●	●
32	SLEEVE; CLU,DIFF LK	1-41356-002-0	01	1	9002-9306			●	●	●	●	●
32	SLEEVE; CLU,DIFF LK	1-41355-038-0	01	1	9307-			●	●	●	●	●
33	CASE; POWER DIVIDER	1-41321-013-0	01	1	9002-9306			●	●	●	●	●
33	CASE; POWER DIVIDER	1-41321-024-1	01	1	9307-			●	●	●	●	●
34	BOLT; CASE TO CARRIER M14X40	9-92351-440-0	02	1	9002-9005			●	●	●	●	●
34	BOLT; CASE TO CARRIER M14X40	0-23801-440-0	02	1	9006-9306			●	●	●	●	●
34	BOLT; CASE TO CARRIER M14X45	9-92351-445-0	08	1	9002-9005			●	●	●	●	●
34	BOLT; CASE TO CARRIER M14X45	0-23801-445-0	08	1	9006-9306			●	●	●	●	●
34	BOLT; CASE TO CARRIER M14X40	0-23801-440-0	10	1	9307-			●	●	●	●	●
35	WASHER; CASE TO CARRIER ID=14.2	9-09150-514-0	10	1	9002-9306			●	●	●	●	●
35	WASHER; CASE TO CARRIER ID=14.2	9-09150-814-0	10	1	9307-			●	●	●	●	●
36	PIN; STRAIGHT OD=14 L=28	9-08161-428-0	02	1	9002-			●	●	●	●	●
37	NUT; DRIVING PINION (B) M46	1-09449-062-0	01	1	9002-9110	●	●	●	●	●	●	●
37	NUT; DRIVING PINION (B) M46 FLANGE	1-09449-071-0	01	1	9111-	●	●	●	●	●	●	●
37	NUT; DRIVING PINION (A) M42 FLANGE	1-09449-043-1	01	1	9002-			●	●	●	●	●
39	BEARING; FINAL PINION NSK	1-09812-075-0	01	1	9002-	●	●	●	●	●	●	●
39	BEARING; FINAL PINION NSK	1-09812-075-0	01	1	9002-			●	●	●	●	●
39	BEARING; FINAL PINION KOYO	1-09812-076-0	01	1	9002-	●	●	●	●	●	●	●
39	BEARING; FINAL PINION KOYO	1-09812-076-0	01	1	9002-			●	●	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	9002-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	9002-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	9002-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	9002-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	9002-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	9002-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	9002-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	9002-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	9002-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	9002-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	9002-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	9002-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	9002-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	9002-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	9002-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	9002-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	9002-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	9002-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	9002-	●	●	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-237-0	AR	1	9002-			●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-238-0	AR	1	9002-			●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-239-0	AR	1	9002-			●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-240-0	AR	1	9002-			●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.40	1-41229-241-0	AR	1	9002-			●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.60	1-41229-242-0	AR	1	9002-			●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.80	1-41229-243-0	AR	1	9002-			●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=9.00	1-41229-244-0	AR	1	9002-			●	●	●	●	●
43	CAGE; FINAL PINION	1-41151-036-0	01	1	9002-9111	●	●
43	CAGE; FINAL PINION T=82	1-41151-057-0	01	1	9112-9306	●	●
43	CAGE; FINAL PINION T=82	1-41151-057-0	01	1	9307-		●
43	CAGE; FINAL PINION (A)	1-41151-030-0	01	1	9002-			●	●	●	●	●
43	CAGE; FINAL PINION (B) T=56	1-41151-035-0	01	1	9002-9306			●	●	●	●	●
43	CAGE; FINAL PINION (B) T=53	1-41151-053-0	01	1	9307-			●	●	●	●	●
45	BOLT; FINAL PINION CAGE (B) M16X55	9-91656-655-0	08	1	9002-9005	●	●	●	●	●	●	●
45	BOLT; FINAL PINION CAGE (B) M16X55	0-16806-655-0	08	1	9006-	●	●	●	●	●	●	●
45	BOLT; FINAL PINION CAGE (A) M16X45	9-92361-645-0	08	1	9002-9207			●	●	●	●	●
45	BOLT; FINAL PINION CAGE (A) M16X40	1-09070-107-0	08	1	9208-			●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-007-0	AR	1	9002-9111	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-077-0	AR	1	9112-	●	●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-008-0	AR	1	9002-9111	●	●
49	SHIM; FINAL PINION CAGE T=1.000	1-41154-078-0	AR	1	9112-	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-060-0	AR	1	9002-9111	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-079-0	AR	1	9112-	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-061-0	AR	1	9002-9111	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-080-0	AR	1	9112-	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.50	1-41154-024-0	AR	1	9002-			●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=1.00	1-41154-025-0	AR	1	9002-			●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.50	1-41154-030-0	AR	1	9002-9306			●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=1.00	1-41154-031-0	AR	1	9002-9306			●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-054-0	AR	1	9002-9306			●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-055-0	AR	1	9002-9306			●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.30	1-41154-057-0	AR	1	9002-			●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.40	1-41154-058-0	AR	1	9002-			●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.50	1-41154-071-0	AR	1	9307-			●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=1.000	1-41154-072-0	AR	1	9307-			●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-073-0	AR	1	9307-			●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-074-0	AR	1	9307-			●	●	●	●	●
52	SHAFT; OUTPUT	1-41343-009-1	01	1	9002-9306			●	●	●	●	●
52	SHAFT; OUTPUT	1-41343-020-0	01	1	9307-			●	●	●	●	●
53	NUT; FINAL DRIVE SET M16	9-99110-516-0	02	1	9002-			●	●	●	●	●
54	STUD; FINAL DRIVE SET M16X32 L=56	9-09830-243-0	02	1	9002-			●	●	●	●	●
55	CARRIER; DIFF	1-41110-072-0	01	1	9002-9111	●	●
55	CARRIER; DIFF	1-41110-102-0	01	1	9112-	●	●
55	CARRIER; DIFF (B)	1-41110-071-1	01	1	9002-9602			●	●	●	●	●
55	CARRIER; DIFF (B)	1-41110-109-0	01	1	9603-			●	●	●	●	●
55	CARRIER; DIFF (A)	1-41310-037-0	01	1	9002-9306			●	●	●	●	●
55	CARRIER; DIFF (A)	1-41310-050-0	01	1	9307-			●	●	●	●	●
56	BOLT; BRG CAP M20X125 FLANGE	1-09070-015-0	04	1	9002-	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	9002-			●	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR 41/8	1-41210-324-1	01	1	9002-9306	●
60	GEAR SET; FINAL DRIVE,RR 38/7	1-41210-319-1	01	1	9002-9310		●
60	GEAR SET; FINAL DRIVE,RR 38/7	1-41210-456-1	01	1	9311-		●
60	GEAR SET; FINAL DRIVE,RR (A) 43/6	1-41210-293-1	01	1	9002-9208			●
60	GEAR SET; FINAL DRIVE,RR (A) 43/6	1-41210-437-0	01	1	9209-9310			●
60	GEAR SET; FINAL DRIVE,RR (A) 43/6	1-41210-472-0	01	1	9311-			●
60	GEAR SET; FINAL DRIVE,RR (B) 43/6	1-41210-406-1	01	1	9002-9310			●
60	GEAR SET; FINAL DRIVE,RR (B) 43/6	1-41210-461-0	01	1	9311-			●
60	GEAR SET; FINAL DRIVE,RR (A) 43/7	1-41210-308-1	01	1	9002-9208				●
60	GEAR SET; FINAL DRIVE,RR (A) 43/7	1-41210-440-0	01	1	9209-9310				●
60	GEAR SET; FINAL DRIVE,RR (A) 43/7	1-41210-475-0	01	1	9311-				●
60	GEAR SET; FINAL DRIVE,RR (B) 43/7	1-41210-408-1	01	1	9002-9310				●
60	GEAR SET; FINAL DRIVE,RR (B) 43/7	1-41210-464-0	01	1	9311-				●
60	GEAR SET; FINAL DRIVE,RR (A) 39/7	1-41210-291-1	01	1	9002-9208					●
60	GEAR SET; FINAL DRIVE,RR (A) 39/7	1-41210-436-0	01	1	9209-9310					●
60	GEAR SET; FINAL DRIVE,RR (A) 39/7	1-41210-476-0	01	1	9311-					●
60	GEAR SET; FINAL DRIVE,RR (B) 39/7	1-41210-409-1	01	1	9002-9310					●
60	GEAR SET; FINAL DRIVE,RR (B) 39/7	1-41210-465-0	01	1	9311-					●
60	GEAR SET; FINAL DRIVE,RR (A) 39/8	1-41210-306-1	01	1	9002-9208						●
60	GEAR SET; FINAL DRIVE,RR (B) 39/8	1-41210-411-1	01	1	9002-9310						●
60	GEAR SET; FINAL DRIVE,RR (B) 39/8	1-41210-467-0	01	1	9311-						●
60	GEAR SET; FINAL DRIVE,RR (A) 39/8	1-41210-443-0	01	1	9209-9310						●
60	GEAR SET; FINAL DRIVE,RR (A) 39/8	1-41210-478-0	01	1	9311-						●
60	GEAR SET; FINAL DRIVE,RR (A) 41/6	1-41210-381-1	01	1	9002-9208							●
60	GEAR SET; FINAL DRIVE,RR (A) 41/6	1-41210-435-0	01	1	9209-9310							●
60	GEAR SET; FINAL DRIVE,RR (A) 41/6	1-41210-473-0	01	1	9311-							●
60	GEAR SET; FINAL DRIVE,RR (B) 41/6	1-41210-416-1	01	1	9002-9310							●
60	GEAR SET; FINAL DRIVE,RR (B) 41/6	1-41210-462-0	01	1	9311-							●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-008-0	02	1	9002-	●	●
61	RETAINER; PILOT BRG,PINION	1-41227-003-0	02	1	9002-9204			●	●	●	●	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-012-0	02	1	9205-			●	●	●	●	●
62	BOLT; RET	9-01155-842-0	02	1	9002-9005	●	●
62	BOLT; RET M8X42 W/PIN HOLE	1-09042-037-0	02	1	9006-	●	●
62	BOLT; RET	9-01145-838-0	02	1	9002-9005			●	●	●	●	●
62	BOLT; RET M8X38 W/PIN HOLE	1-09042-036-0	02	1	9006-9204			●	●	●	●	●
62	BOLT; RET M8X40 W/PIN HOLE	1-09042-038-1	02	1	9205-			●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-152-0	01	1	9002-	●	●
63	BEARING; PINION PILOT KOYO	1-09810-153-0	01	1	9002-	●	●
63	BEARING; PINION PILOT KOYO	1-09810-182-0	01	1	9002-			●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-183-0	01	1	9002-			●	●	●	●	●
64	NUT; RET M8	9-09117-408-0	02	1	9002-	●	●	●	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	9002-	●	●	●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=45.9	1-09588-061-0	01	1	9002-	●	●
66	RING; SNAP,PILOT BRG OD=37.2	1-09588-086-1	01	1	9002-			●	●	●	●	●
68	BOLT; OIL PICKUP FIX M8X16	9-01970-816-0	02	1	9002-9005			●	●	●	●	●
68	BOLT; OIL PICKUP FIX M8X16 W/LK&PL WASHER	0-50140-816-0	02	1	9006-9306			●	●	●	●	●
68	BOLT; OIL PICKUP FIX M8X12 FLANGE	8-94479-696-1	02	1	9307-			●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-004-0	01	1	9002-	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-003-2	01	1	9002-	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-002-0	01	1	9002-			●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-001-0	01	1	9002-			●	●	●	●	●
70	BEARING; DIFF CAGE NSK ID=101 OD=168 T=41.3	9-00093-119-0	01	1	9002-	●	●
70	BEARING; DIFF CAGE NSK ID=100 OD=157 T=36.5	9-00093-120-0	01	1	9002-	●	●
70	BEARING; DIFF CAGE NSK ID=92 OD=152 T=39.7	1-09812-156-0	02	1	9002-			●	●	●	●	●
70	BEARING; DIFF CAGE KOYO ID=92 OD=152 T=39.7	1-09812-158-0	02	1	9002-			●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-155-0	01	1	9002-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-141-0	01	1	9002-			●	●	●	●	●
83	CAGE ASM; DIFF	1-41510-224-0	01	1	9307-			●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	18	1	9002-	●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	16	1	9002-			●	●	●	●	●
85	NUT; DIFF CAGE SETTING M16	9-99110-516-0	12	1	9002-	●	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT	1-41124-001-0	01	1	9002-	●	●
88	PLATE; LK,ADJ NUT	9-41124-013-0	01	1	9002-	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	02	1	9002-			●	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	9002-			●	●	●	●	●
89	BOLT; LK PLATE M10X20	9-02341-020-0	04	1	9002-9204	●	●
89	BOLT; LK PLATE M10X20	0-23801-020-0	04	1	9205-	●	●
89	BOLT; LK PLATE M8X16	9-02040-816-0	04	1	9002-9204			●	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	9205-			●	●	●	●	●
90	BEARING; OUTPUT SHAFT NSK	1-09812-068-0	02	1	9002-			●	●	●	●	●
90	BEARING; OUTPUT SHAFT KOYO	1-09812-069-0	02	1	9002-			●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.60	1-41349-020-0	AR	1	9002-			●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.70	1-41349-021-0	AR	1	9002-			●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.80	1-41349-022-0	AR	1	9002-			●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.90	1-41349-023-0	AR	1	9002-			●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.00	1-41349-024-0	AR	1	9002-			●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.10	1-41349-025-0	AR	1	9002-			●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.20	1-41349-026-0	AR	1	9002-			●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.30	1-41349-027-0	AR	1	9002-			●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.50	1-41349-091-0	AR	1	9002-			●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.40	1-41349-092-0	AR	1	9002-			●	●	●	●	●
92	RING; SNAP,BRG,OUTPUT SHAFT OD=90.5	9-09180-185-0	01	1	9002-			●	●	●	●	●
93	SEAL; OIL,OUTPUT SHAFT	1-09625-217-0	01	1	9002-			●	●	●	●	●
94	FLANGE ASM; OUTPUT SHAFT	1-37245-130-1	01	1	9002-			●	●	●	●	●
95	NUT; OUTPUT SHAFT M36 FLANGE	1-09449-067-0	01	1	9002-			●	●	●	●	●
96	GASKET; SHAFT,OUTPUT ID=42	1-09623-387-0	01	1	9002-			●	●	●	●	●

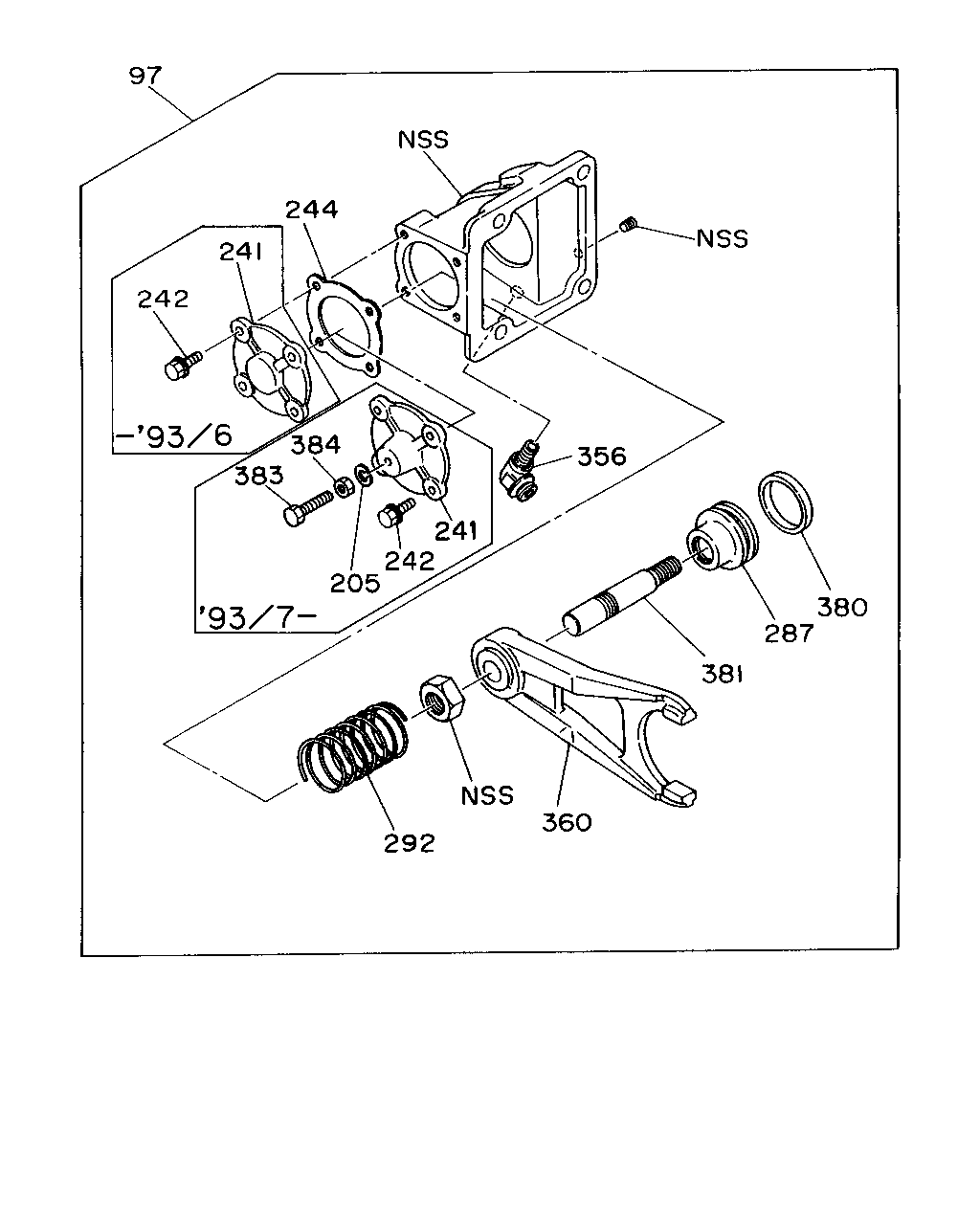

97	SHIFT UNIT; DIFF LOCK	1-48260-035-2	01	1	9002-9306			●	●	●	●	●
97	SHIFT UNIT; DIFF LOCK	1-48260-052-1	01	1	9307-			●	●	●	●	●
98	BOLT; SHIFT UNIT TO CARRIER M10X25 W/LK WASHER	0-50051-025-0	03	1	9002-9409			●	●	●	●	●
98	BOLT; SHIFT UNIT TO CARRIER M10X25 FLANGE	0-28781-025-0	03	1	9410-			●	●	●	●	●
98	BOLT; SHIFT UNIT TO CARRIER M10X55	9-01656-055-0	01	1	9002-9004			●	●	●	●	●
98	BOLT; SHIFT UNIT TO CARRIER M10X55	0-16806-055-0	01	1	9005-9409			●	●	●	●	●
98	BOLT; SHIFT UNIT TO CARRIER M10X50 FLANGE	0-28181-050-0	01	1	9410-			●	●	●	●	●
99	WASHER; LK ID=10.2	9-09150-510-0	01	1	9002-9409			●	●	●	●	●
205	WASHER; PL ID=10.5 OD=18	9-09160-510-0	01	1	9307-			●	●	●	●	●
206	BOLT; OIL CATCHER M8X12 FLANGE	8-94479-696-1	02	1	9307-			●	●	●	●	●
225	WASHER; THRUST T=5.9	1-41552-024-1	AR	1	9307-			●	●	●	●	●
225	WASHER; THRUST T=6.0	1-41552-025-1	AR	1	9307-			●	●	●	●	●
225	WASHER; THRUST T=6.1	1-41552-026-1	AR	1	9307-			●	●	●	●	●
225	WASHER; THRUST T=6.2	1-41552-027-1	AR	1	9307-			●	●	●	●	●
225	WASHER; THRUST T=6.3	1-41552-028-1	AR	1	9307-			●	●	●	●	●
225	WASHER; THRUST T=6.4	1-41552-029-1	AR	1	9307-			●	●	●	●	●
225	WASHER; THRUST T=6.5	1-41552-030-1	AR	1	9307-			●	●	●	●	●
225	WASHER; THRUST T=6.6	1-41552-031-1	AR	1	9307-			●	●	●	●	●
225	WASHER; THRUST T=6.7	1-41552-032-1	AR	1	9307-			●	●	●	●	●
225	WASHER; THRUST T=6.8	1-41552-033-1	AR	1	9307-			●	●	●	●	●
225	WASHER; THRUST T=6.9	1-41552-034-1	AR	1	9307-			●	●	●	●	●
225	WASHER; THRUST T=7.0	1-41552-035-1	AR	1	9307-			●	●	●	●	●
225	WASHER; THRUST T=7.1	1-41552-036-1	AR	1	9307-			●	●	●	●	●
226	WASHER; THRUST	1-41562-267-0	01	1	9307-			●	●	●	●	●
355	RETAINER; BRG	1-41227-011-0	01	1	9307-			●	●	●	●	●
365	PUMP ASM; OIL	1-41381-008-0	01	1	9307-			●	●	●	●	●
366	BOLT; PUMP M8X40	0-10805-840-0	04	1	9307-			●	●	●	●	●
367	STRAINER; OIL PUMP	1-41383-003-0	01	1	9307-			●	●	●	●	●
368	SPRING; STRAINER	1-09580-504-0	01	1	9307-			●	●	●	●	●
369	PLUG; STRAINER M24X17 FLANGE	1-09604-023-0	01	1	9307-			●	●	●	●	●
370	GASKET; STRAINER ID=26.8	1-09623-058-0	01	1	9307-			●	●	●	●	●
371	WASHER; LK,PUMP ID=8.2	9-09150-808-0	04	1	9307-			●	●	●	●	●
372	BALL; CASE	9-00097-517-0	01	1	9307-			●	●	●	●	●
373	PLUG; CASE PT1/4	1-09605-019-0	01	1	9307-			●	●	●	●	●
374	PLUG; INPUT SHAFT	1-09609-020-1	01	1	9307-			●	●	●	●	●
375	BEARING; SIDE GEAR KOYO	1-09811-348-0	01	1	9307-			●	●	●	●	●
375	BEARING; SIDE GEAR NSK	1-09811-362-0	01	1	9307-			●	●	●	●	●
376	SPACER; BRG,SIDE GEAR	1-41349-150-0	01	1	9307-			●	●	●	●	●
377	RING; SNAP,BRG,SIDE GEAR	1-09587-091-0	01	1	9307-			●	●	●	●	●
383	BOLT; SET,SHIFT UNIT M10X45	0-20801-045-0	01	1	9307-			●	●	●	●	●
384	NUT; LK,SHIFT UNIT M10	9-09111-410-0	01	1	9307-			●	●	●	●	●

126 45 48 43 49 49 49 50 61 63 66 65 64 61 62 40 40 41 39 100 37 4 103 101 84 69 89 56 70 87 88 25 57 24 17 17 20 21 22 21 20 85 85 70 69 71 105 106 107 108 109 108 107 106 105 104 1 55 56 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> FORWARD 41/8	1-41001-043-0	01	1	9002-9306	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 41/8	1-41000-862-0	01	1	9002-9306	●
1	DRIVE ASM; FINAL,RR FORWARD 38/7	1-41000-853-0	01	1	9307-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> FORWARD 38/7	1-41001-042-0	01	1	9002-9306		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 38/7	1-41000-853-0	01	1	9002-9306		●
1	DRIVE ASM; FINAL,RR REARWARD 43/6	1-41001-390-0	01	1	9002-			●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT<C5X> FORWARD 43/6	1-41001-497-0	01	1	9002-9306			●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT<C5X> FORWARD 43/6	1-41001-566-0	01	1	9307-			●
1	DRIVE ASM; FINAL,RR P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 43/6	1-41000-829-0	01	1	9002-9306			●
1	DRIVE ASM; FINAL,RR P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 43/6	1-41001-564-0	01	1	9307-			●
1	DRIVE ASM; FINAL,RR REARWARD 43/7	1-41001-392-0	01	1	9002-				●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT<C5X> FORWARD 43/7	1-41001-424-0	01	1	9002-9306				●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT<C5X> FORWARD 43/7	1-41001-605-0	01	1	9307-				●
1	DRIVE ASM; FINAL,RR P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 43/7	1-41000-803-0	01	1	9002-9306				●
1	DRIVE ASM; FINAL,RR P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 43/7	1-41001-652-0	01	1	9307-				●
1	DRIVE ASM; FINAL,RR REARWARD 39/7	1-41001-393-0	01	1	9002-					●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT<C5X> FORWARD 39/7	1-41001-426-0	01	1	9002-9306					●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT<C5X> FORWARD 39/7	1-41001-558-0	01	1	9307-					●
1	DRIVE ASM; FINAL,RR P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 39/7	1-41000-802-0	01	1	9002-9306					●
1	DRIVE ASM; FINAL,RR P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 39/7	1-41001-556-0	01	1	9307-					●
1	DRIVE ASM; FINAL,RR REARWARD 39/8	1-41001-395-0	01	1	9002-						●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT<C5X> FORWARD 39/8	1-41001-430-0	01	1	9002-9306						●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT<C5X> FORWARD 39/8	1-41001-614-0	01	1	9307-						●
1	DRIVE ASM; FINAL,RR P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 39/8	1-41000-800-0	01	1	9002-9306						●
1	DRIVE ASM; FINAL,RR P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 39/8	1-41001-656-0	01	1	9307-						●
1	DRIVE ASM; FINAL,RR REARWARD 41/6	1-41001-290-0	01	1	9002-							●
1	DRIVE ASM; FINAL,RR FORWARD 41/6	1-41001-568-0	01	1	9307-							●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT<C5X> FORWARD 41/6	1-41001-499-0	01	1	9002-9306							●
1	DRIVE ASM; FINAL,RR P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 41/6	1-41001-287-0	01	1	9002-9306							●
4	GASKET; FLANGE,FINAL PINION ID=57	1-09623-386-0	01	1	9002-	●	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X141 FLANGE	1-09070-013-0	08	1	9002-	●	●
17	BOLT; DIFF CAGE SETTING (B) M16X105 FLANGE	1-09070-014-0	04	1	9002-	●	●
17	BOLT; DIFF CAGE SETTING M16X125	1-09070-007-0	04	1	9002-			●	●	●	●	●
17	BOLT; DIFF CAGE SETTING M14X75 FLANGE	1-09070-008-0	08	1	9002-9306			●	●	●	●	●
17	BOLT; DIFF CAGE SETTING M16X113	1-09070-018-0	08	1	9002-			●	●	●	●	●
17	BOLT; DIFF CAGE SETTING M10X55	1-09070-108-0	08	1	9307-			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.8	1-41562-183-0	AR	1	9002-9009	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.8	1-41562-260-0	AR	1	9010-9306	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.9	1-41562-184-0	AR	1	9002-9009	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.9	1-41562-261-0	AR	1	9010-9306	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.0	1-41562-185-0	AR	1	9002-9009	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.0	1-41562-262-0	AR	1	9010-9306	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.1	1-41562-186-0	AR	1	9002-9009	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.1	1-41562-263-0	AR	1	9010-9306	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.2	1-41562-187-0	AR	1	9002-9009	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.2	1-41562-264-0	AR	1	9010-9306	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.3	1-41562-188-0	AR	1	9002-9009	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.3	1-41562-265-0	AR	1	9010-9306	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.4	1-41562-189-0	AR	1	9002-9009	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.4	1-41562-266-0	AR	1	9010-9306	●	●
20	WASHER; THRUST,SIDE GEAR T=2.8	1-41562-260-0	AR	1	9307-		●
20	WASHER; THRUST,SIDE GEAR T=2.9	1-41562-261-0	AR	1	9307-		●
20	WASHER; THRUST,SIDE GEAR T=3.0	1-41562-262-0	AR	1	9307-		●
20	WASHER; THRUST,SIDE GEAR T=3.1	1-41562-263-0	AR	1	9307-		●
20	WASHER; THRUST,SIDE GEAR T=3.2	1-41562-264-0	AR	1	9307-		●
20	WASHER; THRUST,SIDE GEAR T=3.3	1-41562-265-0	AR	1	9307-		●
20	WASHER; THRUST,SIDE GEAR T=3.4	1-41562-266-0	AR	1	9307-		●
20	WASHER; THRUST,SIDE GEAR (A) T=2.8	1-41562-112-0	AR	1	9002-			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=2.9	1-41562-113-0	AR	1	9002-			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.0	1-41562-114-0	AR	1	9002-			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.1	1-41562-115-0	AR	1	9002-			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.2	1-41562-116-0	AR	1	9002-			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.3	1-41562-117-0	AR	1	9002-			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.4	1-41562-118-0	AR	1	9002-			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=2.8	1-41562-120-0	AR	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=2.9	1-41562-121-0	AR	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.0	1-41562-122-0	AR	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.1	1-41562-123-0	AR	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.2	1-41562-124-0	AR	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.3	1-41562-125-0	01	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.4	1-41562-126-0	01	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=2.7	1-41562-127-0	01	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=2.8	1-41562-128-0	01	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=2.9	1-41562-129-0	01	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.0	1-41562-130-0	01	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.1	1-41562-131-0	01	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.2	1-41562-132-0	01	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.3	1-41562-133-0	01	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.4	1-41562-134-0	01	1	9002-9306			●	●	●	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF VAR2<G86>	1-41561-081-0	02	1	9002-9306	●	●
21	GEAR; SIDE,DIFF	1-41561-081-0	02	1	9307-9312		●
21	GEAR; SIDE,DIFF Z=16	1-41561-111-0	02	1	9401-		●
21	GEAR; SIDE,DIFF (B)	1-41561-036-0	01	1	9002-9306			●	●	●	●	●
21	GEAR; SIDE,DIFF (C) Z=16	1-41561-037-2	01	1	9002-9306			●	●	●	●	●
21	GEAR; SIDE,DIFF (A)	1-41561-086-0	02	1	9002-			●	●	●	●	●
21	GEAR; SIDE,DIFF (B) Z=16	1-41561-103-1	01	1	9307-			●	●	●	●	●
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF VAR2<G86>	1-41521-005-0	01	1	9002-9306	●	●
22	SPIDER; DIFF PINION	1-41521-005-0	01	1	9307-9312		●
22	SPIDER; DIFF PINION OD=35	1-41521-052-0	01	1	9401-		●
22	SPIDER; DIFF PINION (B)	1-41521-019-0	01	1	9002-9306			●	●	●	●	●
22	SPIDER; DIFF PINION (A) OD=35	1-41521-037-0	01	1	9002-			●	●	●	●	●
22	SPIDER; DIFF PINION (B)	1-41521-049-1	01	1	9307-			●	●	●	●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF VAR2<G86>	1-41551-023-0	04	1	9002-9306	●	●
24	GEAR; PINION,DIFF	1-41551-023-0	04	1	9307-9312		●
24	GEAR; PINION,DIFF Z=10	1-41551-034-0	04	1	9401-		●
24	GEAR; PINION,DIFF (B)	1-41551-016-0	04	1	9002-9306			●	●	●	●	●
24	GEAR; PINION,DIFF (A)	1-41551-025-0	04	1	9002-			●	●	●	●	●
24	GEAR; PINION,DIFF (B) Z=10	1-41551-031-0	04	1	9307-			●	●	●	●	●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF VAR2<G86> T=1.6	1-41552-003-0	04	1	9002-9306	●	●
25	WASHER; THRUST,PINION T=1.6	1-41552-003-0	04	1	9307-		●
25	WASHER; THRUST,PINION (A) T=1.6	1-41552-017-0	04	1	9002-			●	●	●	●	●
25	WASHER; THRUST,PINION (B) ID=29 OD=60	1-41562-119-0	04	1	9002-9306			●	●	●	●	●
25	WASHER; THRUST,PINION (B) T=1.6	1-41552-023-0	04	1	9307-			●	●	●	●	●
37	NUT; DRIVING PINION (B) M46	1-09449-062-0	01	1	9002-9110	●	●	●	●	●	●	●
37	NUT; DRIVING PINION (B) M46 FLANGE	1-09449-071-0	01	1	9111-	●	●	●	●	●	●	●
37	NUT; DRIVING PINION (A) M42 FLANGE	1-09449-043-1	01	1	9002-			●	●	●	●	●
39	BEARING; FINAL PINION NSK	1-09812-075-0	01	1	9002-	●	●	●	●	●	●	●
39	BEARING; FINAL PINION NSK	1-09812-075-0	01	1	9002-			●	●	●	●	●
39	BEARING; FINAL PINION KOYO	1-09812-076-0	01	1	9002-	●	●	●	●	●	●	●
39	BEARING; FINAL PINION KOYO	1-09812-076-0	01	1	9002-			●	●	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	9002-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	9002-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	9002-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	9002-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	9002-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	9002-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	9002-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	9002-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	9002-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	9002-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	9002-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	9002-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	9002-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	9002-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	9002-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	9002-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	9002-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	9002-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	9002-	●	●	●	●	●	●	●
43	CAGE; FINAL PINION	1-41151-036-0	01	1	9002-9111	●	●
43	CAGE; FINAL PINION T=82	1-41151-057-0	01	1	9112-9306	●	●
43	CAGE; FINAL PINION T=82	1-41151-057-0	01	1	9307-		●
43	CAGE; FINAL PINION (A)	1-41151-030-0	01	1	9002-			●	●	●	●	●
43	CAGE; FINAL PINION (B) T=56	1-41151-035-0	01	1	9002-9306			●	●	●	●	●
43	CAGE; FINAL PINION (B) T=53	1-41151-053-0	01	1	9307-			●	●	●	●	●
45	BOLT; FINAL PINION CAGE (B) M16X55	9-91656-655-0	08	1	9002-9005	●	●	●	●	●	●	●
45	BOLT; FINAL PINION CAGE (B) M16X55	0-16806-655-0	08	1	9006-	●	●	●	●	●	●	●
45	BOLT; FINAL PINION CAGE (A) M16X45	9-92361-645-0	08	1	9002-9207			●	●	●	●	●
45	BOLT; FINAL PINION CAGE (A) M16X40	1-09070-107-0	08	1	9208-			●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=16.2	9-09150-516-0	08	1	9002-	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-007-0	AR	1	9002-9111	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-077-0	AR	1	9112-	●	●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-008-0	AR	1	9002-9111	●	●
49	SHIM; FINAL PINION CAGE T=1.000	1-41154-078-0	AR	1	9112-	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-060-0	AR	1	9002-9111	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-079-0	AR	1	9112-	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-061-0	AR	1	9002-9111	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-080-0	AR	1	9112-	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.50	1-41154-024-0	AR	1	9002-			●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=1.00	1-41154-025-0	AR	1	9002-			●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.50	1-41154-030-0	AR	1	9002-9306			●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=1.00	1-41154-031-0	AR	1	9002-9306			●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-054-0	AR	1	9002-9306			●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-055-0	AR	1	9002-9306			●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.30	1-41154-057-0	AR	1	9002-			●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.40	1-41154-058-0	AR	1	9002-			●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.50	1-41154-071-0	AR	1	9307-			●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=1.000	1-41154-072-0	AR	1	9307-			●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-073-0	AR	1	9307-			●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-074-0	AR	1	9307-			●	●	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-073-0	01	1	9002-	●	●	●	●	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-073-0	01	1	9002-			●	●	●	●	●
50	BEARING; FINAL PINION KOYO	1-09812-074-0	01	1	9002-	●	●	●	●	●	●	●
50	BEARING; FINAL PINION KOYO	1-09812-074-0	01	1	9002-			●	●	●	●	●
55	CARRIER; DIFF	1-41110-072-0	01	1	9002-9111	●	●
55	CARRIER; DIFF	1-41110-102-0	01	1	9112-	●	●
55	CARRIER; DIFF (B)	1-41110-071-1	01	1	9002-9602			●	●	●	●	●
55	CARRIER; DIFF (B)	1-41110-109-0	01	1	9603-			●	●	●	●	●
55	CARRIER; DIFF (A)	1-41310-037-0	01	1	9002-9306			●	●	●	●	●
55	CARRIER; DIFF (A)	1-41310-050-0	01	1	9307-			●	●	●	●	●
56	BOLT; BRG CAP M20X125 FLANGE	1-09070-015-0	04	1	9002-	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	9002-			●	●	●	●	●
57	DOWEL; BRG CAP	9-41119-033-1	04	1	9002-	●	●
60	GEAR SET; FINAL DRIVE,RR 41/8	1-41210-324-1	01	1	9002-9306	●
60	GEAR SET; FINAL DRIVE,RR 38/7	1-41210-319-1	01	1	9002-9310		●
60	GEAR SET; FINAL DRIVE,RR 38/7	1-41210-456-1	01	1	9311-		●
60	GEAR SET; FINAL DRIVE,RR (A) 43/6	1-41210-293-1	01	1	9002-9208			●
60	GEAR SET; FINAL DRIVE,RR (A) 43/6	1-41210-437-0	01	1	9209-9310			●
60	GEAR SET; FINAL DRIVE,RR (A) 43/6	1-41210-472-0	01	1	9311-			●
60	GEAR SET; FINAL DRIVE,RR (B) 43/6	1-41210-406-1	01	1	9002-9310			●
60	GEAR SET; FINAL DRIVE,RR (B) 43/6	1-41210-461-0	01	1	9311-			●
60	GEAR SET; FINAL DRIVE,RR (A) 43/7	1-41210-308-1	01	1	9002-9208				●
60	GEAR SET; FINAL DRIVE,RR (A) 43/7	1-41210-440-0	01	1	9209-9310				●
60	GEAR SET; FINAL DRIVE,RR (A) 43/7	1-41210-475-0	01	1	9311-				●
60	GEAR SET; FINAL DRIVE,RR (B) 43/7	1-41210-408-1	01	1	9002-9310				●
60	GEAR SET; FINAL DRIVE,RR (B) 43/7	1-41210-464-0	01	1	9311-				●
60	GEAR SET; FINAL DRIVE,RR (A) 39/7	1-41210-291-1	01	1	9002-9208					●
60	GEAR SET; FINAL DRIVE,RR (A) 39/7	1-41210-436-0	01	1	9209-9310					●
60	GEAR SET; FINAL DRIVE,RR (A) 39/7	1-41210-476-0	01	1	9311-					●
60	GEAR SET; FINAL DRIVE,RR (B) 39/7	1-41210-409-1	01	1	9002-9310					●
60	GEAR SET; FINAL DRIVE,RR (B) 39/7	1-41210-465-0	01	1	9311-					●
60	GEAR SET; FINAL DRIVE,RR (A) 39/8	1-41210-306-1	01	1	9002-9208						●
60	GEAR SET; FINAL DRIVE,RR (B) 39/8	1-41210-411-1	01	1	9002-9310						●
60	GEAR SET; FINAL DRIVE,RR (B) 39/8	1-41210-467-0	01	1	9311-						●
60	GEAR SET; FINAL DRIVE,RR (A) 39/8	1-41210-443-0	01	1	9209-9310						●
60	GEAR SET; FINAL DRIVE,RR (A) 39/8	1-41210-478-0	01	1	9311-						●
60	GEAR SET; FINAL DRIVE,RR (A) 41/6	1-41210-381-1	01	1	9002-9208							●
60	GEAR SET; FINAL DRIVE,RR (A) 41/6	1-41210-435-0	01	1	9209-9310							●
60	GEAR SET; FINAL DRIVE,RR (A) 41/6	1-41210-473-0	01	1	9311-							●
60	GEAR SET; FINAL DRIVE,RR (B) 41/6	1-41210-416-1	01	1	9002-9310							●
60	GEAR SET; FINAL DRIVE,RR (B) 41/6	1-41210-462-0	01	1	9311-							●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-008-0	02	1	9002-	●	●
61	RETAINER; PILOT BRG,PINION	1-41227-003-0	02	1	9002-9204			●	●	●	●	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-012-0	02	1	9205-			●	●	●	●	●
62	BOLT; RET	9-01155-842-0	02	1	9002-9005	●	●
62	BOLT; RET M8X42 W/PIN HOLE	1-09042-037-0	02	1	9006-	●	●
62	BOLT; RET	9-01145-838-0	02	1	9002-9005			●	●	●	●	●
62	BOLT; RET M8X38 W/PIN HOLE	1-09042-036-0	02	1	9006-9204			●	●	●	●	●
62	BOLT; RET M8X40 W/PIN HOLE	1-09042-038-1	02	1	9205-			●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-152-0	01	1	9002-	●	●
63	BEARING; PINION PILOT KOYO	1-09810-153-0	01	1	9002-	●	●
63	BEARING; PINION PILOT KOYO	1-09810-182-0	01	1	9002-			●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-183-0	01	1	9002-			●	●	●	●	●
64	NUT; RET M8	9-09117-408-0	02	1	9002-	●	●	●	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	9002-	●	●	●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=45.9	1-09588-061-0	01	1	9002-	●	●
66	RING; SNAP,PILOT BRG OD=37.2	1-09588-086-1	01	1	9002-			●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-004-0	01	1	9002-	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-003-2	01	1	9002-	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-002-0	01	1	9002-			●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-001-0	01	1	9002-			●	●	●	●	●
70	BEARING; DIFF CAGE NSK ID=101 OD=168 T=41.3	9-00093-119-0	01	1	9002-	●	●
70	BEARING; DIFF CAGE NSK ID=100 OD=157 T=36.5	9-00093-120-0	01	1	9002-	●	●
70	BEARING; DIFF CAGE NSK ID=92 OD=152 T=39.7	1-09812-156-0	02	1	9002-			●	●	●	●	●
70	BEARING; DIFF CAGE KOYO ID=92 OD=152 T=39.7	1-09812-158-0	02	1	9002-			●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-155-0	01	1	9002-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-141-0	01	1	9002-			●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	18	1	9002-	●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	16	1	9002-			●	●	●	●	●
85	NUT; DIFF CAGE SETTING M16	9-99110-516-0	12	1	9002-	●	●	●	●	●	●	●
87	WASHER; LK	9-41124-014-0	02	1	9002-	●	●
88	PLATE; LK,ADJ NUT	1-41124-001-0	01	1	9002-	●	●
88	PLATE; LK,ADJ NUT	9-41124-013-0	01	1	9002-	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	02	1	9002-			●	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	9002-			●	●	●	●	●
89	BOLT; LK PLATE M10X20	9-02341-020-0	04	1	9002-9204	●	●
89	BOLT; LK PLATE M10X20	0-23801-020-0	04	1	9205-	●	●
89	BOLT; LK PLATE M8X16	9-02040-816-0	04	1	9002-9204			●	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	9205-			●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-322-0	01	1	9002-	●	●	●	●	●	●	●
101	BOLT; ADJ,DRIVEN GEAR THRUST M24X104	9-41127-006-0	01	1	9002-	●	●
103	NUT; ADJ BOLT M28	9-09842-003-0	01	1	9002-	●	●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF VAR2<G86>	1-41530-022-0	01	1	9002-9306	●	●
105	GEAR; SIDE LIMITED SLIP DIFF VAR2<G86>	1-41539-026-0	02	1	9002-9306	●	●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF VAR2<G86>	1-41535-004-0	02	1	9002-9306	●	●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF VAR2<G86>	1-41532-006-0	02	1	9002-9306	●	●
108	RING; HOLD OUT LIMITED SLIP DIFF VAR2<G86>	1-41539-024-0	02	1	9002-9306	●	●
109	SPIDER; DIFF LIMITED SLIP DIFF VAR2<G86>	1-41539-023-0	01	1	9002-9306	●	●
126	COUPLING; DRIVING PINION	1-37245-143-2	01	1	9002-	●	●
126	COUPLING; DRIVING PINION	1-37245-225-1	01	1	9002-			●	●	●	●	●

31 37 39 45 43 49 42 41 40 50 62 61 64 65 66 63 61 30 31 30 29 27 28 26 25 24 22 21 20 15 14 11 10 9 8 6 3 5 12 16 13 17 34 36 21 2 20 33 68 36 67 53 54 55 98 99 97 89 88 69 56 70 85 20 25 24 84 85 21 22 21 20 17 70 69 71 1 60 52 32 90 91 92 93 94 95 96 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> FORWARD 41/8	1-41001-043-0	01	1	9002-9306	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 41/8	1-41000-862-0	01	1	9002-9306	●
1	DRIVE ASM; FINAL,RR FORWARD 38/7	1-41000-853-0	01	1	9307-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> FORWARD 38/7	1-41001-042-0	01	1	9002-9306		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> FORWARD 38/7	1-41000-853-0	01	1	9002-9306		●
1	DRIVE ASM; FINAL,RR REARWARD 43/6	1-41001-390-0	01	1	9002-			●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT<C5X> FORWARD 43/6	1-41001-497-0	01	1	9002-9306			●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT<C5X> FORWARD 43/6	1-41001-566-0	01	1	9307-			●
1	DRIVE ASM; FINAL,RR P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 43/6	1-41000-829-0	01	1	9002-9306			●
1	DRIVE ASM; FINAL,RR P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 43/6	1-41001-564-0	01	1	9307-			●
1	DRIVE ASM; FINAL,RR REARWARD 43/7	1-41001-392-0	01	1	9002-				●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT<C5X> FORWARD 43/7	1-41001-424-0	01	1	9002-9306				●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT<C5X> FORWARD 43/7	1-41001-605-0	01	1	9307-				●
1	DRIVE ASM; FINAL,RR P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 43/7	1-41000-803-0	01	1	9002-9306				●
1	DRIVE ASM; FINAL,RR P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 43/7	1-41001-652-0	01	1	9307-				●
1	DRIVE ASM; FINAL,RR REARWARD 39/7	1-41001-393-0	01	1	9002-					●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT<C5X> FORWARD 39/7	1-41001-426-0	01	1	9002-9306					●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT<C5X> FORWARD 39/7	1-41001-558-0	01	1	9307-					●
1	DRIVE ASM; FINAL,RR P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 39/7	1-41000-802-0	01	1	9002-9306					●
1	DRIVE ASM; FINAL,RR P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 39/7	1-41001-556-0	01	1	9307-					●
1	DRIVE ASM; FINAL,RR REARWARD 39/8	1-41001-395-0	01	1	9002-						●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT<C5X> FORWARD 39/8	1-41001-430-0	01	1	9002-9306						●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT<C5X> FORWARD 39/8	1-41001-614-0	01	1	9307-						●
1	DRIVE ASM; FINAL,RR P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 39/8	1-41000-800-0	01	1	9002-9306						●
1	DRIVE ASM; FINAL,RR P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 39/8	1-41001-656-0	01	1	9307-						●
1	DRIVE ASM; FINAL,RR REARWARD 41/6	1-41001-290-0	01	1	9002-							●
1	DRIVE ASM; FINAL,RR FORWARD 41/6	1-41001-568-0	01	1	9307-							●
1	DRIVE ASM; FINAL,RR P115 PROP SHAFT<C5X> FORWARD 41/6	1-41001-499-0	01	1	9002-9306							●
1	DRIVE ASM; FINAL,RR P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> FORWARD 41/6	1-41001-287-0	01	1	9002-9306							●
2	DIFF ASM; INTER,FINAL P115 PROP SHAFT<C5X>	1-41320-026-0	01	1	9002-9306			●	●	●	●	●
2	DIFF ASM; INTER,FINAL P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T>	1-41320-018-0	01	1	9002-9306			●	●	●	●	●
3	NUT; INPUT SHAFT M46	1-09449-062-0	01	1	9002-9110			●	●	●	●	●
3	NUT; INPUT SHAFT M46 FLANGE	1-09449-071-0	01	1	9111-			●	●	●	●	●
5	GASKET; INPUT SHAFT ID=57	1-09623-386-0	01	1	9002-			●	●	●	●	●
6	FLANGE ASM; INPUT SHAFT P115 PROP SHAFT<C5X>	1-37245-211-2	01	1	9002-9306			●	●	●	●	●
6	FLANGE ASM; INPUT SHAFT P115 PROP SHAFT<C5X>	1-37245-267-2	01	1	9307-			●	●	●	●	●
6	FLANGE ASM; INPUT SHAFT P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T>	1-37245-143-2	01	1	9002-9306			●	●	●	●	●
6	FLANGE ASM; INPUT SHAFT P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T>	1-37245-265-2	01	1	9307-			●	●	●	●	●
8	SEAL; OIL,INPUT SHAFT (A)	1-09625-323-0	01	1	9002-			●	●	●	●	●
8	SEAL; OIL,INPUT SHAFT (B)	1-41349-145-0	02	1	9307-			●	●	●	●	●
9	RING; SNAP,BRG,INPUT	1-09587-058-0	01	1	9002-9306			●	●	●	●	●
9	RING; SNAP,BRG,INPUT	1-09588-192-0	01	1	9307-			●	●	●	●	●
10	BEARING; INPUT SHAFT NSK	1-09800-173-0	01	1	9002-9306			●	●	●	●	●
10	BEARING; INPUT SHAFT KOYO	1-09800-174-0	01	1	9002-9306			●	●	●	●	●
10	BEARING; INPUT SHAFT (A) KOYO	1-09811-346-0	01	1	9307-			●	●	●	●	●
10	BEARING; INPUT SHAFT (A) NSK	1-09811-347-0	01	1	9307-			●	●	●	●	●
10	BEARING; INPUT SHAFT (B) NSK	1-09812-094-0	01	1	9307-			●	●	●	●	●
10	BEARING; INPUT SHAFT (C) KOYO	1-09812-182-0	01	1	9307-			●	●	●	●	●
10	BEARING; INPUT SHAFT (C) NSK	1-09812-183-0	01	1	9307-			●	●	●	●	●
10	BEARING; INPUT SHAFT (B) KOYO	1-09812-198-0	01	1	9307-			●	●	●	●	●
11	COVER; INTER AXLE DIFF	1-41323-011-1	01	1	9002-9306			●	●	●	●	●
12	BOLT; COVER TO CASE M12X55	9-01656-255-0	08	1	9002-9005			●	●	●	●	●
12	BOLT; COVER TO CASE M12X55	0-16806-255-0	08	1	9006-9306			●	●	●	●	●
13	WASHER; COVER TO CASE ID=12.2	9-09150-512-0	08	1	9002-9306			●	●	●	●	●
14	PLUG; FILLER PT1/2	9-09204-521-0	01	1	9002-9306			●	●	●	●	●
15	CATCHER; OIL	1-41349-028-1	01	1	9002-9306			●	●	●	●	●
15	CATCHER; OIL	1-41129-007-0	01	1	9307-			●	●	●	●	●
16	SHAFT ASM; INPUT	1-41340-046-0	01	1	9002-9306			●	●	●	●	●
16	SHAFT ASM; INPUT	1-41341-025-0	01	1	9307-			●	●	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M16X141 FLANGE	1-09070-013-0	08	1	9002-	●	●
17	BOLT; DIFF CAGE SETTING (B) M16X105 FLANGE	1-09070-014-0	04	1	9002-	●	●
17	BOLT; DIFF CAGE SETTING M16X125	1-09070-007-0	04	1	9002-			●	●	●	●	●
17	BOLT; DIFF CAGE SETTING M14X75 FLANGE	1-09070-008-0	08	1	9002-9306			●	●	●	●	●
17	BOLT; DIFF CAGE SETTING M16X113	1-09070-018-0	08	1	9002-			●	●	●	●	●
17	BOLT; DIFF CAGE SETTING M10X55	1-09070-108-0	08	1	9307-			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.8	1-41562-183-0	AR	1	9002-9009	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.8	1-41562-260-0	AR	1	9010-9306	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.9	1-41562-184-0	AR	1	9002-9009	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.9	1-41562-261-0	AR	1	9010-9306	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.0	1-41562-185-0	AR	1	9002-9009	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.0	1-41562-262-0	AR	1	9010-9306	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.1	1-41562-186-0	AR	1	9002-9009	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.1	1-41562-263-0	AR	1	9010-9306	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.2	1-41562-187-0	AR	1	9002-9009	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.2	1-41562-264-0	AR	1	9010-9306	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.3	1-41562-188-0	AR	1	9002-9009	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.3	1-41562-265-0	AR	1	9010-9306	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.4	1-41562-189-0	AR	1	9002-9009	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.4	1-41562-266-0	AR	1	9010-9306	●	●
20	WASHER; THRUST,SIDE GEAR T=2.8	1-41562-260-0	AR	1	9307-		●
20	WASHER; THRUST,SIDE GEAR T=2.9	1-41562-261-0	AR	1	9307-		●
20	WASHER; THRUST,SIDE GEAR T=3.0	1-41562-262-0	AR	1	9307-		●
20	WASHER; THRUST,SIDE GEAR T=3.1	1-41562-263-0	AR	1	9307-		●
20	WASHER; THRUST,SIDE GEAR T=3.2	1-41562-264-0	AR	1	9307-		●
20	WASHER; THRUST,SIDE GEAR T=3.3	1-41562-265-0	AR	1	9307-		●
20	WASHER; THRUST,SIDE GEAR T=3.4	1-41562-266-0	AR	1	9307-		●
20	WASHER; THRUST,SIDE GEAR (A) T=2.8	1-41562-112-0	AR	1	9002-			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=2.9	1-41562-113-0	AR	1	9002-			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.0	1-41562-114-0	AR	1	9002-			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.1	1-41562-115-0	AR	1	9002-			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.2	1-41562-116-0	AR	1	9002-			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.3	1-41562-117-0	AR	1	9002-			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.4	1-41562-118-0	AR	1	9002-			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=2.8	1-41562-120-0	AR	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=2.9	1-41562-121-0	AR	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.0	1-41562-122-0	AR	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.1	1-41562-123-0	AR	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.2	1-41562-124-0	AR	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.3	1-41562-125-0	01	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.4	1-41562-126-0	01	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=2.7	1-41562-127-0	01	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=2.8	1-41562-128-0	01	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=2.9	1-41562-129-0	01	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.0	1-41562-130-0	01	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.1	1-41562-131-0	01	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.2	1-41562-132-0	01	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.3	1-41562-133-0	01	1	9002-9306			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.4	1-41562-134-0	01	1	9002-9306			●	●	●	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF VAR2<G86>	1-41561-081-0	02	1	9002-9306	●	●
21	GEAR; SIDE,DIFF	1-41561-081-0	02	1	9307-9312		●
21	GEAR; SIDE,DIFF Z=16	1-41561-111-0	02	1	9401-		●
21	GEAR; SIDE,DIFF (B)	1-41561-036-0	01	1	9002-9306			●	●	●	●	●
21	GEAR; SIDE,DIFF (C) Z=16	1-41561-037-2	01	1	9002-9306			●	●	●	●	●
21	GEAR; SIDE,DIFF (A)	1-41561-086-0	02	1	9002-			●	●	●	●	●
21	GEAR; SIDE,DIFF (B) Z=16	1-41561-103-1	01	1	9307-			●	●	●	●	●
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF VAR2<G86>	1-41521-005-0	01	1	9002-9306	●	●
22	SPIDER; DIFF PINION	1-41521-005-0	01	1	9307-9312		●
22	SPIDER; DIFF PINION OD=35	1-41521-052-0	01	1	9401-		●
22	SPIDER; DIFF PINION (B)	1-41521-019-0	01	1	9002-9306			●	●	●	●	●
22	SPIDER; DIFF PINION (A) OD=35	1-41521-037-0	01	1	9002-			●	●	●	●	●
22	SPIDER; DIFF PINION (B)	1-41521-049-1	01	1	9307-			●	●	●	●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF VAR2<G86>	1-41551-023-0	04	1	9002-9306	●	●
24	GEAR; PINION,DIFF	1-41551-023-0	04	1	9307-9312		●
24	GEAR; PINION,DIFF Z=10	1-41551-034-0	04	1	9401-		●
24	GEAR; PINION,DIFF (B)	1-41551-016-0	04	1	9002-9306			●	●	●	●	●
24	GEAR; PINION,DIFF (A)	1-41551-025-0	04	1	9002-			●	●	●	●	●
24	GEAR; PINION,DIFF (B) Z=10	1-41551-031-0	04	1	9307-			●	●	●	●	●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF VAR2<G86> T=1.6	1-41552-003-0	04	1	9002-9306	●	●
25	WASHER; THRUST,PINION T=1.6	1-41552-003-0	04	1	9307-		●
25	WASHER; THRUST,PINION (A) T=1.6	1-41552-017-0	04	1	9002-			●	●	●	●	●
25	WASHER; THRUST,PINION (B) ID=29 OD=60	1-41562-119-0	04	1	9002-9306			●	●	●	●	●
25	WASHER; THRUST,PINION (B) T=1.6	1-41552-023-0	04	1	9307-			●	●	●	●	●
26	BUSHING; DIFF CAGE	1-41519-006-0	01	1	9002-9306			●	●	●	●	●
27	BOLT; BRG RET M8X22 HEX SOCKET	9-05820-822-0	02	1	9002-9306			●	●	●	●	●
27	BOLT; BRG RET M12X35 W/LK WASHER	0-50051-235-0	08	1	9307-			●	●	●	●	●
28	RETAINER; BRG,DRIVE GEAR	1-41353-011-0	01	1	9002-9306			●	●	●	●	●
29	SHIM; BRG RET T=1.00	1-41355-029-0	AR	1	9002-9306			●	●	●	●	●
29	SHIM; BRG RET T=0.50	1-41355-030-0	AR	1	9002-9306			●	●	●	●	●
29	SHIM; BRG RET T=0.20	1-41355-031-0	AR	1	9002-9306			●	●	●	●	●
29	SHIM; BRG RET T=0.15	1-41355-032-0	AR	1	9002-9306			●	●	●	●	●
29	SHIM; BRG RET T=0.30	1-41349-146-0	AR	1	9307-			●	●	●	●	●
29	SHIM; BRG RET T=0.40	1-41349-147-0	AR	1	9307-			●	●	●	●	●
29	SHIM; BRG RET T=0.50	1-41349-148-0	AR	1	9307-			●	●	●	●	●
29	SHIM; BRG RET T=1.000	1-41349-149-0	AR	1	9307-			●	●	●	●	●
30	BEARING; TAPER ROLLER NSK	1-09812-161-0	02	1	9002-9306			●	●	●	●	●
30	BEARING; TAPER ROLLER KOYO	1-09812-162-0	02	1	9002-9306			●	●	●	●	●
31	GEAR; DRIVEN,HELICAL (A) Z=31	1-41351-025-0	01	1	9002-9306			●	●	●	●	●
31	GEAR; DRIVEN,HELICAL (A) Z=16	1-41351-030-0	01	1	9307-			●	●	●	●	●
31	GEAR; DRIVEN,HELICAL (B) Z=31	1-41352-029-0	01	1	9002-			●	●	●	●	●
32	SLEEVE; CLU,DIFF LK	1-41356-002-0	01	1	9002-9306			●	●	●	●	●
32	SLEEVE; CLU,DIFF LK	1-41355-038-0	01	1	9307-			●	●	●	●	●
33	CASE; POWER DIVIDER	1-41321-013-0	01	1	9002-9306			●	●	●	●	●
33	CASE; POWER DIVIDER	1-41321-024-1	01	1	9307-			●	●	●	●	●
34	BOLT; CASE TO CARRIER M14X40	9-92351-440-0	02	1	9002-9005			●	●	●	●	●
34	BOLT; CASE TO CARRIER M14X40	0-23801-440-0	02	1	9006-9306			●	●	●	●	●
34	BOLT; CASE TO CARRIER M14X45	9-92351-445-0	08	1	9002-9005			●	●	●	●	●
34	BOLT; CASE TO CARRIER M14X45	0-23801-445-0	08	1	9006-9306			●	●	●	●	●
34	BOLT; CASE TO CARRIER M14X40	0-23801-440-0	10	1	9307-			●	●	●	●	●
36	PIN; STRAIGHT OD=14 L=28	9-08161-428-0	02	1	9002-			●	●	●	●	●
37	NUT; DRIVING PINION (B) M46	1-09449-062-0	01	1	9002-9110	●	●	●	●	●	●	●
37	NUT; DRIVING PINION (B) M46 FLANGE	1-09449-071-0	01	1	9111-	●	●	●	●	●	●	●
37	NUT; DRIVING PINION (A) M42 FLANGE	1-09449-043-1	01	1	9002-			●	●	●	●	●
39	BEARING; FINAL PINION NSK	1-09812-075-0	01	1	9002-	●	●	●	●	●	●	●
39	BEARING; FINAL PINION NSK	1-09812-075-0	01	1	9002-			●	●	●	●	●
39	BEARING; FINAL PINION KOYO	1-09812-076-0	01	1	9002-	●	●	●	●	●	●	●
39	BEARING; FINAL PINION KOYO	1-09812-076-0	01	1	9002-			●	●	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	9002-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	9002-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	9002-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	9002-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	9002-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	9002-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	9002-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	9002-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	9002-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	9002-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	9002-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	9002-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	9002-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	9002-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	9002-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	9002-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	9002-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	9002-	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	9002-	●	●	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-237-0	AR	1	9002-			●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-238-0	AR	1	9002-			●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-239-0	AR	1	9002-			●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-240-0	AR	1	9002-			●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.40	1-41229-241-0	AR	1	9002-			●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.60	1-41229-242-0	AR	1	9002-			●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.80	1-41229-243-0	AR	1	9002-			●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=9.00	1-41229-244-0	AR	1	9002-			●	●	●	●	●
43	CAGE; FINAL PINION	1-41151-036-0	01	1	9002-9111	●	●
43	CAGE; FINAL PINION T=82	1-41151-057-0	01	1	9112-9306	●	●
43	CAGE; FINAL PINION T=82	1-41151-057-0	01	1	9307-		●
43	CAGE; FINAL PINION (A)	1-41151-030-0	01	1	9002-			●	●	●	●	●
43	CAGE; FINAL PINION (B) T=56	1-41151-035-0	01	1	9002-9306			●	●	●	●	●
43	CAGE; FINAL PINION (B) T=53	1-41151-053-0	01	1	9307-			●	●	●	●	●
45	BOLT; FINAL PINION CAGE (B) M16X55	9-91656-655-0	08	1	9002-9005	●	●	●	●	●	●	●
45	BOLT; FINAL PINION CAGE (B) M16X55	0-16806-655-0	08	1	9006-	●	●	●	●	●	●	●
45	BOLT; FINAL PINION CAGE (A) M16X45	9-92361-645-0	08	1	9002-9207			●	●	●	●	●
45	BOLT; FINAL PINION CAGE (A) M16X40	1-09070-107-0	08	1	9208-			●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-007-0	AR	1	9002-9111	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-077-0	AR	1	9112-	●	●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-008-0	AR	1	9002-9111	●	●
49	SHIM; FINAL PINION CAGE T=1.000	1-41154-078-0	AR	1	9112-	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-060-0	AR	1	9002-9111	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-079-0	AR	1	9112-	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-061-0	AR	1	9002-9111	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-080-0	AR	1	9112-	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.50	1-41154-024-0	AR	1	9002-			●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=1.00	1-41154-025-0	AR	1	9002-			●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.50	1-41154-030-0	AR	1	9002-9306			●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=1.00	1-41154-031-0	AR	1	9002-9306			●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-054-0	AR	1	9002-9306			●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-055-0	AR	1	9002-9306			●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.30	1-41154-057-0	AR	1	9002-			●	●	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.40	1-41154-058-0	AR	1	9002-			●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.50	1-41154-071-0	AR	1	9307-			●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=1.000	1-41154-072-0	AR	1	9307-			●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-073-0	AR	1	9307-			●	●	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-074-0	AR	1	9307-			●	●	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-073-0	01	1	9002-	●	●	●	●	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-073-0	01	1	9002-			●	●	●	●	●
50	BEARING; FINAL PINION KOYO	1-09812-074-0	01	1	9002-	●	●	●	●	●	●	●
50	BEARING; FINAL PINION KOYO	1-09812-074-0	01	1	9002-			●	●	●	●	●
52	SHAFT; OUTPUT	1-41343-009-1	01	1	9002-9306			●	●	●	●	●
52	SHAFT; OUTPUT	1-41343-020-0	01	1	9307-			●	●	●	●	●
53	NUT; FINAL DRIVE SET M16	9-99110-516-0	02	1	9002-			●	●	●	●	●
54	STUD; FINAL DRIVE SET M16X32 L=56	9-09830-243-0	02	1	9002-			●	●	●	●	●
55	CARRIER; DIFF	1-41110-072-0	01	1	9002-9111	●	●
55	CARRIER; DIFF	1-41110-102-0	01	1	9112-	●	●
55	CARRIER; DIFF (B)	1-41110-071-1	01	1	9002-9602			●	●	●	●	●
55	CARRIER; DIFF (B)	1-41110-109-0	01	1	9603-			●	●	●	●	●
55	CARRIER; DIFF (A)	1-41310-037-0	01	1	9002-9306			●	●	●	●	●
55	CARRIER; DIFF (A)	1-41310-050-0	01	1	9307-			●	●	●	●	●
56	BOLT; BRG CAP M20X125 FLANGE	1-09070-015-0	04	1	9002-	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	9002-			●	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR 41/8	1-41210-324-1	01	1	9002-9306	●
60	GEAR SET; FINAL DRIVE,RR 38/7	1-41210-319-1	01	1	9002-9310		●
60	GEAR SET; FINAL DRIVE,RR 38/7	1-41210-456-1	01	1	9311-		●
60	GEAR SET; FINAL DRIVE,RR (A) 43/6	1-41210-293-1	01	1	9002-9208			●
60	GEAR SET; FINAL DRIVE,RR (A) 43/6	1-41210-437-0	01	1	9209-9310			●
60	GEAR SET; FINAL DRIVE,RR (A) 43/6	1-41210-472-0	01	1	9311-			●
60	GEAR SET; FINAL DRIVE,RR (B) 43/6	1-41210-406-1	01	1	9002-9310			●
60	GEAR SET; FINAL DRIVE,RR (B) 43/6	1-41210-461-0	01	1	9311-			●
60	GEAR SET; FINAL DRIVE,RR (A) 43/7	1-41210-308-1	01	1	9002-9208				●
60	GEAR SET; FINAL DRIVE,RR (A) 43/7	1-41210-440-0	01	1	9209-9310				●
60	GEAR SET; FINAL DRIVE,RR (A) 43/7	1-41210-475-0	01	1	9311-				●
60	GEAR SET; FINAL DRIVE,RR (B) 43/7	1-41210-408-1	01	1	9002-9310				●
60	GEAR SET; FINAL DRIVE,RR (B) 43/7	1-41210-464-0	01	1	9311-				●
60	GEAR SET; FINAL DRIVE,RR (A) 39/7	1-41210-291-1	01	1	9002-9208					●
60	GEAR SET; FINAL DRIVE,RR (A) 39/7	1-41210-436-0	01	1	9209-9310					●
60	GEAR SET; FINAL DRIVE,RR (A) 39/7	1-41210-476-0	01	1	9311-					●
60	GEAR SET; FINAL DRIVE,RR (B) 39/7	1-41210-409-1	01	1	9002-9310					●
60	GEAR SET; FINAL DRIVE,RR (B) 39/7	1-41210-465-0	01	1	9311-					●
60	GEAR SET; FINAL DRIVE,RR (A) 39/8	1-41210-306-1	01	1	9002-9208						●
60	GEAR SET; FINAL DRIVE,RR (B) 39/8	1-41210-411-1	01	1	9002-9310						●
60	GEAR SET; FINAL DRIVE,RR (B) 39/8	1-41210-467-0	01	1	9311-						●
60	GEAR SET; FINAL DRIVE,RR (A) 39/8	1-41210-443-0	01	1	9209-9310						●
60	GEAR SET; FINAL DRIVE,RR (A) 39/8	1-41210-478-0	01	1	9311-						●
60	GEAR SET; FINAL DRIVE,RR (A) 41/6	1-41210-381-1	01	1	9002-9208							●
60	GEAR SET; FINAL DRIVE,RR (A) 41/6	1-41210-435-0	01	1	9209-9310							●
60	GEAR SET; FINAL DRIVE,RR (A) 41/6	1-41210-473-0	01	1	9311-							●
60	GEAR SET; FINAL DRIVE,RR (B) 41/6	1-41210-416-1	01	1	9002-9310							●
60	GEAR SET; FINAL DRIVE,RR (B) 41/6	1-41210-462-0	01	1	9311-							●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-008-0	02	1	9002-	●	●
61	RETAINER; PILOT BRG,PINION	1-41227-003-0	02	1	9002-9204			●	●	●	●	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-012-0	02	1	9205-			●	●	●	●	●
62	BOLT; RET	9-01155-842-0	02	1	9002-9005	●	●
62	BOLT; RET M8X42 W/PIN HOLE	1-09042-037-0	02	1	9006-	●	●
62	BOLT; RET	9-01145-838-0	02	1	9002-9005			●	●	●	●	●
62	BOLT; RET M8X38 W/PIN HOLE	1-09042-036-0	02	1	9006-9204			●	●	●	●	●
62	BOLT; RET M8X40 W/PIN HOLE	1-09042-038-1	02	1	9205-			●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-152-0	01	1	9002-	●	●
63	BEARING; PINION PILOT KOYO	1-09810-153-0	01	1	9002-	●	●
63	BEARING; PINION PILOT KOYO	1-09810-182-0	01	1	9002-			●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-183-0	01	1	9002-			●	●	●	●	●
64	NUT; RET M8	9-09117-408-0	02	1	9002-	●	●	●	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	9002-	●	●	●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=45.9	1-09588-061-0	01	1	9002-	●	●
66	RING; SNAP,PILOT BRG OD=37.2	1-09588-086-1	01	1	9002-			●	●	●	●	●
67	PICKUP; OIL,CARRIER	1-41129-001-2	01	1	9002-9306			●	●	●	●	●
67	PICKUP; OIL,CARRIER	1-41129-008-0	01	1	9307-			●	●	●	●	●
68	BOLT; OIL PICKUP FIX M8X16	9-01970-816-0	02	1	9002-9005			●	●	●	●	●
68	BOLT; OIL PICKUP FIX M8X16 W/LK&PL WASHER	0-50140-816-0	02	1	9006-9306			●	●	●	●	●
68	BOLT; OIL PICKUP FIX M8X12 FLANGE	8-94479-696-1	02	1	9307-			●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-004-0	01	1	9002-	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-003-2	01	1	9002-	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-002-0	01	1	9002-			●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-001-0	01	1	9002-			●	●	●	●	●
70	BEARING; DIFF CAGE NSK ID=101 OD=168 T=41.3	9-00093-119-0	01	1	9002-	●	●
70	BEARING; DIFF CAGE NSK ID=100 OD=157 T=36.5	9-00093-120-0	01	1	9002-	●	●
70	BEARING; DIFF CAGE NSK ID=92 OD=152 T=39.7	1-09812-156-0	02	1	9002-			●	●	●	●	●
70	BEARING; DIFF CAGE KOYO ID=92 OD=152 T=39.7	1-09812-158-0	02	1	9002-			●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-155-0	01	1	9002-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-141-0	01	1	9002-			●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	18	1	9002-	●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	16	1	9002-			●	●	●	●	●
85	NUT; DIFF CAGE SETTING M16	9-99110-516-0	12	1	9002-	●	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT	1-41124-001-0	01	1	9002-	●	●
88	PLATE; LK,ADJ NUT	9-41124-013-0	01	1	9002-	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	02	1	9002-			●	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	9002-			●	●	●	●	●
89	BOLT; LK PLATE M10X20	9-02341-020-0	04	1	9002-9204	●	●
89	BOLT; LK PLATE M10X20	0-23801-020-0	04	1	9205-	●	●
89	BOLT; LK PLATE M8X16	9-02040-816-0	04	1	9002-9204			●	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	9205-			●	●	●	●	●
90	BEARING; OUTPUT SHAFT NSK	1-09812-068-0	02	1	9002-			●	●	●	●	●
90	BEARING; OUTPUT SHAFT KOYO	1-09812-069-0	02	1	9002-			●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.60	1-41349-020-0	AR	1	9002-			●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.70	1-41349-021-0	AR	1	9002-			●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.80	1-41349-022-0	AR	1	9002-			●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.90	1-41349-023-0	AR	1	9002-			●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.00	1-41349-024-0	AR	1	9002-			●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.10	1-41349-025-0	AR	1	9002-			●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.20	1-41349-026-0	AR	1	9002-			●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.30	1-41349-027-0	AR	1	9002-			●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.50	1-41349-091-0	AR	1	9002-			●	●	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.40	1-41349-092-0	AR	1	9002-			●	●	●	●	●
92	RING; SNAP,BRG,OUTPUT SHAFT OD=90.5	9-09180-185-0	01	1	9002-			●	●	●	●	●
93	SEAL; OIL,OUTPUT SHAFT	1-09625-217-0	01	1	9002-			●	●	●	●	●
94	FLANGE ASM; OUTPUT SHAFT	1-37245-130-1	01	1	9002-			●	●	●	●	●
95	NUT; OUTPUT SHAFT M36 FLANGE	1-09449-067-0	01	1	9002-			●	●	●	●	●
96	GASKET; SHAFT,OUTPUT ID=42	1-09623-387-0	01	1	9002-			●	●	●	●	●
97	SHIFT UNIT; DIFF LOCK	1-48260-035-2	01	1	9002-9306			●	●	●	●	●
97	SHIFT UNIT; DIFF LOCK	1-48260-052-1	01	1	9307-			●	●	●	●	●
98	BOLT; SHIFT UNIT TO CARRIER M10X25 W/LK WASHER	0-50051-025-0	03	1	9002-9409			●	●	●	●	●
98	BOLT; SHIFT UNIT TO CARRIER M10X25 FLANGE	0-28781-025-0	03	1	9410-			●	●	●	●	●
98	BOLT; SHIFT UNIT TO CARRIER M10X55	9-01656-055-0	01	1	9002-9004			●	●	●	●	●
98	BOLT; SHIFT UNIT TO CARRIER M10X55	0-16806-055-0	01	1	9005-9409			●	●	●	●	●
98	BOLT; SHIFT UNIT TO CARRIER M10X50 FLANGE	0-28181-050-0	01	1	9410-			●	●	●	●	●
99	WASHER; LK ID=10.2	9-09150-510-0	01	1	9002-9409			●	●	●	●	●

292 360 381 287 380 356 241 242 205 383 384 242 241 244 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C	D	E	F	G
97	SHIFT UNIT; DIFF LOCK	1-48260-035-2	01	1	9002-9306	●	●	●	●	●
97	SHIFT UNIT; DIFF LOCK	1-48260-052-1	01	1	9307-	●	●	●	●	●
205	WASHER; PL ID=10.5 OD=18	9-09160-510-0	01	1	9307-	●	●	●	●	●
241	COVER; SHIFT HSG	1-48266-011-0	01	1	9002-9306	●	●	●	●	●
241	COVER; SHIFT HSG	1-48266-012-1	01	1	9307-	●	●	●	●	●
242	BOLT; COVER M8X20	9-02040-820-0	04	1	9002-9210	●	●	●	●	●
242	BOLT; COVER M8X20	0-20800-820-0	04	1	9211-	●	●	●	●	●
244	GASKET; COVER	1-48269-062-0	01	1	9002-	●	●	●	●	●
287	PISTON; SHIFT UNIT	1-48262-011-0	01	1	9002-9210	●	●	●	●	●
287	PISTON; SHIFT UNIT	1-48262-012-0	01	1	9211-9306	●	●	●	●	●
287	PISTON; SHIFT UNIT	1-48262-011-1	01	1	9307-	●	●	●	●	●
292	SPRING; PISTON	1-48265-007-0	01	1	9002-	●	●	●	●	●
356	NIPPLE; SHIFT UNIT M20 & PT1/4 ELBOW	1-48269-012-0	01	1	9002-	●	●	●	●	●
360	FORK; SHIFT	1-48269-063-0	01	1	9002-9306	●	●	●	●	●
360	FORK; SHIFT	1-48269-066-0	01	1	9307-	●	●	●	●	●
380	GASKET; PISTON	1-48269-064-0	01	1	9002-	●	●	●	●	●
381	ROD; SHIFT	1-48263-005-0	01	1	9002-	●	●	●	●	●
383	BOLT; SET,SHIFT UNIT M10X45	0-20801-045-0	01	1	9307-	●	●	●	●	●
384	NUT; LK,SHIFT UNIT M10	9-09111-410-0	01	1	9307-	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
