Sayfa 8-40 - Isuzu EPC

8-40 — HEATER SYSTEM (#33908) — 169 parça

223 50 476 206 407 247

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
50	VALVE ASM; HTR	8-98080-998-1	01	1	0710-	●	●
206	GROMMET; A/C PIPE TO BLOWER UNIT	8-98019-649-0	01	1	0710-	●	●
223	GROMMET; SCREW D=7.9X7.9 L=20 M5	8-94441-539-0	01	1	0710-	●	●
247	SEAL; COVER,BLOWER MOTOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) OD=25 BLACK	1-76798-019-0	01	1	0810-	●	●
407	JOINT; HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98041-758-0	01	1	0710-	●	●
476	SCREW; VALVE M5X16 TAPPING HEXALOBULAR	8-98062-675-0	01	1	0710-	●	●

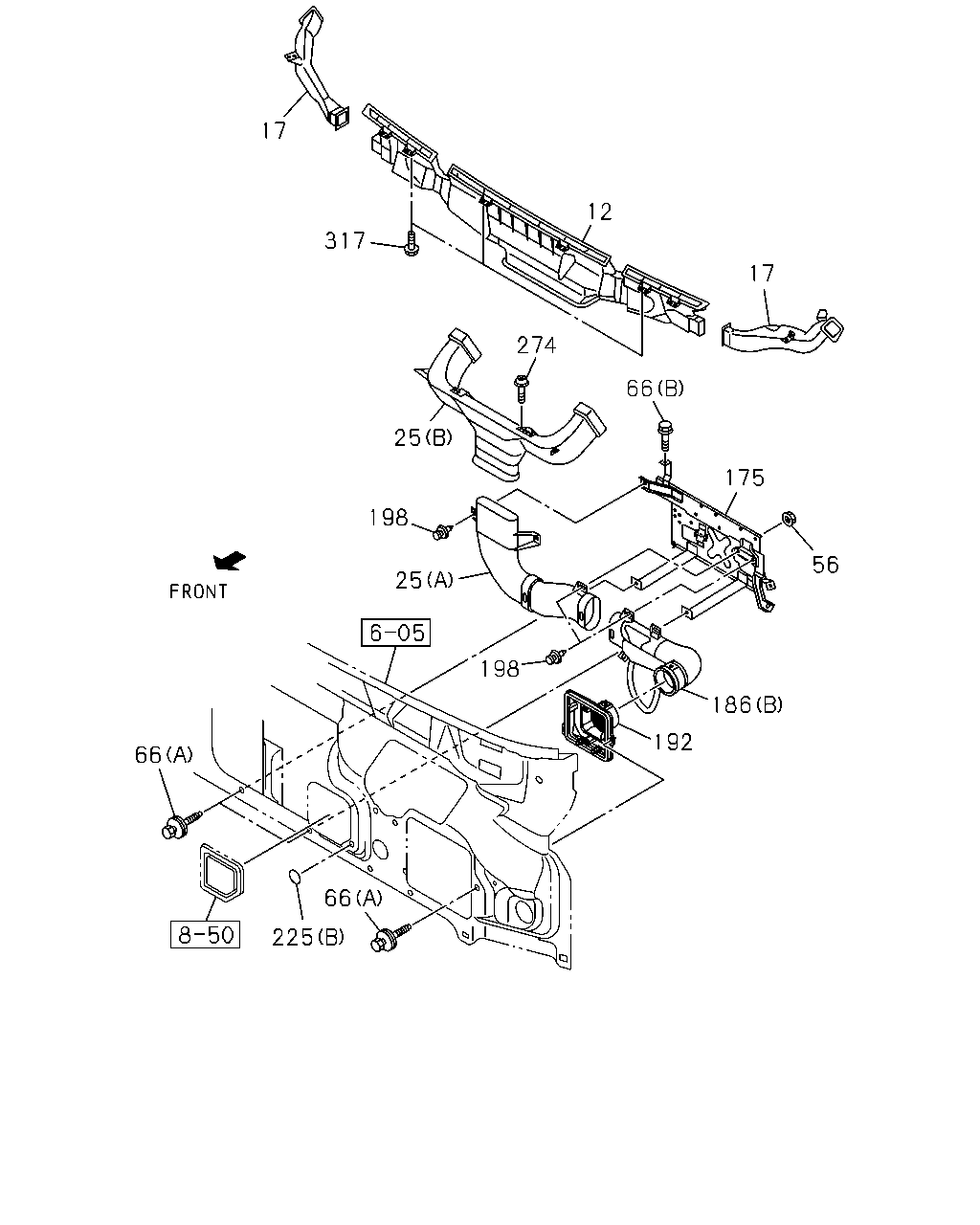

17 12 317 17 274 66 25 175 198 56 25 198 186 192 66 66 225

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	NOZZLE; DEFROSTER	8-98040-009-3	01	1	0710-	●	●
17	NOZZLE; DEFROSTER,SIDE	8-98040-016-1	01	1	0710-0801	●	●
17	NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ)	8-98040-016-1	01	1	0802-	●	●
17	NOZZLE; DEFROSTER,SIDE	8-98040-011-1	01	1	0710-0801	●	●
17	NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ)	8-98040-011-1	01	1	0802-	●	●
25	DUCT; CENTER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98054-365-0	01	1	0710-0711	●	●
25	DUCT; CENTER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98102-121-0	01	1	0712-0808	●
25	DUCT; CENTER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98102-121-0	01	1	0712-0808		●
25	DUCT; CENTER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98102-121-0	01	1	0809-	●	●
25	DUCT; CENTER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98054-374-0	01	1	0710-0711	●	●
25	DUCT; CENTER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98102-124-0	01	1	0712-0808	●
25	DUCT; CENTER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98102-124-0	01	1	0712-0808		●
25	DUCT; CENTER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98102-124-0	01	1	0809-	●	●
56	NUT; INL DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6 FLANGE	0-91180-106-0	01	1	0710-0711	●	●
56	NUT; INL DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE	0-91180-106-0	01	1	0712-	●	●
66	BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) M6X20 W/LK&PL WASHER	8-98081-030-0	04	1	0710-0711	●	●
66	BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X20 W/LK&PL WASHER	8-98081-175-0	04	1	0712-	●	●
66	BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X16 FLANGE	0-28650-616-0	01	1	0710-0711	●	●
66	BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M6X16 FLANGE	0-28650-616-0	01	1	0712-	●	●
175	BRACKET; HTR DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98054-355-0	01	1	0710-0711	●	●
175	BRACKET; HTR DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98095-348-4	01	1	0712-0808	●
175	BRACKET; HTR DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98095-348-4	01	1	0712-0808		●
175	BRACKET; HTR DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98095-348-4	01	1	0809-0908	●	●
175	BRACKET; HTR DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98140-757-0	01	1	0909-1011	●	●
175	BRACKET; HTR DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98140-757-0	01	1	1012-	●	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) (A)	8-97585-488-4	01	1	0907-1410	●	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) (A)	8-98285-576-0	01	1	1411-	●	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97585-488-4	01	1	0710-0711	●	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97585-488-4	01	1	0712-0808	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) (A)	8-97585-488-4	01	1	0712-0808		●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) (A)	8-97585-488-4	01	1	0809-0906	●	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98035-579-2	01	1	0710-0711	●	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98035-579-2	01	1	0712-0808	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) (A)	8-98035-579-2	01	1	0712-0808		●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) (A)	8-98035-579-2	01	1	0809-1007	●	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) (A)	8-98174-737-0	01	1	1008-1410	●	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) (A)	8-98285-571-0	01	1	1411-	●	●
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98054-382-0	01	1	0710-0711	●	●
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98102-126-2	01	1	0712-0808	●
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98102-126-2	01	1	0712-0808		●
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98102-126-2	01	1	0809-	●	●
192	DUCT; RAM AIR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98054-386-0	01	1	0710-0711	●	●
192	DUCT; RAM AIR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98090-393-2	01	1	0712-0808	●
192	DUCT; RAM AIR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98090-393-2	01	1	0712-0808		●
192	DUCT; RAM AIR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98090-393-2	01	1	0809-	●	●
198	CLIP; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98056-059-0	04	1	0710-0711	●	●
198	CLIP; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98056-059-0	05	1	0712-	●	●
225	SEAL; WATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) OD=25 BLACK	1-76798-019-0	01	1	0710-0711	●	●
225	SEAL; WATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) OD=25 BLACK	1-76798-019-0	01	1	0712-1301	●	●
225	SEAL; WATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) OD=25 BLACK	1-76798-019-0	01	1	1302-	●	●
225	SEAL; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97856-616-0	01	1	0710-0711	●	●
225	SEAL; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97856-616-0	01	1	0712-0808	●
225	SEAL; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) (A)	8-97856-616-0	01	1	0712-0808		●
225	SEAL; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) (A)	8-97856-616-0	01	1	0809-	●	●
274	SCREW; VENT DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0710-0711	●	●
274	SCREW; VENT DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0712-	●	●
317	SCREW; DEFROSTER NOZZLE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0802-	●	●
317	SCREW; DEFROSTER NOZZLE M5X16 TAPPING HEXALOBULAR	0-72180-516-0	08	1	0710-0801	●	●
317	SCREW; DEFROSTER NOZZLE M5X16 TAPPING HEXALOBULAR	0-72180-516-0	06	1	0802-	●	●

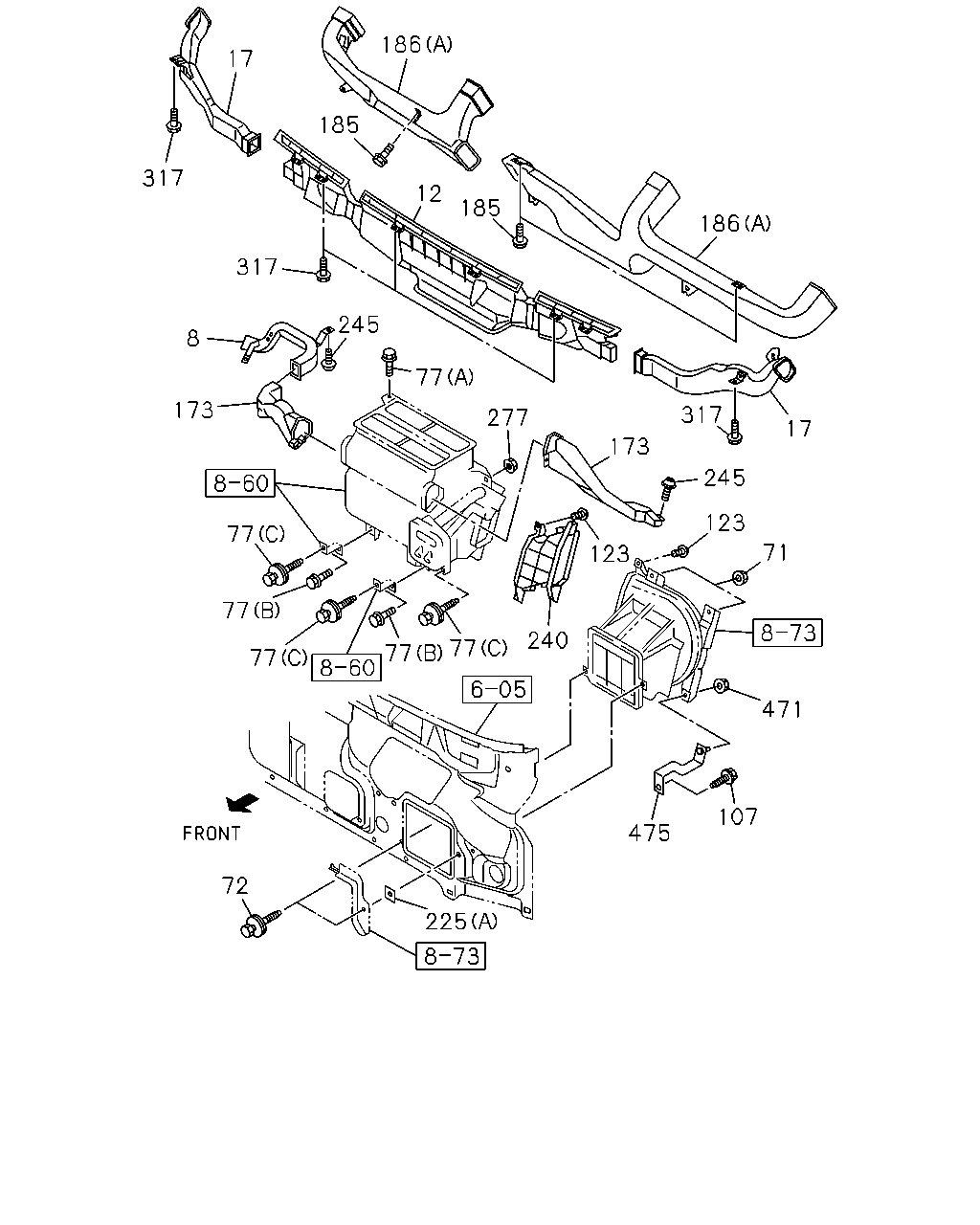

186 17 185 317 12 185 186 317 245 8 77 173 317 277 17 173 245 123 77 71 123 77 240 77 77 77 471 475 72 225 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	DUCT; HTR AIR,DRIVER FOOT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-97585-499-1	01	1	0710-0711	●	●
8	DUCT; HTR AIR,DRIVER FOOT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-97585-499-1	01	1	0712-0808	●
8	DUCT; HTR AIR,DRIVER FOOT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ)	8-97585-499-1	01	1	0712-0808		●
8	DUCT; HTR AIR,DRIVER FOOT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ)	8-97585-499-1	01	1	0809-0910	●	●
8	DUCT; HTR AIR,DRIVER FOOT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-97585-499-1	01	1	0911-1410	●	●
8	DUCT; HTR AIR,DRIVER FOOT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98290-098-0	01	1	1411-	●	●
12	NOZZLE; DEFROSTER	8-98040-009-3	01	1	0710-	●	●
17	NOZZLE; DEFROSTER,SIDE	8-98040-016-1	01	1	0710-0801	●	●
17	NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ)	8-98040-016-1	01	1	0802-	●	●
17	NOZZLE; DEFROSTER,SIDE	8-98040-011-1	01	1	0710-0801	●	●
17	NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ)	8-98040-011-1	01	1	0802-	●	●
71	NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6 FLANGE	0-91180-106-0	02	1	0710-0711	●	●
71	NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6 FLANGE	0-91180-106-0	02	1	0712-0808	●
71	NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) M6 FLANGE	0-91180-106-0	02	1	0712-0808		●
71	NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) M6 FLANGE	0-91180-106-0	02	1	0809-	●	●
72	BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	0710-0711	●	●
72	BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	0712-0808	●
72	BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	0712-0808		●
72	BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	0809-	●	●
77	BOLT; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	1302-	●	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) M6X16 FLANGE	0-28650-616-0	01	1	0710-0711	●	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) M6X16 FLANGE	0-28650-616-0	01	1	0712-0808	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) (A) M6X16 FLANGE	0-28650-616-0	01	1	0712-0808		●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) (A) M6X16 FLANGE	0-28650-616-0	01	1	0809-	●	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X20 FLANGE	0-28650-620-0	02	1	0710-0711	●	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X20 FLANGE	0-28650-620-0	02	1	0712-0808	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) (B) M6X20 FLANGE	0-28650-620-0	02	1	0712-0808		●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) (B) M6X20 FLANGE	0-28650-620-0	02	1	0809-	●	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) M6X20 W/LK&PL WASHER	8-98081-175-0	03	1	0710-0711	●	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) M6X20 W/LK&PL WASHER	8-98081-175-0	03	1	0712-0808	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) (C) M6X20 W/LK&PL WASHER	8-98081-175-0	03	1	0712-0808		●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) (C) M6X20 W/LK&PL WASHER	8-98081-175-0	03	1	0809-1301	●	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) M6X20 W/LK&PL WASHER	8-98081-175-0	03	1	1302-	●	●
107	BOLT; STAY,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X25 W/LK&PL WASHER	8-98018-439-0	01	1	0710-0711	●	●
107	BOLT; STAY,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X25 W/LK&PL WASHER	8-98018-439-0	01	1	0712-0808	●
107	BOLT; STAY,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) M8X25 W/LK&PL WASHER	8-98018-439-0	01	1	0712-0808		●
107	BOLT; STAY,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) M8X25 W/LK&PL WASHER	8-98018-439-0	01	1	0809-	●	●
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	0710-0711	●	●
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	0712-0808	●
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	0712-0808		●
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	0809-	●	●
173	DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-97585-506-2	01	1	0710-0711	●	●
173	DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-97585-506-2	01	1	0712-0808	●
173	DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ)	8-97585-506-2	01	1	0712-0808		●
173	DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ)	8-97585-506-2	01	1	0809-0910	●	●
173	DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-97585-506-2	01	1	0911-	●	●
173	DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98011-459-2	01	1	0710-0711	●	●
173	DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98011-459-2	01	1	0712-0808	●
173	DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ)	8-98011-459-2	01	1	0712-0808		●
173	DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ)	8-98011-459-2	01	1	0809-0910	●	●
173	DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98011-459-2	01	1	0911-1410	●	●
173	DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98290-096-0	01	1	1411-	●	●
185	SCREW; VENT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	05	1	0710-0711	●	●
185	SCREW; VENT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	05	1	0712-1008	●	●
185	SCREW; VENT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1009-	●	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) (A)	8-97585-488-4	01	1	0907-1410	●	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) (A)	8-98285-576-0	01	1	1411-	●	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97585-488-4	01	1	0710-0711	●	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97585-488-4	01	1	0712-0808	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) (A)	8-97585-488-4	01	1	0712-0808		●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) (A)	8-97585-488-4	01	1	0809-0906	●	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98035-579-2	01	1	0710-0711	●	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98035-579-2	01	1	0712-0808	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) (A)	8-98035-579-2	01	1	0712-0808		●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) (A)	8-98035-579-2	01	1	0809-1007	●	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) (A)	8-98174-737-0	01	1	1008-1410	●	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) (A)	8-98285-571-0	01	1	1411-	●	●
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98054-382-0	01	1	0710-0711	●	●
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98102-126-2	01	1	0712-0808	●
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98102-126-2	01	1	0712-0808		●
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98102-126-2	01	1	0809-	●	●
225	SEAL; WATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) OD=25 BLACK	1-76798-019-0	01	1	0710-0711	●	●
225	SEAL; WATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) OD=25 BLACK	1-76798-019-0	01	1	0712-1301	●	●
225	SEAL; WATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) OD=25 BLACK	1-76798-019-0	01	1	1302-	●	●
225	SEAL; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97856-616-0	01	1	0710-0711	●	●
225	SEAL; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97856-616-0	01	1	0712-0808	●
225	SEAL; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) (A)	8-97856-616-0	01	1	0712-0808		●
225	SEAL; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) (A)	8-97856-616-0	01	1	0809-	●	●
240	DUCT; AIR,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98041-402-1	01	1	0710-0711	●	●
240	DUCT; AIR,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98041-402-1	01	1	0712-0808	●
240	DUCT; AIR,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ)	8-98041-402-1	01	1	0712-0808		●
240	DUCT; AIR,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ)	8-98041-402-1	01	1	0809-	●	●
245	CLIP; FOOT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98056-059-0	03	1	0710-0711	●	●
245	CLIP; FOOT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ)	8-98056-059-0	03	1	0712-0910	●	●
245	CLIP; FOOT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98056-059-0	03	1	0911-1410	●	●
245	CLIP; FOOT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98056-059-0	04	1	1411-	●	●
277	NUT; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6 FLANGE	0-91180-106-0	01	1	0710-0711	●	●
277	NUT; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6 FLANGE	0-91180-106-0	01	1	0712-0808	●
277	NUT; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) M6 FLANGE	0-91180-106-0	01	1	0712-0808		●
277	NUT; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) M6 FLANGE	0-91180-106-0	01	1	0809-	●	●
317	SCREW; DEFROSTER NOZZLE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0802-	●	●
317	SCREW; DEFROSTER NOZZLE M5X16 TAPPING HEXALOBULAR	0-72180-516-0	08	1	0710-0801	●	●
317	SCREW; DEFROSTER NOZZLE M5X16 TAPPING HEXALOBULAR	0-72180-516-0	06	1	0802-	●	●
471	NUT; BLOWER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6 FLANGE	0-91180-106-0	01	1	0710-0711	●	●
471	NUT; BLOWER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6 FLANGE	0-91180-106-0	01	1	0712-0808	●
471	NUT; BLOWER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) M6 FLANGE	0-91180-106-0	01	1	0712-0808		●
471	NUT; BLOWER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) M6 FLANGE	0-91180-106-0	01	1	0809-	●	●
475	BRACKET; BLOWER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98043-500-0	01	1	0710-0711	●	●
475	BRACKET; BLOWER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98043-500-0	01	1	0712-0808	●
475	BRACKET; BLOWER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ)	8-98043-500-0	01	1	0712-0808		●
475	BRACKET; BLOWER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ)	8-98043-500-1	01	1	0809-	●	●

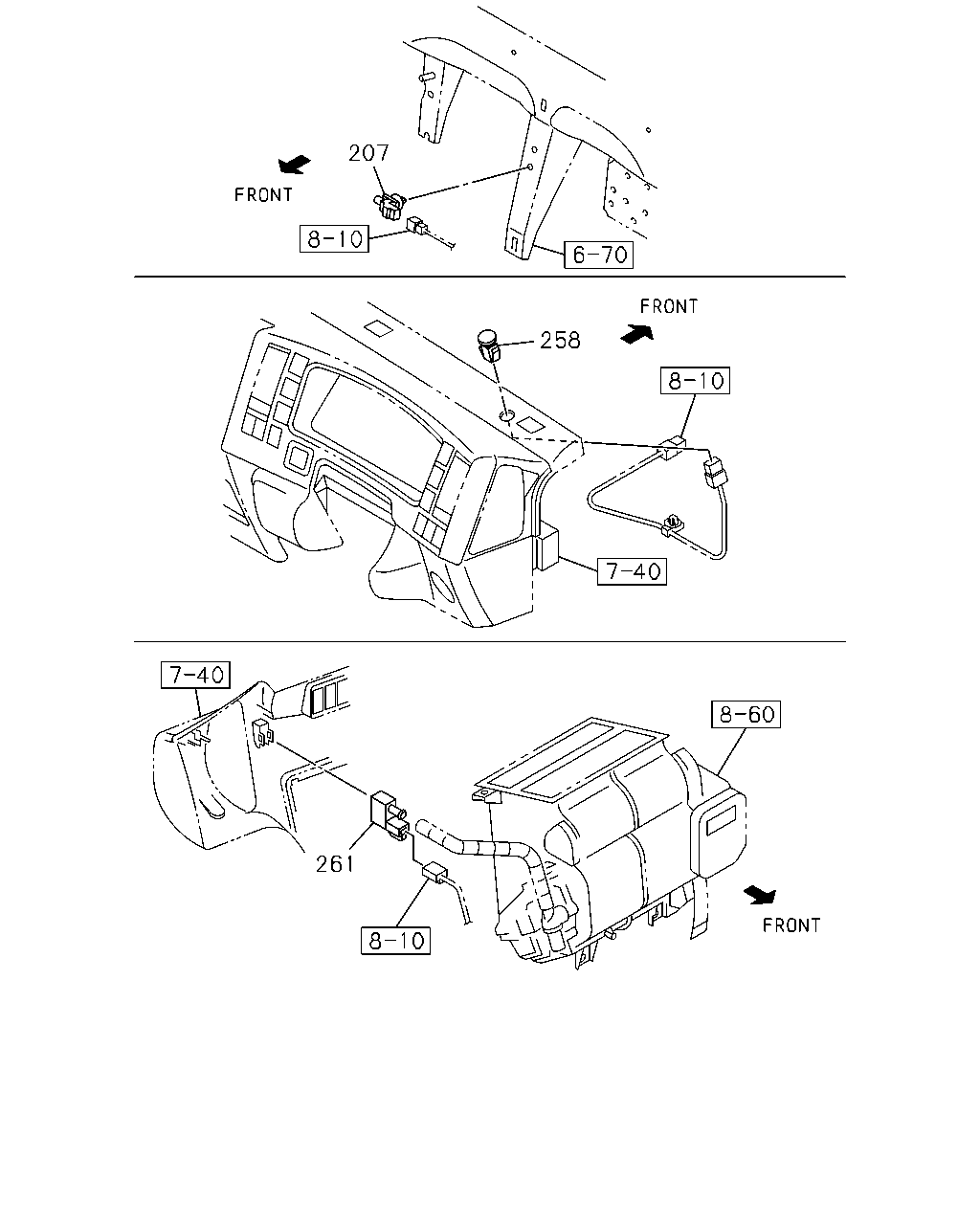

207 258 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
207	SENSOR; AMBIENT FULLAUTO AIR CONDITIONER(C68)	8-98008-687-0	01	1	0710-	●	●
258	SENSOR; SUN FULLAUTO AIR CONDITIONER(C68)	8-97386-826-0	01	1	0710-	●	●
261	SENSOR; IN CAR FULLAUTO AIR CONDITIONER(C68)	8-97386-701-0	01	1	0710-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
