◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11103 - FSR-R EU2/4EXC.SPACE ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#33905) — 183 parça

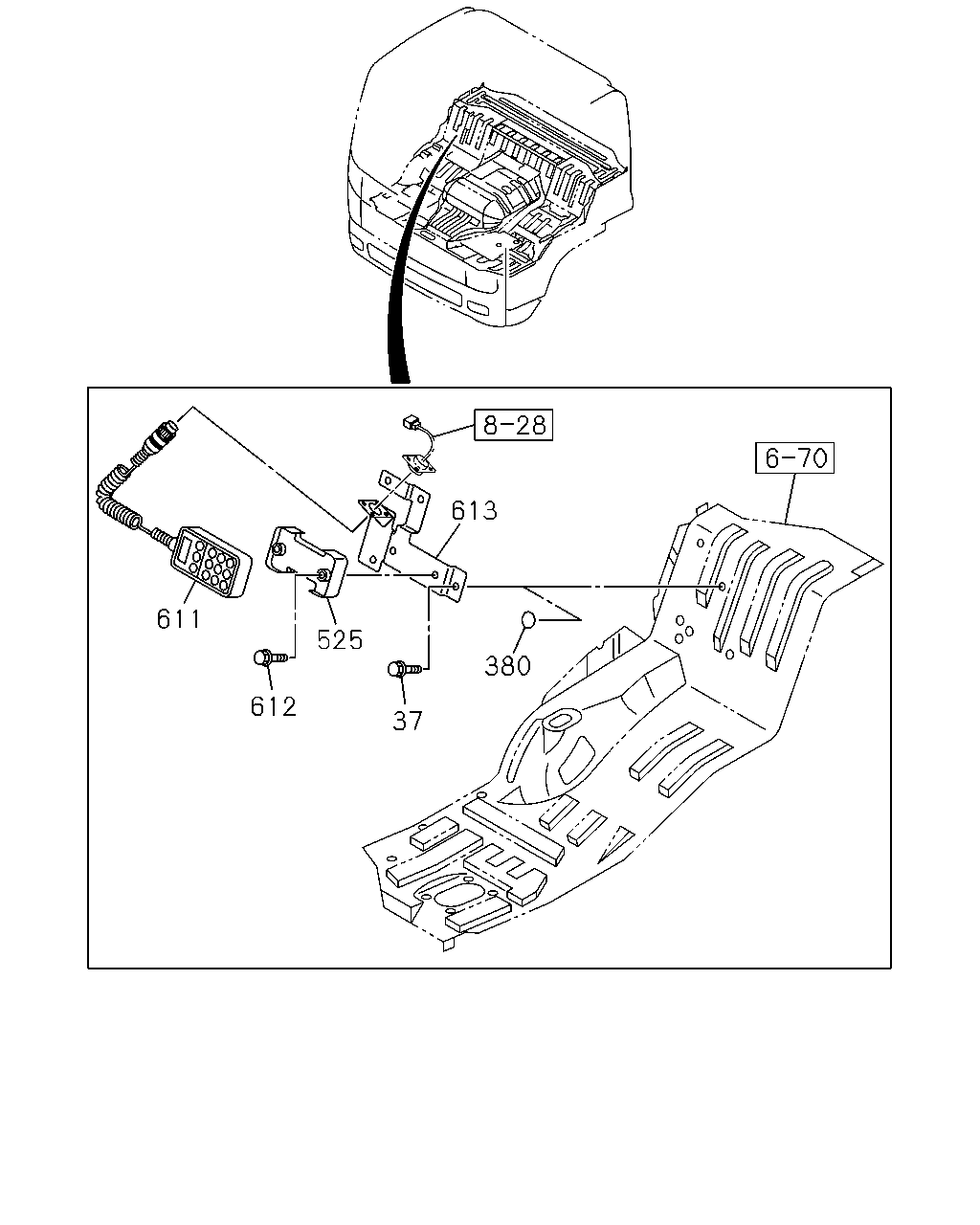

çizim 178808
613 611 525 380 612 37
BalonParca AdiParca NoAdetTipApplied Date A B
37 BOLT; BRKT FIX
M6X25 FLANGE 		0-28050-625-0 02 1 0710-0710 ●
37 BOLT; BRKT FIX
M6X25 FLANGE 		0-28650-625-0 02 1 0711- ●
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 0710- ● ●
525 HOLDER; SW 1-82389-018-0 01 1 0710- ●
611 SWITCH ASM; AIR SUS 1-82380-162-0 01 1 0710- ●
612 SCREW; HOLDER
M6X14 W/PL WASHER 		0-36210-614-0 02 1 0710- ●
613 BRACKET; HOLDER,SW 8-97618-931-2 01 1 0710- ●

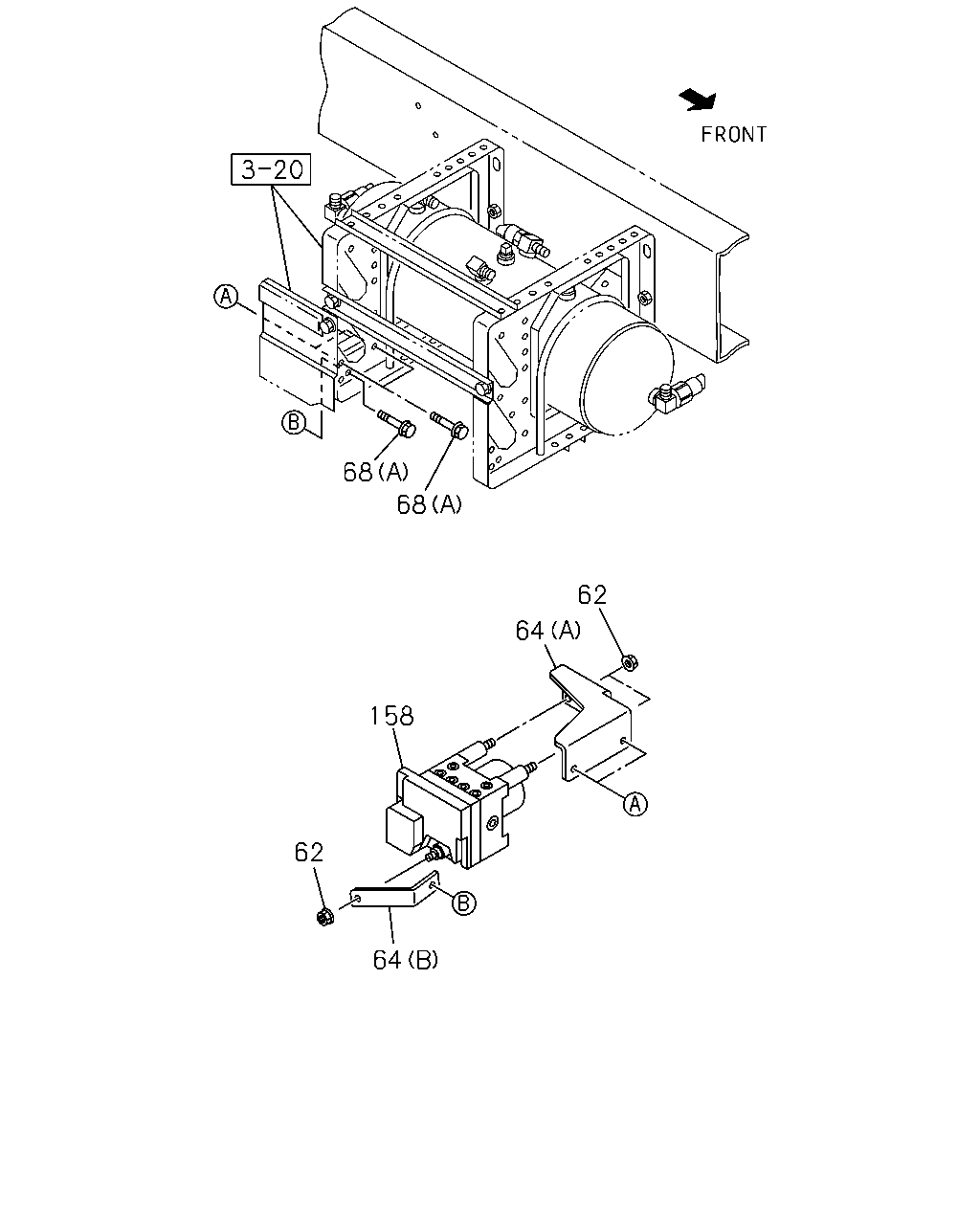

çizim 178809
68 68 62 64 158 62 64
BalonParca AdiParca NoAdetTipApplied Date A B
62 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0710-0711 ● ●
62 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0712-0808 ●
62 NUT; BRKT
ANTI LOCK BRAKE(JE5) M8 FLANGE 		0-91180-108-0 03 1 0712-0808 ●
62 NUT; BRKT
ANTI LOCK BRAKE(JE5) M8 FLANGE 		0-91180-108-0 03 1 0809- ● ●
64 BRACKET; CONTROLLER
(A) 		8-98044-238-2 01 1 0710-0711 ● ●
64 BRACKET; CONTROLLER
(A) 		8-98044-238-2 01 1 0712-0808 ●
64 BRACKET; CONTROLLER
ANTI LOCK BRAKE(JE5) (A) 		8-98044-238-2 01 1 0712-0808 ●
64 BRACKET; CONTROLLER
ANTI LOCK BRAKE(JE5) (A) 		8-98044-238-2 01 1 0809- ● ●
64 BRACKET; CONTROLLER
(B) 		8-98044-239-1 01 1 0710-0711 ● ●
64 BRACKET; CONTROLLER
(B) 		8-98044-239-1 01 1 0712-0808 ●
64 BRACKET; CONTROLLER
ANTI LOCK BRAKE(JE5) (B) 		8-98044-239-1 01 1 0712-0808 ●
64 BRACKET; CONTROLLER
ANTI LOCK BRAKE(JE5) (B) 		8-98044-239-1 01 1 0809- ● ●
68 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 0710-0711 ● ●
68 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 0712-0808 ●
68 BOLT; BRKT
ANTI LOCK BRAKE(JE5) (A) M8X25 FLANGE 		0-28650-825-0 03 1 0712-0808 ●
68 BOLT; BRKT
ANTI LOCK BRAKE(JE5) (A) M8X25 FLANGE 		0-28650-825-0 03 1 0809- ● ●
68 BOLT; BRKT
(C) M6X16 FLANGE 		0-28650-616-0 01 1 0710- ● ●
68 BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0710- ● ●
158 CONTROLLER; ABS
THROTTLE CONTROL SYSTEM(6XH) 		8-98048-312-2 01 1 0710-0711 ● ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> THROTTLE CONTROL SYSTEM(6XH) 		8-98048-312-2 01 1 0712-0912 ● ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> THROTTLE CONTROL SYSTEM(6XH) 		8-98048-312-2 01 1 1001-1001 ● ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE(JE5) TIRE 265/70R19.5-140/138M RIB(5K0),TIRE 265/70R19.5-140/138M RIB BS BRAND(5N5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> THROTTLE CONTROL SYSTEM(6XH) 		8-98048-312-2 01 1 1002-1006 ● ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE(JE5) TIRE 265/70R19.5-140/138M RIB(5K0),TIRE 265/70R19.5-140/138M RIB BS BRAND(5N5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> THROTTLE CONTROL SYSTEM(6XH) 		8-98158-000-1 01 1 1007- ● ●
158 CONTROLLER; ABS
EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98048-308-2 01 1 0710-0711 ● ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98048-308-2 01 1 0712-0910 ● ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE(JE5) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98048-308-2 01 1 0911-0912 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> TIRE 265/70R19.5-140/138M RIB(5K0) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98048-308-2 01 1 0911-0912 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> TIRE 265/70R19.5-140/138M RIB(5K0) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98048-308-2 01 1 1001-1001 ● ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE(JE5) TIRE 265/70R19.5-140/138M RIB(5K0),TIRE 265/70R19.5-140/138M RIB BS BRAND(5N5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98048-308-2 01 1 1002-1006 ● ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE(JE5) TIRE 265/70R19.5-140/138M RIB(5K0),TIRE 265/70R19.5-140/138M RIB BS BRAND(5N5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98157-994-1 01 1 1007- ● ●

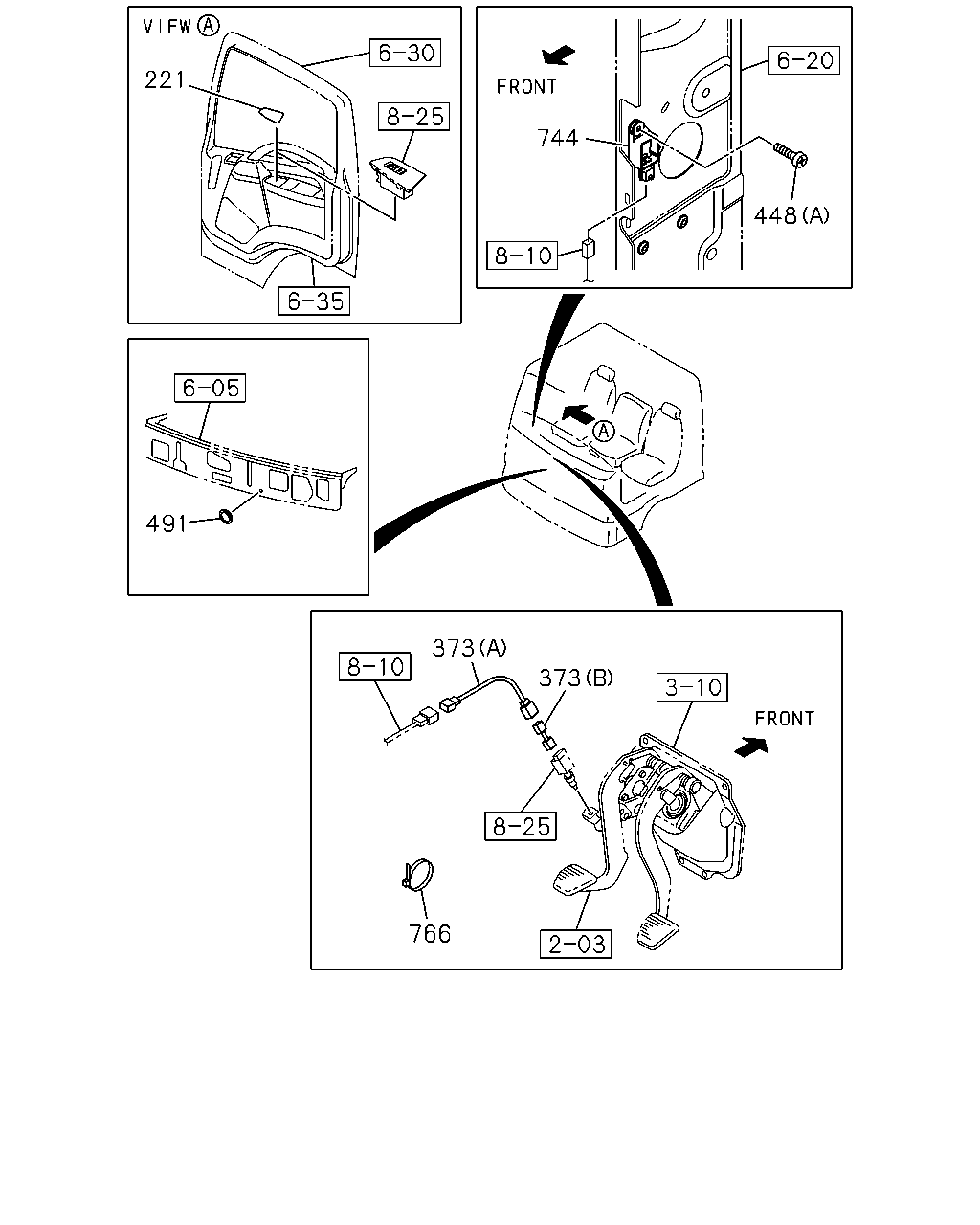

çizim 178811
221 744 448 491 373 373 766
BalonParca AdiParca NoAdetTipApplied Date A B
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 0712-0808 ●
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 0809- ● ●
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 0712-0808 ●
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 0809- ● ●
373 HARNESS; CLU SWITCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98105-661-0 01 1 0712-0805 ●
373 HARNESS; CLU SWITCH
MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98105-661-0 01 1 0712-0805 ●
373 HARNESS; CLU SWITCH
MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98105-661-0 01 1 0806-0809 ● ●
373 HARNESS; CLU SWITCH
MZX6P M/T(RSW) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98059-419-1 01 1 0710-0805 ● ●
373 HARNESS; CLU SWITCH
MZX6P M/T(RSW),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98059-419-1 01 1 0806-0906 ● ●
373 HARNESS; CLU SWITCH
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98059-419-2 01 1 0907- ● ●
448 BOLT; SENSOR
4HK1-TCS ENG(RJS) (B) M6X16 FLANGE 		0-28050-616-0 01 1 1012- ●
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 0710- ● ●
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 0710- ● ●
744 SENSOR; AIR BAG
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-97386-841-2 01 1 0710- ● ●
766 BAND; CLIP
EXC. H.S.A SYSTEM<6EP> L=140 		5-09707-031-1 01 1 0711-0805 ●
766 BAND; CLIP
MANUAL TRANSMISSION<X9C> EXC. H.S.A SYSTEM<6EP> L=140 		5-09707-031-1 01 1 0711-0805 ●
766 BAND; CLIP
MANUAL TRANSMISSION<X9C> EXC. H.S.A SYSTEM<6EP> L=140 		5-09707-031-1 01 1 0806- ● ●

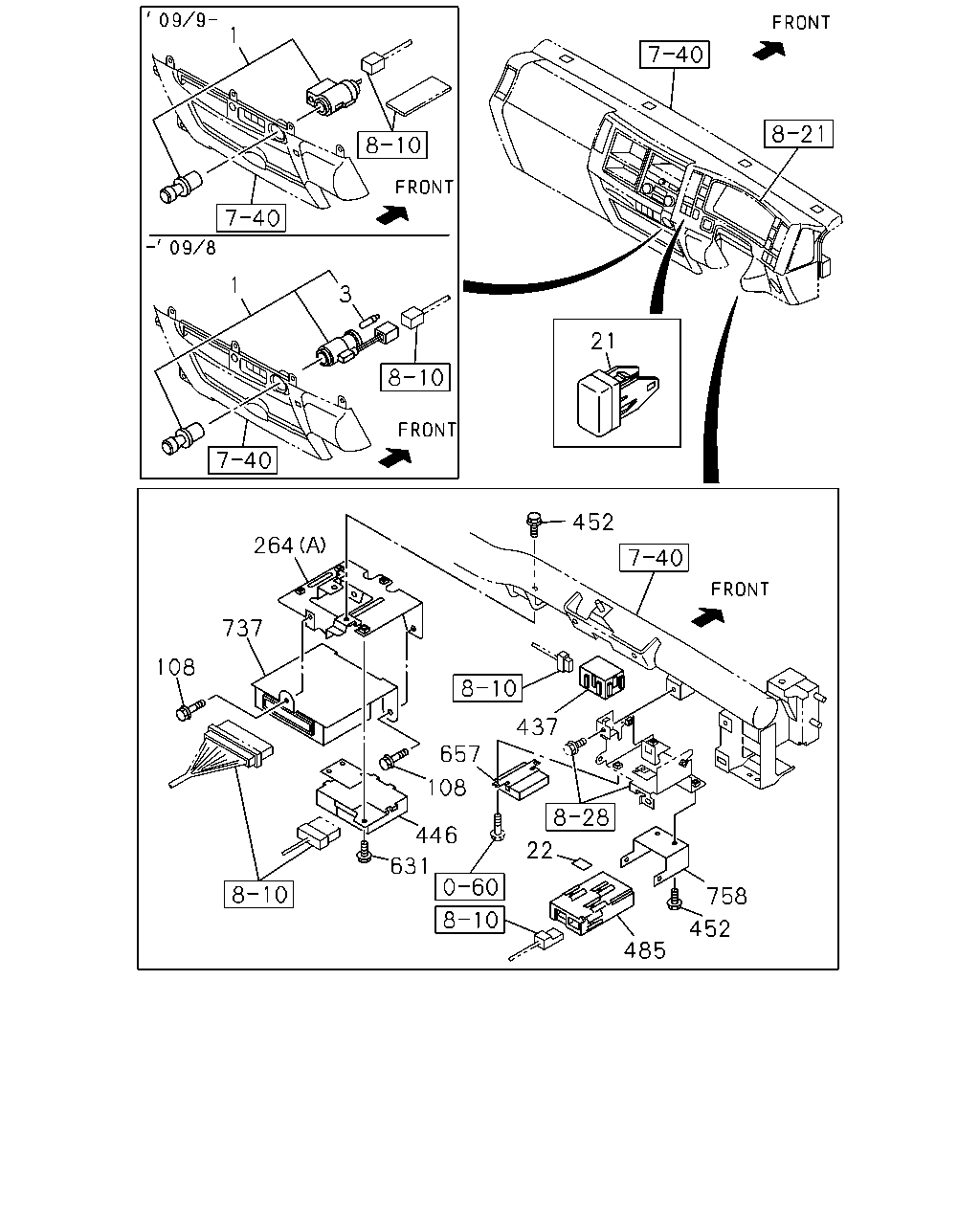

çizim 178819
1 3 1 21 452 437 657 108 446 631 22 485 758 452 737 264 108
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-98076-255-0 01 1 0710-0908 ● ●
1 LIGHTER; CIGAR 8-98142-962-0 01 1 0909- ● ●
3 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0710-0908 ● ●
21 COVER; HOLE 8-98025-954-1 01 1 0710-0711 ● ●
21 COVER; HOLE 8-98025-954-1 01 1 0712- ●
21 COVER; HOLE
EXC. O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH> 		8-98025-954-1 01 1 0712- ●
22 SEAL; TAPE
LCT2000 A/T ALLISON(Y4F) 		1-80199-006-0 01 1 0710-0711 ●
22 SEAL; TAPE
LCT2000 A/T ALLISON(Y4F) AUSTRALIA EQUIPMENT(B13) 		1-80199-006-0 01 1 0712-0712 ●
108 BOLT; TRANS CONT MODULE
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0902-0906 ● ●
108 BOLT; TRANS CONT MODULE
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 03 1 0710-0901 ● ●
108 BOLT; TRANS CONT MODULE
LCT2000 A/T ALLISON(Y4F) M6X16 FLANGE 		0-28650-616-0 03 1 0710-0901 ●
108 BOLT; TRANS CONT MODULE
LCT2000 A/T ALLISON(Y4F) M6X16 FLANGE 		0-28650-616-0 03 1 0902-0906 ●
108 BOLT; TRANS CONT MODULE
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 03 1 0907- ● ●
108 BOLT; TRANS CONT MODULE
LCT2000 A/T ALLISON(Y4F) M6X16 FLANGE 		0-28650-616-0 03 1 0907- ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98064-901-0 01 1 0710- ●
264 BRACKET; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98064-901-0 01 1 0710- ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98064-901-0 01 1 0710- ●
264 BRACKET; CONT UNIT
A/T<X9D> (A) 		8-98064-901-0 01 1 0710- ●
264 BRACKET; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. A/T<X9D> (A) 		8-98064-901-0 01 1 0710- ●
264 BRACKET; CONT UNIT
(B) 		8-97609-985-9 01 1 0710- ● ●
437 CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO 		8-97359-129-0 01 1 0710- ●
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-80111-116-1 01 1 0710-0812 ● ●
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98136-318-1 01 1 0901- ● ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 02 1 0710- ●
452 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 02 1 0710- ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 02 1 0710- ●
452 BOLT; BRKT
A/T<X9D> M6X16 FLANGE 		0-28650-616-0 02 1 0710- ●
452 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. A/T<X9D> M6X16 FLANGE 		0-28650-616-0 02 1 0710- ●
452 BOLT; BRKT
LCT2000 A/T ALLISON(Y4F) M6X16 FLANGE 		0-28650-616-0 02 1 0710- ●
485 CONTROL UNIT; SPEED SENSOR
LCT2000 A/T ALLISON(Y4F) 		1-80190-061-0 01 1 0710- ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 02 1 0710-0812 ● ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0901-0906 ● ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 02 1 0907- ● ●
657 CONTROL UNIT; MIMAMORI
EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98013-144-8 01 1 0710-1401 ● ●
657 CONTROL UNIT; MIMAMORI
EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98260-912-1 01 1 1402- ● ●
737 CONTROL UNIT; TRANSMISSION
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98164-518-0 01 1 1012-1212 ●
737 CONTROL UNIT; TRANSMISSION
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98230-116-0 01 1 1301-1404 ●
737 CONTROL UNIT; TRANSMISSION
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98269-475-0 01 1 1405-1411 ●
737 CONTROL UNIT; TRANSMISSION
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98288-016-0 01 1 1412- ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCC ENG(81L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98096-824-0 01 1 0710-0904 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCC ENG(81L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98139-015-0 01 1 0905-0906 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCC ENG(81L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98139-015-0 01 1 0907-1008 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCC ENG(81L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98164-519-0 01 1 1009-1212 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCC ENG(81L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98230-117-0 01 1 1301-1404 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCC ENG(81L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98269-476-0 01 1 1405-1411 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCC ENG(81L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98288-017-0 01 1 1412- ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98096-825-0 01 1 0710-0904 ● ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98139-016-0 01 1 0905-0906 ● ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98139-016-0 01 1 0907-1008 ● ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98164-520-0 01 1 1009-1106 ● ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) EURO4 SPECIFICATION<NT4> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98164-520-0 01 1 1107-1212 ● ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) EURO4 SPECIFICATION<NT4> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98230-118-0 01 1 1301-1404 ● ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) EURO4 SPECIFICATION<NT4> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98269-477-0 01 1 1405-1411 ● ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) EURO4 SPECIFICATION<NT4> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98288-018-0 01 1 1412- ● ●
737 CONTROL UNIT; TRANSMISSION
LCT2000 A/T ALLISON(Y4F) 		8-98081-203-0 01 1 0710-0905 ●
737 CONTROL UNIT; TRANSMISSION
LCT2000 A/T ALLISON(Y4F) 		8-98143-054-0 01 1 0906- ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
LCT2000 A/T ALLISON(Y4F) 		8-98048-743-1 01 1 0710- ●

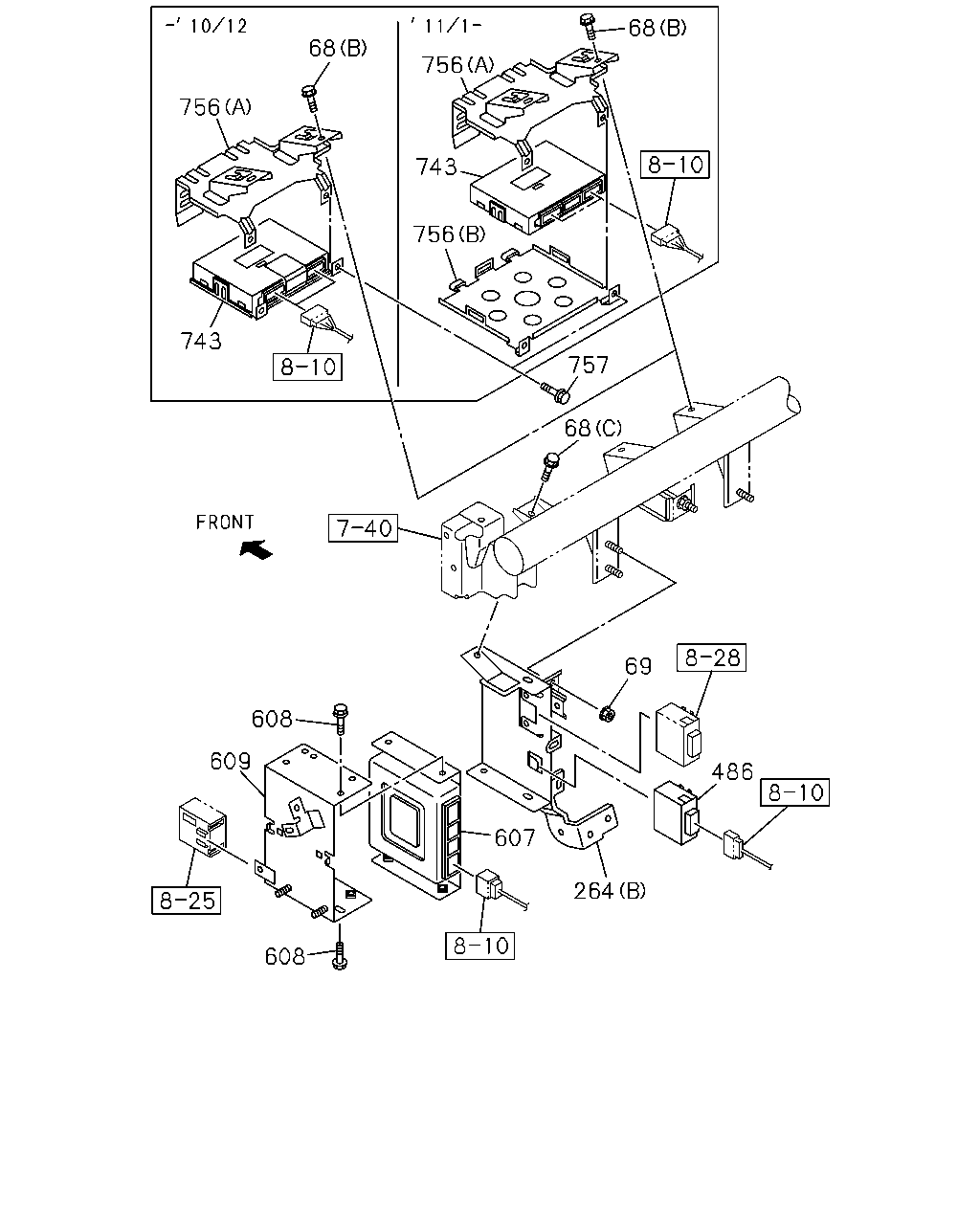

çizim 178822
68 68 756 756 743 756 743 757 68 69 608 609 486 607 264 608
BalonParca AdiParca NoAdetTipApplied Date A B
68 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 0710-0711 ● ●
68 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 0712-0808 ●
68 BOLT; BRKT
ANTI LOCK BRAKE(JE5) (A) M8X25 FLANGE 		0-28650-825-0 03 1 0712-0808 ●
68 BOLT; BRKT
ANTI LOCK BRAKE(JE5) (A) M8X25 FLANGE 		0-28650-825-0 03 1 0809- ● ●
68 BOLT; BRKT
(C) M6X16 FLANGE 		0-28650-616-0 01 1 0710- ● ●
68 BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0710- ● ●
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0710- ● ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98064-901-0 01 1 0710- ●
264 BRACKET; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98064-901-0 01 1 0710- ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> EXC. A/T<X9D>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98064-901-0 01 1 0710- ●
264 BRACKET; CONT UNIT
A/T<X9D> (A) 		8-98064-901-0 01 1 0710- ●
264 BRACKET; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. A/T<X9D> (A) 		8-98064-901-0 01 1 0710- ●
264 BRACKET; CONT UNIT
(B) 		8-97609-985-9 01 1 0710- ● ●
486 CONTROL UNIT; MIRROR
O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH> 		8-97610-202-1 01 1 0712- ●
607 CONTROL UNIT; AIR SUSPENSION 8-98081-298-1 01 1 0710- ●
608 BOLT; CONT UNIT,AIR SUS
M6X16 FLANGE 		0-28650-616-0 04 1 0710- ●
608 BOLT; CONT UNIT,AIR SUS
M6X16 FLANGE 		0-28650-616-0 05 1 0710-0711 ●
608 BOLT; CONT UNIT,AIR SUS
M6X16 FLANGE 		0-28650-616-0 05 1 0712-0808 ●
608 BOLT; CONT UNIT,AIR SUS
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> M6X16 FLANGE 		0-28650-616-0 05 1 0712-0808 ●
608 BOLT; CONT UNIT,AIR SUS
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> M6X16 FLANGE 		0-28650-616-0 05 1 0809- ● ●
608 BOLT; CONT UNIT,AIR SUS
M6X16 FLANGE 		0-28650-616-0 05 1 0809- ●
609 BRACKET ASM; ELEC UNIT,AIR SUS 8-98095-337-0 01 1 0710-0711 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS 8-98095-337-0 01 1 0712-1308 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98095-337-0 01 1 0712-1308 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS 8-98169-737-1 01 1 1309- ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98169-737-1 01 1 1309- ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98089-297-0 01 1 0710-0802 ● ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98102-484-0 01 1 0803-0901 ● ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98125-904-0 01 1 0902-1005 ● ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98155-169-1 01 1 1006-1007 ● ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98176-213-0 01 1 1008-1012 ● ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98182-026-3 01 1 1101- ● ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (B) 		8-98111-836-1 01 1 1101- ● ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (A) 		8-98056-411-3 01 1 0710- ● ●
757 BOLT; BRKT,BCM
MULTI INFORMATION DISPLAY<7NY> M6X16 FLANGE 		0-28650-616-0 02 1 0710- ● ●

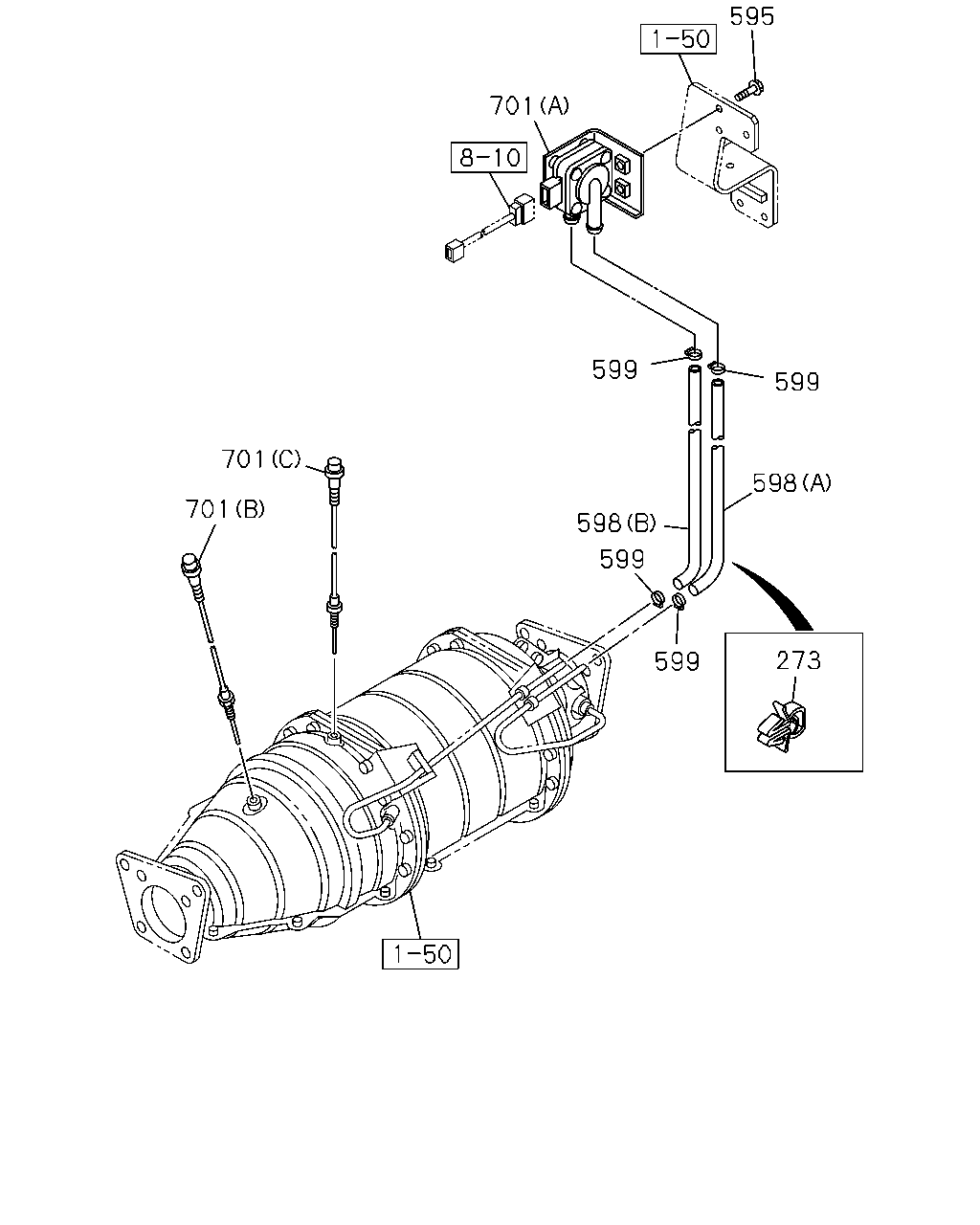

çizim 178824
595 701 599 599 701 598 701 598 599 273 599
BalonParca AdiParca NoAdetTipApplied Date A B
273 CLIP; HARNESS 8-94225-098-0 01 1 0710-0802 ● ●
595 BOLT; SENSOR
M8X20 FLANGE 		0-28650-820-0 02 1 0710-0808 ● ●
595 BOLT; SENSOR
EURO4 SPECIFICATION<NT4> M8X20 FLANGE 		0-28650-820-0 02 1 0809- ● ●
598 HOSE; RUBBER,SENSOR
(B) 		8-98060-178-1 01 1 0710-0808 ● ●
598 HOSE; RUBBER,SENSOR
EURO4 SPECIFICATION<NT4> (B) 		8-98060-178-1 01 1 0809- ● ●
598 HOSE; RUBBER,SENSOR
(A) 		8-98080-054-0 01 1 0710-0808 ● ●
598 HOSE; RUBBER,SENSOR
EURO4 SPECIFICATION<NT4> (A) 		8-98080-054-0 01 1 0809- ● ●
599 CLIP; HOSE
ID=13 		8-97329-627-0 04 1 0710-0808 ● ●
599 CLIP; HOSE
EURO4 SPECIFICATION<NT4> ID=13 		8-97329-627-0 04 1 0809- ● ●
701 SENSOR; DPD
(B) 		8-97359-987-5 01 1 0710-0808 ● ●
701 SENSOR; DPD
EURO4 SPECIFICATION<NT4> (B) 		8-97359-987-5 01 1 0809-1011 ● ●
701 SENSOR; DPD
CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-97359-987-5 01 1 1012-1101 ●
701 SENSOR; DPD
6HK1-TCN ENG(82L) CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-97359-987-5 01 1 1012-1101 ●
701 SENSOR; DPD
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-97359-987-5 01 1 1102- ● ●
701 SENSOR; DPD
(C) 		8-97359-989-5 01 1 0710-0808 ● ●
701 SENSOR; DPD
EURO4 SPECIFICATION<NT4> (C) 		8-97359-989-5 01 1 0809-1011 ● ●
701 SENSOR; DPD
CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-97359-989-5 01 1 1012-1101 ●
701 SENSOR; DPD
6HK1-TCN ENG(82L) CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-97359-989-5 01 1 1012-1101 ●
701 SENSOR; DPD
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-97359-989-5 01 1 1102- ● ●
701 SENSOR; DPD
(A) 		8-97360-368-2 01 1 0710-0808 ● ●
701 SENSOR; DPD
EURO4 SPECIFICATION<NT4> (A) 		8-97360-368-2 01 1 0809-1011 ● ●
701 SENSOR; DPD
CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-97360-368-2 01 1 1012-1101 ●
701 SENSOR; DPD
6HK1-TCN ENG(82L) CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-97360-368-2 01 1 1012-1101 ●
701 SENSOR; DPD
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-97360-368-2 01 1 1102- ● ●

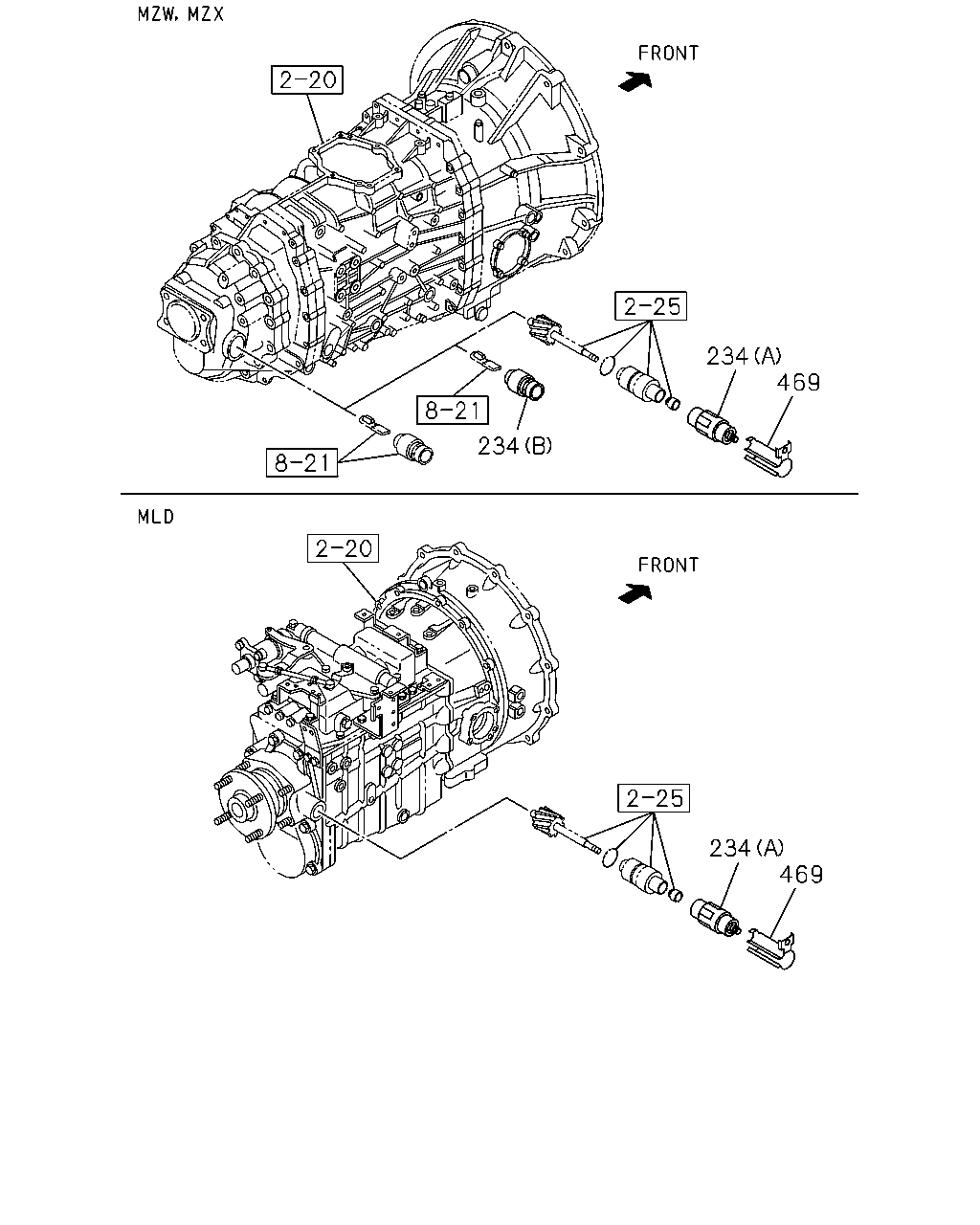

çizim 178829
234 469 234 234 469
BalonParca AdiParca NoAdetTipApplied Date A B
234 SENSOR; VEHICLE SPD
TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> (B) 		8-98035-238-0 01 1 0801-0803 ●
234 SENSOR; VEHICLE SPD
MZX6P M/T(RSW) (A) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 0710-0805 ● ●
234 SENSOR; VEHICLE SPD
MZX6P M/T(RSW),MLD6W M/T(Y2C) (A) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 0806-0906 ● ●
234 SENSOR; VEHICLE SPD
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (A) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 0907- ● ●
469 PROTECTOR; SPEED SENSOR
MZX6P M/T(RSW) 		8-97168-308-0 01 1 0710-0805 ● ●
469 PROTECTOR; SPEED SENSOR
MZX6P M/T(RSW),MLD6W M/T(Y2C) 		8-97168-308-0 01 1 0806-0808 ● ●
469 PROTECTOR; SPEED SENSOR
MZX6P M/T(RSW),MLD6W M/T(Y2C) 		8-98119-901-0 01 1 0809-0906 ● ●
469 PROTECTOR; SPEED SENSOR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) 		8-98119-901-0 01 1 0907- ● ●

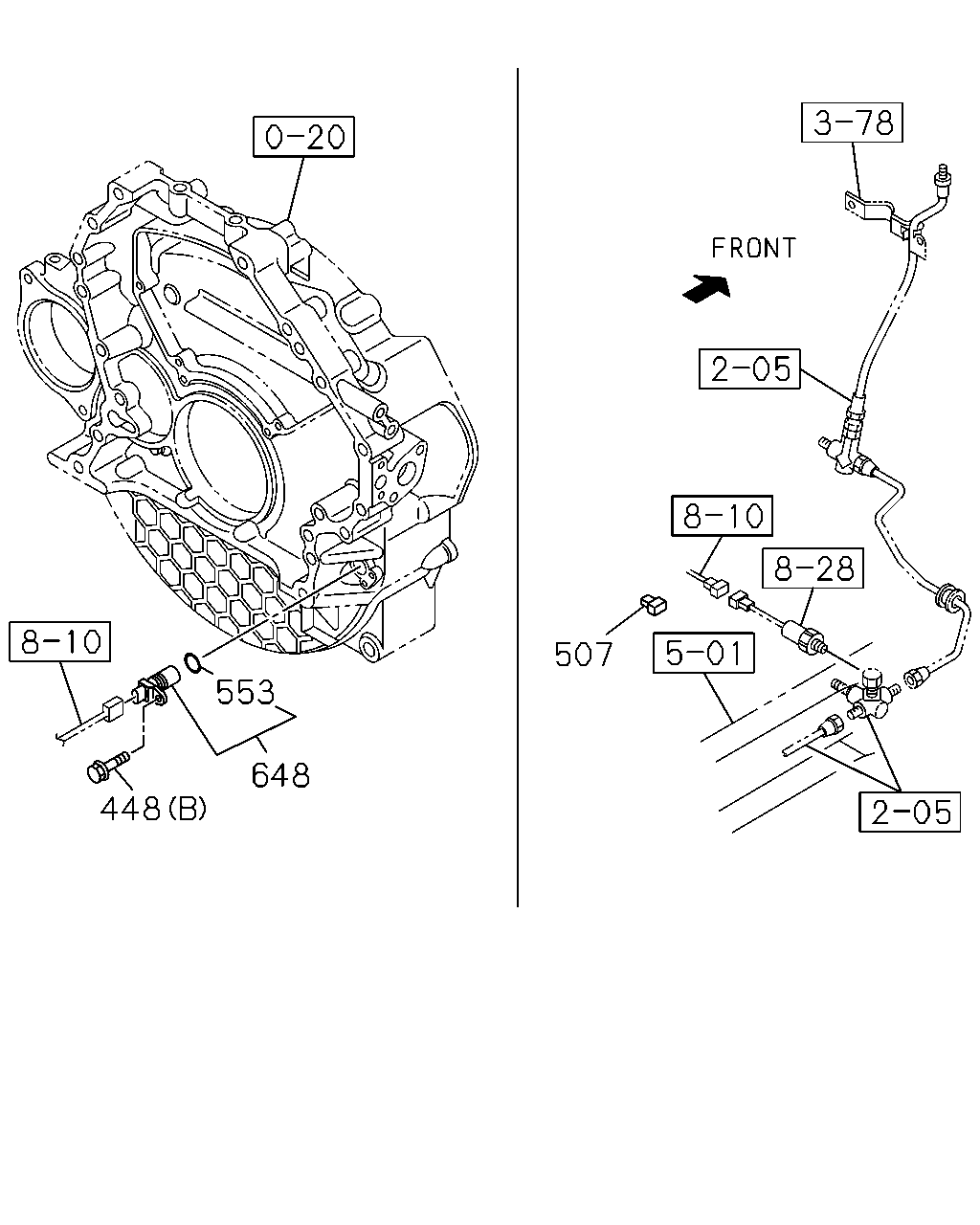

çizim 179039
507 553 648 448
BalonParca AdiParca NoAdetTipApplied Date A B
448 BOLT; SENSOR
4HK1-TCS ENG(RJS) (B) M6X16 FLANGE 		0-28050-616-0 01 1 1012- ●
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 0710- ● ●
507 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		1-82690-666-0 01 1 1011- ● ●
553 GASKET
4HK1-TCS ENG(RJS) ID=14.2 OD=18.8 		8-97369-404-0 01 1 1012- ●
648 SENSOR; CRANK ANGLE
4HK1-TCS ENG(RJS) 		8-97606-943-0 01 1 1012- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
