Sayfa 4-20 - Isuzu EPC

4-20 — REAR AXLE CASE AND SHAFT (#3390) — 314 parça

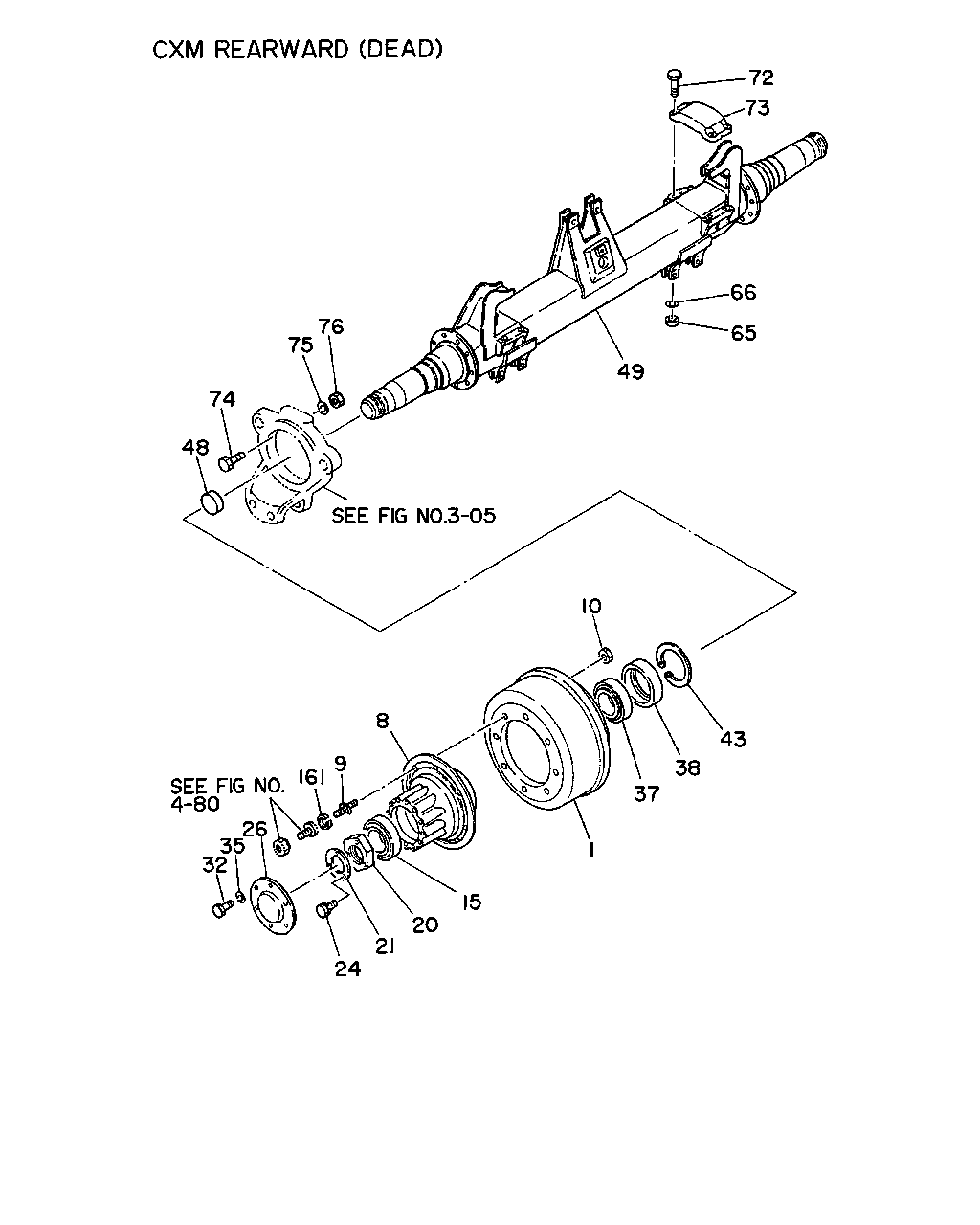

72 66 73 65 49 76 75 74 48 10 43 38 37 1 15 20 21 24 8 9 161 26 35 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRUM; BRK,RR DISC WHEEL 8STUD 7.50VX20 165-13<Q62> REARWARD H=195	1-42315-208-1	02	1	9002-9412	●
1	DRUM; BRK,RR REARWARD H=195	1-42315-208-2	02	1	9501-	●
1	DRUM; BRK,RR EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> REARWARD	1-42315-218-4	02	1	9002-9412	●
1	DRUM; BRK,RR EXC. BRAKE SYSTEM HEAVY DUTY(J55),DISC WHEEL 8STUD 7.50VX20 165-13<Q62> CXM;FORWARD	1-42315-220-3	02	1	9002-9412	●	●	●
1	DRUM; BRK,RR EXC. BRAKE SYSTEM HEAVY DUTY(J55),DISC WHEEL 8STUD 7.50VX20 165-13<Q62> CXM;FORWARD	1-42315-220-3	02	1	9002-9412		●	●
1	DRUM; BRK,RR EXC. BRAKE SYSTEM HEAVY DUTY(J55),DISC WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42315-220-4	02	1	9501-		●	●
1	DRUM; BRK,RR EXC. BRAKE SYSTEM HEAVY DUTY(J55),DISC WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42315-220-4	02	1	9501-		●	●
1	DRUM; BRK,RR DISC WHEEL 8STUD 7.50VX20 165-13<Q62> EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM;FORWARD	1-42315-194-4	02	1	9002-	●	●	●
1	DRUM; BRK,RR DISC WHEEL 8STUD 7.50VX20 165-13<Q62> EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM;FORWARD	1-42315-194-4	02	1	9002-		●	●
1	DRUM; BRK,RR BRAKE SYSTEM HEAVY DUTY(J55)	1-42315-314-2	04	1	9307-		●
1	DRUM; BRK,RR BRAKE SYSTEM HEAVY DUTY(J55) DISC WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42315-314-1	04	1	9002-9306		●
1	DRUM; BRK,RR BRAKE SYSTEM HEAVY DUTY(J55) EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42315-264-3	04	1	9002-9306		●
8	HUB; RR AXLE DISC WHEEL 8STUD 7.50VX20 165-13<Q62> H=237.5	1-42311-032-4	04	1	9002-9508	●	●	●
8	HUB; RR AXLE DISC WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42311-100-0	04	1	9509-	●	●	●
8	HUB; RR AXLE EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42311-033-4	04	1	9002-	●	●	●
9	PIN; WHEEL,RR AXLE REARWARD M20X34.5 LH THREAD,M22X53.5 RH THREAD	1-42332-117-0	08	1	9307-	●
9	PIN; WHEEL,RR AXLE REARWARD M20X34.5,M22X53.5 RH THREAD	1-42331-117-0	08	1	9307-	●
9	PIN; WHEEL,RR AXLE DISC WHEEL 8STUD 7.50VX20 165-13<Q62> REARWARD M20X34.5 LH THREAD,M22X53.5 RH THREAD	1-42332-117-0	08	1	9002-9306	●
9	PIN; WHEEL,RR AXLE DISC WHEEL 8STUD 7.50VX20 165-13<Q62> REARWARD M20X34.5,M22X53.5 RH THREAD	1-42331-117-0	08	1	9002-9306	●
9	PIN; WHEEL,RR AXLE DISC WHEEL 8STUD 7.50VX20 165-13<Q62> CXM;FORWARD M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-0	08	1	9002-	●	●	●
9	PIN; WHEEL,RR AXLE DISC WHEEL 8STUD 7.50VX20 165-13<Q62> CXM;FORWARD M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-0	08	1	9002-		●	●
9	PIN; WHEEL,RR AXLE DISC WHEEL 8STUD 7.50VX20 165-13<Q62> CXM;FORWARD M20X34.5,M22X51.5 RH THREAD	1-42331-110-0	08	1	9002-	●	●	●
9	PIN; WHEEL,RR AXLE DISC WHEEL 8STUD 7.50VX20 165-13<Q62> CXM;FORWARD M20X34.5,M22X51.5 RH THREAD	1-42331-110-0	08	1	9002-		●	●
9	PIN; WHEEL,RR AXLE EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> M22X51.5,M22X49.5 RH THREAD	1-42331-041-0	40	1	9002-9111	●	●	●
9	PIN; WHEEL,RR AXLE EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> M22X51.5,M22X53.5 RH THREAD	1-42331-136-0	40	1	9112-9201	●	●	●
9	PIN; WHEEL,RR AXLE EXC. BRAKE SYSTEM HEAVY DUTY(J55),DISC WHEEL 8STUD 7.50VX20 165-13<Q62> M22X51.5,M22X53.5 RH THREAD	1-42331-136-0	40	1	9202-9306	●	●	●
9	PIN; WHEEL,RR AXLE EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> M22X51.5,M22X53.5 RH THREAD	1-42331-136-0	40	1	9307-9412	●	●	●
9	PIN; WHEEL,RR AXLE EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> M22X51.5,M22X53.5 RH THREAD	1-42331-136-0	40	1	9501-		●	●
9	PIN; WHEEL,RR AXLE BRAKE SYSTEM HEAVY DUTY(J55) EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> M22X52,M22X51.5 RH THREAD	1-42337-050-0	40	1	9202-9306		●
10	NUT; WHEEL PIN,RR AXLE DISC WHEEL 8STUD 7.50VX20 165-13<Q62> M22	9-09110-522-0	32	1	9002-	●	●	●
10	NUT; WHEEL PIN,RR AXLE EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> M22	1-09400-037-0	40	1	9002-9111	●	●	●
10	NUT; WHEEL PIN,RR AXLE EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> M22	1-09400-071-0	40	1	9112-9412	●	●	●
10	NUT; WHEEL PIN,RR AXLE EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> M22	1-09400-071-0	40	1	9501-		●	●
15	BEARING; HUB OUTER,RR AXLE NSK	1-09812-079-0	04	1	9002-	●	●	●
15	BEARING; HUB OUTER,RR AXLE NACHI	1-09812-166-0	04	1	9002-	●	●	●
20	NUT; BRG,RR HUB M88	9-09843-062-2	04	1	9002-	●	●	●
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	04	1	9002-	●	●	●
24	BOLT; LK WASHER M6X16 W/LK WASHER	9-01910-616-0	12	1	9002-9005	●	●	●
24	BOLT; LK WASHER M6X16 W/LK WASHER	0-50040-616-0	12	1	9006-	●	●	●
26	CAP; HUB,RR AXLE	1-42313-011-1	02	1	9002-	●
32	BOLT; HUB CAP	9-92341-435-0	20	1	9002-9204	●
32	BOLT; HUB CAP M14X35	0-23801-435-0	20	1	9205-	●
35	WASHER; LK,HUB CAP ID=14.2	9-09150-514-0	10	1	9002-9310	●
35	WASHER; LK,HUB CAP ID=14.2	9-09150-514-0	20	1	9311-9409	●
35	WASHER; LK,HUB CAP ID=14.2	9-09150-814-0	20	1	9410-	●
37	BEARING; HUB INNER,RR AXLE NSK	1-09812-077-0	04	1	9002-	●	●	●
37	BEARING; HUB INNER,RR AXLE NACHI	1-09812-165-0	04	1	9002-	●	●	●
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	04	1	9002-	●	●	●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	04	1	9002-	●	●	●
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	04	1	9002-	●	●	●
48	COVER; END	1-42119-035-1	02	1	9002-	●
49	CASE; RR AXLE REARWARD	1-42150-292-3	01	1	9002-	●
49	CASE; RR AXLE FORWARD	1-42150-460-5	01	1	9002-	●
49	CASE; RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) FORWARD	1-42150-305-4	01	1	9002-9306		●
49	CASE; RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) FORWARD	1-42150-622-1	01	1	9307-		●
49	CASE; RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) REARWARD	1-42150-307-4	01	1	9002-9306		●
49	CASE; RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) REARWARD	1-42150-628-1	01	1	9307-9407		●
49	CASE; RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) REARWARD	1-42160-074-0	01	1	9408-		●
49	CASE; RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) FORWARD	1-42150-462-3	01	1	9002-9306		●	●
49	CASE; RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) FORWARD	1-42150-626-1	01	1	9307-		●	●
49	CASE; RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) REARWARD	1-42150-464-3	01	1	9002-9306		●	●
49	CASE; RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) REARWARD	1-42150-630-1	01	1	9307-		●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FORWARD	1-42150-360-5	01	1	9002-9306		●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REARWARD	1-42150-379-4	01	1	9002-9306		●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FORWARD	1-42150-696-1	01	1	9307-		●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REARWARD	1-42150-698-1	01	1	9307-		●	●
65	NUT M14	9-99110-514-0	16	1	9002-	●	●	●
66	WASHER; LK ID=14.2	9-09150-514-0	16	1	9002-9401	●	●	●
66	WASHER; LK ID=14.2	9-09150-814-0	16	1	9402-	●	●	●
72	BOLT; PAD FIX M14X45	9-92061-445-0	16	1	9002-	●	●	●
73	PAD; RR SPR CONTACT	1-42124-101-0	04	1	9002-	●	●	●
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	16	1	9002-	●
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	14	1	9002-	●	●	●
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	14	1	9002-		●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-614-0	32	1	9002-9401	●	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-814-0	32	1	9402-	●	●	●
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	32	1	9002-	●	●	●
161	RING; SPRING,REAR WHEEL EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42339-025-1	40	1	9002-	●	●	●

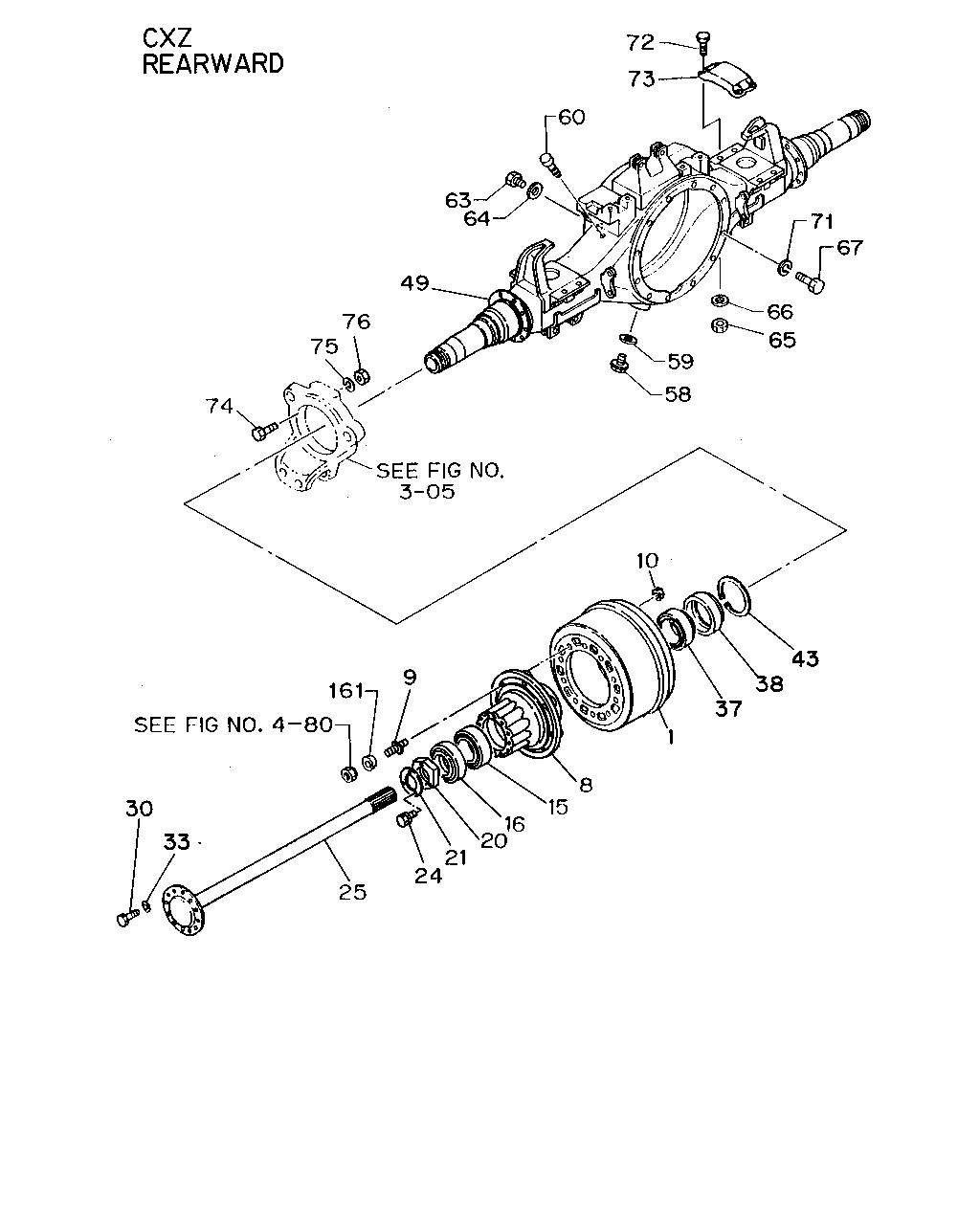

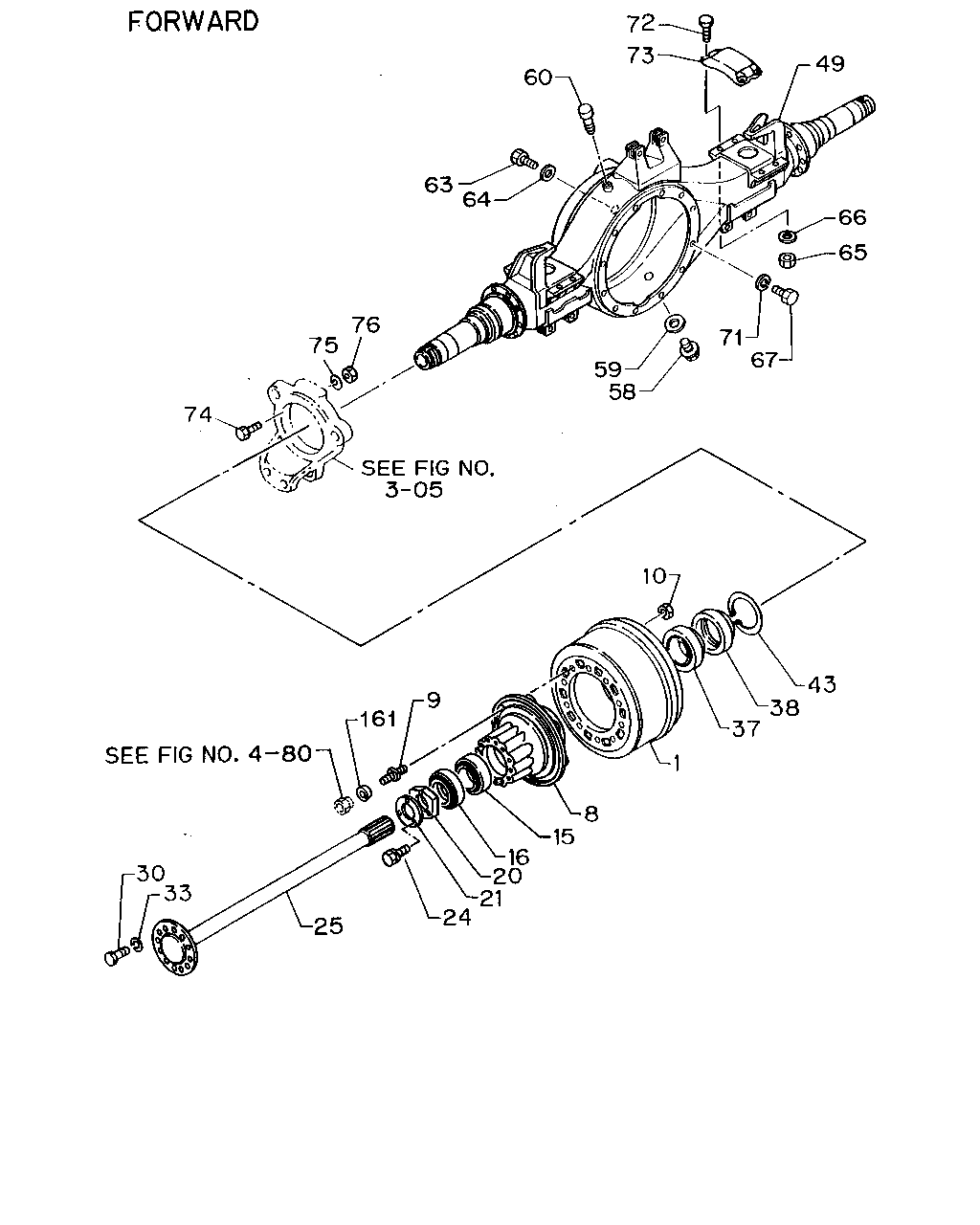

67 71 66 65 72 73 59 58 60 64 63 49 76 75 74 43 38 10 37 1 8 15 16 20 21 24 25 33 30 9 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRUM; BRK,RR DISC WHEEL 8STUD 7.50VX20 165-13<Q62> REARWARD H=195	1-42315-208-1	02	1	9002-9412	●
1	DRUM; BRK,RR REARWARD H=195	1-42315-208-2	02	1	9501-	●
1	DRUM; BRK,RR EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> REARWARD	1-42315-218-4	02	1	9002-9412	●
1	DRUM; BRK,RR EXC. BRAKE SYSTEM HEAVY DUTY(J55),DISC WHEEL 8STUD 7.50VX20 165-13<Q62> CXM;FORWARD	1-42315-220-3	02	1	9002-9412	●	●	●
1	DRUM; BRK,RR EXC. BRAKE SYSTEM HEAVY DUTY(J55),DISC WHEEL 8STUD 7.50VX20 165-13<Q62> CXM;FORWARD	1-42315-220-3	02	1	9002-9412		●	●
1	DRUM; BRK,RR EXC. BRAKE SYSTEM HEAVY DUTY(J55),DISC WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42315-220-4	02	1	9501-		●	●
1	DRUM; BRK,RR EXC. BRAKE SYSTEM HEAVY DUTY(J55),DISC WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42315-220-4	02	1	9501-		●	●
1	DRUM; BRK,RR DISC WHEEL 8STUD 7.50VX20 165-13<Q62> EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM;FORWARD	1-42315-194-4	02	1	9002-	●	●	●
1	DRUM; BRK,RR DISC WHEEL 8STUD 7.50VX20 165-13<Q62> EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM;FORWARD	1-42315-194-4	02	1	9002-		●	●
1	DRUM; BRK,RR BRAKE SYSTEM HEAVY DUTY(J55)	1-42315-314-2	04	1	9307-		●
1	DRUM; BRK,RR BRAKE SYSTEM HEAVY DUTY(J55) DISC WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42315-314-1	04	1	9002-9306		●
1	DRUM; BRK,RR BRAKE SYSTEM HEAVY DUTY(J55) EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42315-264-3	04	1	9002-9306		●
8	HUB; RR AXLE DISC WHEEL 8STUD 7.50VX20 165-13<Q62> H=237.5	1-42311-032-4	04	1	9002-9508	●	●	●
8	HUB; RR AXLE DISC WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42311-100-0	04	1	9509-	●	●	●
8	HUB; RR AXLE EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42311-033-4	04	1	9002-	●	●	●
9	PIN; WHEEL,RR AXLE REARWARD M20X34.5 LH THREAD,M22X53.5 RH THREAD	1-42332-117-0	08	1	9307-	●
9	PIN; WHEEL,RR AXLE REARWARD M20X34.5,M22X53.5 RH THREAD	1-42331-117-0	08	1	9307-	●
9	PIN; WHEEL,RR AXLE DISC WHEEL 8STUD 7.50VX20 165-13<Q62> REARWARD M20X34.5 LH THREAD,M22X53.5 RH THREAD	1-42332-117-0	08	1	9002-9306	●
9	PIN; WHEEL,RR AXLE DISC WHEEL 8STUD 7.50VX20 165-13<Q62> REARWARD M20X34.5,M22X53.5 RH THREAD	1-42331-117-0	08	1	9002-9306	●
9	PIN; WHEEL,RR AXLE DISC WHEEL 8STUD 7.50VX20 165-13<Q62> CXM;FORWARD M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-0	08	1	9002-	●	●	●
9	PIN; WHEEL,RR AXLE DISC WHEEL 8STUD 7.50VX20 165-13<Q62> CXM;FORWARD M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-0	08	1	9002-		●	●
9	PIN; WHEEL,RR AXLE DISC WHEEL 8STUD 7.50VX20 165-13<Q62> CXM;FORWARD M20X34.5,M22X51.5 RH THREAD	1-42331-110-0	08	1	9002-	●	●	●
9	PIN; WHEEL,RR AXLE DISC WHEEL 8STUD 7.50VX20 165-13<Q62> CXM;FORWARD M20X34.5,M22X51.5 RH THREAD	1-42331-110-0	08	1	9002-		●	●
9	PIN; WHEEL,RR AXLE EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> M22X51.5,M22X49.5 RH THREAD	1-42331-041-0	40	1	9002-9111	●	●	●
9	PIN; WHEEL,RR AXLE EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> M22X51.5,M22X53.5 RH THREAD	1-42331-136-0	40	1	9112-9201	●	●	●
9	PIN; WHEEL,RR AXLE EXC. BRAKE SYSTEM HEAVY DUTY(J55),DISC WHEEL 8STUD 7.50VX20 165-13<Q62> M22X51.5,M22X53.5 RH THREAD	1-42331-136-0	40	1	9202-9306	●	●	●
9	PIN; WHEEL,RR AXLE EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> M22X51.5,M22X53.5 RH THREAD	1-42331-136-0	40	1	9307-9412	●	●	●
9	PIN; WHEEL,RR AXLE EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> M22X51.5,M22X53.5 RH THREAD	1-42331-136-0	40	1	9501-		●	●
9	PIN; WHEEL,RR AXLE BRAKE SYSTEM HEAVY DUTY(J55) EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> M22X52,M22X51.5 RH THREAD	1-42337-050-0	40	1	9202-9306		●
10	NUT; WHEEL PIN,RR AXLE DISC WHEEL 8STUD 7.50VX20 165-13<Q62> M22	9-09110-522-0	32	1	9002-	●	●	●
10	NUT; WHEEL PIN,RR AXLE EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> M22	1-09400-037-0	40	1	9002-9111	●	●	●
10	NUT; WHEEL PIN,RR AXLE EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> M22	1-09400-071-0	40	1	9112-9412	●	●	●
10	NUT; WHEEL PIN,RR AXLE EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> M22	1-09400-071-0	40	1	9501-		●	●
15	BEARING; HUB OUTER,RR AXLE NSK	1-09812-079-0	04	1	9002-	●	●	●
15	BEARING; HUB OUTER,RR AXLE NACHI	1-09812-166-0	04	1	9002-	●	●	●
16	SEAL; OIL,RR HUB,OUTER NOK	1-09625-226-1	02	1	9002-	●	●	●
16	SEAL; OIL,RR HUB,OUTER NOK	1-09625-226-1	02	1	9002-		●	●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	02	1	9002-	●	●	●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	02	1	9002-		●	●
20	NUT; BRG,RR HUB M88	9-09843-062-2	04	1	9002-	●	●	●
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	04	1	9002-	●	●	●
24	BOLT; LK WASHER M6X16 W/LK WASHER	9-01910-616-0	12	1	9002-9005	●	●	●
24	BOLT; LK WASHER M6X16 W/LK WASHER	0-50040-616-0	12	1	9006-	●	●	●
25	SHAFT; AXLE,RR L=1050	1-42171-291-1	02	1	9002-9405	●
25	SHAFT; AXLE,RR L=1054	1-42171-355-0	02	1	9406-	●
25	SHAFT; AXLE,RR FORWARD RH REARWARD LH L=976	1-42171-339-0	02	1	9002-9307		●	●
25	SHAFT; AXLE,RR FORWARD RH REARWARD LH L=976	1-42171-356-0	02	1	9308-		●	●
25	SHAFT; AXLE,RR FORWARD LH REARWARD RH L=1106	1-42171-340-0	02	1	9002-9307		●	●
25	SHAFT; AXLE,RR FORWARD LH REARWARD RH L=1106	1-42171-357-0	02	1	9308-		●	●
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09020-095-1	20	1	9002-	●	●	●
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09020-095-1	20	1	9002-		●	●
33	WASHER; AXLE SHAFT ID=14.2	9-09150-614-0	20	1	9002-9408	●	●	●
33	WASHER; AXLE SHAFT ID=14.2	9-09150-614-0	20	1	9002-9408		●	●
33	WASHER; AXLE SHAFT ID=14.2	9-09150-814-0	20	1	9409-	●	●	●
33	WASHER; AXLE SHAFT ID=14.2	9-09150-814-0	20	1	9409-		●	●
37	BEARING; HUB INNER,RR AXLE NSK	1-09812-077-0	04	1	9002-	●	●	●
37	BEARING; HUB INNER,RR AXLE NACHI	1-09812-165-0	04	1	9002-	●	●	●
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	04	1	9002-	●	●	●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	04	1	9002-	●	●	●
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	04	1	9002-	●	●	●
49	CASE; RR AXLE REARWARD	1-42150-292-3	01	1	9002-	●
49	CASE; RR AXLE FORWARD	1-42150-460-5	01	1	9002-	●
49	CASE; RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) FORWARD	1-42150-305-4	01	1	9002-9306		●
49	CASE; RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) FORWARD	1-42150-622-1	01	1	9307-		●
49	CASE; RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) REARWARD	1-42150-307-4	01	1	9002-9306		●
49	CASE; RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) REARWARD	1-42150-628-1	01	1	9307-9407		●
49	CASE; RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) REARWARD	1-42160-074-0	01	1	9408-		●
49	CASE; RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) FORWARD	1-42150-462-3	01	1	9002-9306		●	●
49	CASE; RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) FORWARD	1-42150-626-1	01	1	9307-		●	●
49	CASE; RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) REARWARD	1-42150-464-3	01	1	9002-9306		●	●
49	CASE; RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) REARWARD	1-42150-630-1	01	1	9307-		●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FORWARD	1-42150-360-5	01	1	9002-9306		●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REARWARD	1-42150-379-4	01	1	9002-9306		●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FORWARD	1-42150-696-1	01	1	9307-		●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REARWARD	1-42150-698-1	01	1	9307-		●	●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	9002-	●	●	●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	9002-		●	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	9002-	●	●	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	9002-		●	●
60	BREATHER; RR AXLE CASE DESERT ZONE PACKAGE(W01)	9-36122-015-1	02	1	9002-		●	●
60	BREATHER; RR AXLE CASE EXC. DESERT ZONE PACKAGE(W01)	1-09893-003-0	02	1	9002-9306		●	●
60	BREATHER; RR AXLE CASE	1-09893-011-1	01	1	9002-	●
60	BREATHER; RR AXLE CASE EXC. DESERT ZONE PACKAGE(W01)	1-09893-011-1	02	1	9307-		●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-021-0	01	1	9002-9307	●	●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-021-0	01	1	9002-9307		●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	9308-	●	●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	9308-		●	●
64	GASKET; OIL FILLER,AXLE CASE ID=24.5 OD=32.5	9-09920-392-0	01	1	9002-9307	●	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=24.5 OD=32.5	9-09920-392-0	01	1	9002-9307		●	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	9308-	●	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	9308-		●	●
65	NUT M14	9-99110-514-0	16	1	9002-	●	●	●
66	WASHER; LK ID=14.2	9-09150-514-0	16	1	9002-9401	●	●	●
66	WASHER; LK ID=14.2	9-09150-814-0	16	1	9402-	●	●	●
67	BOLT; FINAL DRIVE SETTING M16X45	9-92061-645-0	08	1	9002-9004	●
67	BOLT; FINAL DRIVE SETTING M16X70	9-91056-670-0	04	1	9002-9003	●	●	●
67	BOLT; FINAL DRIVE SETTING M16X70	9-91056-670-0	04	1	9002-9003		●	●
67	BOLT; FINAL DRIVE SETTING M16X70	9-91066-670-0	04	1	9004-	●	●	●
67	BOLT; FINAL DRIVE SETTING M16X70	9-91066-670-0	04	1	9004-		●	●
67	BOLT; FINAL DRIVE SETTING M16X40	9-92061-640-0	08	1	9307-	●	●	●
67	BOLT; FINAL DRIVE SETTING M16X40	9-92051-640-0	08	1	9002-9003		●	●
67	BOLT; FINAL DRIVE SETTING M16X40	9-92061-640-0	08	1	9004-9306	●	●	●
67	BOLT; FINAL DRIVE SETTING M16X40	9-92051-640-0	06	1	9002-9003		●	●
67	BOLT; FINAL DRIVE SETTING M16X40	9-92061-640-0	06	1	9004-9306		●	●
67	BOLT; FINAL DRIVE SETTING M16X40	9-92061-640-0	07	1	9307-		●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	9-09150-516-0	12	1	9002-9003	●	●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	9-09150-516-0	12	1	9002-9003		●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	9-09150-816-0	12	1	9004-	●	●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	9-09150-816-0	12	1	9004-		●	●
72	BOLT; PAD FIX M14X45	9-92061-445-0	16	1	9002-	●	●	●
73	PAD; RR SPR CONTACT	1-42124-101-0	04	1	9002-	●	●	●
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	16	1	9002-	●
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	14	1	9002-	●	●	●
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	14	1	9002-		●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-614-0	32	1	9002-9401	●	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-814-0	32	1	9402-	●	●	●
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	32	1	9002-	●	●	●
161	RING; SPRING,REAR WHEEL EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42339-025-1	40	1	9002-	●	●	●

72 49 73 66 60 65 64 63 67 71 58 59 76 75 74 10 43 38 37 1 8 15 16 20 21 24 25 33 30 9 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRUM; BRK,RR DISC WHEEL 8STUD 7.50VX20 165-13<Q62> REARWARD H=195	1-42315-208-1	02	1	9002-9412	●
1	DRUM; BRK,RR REARWARD H=195	1-42315-208-2	02	1	9501-	●
1	DRUM; BRK,RR EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> REARWARD	1-42315-218-4	02	1	9002-9412	●
1	DRUM; BRK,RR EXC. BRAKE SYSTEM HEAVY DUTY(J55),DISC WHEEL 8STUD 7.50VX20 165-13<Q62> CXM;FORWARD	1-42315-220-3	02	1	9002-9412	●	●	●
1	DRUM; BRK,RR EXC. BRAKE SYSTEM HEAVY DUTY(J55),DISC WHEEL 8STUD 7.50VX20 165-13<Q62> CXM;FORWARD	1-42315-220-3	02	1	9002-9412		●	●
1	DRUM; BRK,RR EXC. BRAKE SYSTEM HEAVY DUTY(J55),DISC WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42315-220-4	02	1	9501-		●	●
1	DRUM; BRK,RR EXC. BRAKE SYSTEM HEAVY DUTY(J55),DISC WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42315-220-4	02	1	9501-		●	●
1	DRUM; BRK,RR DISC WHEEL 8STUD 7.50VX20 165-13<Q62> EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM;FORWARD	1-42315-194-4	02	1	9002-	●	●	●
1	DRUM; BRK,RR DISC WHEEL 8STUD 7.50VX20 165-13<Q62> EXC. BRAKE SYSTEM HEAVY DUTY(J55) CXM;FORWARD	1-42315-194-4	02	1	9002-		●	●
1	DRUM; BRK,RR BRAKE SYSTEM HEAVY DUTY(J55)	1-42315-314-2	04	1	9307-		●
1	DRUM; BRK,RR BRAKE SYSTEM HEAVY DUTY(J55) DISC WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42315-314-1	04	1	9002-9306		●
1	DRUM; BRK,RR BRAKE SYSTEM HEAVY DUTY(J55) EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42315-264-3	04	1	9002-9306		●
8	HUB; RR AXLE DISC WHEEL 8STUD 7.50VX20 165-13<Q62> H=237.5	1-42311-032-4	04	1	9002-9508	●	●	●
8	HUB; RR AXLE DISC WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42311-100-0	04	1	9509-	●	●	●
8	HUB; RR AXLE EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42311-033-4	04	1	9002-	●	●	●
9	PIN; WHEEL,RR AXLE REARWARD M20X34.5 LH THREAD,M22X53.5 RH THREAD	1-42332-117-0	08	1	9307-	●
9	PIN; WHEEL,RR AXLE REARWARD M20X34.5,M22X53.5 RH THREAD	1-42331-117-0	08	1	9307-	●
9	PIN; WHEEL,RR AXLE DISC WHEEL 8STUD 7.50VX20 165-13<Q62> REARWARD M20X34.5 LH THREAD,M22X53.5 RH THREAD	1-42332-117-0	08	1	9002-9306	●
9	PIN; WHEEL,RR AXLE DISC WHEEL 8STUD 7.50VX20 165-13<Q62> REARWARD M20X34.5,M22X53.5 RH THREAD	1-42331-117-0	08	1	9002-9306	●
9	PIN; WHEEL,RR AXLE DISC WHEEL 8STUD 7.50VX20 165-13<Q62> CXM;FORWARD M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-0	08	1	9002-	●	●	●
9	PIN; WHEEL,RR AXLE DISC WHEEL 8STUD 7.50VX20 165-13<Q62> CXM;FORWARD M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-0	08	1	9002-		●	●
9	PIN; WHEEL,RR AXLE DISC WHEEL 8STUD 7.50VX20 165-13<Q62> CXM;FORWARD M20X34.5,M22X51.5 RH THREAD	1-42331-110-0	08	1	9002-	●	●	●
9	PIN; WHEEL,RR AXLE DISC WHEEL 8STUD 7.50VX20 165-13<Q62> CXM;FORWARD M20X34.5,M22X51.5 RH THREAD	1-42331-110-0	08	1	9002-		●	●
9	PIN; WHEEL,RR AXLE EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> M22X51.5,M22X49.5 RH THREAD	1-42331-041-0	40	1	9002-9111	●	●	●
9	PIN; WHEEL,RR AXLE EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> M22X51.5,M22X53.5 RH THREAD	1-42331-136-0	40	1	9112-9201	●	●	●
9	PIN; WHEEL,RR AXLE EXC. BRAKE SYSTEM HEAVY DUTY(J55),DISC WHEEL 8STUD 7.50VX20 165-13<Q62> M22X51.5,M22X53.5 RH THREAD	1-42331-136-0	40	1	9202-9306	●	●	●
9	PIN; WHEEL,RR AXLE EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> M22X51.5,M22X53.5 RH THREAD	1-42331-136-0	40	1	9307-9412	●	●	●
9	PIN; WHEEL,RR AXLE EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> M22X51.5,M22X53.5 RH THREAD	1-42331-136-0	40	1	9501-		●	●
9	PIN; WHEEL,RR AXLE BRAKE SYSTEM HEAVY DUTY(J55) EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> M22X52,M22X51.5 RH THREAD	1-42337-050-0	40	1	9202-9306		●
10	NUT; WHEEL PIN,RR AXLE DISC WHEEL 8STUD 7.50VX20 165-13<Q62> M22	9-09110-522-0	32	1	9002-	●	●	●
10	NUT; WHEEL PIN,RR AXLE EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> M22	1-09400-037-0	40	1	9002-9111	●	●	●
10	NUT; WHEEL PIN,RR AXLE EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> M22	1-09400-071-0	40	1	9112-9412	●	●	●
10	NUT; WHEEL PIN,RR AXLE EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> M22	1-09400-071-0	40	1	9501-		●	●
15	BEARING; HUB OUTER,RR AXLE NSK	1-09812-079-0	04	1	9002-	●	●	●
15	BEARING; HUB OUTER,RR AXLE NACHI	1-09812-166-0	04	1	9002-	●	●	●
16	SEAL; OIL,RR HUB,OUTER NOK	1-09625-226-1	02	1	9002-	●	●	●
16	SEAL; OIL,RR HUB,OUTER NOK	1-09625-226-1	02	1	9002-		●	●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	02	1	9002-	●	●	●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	02	1	9002-		●	●
20	NUT; BRG,RR HUB M88	9-09843-062-2	04	1	9002-	●	●	●
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	04	1	9002-	●	●	●
24	BOLT; LK WASHER M6X16 W/LK WASHER	9-01910-616-0	12	1	9002-9005	●	●	●
24	BOLT; LK WASHER M6X16 W/LK WASHER	0-50040-616-0	12	1	9006-	●	●	●
25	SHAFT; AXLE,RR L=1050	1-42171-291-1	02	1	9002-9405	●
25	SHAFT; AXLE,RR L=1054	1-42171-355-0	02	1	9406-	●
25	SHAFT; AXLE,RR FORWARD RH REARWARD LH L=976	1-42171-339-0	02	1	9002-9307		●	●
25	SHAFT; AXLE,RR FORWARD RH REARWARD LH L=976	1-42171-356-0	02	1	9308-		●	●
25	SHAFT; AXLE,RR FORWARD LH REARWARD RH L=1106	1-42171-340-0	02	1	9002-9307		●	●
25	SHAFT; AXLE,RR FORWARD LH REARWARD RH L=1106	1-42171-357-0	02	1	9308-		●	●
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09020-095-1	20	1	9002-	●	●	●
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09020-095-1	20	1	9002-		●	●
33	WASHER; AXLE SHAFT ID=14.2	9-09150-614-0	20	1	9002-9408	●	●	●
33	WASHER; AXLE SHAFT ID=14.2	9-09150-614-0	20	1	9002-9408		●	●
33	WASHER; AXLE SHAFT ID=14.2	9-09150-814-0	20	1	9409-	●	●	●
33	WASHER; AXLE SHAFT ID=14.2	9-09150-814-0	20	1	9409-		●	●
37	BEARING; HUB INNER,RR AXLE NSK	1-09812-077-0	04	1	9002-	●	●	●
37	BEARING; HUB INNER,RR AXLE NACHI	1-09812-165-0	04	1	9002-	●	●	●
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	04	1	9002-	●	●	●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	04	1	9002-	●	●	●
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	04	1	9002-	●	●	●
49	CASE; RR AXLE REARWARD	1-42150-292-3	01	1	9002-	●
49	CASE; RR AXLE FORWARD	1-42150-460-5	01	1	9002-	●
49	CASE; RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) FORWARD	1-42150-305-4	01	1	9002-9306		●
49	CASE; RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) FORWARD	1-42150-622-1	01	1	9307-		●
49	CASE; RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) REARWARD	1-42150-307-4	01	1	9002-9306		●
49	CASE; RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) REARWARD	1-42150-628-1	01	1	9307-9407		●
49	CASE; RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) REARWARD	1-42160-074-0	01	1	9408-		●
49	CASE; RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) FORWARD	1-42150-462-3	01	1	9002-9306		●	●
49	CASE; RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) FORWARD	1-42150-626-1	01	1	9307-		●	●
49	CASE; RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) REARWARD	1-42150-464-3	01	1	9002-9306		●	●
49	CASE; RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) REARWARD	1-42150-630-1	01	1	9307-		●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FORWARD	1-42150-360-5	01	1	9002-9306		●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REARWARD	1-42150-379-4	01	1	9002-9306		●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FORWARD	1-42150-696-1	01	1	9307-		●	●
49	CASE; RR AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REARWARD	1-42150-698-1	01	1	9307-		●	●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	9002-	●	●	●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	9002-		●	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	9002-	●	●	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	9002-		●	●
60	BREATHER; RR AXLE CASE DESERT ZONE PACKAGE(W01)	9-36122-015-1	02	1	9002-		●	●
60	BREATHER; RR AXLE CASE EXC. DESERT ZONE PACKAGE(W01)	1-09893-003-0	02	1	9002-9306		●	●
60	BREATHER; RR AXLE CASE	1-09893-011-1	01	1	9002-	●
60	BREATHER; RR AXLE CASE EXC. DESERT ZONE PACKAGE(W01)	1-09893-011-1	02	1	9307-		●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-021-0	01	1	9002-9307	●	●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-021-0	01	1	9002-9307		●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	9308-	●	●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	9308-		●	●
64	GASKET; OIL FILLER,AXLE CASE ID=24.5 OD=32.5	9-09920-392-0	01	1	9002-9307	●	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=24.5 OD=32.5	9-09920-392-0	01	1	9002-9307		●	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	9308-	●	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	9308-		●	●
65	NUT M14	9-99110-514-0	16	1	9002-	●	●	●
66	WASHER; LK ID=14.2	9-09150-514-0	16	1	9002-9401	●	●	●
66	WASHER; LK ID=14.2	9-09150-814-0	16	1	9402-	●	●	●
67	BOLT; FINAL DRIVE SETTING M16X45	9-92061-645-0	08	1	9002-9004	●
67	BOLT; FINAL DRIVE SETTING M16X70	9-91056-670-0	04	1	9002-9003	●	●	●
67	BOLT; FINAL DRIVE SETTING M16X70	9-91056-670-0	04	1	9002-9003		●	●
67	BOLT; FINAL DRIVE SETTING M16X70	9-91066-670-0	04	1	9004-	●	●	●
67	BOLT; FINAL DRIVE SETTING M16X70	9-91066-670-0	04	1	9004-		●	●
67	BOLT; FINAL DRIVE SETTING M16X40	9-92061-640-0	08	1	9307-	●	●	●
67	BOLT; FINAL DRIVE SETTING M16X40	9-92051-640-0	08	1	9002-9003		●	●
67	BOLT; FINAL DRIVE SETTING M16X40	9-92061-640-0	08	1	9004-9306	●	●	●
67	BOLT; FINAL DRIVE SETTING M16X40	9-92051-640-0	06	1	9002-9003		●	●
67	BOLT; FINAL DRIVE SETTING M16X40	9-92061-640-0	06	1	9004-9306		●	●
67	BOLT; FINAL DRIVE SETTING M16X40	9-92061-640-0	07	1	9307-		●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	9-09150-516-0	12	1	9002-9003	●	●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	9-09150-516-0	12	1	9002-9003		●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	9-09150-816-0	12	1	9004-	●	●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	9-09150-816-0	12	1	9004-		●	●
72	BOLT; PAD FIX M14X45	9-92061-445-0	16	1	9002-	●	●	●
73	PAD; RR SPR CONTACT	1-42124-101-0	04	1	9002-	●	●	●
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	16	1	9002-	●
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	14	1	9002-	●	●	●
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	14	1	9002-		●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-614-0	32	1	9002-9401	●	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-814-0	32	1	9402-	●	●	●
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	32	1	9002-	●	●	●
161	RING; SPRING,REAR WHEEL EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42339-025-1	40	1	9002-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
