Sayfa 7-70 - Isuzu EPC

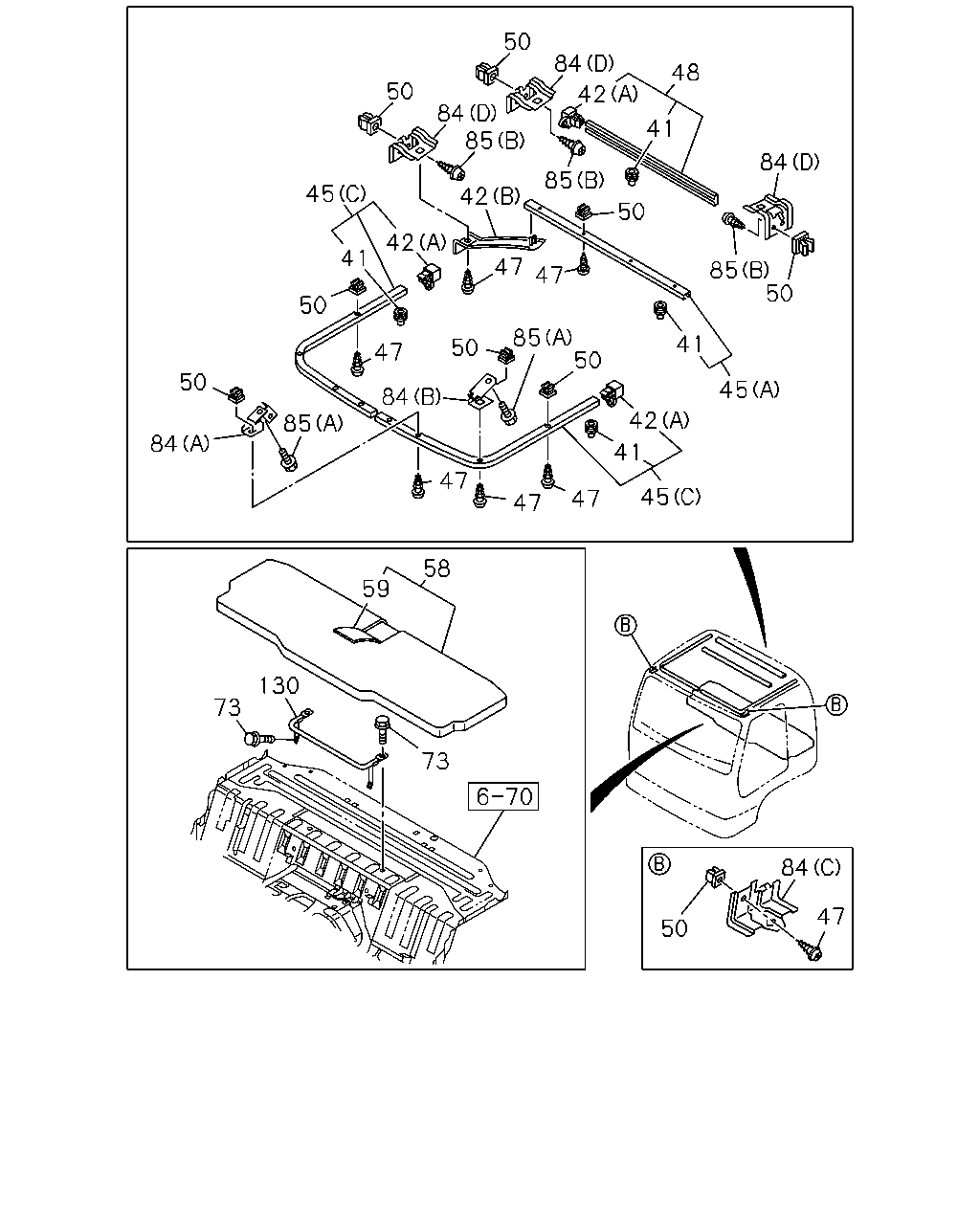

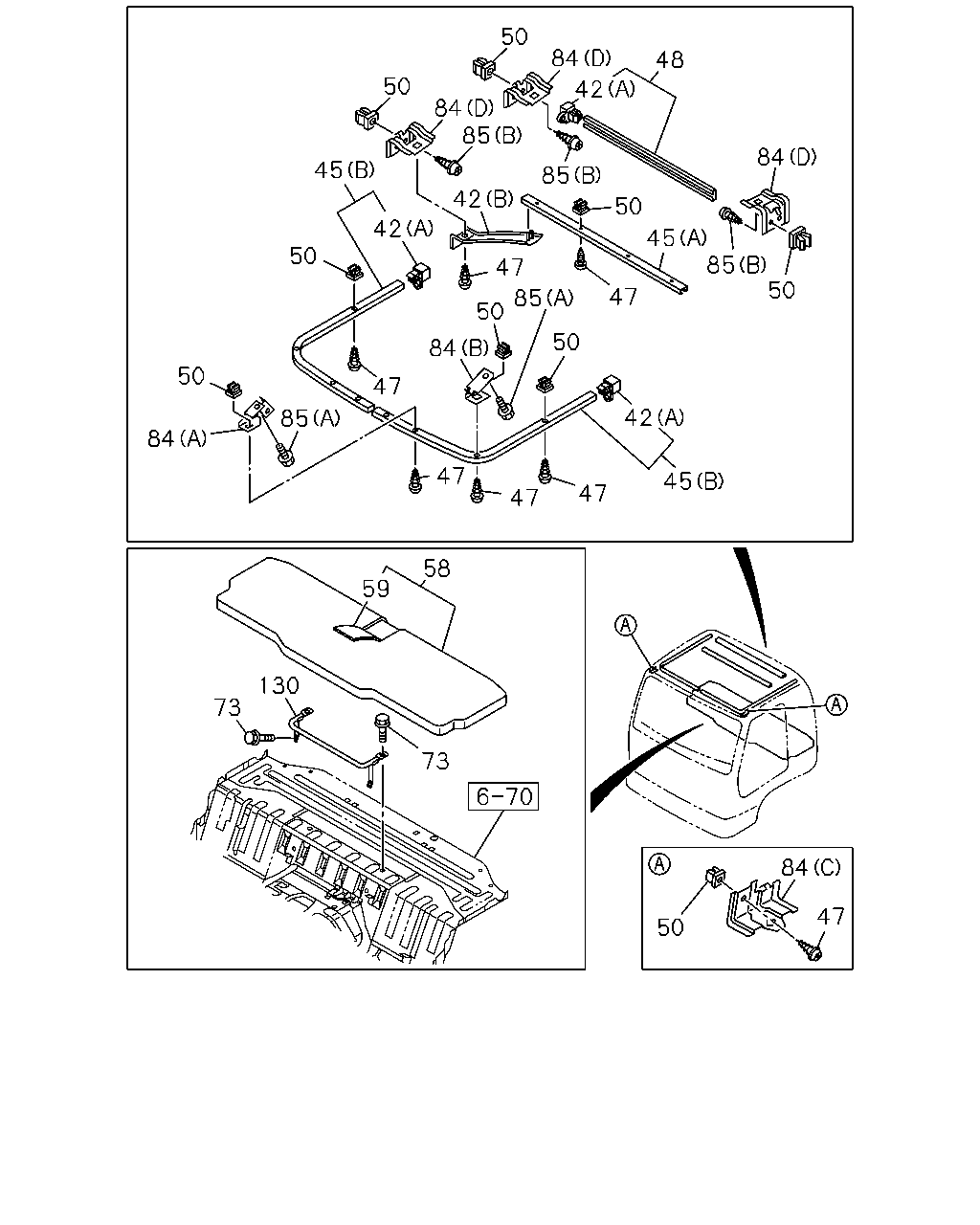

7-70 — SEPARATER AND BED (#33895) — 195 parça

50 84 48 50 42 84 85 84 45 85 42 50 42 45 85 50 50 47 47 85 50 50 84 50 47 85 42 84 47 47 45 47 58 59 130 73 73 84 47 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
42	STOPPER; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97408-038-0	01	1	0711-0711	●	●
42	STOPPER; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97408-038-0	01	1	0712-	●
42	STOPPER; CURTAIN RAIL HONG KONG EQUIPMENT(B14) (A) LIGHT GRAY	8-97408-038-0	01	1	0712-		●
42	STOPPER; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> EXC. HONG KONG EQUIPMENT(B14) (A) LIGHT GRAY	8-97408-038-0	01	1	0712-		●
42	STOPPER; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97408-038-0	02	1	0711-0711	●	●
42	STOPPER; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97408-038-0	02	1	0712-	●
42	STOPPER; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> EXC. HONG KONG EQUIPMENT(B14) (A) LIGHT GRAY	8-97408-038-0	02	1	0712-		●
42	STOPPER; CURTAIN RAIL HONG KONG EQUIPMENT(B14) (A) LIGHT GRAY	8-97408-038-0	02	1	0712-		●
42	STOPPER; CURTAIN RAIL (B) DARK GRAY	8-97407-972-2	01	1	0710-	●	●
42	STOPPER; CURTAIN RAIL (B) DARK GRAY	8-97407-499-2	01	1	0710-	●	●
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> (B) DARK GRAY	8-97407-491-4	01	1	0711-0711	●	●
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> (B) DARK GRAY	8-97407-491-4	01	1	0712-0804	●
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> EXC. HONG KONG EQUIPMENT(B14) (B) DARK GRAY	8-97407-491-4	01	1	0712-0804		●
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> (B) LIGHT GRAY	8-97415-671-0	01	1	0805-	●
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> EXC. HONG KONG EQUIPMENT(B14) (B) LIGHT GRAY	8-97415-671-0	01	1	0805-		●
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> (B) DARK GRAY	8-97407-493-4	01	1	0711-0711	●	●
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> (B) DARK GRAY	8-97407-493-4	01	1	0712-0804	●
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> EXC. HONG KONG EQUIPMENT(B14) (B) DARK GRAY	8-97407-493-4	01	1	0712-0804		●
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> (B) LIGHT GRAY	8-97415-672-0	01	1	0805-	●
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> EXC. HONG KONG EQUIPMENT(B14) (B) LIGHT GRAY	8-97415-672-0	01	1	0805-		●
45	RAIL; CURTAIN,FRT (A) DARK GRAY	8-97407-485-0	01	1	0710-0711	●	●
45	RAIL; CURTAIN,FRT (A) DARK GRAY	8-97407-485-0	01	1	0712-	●
45	RAIL; CURTAIN,FRT EXC. HONG KONG EQUIPMENT(B14) (A) DARK GRAY	8-97407-485-0	01	1	0712-		●
45	RAIL; CURTAIN,FRT HONG KONG EQUIPMENT(B14) (A) DARK GRAY	8-97407-487-1	01	1	0712-		●
45	RAIL; CURTAIN,FRT HONG KONG EQUIPMENT(B14) (C) DARK GRAY	8-97407-495-4	01	1	0712-0804		●
45	RAIL; CURTAIN,FRT HONG KONG EQUIPMENT(B14) (C) LIGHT GRAY	8-97415-677-0	01	1	0805-		●
45	RAIL; CURTAIN,FRT HONG KONG EQUIPMENT(B14) (C) DARK GRAY	8-97407-496-4	01	1	0712-0804		●
45	RAIL; CURTAIN,FRT HONG KONG EQUIPMENT(B14) (C) LIGHT GRAY	8-97415-678-0	01	1	0805-		●
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	08	1	0805-	●	●
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	06	1	0710-0710	●	●
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	06	1	0711-0804	●	●
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	06	1	0711-0804	●	●
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	06	1	0711-0804	●	●
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	06	1	0805-	●	●
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	06	1	0805-	●	●
48	RAIL; CURTAIN,BACK HONG KONG EQUIPMENT(B14) DARK GRAY	8-97407-490-2	01	1	0712-		●
48	RAIL; CURTAIN,BACK ROUND CURTAIN RAIL<EDH> DARK GRAY	8-97407-866-2	01	1	0710-0711	●	●
48	RAIL; CURTAIN,BACK ROUND CURTAIN RAIL<EDH> DARK GRAY	8-97407-866-2	01	1	0712-	●
48	RAIL; CURTAIN,BACK ROUND CURTAIN RAIL<EDH> EXC. HONG KONG EQUIPMENT(B14) DARK GRAY	8-97407-866-2	01	1	0712-		●
50	GROMMET; SCREW,CURTAIN RAIL EXC. ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	04	1	1406-	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0710-0710	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0711-0804	●	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0711-0804	●	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0711-0804	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0805-1405	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0805-1405	●	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0805-1405	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1406-	●	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1406-	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	10	1	0710-0710	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	04	1	0710-0804	●	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	08	1	0805-1405	●	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	14	1	1406-	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40> SEAT CLOTH<7FL> DARK GRAY	8-97407-382-2	01	1	1001-1402	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY	8-97407-382-2	01	1	1403-	●
58	BED; MAT MATTRESS SLEEPER CAB<E40> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) DARK GRAY	8-97407-382-2	01	1	1403-		●
58	BED; MAT MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97409-772-1	01	1	0710-0912	●	●
58	BED; MAT VINYL SEAT<A83> MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97409-772-1	01	1	1001-1402	●	●
58	BED; MAT VINYL SEAT<A83> MATTRESS SLEEPER CAB<E40> EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY	8-97409-772-1	01	1	1403-	●
58	BED; MAT VINYL SEAT<A83> MATTRESS SLEEPER CAB<E40> EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) DARK GRAY	8-97409-772-1	01	1	1403-		●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> SEAT CLOTH<7FL> DARK GRAY	8-97412-045-1	01	1	1001-1402	●	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY	8-97412-045-1	01	1	1403-	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) DARK GRAY	8-97412-045-1	01	1	1403-		●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97414-106-0	01	1	0710-0912	●	●
59	COVER ASM; TRIM,BED MAT VINYL SEAT<A83> MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97414-106-0	01	1	1001-1402	●	●
59	COVER ASM; TRIM,BED MAT VINYL SEAT<A83> MATTRESS SLEEPER CAB<E40> EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY	8-97414-106-0	01	1	1403-	●
59	COVER ASM; TRIM,BED MAT VINYL SEAT<A83> MATTRESS SLEEPER CAB<E40> EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) DARK GRAY	8-97414-106-0	01	1	1403-		●
73	BOLT; GUARD PIPE MATTRESS SLEEPER CAB<E40> M8X20 FLANGE	0-28450-820-0	04	1	0710-1402	●	●
73	BOLT; GUARD PIPE MATTRESS SLEEPER CAB<E40> EXC. AUSTRALIA EQUIPMENT(B13) M8X20 FLANGE	0-28450-820-0	04	1	1403-	●
73	BOLT; GUARD PIPE MATTRESS SLEEPER CAB<E40> EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) M8X20 FLANGE	0-28450-820-0	04	1	1403-		●
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A)	8-98049-290-1	01	1	0907-	●	●
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (B)	8-98074-740-0	01	1	0907-	●	●
84	BRACKET; CURTAIN RAIL (C)	8-98028-326-1	02	1	0710-1405	●	●
84	BRACKET; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (C)	8-98028-326-1	02	1	1406-	●	●
84	BRACKET; CURTAIN RAIL (D)	8-98028-821-1	01	1	0710-0712	●	●
84	BRACKET; CURTAIN RAIL (D)	8-98042-152-0	02	1	0801-0804	●	●
84	BRACKET; CURTAIN RAIL (D)	8-98042-152-0	04	1	0805-	●	●
84	BRACKET; CURTAIN RAIL (D)	8-98049-761-1	01	1	0710-0712	●	●
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A)	8-98049-290-1	01	1	0710-0906	●	●
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (B)	8-98074-740-0	01	1	0710-0906	●	●
85	SCREW; BRKT EXC. ROUND CURTAIN RAIL<EDH> (B) M5X20	5-09981-059-0	04	1	1406-	●	●
85	SCREW; BRKT (B) M5X20	5-09981-059-0	04	1	0710-0804	●	●
85	SCREW; BRKT (B) M5X20	5-09981-059-0	06	1	0805-1405	●	●
85	SCREW; BRKT ROUND CURTAIN RAIL<EDH> (B) M5X20	5-09981-059-0	06	1	1406-	●	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	0-28450-612-0	01	1	0710-0810	●	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	0-28450-612-0	01	1	0710-0810	●	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	8-97108-669-0	01	1	0811-	●	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	8-97108-669-0	01	1	0811-	●	●
130	PIPE; GUARD,BED MATTRESS SLEEPER CAB<E40>	8-98014-968-0	01	1	0710-1402	●	●
130	PIPE; GUARD,BED MATTRESS SLEEPER CAB<E40> EXC. AUSTRALIA EQUIPMENT(B13)	8-98014-968-0	01	1	1403-	●
130	PIPE; GUARD,BED MATTRESS SLEEPER CAB<E40> EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13)	8-98014-968-0	01	1	1403-		●

50 84 48 50 42 84 85 41 84 85 45 42 50 42 41 47 85 50 47 50 85 50 41 50 47 50 45 84 85 42 84 41 47 47 45 47 58 59 130 73 73 84 47 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	HOOK; CURTAIN RAIL HONG KONG EQUIPMENT(B14) H=14.5 WHITE	1-73996-398-0	22	1	0712-		●
41	HOOK; CURTAIN RAIL HONG KONG EQUIPMENT(B14) H=14.5 WHITE	1-73996-398-0	26	1	0712-0804		●
41	HOOK; CURTAIN RAIL HONG KONG EQUIPMENT(B14) H=14.5 WHITE	1-73996-398-0	32	1	0805-		●
42	STOPPER; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97408-038-0	01	1	0711-0711	●	●
42	STOPPER; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97408-038-0	01	1	0712-	●
42	STOPPER; CURTAIN RAIL HONG KONG EQUIPMENT(B14) (A) LIGHT GRAY	8-97408-038-0	01	1	0712-		●
42	STOPPER; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> EXC. HONG KONG EQUIPMENT(B14) (A) LIGHT GRAY	8-97408-038-0	01	1	0712-		●
42	STOPPER; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97408-038-0	02	1	0711-0711	●	●
42	STOPPER; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97408-038-0	02	1	0712-	●
42	STOPPER; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> EXC. HONG KONG EQUIPMENT(B14) (A) LIGHT GRAY	8-97408-038-0	02	1	0712-		●
42	STOPPER; CURTAIN RAIL HONG KONG EQUIPMENT(B14) (A) LIGHT GRAY	8-97408-038-0	02	1	0712-		●
42	STOPPER; CURTAIN RAIL (B) DARK GRAY	8-97407-972-2	01	1	0710-	●	●
42	STOPPER; CURTAIN RAIL (B) DARK GRAY	8-97407-499-2	01	1	0710-	●	●
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> (B) DARK GRAY	8-97407-491-4	01	1	0711-0711	●	●
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> (B) DARK GRAY	8-97407-491-4	01	1	0712-0804	●
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> EXC. HONG KONG EQUIPMENT(B14) (B) DARK GRAY	8-97407-491-4	01	1	0712-0804		●
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> (B) LIGHT GRAY	8-97415-671-0	01	1	0805-	●
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> EXC. HONG KONG EQUIPMENT(B14) (B) LIGHT GRAY	8-97415-671-0	01	1	0805-		●
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> (B) DARK GRAY	8-97407-493-4	01	1	0711-0711	●	●
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> (B) DARK GRAY	8-97407-493-4	01	1	0712-0804	●
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> EXC. HONG KONG EQUIPMENT(B14) (B) DARK GRAY	8-97407-493-4	01	1	0712-0804		●
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> (B) LIGHT GRAY	8-97415-672-0	01	1	0805-	●
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> EXC. HONG KONG EQUIPMENT(B14) (B) LIGHT GRAY	8-97415-672-0	01	1	0805-		●
45	RAIL; CURTAIN,FRT (A) DARK GRAY	8-97407-485-0	01	1	0710-0711	●	●
45	RAIL; CURTAIN,FRT (A) DARK GRAY	8-97407-485-0	01	1	0712-	●
45	RAIL; CURTAIN,FRT EXC. HONG KONG EQUIPMENT(B14) (A) DARK GRAY	8-97407-485-0	01	1	0712-		●
45	RAIL; CURTAIN,FRT HONG KONG EQUIPMENT(B14) (A) DARK GRAY	8-97407-487-1	01	1	0712-		●
45	RAIL; CURTAIN,FRT HONG KONG EQUIPMENT(B14) (C) DARK GRAY	8-97407-495-4	01	1	0712-0804		●
45	RAIL; CURTAIN,FRT HONG KONG EQUIPMENT(B14) (C) LIGHT GRAY	8-97415-677-0	01	1	0805-		●
45	RAIL; CURTAIN,FRT HONG KONG EQUIPMENT(B14) (C) DARK GRAY	8-97407-496-4	01	1	0712-0804		●
45	RAIL; CURTAIN,FRT HONG KONG EQUIPMENT(B14) (C) LIGHT GRAY	8-97415-678-0	01	1	0805-		●
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	08	1	0805-	●	●
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	06	1	0710-0710	●	●
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	06	1	0711-0804	●	●
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	06	1	0711-0804	●	●
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	06	1	0711-0804	●	●
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	06	1	0805-	●	●
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	06	1	0805-	●	●
48	RAIL; CURTAIN,BACK HONG KONG EQUIPMENT(B14) DARK GRAY	8-97407-490-2	01	1	0712-		●
48	RAIL; CURTAIN,BACK ROUND CURTAIN RAIL<EDH> DARK GRAY	8-97407-866-2	01	1	0710-0711	●	●
48	RAIL; CURTAIN,BACK ROUND CURTAIN RAIL<EDH> DARK GRAY	8-97407-866-2	01	1	0712-	●
48	RAIL; CURTAIN,BACK ROUND CURTAIN RAIL<EDH> EXC. HONG KONG EQUIPMENT(B14) DARK GRAY	8-97407-866-2	01	1	0712-		●
50	GROMMET; SCREW,CURTAIN RAIL EXC. ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	04	1	1406-	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0710-0710	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0711-0804	●	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0711-0804	●	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0711-0804	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0805-1405	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0805-1405	●	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0805-1405	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1406-	●	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1406-	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	10	1	0710-0710	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	04	1	0710-0804	●	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	08	1	0805-1405	●	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	14	1	1406-	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40> SEAT CLOTH<7FL> DARK GRAY	8-97407-382-2	01	1	1001-1402	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY	8-97407-382-2	01	1	1403-	●
58	BED; MAT MATTRESS SLEEPER CAB<E40> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) DARK GRAY	8-97407-382-2	01	1	1403-		●
58	BED; MAT MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97409-772-1	01	1	0710-0912	●	●
58	BED; MAT VINYL SEAT<A83> MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97409-772-1	01	1	1001-1402	●	●
58	BED; MAT VINYL SEAT<A83> MATTRESS SLEEPER CAB<E40> EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY	8-97409-772-1	01	1	1403-	●
58	BED; MAT VINYL SEAT<A83> MATTRESS SLEEPER CAB<E40> EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) DARK GRAY	8-97409-772-1	01	1	1403-		●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> SEAT CLOTH<7FL> DARK GRAY	8-97412-045-1	01	1	1001-1402	●	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY	8-97412-045-1	01	1	1403-	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) DARK GRAY	8-97412-045-1	01	1	1403-		●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97414-106-0	01	1	0710-0912	●	●
59	COVER ASM; TRIM,BED MAT VINYL SEAT<A83> MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97414-106-0	01	1	1001-1402	●	●
59	COVER ASM; TRIM,BED MAT VINYL SEAT<A83> MATTRESS SLEEPER CAB<E40> EXC. AUSTRALIA EQUIPMENT(B13) DARK GRAY	8-97414-106-0	01	1	1403-	●
59	COVER ASM; TRIM,BED MAT VINYL SEAT<A83> MATTRESS SLEEPER CAB<E40> EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) DARK GRAY	8-97414-106-0	01	1	1403-		●
73	BOLT; GUARD PIPE MATTRESS SLEEPER CAB<E40> M8X20 FLANGE	0-28450-820-0	04	1	0710-1402	●	●
73	BOLT; GUARD PIPE MATTRESS SLEEPER CAB<E40> EXC. AUSTRALIA EQUIPMENT(B13) M8X20 FLANGE	0-28450-820-0	04	1	1403-	●
73	BOLT; GUARD PIPE MATTRESS SLEEPER CAB<E40> EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) M8X20 FLANGE	0-28450-820-0	04	1	1403-		●
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A)	8-98049-290-1	01	1	0907-	●	●
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (B)	8-98074-740-0	01	1	0907-	●	●
84	BRACKET; CURTAIN RAIL (C)	8-98028-326-1	02	1	0710-1405	●	●
84	BRACKET; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (C)	8-98028-326-1	02	1	1406-	●	●
84	BRACKET; CURTAIN RAIL (D)	8-98028-821-1	01	1	0710-0712	●	●
84	BRACKET; CURTAIN RAIL (D)	8-98042-152-0	02	1	0801-0804	●	●
84	BRACKET; CURTAIN RAIL (D)	8-98042-152-0	04	1	0805-	●	●
84	BRACKET; CURTAIN RAIL (D)	8-98049-761-1	01	1	0710-0712	●	●
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A)	8-98049-290-1	01	1	0710-0906	●	●
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (B)	8-98074-740-0	01	1	0710-0906	●	●
85	SCREW; BRKT EXC. ROUND CURTAIN RAIL<EDH> (B) M5X20	5-09981-059-0	04	1	1406-	●	●
85	SCREW; BRKT (B) M5X20	5-09981-059-0	04	1	0710-0804	●	●
85	SCREW; BRKT (B) M5X20	5-09981-059-0	06	1	0805-1405	●	●
85	SCREW; BRKT ROUND CURTAIN RAIL<EDH> (B) M5X20	5-09981-059-0	06	1	1406-	●	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	0-28450-612-0	01	1	0710-0810	●	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	0-28450-612-0	01	1	0710-0810	●	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	8-97108-669-0	01	1	0811-	●	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	8-97108-669-0	01	1	0811-	●	●
130	PIPE; GUARD,BED MATTRESS SLEEPER CAB<E40>	8-98014-968-0	01	1	0710-1402	●	●
130	PIPE; GUARD,BED MATTRESS SLEEPER CAB<E40> EXC. AUSTRALIA EQUIPMENT(B13)	8-98014-968-0	01	1	1403-	●
130	PIPE; GUARD,BED MATTRESS SLEEPER CAB<E40> EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13)	8-98014-968-0	01	1	1403-		●

64 51 51 44 92 44 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
44	CURTAIN ASM; CABIN CENTER HONG KONG EQUIPMENT(B14) (A) BLUE	8-97407-945-1	01	1	0712-	●
44	CURTAIN ASM; CABIN CENTER HONG KONG EQUIPMENT(B14) (B) BLUE	8-97407-946-1	01	1	0712-	●
51	CURTAIN; BACK HONG KONG EQUIPMENT(B14) (A) BLUE	8-97407-758-1	01	1	0712-	●
51	CURTAIN; BACK HONG KONG EQUIPMENT(B14) (B) BLUE	8-97407-759-1	01	1	0712-	●
64	CURTAIN KIT HONG KONG EQUIPMENT(B14)	8-97409-765-0	01	1	0712-0804	●
64	CURTAIN KIT HONG KONG EQUIPMENT(B14)	8-97415-694-0	01	1	0805-	●
92	CURTAIN ASM; ROUND HONG KONG EQUIPMENT(B14) (A) BLUE	8-97407-756-1	01	1	0712-0804	●
92	CURTAIN ASM; ROUND HONG KONG EQUIPMENT(B14) (A) BLUE	8-97415-696-0	01	1	0805-	●
92	CURTAIN ASM; ROUND HONG KONG EQUIPMENT(B14) (B)	8-97412-915-0	01	1	0712-0804	●
92	CURTAIN ASM; ROUND HONG KONG EQUIPMENT(B14) (B) BLUE	8-97415-700-0	01	1	0805-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
