1 |

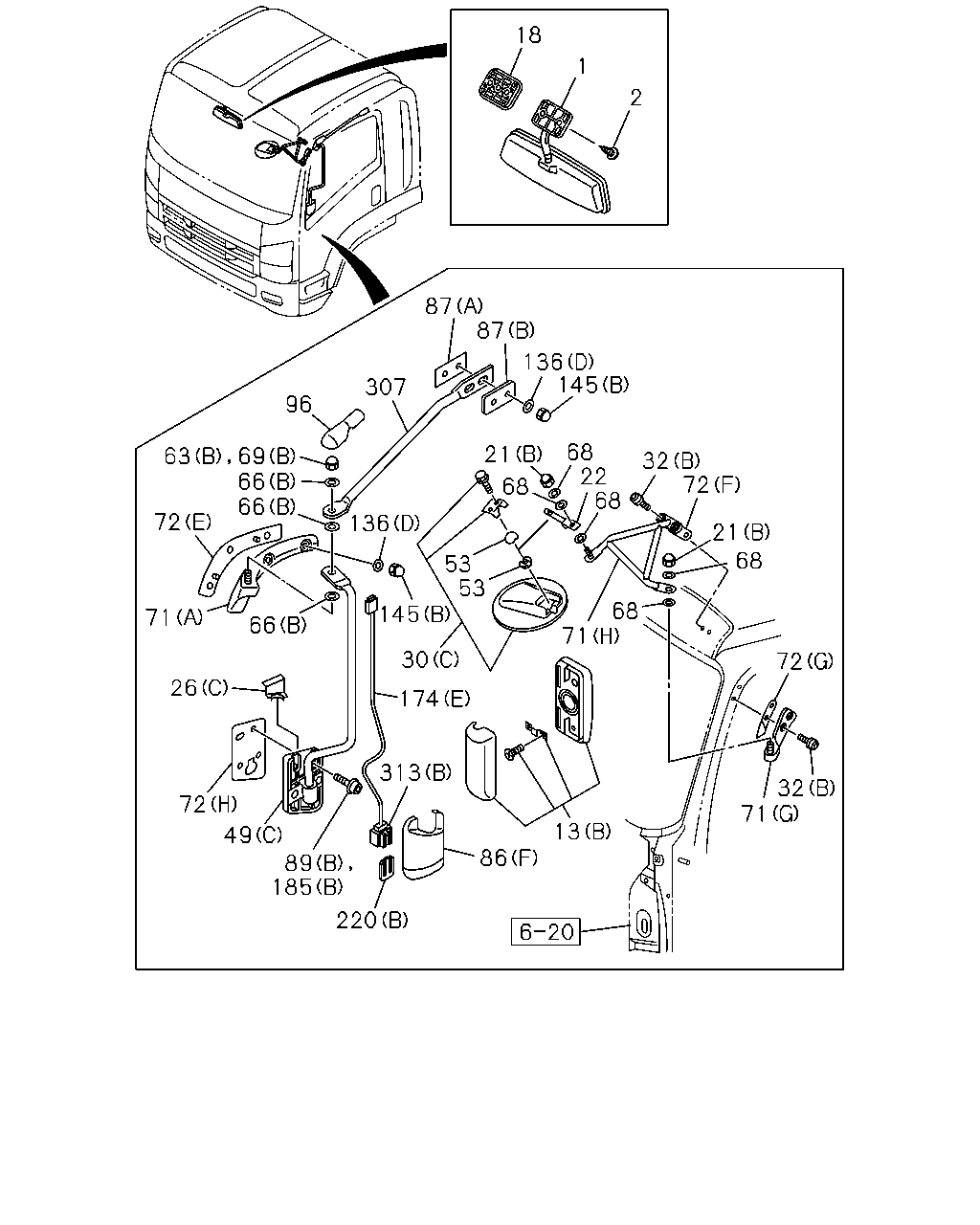

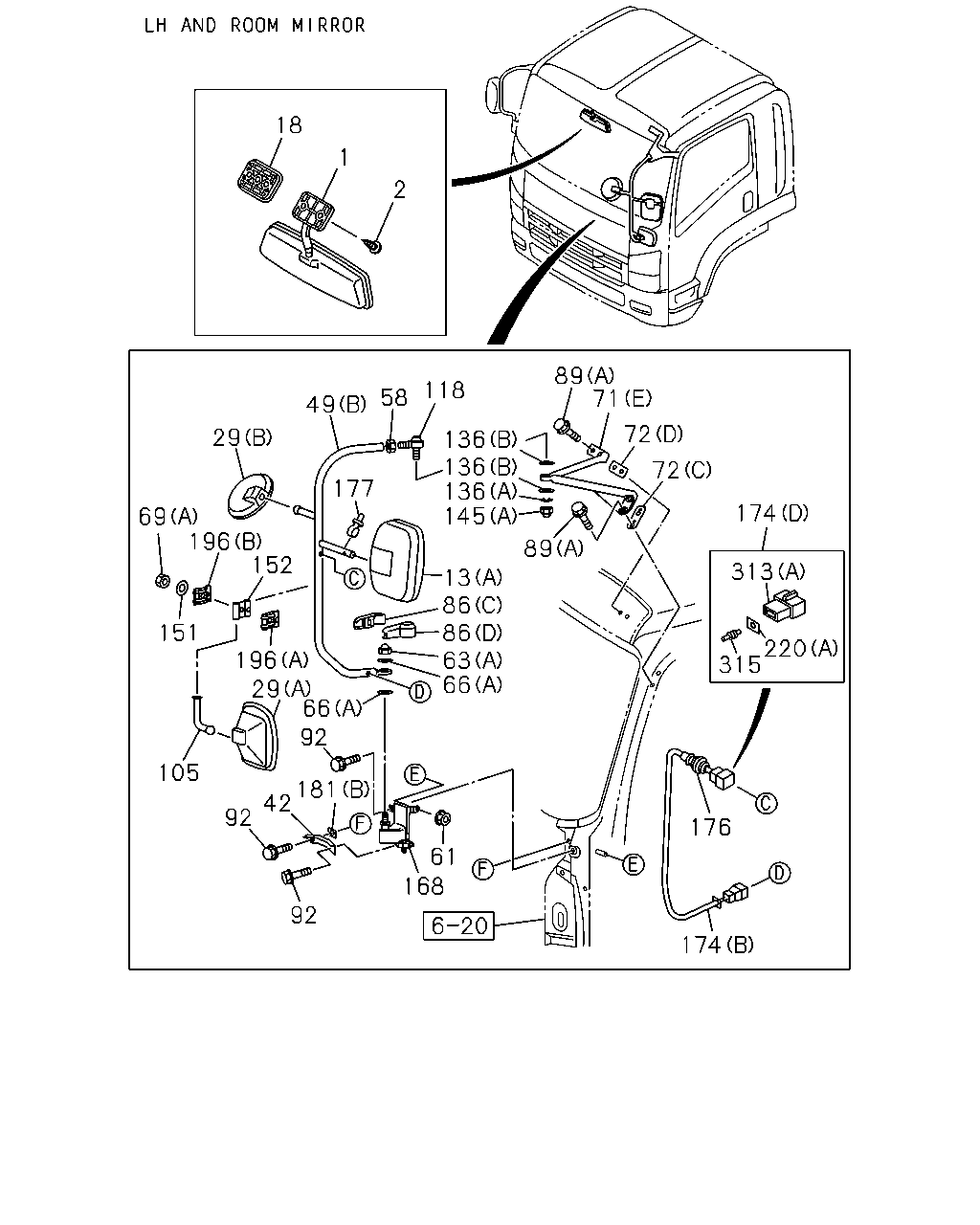

MIRROR; ROOM
DARK GRAY
|
8-97405-193-1 |
01 |
1 |
0710-0802 |
● |
● |
| |
1 |
MIRROR; ROOM
DARK GRAY
|
8-98097-534-1 |
01 |
1 |
0803- |
● |
● |
| |
2 |
SCREW; MIRROR TO BODY
M6X26
|
8-98033-674-0 |
02 |
1 |
0710- |
● |
● |
| |
13 |

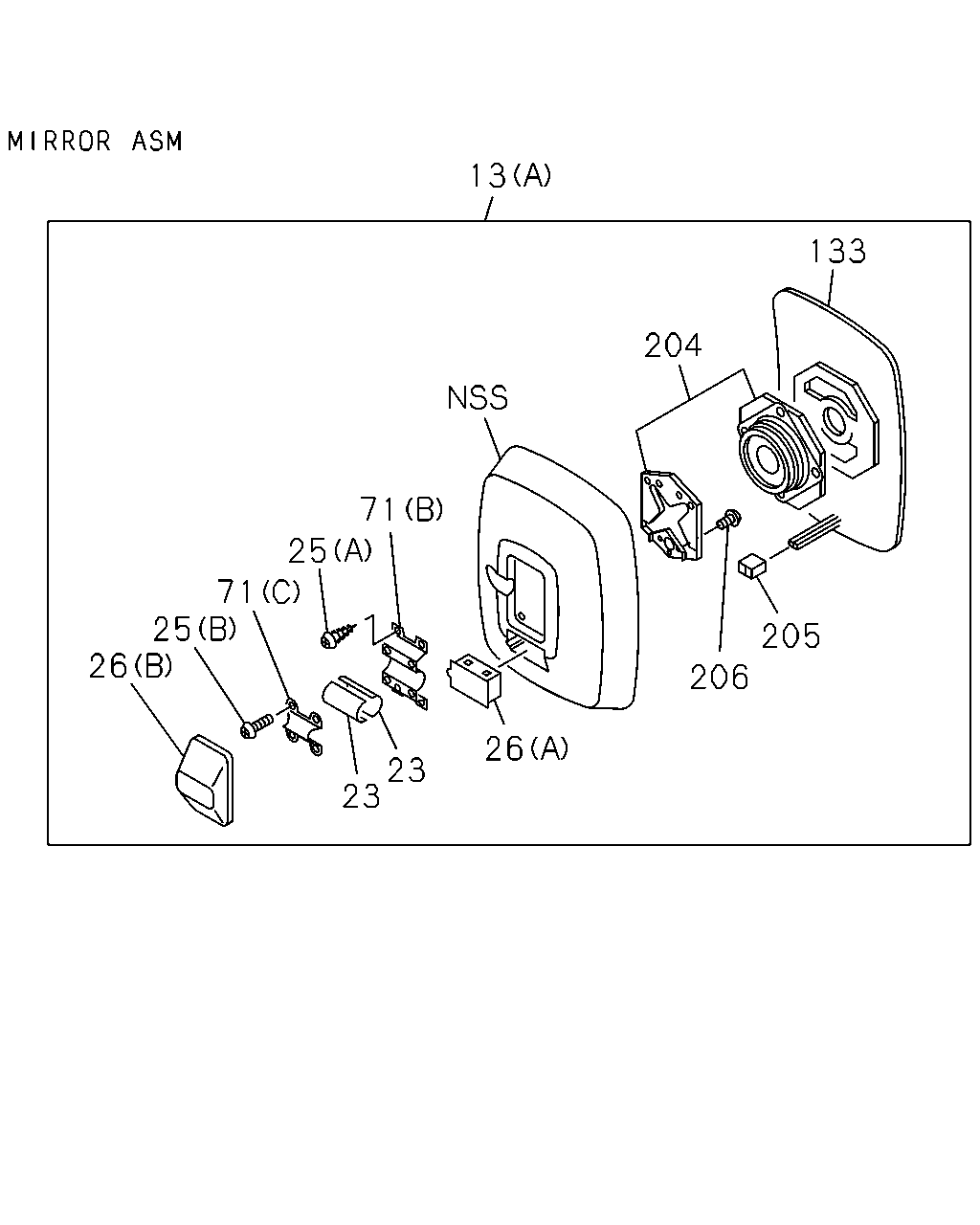

MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
(A)
|
1-71707-100-2 |
01 |
1 |
0712- |
● |
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
(A)
|
1-71707-101-2 |
01 |
1 |
0712- |
● |
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,
O/SIDE MIRROR RR VIEW FLAT<YS1>
(B)
|
8-98055-991-1 |
01 |
1 |
0712-0808 |
● |
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,
O/SIDE MIRROR RR VIEW FLAT<YS1>
(B)
|
8-98055-991-1 |
01 |
1 |
0809-1410 |
● |
● |
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
O/SIDE MIRROR RR VIEW FLAT<YS1>,O/SIDE MIRROR RR VIEW,
HEATED<7SV>
(B)
|
8-98055-991-1 |
01 |
1 |
1411- |
|
● |
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE
MIRRORRR VIEW FLAT<YS1>,O/SIDE MIRROR RR VIEW,
HEATED<7SV>
(B)
|
8-98055-991-1 |
01 |
1 |
1411- |
● |
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,
O/SIDE MIRROR RR VIEW FLAT<YS1>
(B)
|
8-98055-992-1 |
01 |
1 |
0712-0808 |
● |
|
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,
O/SIDE MIRROR RR VIEW FLAT<YS1>
(B)
|
8-98055-992-1 |
01 |
1 |
0809-1410 |
● |
● |
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
O/SIDE MIRROR RR VIEW FLAT<YS1>,O/SIDE MIRROR RR VIEW,
HEATED<7SV>
(B)
|
8-98055-992-1 |
01 |
1 |
1411- |
|
● |
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE
MIRRORRR VIEW FLAT<YS1>,O/SIDE MIRROR RR VIEW,
HEATED<7SV>
(B)
|
8-98055-992-1 |
01 |
1 |
1411- |
● |
|
| |
18 |
CLIP; MIRROR
DARK GRAY
|
8-97408-241-0 |
01 |
1 |
0710- |
● |
● |
| |
29 |

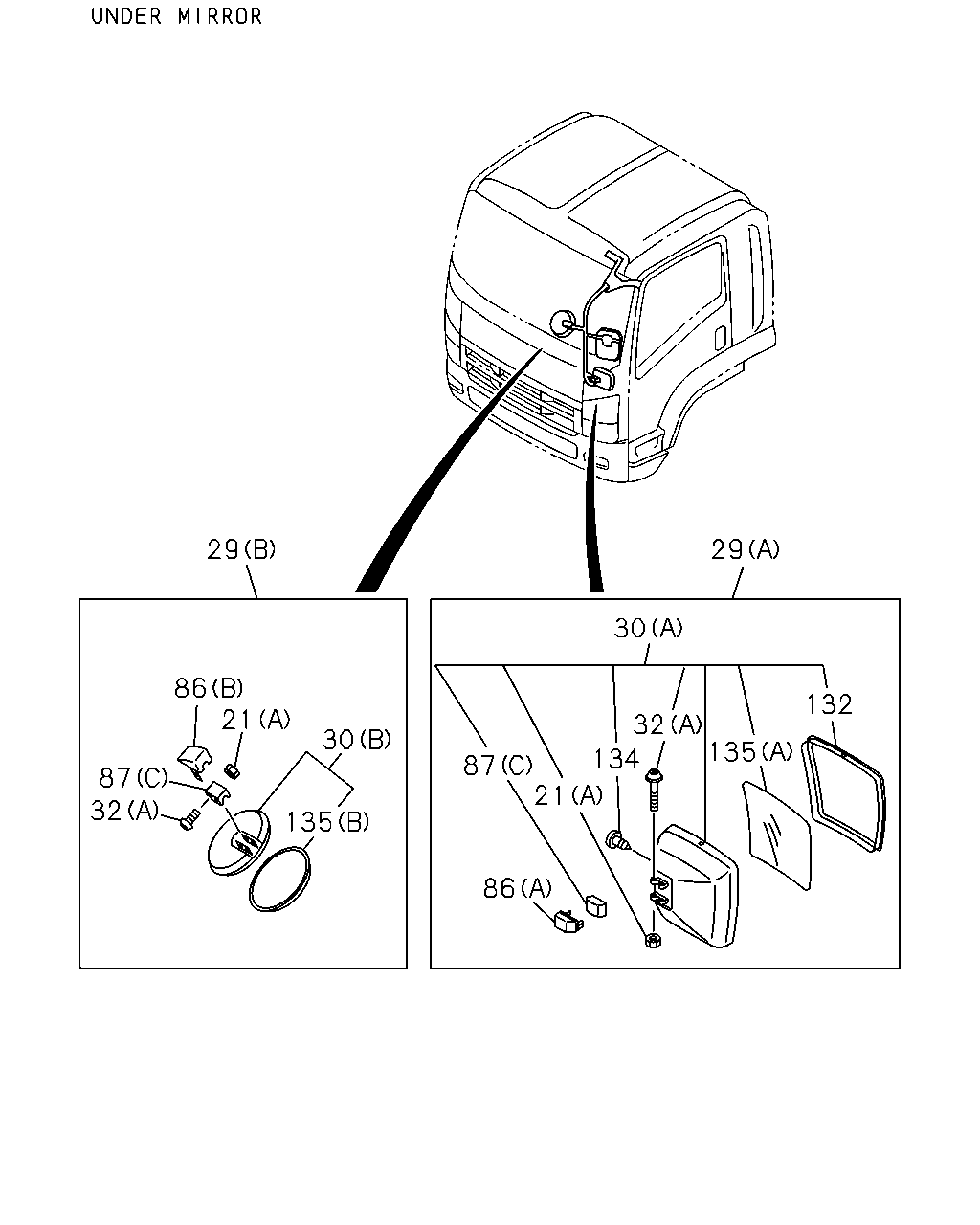

MIRROR ASM; UNDER
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>
(A)
|
1-71798-421-1 |
01 |
1 |
0712- |
● |
|
| |
29 |
MIRROR ASM; UNDER
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>
(B)
|
1-71798-422-0 |
01 |
1 |
0712- |
● |
|
| |
42 |
ATTACHMENT; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
|
8-98070-643-0 |
01 |
1 |
0712- |
● |
|
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2>
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE
MIRRORRR VIEW FLAT<YS1>
(C)
|
8-98067-514-1 |
01 |
1 |
0712-0808 |
● |
|
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2>
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE
MIRRORRR VIEW FLAT<YS1>
(C)
|
8-98067-514-1 |
01 |
1 |
0809-1202 |
● |
● |
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2>
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE
MIRRORRR VIEW FLAT<YS1>
(C)
|
8-98166-180-0 |
01 |
1 |
1203- |
● |
● |
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2>
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE
MIRRORRR VIEW FLAT<YS1>
(C)
|
8-98067-515-1 |
01 |
1 |
0712-0808 |
● |
|
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2>
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE
MIRRORRR VIEW FLAT<YS1>
(C)
|
8-98067-515-1 |
01 |
1 |
0809-1202 |
● |
● |
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2>
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE
MIRRORRR VIEW FLAT<YS1>
(C)
|
8-98166-181-0 |
01 |
1 |
1203- |
● |
● |
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
(A)
|
8-98091-456-0 |
01 |
1 |
0712-1502 |
● |
|
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
(A)
|
8-98305-584-0 |
01 |
1 |
1503- |
● |
|
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>
(B)
|
8-98083-831-1 |
01 |
1 |
0712-1402 |
● |
|
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>
(B)
|
8-98257-753-0 |
01 |
1 |
1403- |
● |
|
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE
MIRRORRR VIEW FLAT<YS1>
(C)
|
8-98060-215-1 |
01 |
1 |
0712-0808 |
● |
|
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE
MIRRORRR VIEW FLAT<YS1>
(C)
|
8-98060-215-1 |
01 |
1 |
0809-1202 |
● |
● |
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE
MIRRORRR VIEW FLAT<YS1>
(C)
|
8-98166-194-0 |
01 |
1 |
1203- |
● |
● |
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE
MIRRORRR VIEW FLAT<YS1>
(C)
|
8-98060-216-1 |
01 |
1 |
0712-0808 |
● |
|
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE
MIRRORRR VIEW FLAT<YS1>
(C)
|
8-98060-216-1 |
01 |
1 |
0809-1202 |
● |
● |
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE
MIRRORRR VIEW FLAT<YS1>
(C)
|
8-98166-195-0 |
01 |
1 |
1203- |
● |
● |
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE
MIRRORRR VIEW FLAT<YS1>
(C)
|
8-98075-060-1 |
01 |
1 |
0712-0808 |
● |
|
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE
MIRRORRR VIEW FLAT<YS1>
(C)
|
8-98075-060-1 |
01 |
1 |
0809-1202 |
● |
● |
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE
MIRRORRR VIEW FLAT<YS1>
(C)
|
8-98166-206-0 |
01 |
1 |
1203- |
● |
● |
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE
MIRRORRR VIEW FLAT<YS1>
(C)
|
8-98075-061-1 |
01 |
1 |
0712-0808 |
● |
|
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE
MIRRORRR VIEW FLAT<YS1>
(C)
|
8-98075-061-1 |
01 |
1 |
0809-1202 |
● |
● |
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE
MIRRORRR VIEW FLAT<YS1>
(C)
|
8-98166-207-0 |
01 |
1 |
1203- |
● |
● |
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
(C)
|
8-98064-779-0 |
01 |
1 |
0710-0711 |
● |
● |
| |
49 |
STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13)
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
(C)
|
8-98064-779-0 |
01 |
1 |
0712-1202 |
● |
● |
| |
49 |
STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13)
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
(C)
|
8-98166-201-0 |
01 |
1 |
1203- |
● |
● |
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
(C)
|
8-98064-778-0 |
01 |
1 |
0710-0711 |
● |
● |
| |
49 |
STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13)
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
(C)
|
8-98064-778-0 |
01 |
1 |
0712-1202 |
● |
● |
| |
49 |
STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13)
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
(C)
|
8-98166-200-0 |
01 |
1 |
1203- |
● |
● |
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2>
(C)
|
8-98075-055-0 |
01 |
1 |
0710-0711 |
● |
● |
| |
49 |
STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13)
O/SIDE MIRROR RR VIEW LONG ARM<DH2>
(C)
|
8-98075-055-0 |
01 |
1 |
0712-1202 |
● |
● |
| |
49 |
STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13)
O/SIDE MIRROR RR VIEW LONG ARM<DH2>
(C)
|
8-98166-185-0 |
01 |
1 |
1203- |
● |
● |
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2>
(C)
|
8-98075-054-0 |
01 |
1 |
0710-0711 |
● |
● |
| |
49 |
STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13)
O/SIDE MIRROR RR VIEW LONG ARM<DH2>
(C)
|
8-98075-054-0 |
01 |
1 |
0712-1202 |
● |
● |
| |
49 |
STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13)
O/SIDE MIRROR RR VIEW LONG ARM<DH2>
(C)
|
8-98166-184-0 |
01 |
1 |
1203- |
● |
● |
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
(C)
|
8-98075-069-0 |
01 |
1 |
0710-0711 |
● |
● |
| |
49 |
STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13)
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
(C)
|
8-98075-069-0 |
01 |
1 |
0712-1202 |
● |
● |
| |
49 |
STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13)
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
(C)
|
8-98166-213-0 |
01 |
1 |
1203- |
● |
● |
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
(C)
|
8-98075-068-0 |
01 |
1 |
0710-0711 |
● |
● |
| |
49 |
STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13)
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
(C)
|
8-98075-068-0 |
01 |
1 |
0712-1202 |
● |
● |
| |
49 |
STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13)
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
(C)
|
8-98166-212-0 |
01 |
1 |
1203- |
● |
● |
| |
58 |
NUT; MIRROR STAY
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>
M12
|
8-98061-883-0 |
01 |
1 |
0712- |
● |
|
| |
61 |
NUT; STAY,OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0712- |
● |
|
| |
63 |
NUT; STAY
(B)
M10 CAP NUT
|
1-09984-134-0 |
02 |
1 |
0808- |
|
● |
| |
63 |
NUT; STAY
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
(B)
M10 CAP NUT
|
1-09984-134-0 |
02 |
1 |
0808- |
● |
|
| |
63 |
NUT; STAY
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
(A)
M14 CAP NUT
|
8-98041-311-1 |
01 |
1 |
0712- |
● |
|
| |
66 |
WASHER; PL
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
(A)
ID=14.5 OD=30
|
9-09851-946-0 |
02 |
1 |
0712- |
● |
|
| |
66 |
WASHER; PL
(B)
ID=10.5 OD=26 T=2.6
|
1-09985-204-0 |
06 |
1 |
0710-0711 |
● |
● |
| |
66 |
WASHER; PL
(B)
ID=10.5 OD=26 T=2.6
|
1-09985-204-0 |
06 |
1 |
0712- |
|
● |
| |
66 |
WASHER; PL
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
(B)
ID=10.5 OD=26 T=2.6
|
1-09985-204-0 |
06 |
1 |
0712- |
● |
|
| |
69 |
NUT; CAP
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>
(A)
M10 CAP NUT
|
1-09984-134-0 |
01 |
1 |
0712- |
● |
|
| |
69 |
NUT; CAP
(B)
M10 CAP NUT
|
1-09984-134-0 |
02 |
1 |
0710-0711 |
● |
● |
| |
69 |
NUT; CAP
(B)
M10 CAP NUT
|
1-09984-134-0 |
02 |
1 |
0712-0807 |
|
● |
| |
69 |
NUT; CAP
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
(B)
M10 CAP NUT
|
1-09984-134-0 |
02 |
1 |
0712-0807 |
● |
|
| |
71 |

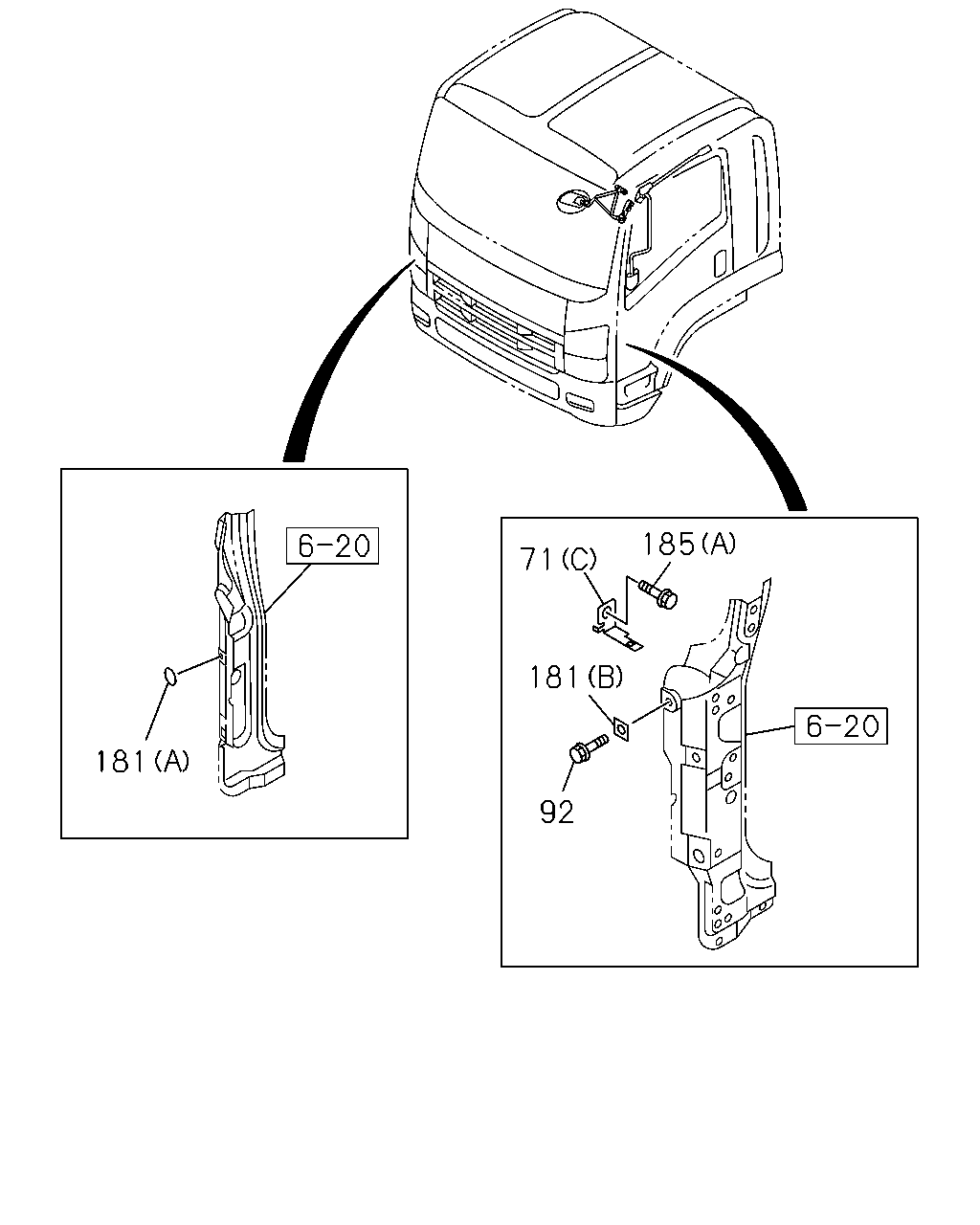

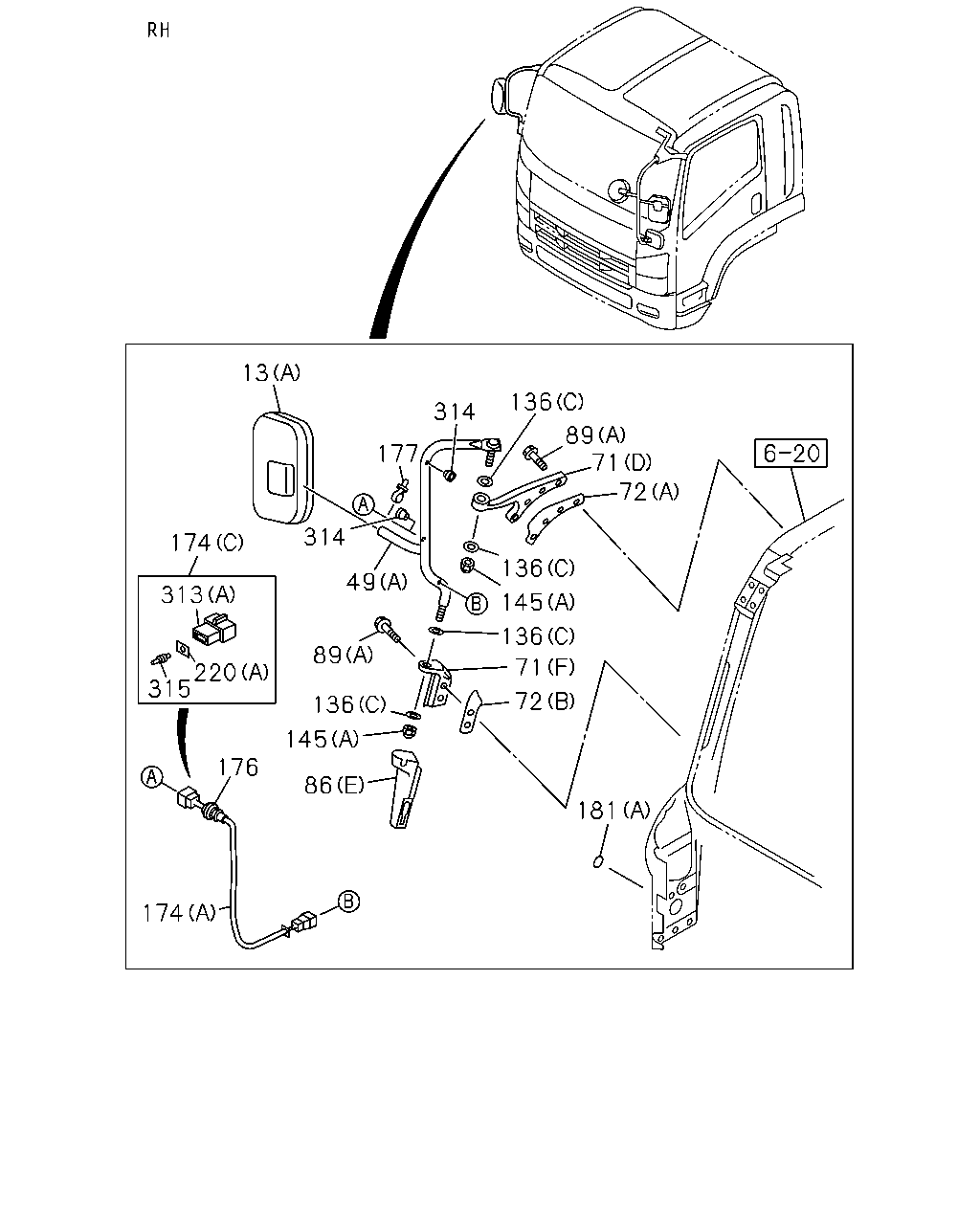

BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
(B)
|
1-71797-877-0 |
02 |
1 |
0712- |
● |
|
| |
71 |
BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
(C)
|
1-71797-878-0 |
02 |
1 |
0712- |
● |
|
| |
71 |
BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
(D)
|
8-98040-021-0 |
01 |
1 |
0712- |
● |
|
| |
71 |
BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
(E)
|
8-98040-022-1 |
01 |
1 |
0712- |
● |
|
| |
71 |
BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
(F)
|
8-98040-543-1 |
01 |
1 |
0712- |
● |
|
| |
71 |
BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9>
(H)
|
8-98092-492-3 |
01 |
1 |
0710- |
● |
● |
| |
71 |
BRACKET; OUTSIDE MIRROR
(C)
|
8-98039-277-2 |
02 |
1 |
0710-0711 |
● |
● |
| |
71 |
BRACKET; OUTSIDE MIRROR
(C)
|
8-98039-277-2 |
02 |
1 |
0712-1202 |
|
● |
| |
71 |
BRACKET; OUTSIDE MIRROR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
(C)
|
8-98039-277-2 |
02 |
1 |
0712-1202 |
● |
|
| |
71 |
BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE
MIRROR RR VIEW,HEATED<7SV>
(C)
|
8-98039-277-2 |
02 |
1 |
1203- |
|
● |
| |
71 |
BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE
MIRROR RR VIEW,HEATED<7SV>
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
(C)
|
8-98039-277-2 |
02 |
1 |
1203- |
● |
|
| |
71 |
BRACKET; OUTSIDE MIRROR
(A)
|
8-98031-794-2 |
01 |
1 |
0710-0711 |
● |
● |
| |
71 |
BRACKET; OUTSIDE MIRROR
(A)
|
8-98031-794-2 |
01 |
1 |
0712- |
|
● |
| |
71 |
BRACKET; OUTSIDE MIRROR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
(A)
|
8-98031-794-2 |
01 |
1 |
0712- |
● |
|
| |
71 |
BRACKET; OUTSIDE MIRROR
(A)
|
8-98031-793-2 |
01 |
1 |
0710-0711 |
● |
● |
| |
71 |
BRACKET; OUTSIDE MIRROR
(A)
|
8-98031-793-2 |
01 |
1 |
0712- |
|
● |
| |
71 |
BRACKET; OUTSIDE MIRROR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
(A)
|
8-98031-793-2 |
01 |
1 |
0712- |
● |
|
| |
71 |
BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9>
(G)
|
8-98060-240-0 |
01 |
1 |
0710- |
● |
● |
| |
72 |
SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR
DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
O/SIDE MIRROR RR VIEW FLAT<YS1>
(H)
|
8-98116-604-0 |
01 |
1 |
1203- |
|
● |
| |
72 |
SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR
DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE
MIRRORRR VIEW FLAT<YS1>
(H)
|
8-98116-604-0 |
01 |
1 |
1203- |
● |
|
| |
72 |
SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR
DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
O/SIDE MIRROR RR VIEW FLAT<YS1>
(H)
|
8-98116-605-0 |
01 |
1 |
1203- |
|
● |
| |
72 |
SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR
DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE
MIRRORRR VIEW FLAT<YS1>
(H)
|
8-98116-605-0 |
01 |
1 |
1203- |
● |
|
| |
72 |
SHEET
AUSTRALIA EQUIPMENT(B13)
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR
DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
(H)
|
8-98101-865-0 |
01 |
1 |
0805-0807 |
● |
● |
| |
72 |
SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR
DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
(H)
|
8-98101-865-0 |
01 |
1 |
0808-0808 |
|
● |
| |
72 |
SHEET
AUSTRALIA EQUIPMENT(B13)
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR
DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
(H)
|
8-98101-865-0 |
01 |
1 |
0808-0808 |
● |
|
| |
72 |
SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR
DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE
MIRRORRR VIEW FLAT<YS1>
(H)
|
8-98101-865-0 |
01 |
1 |
0808-0808 |
● |
|
| |
72 |
SHEET
AUSTRALIA EQUIPMENT(B13)
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR
DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
(H)
|
8-98101-865-0 |
01 |
1 |
0809-1202 |
● |
● |
| |
72 |
SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR
DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
O/SIDE MIRROR RR VIEW FLAT<YS1>
(H)
|
8-98101-865-0 |
01 |
1 |
0809-1202 |
|
● |
| |
72 |
SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR
DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE
MIRRORRR VIEW FLAT<YS1>
(H)
|
8-98101-865-0 |
01 |
1 |
0809-1202 |
● |
|
| |
72 |
SHEET
AUSTRALIA EQUIPMENT(B13)
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR
DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
(H)
|
8-98101-865-0 |
01 |
1 |
1203- |
● |
● |
| |
72 |
SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR
DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE
MIRRORRR VIEW FLAT<YS1>
(H)
|
8-98116-604-0 |
01 |
1 |
0805-0807 |
● |
|
| |
72 |
SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR
DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE
MIRRORRR VIEW FLAT<YS1>
(H)
|
8-98116-605-0 |
01 |
1 |
0805-0807 |
● |
|
| |
72 |
SHEET
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
(A)
|
8-98040-351-0 |
01 |
1 |
0712- |
● |
|
| |
72 |
SHEET
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
(B)
|
8-98040-353-1 |
01 |
1 |
0712- |
● |
|
| |
72 |
SHEET
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
(C)
|
8-98040-535-0 |
01 |
1 |
0712- |
● |
|
| |
72 |
SHEET
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
(D)
|
8-98040-537-1 |
01 |
1 |
0712- |
● |
|
| |
72 |
SHEET
(H)
|
8-98080-418-0 |
02 |
1 |
0710-0711 |
● |
● |
| |
72 |
SHEET
(H)
|
8-98080-418-0 |
02 |
1 |
0712-0804 |
|
● |
| |
72 |
SHEET
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
(H)
|
8-98080-418-0 |
02 |
1 |
0712-0804 |
● |
|
| |
72 |
SHEET
AUSTRALIA EQUIPMENT(B13)
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR
DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
(H)
|
8-98101-864-0 |
01 |
1 |
0805-0807 |
● |
● |
| |
72 |
SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR
DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
(H)
|
8-98101-864-0 |
01 |
1 |
0808-0808 |
|
● |
| |
72 |
SHEET
AUSTRALIA EQUIPMENT(B13)
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR
DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
(H)
|
8-98101-864-0 |
01 |
1 |
0808-0808 |
● |
|
| |
72 |
SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR
DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE
MIRRORRR VIEW FLAT<YS1>
(H)
|
8-98101-864-0 |
01 |
1 |
0808-0808 |
● |
|
| |
72 |
SHEET
AUSTRALIA EQUIPMENT(B13)
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR
DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
(H)
|
8-98101-864-0 |
01 |
1 |
0809-1202 |
● |
● |
| |
72 |
SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR
DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
O/SIDE MIRROR RR VIEW FLAT<YS1>
(H)
|
8-98101-864-0 |
01 |
1 |
0809-1202 |
|
● |
| |
72 |
SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR
DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE
MIRRORRR VIEW FLAT<YS1>
(H)
|
8-98101-864-0 |
01 |
1 |
0809-1202 |
● |
|
| |
72 |
SHEET
AUSTRALIA EQUIPMENT(B13)
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR
DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
(H)
|
8-98101-864-0 |
01 |
1 |
1203- |
● |
● |
| |
72 |
SHEET
(E)
|
8-98031-797-0 |
01 |
1 |
0710-0711 |
● |
● |
| |
72 |
SHEET
(E)
|
8-98031-797-0 |
01 |
1 |
0712- |
|
● |
| |
72 |
SHEET
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
(E)
|
8-98031-797-0 |
01 |
1 |
0712- |
● |
|
| |
72 |
SHEET
(E)
|
8-98031-796-0 |
01 |
1 |
0710-0711 |
● |
● |
| |
72 |
SHEET
(E)
|
8-98031-796-0 |
01 |
1 |
0712- |
|
● |
| |
72 |
SHEET
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
(E)
|
8-98031-796-0 |
01 |
1 |
0712- |
● |
|
| |
72 |
SHEET
O/SIDE MIRROR UNDER VIEW<RR9>
(F)
|
8-98060-245-1 |
01 |
1 |
0710- |
● |
● |
| |
72 |
SHEET
O/SIDE MIRROR UNDER VIEW<RR9>
(G)
|
8-98064-776-0 |
01 |
1 |
0710- |
● |
● |
| |
86 |
COVER; STAY,OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
(E)
|
8-98040-542-2 |
01 |
1 |
0712- |
● |
|
| |
86 |
COVER; STAY,OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
(C)
|
8-98040-545-1 |
01 |
1 |
0712- |
● |
|
| |
86 |
COVER; STAY,OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
(D)
|
8-98040-546-1 |
01 |
1 |
0712- |
● |
|
| |
86 |
COVER; STAY,OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>
(B)
BLACK
|
1-71737-649-1 |
01 |
1 |
0712- |
● |
|
| |
86 |
COVER; STAY,OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>
(A)
BLACK
|
1-71737-652-1 |
01 |
1 |
0712- |
● |
|
| |
86 |
COVER; STAY,OUTSIDE MIRROR
(F)
|
8-98031-803-2 |
01 |
1 |
0710-0711 |
● |
● |
| |
86 |
COVER; STAY,OUTSIDE MIRROR
(F)
|
8-98031-803-2 |
01 |
1 |
0712- |
|
● |
| |
86 |
COVER; STAY,OUTSIDE MIRROR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
(F)
|
8-98031-803-2 |
01 |
1 |
0712- |
● |
|
| |
86 |
COVER; STAY,OUTSIDE MIRROR
(F)
|
8-98031-802-2 |
01 |
1 |
0710-0711 |
● |
● |
| |
86 |
COVER; STAY,OUTSIDE MIRROR
(F)
|
8-98031-802-2 |
01 |
1 |
0712- |
|
● |
| |
86 |
COVER; STAY,OUTSIDE MIRROR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
(F)
|
8-98031-802-2 |
01 |
1 |
0712- |
● |
|
| |
89 |
SCREW; BRKT,OUTSIDE MIRROR
(B)
M8X23
|
8-97310-216-1 |
08 |
1 |
0808- |
|
● |
| |
89 |
SCREW; BRKT,OUTSIDE MIRROR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
(B)
M8X23
|
8-97310-216-1 |
08 |
1 |
0808- |
● |
|
| |
89 |
SCREW; BRKT,OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
(A)
M8X26 W/PL WASHER
|
8-98067-249-2 |
10 |
1 |
0712- |
● |
|
| |
92 |
BOLT; STAY BRKT,MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
M8X16 FLANGE
|
8-98076-109-0 |
04 |
1 |
0712- |
● |
|
| |
92 |
BOLT; STAY BRKT,MIRROR
M8X16 FLANGE
|
8-98076-109-0 |
01 |
1 |
0710-0711 |
● |
● |
| |
92 |
BOLT; STAY BRKT,MIRROR
M8X16 FLANGE
|
8-98076-109-0 |
01 |
1 |
0712- |
|
● |
| |
92 |
BOLT; STAY BRKT,MIRROR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
M8X16 FLANGE
|
8-98076-109-0 |
01 |
1 |
0712- |
● |
|
| |
105 |
STAY; SUB UNDER MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>
|
8-98041-571-2 |
01 |
1 |
0712-1402 |
● |
|
| |
105 |
STAY; SUB UNDER MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>
|
8-98257-761-0 |
01 |
1 |
1403- |
● |
|
| |
118 |
JOINT ASM; BALL
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>
|
1-71798-356-2 |
01 |
1 |
0712- |
● |
|
| |
136 |
WASHER; LK,BRKT,MIRROR STAY
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
(A)
ID=10
|
1-09985-180-0 |
01 |
1 |
0712- |
● |
|
| |
136 |
WASHER; LK,BRKT,MIRROR STAY
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
(B)
ID=10.5 OD=26 T=2.6
|
1-09985-184-0 |
02 |
1 |
0712- |
● |
|
| |
136 |
WASHER; LK,BRKT,MIRROR STAY
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
(C)
ID=10.5 OD=26 T=2.6
|
1-09985-204-0 |
04 |
1 |
0712- |
● |
|
| |
136 |
WASHER; LK,BRKT,MIRROR STAY
(D)
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
10 |
1 |
0710-0711 |
● |
● |
| |
136 |
WASHER; LK,BRKT,MIRROR STAY
(D)
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
10 |
1 |
0712- |
|
● |
| |
136 |
WASHER; LK,BRKT,MIRROR STAY
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
(D)
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
10 |
1 |
0712- |
● |
|
| |
145 |
NUT; CAP,SUB STAY
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
(A)
M10 CAP NUT
|
1-09984-134-0 |
03 |
1 |
0712- |
● |
|
| |
145 |
NUT; CAP,SUB STAY
(B)
M8 CAP NUT
|
8-98059-914-0 |
10 |
1 |
0710-0711 |
● |
● |
| |
145 |
NUT; CAP,SUB STAY
(B)
M8 CAP NUT
|
8-98059-914-0 |
10 |
1 |
0712- |
|
● |
| |
145 |
NUT; CAP,SUB STAY
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
(B)
M8 CAP NUT
|
8-98059-914-0 |
10 |
1 |
0712- |
● |
|
| |
151 |
WASHER; PL,MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>
ID=10.5 T=2.0
|
1-09985-183-0 |
01 |
1 |
0712- |
● |
|
| |
152 |
SHEET; MIRROR STAY
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>
|
1-71798-445-1 |
02 |
1 |
0712- |
● |
|
| |
168 |
POWER UNIT; MIRROR STAY
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH>
|
8-97612-287-2 |
01 |
1 |
0712- |
● |
|
| |
174 |
HARNESS; MIRROR
AUSTRALIA EQUIPMENT(B13)
O/SIDE MIRROR RR VIEW LONG ARM<DH2>
(E)
|
8-98136-172-0 |
02 |
1 |
0902- |
● |
● |
| |
174 |
HARNESS; MIRROR
AUSTRALIA EQUIPMENT(B13)
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE
MIRROR RR VIEW MIDDLE ARM<8ML>
(E)
|
8-98137-139-0 |
02 |
1 |
0902- |
● |
● |
| |
174 |
HARNESS; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
(A)
|
8-98047-368-2 |
01 |
1 |
0712- |
● |
|
| |
174 |
HARNESS; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
(C)
|
8-98047-371-0 |
01 |
1 |
0712-0807 |
● |
|
| |
174 |
HARNESS; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
(D)
|
8-98047-374-0 |
01 |
1 |
0712-0807 |
● |
|
| |
174 |
HARNESS; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>
(B)
|
8-98047-367-0 |
01 |
1 |
0712-1402 |
● |
|
| |
174 |
HARNESS; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>
(B)
|
8-98258-260-0 |
01 |
1 |
1403- |
● |
|
| |
176 |
GROMMET; HARNESS
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
|
1-82699-906-0 |
01 |
1 |
0712- |
● |
|
| |
176 |
GROMMET; HARNESS
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>
|
1-82699-906-0 |
01 |
1 |
0712- |
● |
|
| |
177 |
CLIP; HARNESS
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
L=140
|
5-09707-031-1 |
02 |
1 |
0712-0901 |
● |
|
| |
177 |
CLIP; HARNESS
AUSTRALIA EQUIPMENT(B13)
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR
DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
L=140
|
5-09707-031-1 |
02 |
1 |
0902- |
● |
● |
| |
177 |
CLIP; HARNESS
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
L=140
|
5-09707-031-1 |
02 |
1 |
0902- |
● |
|
| |
177 |
CLIP; HARNESS
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>
L=140
|
5-09707-031-1 |
01 |
1 |
0712- |
● |
|
| |
181 |
SEAL; BRKT
(A)
OD=25 BLACK
|
1-76798-019-0 |
01 |
1 |
0710-0710 |
● |
● |
| |
181 |
SEAL; BRKT
(A)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
0710-0711 |
● |
● |
| |
181 |
SEAL; BRKT
(A)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
0712-0808 |
|
● |
| |
181 |
SEAL; BRKT
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
(A)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
0712-0808 |
● |
|
| |
181 |
SEAL; BRKT
(A)
OD=25 BLACK
|
1-76798-019-0 |
01 |
1 |
0809- |
|
● |
| |
181 |
SEAL; BRKT
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
(A)
OD=25 BLACK
|
1-76798-019-0 |
01 |
1 |
0809- |
● |
|
| |
181 |
SEAL; BRKT
(B)
25X25
|
8-94272-533-0 |
01 |
1 |
0710- |
● |
● |
| |
196 |
HOLDER; STAY
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>
(A)
|
1-71798-442-2 |
01 |
1 |
0712- |
● |
|
| |
196 |
HOLDER; STAY
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>
(B)
|
1-71798-444-2 |
01 |
1 |
0712- |
● |
|
| |
220 |
HOLDER; CONNECTOR
AUSTRALIA EQUIPMENT(B13)
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR
DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
(B)
|
8-94479-375-0 |
02 |
1 |
0902- |
● |
● |
| |
220 |
HOLDER; CONNECTOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
(A)
|
8-94447-536-0 |
01 |
1 |
0712- |
● |
|
| |
220 |
HOLDER; CONNECTOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>
(A)
|
8-94447-536-0 |
01 |
1 |
0712- |
● |
|
| |
313 |
CONNECTOR; MIRROR
AUSTRALIA EQUIPMENT(B13)
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,O/SIDE MIRROR
DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
(B)
|
8-94479-370-0 |
02 |
1 |
0902- |
● |
● |
| |
313 |
CONNECTOR; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
(A)
|
8-94447-532-0 |
01 |
1 |
0712- |
● |
|
| |
313 |
CONNECTOR; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>
(A)
|
8-94447-532-0 |
01 |
1 |
0712- |
● |
|
| |
315 |
RUBBER ASM; CONNECTOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
|
1-82691-026-0 |
01 |
1 |
0712- |
● |
|
| |
315 |
RUBBER ASM; CONNECTOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>
O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>
|
1-82691-026-0 |
01 |
1 |
0712- |
● |
|
