◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11103 - FSR-R EU2/4EXC.SPACE ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#33886) — 21 parça

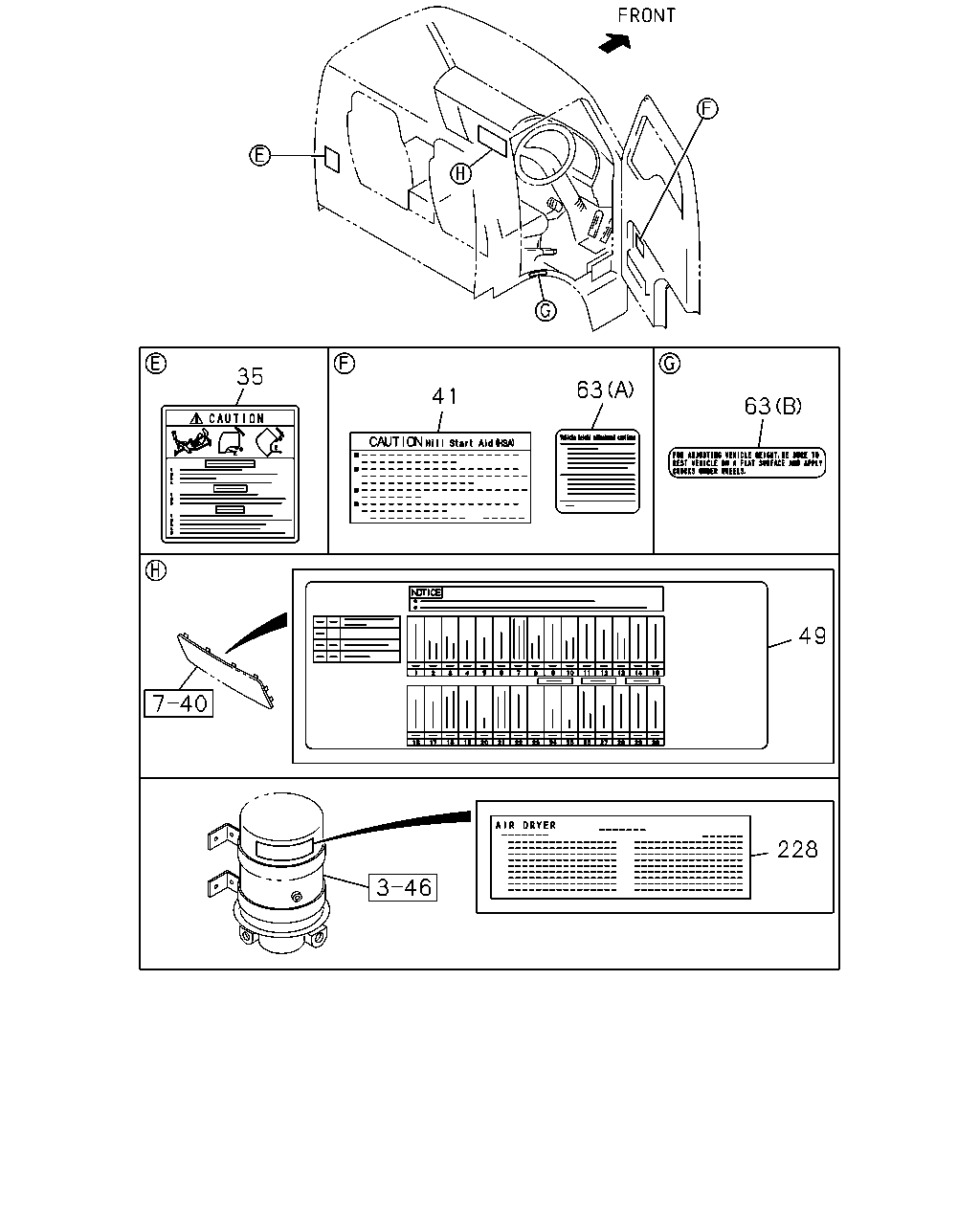

çizim 178743
35 63 41 63 49 228
BalonParca AdiParca NoAdetTipApplied Date A B
35 PLATE; CAUTION,CAB 8-98065-363-0 01 1 0710- ● ●
41 PLATE; CAUTION,HSA
H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2> 		8-98141-836-0 01 1 0907- ● ●
49 PLATE; CAUTION,FUSE BOX 8-98060-853-0 01 1 0710-0805 ● ●
49 PLATE; CAUTION,FUSE BOX 8-98122-353-0 01 1 0806- ● ●
63 PLATE; CAUTION,SEAT AIR
(B) 		1-85881-823-0 01 1 0710- ●
63 PLATE; CAUTION,SEAT AIR
(A) 		1-85881-861-0 01 1 0710- ●
228 PLATE; CAUTION,AIR DRYER 1-48199-325-0 01 1 0710-0808 ● ●
228 PLATE; CAUTION,AIR DRYER
AIR DRYER<PS7> 		1-48199-325-0 01 1 0809-1001 ● ●

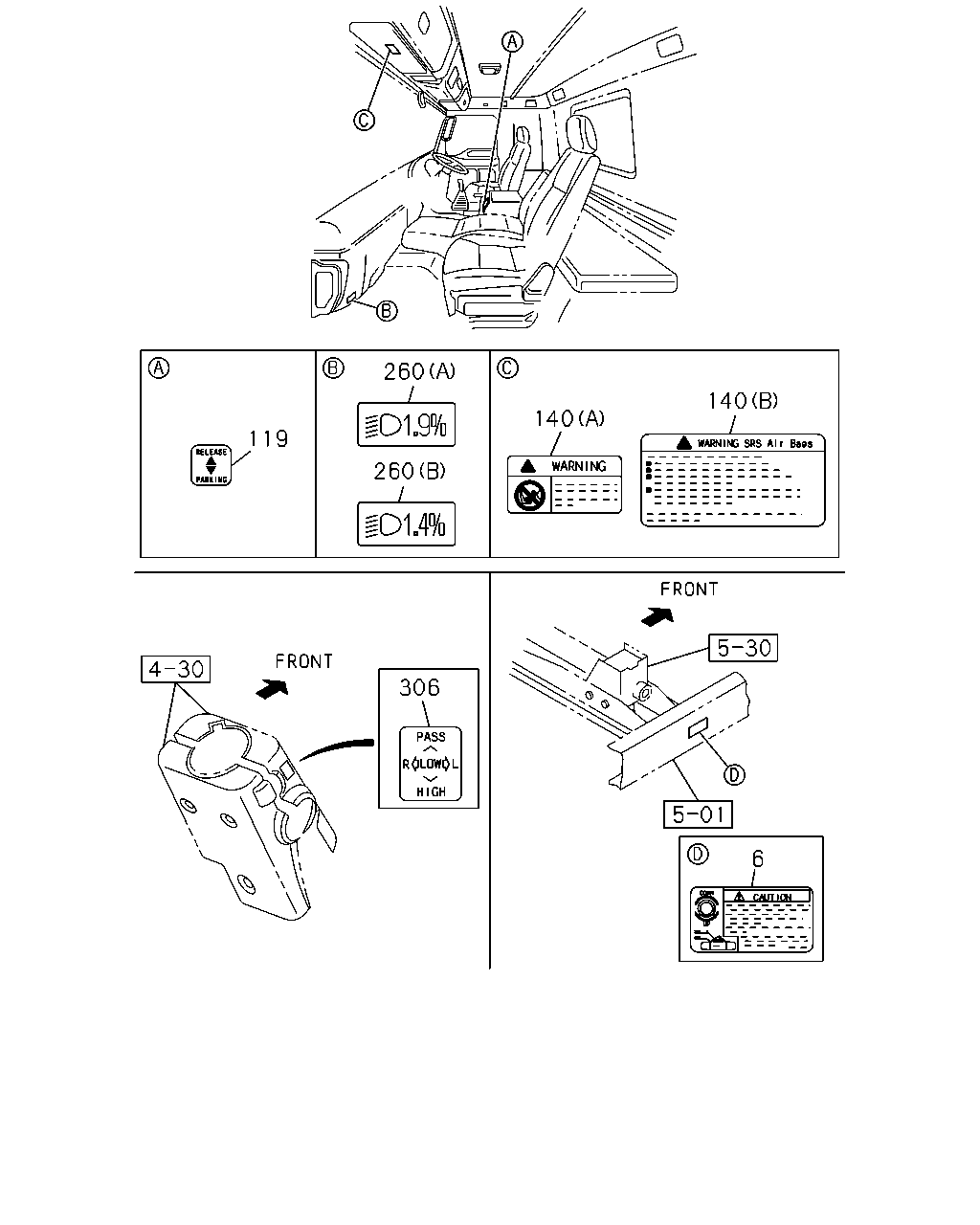

çizim 178754
260 140 140 119 260 306 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		8-98082-437-0 01 1 0710- ● ●
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 0710-0711 ● ●
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 0712-0808 ●
119 PLATE; CAUTION,HAND BRK LEVER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-85881-759-0 01 1 0712-0808 ●
119 PLATE; CAUTION,HAND BRK LEVER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-85881-759-0 01 1 0809- ● ●
140 PLATE; CAUTION,SRS
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. EURO4 SPECIFICATION<NT4> (B) 		8-98139-964-0 01 1 0812- ● ●
140 PLATE; CAUTION,SRS
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98080-839-0 01 1 0710-0712 ● ●
140 PLATE; CAUTION,SRS
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98080-839-0 02 1 0801- ● ●
260 PLATE; CAUTION,HEAD LAMP LEVELING
4HK1-TCS ENG(RJS) (B) 		8-98008-779-0 01 1 1012- ●
260 PLATE; CAUTION,HEAD LAMP LEVELING
(A) 		1-85878-501-1 01 1 0710-1011 ● ●
260 PLATE; CAUTION,HEAD LAMP LEVELING
(A) 		1-85878-501-1 01 1 1012- ●
260 PLATE; CAUTION,HEAD LAMP LEVELING
6HK1-TCN ENG(82L) (A) 		1-85878-501-1 01 1 1012- ●
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 0710- ● ●
