4-10 — FRONT AXLE (#3388) — 249 parça

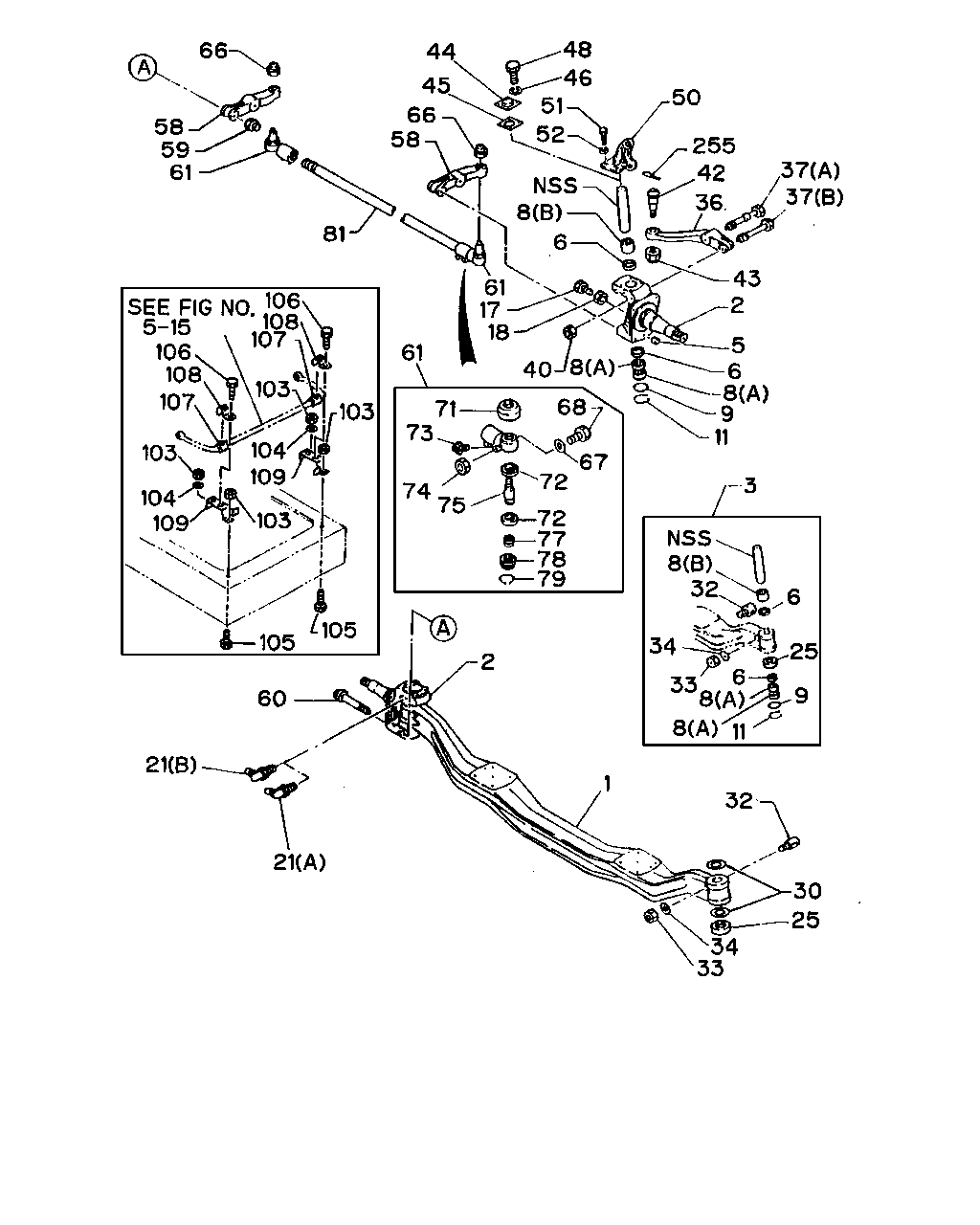

66 58 81 61 59 58 66 45 44 48 46 52 51 50 255 8 6 42 37 37 43 36 2 5 9 6 11 3 8 40 18 17 61 61 68 67 71 72 73 74 72 75 79 78 77 8 32 6 25 9 11 8 8 6 33 32 34 30 25 33 34 1 2 21 21 60 105 105 103 109 104 103 109 104 103 103 107 108 106 107 108 106 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	AXLE; FRT	1-43111-051-4	01	1	9002-9306	●	●	●
1	AXLE; FRT	1-43111-107-3	01	1	9307-	●	●	●
2	KNUCKLE; FRT AXLE	1-43131-046-4	01	1	9002-9404	●	●	●
2	KNUCKLE; FRT AXLE	1-43131-079-0	01	1	9405-	●	●	●
2	KNUCKLE; FRT AXLE	1-43132-046-3	01	1	9002-9404	●	●	●
2	KNUCKLE; FRT AXLE	1-43132-079-0	01	1	9405-	●	●	●
3	KING PIN SET	1-87830-039-5	02	1	9002-9306	●	●	●
3	KING PIN SET	1-87830-640-0	02	1	9307-9404	●	●	●
3	KING PIN SET	1-87830-738-0	02	1	9405-	●	●	●
5	PIN; KNUCKLE TO DRUM COVER	9-09878-625-0	02	1	9002-9404	●	●	●
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	02	1	9405-	●	●	●
6	SEAL; KING PIN	9-09926-024-0	04	1	9002-	●	●	●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	9002-	●	●	●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	9002-	●	●	●
9	PLUG; KNUCKLE	9-09201-363-0	02	1	9002-9404	●	●	●
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	9002-	●	●	●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	9002-	●	●	●
18	NUT; STOPPER BOLT,KNUCKLE M18	9-99110-518-0	02	1	9002-	●	●	●
21	NIPPLE; GREASE,KING PIN (A) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9002-	●	●	●
21	NIPPLE; GREASE,KING PIN (B) PT1/8 ELBOW	9-09031-210-0	02	1	9002-	●	●	●
25	BEARING; THRUST,KING PIN	1-09829-027-1	02	1	9002-9203	●	●	●
25	BEARING; THRUST,KING PIN	1-09829-043-2	02	1	9204-	●	●	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	9002-	●	●	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	9002-	●	●	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	9002-	●	●	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	9002-	●	●	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	9002-	●	●	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	9002-	●	●	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	9002-	●	●	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	9002-	●	●	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	9002-	●	●	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	9002-	●	●	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	9002-	●	●	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	9002-	●	●	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	9002-	●	●	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	9002-	●	●	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	9002-	●	●	●
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	9002-	●	●	●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	9002-	●	●	●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	9002-	●	●	●
36	ARM; KNUCKLE	1-43133-050-1	01	1	9002-9306	●	●	●
36	ARM; KNUCKLE	1-43133-057-1	01	1	9307-9404	●	●	●
36	ARM; KNUCKLE	1-43133-063-1	01	1	9405-	●	●	●
37	BOLT; KNUCKLE ARM (A) M22X167	1-09000-153-0	01	1	9002-9111	●	●	●
37	BOLT; KNUCKLE ARM (B) M22X179	1-09000-578-1	01	1	9112-	●	●	●
37	BOLT; KNUCKLE ARM (B) M22X179	9-09806-848-1	01	1	9002-9111	●	●	●
37	BOLT; KNUCKLE ARM (A) M22X167	9-09806-847-3	01	1	9112-	●	●	●
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	9002-	●	●	●
42	JOINT; BALL,KNUCKLE ARM	1-44361-100-0	01	1	9002-9306	●	●	●
43	NUT; JOINT BALL,KNUCKLE ARM M24 SLOTTED	1-09442-020-0	01	1	9002-9306	●	●	●
44	COVER; KING PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-43175-014-1	02	1	9002-	●	●	●
45	GASKET; KING PIN COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-42319-044-0	02	1	9002-	●	●	●
46	WASHER; LK,COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2	9-09150-512-0	08	1	9002-9108	●	●	●
48	BOLT; COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X18	9-92051-218-0	08	1	9002-9006	●	●	●
48	BOLT; COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X18	0-20801-218-0	08	1	9007-9108	●	●	●
48	BOLT; COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X20 W/LK WASHER	0-50041-220-0	08	1	9109-9501	●	●	●
48	BOLT; COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X16 FLANGE	0-28081-216-0	08	1	9502-	●	●	●
50	BRACKET; POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-43145-010-2	01	1	9002-		●	●
50	BRACKET; POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-43145-009-2	01	1	9002-		●	●
51	BOLT; POWER CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X60	9-91056-260-0	02	1	9002-9005		●	●
51	BOLT; POWER CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X60	0-10806-260-0	02	1	9006-		●	●
51	BOLT; POWER CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X28	9-92051-228-0	06	1	9002-9005		●	●
51	BOLT; POWER CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X28	0-20801-228-0	06	1	9006-		●	●
52	WASHER; LK,POWER CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.2	9-09150-512-0	08	1	9002-		●	●
58	ARM; TIE ROD	1-43135-036-0	01	1	9002-9404	●		●
58	ARM; TIE ROD	1-43135-043-0	01	1	9405-	●		●
58	ARM; TIE ROD	1-43134-036-0	01	1	9002-9404	●		●
58	ARM; TIE ROD	1-43134-043-0	01	1	9405-	●		●
58	ARM; TIE ROD	1-43135-021-1	01	1	9002-9404		●
58	ARM; TIE ROD	1-43135-044-0	01	1	9405-		●
58	ARM; TIE ROD	1-43134-021-1	01	1	9002-9404		●
58	ARM; TIE ROD	1-43134-044-0	01	1	9405-		●
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	9002-	●	●	●
60	BOLT; TIE ROD ARM M22X193	1-09000-154-2	04	1	9002-	●	●	●
61	ROD END; TIE ROD	1-43150-631-2	01	1	9307-	●	●	●
61	ROD END; TIE ROD	1-43150-630-2	01	1	9307-	●	●	●
61	ROD END; TIE ROD 10PD1 STD ENG(40L)	1-43150-440-1	01	1	9002-9306	●	●	●
61	ROD END; TIE ROD 10PD1 STD ENG(40L)	1-43150-439-1	01	1	9002-9306	●	●	●
61	ROD END; TIE ROD 6RB1 STD ENG(07L)	1-43150-436-1	01	1	9002-9306		●	●
61	ROD END; TIE ROD 6RB1 STD ENG(07L)	1-43150-435-1	01	1	9002-9306		●	●
66	NUT; TIE ROD END M24	9-09844-669-2	02	1	9002-9306	●	●	●
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	9307-	●	●	●
67	WASHER; LK,TIE ROD END ID=12.2	9-09150-512-0	04	1	9002-9207	●	●	●
67	WASHER; LK,TIE ROD END ID=12.2	9-09150-812-0	04	1	9208-9410	●	●	●
68	BOLT; TIE ROD END M12X55	9-91061-255-0	04	1	9002-	●	●	●
71	BOOT; TIE ROD END ID=31 & 49	1-43159-038-0	02	1	9002-9306	●	●	●
72	SEAT; BALL,TIE ROD JOINT	1-44371-012-1	04	1	9002-9306	●	●	●
73	NIPPLE; GREASE,TIE ROD END PT1/8 STRAIGHT	9-09031-010-0	02	1	9002-9306	●	●	●
74	NUT; TIE ROD END M12	9-99110-412-0	04	1	9002-9207	●	●	●
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	9208-	●	●	●
75	JOINT; BALL,DRAG LINK	9-44361-169-3	02	1	9002-9306	●	●	●
77	SPRING; TIE ROD END	9-09941-272-0	02	1	9002-9306	●	●	●
78	PLUG; ADJ,ROD END	1-44375-014-0	02	1	9002-9306	●	●	●
79	RING; SNAP,ADJ PLUG	1-09589-006-0	02	1	9002-9306	●	●	●
81	ROD; TIE L=1650	1-43151-066-0	01	1	9307-	●		●
81	ROD; TIE 10PD1 STD ENG(40L) L=1650	1-43151-026-0	01	1	9002-9306	●		●
81	ROD; TIE L=1605	1-43151-027-0	01	1	9307-9407		●
81	ROD; TIE L=1600	1-43151-012-0	01	1	9408-		●
81	ROD; TIE 10PD1 STD ENG(40L) L=1605	1-43151-027-0	01	1	9002-9306		●
81	ROD; TIE 6RB1 STD ENG(07L) L=1600	9-43151-118-1	01	1	9002-9306		●
81	ROD; TIE 6RB1 STD ENG(07L) L=1648	9-43151-121-1	01	1	9002-9306			●
103	NUT; BRKT FIX M10	9-09110-510-0	02	1	9002-	●
103	NUT; BRKT FIX EXC. CAB SUSPENSION RIGID(W71) M10	9-09110-510-0	02	1	9002-		●	●
103	NUT; BRKT FIX M14	9-99110-514-0	02	1	9002-	●
103	NUT; BRKT FIX EXC. CAB SUSPENSION RIGID(W71) M14	9-99110-514-0	02	1	9002-		●	●
104	WASHER; LK,BRKT ID=14.2	9-09150-614-0	02	1	9002-	●
104	WASHER; LK,BRKT EXC. CAB SUSPENSION RIGID(W71) ID=14.2	9-09150-614-0	02	1	9002-		●	●
105	BOLT; BRKT FIX M10X25 W/LK WASHER	0-50041-025-0	02	1	9002-	●
105	BOLT; BRKT FIX EXC. CAB SUSPENSION RIGID(W71) M10X25 W/LK WASHER	0-50041-025-0	02	1	9002-		●	●
106	BOLT; CAP FIX M8X25 W/LK WASHER	9-01910-825-0	02	1	9002-9005	●
106	BOLT; CAP FIX EXC. CAB SUSPENSION RIGID(W71) M8X25 W/LK WASHER	9-01910-825-0	02	1	9002-9005		●	●
106	BOLT; CAP FIX M8X25 W/LK WASHER	0-50040-825-0	02	1	9006-9302	●
106	BOLT; CAP FIX EXC. CAB SUSPENSION RIGID(W71) M8X25 W/LK WASHER	0-50040-825-0	02	1	9006-9302		●	●
106	BOLT; CAP FIX M8X25 FLANGE	0-28080-825-0	02	1	9303-	●
106	BOLT; CAP FIX EXC. CAB SUSPENSION RIGID(W71) M8X25 FLANGE	0-28080-825-0	02	1	9303-		●	●
107	BUSHING; STABILIZER BAR	1-53459-860-0	02	1	9002-9404	●
107	BUSHING; STABILIZER BAR EXC. CAB SUSPENSION RIGID(W71)	1-53459-860-0	02	1	9002-9404		●	●
107	BUSHING; STABILIZER BAR EXC. TAIWAN EQUIPMENT(WW5)	1-53459-860-0	02	1	9405-	●
107	BUSHING; STABILIZER BAR EXC. TAIWAN EQUIPMENT(WW5),CAB SUSPENSION RIGID(W71)	1-53459-860-0	02	1	9405-		●	●
107	BUSHING; STABILIZER BAR TAIWAN EQUIPMENT(WW5)	1-53458-613-0	02	1	9405-	●
107	BUSHING; STABILIZER BAR TAIWAN EQUIPMENT(WW5) EXC. CAB SUSPENSION RIGID(W71)	1-53458-613-0	02	1	9405-		●	●
108	CAP	1-53459-392-1	02	1	9002-	●
108	CAP EXC. CAB SUSPENSION RIGID(W71)	1-53459-392-1	02	1	9002-		●	●
109	BUFFER; STAB BAR	1-53459-533-0	01	1	9002-	●
109	BUFFER; STAB BAR EXC. CAB SUSPENSION RIGID(W71)	1-53459-533-0	01	1	9002-		●	●
109	BUFFER; STAB BAR	1-53459-532-0	01	1	9002-	●
109	BUFFER; STAB BAR EXC. CAB SUSPENSION RIGID(W71)	1-53459-532-0	01	1	9002-		●	●
255	PIN; SPLIT,JOINT BALL OD=4.6 L=35	9-08115-035-0	01	1	9002-9306	●	●	●

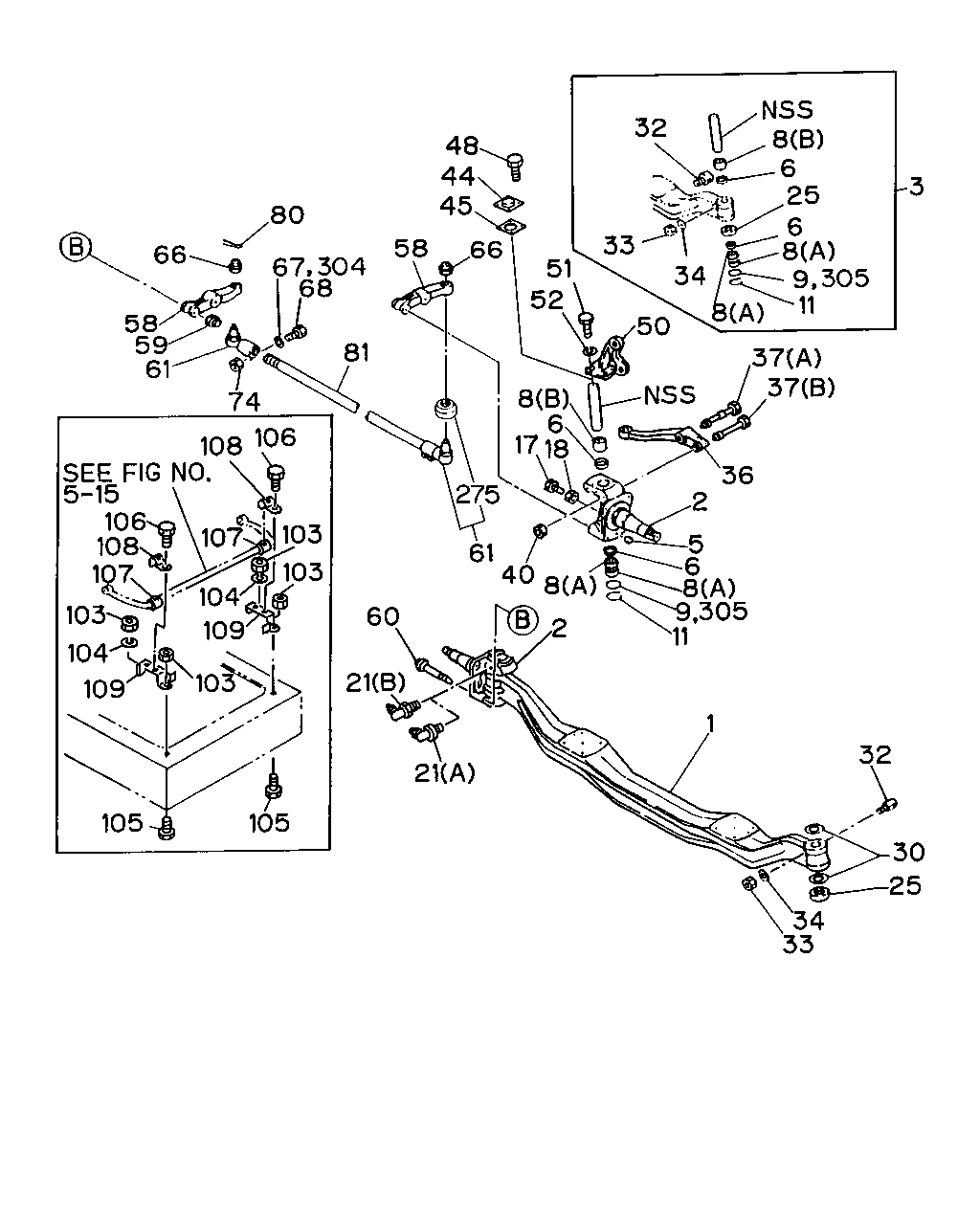

33 34 25 30 32 1 21 105 105 109 103 21 60 2 11 305 9 8 40 109 104 104 103 103 103 107 107 106 108 108 106 61 275 8 2 6 5 18 17 6 36 37 37 50 52 51 81 74 61 59 58 66 68 304 67 80 58 66 45 44 48 33 34 8 11 305 9 8 25 6 8 3 32 6 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	AXLE; FRT	1-43111-051-4	01	1	9002-9306	●	●	●
1	AXLE; FRT	1-43111-107-3	01	1	9307-	●	●	●
2	KNUCKLE; FRT AXLE	1-43131-046-4	01	1	9002-9404	●	●	●
2	KNUCKLE; FRT AXLE	1-43131-079-0	01	1	9405-	●	●	●
2	KNUCKLE; FRT AXLE	1-43132-046-3	01	1	9002-9404	●	●	●
2	KNUCKLE; FRT AXLE	1-43132-079-0	01	1	9405-	●	●	●
3	KING PIN SET	1-87830-039-5	02	1	9002-9306	●	●	●
3	KING PIN SET	1-87830-640-0	02	1	9307-9404	●	●	●
3	KING PIN SET	1-87830-738-0	02	1	9405-	●	●	●
5	PIN; KNUCKLE TO DRUM COVER	9-09878-625-0	02	1	9002-9404	●	●	●
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	02	1	9405-	●	●	●
6	SEAL; KING PIN	9-09926-024-0	04	1	9002-	●	●	●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	9002-	●	●	●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	9002-	●	●	●
9	PLUG; KNUCKLE	9-09201-363-0	02	1	9002-9404	●	●	●
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	9002-	●	●	●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	9002-	●	●	●
18	NUT; STOPPER BOLT,KNUCKLE M18	9-99110-518-0	02	1	9002-	●	●	●
21	NIPPLE; GREASE,KING PIN (A) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9002-	●	●	●
21	NIPPLE; GREASE,KING PIN (B) PT1/8 ELBOW	9-09031-210-0	02	1	9002-	●	●	●
25	BEARING; THRUST,KING PIN	1-09829-027-1	02	1	9002-9203	●	●	●
25	BEARING; THRUST,KING PIN	1-09829-043-2	02	1	9204-	●	●	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	9002-	●	●	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	9002-	●	●	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	9002-	●	●	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	9002-	●	●	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	9002-	●	●	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	9002-	●	●	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	9002-	●	●	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	9002-	●	●	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	9002-	●	●	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	9002-	●	●	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	9002-	●	●	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	9002-	●	●	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	9002-	●	●	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	9002-	●	●	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	9002-	●	●	●
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	9002-	●	●	●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	9002-	●	●	●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	9002-	●	●	●
36	ARM; KNUCKLE	1-43133-050-1	01	1	9002-9306	●	●	●
36	ARM; KNUCKLE	1-43133-057-1	01	1	9307-9404	●	●	●
36	ARM; KNUCKLE	1-43133-063-1	01	1	9405-	●	●	●
37	BOLT; KNUCKLE ARM (A) M22X167	1-09000-153-0	01	1	9002-9111	●	●	●
37	BOLT; KNUCKLE ARM (B) M22X179	1-09000-578-1	01	1	9112-	●	●	●
37	BOLT; KNUCKLE ARM (B) M22X179	9-09806-848-1	01	1	9002-9111	●	●	●
37	BOLT; KNUCKLE ARM (A) M22X167	9-09806-847-3	01	1	9112-	●	●	●
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	9002-	●	●	●
44	COVER; KING PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-43175-014-1	02	1	9002-	●	●	●
45	GASKET; KING PIN COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-42319-044-0	02	1	9002-	●	●	●
48	BOLT; COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X18	9-92051-218-0	08	1	9002-9006	●	●	●
48	BOLT; COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X18	0-20801-218-0	08	1	9007-9108	●	●	●
48	BOLT; COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X20 W/LK WASHER	0-50041-220-0	08	1	9109-9501	●	●	●
48	BOLT; COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X16 FLANGE	0-28081-216-0	08	1	9502-	●	●	●
50	BRACKET; POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-43145-010-2	01	1	9002-		●	●
50	BRACKET; POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-43145-009-2	01	1	9002-		●	●
51	BOLT; POWER CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X60	9-91056-260-0	02	1	9002-9005		●	●
51	BOLT; POWER CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X60	0-10806-260-0	02	1	9006-		●	●
51	BOLT; POWER CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X28	9-92051-228-0	06	1	9002-9005		●	●
51	BOLT; POWER CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X28	0-20801-228-0	06	1	9006-		●	●
52	WASHER; LK,POWER CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.2	9-09150-512-0	08	1	9002-		●	●
58	ARM; TIE ROD	1-43135-036-0	01	1	9002-9404	●		●
58	ARM; TIE ROD	1-43135-043-0	01	1	9405-	●		●
58	ARM; TIE ROD	1-43134-036-0	01	1	9002-9404	●		●
58	ARM; TIE ROD	1-43134-043-0	01	1	9405-	●		●
58	ARM; TIE ROD	1-43135-021-1	01	1	9002-9404		●
58	ARM; TIE ROD	1-43135-044-0	01	1	9405-		●
58	ARM; TIE ROD	1-43134-021-1	01	1	9002-9404		●
58	ARM; TIE ROD	1-43134-044-0	01	1	9405-		●
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	9002-	●	●	●
60	BOLT; TIE ROD ARM M22X193	1-09000-154-2	04	1	9002-	●	●	●
61	ROD END; TIE ROD	1-43150-631-2	01	1	9307-	●	●	●
61	ROD END; TIE ROD	1-43150-630-2	01	1	9307-	●	●	●
61	ROD END; TIE ROD 10PD1 STD ENG(40L)	1-43150-440-1	01	1	9002-9306	●	●	●
61	ROD END; TIE ROD 10PD1 STD ENG(40L)	1-43150-439-1	01	1	9002-9306	●	●	●
61	ROD END; TIE ROD 6RB1 STD ENG(07L)	1-43150-436-1	01	1	9002-9306		●	●
61	ROD END; TIE ROD 6RB1 STD ENG(07L)	1-43150-435-1	01	1	9002-9306		●	●
66	NUT; TIE ROD END M24	9-09844-669-2	02	1	9002-9306	●	●	●
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	9307-	●	●	●
67	WASHER; LK,TIE ROD END ID=12.2	9-09150-512-0	04	1	9002-9207	●	●	●
67	WASHER; LK,TIE ROD END ID=12.2	9-09150-812-0	04	1	9208-9410	●	●	●
68	BOLT; TIE ROD END M12X55	9-91061-255-0	04	1	9002-	●	●	●
74	NUT; TIE ROD END M12	9-99110-412-0	04	1	9002-9207	●	●	●
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	9208-	●	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	9307-	●	●	●
81	ROD; TIE L=1650	1-43151-066-0	01	1	9307-	●		●
81	ROD; TIE 10PD1 STD ENG(40L) L=1650	1-43151-026-0	01	1	9002-9306	●		●
81	ROD; TIE L=1605	1-43151-027-0	01	1	9307-9407		●
81	ROD; TIE L=1600	1-43151-012-0	01	1	9408-		●
81	ROD; TIE 10PD1 STD ENG(40L) L=1605	1-43151-027-0	01	1	9002-9306		●
81	ROD; TIE 6RB1 STD ENG(07L) L=1600	9-43151-118-1	01	1	9002-9306		●
81	ROD; TIE 6RB1 STD ENG(07L) L=1648	9-43151-121-1	01	1	9002-9306			●
103	NUT; BRKT FIX M10	9-09110-510-0	02	1	9002-	●
103	NUT; BRKT FIX EXC. CAB SUSPENSION RIGID(W71) M10	9-09110-510-0	02	1	9002-		●	●
103	NUT; BRKT FIX M14	9-99110-514-0	02	1	9002-	●
103	NUT; BRKT FIX EXC. CAB SUSPENSION RIGID(W71) M14	9-99110-514-0	02	1	9002-		●	●
104	WASHER; LK,BRKT ID=14.2	9-09150-614-0	02	1	9002-	●
104	WASHER; LK,BRKT EXC. CAB SUSPENSION RIGID(W71) ID=14.2	9-09150-614-0	02	1	9002-		●	●
105	BOLT; BRKT FIX M10X25 W/LK WASHER	0-50041-025-0	02	1	9002-	●
105	BOLT; BRKT FIX EXC. CAB SUSPENSION RIGID(W71) M10X25 W/LK WASHER	0-50041-025-0	02	1	9002-		●	●
106	BOLT; CAP FIX M8X25 W/LK WASHER	9-01910-825-0	02	1	9002-9005	●
106	BOLT; CAP FIX EXC. CAB SUSPENSION RIGID(W71) M8X25 W/LK WASHER	9-01910-825-0	02	1	9002-9005		●	●
106	BOLT; CAP FIX M8X25 W/LK WASHER	0-50040-825-0	02	1	9006-9302	●
106	BOLT; CAP FIX EXC. CAB SUSPENSION RIGID(W71) M8X25 W/LK WASHER	0-50040-825-0	02	1	9006-9302		●	●
106	BOLT; CAP FIX M8X25 FLANGE	0-28080-825-0	02	1	9303-	●
106	BOLT; CAP FIX EXC. CAB SUSPENSION RIGID(W71) M8X25 FLANGE	0-28080-825-0	02	1	9303-		●	●
107	BUSHING; STABILIZER BAR	1-53459-860-0	02	1	9002-9404	●
107	BUSHING; STABILIZER BAR EXC. CAB SUSPENSION RIGID(W71)	1-53459-860-0	02	1	9002-9404		●	●
107	BUSHING; STABILIZER BAR EXC. TAIWAN EQUIPMENT(WW5)	1-53459-860-0	02	1	9405-	●
107	BUSHING; STABILIZER BAR EXC. TAIWAN EQUIPMENT(WW5),CAB SUSPENSION RIGID(W71)	1-53459-860-0	02	1	9405-		●	●
107	BUSHING; STABILIZER BAR TAIWAN EQUIPMENT(WW5)	1-53458-613-0	02	1	9405-	●
107	BUSHING; STABILIZER BAR TAIWAN EQUIPMENT(WW5) EXC. CAB SUSPENSION RIGID(W71)	1-53458-613-0	02	1	9405-		●	●
108	CAP	1-53459-392-1	02	1	9002-	●
108	CAP EXC. CAB SUSPENSION RIGID(W71)	1-53459-392-1	02	1	9002-		●	●
109	BUFFER; STAB BAR	1-53459-533-0	01	1	9002-	●
109	BUFFER; STAB BAR EXC. CAB SUSPENSION RIGID(W71)	1-53459-533-0	01	1	9002-		●	●
109	BUFFER; STAB BAR	1-53459-532-0	01	1	9002-	●
109	BUFFER; STAB BAR EXC. CAB SUSPENSION RIGID(W71)	1-53459-532-0	01	1	9002-		●	●
275	BOOT; ROD END,TIE	1-43159-078-0	02	1	9307-	●	●	●
304	WASHER; PL ID=12.5	9-09164-512-0	04	1	9411-	●	●	●
305	COVER; KNUCKLE	1-43175-021-0	02	1	9405-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
