0-57 — EMISSION PIPING (#33879) — 113 parça

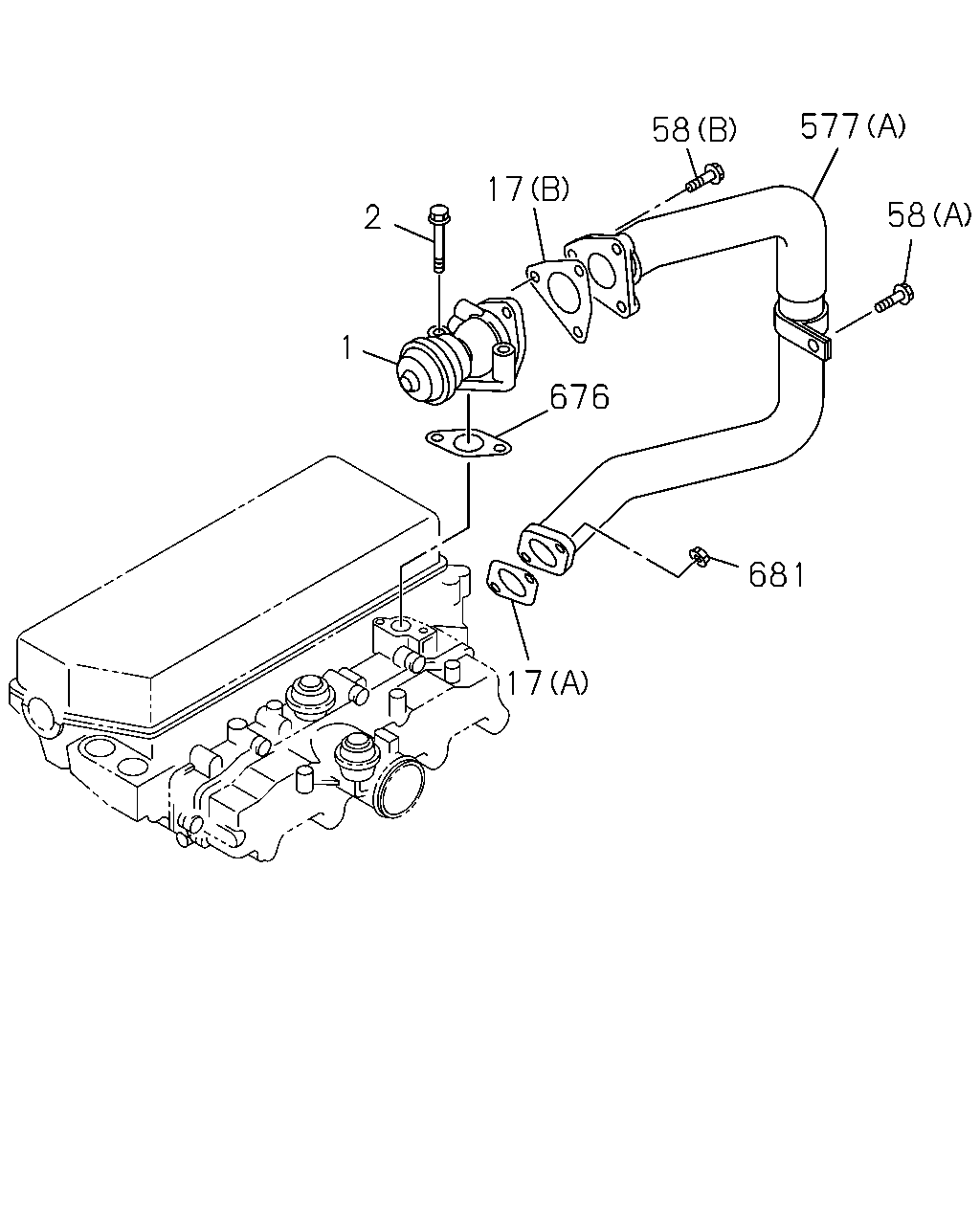

577 58 17 58 2 1 676 681 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.670 VALVE; EGR	8-97135-088-4	01	1	0211-0501	●
1	03.670 VALVE; EGR	8-97379-625-6	01	1	0502-		●	●
2	03.670 BOLT; EGR VLV 09.171 M8X80 FLANGE	0-28080-880-0	02	1	0211-0501	●
2	03.670 BOLT; EGR VLV 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512		●	●
2	03.670 BOLT; EGR VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (F)	8-97367-062-0	01	1	0502-1005		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (F)	8-98036-507-0	01	1	1006-		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97367-918-0	01	1	0502-		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94340-670-0	01	1	0211-0501	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-97375-980-1	01	1	0502-		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97166-993-0	01	1	0211-0501	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (E)	8-97213-386-0	01	1	0502-		●	●
58	03.417 BOLT; PIPE 02.664 (A) M8X20 FLANGE	0-28680-820-0	01	1	0211-0501	●
58	03.417 BOLT; PIPE 01.540 (C) M8X45 FLANGE	0-28080-845-0	02	1	0502-0512		●	●
58	03.417 BOLT; PIPE 09.173 (C) M8X45 FLANGE	0-28050-845-0	02	1	0601-		●	●
58	03.417 BOLT; PIPE 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	0211-0501	●
58	03.417 BOLT; PIPE 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0502-0508		●	●
58	03.417 BOLT; PIPE 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	0509-0512		●	●
58	03.417 BOLT; PIPE 06.216 (B) M8X25 FLANGE	0-28650-825-0	03	1	0601-		●	●
577	03.675 PIPE; AIR,EGR (B)	8-97329-211-2	01	1	0502-		●	●
577	03.675 PIPE; AIR,EGR (C)	8-98032-795-1	01	1	0512-		●	●
577	03.675 PIPE; AIR,EGR (A)	8-97148-952-3	01	1	0211-0501	●
577	03.675 PIPE; AIR,EGR (C)	8-97310-501-3	01	1	0502-0601		●	●
676	03.417 GASKET; PIPE ENGINE POWER N-SPEC(7QV)	8-97170-683-0	01	1	0211-0501	●
676	03.417 GASKET; PIPE EXC. ENGINE POWER N-SPEC(7QV)	8-97190-508-0	01	1	0211-0501	●
681	03.671 NUT; EGR PIPE 03.613 M8 FLANGE	8-97061-401-1	02	1	0211-0501	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91150-208-0	02	1	0502-0602		●	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0603-		●	●

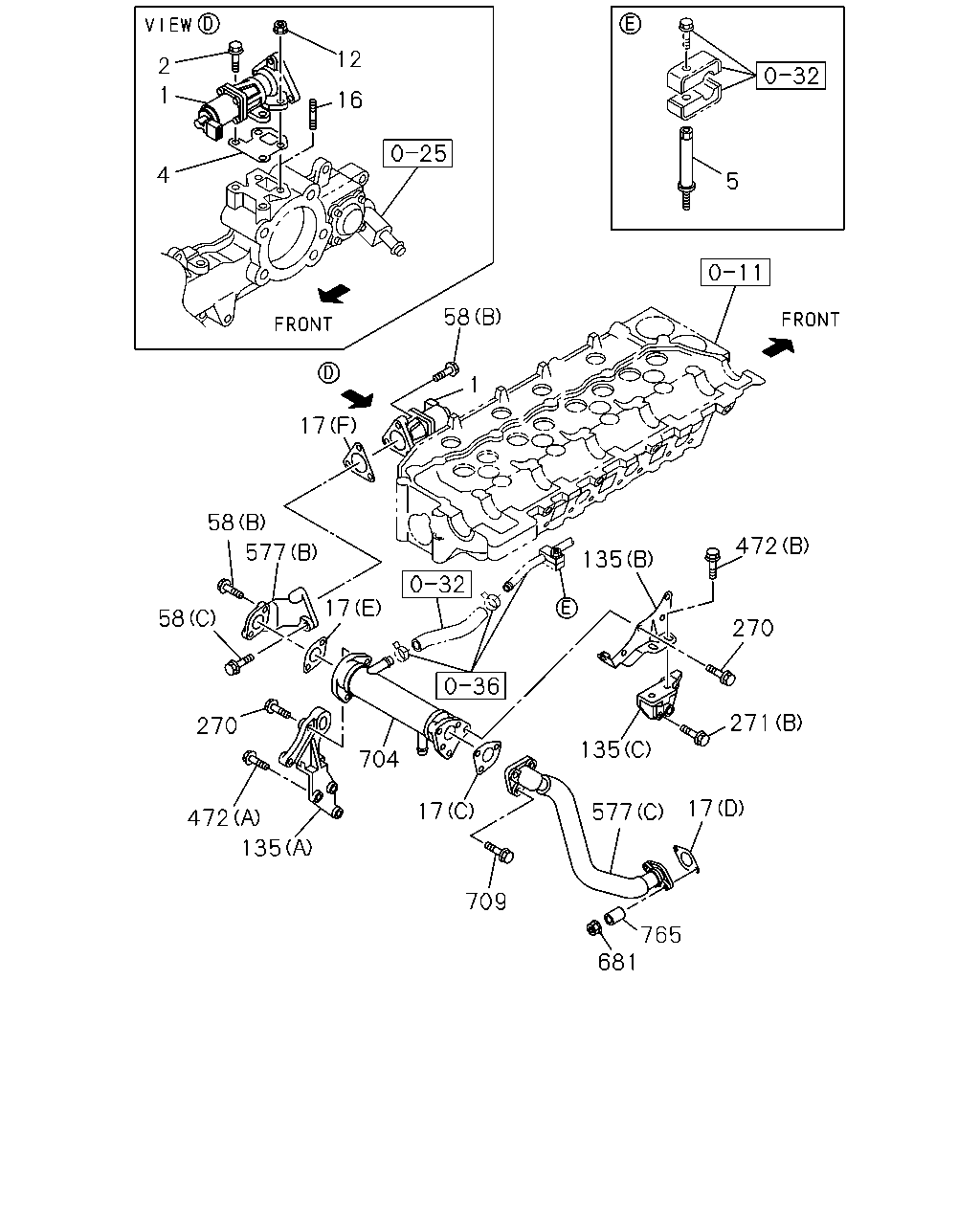

12 2 1 16 4 5 58 1 17 58 472 577 135 17 58 270 271 270 135 704 17 17 577 472 135 709 765 681

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.670 VALVE; EGR	8-97135-088-4	01	1	0211-0501	●
1	03.670 VALVE; EGR	8-97379-625-6	01	1	0502-		●	●
2	03.670 BOLT; EGR VLV 09.171 M8X80 FLANGE	0-28080-880-0	02	1	0211-0501	●
2	03.670 BOLT; EGR VLV 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0502-0512		●	●
2	03.670 BOLT; EGR VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-		●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97306-040-0	01	1	0502-		●	●
5	03.670 ADAPTER ASM 00.269	8-97377-804-0	01	1	0502-		●	●
12	03.671 NUT; EGR VLV 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602		●	●
12	03.671 NUT; EGR VLV 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-		●	●
16	03.275 STUD; EGR VLV 01.428 M8X20 L=32	9-04110-820-0	02	1	0502-0604		●	●
16	03.275 STUD; EGR VLV 02.510 M8X20 L=32	0-41010-820-0	02	1	0605-		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (F)	8-97367-062-0	01	1	0502-1005		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (F)	8-98036-507-0	01	1	1006-		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97367-918-0	01	1	0502-		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94340-670-0	01	1	0211-0501	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-97375-980-1	01	1	0502-		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97166-993-0	01	1	0211-0501	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (E)	8-97213-386-0	01	1	0502-		●	●
58	03.417 BOLT; PIPE 02.664 (A) M8X20 FLANGE	0-28680-820-0	01	1	0211-0501	●
58	03.417 BOLT; PIPE 01.540 (C) M8X45 FLANGE	0-28080-845-0	02	1	0502-0512		●	●
58	03.417 BOLT; PIPE 09.173 (C) M8X45 FLANGE	0-28050-845-0	02	1	0601-		●	●
58	03.417 BOLT; PIPE 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	0211-0501	●
58	03.417 BOLT; PIPE 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0502-0508		●	●
58	03.417 BOLT; PIPE 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	0509-0512		●	●
58	03.417 BOLT; PIPE 06.216 (B) M8X25 FLANGE	0-28650-825-0	03	1	0601-		●	●
135	03.680 BRACKET; EGR (A)	8-97310-498-2	01	1	0502-		●	●
135	03.680 BRACKET; EGR (C)	8-97375-952-0	01	1	0502-		●	●
135	03.680 BRACKET; EGR (B)	8-97376-723-0	01	1	0502-		●	●
270	03.680 BOLT 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0502-0512		●	●
270	03.680 BOLT 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0601-		●	●
271	03.675 BOLT; BRKT 00.685 (B) M12X45 FLANGE	0-28181-245-0	01	1	0502-0512		●	●
271	03.675 BOLT; BRKT 00.685 (B) M12X45 FLANGE	0-28151-245-0	01	1	0601-		●	●
271	03.675 BOLT; BRKT 02.500 (A) M6X10 FLANGE	0-28080-610-0	01	1	0211-0501	●
271	03.675 BOLT; BRKT 00.002 (B) M8X25 FLANGE	0-28690-825-0	01	1	0502-0512		●	●
271	03.675 BOLT; BRKT 02.277 (B) M8X25 FLANGE	0-28660-825-0	01	1	0601-		●	●
472	03.671 BOLT; BRKT 00.685 (A) M12X30 FLANGE	0-28181-230-0	03	1	0502-0512		●	●
472	03.671 BOLT; BRKT (A) M12X30 FLANGE	0-28151-230-0	03	1	0601-		●	●
472	03.671 BOLT; BRKT 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0502-0512		●	●
472	03.671 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-		●	●
577	03.675 PIPE; AIR,EGR (B)	8-97329-211-2	01	1	0502-		●	●
577	03.675 PIPE; AIR,EGR (C)	8-98032-795-1	01	1	0512-		●	●
577	03.675 PIPE; AIR,EGR (A)	8-97148-952-3	01	1	0211-0501	●
577	03.675 PIPE; AIR,EGR (C)	8-97310-501-3	01	1	0502-0601		●	●
681	03.671 NUT; EGR PIPE 03.613 M8 FLANGE	8-97061-401-1	02	1	0211-0501	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91150-208-0	02	1	0502-0602		●	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0603-		●	●
704	03.337 COOLER ASM; EGR	8-97310-496-1	01	1	0502-		●	●
709	03.670 BOLT; EGR COOLER 03.417 M8X23 FLANGE	8-97378-077-0	03	1	0502-		●	●
765	03.670 SPACER; EGR PIPE 03.613	8-94225-562-0	02	1	0502-		●	●

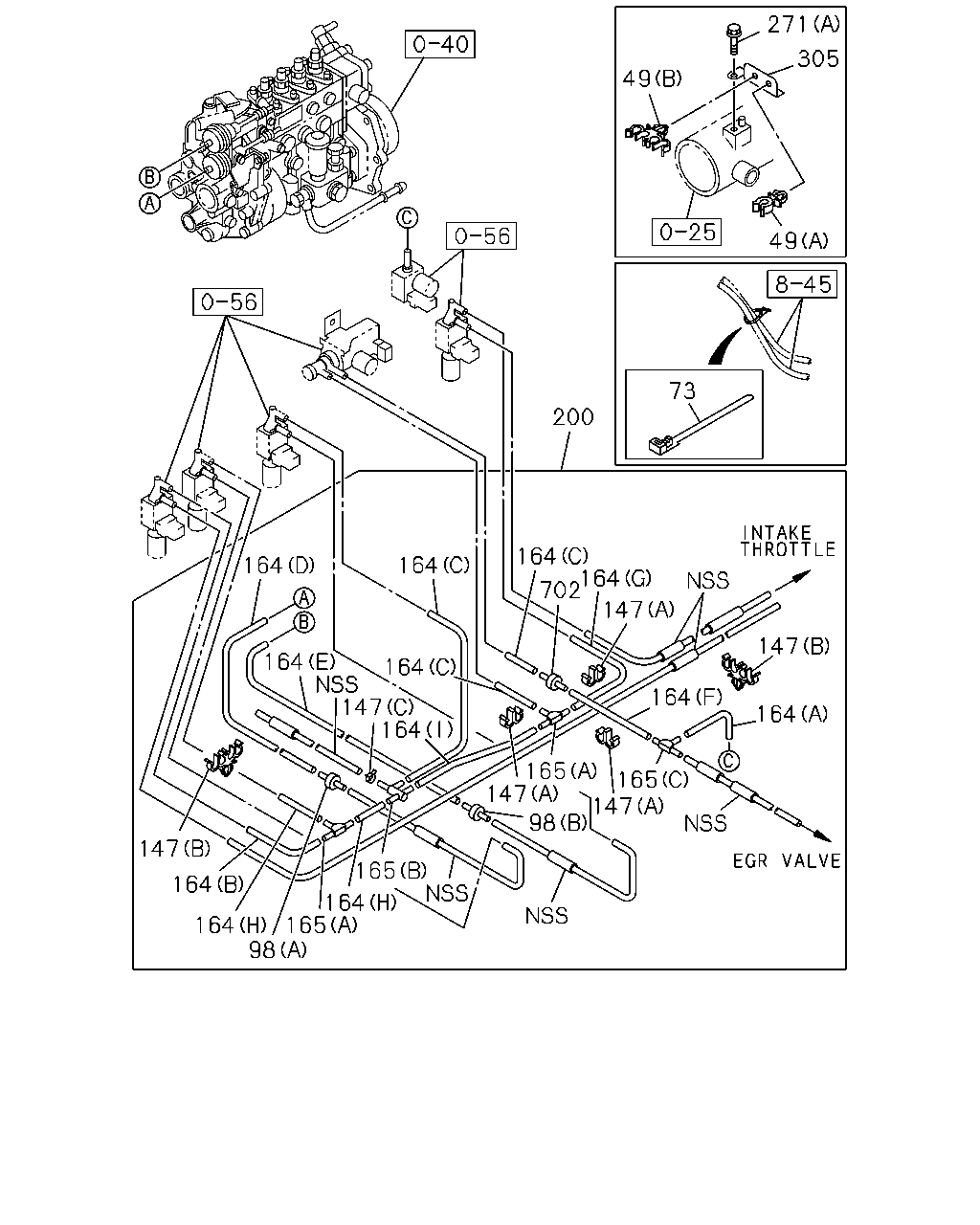

271 305 49 49 73 200 164 164 702 164 164 147 147 164 147 164 164 164 164 165 147 165 147 98 147 165 164 164 164 165 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
49	03.680 CLIP; HOSE 03.162 (A)	8-94253-984-0	01	1	0211-0501	●
49	03.680 CLIP; HOSE (B) 4XID=6.7	8-94315-422-0	01	1	0211-0501	●
73	03.680 CLIP; VAC HOSE HEATER & DEFROSTER(C41) 02.559 L=250	5-09707-030-1	02	1	0211-0501	●
73	03.680 CLIP; VAC HOSE EXC. HEATER & DEFROSTER(C41) 03.162 L=140	5-09707-031-1	03	1	0211-0501	●
98	03.670 VALVE; DELAY (A)	8-94110-978-0	01	1	0211-0501	●
98	03.670 VALVE; DELAY 03.415 (B)	8-94145-108-0	01	1	0211-0501	●
147	03.680 CLIP; RUBBER HOSE 03.162 (A) ID=6.8X2	8-94126-636-0	03	1	0211-0501	●
147	03.680 CLIP; RUBBER HOSE (C) ID=7	8-94208-596-0	01	1	0211-0501	●
147	03.680 CLIP; RUBBER HOSE (B) 4XID=6.7	8-94315-422-0	02	1	0211-0501	●
164	03.675 HOSE; RUBBER 08.962 (H) L=30 SERVICED BY L=3000	0-04730-300-0	02	1	0211-0501	●
164	03.675 HOSE; RUBBER 08.962 (B) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	0211-0501	●
164	03.675 HOSE; RUBBER 08.962 (C) L=50 SERVICED BY L=3000	0-04730-300-0	03	1	0211-0501	●
164	03.675 HOSE; RUBBER 08.962 (A) L=60 SERVICED BY L=3000	0-04730-300-0	01	1	0211-0501	●
164	03.675 HOSE; RUBBER 08.962 (F) L=80 SERVICED BY L=3000	0-04730-300-0	01	1	0211-0501	●
164	03.675 HOSE; RUBBER 08.962 (I) L=90 SERVICED BY L=3000	0-04730-300-0	01	1	0211-0501	●
164	03.675 HOSE; RUBBER 08.962 (G) L=150 SERVICED BY L=3000	0-04730-300-0	01	1	0211-0501	●
164	03.675 HOSE; RUBBER 08.962 (D) L=250 SERVICED BY L=3000	0-04731-300-0	01	1	0211-0501	●
164	03.675 HOSE; RUBBER 08.962 (E) L=280 SERVICED BY L=3000	0-04732-300-0	01	1	0211-0501	●
165	03.680 JOINT; HOSE 03.670 (B) 4WAY	8-94100-256-0	01	1	0211-0501	●
165	03.680 JOINT; HOSE (A) 3WAY	8-94208-695-0	02	1	0211-0501	●
165	03.680 JOINT; HOSE 03.145 (C) 3WAY	8-94237-690-0	01	1	0211-0501	●
200	03.675 HOSE; VAC	8-97182-709-6	01	1	0211-0501	●
271	03.675 BOLT; BRKT 00.685 (B) M12X45 FLANGE	0-28181-245-0	01	1	0502-0512		●	●
271	03.675 BOLT; BRKT 00.685 (B) M12X45 FLANGE	0-28151-245-0	01	1	0601-		●	●
271	03.675 BOLT; BRKT 02.500 (A) M6X10 FLANGE	0-28080-610-0	01	1	0211-0501	●
271	03.675 BOLT; BRKT 00.002 (B) M8X25 FLANGE	0-28690-825-0	01	1	0502-0512		●	●
271	03.675 BOLT; BRKT 02.277 (B) M8X25 FLANGE	0-28660-825-0	01	1	0601-		●	●
305	03.675 BRACKET; RUBBER HOSE	8-97182-758-0	01	1	0211-0501	●
702	03.670 VALVE; DERIVERY	8-97145-713-0	01	1	0211-0501	●

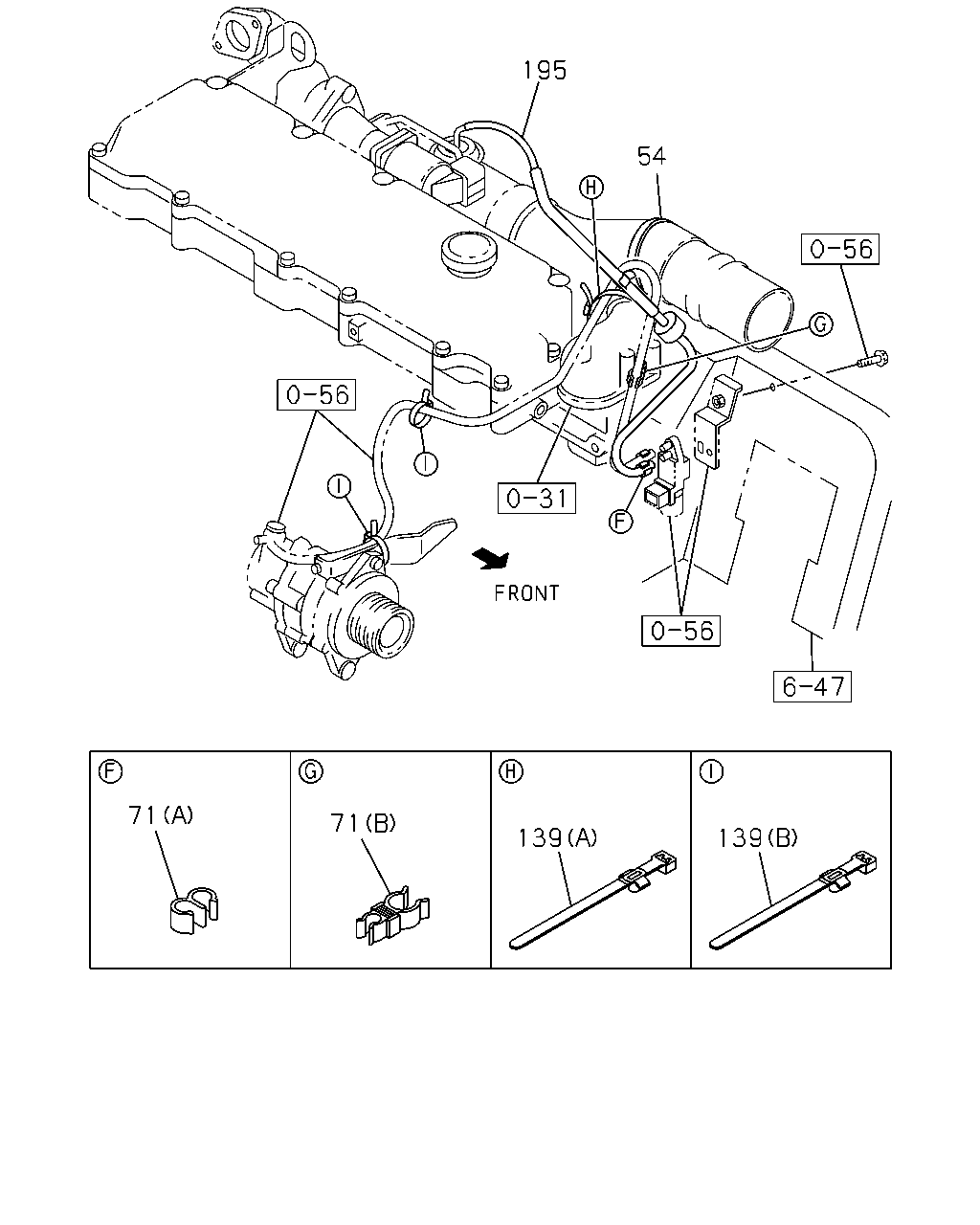

195 54 71 71 139 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
54	03.680 CLIP; 3 HOSE L=350	8-97373-487-0	01	1	0502-	●	●
71	03.680 CLIP; RUBBER HOSE 03.886 (A) ID=7.2	8-94163-380-0	01	1	0504-	●	●
71	03.680 CLIP; RUBBER HOSE 03.162 (B) ID=13.2 & 7.5	8-94315-426-0	01	1	0504-	●	●
139	02.559 CLIP; HARNESS 03.162 (B) L=140	5-09707-031-1	01	1	0504-	●	●
139	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140	5-09707-031-1	01	1	0504-	●	●
139	02.559 CLIP; HARNESS (A) L=250	5-09707-030-1	01	1	0505-	●	●
195	03.675 HOSE; VAC 03.670	8-97373-527-0	01	1	0502-	●	●
