◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51397 - NPR/NQR(AUST) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-56 - EMISSION SYSTEM ▶
0-56 — EMISSION SYSTEM (#33878) — 21 parça

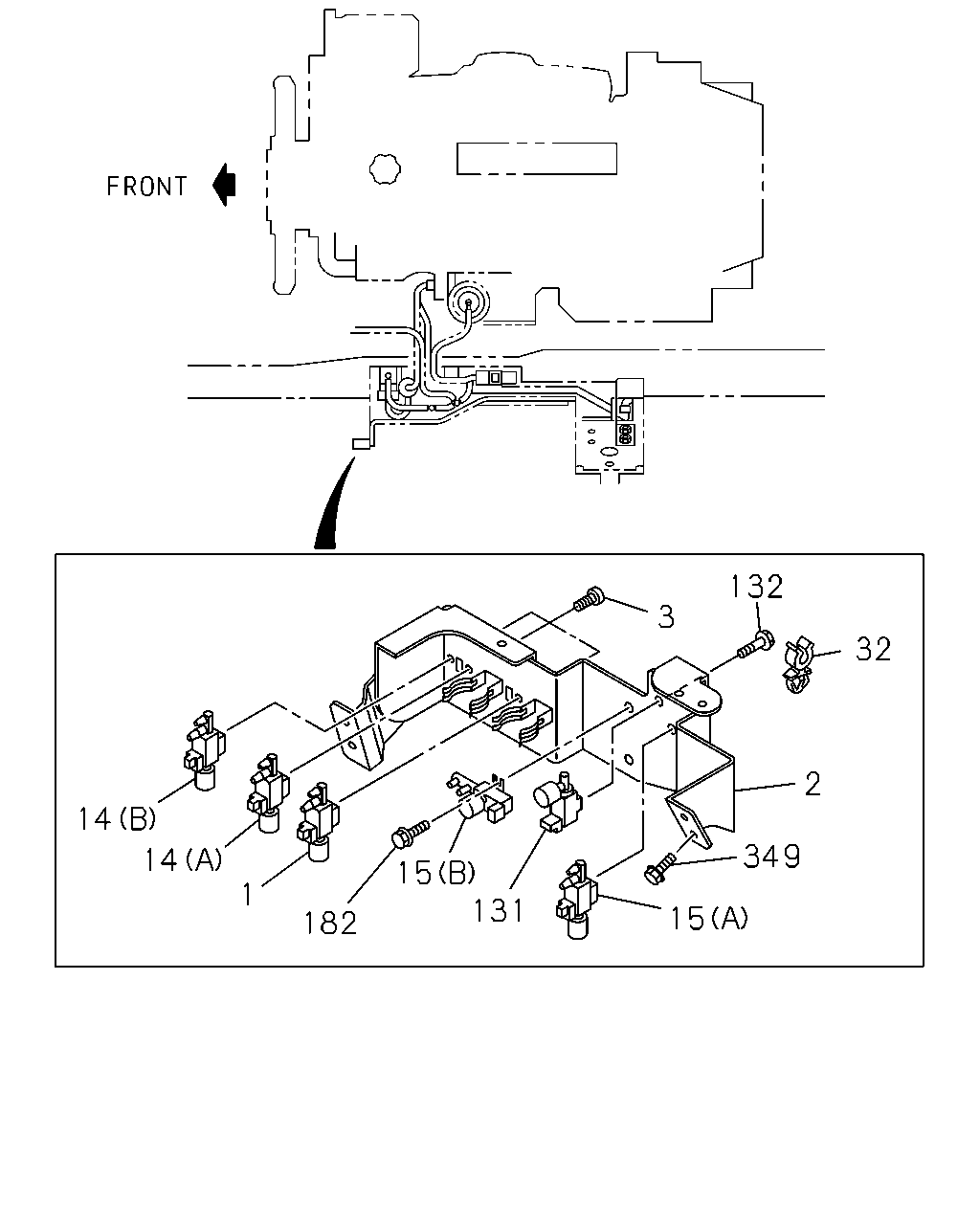

çizim 33988
132 3 32 2 14 349 14 15 131 1 15 182
BalonParca AdiParca NoAdetTipApplied Date A B C
1 03.670 VALVE; VAC SW,EGR 8-97023-544-2 01 1 0211-0501 ●
2 03.671 BRACKET; VSV 8-97305-209-1 01 1 0211-0501 ●
2 03.671 BRACKET; VSV 8-97373-616-1 01 1 0502- ● ●
3 03.670 BOLT; VSV
09.655 M5X8 W/LK WASHER 		9-03910-508-0 02 1 0211-0501 ●
3 03.670 BOLT; VSV
09.655 M5X8 W/LK WASHER 		9-03910-508-0 03 1 0211-0501 ●
14 03.670 VALVE; VAC SW
(A) 		8-97023-543-2 01 1 0211-0501 ●
14 03.670 VALVE; VAC SW
(B) 		8-97023-544-2 01 1 0211-0501 ●
15 03.670 VALVE; VAC SW
(A) 		8-97023-543-2 01 1 0211-0501 ●
15 03.670 VALVE; VAC SW
(B) 		8-97184-183-0 01 1 0211-0501 ●
32 03.680 CLIP; EGR HOSE
03.162 		8-94253-984-0 01 1 0211-0501 ●
131 03.670 VALVE; VAC SWITCHING 8-97184-200-2 01 1 0211-0501 ●
132 03.680 BOLT; VSV BRKT
01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0401-0501 ●
182 03.670 BOLT; VLV
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0211-0501 ●
349 03.671 BOLT; CASE
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0211-0501 ●

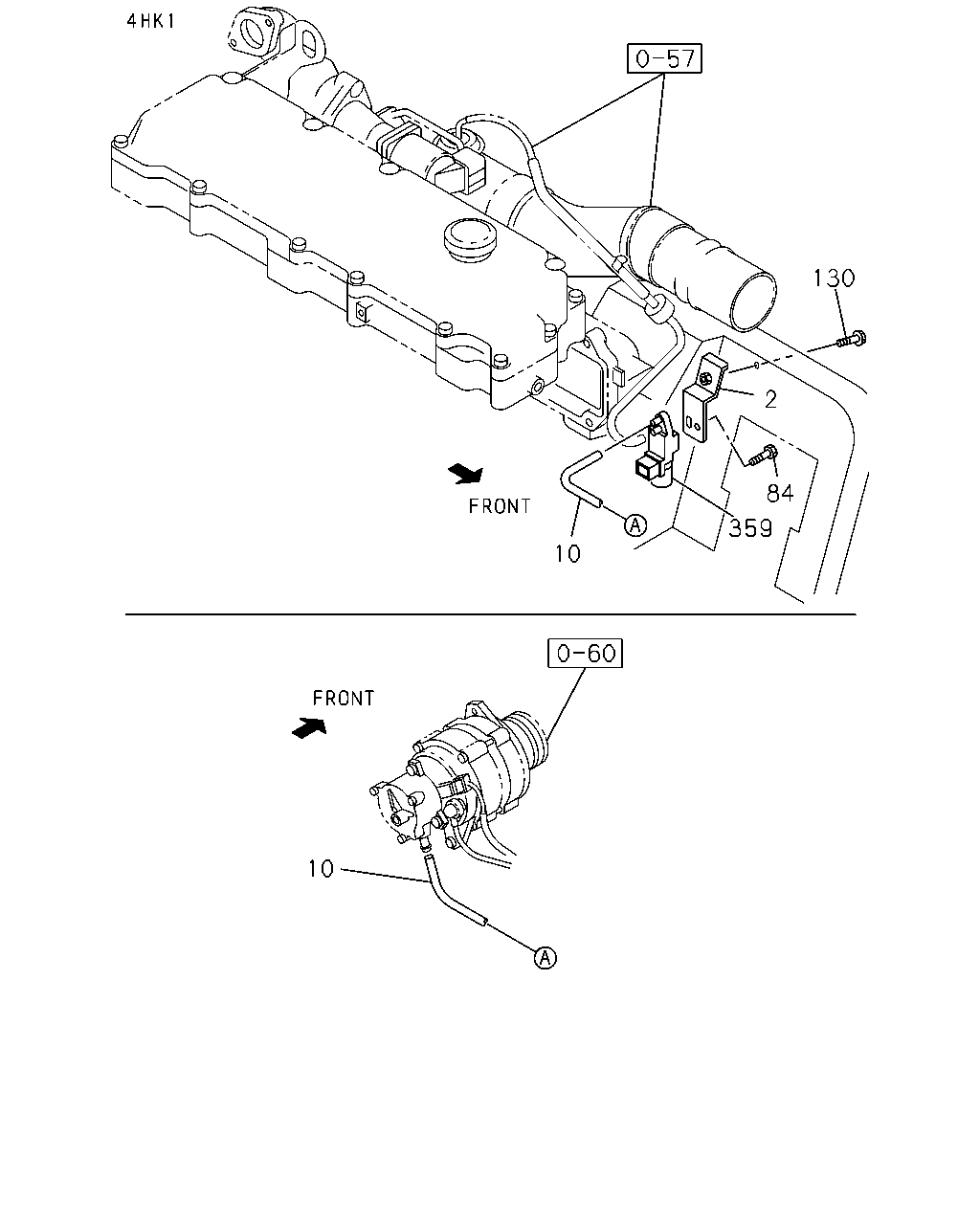

çizim 98700
130 2 84 359 10 10
BalonParca AdiParca NoAdetTipApplied Date A B C
2 03.671 BRACKET; VSV 8-97305-209-1 01 1 0211-0501 ●
2 03.671 BRACKET; VSV 8-97373-616-1 01 1 0502- ● ●
10 03.675 HOSE; RUBBER,PUMP TO VSV 8-97374-116-0 01 1 0504- ● ●
84 03.671 BOLT; VSV
09.655 M5X8 W/LK WASHER 		9-03910-508-0 01 1 0504-0604 ● ●
84 03.671 BOLT; VSV
M5X8 W/LK WASHER 		0-36220-508-0 01 1 0605- ● ●
130 03.671 BOLT; VSV BRKT
03.470 M6X22 W/LK&PL WASHER 		8-97892-370-0 01 1 0502- ● ●
359 03.670 VALVE; VAC SWITCHING,I/THROTTLE 8-97037-165-2 01 1 0502- ● ●
