◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51410 - NPS(AUST) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#33876) — 188 parça

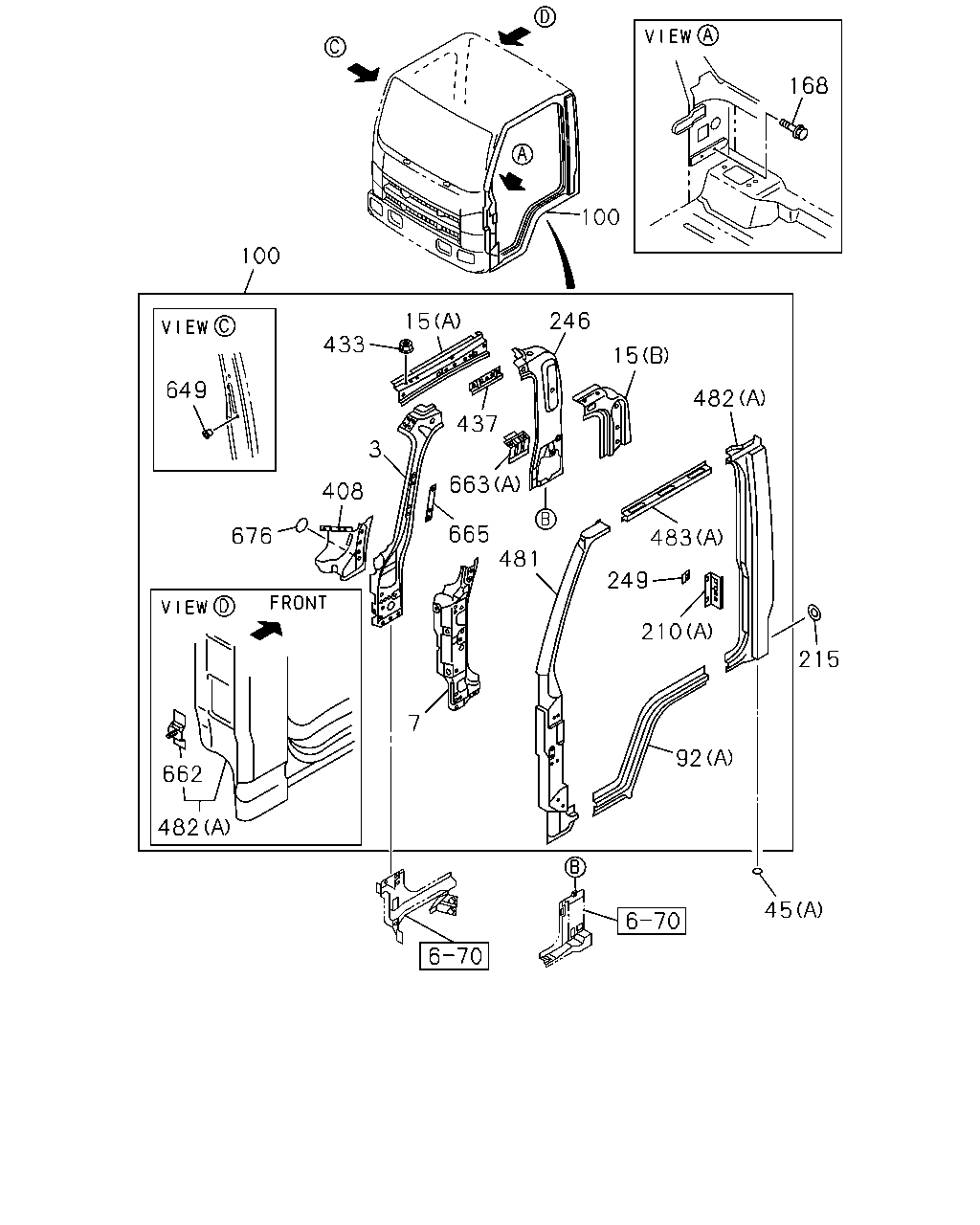

çizim 35643
168 100 100 246 15 433 15 649 482 437 3 663 408 665 481 676 483 249 210 215 7 92 662 482 45
BalonParca AdiParca NoAdetTipApplied Date A B
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 0710- ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 0710- ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-240-2 01 1 0710- ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-244-3 01 1 0710- ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-294-2 01 1 0710- ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-295-2 01 1 0710- ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-302-1 01 1 0710- ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-303-2 01 1 0710- ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97583-739-1 01 1 0710- ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97583-740-1 01 1 0710- ●
45 16.570 SEAL; B-C POST
EXC. MANUAL TILT CAB<RWZ> 16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 0710-0710 ●
45 16.570 SEAL; B-C POST
(B) 		8-97853-731-2 02 1 0710- ●
92 16.570 PANEL; SIDE SILL,CAB
(A) 		8-98055-461-1 01 1 0710- ● ●
92 16.570 PANEL; SIDE SILL,CAB
(A) 		8-98055-462-1 01 1 0710- ● ●
92 16.570 PANEL; SIDE SILL,CAB
16.507 (B) 		8-98069-113-0 02 1 0710- ●
100 16.570 PANEL ASM; BODY SIDE 8-98088-545-1 01 1 0710-0811 ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-034-6 01 1 0812- ●
100 16.570 PANEL ASM; BODY SIDE 8-98088-547-2 01 1 0710-0811 ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-042-8 01 1 0812- ●
100 16.570 PANEL ASM; BODY SIDE 8-98088-545-1 01 1 0710-0811 ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-034-6 01 1 0812- ●
100 16.570 PANEL ASM; BODY SIDE 8-98088-547-2 01 1 0710-0811 ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-042-8 01 1 0812- ●
168 16.570 BOLT; BODY SIDE PANEL
M6X16 		0-38050-616-0 08 1 0710-0803 ● ●
168 16.570 BOLT; BODY SIDE PANEL
16.650 T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 0804- ● ●
210 16.588 PANEL; DOOR STRIKER REINF
(A) 		8-97585-260-4 01 1 0710- ●
210 16.588 PANEL; DOOR STRIKER REINF
(A) 		8-97585-261-4 01 1 0710- ●
210 16.588 PANEL; DOOR STRIKER REINF
(B) 		8-97851-445-1 01 1 0710- ●
210 16.588 PANEL; DOOR STRIKER REINF
(B) 		8-97851-446-1 01 1 0710- ●
210 16.588 PANEL; DOOR STRIKER REINF
(C) 		8-98014-548-0 01 1 0710- ●
210 16.588 PANEL; DOOR STRIKER REINF
(C) 		8-98014-549-0 01 1 0710- ●
215 16.674 GROMMET; RR PILLAR
15.222 OD=35 		8-94122-971-0 01 1 0710- ●
246 16.575 PANEL; RR PILLAR,INNER 8-97585-301-3 01 1 0710- ●
246 16.575 PANEL; RR PILLAR,INNER 8-97586-154-3 01 1 0710- ●
249 16.674 REINFORCEMENT; RR PILLAR 8-98012-287-1 01 1 0710- ●
249 16.674 REINFORCEMENT; RR PILLAR 8-98012-287-1 01 1 0710- ●
408 16.570 GUSSET; PILLAR 8-97585-316-3 01 1 0710- ● ●
408 16.570 GUSSET; PILLAR 8-97585-317-4 01 1 0710- ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 0710- ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 0710- ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-019-0 01 1 0710- ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-020-0 01 1 0710- ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98072-714-1 01 1 0710- ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98093-579-0 01 1 0710- ● ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98055-464-0 01 1 0710-0807 ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98092-921-0 01 1 0808-0901 ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98055-464-0 01 1 0902- ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98055-472-0 01 1 0710-0807 ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98092-918-0 01 1 0808-0811 ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98092-920-0 01 1 0812-0901 ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98055-463-0 01 1 0902- ●
482 16.570 PANEL; SIDE RR PILLAR
(B) 		8-98097-238-0 01 1 0710- ●
482 16.570 PANEL; SIDE RR PILLAR
(B) 		8-98097-241-0 01 1 0710-0811 ●
482 16.570 PANEL; SIDE RR PILLAR
(B) 		8-98097-237-0 01 1 0812- ●
483 16.570 PANEL; SIDE CANTRAIL
(A) 		8-98055-458-0 01 1 0710- ●
483 16.570 PANEL; SIDE CANTRAIL
(A) 		8-98055-460-0 01 1 0710- ●
483 16.570 PANEL; SIDE CANTRAIL
(B) 		8-98056-608-0 01 1 0710- ●
483 16.570 PANEL; SIDE CANTRAIL
(B) 		8-98056-609-0 01 1 0710- ●
483 16.570 PANEL; SIDE CANTRAIL
16.592 (C) 		8-98069-095-0 02 1 0710- ●
649 16.570 NUT; POP
09.647 M5 POP NUT 		8-97249-574-0 02 1 0710- ● ●
662 16.570 BRACKET; DUCT 8-97584-611-1 01 1 0710- ●
662 16.570 BRACKET; DUCT 8-98006-778-1 01 1 0710- ●
663 08.228 BRACKET; AIR
(A) 		8-97585-207-2 01 1 0710- ● ●
663 08.228 BRACKET; AIR
(A) 		8-97585-208-2 01 1 0710- ● ●
663 08.228 BRACKET; AIR
(B) 		8-98020-643-1 01 1 0710- ●
663 08.228 BRACKET; AIR
(B) 		8-98020-643-1 01 1 0710- ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 0710- ● ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 0710- ● ●
676 16.520 SEAL
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1007- ● ●

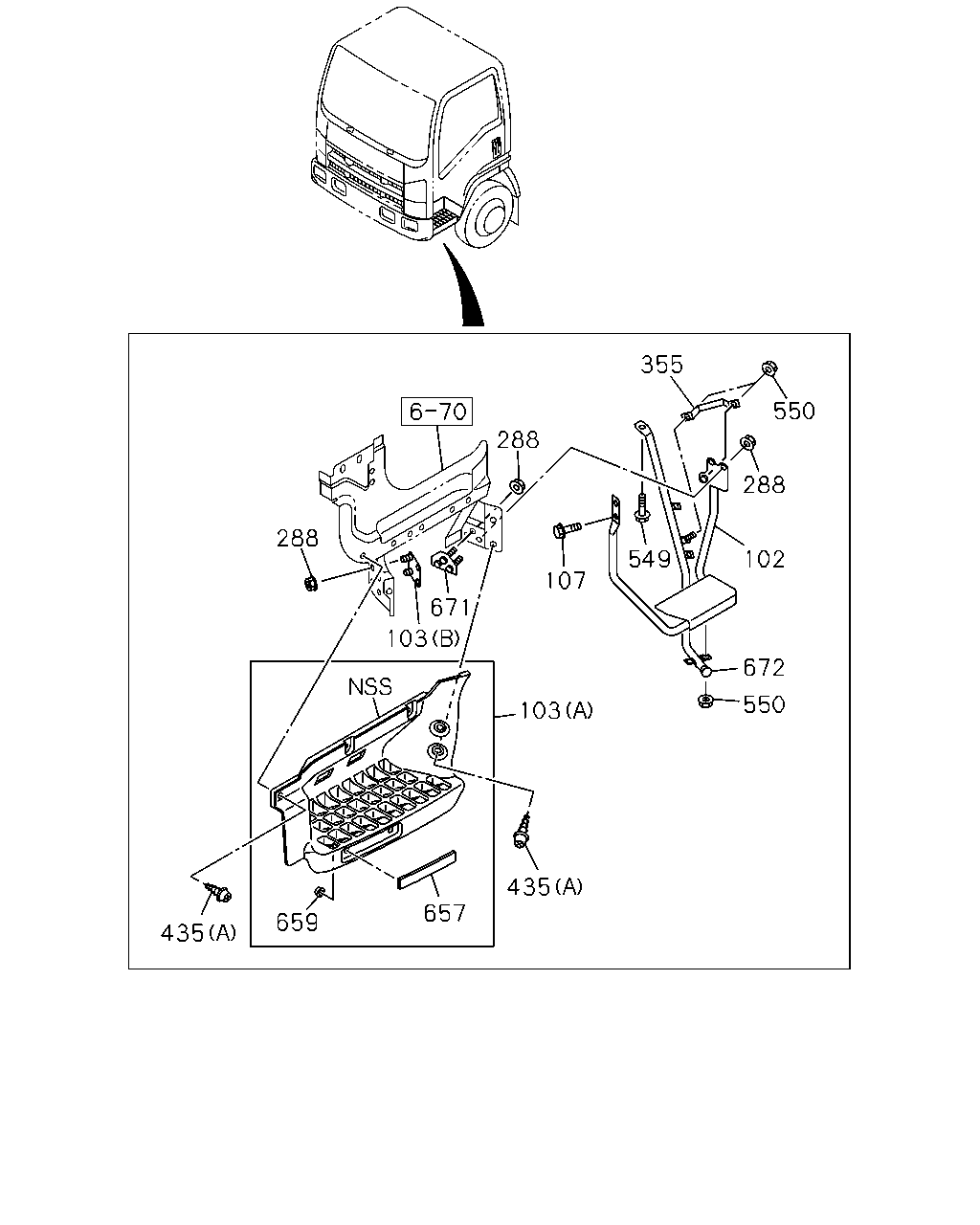

çizim 35693
355 550 288 288 288 549 102 107 671 103 672 550 103 435 657 659 435
BalonParca AdiParca NoAdetTipApplied Date A B
102 12.934 STEP; BODY SIDE 8-98070-082-0 01 1 0710- ● ●
102 12.934 STEP; BODY SIDE 8-98070-083-0 01 1 0710- ● ●
103 08.228 PLATE; STEP
(B) 		8-98070-091-1 01 1 0710- ● ●
103 08.228 PLATE; STEP
(B) 		8-98070-092-1 01 1 0710- ● ●
103 08.228 PLATE; STEP
(A) 		8-98077-158-0 01 1 0710- ● ●
103 08.228 PLATE; STEP
(A) 		8-98077-159-0 01 1 0710- ● ●
107 08.228 BOLT; SIDE STEP
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0710- ● ●
288 08.225 NUT; STEP
01.062 FRONT M8 FLANGE 		0-91180-108-0 08 1 0710- ● ●
288 08.225 NUT; STEP
01.062 REAR M8 FLANGE 		0-91180-108-0 04 1 0710- ●
355 08.225 STAY 8-98070-088-1 02 1 0710- ● ●
435 08.225 BOLT; RR STEP
(A) M8X18 		8-98004-345-0 12 1 0710- ● ●
435 08.225 BOLT; RR STEP
01.531 (B) M8X20 FLANGE 		0-28650-820-0 08 1 0710- ●
549 08.225 BOLT; STAY
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0710- ● ●
550 16.714 NUT; STAY
01.062 M8 FLANGE 		0-91180-108-0 08 1 0710- ● ●
657 16.585 REFLECTOR; REFLEX 8-97378-910-0 02 1 0710- ● ●
659 08.131 CLIP; SPRING NUT 8-97811-510-0 04 1 0710- ● ●
671 16.575 PLATE; STEP RR 8-98070-093-0 02 1 0710- ● ●
672 08.225 STAY; STEP 8-98070-085-0 01 1 0710- ● ●
672 08.225 STAY; STEP 8-98070-086-0 01 1 0710- ● ●

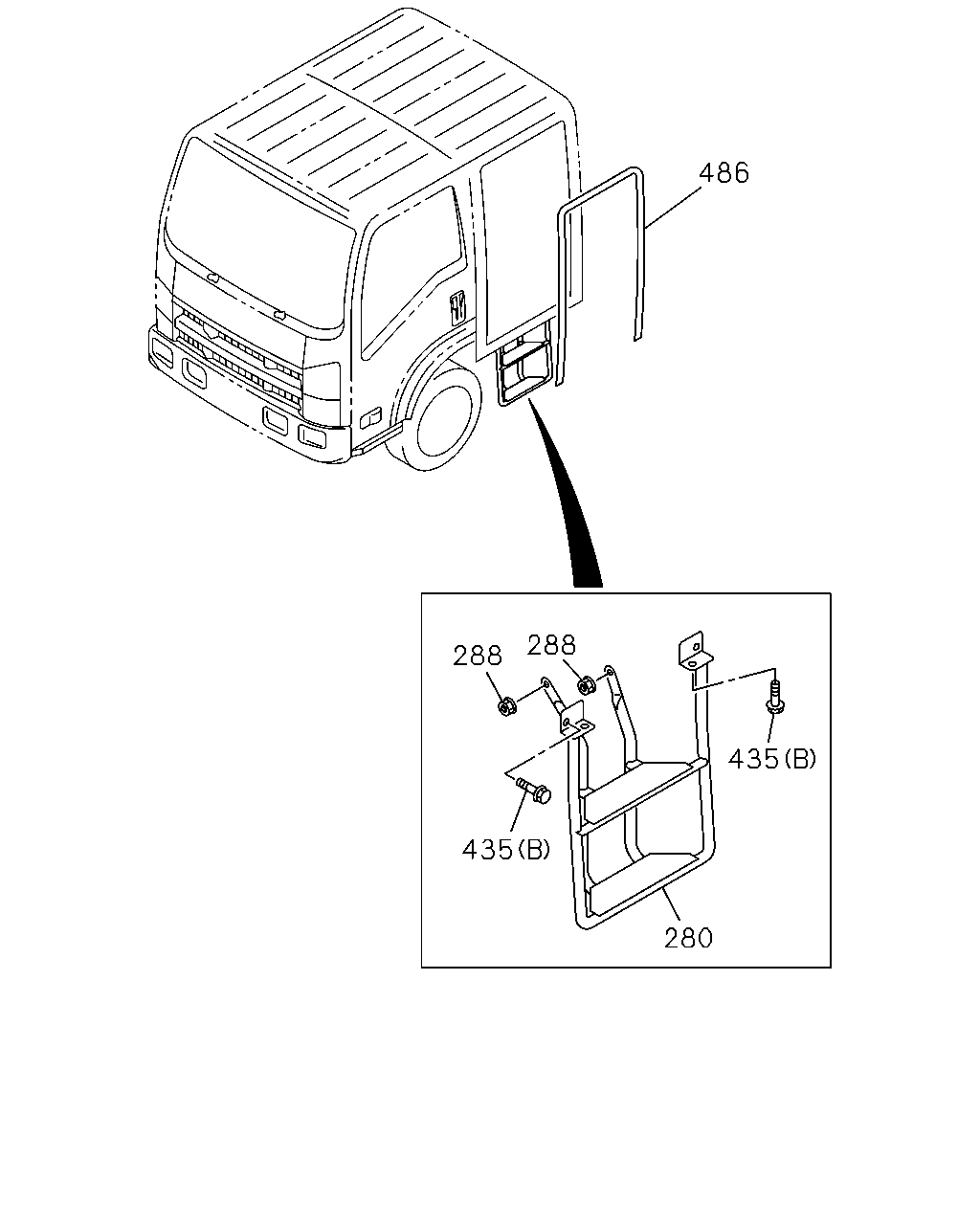

çizim 35744
486 288 288 435 435 280
BalonParca AdiParca NoAdetTipApplied Date A B
280 08.225 STEP ASM; RR 8-98075-436-2 01 1 0710- ●
280 08.225 STEP ASM; RR 8-98075-437-2 01 1 0710- ●
288 08.225 NUT; STEP
01.062 FRONT M8 FLANGE 		0-91180-108-0 08 1 0710- ● ●
288 08.225 NUT; STEP
01.062 REAR M8 FLANGE 		0-91180-108-0 04 1 0710- ●
435 08.225 BOLT; RR STEP
(A) M8X18 		8-98004-345-0 12 1 0710- ● ●
435 08.225 BOLT; RR STEP
01.531 (B) M8X20 FLANGE 		0-28650-820-0 08 1 0710- ●
486 16.570 SEAL; BODY SIDE
DARK GRAY 		8-97405-303-2 02 1 0710-0912 ●
486 16.570 SEAL; BODY SIDE 8-98154-664-0 02 1 1001- ●

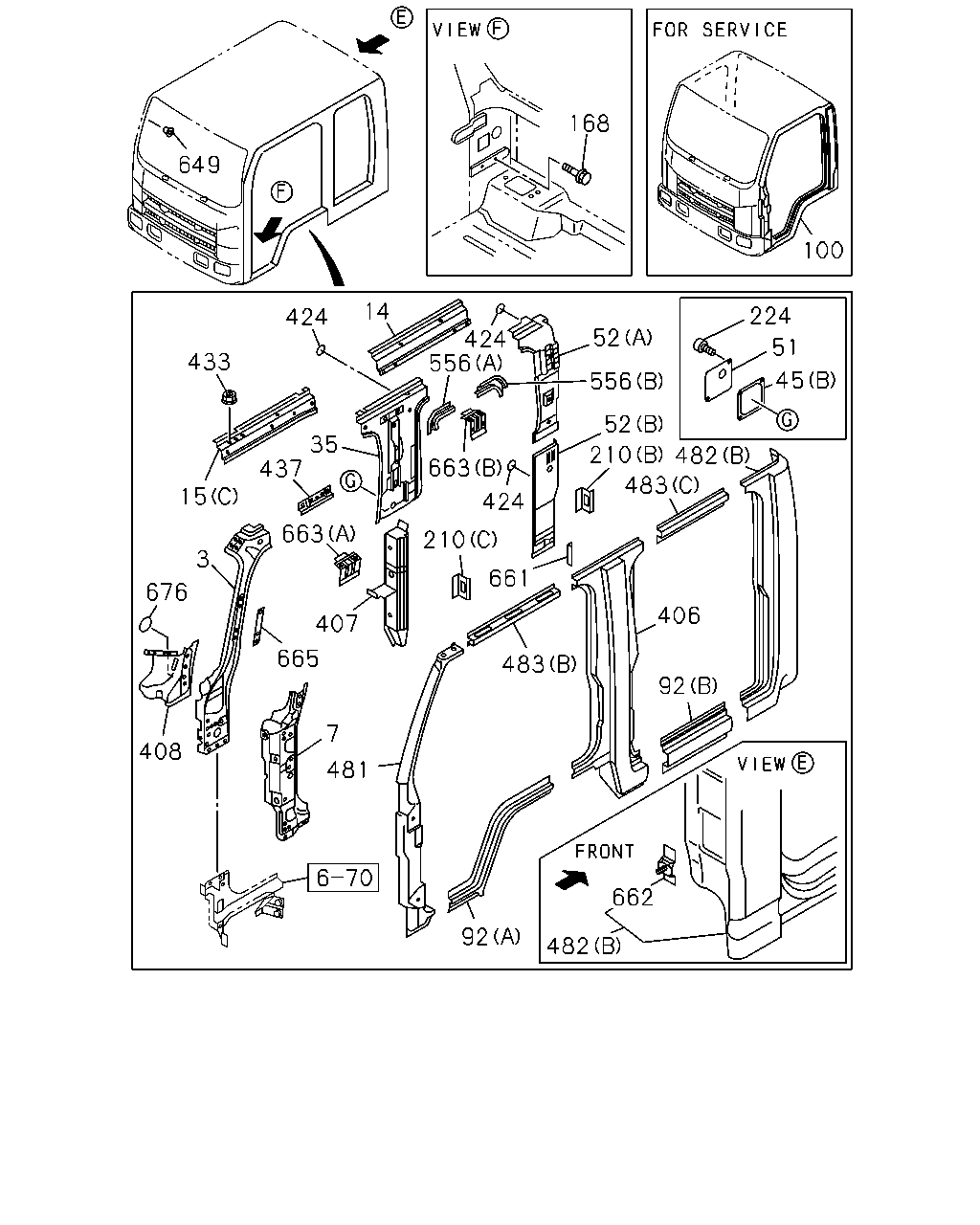

çizim 99890
168 649 100 14 224 424 52 424 556 51 433 45 556 52 35 437 210 482 663 483 15 424 663 210 3 661 676 406 407 665 483 92 7 408 481 662 92 482
BalonParca AdiParca NoAdetTipApplied Date A B
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 0710- ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 0710- ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-240-2 01 1 0710- ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-244-3 01 1 0710- ● ●
14 16.592 PANEL; REINF,SIDE DRIP 8-97583-706-2 01 1 0710- ●
14 16.592 PANEL; REINF,SIDE DRIP 8-97583-706-2 01 1 0710- ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-294-2 01 1 0710- ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-295-2 01 1 0710- ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-302-1 01 1 0710- ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-303-2 01 1 0710- ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97583-739-1 01 1 0710- ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97583-740-1 01 1 0710- ●
35 16.570 PANEL; CENTER PILLAR,INNER 8-97583-703-4 01 1 0710- ●
35 16.570 PANEL; CENTER PILLAR,INNER 8-98013-489-4 01 1 0710- ●
45 16.570 SEAL; B-C POST
EXC. MANUAL TILT CAB<RWZ> 16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 0710-0710 ●
45 16.570 SEAL; B-C POST
(B) 		8-97853-731-2 02 1 0710- ●
51 16.570 COVER; HOLE,B-C POST 8-94273-658-0 02 1 0710- ●
52 16.588 PANEL; D-POST UPR
(A) 		8-97583-707-4 01 1 0710- ●
52 16.588 PANEL; D-POST UPR
(A) 		8-97583-708-4 01 1 0710- ●
52 16.588 PANEL; D-POST UPR
(B) 		8-97583-779-2 01 1 0710- ●
52 16.588 PANEL; D-POST UPR
(B) 		8-97583-780-2 01 1 0710- ●
92 16.570 PANEL; SIDE SILL,CAB
(A) 		8-98055-461-1 01 1 0710- ● ●
92 16.570 PANEL; SIDE SILL,CAB
(A) 		8-98055-462-1 01 1 0710- ● ●
92 16.570 PANEL; SIDE SILL,CAB
16.507 (B) 		8-98069-113-0 02 1 0710- ●
100 16.570 PANEL ASM; BODY SIDE 8-98088-545-1 01 1 0710-0811 ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-034-6 01 1 0812- ●
100 16.570 PANEL ASM; BODY SIDE 8-98088-547-2 01 1 0710-0811 ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-042-8 01 1 0812- ●
100 16.570 PANEL ASM; BODY SIDE 8-98088-545-1 01 1 0710-0811 ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-034-6 01 1 0812- ●
100 16.570 PANEL ASM; BODY SIDE 8-98088-547-2 01 1 0710-0811 ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-042-8 01 1 0812- ●
168 16.570 BOLT; BODY SIDE PANEL
M6X16 		0-38050-616-0 08 1 0710-0803 ● ●
168 16.570 BOLT; BODY SIDE PANEL
16.650 T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 0804- ● ●
210 16.588 PANEL; DOOR STRIKER REINF
(A) 		8-97585-260-4 01 1 0710- ●
210 16.588 PANEL; DOOR STRIKER REINF
(A) 		8-97585-261-4 01 1 0710- ●
210 16.588 PANEL; DOOR STRIKER REINF
(B) 		8-97851-445-1 01 1 0710- ●
210 16.588 PANEL; DOOR STRIKER REINF
(B) 		8-97851-446-1 01 1 0710- ●
210 16.588 PANEL; DOOR STRIKER REINF
(C) 		8-98014-548-0 01 1 0710- ●
210 16.588 PANEL; DOOR STRIKER REINF
(C) 		8-98014-549-0 01 1 0710- ●
224 16.570 SCREW; COVER
T25 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 0710- ●
406 16.570 PILLAR; CENTER 8-98097-233-0 01 1 0710-0901 ●
406 16.570 PILLAR; CENTER 8-98069-085-0 01 1 0902- ●
406 16.570 PILLAR; CENTER 8-98097-234-0 01 1 0710-0901 ●
406 16.570 PILLAR; CENTER 8-98069-086-0 01 1 0902- ●
407 16.570 PILLAR; HINGE,RR DOOR 8-97410-822-2 01 1 0710- ●
407 16.570 PILLAR; HINGE,RR DOOR 8-98089-274-1 01 1 0710-0811 ●
407 16.570 PILLAR; HINGE,RR DOOR 8-97410-824-2 01 1 0812- ●
408 16.570 GUSSET; PILLAR 8-97585-316-3 01 1 0710- ● ●
408 16.570 GUSSET; PILLAR 8-97585-317-4 01 1 0710- ● ●
424 16.570 SEAL; CLOSING
BODY COLOR FT ORANGE(609),BODY COLOR GOLDEN YELLOW(904),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 12 1 0710-0802 ●
424 16.570 SEAL; CLOSING
BODY COLOR FT ORANGE(609),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 12 1 0803-0903 ●
424 16.570 SEAL; CLOSING
BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR BRIGHT YELLOW(538), BODY COLOR TELEMAGENTA(539),BODY COLOR FTORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY C OLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLO R HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 12 1 0904- ●
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 12 1 0710-0903 ●
424 16.570 SEAL; CLOSING
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 12 1 0904- ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 0710- ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 0710- ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-019-0 01 1 0710- ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-020-0 01 1 0710- ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98072-714-1 01 1 0710- ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98093-579-0 01 1 0710- ● ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98055-464-0 01 1 0710-0807 ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98092-921-0 01 1 0808-0901 ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98055-464-0 01 1 0902- ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98055-472-0 01 1 0710-0807 ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98092-918-0 01 1 0808-0811 ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98092-920-0 01 1 0812-0901 ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98055-463-0 01 1 0902- ●
482 16.570 PANEL; SIDE RR PILLAR
(B) 		8-98097-238-0 01 1 0710- ●
482 16.570 PANEL; SIDE RR PILLAR
(B) 		8-98097-241-0 01 1 0710-0811 ●
482 16.570 PANEL; SIDE RR PILLAR
(B) 		8-98097-237-0 01 1 0812- ●
483 16.570 PANEL; SIDE CANTRAIL
(A) 		8-98055-458-0 01 1 0710- ●
483 16.570 PANEL; SIDE CANTRAIL
(A) 		8-98055-460-0 01 1 0710- ●
483 16.570 PANEL; SIDE CANTRAIL
(B) 		8-98056-608-0 01 1 0710- ●
483 16.570 PANEL; SIDE CANTRAIL
(B) 		8-98056-609-0 01 1 0710- ●
483 16.570 PANEL; SIDE CANTRAIL
16.592 (C) 		8-98069-095-0 02 1 0710- ●
556 16.570 PATCH; ROOF SIDE
(A) 		8-98024-390-0 01 1 0710- ●
556 16.570 PATCH; ROOF SIDE
(A) 		8-98024-391-0 01 1 0710- ●
556 16.570 PATCH; ROOF SIDE
(B) 		8-98024-392-0 01 1 0710- ●
556 16.570 PATCH; ROOF SIDE
(B) 		8-98024-393-0 01 1 0710- ●
649 16.570 NUT; POP
09.647 M5 POP NUT 		8-97249-574-0 02 1 0710- ● ●
661 16.570 BRACKET; SIDE PANEL 8-98012-621-1 01 1 0710- ●
661 16.570 BRACKET; SIDE PANEL 8-98012-623-1 01 1 0710- ●
662 16.570 BRACKET; DUCT 8-97584-611-1 01 1 0710- ●
662 16.570 BRACKET; DUCT 8-98006-778-1 01 1 0710- ●
663 08.228 BRACKET; AIR
(A) 		8-97585-207-2 01 1 0710- ● ●
663 08.228 BRACKET; AIR
(A) 		8-97585-208-2 01 1 0710- ● ●
663 08.228 BRACKET; AIR
(B) 		8-98020-643-1 01 1 0710- ●
663 08.228 BRACKET; AIR
(B) 		8-98020-643-1 01 1 0710- ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 0710- ● ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 0710- ● ●
676 16.520 SEAL
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1007- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
