4-01 — PROPELLER SHAFT (#3387) — 920 parça

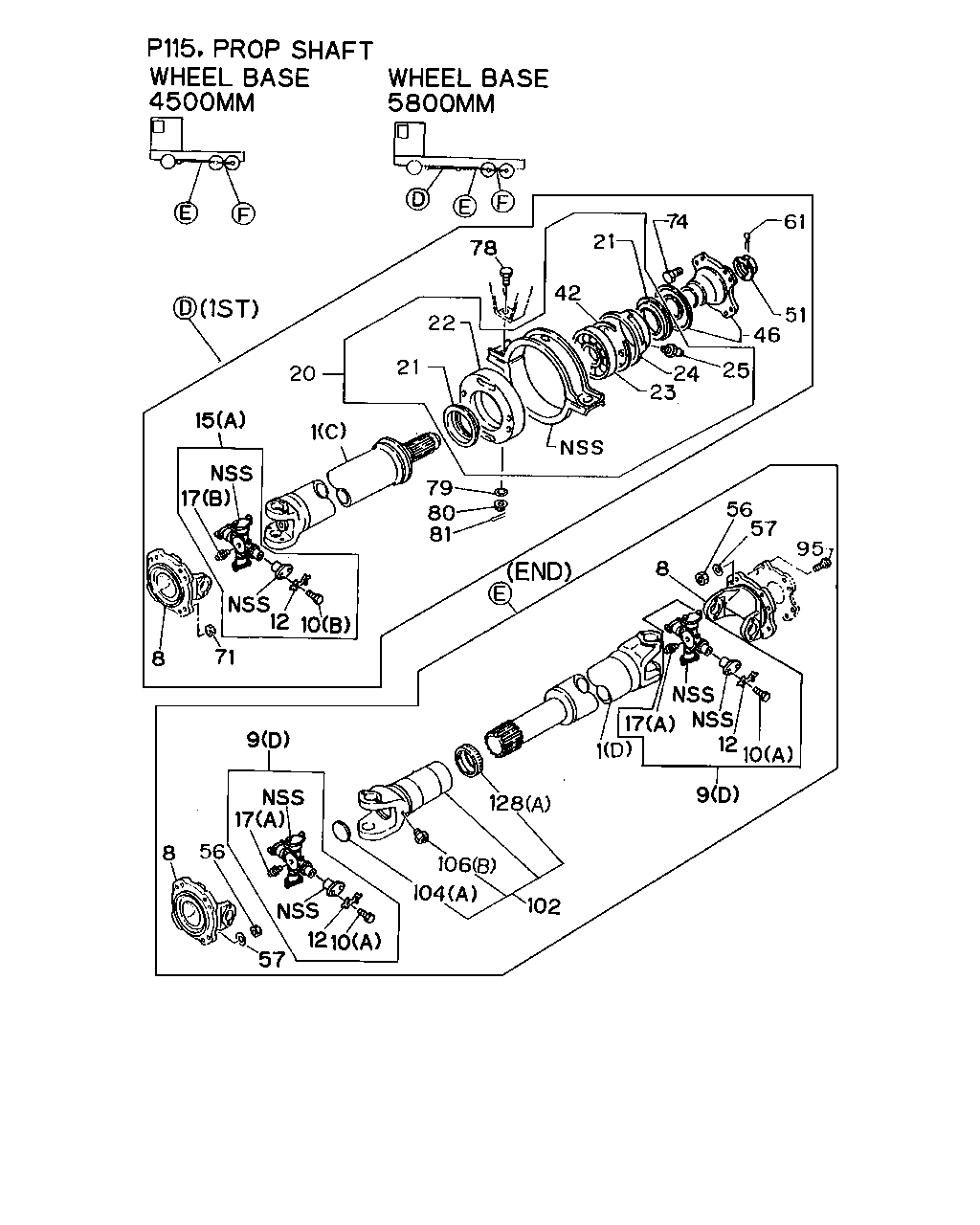

çizim 4710
78 22 21 20 15 17 8 71 9 17 56 8 57 104 102 128 106 1 9 10 12 95 57 56 8 10 12 81 80 79 23 24 25 46 51 61 74 42 21
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 SHAFT; PROP
MAF5D M/T(X4G) P90 PROP SHAFT<C5T> (B) L=739 		1-37117-586-0 01 1 9002-9306 ●
1 SHAFT; PROP
MAG6W M/T(X8B) P90 PROP SHAFT<C5T> (B) L=887 		1-37117-591-0 01 1 9002-9306 ●
1 SHAFT; PROP
MAG6W M/T(X8B) P90 PROP SHAFT<C5T> (B) L=1002 		1-37123-662-0 01 1 9307- ●
1 SHAFT; PROP
MJA6A M/T(X6V) P115 PROP SHAFT<C5X> (D) L=929 		1-37117-608-0 01 1 9002-9306 ●
1 SHAFT; PROP
MJA6A M/T(X6V) P115 PROP SHAFT<C5X> (D) L=1049 		1-37123-077-0 01 1 9307- ●
1 SHAFT; PROP
MJA6A M/T(X6V) P90 PROP SHAFT<C5T> (B) L=727 		1-37117-294-0 01 1 9002-9306 ●
1 SHAFT; PROP
MJA6A M/T(X6V) P90 PROP SHAFT<C5T> (B) L=852 		1-37151-177-0 01 1 9307- ●
1 SHAFT; PROP
MJA7T M/T(X6F) 10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> (B) L=837 		1-37117-592-0 01 1 9002-9306 ●
1 SHAFT; PROP
MJA7T M/T(X6F),RTX11609B M/T FULLER(X8W) P115 PROP SHAFT<C5X> (D) L=838 		1-37123-075-0 01 1 9307- ●
1 SHAFT; PROP
MJA7U M/T(X6G) P90 PROP SHAFT<C5T> (B) L=612 		1-37117-587-0 01 1 9002-9306 ●
1 SHAFT; PROP
MJA7T M/T(X6F) 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> (B) L=612 		1-37117-587-0 01 1 9002-9306 ●
1 SHAFT; PROP
MJA7U M/T(X6G) P90 PROP SHAFT<C5T> (B) L=727 		1-37117-294-0 01 1 9307- ●
1 SHAFT; PROP
MJA7T M/T(X6F) 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> (B) L=727 		1-37117-294-0 01 1 9307- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> DESERT ZONE PACKAGE(W01) (B) L=741 		1-37123-361-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> DESERT ZONE PACKAGE(W01) (B) L=846 		1-37123-359-0 01 1 9307- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> EXC. DESERT ZONE PACKAGE(W01) (B) L=748 		1-37123-242-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> EXC. DESERT ZONE PACKAGE(W01) (B) L=851 		1-37123-251-0 01 1 9307- ●
1 SHAFT; PROP
RT11609A M/T FULLER(PQ4),RTO11609B M/T FULLER(X4Z),RTX11609B M/T FULLER(X8W) P115 PROP SHAFT<C5X> (D) L=724 		1-37117-606-0 01 1 9002-9306 ●
1 SHAFT; PROP
10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> MJA7T M/T(X6F) (B) L=957 		1-37117-362-0 01 1 9307- ●
1 SHAFT; PROP
10PD1 STD ENG(40L) RTO11613 M/T FULLER(MV6) P115 PROP SHAFT<C5X> (D) L=874 		1-37123-165-0 01 1 9002-9306 ●
1 SHAFT; PROP
6RB1 STD ENG(07L) RTO11613 M/T FULLER(MV6) P115 PROP SHAFT<C5X> (D) L=644 		1-37117-607-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=681 		1-37123-255-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=781 		1-37123-262-0 01 1 9307- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (B) L=642 		1-37123-564-0 01 1 9002-9306 ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (B) L=1128 		1-37123-722-0 01 1 9307- ●
1 SHAFT; PROP
MAF5D M/T(X4G) P90 PROP SHAFT<C5T> (A) L=1133 		1-37123-514-0 01 1 9307- ● ● ●
1 SHAFT; PROP
MAF5D M/T(X4G) P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1128 		1-37117-569-0 01 1 9002-9306 ● ● ●
1 SHAFT; PROP
10PD1 STD ENG(40L) MJA7T M/T(X6F) P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1128 		1-37117-569-0 01 1 9002-9306 ● ● ●
1 SHAFT; PROP
MAF5D M/T(X4G) P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1133 		1-37123-514-0 01 1 9002-9306 ● ● ●
1 SHAFT; PROP
MJA6A M/T(X6V) P90 PROP SHAFT<C5T> (A) L=1023 		1-37117-576-0 01 1 9002- ● ● ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1005 		1-37116-863-0 01 1 9002- ● ● ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1015 		1-37116-850-0 01 1 9002- ● ● ●
1 SHAFT; PROP
10PD1 STD ENG(40L) MJA7T M/T(X6F) P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1123 		1-37117-296-0 01 1 9002- ● ● ●
1 SHAFT; PROP
MJA7T M/T(X6F) (A) L=1123 		1-37117-296-0 01 1 9002- ● ●
1 SHAFT; PROP
10PD1 STD ENG(40L) MJA7T M/T(X6F) P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1128 		1-37117-569-0 01 1 9307- ● ● ●
1 SHAFT; PROP
MJA7T M/T(X6F) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1128 		1-37117-569-0 01 1 9307- ● ●
1 SHAFT; PROP
6RB1 STD ENG(07L) MJA7T M/T(X6F),MJA7U M/T(X6G) P90 PROP SHAFT<C5T> (A) L=913 		1-37117-577-0 01 1 9002- ● ● ●
1 SHAFT; PROP
(E) L=1157 		1-37123-495-0 01 1 9002- ●
1 SHAFT; PROP
MAG6W M/T(X8B) (A) L=1173 		1-37117-038-0 01 1 9002-9306 ● ●
1 SHAFT; PROP
MAG6W M/T(X8B) P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1173 		1-37117-038-0 01 1 9002-9306 ●
1 SHAFT; PROP
MAG6W M/T(X8B) P90 PROP SHAFT<C5T> (A) L=1178 		1-37117-341-0 01 1 9312- ●
1 SHAFT; PROP
MAG6W M/T(X8B) P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1178 		1-37117-341-0 01 1 9312- ●
1 SHAFT; PROP
MAG6W M/T(X8B) P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1178 		1-37117-341-0 01 1 9002-9306 ●
1 SHAFT; PROP
MJA6A M/T(X6V) P115 PROP SHAFT<C5X> (C) L=1229 		1-37117-598-0 01 1 9002- ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> (D) L=1090 		1-37123-659-0 01 1 9307- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> DESERT ZONE PACKAGE(W01) (B) L=961 		1-37123-266-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> DESERT ZONE PACKAGE(W01) (B) L=1071 		1-37123-715-0 01 1 9307- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> EXC. DESERT ZONE PACKAGE(W01) (B) L=971 		1-37123-231-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> EXC. DESERT ZONE PACKAGE(W01) (B) L=1071 		1-37123-224-0 01 1 9307- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (B) L=1057 		1-37123-657-0 01 1 9307- ●
1 SHAFT; PROP
RT11609A M/T FULLER(PQ4),RTO11609B M/T FULLER(X4Z),RTX11609B M/T FULLER(X8W) P115 PROP SHAFT<C5X> (C) L=1044 		1-37117-016-0 01 1 9002-9306 ●
1 SHAFT; PROP
RTX11609B M/T FULLER(X8W) P115 PROP SHAFT<C5X> (C) L=1044 		1-37117-016-0 01 1 9307- ●
1 SHAFT; PROP
10PD1 STD ENG(40L) P115 PROP SHAFT<C5X> (D) L=909 		1-37131-210-1 01 1 9002-9306 ●
1 SHAFT; PROP
10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> (B) L=942 		1-37123-468-0 01 1 9002-9306 ●
1 SHAFT; PROP
10PD1 STD ENG(40L) RTO11613 M/T FULLER(MV6) P115 PROP SHAFT<C5X> (C) L=681 		1-37117-025-0 01 1 9002-9306 ●
1 SHAFT; PROP
6RB1 STD ENG(07L) P115 PROP SHAFT<C5X> (D) L=898.9 		1-37131-216-1 01 1 9002-9306 ●
1 SHAFT; PROP
6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> (B) L=927 		1-37123-565-0 01 1 9002-9306 ●
1 SHAFT; PROP
6RB1 STD ENG(07L) RTO11613 M/T FULLER(MV6) P115 PROP SHAFT<C5X> (C) L=964 		1-37117-026-0 01 1 9002- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=1516 		1-37123-195-0 01 1 9002-9306 ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (B) L=1477 		1-37123-566-0 01 1 9002-9306 ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (B) L=1607 		1-37123-708-0 01 1 9307- ●
1 SHAFT; PROP
10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR(PJ8) MAG5 M/T<X9N> (A) L=1283 		1-37117-378-0 01 1 9307- ●
1 SHAFT; PROP
(E) L=937 		1-37117-041-0 01 1 9002- ●
1 SHAFT; PROP
(F) L=987 		1-37123-486-0 01 1 9002- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> 		1-37211-040-0 01 1 9002- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> 		1-37211-040-0 01 1 9002- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> 		1-37211-040-0 01 1 9002- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37211-050-1 01 1 9002- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37211-050-1 01 1 9002- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37211-050-1 01 1 9002- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37211-047-2 01 1 9002- ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37211-047-2 01 1 9002- ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37211-047-2 01 1 9002- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-050-1 01 1 9002- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-050-1 01 1 9002- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-050-1 01 1 9002- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-050-1 01 1 9002- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (A) 		1-37300-082-0 AR 1 9002- ● ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-074-0 01 1 9002-9009 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-079-0 01 1 9010- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-056-0 AR 1 9002- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> (D) 		1-37300-062-0 01 1 9002- ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> (D) 		1-37300-062-0 01 1 9002- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (B) 		1-37300-085-0 AR 1 9002- ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (B) 		1-37300-086-0 AR 1 9002- ● ● ●
10 BOLT; UJT
(A) M12X45 		9-91066-245-0 04 1 9002- ● ● ● ●
10 BOLT; UJT
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (C) M8X20 		9-09802-702-0 16 1 9002- ● ● ● ●
10 BOLT; UJT
(C) M8X20 		9-09802-702-0 16 1 9002- ●
10 BOLT; UJT
P115 PROP SHAFT<C5X> (B) 		1-37359-001-0 16 1 9307- ● ●
10 BOLT; UJT
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (B) M8X20 		9-09802-702-0 08 1 9002- ● ● ● ● ●
10 BOLT; UJT
P115 PROP SHAFT<C5X> (B) 		1-37359-001-0 08 1 9307- ●
10 BOLT; UJT
P90 PROP SHAFT<C5T> (C) M8X20 		9-09802-702-0 24 1 9002- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-37356-006-1 04 1 9002- ● ● ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-37356-006-1 04 1 9002- ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-37356-006-1 08 1 9002- ● ● ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-37356-006-1 08 1 9002- ● ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> 		9-37356-007-0 04 1 9002- ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> 		9-37356-007-0 04 1 9002- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37356-007-0 08 1 9307- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37356-007-0 04 1 9307- ●
15 UNIVERSAL CENTER
(B) 		1-37300-074-0 01 1 9002-9009 ● ● ● ●
15 UNIVERSAL CENTER
(B) 		1-37300-079-0 01 1 9010- ● ● ● ●
15 UNIVERSAL CENTER
P115 PROP SHAFT<C5X> (A) 		1-37300-062-0 01 1 9002- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A),(C) PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9307- ● ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (A),(C) PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9307- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B),(C) PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9002-9306 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (B),(C) PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9002-9306 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> (B),(C) PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9002-9306 ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT<C5X> (A) 		1-37319-005-0 04 1 9307- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> (A) PT1/8 ELBOW 67.5? 		9-09031-110-0 01 1 9002-9306 ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> (A) PT1/8 ELBOW 67.5? 		9-09031-110-0 03 1 9002-9306 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) PT1/8 ELBOW 		9-09031-210-0 01 1 9307- ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) PT1/8 ELBOW 		9-09031-210-0 01 1 9307- ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT<C5X> (B) 		1-37319-005-0 02 1 9307- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37510-094-3 01 1 9002- ● ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37510-094-3 01 1 9002- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT<C2M> 		1-37510-093-3 01 1 9002- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37510-101-0 01 1 9002- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> D=120 		1-09625-127-0 02 1 9002- ● ● ● ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> D=120 		1-09625-127-0 02 1 9002- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT<C2M> D=120 		1-09625-126-0 02 1 9002- ● ● ●
21 SEAL; OIL,CENTER BRG
P115 PROP SHAFT<C5X> OD=114 		1-09625-222-1 02 1 9002- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT<C5T> 		1-37516-048-2 01 1 9002- ● ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT<C5T> 		1-37516-048-2 01 1 9002- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT<C2M> 		1-37516-047-2 01 1 9002- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P115 PROP SHAFT<C5X> 		1-37516-056-0 01 1 9002- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-00090-256-0 01 1 9002- ● ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-00090-256-0 01 1 9002- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT<C2M> 		9-00090-292-0 01 1 9002- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-09800-210-0 01 1 9002- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT<C5T> 		1-37529-041-0 01 1 9002- ● ● ● ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT<C5T> 		1-37529-041-0 01 1 9002- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT<C2M> 		1-37529-039-0 01 1 9002- ● ● ●
24 RETAINER; CENTER BRG,1ST
P115 PROP SHAFT<C5X> 		1-37529-067-0 01 1 9002- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9002- ● ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT<C5T> MT6 STRAIGHT 		1-09380-006-0 01 1 9002- ●
42 RING; SNAP,CTR BRG
P115 PROP SHAFT<C5X> 		1-09587-085-0 01 1 9002- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> 		1-37245-052-0 01 1 9002-9408 ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> 		1-37245-052-0 01 1 9002-9408 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> 		1-37245-271-1 01 1 9409- ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> 		1-37245-271-1 01 1 9409- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> 		1-37245-051-0 01 1 9002-9408 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> 		1-37245-283-1 01 1 9409- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P115 PROP SHAFT<C5X> 		1-37240-088-1 01 1 9002- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT<C5T> M39 		1-09440-035-0 01 1 9002- ● ● ● ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT<C5T> M39 		1-09440-035-0 01 1 9002- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT<C2M> M33 		1-09449-001-0 01 1 9002- ● ● ●
51 NUT; FLANGE,SPLINED
P115 PROP SHAFT<C5X> M45 		1-09449-057-1 01 1 9002- ●
56 NUT; YOKE
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> M16 FLANGE 		1-09449-065-0 04 1 9002- ● ● ● ●
56 NUT; YOKE
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> M16 FLANGE 		1-09449-065-0 04 1 9002- ● ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9002- ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9002- ● ●
56 NUT; YOKE
P115 PROP SHAFT<C5X> M16 FLANGE 		1-09449-065-0 08 1 9002- ● ●
56 NUT; YOKE
P115 PROP SHAFT<C5X> M16 FLANGE 		1-09449-065-0 08 1 9002- ●
57 WASHER; LK,YOKE
ID=12.2 		9-09150-612-0 08 1 9002- ● ● ● ●
61 PIN; SPLIT
P115 PROP SHAFT<C5X> 		9-08108-080-0 01 1 9002- ●
71 NUT; YOKE
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> M16 FLANGE 		1-09449-065-0 04 1 9002- ● ● ● ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9002- ● ●
71 NUT; YOKE
P115 PROP SHAFT<C5X> M16 FLANGE 		1-09449-065-0 08 1 9002- ● ●
74 BOLT; YOKE,TRANS
P115 PROP SHAFT<C5X> M16X48 		1-09000-383-0 08 1 9307- ● ●
74 BOLT; YOKE,TRANS
P115 PROP SHAFT<C5X> M16X48 		1-09000-383-0 08 1 9307- ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> M16X48 		1-09000-383-0 04 1 9307- ● ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 9307- ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 9307- ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 9002- ● ● ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-0 02 1 9002- ● ● ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		9-99116-516-0 02 1 9002- ● ● ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		9-08114-025-0 02 1 9002- ● ● ● ● ●
95 BOLT; YOKE,FINAL
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> M16X48 		1-09000-383-0 04 1 9002- ● ● ● ●
95 BOLT; YOKE,FINAL
M16X48 		1-09000-383-0 04 1 9002- ● ●
95 BOLT; YOKE,FINAL
P115 PROP SHAFT<C5X> M16X48 		1-09000-383-0 08 1 9002- ● ●
102 YOKE; TRANSFER TO AXLE
P115 PROP SHAFT<C5X> 		1-37240-086-0 01 1 9002- ●
102 YOKE; TRANSFER TO AXLE
6RB1 STD ENG(07L) P115 PROP SHAFT<C5X> 		1-37240-086-0 01 1 9002- ●
102 YOKE; TRANSFER TO AXLE
10PD1 STD ENG(40L) P115 PROP SHAFT<C5X> 		1-37240-087-0 01 1 9002- ●
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT<C5T> (A) 		1-09600-067-0 01 1 9002- ● ● ● ● ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 9002- ● ● ● ●
104 PLUG; SLEEVE YOKE
P60 PROP SHAFT<C2M> (A) 		9-09860-507-0 01 1 9002- ● ● ● ●
104 PLUG; SLEEVE YOKE
P115 PROP SHAFT<C5X> (A) 		1-37248-011-0 01 1 9109- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9002- ● ● ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9002- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT<C5X> (B) 		1-37248-010-0 01 1 9002- ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT<C5T> (A) 		1-37247-016-0 01 1 9002- ● ● ● ● ● ●
128 SEAL; SLEEVE
(B) 		1-37247-006-0 01 1 9002- ● ● ● ●
128 SEAL; SLEEVE
P60 PROP SHAFT<C2M> DESERT ZONE PACKAGE(W01) (A) 		1-37247-012-0 01 1 9002- ● ● ● ●
128 SEAL; SLEEVE
P115 PROP SHAFT<C5X> (A) 		1-37247-013-0 01 1 9002- ● ●

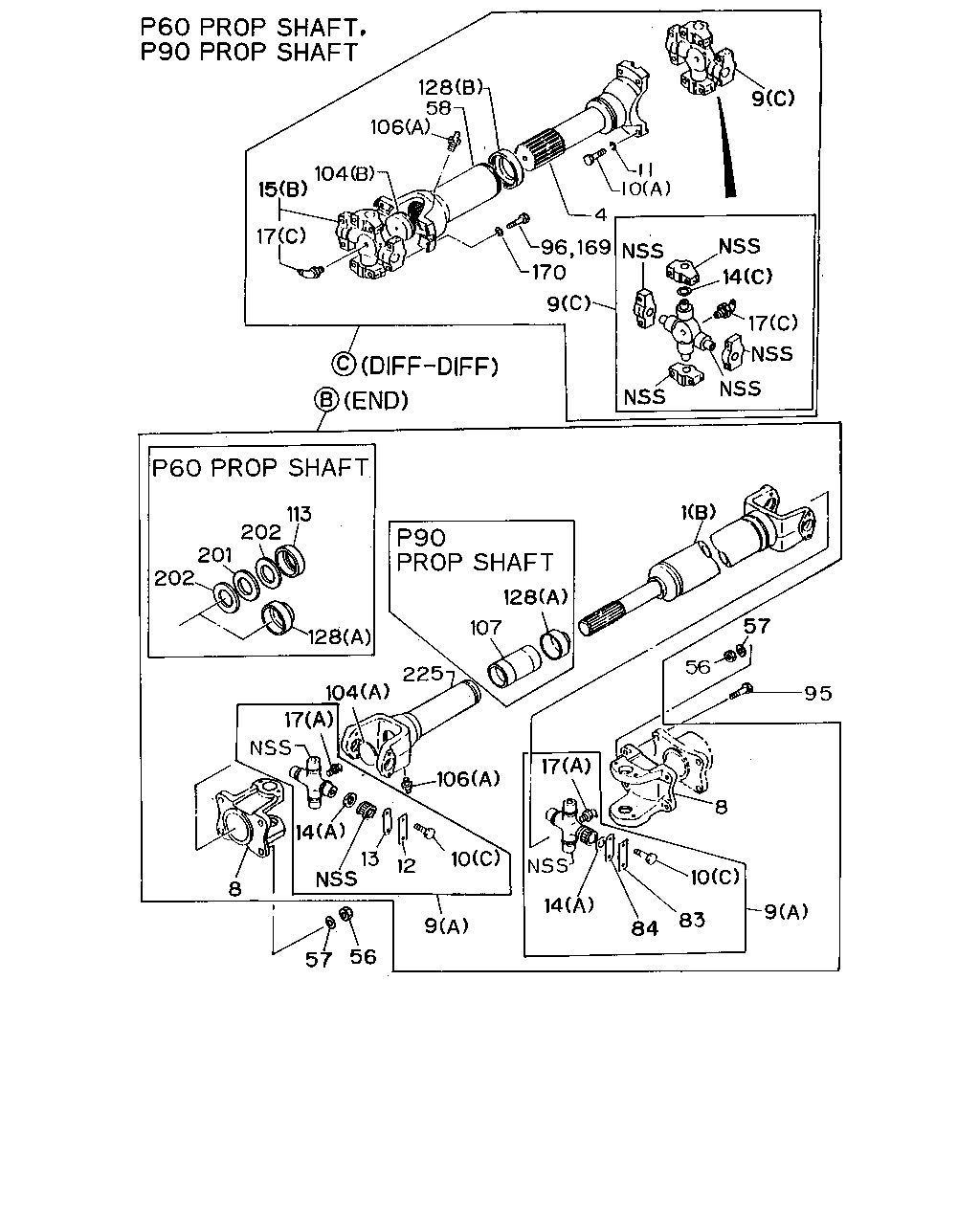

çizim 5109
9 11 128 10 58 106 104 4 15 169 96 17 170 14 9 17 1 113 202 201 202 128 128 107 225 104 17 14 8 57 56 12 13 106 17 84 83 9 8 95 56 57 9 14 10 10
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 SHAFT; PROP
MAF5D M/T(X4G) P90 PROP SHAFT<C5T> (B) L=739 		1-37117-586-0 01 1 9002-9306 ●
1 SHAFT; PROP
MAG6W M/T(X8B) P90 PROP SHAFT<C5T> (B) L=887 		1-37117-591-0 01 1 9002-9306 ●
1 SHAFT; PROP
MAG6W M/T(X8B) P90 PROP SHAFT<C5T> (B) L=1002 		1-37123-662-0 01 1 9307- ●
1 SHAFT; PROP
MJA6A M/T(X6V) P115 PROP SHAFT<C5X> (D) L=929 		1-37117-608-0 01 1 9002-9306 ●
1 SHAFT; PROP
MJA6A M/T(X6V) P115 PROP SHAFT<C5X> (D) L=1049 		1-37123-077-0 01 1 9307- ●
1 SHAFT; PROP
MJA6A M/T(X6V) P90 PROP SHAFT<C5T> (B) L=727 		1-37117-294-0 01 1 9002-9306 ●
1 SHAFT; PROP
MJA6A M/T(X6V) P90 PROP SHAFT<C5T> (B) L=852 		1-37151-177-0 01 1 9307- ●
1 SHAFT; PROP
MJA7T M/T(X6F) 10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> (B) L=837 		1-37117-592-0 01 1 9002-9306 ●
1 SHAFT; PROP
MJA7T M/T(X6F),RTX11609B M/T FULLER(X8W) P115 PROP SHAFT<C5X> (D) L=838 		1-37123-075-0 01 1 9307- ●
1 SHAFT; PROP
MJA7U M/T(X6G) P90 PROP SHAFT<C5T> (B) L=612 		1-37117-587-0 01 1 9002-9306 ●
1 SHAFT; PROP
MJA7T M/T(X6F) 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> (B) L=612 		1-37117-587-0 01 1 9002-9306 ●
1 SHAFT; PROP
MJA7U M/T(X6G) P90 PROP SHAFT<C5T> (B) L=727 		1-37117-294-0 01 1 9307- ●
1 SHAFT; PROP
MJA7T M/T(X6F) 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> (B) L=727 		1-37117-294-0 01 1 9307- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> DESERT ZONE PACKAGE(W01) (B) L=741 		1-37123-361-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> DESERT ZONE PACKAGE(W01) (B) L=846 		1-37123-359-0 01 1 9307- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> EXC. DESERT ZONE PACKAGE(W01) (B) L=748 		1-37123-242-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> EXC. DESERT ZONE PACKAGE(W01) (B) L=851 		1-37123-251-0 01 1 9307- ●
1 SHAFT; PROP
RT11609A M/T FULLER(PQ4),RTO11609B M/T FULLER(X4Z),RTX11609B M/T FULLER(X8W) P115 PROP SHAFT<C5X> (D) L=724 		1-37117-606-0 01 1 9002-9306 ●
1 SHAFT; PROP
10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> MJA7T M/T(X6F) (B) L=957 		1-37117-362-0 01 1 9307- ●
1 SHAFT; PROP
10PD1 STD ENG(40L) RTO11613 M/T FULLER(MV6) P115 PROP SHAFT<C5X> (D) L=874 		1-37123-165-0 01 1 9002-9306 ●
1 SHAFT; PROP
6RB1 STD ENG(07L) RTO11613 M/T FULLER(MV6) P115 PROP SHAFT<C5X> (D) L=644 		1-37117-607-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=681 		1-37123-255-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=781 		1-37123-262-0 01 1 9307- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (B) L=642 		1-37123-564-0 01 1 9002-9306 ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (B) L=1128 		1-37123-722-0 01 1 9307- ●
1 SHAFT; PROP
MAF5D M/T(X4G) P90 PROP SHAFT<C5T> (A) L=1133 		1-37123-514-0 01 1 9307- ● ● ●
1 SHAFT; PROP
MAF5D M/T(X4G) P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1128 		1-37117-569-0 01 1 9002-9306 ● ● ●
1 SHAFT; PROP
10PD1 STD ENG(40L) MJA7T M/T(X6F) P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1128 		1-37117-569-0 01 1 9002-9306 ● ● ●
1 SHAFT; PROP
MAF5D M/T(X4G) P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1133 		1-37123-514-0 01 1 9002-9306 ● ● ●
1 SHAFT; PROP
MJA6A M/T(X6V) P90 PROP SHAFT<C5T> (A) L=1023 		1-37117-576-0 01 1 9002- ● ● ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1005 		1-37116-863-0 01 1 9002- ● ● ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1015 		1-37116-850-0 01 1 9002- ● ● ●
1 SHAFT; PROP
10PD1 STD ENG(40L) MJA7T M/T(X6F) P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1123 		1-37117-296-0 01 1 9002- ● ● ●
1 SHAFT; PROP
MJA7T M/T(X6F) (A) L=1123 		1-37117-296-0 01 1 9002- ● ●
1 SHAFT; PROP
10PD1 STD ENG(40L) MJA7T M/T(X6F) P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1128 		1-37117-569-0 01 1 9307- ● ● ●
1 SHAFT; PROP
MJA7T M/T(X6F) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1128 		1-37117-569-0 01 1 9307- ● ●
1 SHAFT; PROP
6RB1 STD ENG(07L) MJA7T M/T(X6F),MJA7U M/T(X6G) P90 PROP SHAFT<C5T> (A) L=913 		1-37117-577-0 01 1 9002- ● ● ●
1 SHAFT; PROP
(E) L=1157 		1-37123-495-0 01 1 9002- ●
1 SHAFT; PROP
MAG6W M/T(X8B) (A) L=1173 		1-37117-038-0 01 1 9002-9306 ● ●
1 SHAFT; PROP
MAG6W M/T(X8B) P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1173 		1-37117-038-0 01 1 9002-9306 ●
1 SHAFT; PROP
MAG6W M/T(X8B) P90 PROP SHAFT<C5T> (A) L=1178 		1-37117-341-0 01 1 9312- ●
1 SHAFT; PROP
MAG6W M/T(X8B) P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1178 		1-37117-341-0 01 1 9312- ●
1 SHAFT; PROP
MAG6W M/T(X8B) P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1178 		1-37117-341-0 01 1 9002-9306 ●
1 SHAFT; PROP
MJA6A M/T(X6V) P115 PROP SHAFT<C5X> (C) L=1229 		1-37117-598-0 01 1 9002- ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> (D) L=1090 		1-37123-659-0 01 1 9307- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> DESERT ZONE PACKAGE(W01) (B) L=961 		1-37123-266-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> DESERT ZONE PACKAGE(W01) (B) L=1071 		1-37123-715-0 01 1 9307- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> EXC. DESERT ZONE PACKAGE(W01) (B) L=971 		1-37123-231-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> EXC. DESERT ZONE PACKAGE(W01) (B) L=1071 		1-37123-224-0 01 1 9307- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (B) L=1057 		1-37123-657-0 01 1 9307- ●
1 SHAFT; PROP
RT11609A M/T FULLER(PQ4),RTO11609B M/T FULLER(X4Z),RTX11609B M/T FULLER(X8W) P115 PROP SHAFT<C5X> (C) L=1044 		1-37117-016-0 01 1 9002-9306 ●
1 SHAFT; PROP
RTX11609B M/T FULLER(X8W) P115 PROP SHAFT<C5X> (C) L=1044 		1-37117-016-0 01 1 9307- ●
1 SHAFT; PROP
10PD1 STD ENG(40L) P115 PROP SHAFT<C5X> (D) L=909 		1-37131-210-1 01 1 9002-9306 ●
1 SHAFT; PROP
10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> (B) L=942 		1-37123-468-0 01 1 9002-9306 ●
1 SHAFT; PROP
10PD1 STD ENG(40L) RTO11613 M/T FULLER(MV6) P115 PROP SHAFT<C5X> (C) L=681 		1-37117-025-0 01 1 9002-9306 ●
1 SHAFT; PROP
6RB1 STD ENG(07L) P115 PROP SHAFT<C5X> (D) L=898.9 		1-37131-216-1 01 1 9002-9306 ●
1 SHAFT; PROP
6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> (B) L=927 		1-37123-565-0 01 1 9002-9306 ●
1 SHAFT; PROP
6RB1 STD ENG(07L) RTO11613 M/T FULLER(MV6) P115 PROP SHAFT<C5X> (C) L=964 		1-37117-026-0 01 1 9002- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=1516 		1-37123-195-0 01 1 9002-9306 ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (B) L=1477 		1-37123-566-0 01 1 9002-9306 ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (B) L=1607 		1-37123-708-0 01 1 9307- ●
1 SHAFT; PROP
10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR(PJ8) MAG5 M/T<X9N> (A) L=1283 		1-37117-378-0 01 1 9307- ●
1 SHAFT; PROP
(E) L=937 		1-37117-041-0 01 1 9002- ●
1 SHAFT; PROP
(F) L=987 		1-37123-486-0 01 1 9002- ●
4 SHAFT; PROP
L=348 		1-37171-058-0 01 1 9002- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> 		1-37211-040-0 01 1 9002- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> 		1-37211-040-0 01 1 9002- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> 		1-37211-040-0 01 1 9002- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37211-050-1 01 1 9002- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37211-050-1 01 1 9002- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37211-050-1 01 1 9002- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37211-047-2 01 1 9002- ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37211-047-2 01 1 9002- ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37211-047-2 01 1 9002- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-050-1 01 1 9002- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-050-1 01 1 9002- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-050-1 01 1 9002- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-050-1 01 1 9002- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (A) 		1-37300-082-0 AR 1 9002- ● ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-074-0 01 1 9002-9009 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-079-0 01 1 9010- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-056-0 AR 1 9002- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> (D) 		1-37300-062-0 01 1 9002- ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> (D) 		1-37300-062-0 01 1 9002- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (B) 		1-37300-085-0 AR 1 9002- ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (B) 		1-37300-086-0 AR 1 9002- ● ● ●
10 BOLT; UJT
(A) M12X45 		9-91066-245-0 04 1 9002- ● ● ● ●
10 BOLT; UJT
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (C) M8X20 		9-09802-702-0 16 1 9002- ● ● ● ●
10 BOLT; UJT
(C) M8X20 		9-09802-702-0 16 1 9002- ●
10 BOLT; UJT
P115 PROP SHAFT<C5X> (B) 		1-37359-001-0 16 1 9307- ● ●
10 BOLT; UJT
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (B) M8X20 		9-09802-702-0 08 1 9002- ● ● ● ● ●
10 BOLT; UJT
P115 PROP SHAFT<C5X> (B) 		1-37359-001-0 08 1 9307- ●
10 BOLT; UJT
P90 PROP SHAFT<C5T> (C) M8X20 		9-09802-702-0 24 1 9002- ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		9-09150-612-0 04 1 9002- ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-37356-006-1 04 1 9002- ● ● ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-37356-006-1 04 1 9002- ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-37356-006-1 08 1 9002- ● ● ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-37356-006-1 08 1 9002- ● ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> 		9-37356-007-0 04 1 9002- ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> 		9-37356-007-0 04 1 9002- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37356-007-0 08 1 9307- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37356-007-0 04 1 9307- ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37355-003-1 04 1 9002- ● ● ● ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37355-003-1 04 1 9002- ● ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> 		1-37355-011-0 04 1 9002- ● ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> 		1-37355-011-0 04 1 9002- ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37355-003-1 08 1 9002- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (A) 		1-37249-130-0 08 1 9002- ● ● ● ● ●
14 COVER; DUST,SPIDER
(C) 		1-37319-004-0 08 1 9002- ● ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) 		9-37352-023-0 08 1 9002- ● ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) 		1-37249-130-0 04 1 9002- ● ● ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) 		9-37352-023-0 04 1 9002- ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (A) 		1-37249-130-0 12 1 9002- ●
15 UNIVERSAL CENTER
(B) 		1-37300-074-0 01 1 9002-9009 ● ● ● ●
15 UNIVERSAL CENTER
(B) 		1-37300-079-0 01 1 9010- ● ● ● ●
15 UNIVERSAL CENTER
P115 PROP SHAFT<C5X> (A) 		1-37300-062-0 01 1 9002- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A),(C) PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9307- ● ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (A),(C) PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9307- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B),(C) PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9002-9306 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (B),(C) PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9002-9306 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> (B),(C) PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9002-9306 ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT<C5X> (A) 		1-37319-005-0 04 1 9307- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> (A) PT1/8 ELBOW 67.5? 		9-09031-110-0 01 1 9002-9306 ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> (A) PT1/8 ELBOW 67.5? 		9-09031-110-0 03 1 9002-9306 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) PT1/8 ELBOW 		9-09031-210-0 01 1 9307- ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) PT1/8 ELBOW 		9-09031-210-0 01 1 9307- ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT<C5X> (B) 		1-37319-005-0 02 1 9307- ●
56 NUT; YOKE
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> M16 FLANGE 		1-09449-065-0 04 1 9002- ● ● ● ●
56 NUT; YOKE
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> M16 FLANGE 		1-09449-065-0 04 1 9002- ● ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9002- ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9002- ● ●
56 NUT; YOKE
P115 PROP SHAFT<C5X> M16 FLANGE 		1-09449-065-0 08 1 9002- ● ●
56 NUT; YOKE
P115 PROP SHAFT<C5X> M16 FLANGE 		1-09449-065-0 08 1 9002- ●
57 WASHER; LK,YOKE
ID=12.2 		9-09150-612-0 08 1 9002- ● ● ● ●
58 FLANGE; SPLINED
L=264 		1-37245-157-1 01 1 9002- ● ● ● ●
83 PLATE; LK,UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-37356-006-1 04 1 9002- ● ● ● ● ● ●
83 PLATE; LK,UJT,PROP SHAFT
P60 PROP SHAFT<C2M> 		9-37356-007-0 04 1 9002- ● ● ● ●
84 COVER; UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37355-003-1 04 1 9002- ● ● ● ● ● ●
84 COVER; UJT,PROP SHAFT
P60 PROP SHAFT<C2M> T=4.5 		1-37355-011-0 04 1 9002- ● ● ● ●
95 BOLT; YOKE,FINAL
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> M16X48 		1-09000-383-0 04 1 9002- ● ● ● ●
95 BOLT; YOKE,FINAL
M16X48 		1-09000-383-0 04 1 9002- ● ●
95 BOLT; YOKE,FINAL
P115 PROP SHAFT<C5X> M16X48 		1-09000-383-0 08 1 9002- ● ●
96 BOLT; PROP SHAFT
M12X45 		9-91066-245-0 08 1 9002- ● ● ● ●
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT<C5T> (A) 		1-09600-067-0 01 1 9002- ● ● ● ● ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 9002- ● ● ● ●
104 PLUG; SLEEVE YOKE
P60 PROP SHAFT<C2M> (A) 		9-09860-507-0 01 1 9002- ● ● ● ●
104 PLUG; SLEEVE YOKE
P115 PROP SHAFT<C5X> (A) 		1-37248-011-0 01 1 9109- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9002- ● ● ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9002- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT<C5X> (B) 		1-37248-010-0 01 1 9002- ● ●
107 COVER; RET,SLEEVE
P90 PROP SHAFT<C5T> 		1-37249-039-1 01 1 9002- ● ● ● ● ● ●
113 RETAINER; OIL SEAL,SLEEVE
P60 PROP SHAFT<C2M> EXC. DESERT ZONE PACKAGE(W01) 		9-37248-013-0 01 1 9002- ● ● ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT<C5T> (A) 		1-37247-016-0 01 1 9002- ● ● ● ● ● ●
128 SEAL; SLEEVE
(B) 		1-37247-006-0 01 1 9002- ● ● ● ●
128 SEAL; SLEEVE
P60 PROP SHAFT<C2M> DESERT ZONE PACKAGE(W01) (A) 		1-37247-012-0 01 1 9002- ● ● ● ●
128 SEAL; SLEEVE
P115 PROP SHAFT<C5X> (A) 		1-37247-013-0 01 1 9002- ● ●
169 BOLT; YOKE,SLEEVE
M12X45 		9-91066-245-0 04 1 9002- ● ● ● ●
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		9-09150-612-0 04 1 9002- ● ● ● ●
201 RING; FELT,SLEEVE
P60 PROP SHAFT<C2M> EXC. DESERT ZONE PACKAGE(W01) 		9-09922-121-0 01 1 9002- ● ● ● ●
202 RING; FELT SEAL,SLEEVE
P60 PROP SHAFT<C2M> EXC. DESERT ZONE PACKAGE(W01) 		9-37249-105-0 02 1 9002- ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37241-090-1 01 1 9002-9106 ● ● ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37241-097-0 01 1 9107- ● ● ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT<C2M> DESERT ZONE PACKAGE(W01) 		1-37241-071-0 01 1 9002- ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT<C2M> EXC. DESERT ZONE PACKAGE(W01) 		1-37241-024-0 01 1 9002-9106 ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT<C2M> EXC. DESERT ZONE PACKAGE(W01) 		1-37241-100-0 01 1 9107- ● ● ● ●

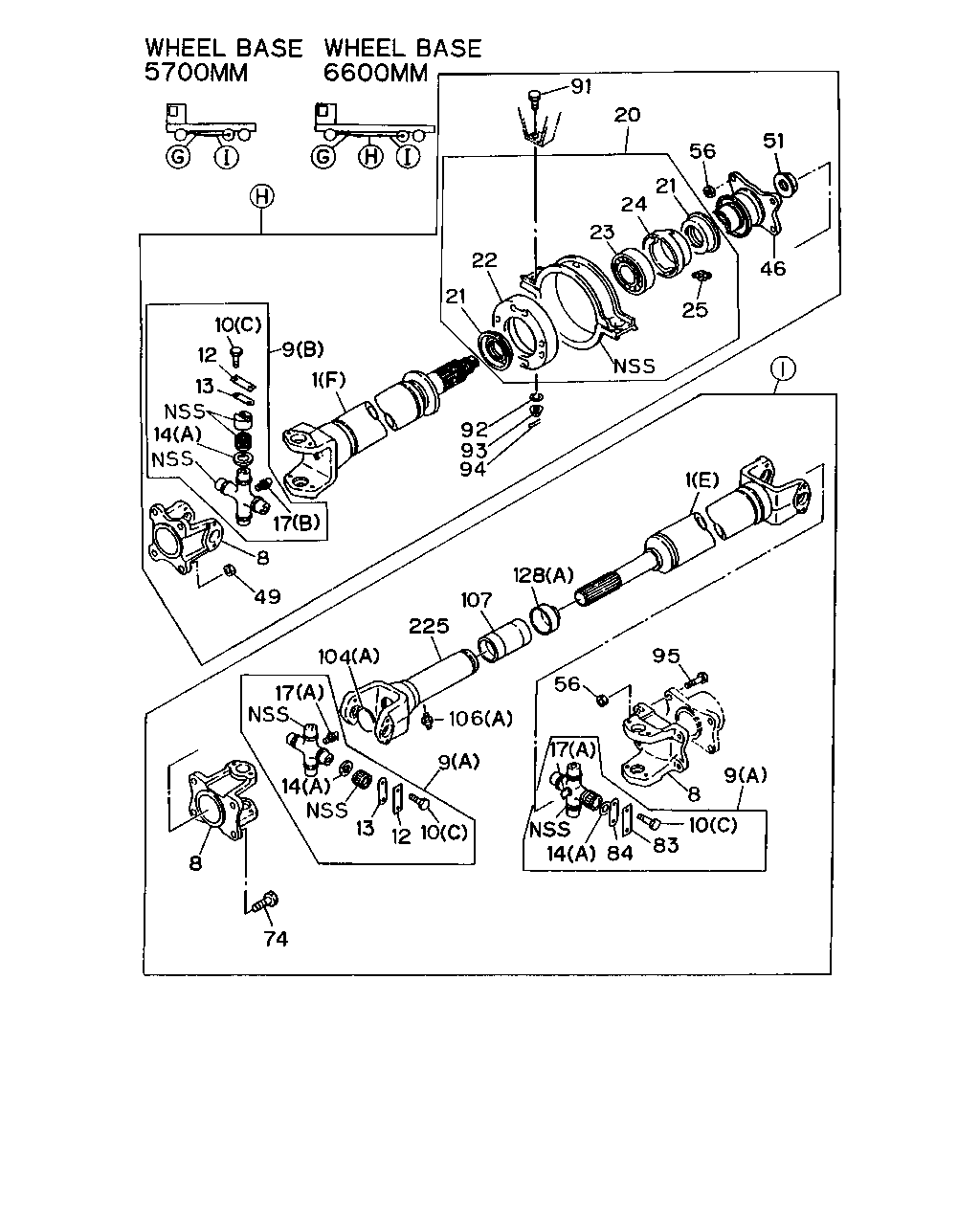

çizim 6626
91 20 51 46 56 25 21 22 23 24 21 94 93 92 1 9 10 12 13 14 17 8 49 1 128 107 225 104 17 8 74 10 12 13 14 9 14 84 83 8 9 95 56 17 106
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 SHAFT; PROP
MAF5D M/T(X4G) P90 PROP SHAFT<C5T> (B) L=739 		1-37117-586-0 01 1 9002-9306 ●
1 SHAFT; PROP
MAG6W M/T(X8B) P90 PROP SHAFT<C5T> (B) L=887 		1-37117-591-0 01 1 9002-9306 ●
1 SHAFT; PROP
MAG6W M/T(X8B) P90 PROP SHAFT<C5T> (B) L=1002 		1-37123-662-0 01 1 9307- ●
1 SHAFT; PROP
MJA6A M/T(X6V) P115 PROP SHAFT<C5X> (D) L=929 		1-37117-608-0 01 1 9002-9306 ●
1 SHAFT; PROP
MJA6A M/T(X6V) P115 PROP SHAFT<C5X> (D) L=1049 		1-37123-077-0 01 1 9307- ●
1 SHAFT; PROP
MJA6A M/T(X6V) P90 PROP SHAFT<C5T> (B) L=727 		1-37117-294-0 01 1 9002-9306 ●
1 SHAFT; PROP
MJA6A M/T(X6V) P90 PROP SHAFT<C5T> (B) L=852 		1-37151-177-0 01 1 9307- ●
1 SHAFT; PROP
MJA7T M/T(X6F) 10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> (B) L=837 		1-37117-592-0 01 1 9002-9306 ●
1 SHAFT; PROP
MJA7T M/T(X6F),RTX11609B M/T FULLER(X8W) P115 PROP SHAFT<C5X> (D) L=838 		1-37123-075-0 01 1 9307- ●
1 SHAFT; PROP
MJA7U M/T(X6G) P90 PROP SHAFT<C5T> (B) L=612 		1-37117-587-0 01 1 9002-9306 ●
1 SHAFT; PROP
MJA7T M/T(X6F) 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> (B) L=612 		1-37117-587-0 01 1 9002-9306 ●
1 SHAFT; PROP
MJA7U M/T(X6G) P90 PROP SHAFT<C5T> (B) L=727 		1-37117-294-0 01 1 9307- ●
1 SHAFT; PROP
MJA7T M/T(X6F) 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> (B) L=727 		1-37117-294-0 01 1 9307- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> DESERT ZONE PACKAGE(W01) (B) L=741 		1-37123-361-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> DESERT ZONE PACKAGE(W01) (B) L=846 		1-37123-359-0 01 1 9307- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> EXC. DESERT ZONE PACKAGE(W01) (B) L=748 		1-37123-242-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> EXC. DESERT ZONE PACKAGE(W01) (B) L=851 		1-37123-251-0 01 1 9307- ●
1 SHAFT; PROP
RT11609A M/T FULLER(PQ4),RTO11609B M/T FULLER(X4Z),RTX11609B M/T FULLER(X8W) P115 PROP SHAFT<C5X> (D) L=724 		1-37117-606-0 01 1 9002-9306 ●
1 SHAFT; PROP
10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> MJA7T M/T(X6F) (B) L=957 		1-37117-362-0 01 1 9307- ●
1 SHAFT; PROP
10PD1 STD ENG(40L) RTO11613 M/T FULLER(MV6) P115 PROP SHAFT<C5X> (D) L=874 		1-37123-165-0 01 1 9002-9306 ●
1 SHAFT; PROP
6RB1 STD ENG(07L) RTO11613 M/T FULLER(MV6) P115 PROP SHAFT<C5X> (D) L=644 		1-37117-607-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=681 		1-37123-255-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=781 		1-37123-262-0 01 1 9307- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (B) L=642 		1-37123-564-0 01 1 9002-9306 ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (B) L=1128 		1-37123-722-0 01 1 9307- ●
1 SHAFT; PROP
MAF5D M/T(X4G) P90 PROP SHAFT<C5T> (A) L=1133 		1-37123-514-0 01 1 9307- ● ● ●
1 SHAFT; PROP
MAF5D M/T(X4G) P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1128 		1-37117-569-0 01 1 9002-9306 ● ● ●
1 SHAFT; PROP
10PD1 STD ENG(40L) MJA7T M/T(X6F) P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1128 		1-37117-569-0 01 1 9002-9306 ● ● ●
1 SHAFT; PROP
MAF5D M/T(X4G) P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1133 		1-37123-514-0 01 1 9002-9306 ● ● ●
1 SHAFT; PROP
MJA6A M/T(X6V) P90 PROP SHAFT<C5T> (A) L=1023 		1-37117-576-0 01 1 9002- ● ● ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1005 		1-37116-863-0 01 1 9002- ● ● ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1015 		1-37116-850-0 01 1 9002- ● ● ●
1 SHAFT; PROP
10PD1 STD ENG(40L) MJA7T M/T(X6F) P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1123 		1-37117-296-0 01 1 9002- ● ● ●
1 SHAFT; PROP
MJA7T M/T(X6F) (A) L=1123 		1-37117-296-0 01 1 9002- ● ●
1 SHAFT; PROP
10PD1 STD ENG(40L) MJA7T M/T(X6F) P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1128 		1-37117-569-0 01 1 9307- ● ● ●
1 SHAFT; PROP
MJA7T M/T(X6F) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1128 		1-37117-569-0 01 1 9307- ● ●
1 SHAFT; PROP
6RB1 STD ENG(07L) MJA7T M/T(X6F),MJA7U M/T(X6G) P90 PROP SHAFT<C5T> (A) L=913 		1-37117-577-0 01 1 9002- ● ● ●
1 SHAFT; PROP
(E) L=1157 		1-37123-495-0 01 1 9002- ●
1 SHAFT; PROP
MAG6W M/T(X8B) (A) L=1173 		1-37117-038-0 01 1 9002-9306 ● ●
1 SHAFT; PROP
MAG6W M/T(X8B) P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1173 		1-37117-038-0 01 1 9002-9306 ●
1 SHAFT; PROP
MAG6W M/T(X8B) P90 PROP SHAFT<C5T> (A) L=1178 		1-37117-341-0 01 1 9312- ●
1 SHAFT; PROP
MAG6W M/T(X8B) P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1178 		1-37117-341-0 01 1 9312- ●
1 SHAFT; PROP
MAG6W M/T(X8B) P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1178 		1-37117-341-0 01 1 9002-9306 ●
1 SHAFT; PROP
MJA6A M/T(X6V) P115 PROP SHAFT<C5X> (C) L=1229 		1-37117-598-0 01 1 9002- ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> (D) L=1090 		1-37123-659-0 01 1 9307- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> DESERT ZONE PACKAGE(W01) (B) L=961 		1-37123-266-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> DESERT ZONE PACKAGE(W01) (B) L=1071 		1-37123-715-0 01 1 9307- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> EXC. DESERT ZONE PACKAGE(W01) (B) L=971 		1-37123-231-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> EXC. DESERT ZONE PACKAGE(W01) (B) L=1071 		1-37123-224-0 01 1 9307- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (B) L=1057 		1-37123-657-0 01 1 9307- ●
1 SHAFT; PROP
RT11609A M/T FULLER(PQ4),RTO11609B M/T FULLER(X4Z),RTX11609B M/T FULLER(X8W) P115 PROP SHAFT<C5X> (C) L=1044 		1-37117-016-0 01 1 9002-9306 ●
1 SHAFT; PROP
RTX11609B M/T FULLER(X8W) P115 PROP SHAFT<C5X> (C) L=1044 		1-37117-016-0 01 1 9307- ●
1 SHAFT; PROP
10PD1 STD ENG(40L) P115 PROP SHAFT<C5X> (D) L=909 		1-37131-210-1 01 1 9002-9306 ●
1 SHAFT; PROP
10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> (B) L=942 		1-37123-468-0 01 1 9002-9306 ●
1 SHAFT; PROP
10PD1 STD ENG(40L) RTO11613 M/T FULLER(MV6) P115 PROP SHAFT<C5X> (C) L=681 		1-37117-025-0 01 1 9002-9306 ●
1 SHAFT; PROP
6RB1 STD ENG(07L) P115 PROP SHAFT<C5X> (D) L=898.9 		1-37131-216-1 01 1 9002-9306 ●
1 SHAFT; PROP
6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> (B) L=927 		1-37123-565-0 01 1 9002-9306 ●
1 SHAFT; PROP
6RB1 STD ENG(07L) RTO11613 M/T FULLER(MV6) P115 PROP SHAFT<C5X> (C) L=964 		1-37117-026-0 01 1 9002- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=1516 		1-37123-195-0 01 1 9002-9306 ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (B) L=1477 		1-37123-566-0 01 1 9002-9306 ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (B) L=1607 		1-37123-708-0 01 1 9307- ●
1 SHAFT; PROP
10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR(PJ8) MAG5 M/T<X9N> (A) L=1283 		1-37117-378-0 01 1 9307- ●
1 SHAFT; PROP
(E) L=937 		1-37117-041-0 01 1 9002- ●
1 SHAFT; PROP
(F) L=987 		1-37123-486-0 01 1 9002- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> 		1-37211-040-0 01 1 9002- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> 		1-37211-040-0 01 1 9002- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> 		1-37211-040-0 01 1 9002- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37211-050-1 01 1 9002- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37211-050-1 01 1 9002- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37211-050-1 01 1 9002- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37211-047-2 01 1 9002- ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37211-047-2 01 1 9002- ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37211-047-2 01 1 9002- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-050-1 01 1 9002- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-050-1 01 1 9002- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-050-1 01 1 9002- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-050-1 01 1 9002- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (A) 		1-37300-082-0 AR 1 9002- ● ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-074-0 01 1 9002-9009 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-079-0 01 1 9010- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-056-0 AR 1 9002- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> (D) 		1-37300-062-0 01 1 9002- ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> (D) 		1-37300-062-0 01 1 9002- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (B) 		1-37300-085-0 AR 1 9002- ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (B) 		1-37300-086-0 AR 1 9002- ● ● ●
10 BOLT; UJT
(A) M12X45 		9-91066-245-0 04 1 9002- ● ● ● ●
10 BOLT; UJT
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (C) M8X20 		9-09802-702-0 16 1 9002- ● ● ● ●
10 BOLT; UJT
(C) M8X20 		9-09802-702-0 16 1 9002- ●
10 BOLT; UJT
P115 PROP SHAFT<C5X> (B) 		1-37359-001-0 16 1 9307- ● ●
10 BOLT; UJT
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (B) M8X20 		9-09802-702-0 08 1 9002- ● ● ● ● ●
10 BOLT; UJT
P115 PROP SHAFT<C5X> (B) 		1-37359-001-0 08 1 9307- ●
10 BOLT; UJT
P90 PROP SHAFT<C5T> (C) M8X20 		9-09802-702-0 24 1 9002- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-37356-006-1 04 1 9002- ● ● ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-37356-006-1 04 1 9002- ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-37356-006-1 08 1 9002- ● ● ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-37356-006-1 08 1 9002- ● ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> 		9-37356-007-0 04 1 9002- ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> 		9-37356-007-0 04 1 9002- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37356-007-0 08 1 9307- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37356-007-0 04 1 9307- ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37355-003-1 04 1 9002- ● ● ● ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37355-003-1 04 1 9002- ● ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> 		1-37355-011-0 04 1 9002- ● ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> 		1-37355-011-0 04 1 9002- ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37355-003-1 08 1 9002- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (A) 		1-37249-130-0 08 1 9002- ● ● ● ● ●
14 COVER; DUST,SPIDER
(C) 		1-37319-004-0 08 1 9002- ● ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) 		9-37352-023-0 08 1 9002- ● ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) 		1-37249-130-0 04 1 9002- ● ● ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) 		9-37352-023-0 04 1 9002- ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (A) 		1-37249-130-0 12 1 9002- ●
17 NIPPLE; GREASE,PROP SHAFT
(A),(C) PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9307- ● ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (A),(C) PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9307- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B),(C) PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9002-9306 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (B),(C) PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9002-9306 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> (B),(C) PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9002-9306 ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT<C5X> (A) 		1-37319-005-0 04 1 9307- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> (A) PT1/8 ELBOW 67.5? 		9-09031-110-0 01 1 9002-9306 ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> (A) PT1/8 ELBOW 67.5? 		9-09031-110-0 03 1 9002-9306 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) PT1/8 ELBOW 		9-09031-210-0 01 1 9307- ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) PT1/8 ELBOW 		9-09031-210-0 01 1 9307- ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT<C5X> (B) 		1-37319-005-0 02 1 9307- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37510-094-3 01 1 9002- ● ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37510-094-3 01 1 9002- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT<C2M> 		1-37510-093-3 01 1 9002- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37510-101-0 01 1 9002- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> D=120 		1-09625-127-0 02 1 9002- ● ● ● ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> D=120 		1-09625-127-0 02 1 9002- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT<C2M> D=120 		1-09625-126-0 02 1 9002- ● ● ●
21 SEAL; OIL,CENTER BRG
P115 PROP SHAFT<C5X> OD=114 		1-09625-222-1 02 1 9002- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT<C5T> 		1-37516-048-2 01 1 9002- ● ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT<C5T> 		1-37516-048-2 01 1 9002- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT<C2M> 		1-37516-047-2 01 1 9002- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P115 PROP SHAFT<C5X> 		1-37516-056-0 01 1 9002- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-00090-256-0 01 1 9002- ● ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-00090-256-0 01 1 9002- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT<C2M> 		9-00090-292-0 01 1 9002- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-09800-210-0 01 1 9002- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT<C5T> 		1-37529-041-0 01 1 9002- ● ● ● ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT<C5T> 		1-37529-041-0 01 1 9002- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT<C2M> 		1-37529-039-0 01 1 9002- ● ● ●
24 RETAINER; CENTER BRG,1ST
P115 PROP SHAFT<C5X> 		1-37529-067-0 01 1 9002- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9002- ● ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT<C5T> MT6 STRAIGHT 		1-09380-006-0 01 1 9002- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> 		1-37245-052-0 01 1 9002-9408 ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> 		1-37245-052-0 01 1 9002-9408 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> 		1-37245-271-1 01 1 9409- ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> 		1-37245-271-1 01 1 9409- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> 		1-37245-051-0 01 1 9002-9408 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> 		1-37245-283-1 01 1 9409- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P115 PROP SHAFT<C5X> 		1-37240-088-1 01 1 9002- ●
49 NUT; YOKE
P90 PROP SHAFT<C5T> M16 FLANGE 		1-09449-065-0 04 1 9002- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT<C5T> M39 		1-09440-035-0 01 1 9002- ● ● ● ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT<C5T> M39 		1-09440-035-0 01 1 9002- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT<C2M> M33 		1-09449-001-0 01 1 9002- ● ● ●
51 NUT; FLANGE,SPLINED
P115 PROP SHAFT<C5X> M45 		1-09449-057-1 01 1 9002- ●
56 NUT; YOKE
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> M16 FLANGE 		1-09449-065-0 04 1 9002- ● ● ● ●
56 NUT; YOKE
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> M16 FLANGE 		1-09449-065-0 04 1 9002- ● ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9002- ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9002- ● ●
56 NUT; YOKE
P115 PROP SHAFT<C5X> M16 FLANGE 		1-09449-065-0 08 1 9002- ● ●
56 NUT; YOKE
P115 PROP SHAFT<C5X> M16 FLANGE 		1-09449-065-0 08 1 9002- ●
74 BOLT; YOKE,TRANS
P115 PROP SHAFT<C5X> M16X48 		1-09000-383-0 08 1 9307- ● ●
74 BOLT; YOKE,TRANS
P115 PROP SHAFT<C5X> M16X48 		1-09000-383-0 08 1 9307- ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> M16X48 		1-09000-383-0 04 1 9307- ● ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 9307- ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 9307- ●
83 PLATE; LK,UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-37356-006-1 04 1 9002- ● ● ● ● ● ●
83 PLATE; LK,UJT,PROP SHAFT
P60 PROP SHAFT<C2M> 		9-37356-007-0 04 1 9002- ● ● ● ●
84 COVER; UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37355-003-1 04 1 9002- ● ● ● ● ● ●
84 COVER; UJT,PROP SHAFT
P60 PROP SHAFT<C2M> T=4.5 		1-37355-011-0 04 1 9002- ● ● ● ●
91 BOLT; HOLDER SET,CTR BRG
P90 PROP SHAFT<C5T> M16X45 		1-09042-030-0 02 1 9002- ●
92 WASHER; LK,HOLDER SET,CTR BRG
P90 PROP SHAFT<C5T> ID=17 		1-09503-241-0 02 1 9002- ●
93 NUT; HOLDER SET,CTR BRG
P90 PROP SHAFT<C5T> M16 SLOTTED 		9-99116-516-0 02 1 9002- ●
94 PIN; SPLIT,HOLDER SET CTR BRG
P90 PROP SHAFT<C5T> OD=3.7 L=25 		9-08114-025-0 02 1 9002- ●
95 BOLT; YOKE,FINAL
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> M16X48 		1-09000-383-0 04 1 9002- ● ● ● ●
95 BOLT; YOKE,FINAL
M16X48 		1-09000-383-0 04 1 9002- ● ●
95 BOLT; YOKE,FINAL
P115 PROP SHAFT<C5X> M16X48 		1-09000-383-0 08 1 9002- ● ●
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT<C5T> (A) 		1-09600-067-0 01 1 9002- ● ● ● ● ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 9002- ● ● ● ●
104 PLUG; SLEEVE YOKE
P60 PROP SHAFT<C2M> (A) 		9-09860-507-0 01 1 9002- ● ● ● ●
104 PLUG; SLEEVE YOKE
P115 PROP SHAFT<C5X> (A) 		1-37248-011-0 01 1 9109- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9002- ● ● ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9002- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT<C5X> (B) 		1-37248-010-0 01 1 9002- ● ●
107 COVER; RET,SLEEVE
P90 PROP SHAFT<C5T> 		1-37249-039-1 01 1 9002- ● ● ● ● ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT<C5T> (A) 		1-37247-016-0 01 1 9002- ● ● ● ● ● ●
128 SEAL; SLEEVE
(B) 		1-37247-006-0 01 1 9002- ● ● ● ●
128 SEAL; SLEEVE
P60 PROP SHAFT<C2M> DESERT ZONE PACKAGE(W01) (A) 		1-37247-012-0 01 1 9002- ● ● ● ●
128 SEAL; SLEEVE
P115 PROP SHAFT<C5X> (A) 		1-37247-013-0 01 1 9002- ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37241-090-1 01 1 9002-9106 ● ● ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37241-097-0 01 1 9107- ● ● ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT<C2M> DESERT ZONE PACKAGE(W01) 		1-37241-071-0 01 1 9002- ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT<C2M> EXC. DESERT ZONE PACKAGE(W01) 		1-37241-024-0 01 1 9002-9106 ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT<C2M> EXC. DESERT ZONE PACKAGE(W01) 		1-37241-100-0 01 1 9107- ● ● ● ●
çizim 36457
78 20 21 24 25 23 22 1 9 21 81 80 79 17 8 71 14 13 12 51 74 46 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 SHAFT; PROP
MAF5D M/T(X4G) P90 PROP SHAFT<C5T> (B) L=739 		1-37117-586-0 01 1 9002-9306 ●
1 SHAFT; PROP
MAG6W M/T(X8B) P90 PROP SHAFT<C5T> (B) L=887 		1-37117-591-0 01 1 9002-9306 ●
1 SHAFT; PROP
MAG6W M/T(X8B) P90 PROP SHAFT<C5T> (B) L=1002 		1-37123-662-0 01 1 9307- ●
1 SHAFT; PROP
MJA6A M/T(X6V) P115 PROP SHAFT<C5X> (D) L=929 		1-37117-608-0 01 1 9002-9306 ●
1 SHAFT; PROP
MJA6A M/T(X6V) P115 PROP SHAFT<C5X> (D) L=1049 		1-37123-077-0 01 1 9307- ●
1 SHAFT; PROP
MJA6A M/T(X6V) P90 PROP SHAFT<C5T> (B) L=727 		1-37117-294-0 01 1 9002-9306 ●
1 SHAFT; PROP
MJA6A M/T(X6V) P90 PROP SHAFT<C5T> (B) L=852 		1-37151-177-0 01 1 9307- ●
1 SHAFT; PROP
MJA7T M/T(X6F) 10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> (B) L=837 		1-37117-592-0 01 1 9002-9306 ●
1 SHAFT; PROP
MJA7T M/T(X6F),RTX11609B M/T FULLER(X8W) P115 PROP SHAFT<C5X> (D) L=838 		1-37123-075-0 01 1 9307- ●
1 SHAFT; PROP
MJA7U M/T(X6G) P90 PROP SHAFT<C5T> (B) L=612 		1-37117-587-0 01 1 9002-9306 ●
1 SHAFT; PROP
MJA7T M/T(X6F) 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> (B) L=612 		1-37117-587-0 01 1 9002-9306 ●
1 SHAFT; PROP
MJA7U M/T(X6G) P90 PROP SHAFT<C5T> (B) L=727 		1-37117-294-0 01 1 9307- ●
1 SHAFT; PROP
MJA7T M/T(X6F) 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> (B) L=727 		1-37117-294-0 01 1 9307- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> DESERT ZONE PACKAGE(W01) (B) L=741 		1-37123-361-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> DESERT ZONE PACKAGE(W01) (B) L=846 		1-37123-359-0 01 1 9307- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> EXC. DESERT ZONE PACKAGE(W01) (B) L=748 		1-37123-242-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> EXC. DESERT ZONE PACKAGE(W01) (B) L=851 		1-37123-251-0 01 1 9307- ●
1 SHAFT; PROP
RT11609A M/T FULLER(PQ4),RTO11609B M/T FULLER(X4Z),RTX11609B M/T FULLER(X8W) P115 PROP SHAFT<C5X> (D) L=724 		1-37117-606-0 01 1 9002-9306 ●
1 SHAFT; PROP
10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> MJA7T M/T(X6F) (B) L=957 		1-37117-362-0 01 1 9307- ●
1 SHAFT; PROP
10PD1 STD ENG(40L) RTO11613 M/T FULLER(MV6) P115 PROP SHAFT<C5X> (D) L=874 		1-37123-165-0 01 1 9002-9306 ●
1 SHAFT; PROP
6RB1 STD ENG(07L) RTO11613 M/T FULLER(MV6) P115 PROP SHAFT<C5X> (D) L=644 		1-37117-607-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=681 		1-37123-255-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=781 		1-37123-262-0 01 1 9307- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (B) L=642 		1-37123-564-0 01 1 9002-9306 ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (B) L=1128 		1-37123-722-0 01 1 9307- ●
1 SHAFT; PROP
MAF5D M/T(X4G) P90 PROP SHAFT<C5T> (A) L=1133 		1-37123-514-0 01 1 9307- ● ● ●
1 SHAFT; PROP
MAF5D M/T(X4G) P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1128 		1-37117-569-0 01 1 9002-9306 ● ● ●
1 SHAFT; PROP
10PD1 STD ENG(40L) MJA7T M/T(X6F) P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1128 		1-37117-569-0 01 1 9002-9306 ● ● ●
1 SHAFT; PROP
MAF5D M/T(X4G) P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1133 		1-37123-514-0 01 1 9002-9306 ● ● ●
1 SHAFT; PROP
MJA6A M/T(X6V) P90 PROP SHAFT<C5T> (A) L=1023 		1-37117-576-0 01 1 9002- ● ● ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1005 		1-37116-863-0 01 1 9002- ● ● ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1015 		1-37116-850-0 01 1 9002- ● ● ●
1 SHAFT; PROP
10PD1 STD ENG(40L) MJA7T M/T(X6F) P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1123 		1-37117-296-0 01 1 9002- ● ● ●
1 SHAFT; PROP
MJA7T M/T(X6F) (A) L=1123 		1-37117-296-0 01 1 9002- ● ●
1 SHAFT; PROP
10PD1 STD ENG(40L) MJA7T M/T(X6F) P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1128 		1-37117-569-0 01 1 9307- ● ● ●
1 SHAFT; PROP
MJA7T M/T(X6F) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1128 		1-37117-569-0 01 1 9307- ● ●
1 SHAFT; PROP
6RB1 STD ENG(07L) MJA7T M/T(X6F),MJA7U M/T(X6G) P90 PROP SHAFT<C5T> (A) L=913 		1-37117-577-0 01 1 9002- ● ● ●
1 SHAFT; PROP
(E) L=1157 		1-37123-495-0 01 1 9002- ●
1 SHAFT; PROP
MAG6W M/T(X8B) (A) L=1173 		1-37117-038-0 01 1 9002-9306 ● ●
1 SHAFT; PROP
MAG6W M/T(X8B) P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1173 		1-37117-038-0 01 1 9002-9306 ●
1 SHAFT; PROP
MAG6W M/T(X8B) P90 PROP SHAFT<C5T> (A) L=1178 		1-37117-341-0 01 1 9312- ●
1 SHAFT; PROP
MAG6W M/T(X8B) P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1178 		1-37117-341-0 01 1 9312- ●
1 SHAFT; PROP
MAG6W M/T(X8B) P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1178 		1-37117-341-0 01 1 9002-9306 ●
1 SHAFT; PROP
MJA6A M/T(X6V) P115 PROP SHAFT<C5X> (C) L=1229 		1-37117-598-0 01 1 9002- ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> (D) L=1090 		1-37123-659-0 01 1 9307- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> DESERT ZONE PACKAGE(W01) (B) L=961 		1-37123-266-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> DESERT ZONE PACKAGE(W01) (B) L=1071 		1-37123-715-0 01 1 9307- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> EXC. DESERT ZONE PACKAGE(W01) (B) L=971 		1-37123-231-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> EXC. DESERT ZONE PACKAGE(W01) (B) L=1071 		1-37123-224-0 01 1 9307- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (B) L=1057 		1-37123-657-0 01 1 9307- ●
1 SHAFT; PROP
RT11609A M/T FULLER(PQ4),RTO11609B M/T FULLER(X4Z),RTX11609B M/T FULLER(X8W) P115 PROP SHAFT<C5X> (C) L=1044 		1-37117-016-0 01 1 9002-9306 ●
1 SHAFT; PROP
RTX11609B M/T FULLER(X8W) P115 PROP SHAFT<C5X> (C) L=1044 		1-37117-016-0 01 1 9307- ●
1 SHAFT; PROP
10PD1 STD ENG(40L) P115 PROP SHAFT<C5X> (D) L=909 		1-37131-210-1 01 1 9002-9306 ●
1 SHAFT; PROP
10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> (B) L=942 		1-37123-468-0 01 1 9002-9306 ●
1 SHAFT; PROP
10PD1 STD ENG(40L) RTO11613 M/T FULLER(MV6) P115 PROP SHAFT<C5X> (C) L=681 		1-37117-025-0 01 1 9002-9306 ●
1 SHAFT; PROP
6RB1 STD ENG(07L) P115 PROP SHAFT<C5X> (D) L=898.9 		1-37131-216-1 01 1 9002-9306 ●
1 SHAFT; PROP
6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> (B) L=927 		1-37123-565-0 01 1 9002-9306 ●
1 SHAFT; PROP
6RB1 STD ENG(07L) RTO11613 M/T FULLER(MV6) P115 PROP SHAFT<C5X> (C) L=964 		1-37117-026-0 01 1 9002- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=1516 		1-37123-195-0 01 1 9002-9306 ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (B) L=1477 		1-37123-566-0 01 1 9002-9306 ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (B) L=1607 		1-37123-708-0 01 1 9307- ●
1 SHAFT; PROP
10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR(PJ8) MAG5 M/T<X9N> (A) L=1283 		1-37117-378-0 01 1 9307- ●
1 SHAFT; PROP
(E) L=937 		1-37117-041-0 01 1 9002- ●
1 SHAFT; PROP
(F) L=987 		1-37123-486-0 01 1 9002- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> 		1-37211-040-0 01 1 9002- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> 		1-37211-040-0 01 1 9002- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> 		1-37211-040-0 01 1 9002- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37211-050-1 01 1 9002- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37211-050-1 01 1 9002- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37211-050-1 01 1 9002- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37211-047-2 01 1 9002- ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37211-047-2 01 1 9002- ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37211-047-2 01 1 9002- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-050-1 01 1 9002- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-050-1 01 1 9002- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-050-1 01 1 9002- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-050-1 01 1 9002- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (A) 		1-37300-082-0 AR 1 9002- ● ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-074-0 01 1 9002-9009 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-079-0 01 1 9010- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-056-0 AR 1 9002- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> (D) 		1-37300-062-0 01 1 9002- ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> (D) 		1-37300-062-0 01 1 9002- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (B) 		1-37300-085-0 AR 1 9002- ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (B) 		1-37300-086-0 AR 1 9002- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-37356-006-1 04 1 9002- ● ● ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-37356-006-1 04 1 9002- ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-37356-006-1 08 1 9002- ● ● ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-37356-006-1 08 1 9002- ● ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> 		9-37356-007-0 04 1 9002- ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> 		9-37356-007-0 04 1 9002- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37356-007-0 08 1 9307- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37356-007-0 04 1 9307- ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37355-003-1 04 1 9002- ● ● ● ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37355-003-1 04 1 9002- ● ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> 		1-37355-011-0 04 1 9002- ● ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> 		1-37355-011-0 04 1 9002- ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37355-003-1 08 1 9002- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (A) 		1-37249-130-0 08 1 9002- ● ● ● ● ●
14 COVER; DUST,SPIDER
(C) 		1-37319-004-0 08 1 9002- ● ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) 		9-37352-023-0 08 1 9002- ● ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) 		1-37249-130-0 04 1 9002- ● ● ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) 		9-37352-023-0 04 1 9002- ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (A) 		1-37249-130-0 12 1 9002- ●
17 NIPPLE; GREASE,PROP SHAFT
(A),(C) PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9307- ● ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (A),(C) PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9307- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B),(C) PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9002-9306 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (B),(C) PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9002-9306 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> (B),(C) PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9002-9306 ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT<C5X> (A) 		1-37319-005-0 04 1 9307- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> (A) PT1/8 ELBOW 67.5? 		9-09031-110-0 01 1 9002-9306 ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> (A) PT1/8 ELBOW 67.5? 		9-09031-110-0 03 1 9002-9306 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) PT1/8 ELBOW 		9-09031-210-0 01 1 9307- ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) PT1/8 ELBOW 		9-09031-210-0 01 1 9307- ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT<C5X> (B) 		1-37319-005-0 02 1 9307- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37510-094-3 01 1 9002- ● ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37510-094-3 01 1 9002- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT<C2M> 		1-37510-093-3 01 1 9002- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37510-101-0 01 1 9002- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> D=120 		1-09625-127-0 02 1 9002- ● ● ● ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> D=120 		1-09625-127-0 02 1 9002- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT<C2M> D=120 		1-09625-126-0 02 1 9002- ● ● ●
21 SEAL; OIL,CENTER BRG
P115 PROP SHAFT<C5X> OD=114 		1-09625-222-1 02 1 9002- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT<C5T> 		1-37516-048-2 01 1 9002- ● ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT<C5T> 		1-37516-048-2 01 1 9002- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT<C2M> 		1-37516-047-2 01 1 9002- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P115 PROP SHAFT<C5X> 		1-37516-056-0 01 1 9002- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-00090-256-0 01 1 9002- ● ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-00090-256-0 01 1 9002- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT<C2M> 		9-00090-292-0 01 1 9002- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-09800-210-0 01 1 9002- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT<C5T> 		1-37529-041-0 01 1 9002- ● ● ● ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT<C5T> 		1-37529-041-0 01 1 9002- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT<C2M> 		1-37529-039-0 01 1 9002- ● ● ●
24 RETAINER; CENTER BRG,1ST
P115 PROP SHAFT<C5X> 		1-37529-067-0 01 1 9002- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9002- ● ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT<C5T> MT6 STRAIGHT 		1-09380-006-0 01 1 9002- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> 		1-37245-052-0 01 1 9002-9408 ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> 		1-37245-052-0 01 1 9002-9408 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> 		1-37245-271-1 01 1 9409- ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> 		1-37245-271-1 01 1 9409- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> 		1-37245-051-0 01 1 9002-9408 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> 		1-37245-283-1 01 1 9409- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P115 PROP SHAFT<C5X> 		1-37240-088-1 01 1 9002- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT<C5T> M39 		1-09440-035-0 01 1 9002- ● ● ● ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT<C5T> M39 		1-09440-035-0 01 1 9002- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT<C2M> M33 		1-09449-001-0 01 1 9002- ● ● ●
51 NUT; FLANGE,SPLINED
P115 PROP SHAFT<C5X> M45 		1-09449-057-1 01 1 9002- ●
71 NUT; YOKE
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> M16 FLANGE 		1-09449-065-0 04 1 9002- ● ● ● ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9002- ● ●
71 NUT; YOKE
P115 PROP SHAFT<C5X> M16 FLANGE 		1-09449-065-0 08 1 9002- ● ●
74 BOLT; YOKE,TRANS
P115 PROP SHAFT<C5X> M16X48 		1-09000-383-0 08 1 9307- ● ●
74 BOLT; YOKE,TRANS
P115 PROP SHAFT<C5X> M16X48 		1-09000-383-0 08 1 9307- ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> M16X48 		1-09000-383-0 04 1 9307- ● ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 9307- ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 9307- ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 9002- ● ● ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-0 02 1 9002- ● ● ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		9-99116-516-0 02 1 9002- ● ● ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		9-08114-025-0 02 1 9002- ● ● ● ● ●
çizim 36488
78 20 21 23 24 25 22 1 21 81 80 79 9 17 8 14 13 12 71 74 46 69 70 66 8 51
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 SHAFT; PROP
MAF5D M/T(X4G) P90 PROP SHAFT<C5T> (B) L=739 		1-37117-586-0 01 1 9002-9306 ●
1 SHAFT; PROP
MAG6W M/T(X8B) P90 PROP SHAFT<C5T> (B) L=887 		1-37117-591-0 01 1 9002-9306 ●
1 SHAFT; PROP
MAG6W M/T(X8B) P90 PROP SHAFT<C5T> (B) L=1002 		1-37123-662-0 01 1 9307- ●
1 SHAFT; PROP
MJA6A M/T(X6V) P115 PROP SHAFT<C5X> (D) L=929 		1-37117-608-0 01 1 9002-9306 ●
1 SHAFT; PROP
MJA6A M/T(X6V) P115 PROP SHAFT<C5X> (D) L=1049 		1-37123-077-0 01 1 9307- ●
1 SHAFT; PROP
MJA6A M/T(X6V) P90 PROP SHAFT<C5T> (B) L=727 		1-37117-294-0 01 1 9002-9306 ●
1 SHAFT; PROP
MJA6A M/T(X6V) P90 PROP SHAFT<C5T> (B) L=852 		1-37151-177-0 01 1 9307- ●
1 SHAFT; PROP
MJA7T M/T(X6F) 10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> (B) L=837 		1-37117-592-0 01 1 9002-9306 ●
1 SHAFT; PROP
MJA7T M/T(X6F),RTX11609B M/T FULLER(X8W) P115 PROP SHAFT<C5X> (D) L=838 		1-37123-075-0 01 1 9307- ●
1 SHAFT; PROP
MJA7U M/T(X6G) P90 PROP SHAFT<C5T> (B) L=612 		1-37117-587-0 01 1 9002-9306 ●
1 SHAFT; PROP
MJA7T M/T(X6F) 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> (B) L=612 		1-37117-587-0 01 1 9002-9306 ●
1 SHAFT; PROP
MJA7U M/T(X6G) P90 PROP SHAFT<C5T> (B) L=727 		1-37117-294-0 01 1 9307- ●
1 SHAFT; PROP
MJA7T M/T(X6F) 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> (B) L=727 		1-37117-294-0 01 1 9307- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> DESERT ZONE PACKAGE(W01) (B) L=741 		1-37123-361-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> DESERT ZONE PACKAGE(W01) (B) L=846 		1-37123-359-0 01 1 9307- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> EXC. DESERT ZONE PACKAGE(W01) (B) L=748 		1-37123-242-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> EXC. DESERT ZONE PACKAGE(W01) (B) L=851 		1-37123-251-0 01 1 9307- ●
1 SHAFT; PROP
RT11609A M/T FULLER(PQ4),RTO11609B M/T FULLER(X4Z),RTX11609B M/T FULLER(X8W) P115 PROP SHAFT<C5X> (D) L=724 		1-37117-606-0 01 1 9002-9306 ●
1 SHAFT; PROP
10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> MJA7T M/T(X6F) (B) L=957 		1-37117-362-0 01 1 9307- ●
1 SHAFT; PROP
10PD1 STD ENG(40L) RTO11613 M/T FULLER(MV6) P115 PROP SHAFT<C5X> (D) L=874 		1-37123-165-0 01 1 9002-9306 ●
1 SHAFT; PROP
6RB1 STD ENG(07L) RTO11613 M/T FULLER(MV6) P115 PROP SHAFT<C5X> (D) L=644 		1-37117-607-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=681 		1-37123-255-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=781 		1-37123-262-0 01 1 9307- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (B) L=642 		1-37123-564-0 01 1 9002-9306 ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (B) L=1128 		1-37123-722-0 01 1 9307- ●
1 SHAFT; PROP
MAF5D M/T(X4G) P90 PROP SHAFT<C5T> (A) L=1133 		1-37123-514-0 01 1 9307- ● ● ●
1 SHAFT; PROP
MAF5D M/T(X4G) P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1128 		1-37117-569-0 01 1 9002-9306 ● ● ●
1 SHAFT; PROP
10PD1 STD ENG(40L) MJA7T M/T(X6F) P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1128 		1-37117-569-0 01 1 9002-9306 ● ● ●
1 SHAFT; PROP
MAF5D M/T(X4G) P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1133 		1-37123-514-0 01 1 9002-9306 ● ● ●
1 SHAFT; PROP
MJA6A M/T(X6V) P90 PROP SHAFT<C5T> (A) L=1023 		1-37117-576-0 01 1 9002- ● ● ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1005 		1-37116-863-0 01 1 9002- ● ● ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1015 		1-37116-850-0 01 1 9002- ● ● ●
1 SHAFT; PROP
10PD1 STD ENG(40L) MJA7T M/T(X6F) P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1123 		1-37117-296-0 01 1 9002- ● ● ●
1 SHAFT; PROP
MJA7T M/T(X6F) (A) L=1123 		1-37117-296-0 01 1 9002- ● ●
1 SHAFT; PROP
10PD1 STD ENG(40L) MJA7T M/T(X6F) P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1128 		1-37117-569-0 01 1 9307- ● ● ●
1 SHAFT; PROP
MJA7T M/T(X6F) EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1128 		1-37117-569-0 01 1 9307- ● ●
1 SHAFT; PROP
6RB1 STD ENG(07L) MJA7T M/T(X6F),MJA7U M/T(X6G) P90 PROP SHAFT<C5T> (A) L=913 		1-37117-577-0 01 1 9002- ● ● ●
1 SHAFT; PROP
(E) L=1157 		1-37123-495-0 01 1 9002- ●
1 SHAFT; PROP
MAG6W M/T(X8B) (A) L=1173 		1-37117-038-0 01 1 9002-9306 ● ●
1 SHAFT; PROP
MAG6W M/T(X8B) P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1173 		1-37117-038-0 01 1 9002-9306 ●
1 SHAFT; PROP
MAG6W M/T(X8B) P90 PROP SHAFT<C5T> (A) L=1178 		1-37117-341-0 01 1 9312- ●
1 SHAFT; PROP
MAG6W M/T(X8B) P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1178 		1-37117-341-0 01 1 9312- ●
1 SHAFT; PROP
MAG6W M/T(X8B) P90 PROP SHAFT<C5T> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) L=1178 		1-37117-341-0 01 1 9002-9306 ●
1 SHAFT; PROP
MJA6A M/T(X6V) P115 PROP SHAFT<C5X> (C) L=1229 		1-37117-598-0 01 1 9002- ●
1 SHAFT; PROP
P115 PROP SHAFT<C5X> (D) L=1090 		1-37123-659-0 01 1 9307- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> DESERT ZONE PACKAGE(W01) (B) L=961 		1-37123-266-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> DESERT ZONE PACKAGE(W01) (B) L=1071 		1-37123-715-0 01 1 9307- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> EXC. DESERT ZONE PACKAGE(W01) (B) L=971 		1-37123-231-0 01 1 9002-9306 ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> EXC. DESERT ZONE PACKAGE(W01) (B) L=1071 		1-37123-224-0 01 1 9307- ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (B) L=1057 		1-37123-657-0 01 1 9307- ●
1 SHAFT; PROP
RT11609A M/T FULLER(PQ4),RTO11609B M/T FULLER(X4Z),RTX11609B M/T FULLER(X8W) P115 PROP SHAFT<C5X> (C) L=1044 		1-37117-016-0 01 1 9002-9306 ●
1 SHAFT; PROP
RTX11609B M/T FULLER(X8W) P115 PROP SHAFT<C5X> (C) L=1044 		1-37117-016-0 01 1 9307- ●
1 SHAFT; PROP
10PD1 STD ENG(40L) P115 PROP SHAFT<C5X> (D) L=909 		1-37131-210-1 01 1 9002-9306 ●
1 SHAFT; PROP
10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> (B) L=942 		1-37123-468-0 01 1 9002-9306 ●
1 SHAFT; PROP
10PD1 STD ENG(40L) RTO11613 M/T FULLER(MV6) P115 PROP SHAFT<C5X> (C) L=681 		1-37117-025-0 01 1 9002-9306 ●
1 SHAFT; PROP
6RB1 STD ENG(07L) P115 PROP SHAFT<C5X> (D) L=898.9 		1-37131-216-1 01 1 9002-9306 ●
1 SHAFT; PROP
6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> (B) L=927 		1-37123-565-0 01 1 9002-9306 ●
1 SHAFT; PROP
6RB1 STD ENG(07L) RTO11613 M/T FULLER(MV6) P115 PROP SHAFT<C5X> (C) L=964 		1-37117-026-0 01 1 9002- ●
1 SHAFT; PROP
P60 PROP SHAFT<C2M> (B) L=1516 		1-37123-195-0 01 1 9002-9306 ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (B) L=1477 		1-37123-566-0 01 1 9002-9306 ●
1 SHAFT; PROP
P90 PROP SHAFT<C5T> (B) L=1607 		1-37123-708-0 01 1 9307- ●
1 SHAFT; PROP
10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> PARKING BRAKE TRANSMISSION REAR(PJ8) MAG5 M/T<X9N> (A) L=1283 		1-37117-378-0 01 1 9307- ●
1 SHAFT; PROP
(E) L=937 		1-37117-041-0 01 1 9002- ●
1 SHAFT; PROP
(F) L=987 		1-37123-486-0 01 1 9002- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> 		1-37211-040-0 01 1 9002- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> 		1-37211-040-0 01 1 9002- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT<C2M> 		1-37211-040-0 01 1 9002- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37211-050-1 01 1 9002- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37211-050-1 01 1 9002- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37211-050-1 01 1 9002- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37211-047-2 01 1 9002- ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37211-047-2 01 1 9002- ● ●
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37211-047-2 01 1 9002- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-050-1 01 1 9002- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-050-1 01 1 9002- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-050-1 01 1 9002- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-050-1 01 1 9002- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (A) 		1-37300-082-0 AR 1 9002- ● ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-074-0 01 1 9002-9009 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-079-0 01 1 9010- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-056-0 AR 1 9002- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> (D) 		1-37300-062-0 01 1 9002- ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> (D) 		1-37300-062-0 01 1 9002- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (B) 		1-37300-085-0 AR 1 9002- ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (B) 		1-37300-086-0 AR 1 9002- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-37356-006-1 04 1 9002- ● ● ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-37356-006-1 04 1 9002- ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-37356-006-1 08 1 9002- ● ● ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-37356-006-1 08 1 9002- ● ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> 		9-37356-007-0 04 1 9002- ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> 		9-37356-007-0 04 1 9002- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37356-007-0 08 1 9307- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37356-007-0 04 1 9307- ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37355-003-1 04 1 9002- ● ● ● ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37355-003-1 04 1 9002- ● ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> 		1-37355-011-0 04 1 9002- ● ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT<C2M> 		1-37355-011-0 04 1 9002- ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37355-003-1 08 1 9002- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (A) 		1-37249-130-0 08 1 9002- ● ● ● ● ●
14 COVER; DUST,SPIDER
(C) 		1-37319-004-0 08 1 9002- ● ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) 		9-37352-023-0 08 1 9002- ● ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) 		1-37249-130-0 04 1 9002- ● ● ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) 		9-37352-023-0 04 1 9002- ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (A) 		1-37249-130-0 12 1 9002- ●
17 NIPPLE; GREASE,PROP SHAFT
(A),(C) PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9307- ● ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (A),(C) PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9307- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B),(C) PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9002-9306 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (B),(C) PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9002-9306 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> (B),(C) PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9002-9306 ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT<C5X> (A) 		1-37319-005-0 04 1 9307- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> (A) PT1/8 ELBOW 67.5? 		9-09031-110-0 01 1 9002-9306 ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> (A) PT1/8 ELBOW 67.5? 		9-09031-110-0 03 1 9002-9306 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) PT1/8 ELBOW 		9-09031-210-0 01 1 9307- ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) PT1/8 ELBOW 		9-09031-210-0 01 1 9307- ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT<C5X> (B) 		1-37319-005-0 02 1 9307- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37510-094-3 01 1 9002- ● ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT<C5T> 		1-37510-094-3 01 1 9002- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT<C2M> 		1-37510-093-3 01 1 9002- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-37510-101-0 01 1 9002- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> D=120 		1-09625-127-0 02 1 9002- ● ● ● ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT<C5T> D=120 		1-09625-127-0 02 1 9002- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT<C2M> D=120 		1-09625-126-0 02 1 9002- ● ● ●
21 SEAL; OIL,CENTER BRG
P115 PROP SHAFT<C5X> OD=114 		1-09625-222-1 02 1 9002- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT<C5T> 		1-37516-048-2 01 1 9002- ● ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT<C5T> 		1-37516-048-2 01 1 9002- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT<C2M> 		1-37516-047-2 01 1 9002- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P115 PROP SHAFT<C5X> 		1-37516-056-0 01 1 9002- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-00090-256-0 01 1 9002- ● ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT<C5T> 		9-00090-256-0 01 1 9002- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT<C2M> 		9-00090-292-0 01 1 9002- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P115 PROP SHAFT<C5X> 		1-09800-210-0 01 1 9002- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT<C5T> 		1-37529-041-0 01 1 9002- ● ● ● ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT<C5T> 		1-37529-041-0 01 1 9002- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT<C2M> 		1-37529-039-0 01 1 9002- ● ● ●
24 RETAINER; CENTER BRG,1ST
P115 PROP SHAFT<C5X> 		1-37529-067-0 01 1 9002- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9002- ● ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT<C5T> MT6 STRAIGHT 		1-09380-006-0 01 1 9002- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> 		1-37245-052-0 01 1 9002-9408 ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> 		1-37245-052-0 01 1 9002-9408 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> 		1-37245-271-1 01 1 9409- ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT<C5T> 		1-37245-271-1 01 1 9409- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> 		1-37245-051-0 01 1 9002-9408 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT<C2M> 		1-37245-283-1 01 1 9409- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P115 PROP SHAFT<C5X> 		1-37240-088-1 01 1 9002- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT<C5T> M39 		1-09440-035-0 01 1 9002- ● ● ● ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT<C5T> M39 		1-09440-035-0 01 1 9002- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT<C2M> M33 		1-09449-001-0 01 1 9002- ● ● ●
51 NUT; FLANGE,SPLINED
P115 PROP SHAFT<C5X> M45 		1-09449-057-1 01 1 9002- ●
66 WASHER
P60 PROP SHAFT<C2M> 		1-09509-001-0 01 1 9002- ● ● ●
69 WASHER; LK,SPLINED
P60 PROP SHAFT<C2M> ID=6.1 		9-09150-606-0 03 1 9002- ● ● ●
70 SCREW; FLANGE,SPLINED
P60 PROP SHAFT<C2M> M6X18 		9-03460-618-0 03 1 9002- ● ● ●
71 NUT; YOKE
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> M16 FLANGE 		1-09449-065-0 04 1 9002- ● ● ● ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9002- ● ●
71 NUT; YOKE
P115 PROP SHAFT<C5X> M16 FLANGE 		1-09449-065-0 08 1 9002- ● ●
74 BOLT; YOKE,TRANS
P115 PROP SHAFT<C5X> M16X48 		1-09000-383-0 08 1 9307- ● ●
74 BOLT; YOKE,TRANS
P115 PROP SHAFT<C5X> M16X48 		1-09000-383-0 08 1 9307- ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> M16X48 		1-09000-383-0 04 1 9307- ● ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 9307- ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 9307- ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 9002- ● ● ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-0 02 1 9002- ● ● ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		9-99116-516-0 02 1 9002- ● ● ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		9-08114-025-0 02 1 9002- ● ● ● ● ●
çizim 36999
9 11 4 128 58 106 104 15 17 9 169 170 96 10 14 17
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
4 SHAFT; PROP
L=348 		1-37171-058-0 01 1 9002- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (A) 		1-37300-082-0 AR 1 9002- ● ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-074-0 01 1 9002-9009 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-079-0 01 1 9010- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (A) 		1-37300-056-0 AR 1 9002- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> (D) 		1-37300-062-0 01 1 9002- ● ●
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT<C5X> (D) 		1-37300-062-0 01 1 9002- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT<C5T> (B) 		1-37300-085-0 AR 1 9002- ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT<C2M> (B) 		1-37300-086-0 AR 1 9002- ● ● ●
10 BOLT; UJT
(A) M12X45 		9-91066-245-0 04 1 9002- ● ● ● ●
10 BOLT; UJT
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (C) M8X20 		9-09802-702-0 16 1 9002- ● ● ● ●
10 BOLT; UJT
(C) M8X20 		9-09802-702-0 16 1 9002- ●
10 BOLT; UJT
P115 PROP SHAFT<C5X> (B) 		1-37359-001-0 16 1 9307- ● ●
10 BOLT; UJT
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (B) M8X20 		9-09802-702-0 08 1 9002- ● ● ● ● ●
10 BOLT; UJT
P115 PROP SHAFT<C5X> (B) 		1-37359-001-0 08 1 9307- ●
10 BOLT; UJT
P90 PROP SHAFT<C5T> (C) M8X20 		9-09802-702-0 24 1 9002- ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		9-09150-612-0 04 1 9002- ● ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (A) 		1-37249-130-0 08 1 9002- ● ● ● ● ●
14 COVER; DUST,SPIDER
(C) 		1-37319-004-0 08 1 9002- ● ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) 		9-37352-023-0 08 1 9002- ● ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (B) 		1-37249-130-0 04 1 9002- ● ● ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT<C2M> (A) 		9-37352-023-0 04 1 9002- ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT<C5T> (A) 		1-37249-130-0 12 1 9002- ●
15 UNIVERSAL CENTER
(B) 		1-37300-074-0 01 1 9002-9009 ● ● ● ●
15 UNIVERSAL CENTER
(B) 		1-37300-079-0 01 1 9010- ● ● ● ●
15 UNIVERSAL CENTER
P115 PROP SHAFT<C5X> (A) 		1-37300-062-0 01 1 9002- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A),(C) PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9307- ● ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (A),(C) PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9307- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B),(C) PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9002-9306 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (B),(C) PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9002-9306 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> (B),(C) PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9002-9306 ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT<C5X> (A) 		1-37319-005-0 04 1 9307- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> (A) PT1/8 ELBOW 67.5? 		9-09031-110-0 01 1 9002-9306 ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> (A) PT1/8 ELBOW 67.5? 		9-09031-110-0 03 1 9002-9306 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) PT1/8 ELBOW 		9-09031-210-0 01 1 9307- ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT<C5T> (B) PT1/8 ELBOW 		9-09031-210-0 01 1 9307- ●
17 NIPPLE; GREASE,PROP SHAFT
P115 PROP SHAFT<C5X> (B) 		1-37319-005-0 02 1 9307- ●
58 FLANGE; SPLINED
L=264 		1-37245-157-1 01 1 9002- ● ● ● ●
96 BOLT; PROP SHAFT
M12X45 		9-91066-245-0 08 1 9002- ● ● ● ●
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT<C5T> (A) 		1-09600-067-0 01 1 9002- ● ● ● ● ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-049-0 01 1 9002- ● ● ● ●
104 PLUG; SLEEVE YOKE
P60 PROP SHAFT<C2M> (A) 		9-09860-507-0 01 1 9002- ● ● ● ●
104 PLUG; SLEEVE YOKE
P115 PROP SHAFT<C5X> (A) 		1-37248-011-0 01 1 9109- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> (A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9002- ● ● ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9002- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT<C5X> (B) 		1-37248-010-0 01 1 9002- ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT<C5T> (A) 		1-37247-016-0 01 1 9002- ● ● ● ● ● ●
128 SEAL; SLEEVE
(B) 		1-37247-006-0 01 1 9002- ● ● ● ●
128 SEAL; SLEEVE
P60 PROP SHAFT<C2M> DESERT ZONE PACKAGE(W01) (A) 		1-37247-012-0 01 1 9002- ● ● ● ●
128 SEAL; SLEEVE
P115 PROP SHAFT<C5X> (A) 		1-37247-013-0 01 1 9002- ● ●
169 BOLT; YOKE,SLEEVE
M12X45 		9-91066-245-0 04 1 9002- ● ● ● ●
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		9-09150-612-0 04 1 9002- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
