Sayfa 5-01 - Isuzu EPC

5-01 — FRAME AND OTHER PARTS (#33866) — 160 parça

165 20 2 325 325 75 34 345 75 101 446 446 103 215 147 105 215

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

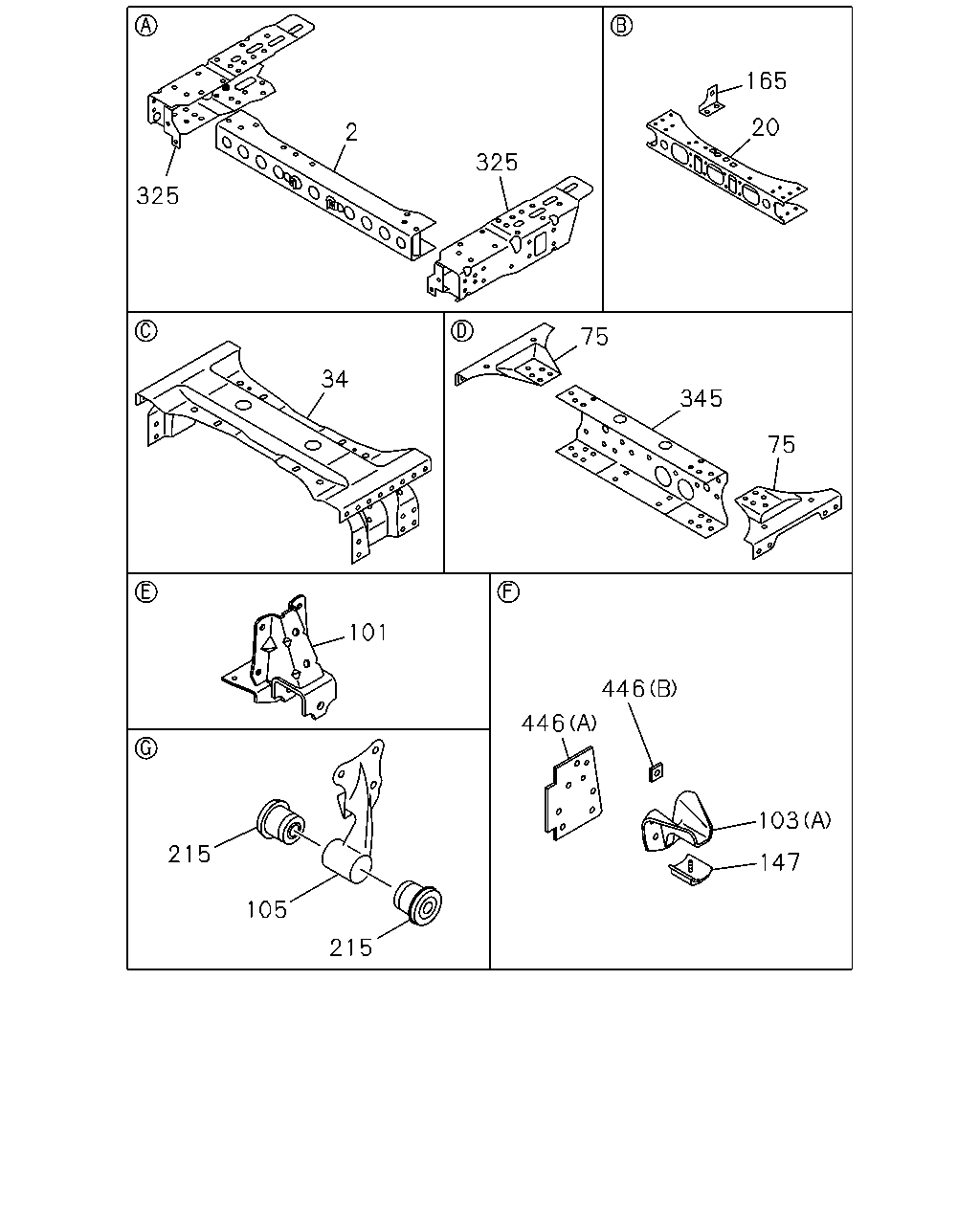

2	07.010 MEMBER; CROSS,1ST	8-97387-866-4	01	1	0710-1002	●
2	07.010 MEMBER; CROSS,1ST AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97387-866-4	01	1	0710-1002		●
2	07.010 MEMBER; CROSS,1ST	8-97387-866-4	01	1	1003-	●	●
20	07.012 MEMBER; CROSS,2ND	8-98014-074-4	01	1	0710-1002	●
20	07.012 MEMBER; CROSS,2ND AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98014-074-4	01	1	0710-1002		●
20	07.012 MEMBER; CROSS,2ND	8-98014-074-6	01	1	1003-	●	●
34	07.012 MEMBER; CROSS,3RD	8-98074-639-3	01	1	0710-1002	●
34	07.012 MEMBER; CROSS,3RD AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98074-639-3	01	1	0710-1002		●
34	07.012 MEMBER; CROSS,3RD	8-98074-639-3	01	1	1003-	●	●
75	07.039 GUSSET; 5TH C/MBR RH-UPPER, LH-LOWER	8-98000-583-0	02	1	0710-1002	●
75	07.039 GUSSET; 5TH C/MBR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> RH-UPPER, LH-LOWER	8-98000-583-0	02	1	0710-1002		●
75	07.039 GUSSET; 5TH C/MBR RH-UPPER, LH-LOWER	8-98000-583-0	02	1	1003-	●	●
75	07.039 GUSSET; 5TH C/MBR RH-LOWER, LH-UPPER	8-98000-584-0	02	1	0710-1002	●
75	07.039 GUSSET; 5TH C/MBR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> RH-LOWER, LH-UPPER	8-98000-584-0	02	1	0710-1002		●
75	07.039 GUSSET; 5TH C/MBR RH-LOWER, LH-UPPER	8-98000-584-0	02	1	1003-	●	●
101	07.112 BRACKET; RR SPR,FRT	8-97042-245-1	02	1	0710-1002	●
101	07.112 BRACKET; RR SPR,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97042-245-1	02	1	0710-1002		●
101	07.112 BRACKET; RR SPR,FRT	8-97042-245-1	02	1	1003-	●	●
103	07.420 STOPPER; SUB SPR 07.524 (B)	8-97079-659-1	02	1	0710-1002	●
103	07.420 STOPPER; SUB SPR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 07.524 (B)	8-97079-659-1	02	1	0710-1002		●
103	07.420 STOPPER; SUB SPR 07.524 (B)	8-97079-659-1	02	1	1003-	●	●
103	07.420 STOPPER; SUB SPR (A)	8-97223-748-0	04	1	0710-1002	●
103	07.420 STOPPER; SUB SPR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-97223-748-0	04	1	0710-1002		●
103	07.420 STOPPER; SUB SPR (A)	8-97223-748-0	04	1	1003-	●	●
105	07.112 BRACKET; RR SPR,RR	8-98032-488-0	01	1	0710-1002	●
105	07.112 BRACKET; RR SPR,RR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98032-488-0	01	1	0710-1002		●
105	07.112 BRACKET; RR SPR,RR	8-98032-488-0	01	1	1003-	●	●
105	07.112 BRACKET; RR SPR,RR	8-98032-489-0	01	1	0710-1002	●
105	07.112 BRACKET; RR SPR,RR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98032-489-0	01	1	0710-1002		●
105	07.112 BRACKET; RR SPR,RR	8-98032-489-0	01	1	1003-	●	●
147	07.535 RUBBER; SUB SPRING	8-97254-387-0	04	1	0710-1002	●
147	07.535 RUBBER; SUB SPRING AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97254-387-0	04	1	0710-1002		●
147	07.535 RUBBER; SUB SPRING	8-97254-387-0	04	1	1003-	●	●
165	01.270 BRACKET; RAD STAY	8-98000-886-0	01	1	0710-1002	●
165	01.270 BRACKET; RAD STAY AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98000-886-0	01	1	0710-1002		●
165	01.270 BRACKET; RAD STAY	8-98000-886-0	01	1	1003-	●	●
215	07.524 BUSHING; BRKT,RR SPRING	8-97184-699-1	04	1	0710-1002	●
215	07.524 BUSHING; BRKT,RR SPRING AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97184-699-1	04	1	0710-1002		●
215	07.524 BUSHING; BRKT,RR SPRING	8-97184-699-1	04	1	1003-	●	●
325	07.039 EXTENSION; FRAME AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98073-348-1	01	1	0710-	●	●
325	07.039 EXTENSION; FRAME AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98073-349-0	01	1	0710-	●	●
325	07.039 EXTENSION; FRAME EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98073-344-1	01	1	0710-1002	●
325	07.039 EXTENSION; FRAME EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98073-344-1	01	1	1003-	●	●
325	07.039 EXTENSION; FRAME EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98073-345-0	01	1	0710-1002	●
325	07.039 EXTENSION; FRAME EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98073-345-0	01	1	1003-	●	●
345	07.012 MEMBER; CROSS,5TH	8-97175-993-3	01	1	0710-1002	●
345	07.012 MEMBER; CROSS,5TH AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97175-993-3	01	1	0710-1002		●
345	07.012 MEMBER; CROSS,5TH	8-97175-993-3	01	1	1003-	●	●
446	07.112 STIFFENER; SPRING STOPPER (A)	8-98014-080-1	02	1	0710-0802	●
446	07.112 STIFFENER; SPRING STOPPER AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98014-080-1	02	1	0710-0802		●
446	07.112 STIFFENER; SPRING STOPPER AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98014-080-1	02	1	0803-1002		●
446	07.112 STIFFENER; SPRING STOPPER (B)	8-97122-173-0	02	1	0710-1002	●
446	07.112 STIFFENER; SPRING STOPPER AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-97122-173-0	02	1	0710-1002		●
446	07.112 STIFFENER; SPRING STOPPER (B)	8-97122-173-0	02	1	1003-	●	●

51 39 51 31 31 42 24 43 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	07.105 BRACKET; FRT SPR,FRT	8-98059-775-0	02	1	0710-1002	●
24	07.105 BRACKET; FRT SPR,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98059-775-0	02	1	0710-1002		●
24	07.105 BRACKET; FRT SPR,FRT	8-98059-775-0	02	1	1003-	●	●
31	07.428 BUSHING; FRT SPR,RR 07.524	8-97184-699-1	04	1	0710-1002	●
31	07.428 BUSHING; FRT SPR,RR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 07.524	8-97184-699-1	04	1	0710-1002		●
31	07.428 BUSHING; FRT SPR,RR 07.524	8-97184-699-1	04	1	1003-	●	●
39	07.112 BRACKET; FRT SPR,RR	8-98070-113-0	01	1	0710-1002	●
39	07.112 BRACKET; FRT SPR,RR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98070-113-0	01	1	0710-1002		●
39	07.112 BRACKET; FRT SPR,RR	8-98070-113-0	01	1	1003-	●	●
39	07.112 BRACKET; FRT SPR,RR	8-98070-114-0	01	1	0710-1002	●
39	07.112 BRACKET; FRT SPR,RR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98070-114-0	01	1	0710-1002		●
39	07.112 BRACKET; FRT SPR,RR	8-98070-114-0	01	1	1003-	●	●
42	07.011 MEMBER; CROSS,ENG MTG	8-98067-960-0	01	1	0710-1002	●
42	07.011 MEMBER; CROSS,ENG MTG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98067-960-0	01	1	0710-1002		●
42	07.011 MEMBER; CROSS,ENG MTG	8-98067-960-0	01	1	1003-	●	●
43	09.003 BRACKET; CAB MTG,RR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98061-560-1	01	1	0710-1002		●
43	09.003 BRACKET; CAB MTG,RR	8-98061-560-1	01	1	1003-		●
43	09.003 BRACKET; CAB MTG,RR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98061-561-1	01	1	0710-1002		●
43	09.003 BRACKET; CAB MTG,RR	8-98061-561-1	01	1	1003-		●
51	07.011 BRACKET; ENG SUPPORT,OUTER	8-98034-961-0	01	1	0710-1002	●
51	07.011 BRACKET; ENG SUPPORT,OUTER AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98034-961-0	01	1	0710-1002		●
51	07.011 BRACKET; ENG SUPPORT,OUTER	8-98034-961-0	01	1	1003-	●	●
63	01.270 BRACKET; RAD MTG	8-97115-668-0	01	1	0710-1002	●
63	01.270 BRACKET; RAD MTG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97115-668-0	01	1	0710-1002		●
63	01.270 BRACKET; RAD MTG	8-97115-668-0	01	1	1003-	●	●

140 196 217 139 198 198 74 201 344 130 74 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
74	07.039 GUSSET; 4TH C/MBR RH-LOWER, LH-UPPER	8-98000-583-0	02	1	0710-1002	●
74	07.039 GUSSET; 4TH C/MBR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> RH-LOWER, LH-UPPER	8-98000-583-0	02	1	0710-1002		●
74	07.039 GUSSET; 4TH C/MBR RH-LOWER, LH-UPPER	8-98000-583-0	02	1	1003-	●	●
74	07.039 GUSSET; 4TH C/MBR RH-UPPER, LH-LOWER	8-98000-584-0	02	1	0710-1002	●
74	07.039 GUSSET; 4TH C/MBR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> RH-UPPER, LH-LOWER	8-98000-584-0	02	1	0710-1002		●
74	07.039 GUSSET; 4TH C/MBR RH-UPPER, LH-LOWER	8-98000-584-0	02	1	1003-	●	●
130	07.014 MEMBER; CROSS,END	8-97080-872-0	01	1	0710-1002	●
130	07.014 MEMBER; CROSS,END AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97080-872-0	01	1	0710-1002		●
130	07.014 MEMBER; CROSS,END	8-97080-872-0	01	1	1003-	●	●
139	07.012 MEMBER; CROSS,6TH	8-97107-384-0	01	1	0710-1002	●
139	07.012 MEMBER; CROSS,6TH AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97107-384-0	01	1	0710-1002		●
139	07.012 MEMBER; CROSS,6TH	8-97107-384-0	01	1	1003-	●	●
140	07.112 BRACKET; S/ABS,RR	8-97080-884-0	02	1	0710-1002	●
140	07.112 BRACKET; S/ABS,RR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97080-884-0	02	1	0710-1002		●
140	07.112 BRACKET; S/ABS,RR	8-97080-884-0	02	1	1003-	●	●
196	07.242 BRACKET; STAB TO FRAME	8-98033-523-0	02	1	0710-1002	●
196	07.242 BRACKET; STAB TO FRAME AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98033-523-0	02	1	0710-1002		●
196	07.242 BRACKET; STAB TO FRAME	8-98033-523-0	02	1	1003-	●	●
198	07.039 GUSSET; 6TH C/MBR	8-98092-777-0	01	1	0710-1002	●
198	07.039 GUSSET; 6TH C/MBR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98092-777-0	01	1	0710-1002		●
198	07.039 GUSSET; 6TH C/MBR	8-98092-777-1	01	1	1003-	●	●
198	07.039 GUSSET; 6TH C/MBR	8-98092-778-0	01	1	0710-1002	●
198	07.039 GUSSET; 6TH C/MBR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98092-778-0	01	1	0710-1002		●
198	07.039 GUSSET; 6TH C/MBR	8-98092-778-1	01	1	1003-	●	●
201	07.039 GUSSET; C/MBR	8-97096-871-0	02	1	0710-1002	●
201	07.039 GUSSET; C/MBR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97096-871-0	02	1	0710-1002		●
201	07.039 GUSSET; C/MBR	8-97096-871-0	02	1	1003-	●	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING	8-97202-417-0	02	1	0710-1002	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97202-417-0	02	1	0710-1002		●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING	8-97202-417-0	02	1	1003-	●	●
344	07.012 MEMBER; CROSS,4TH	8-97175-993-3	01	1	0710-1002	●
344	07.012 MEMBER; CROSS,4TH AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97175-993-3	01	1	0710-1002		●
344	07.012 MEMBER; CROSS,4TH	8-97175-993-3	01	1	1003-	●	●

376 376 376 376 376 376 376 376 376 376 376 376 376 376 221 221 176 176 296 118 67 222

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
67	07.011 NUT; C/MBR 04.085 M10 FLANGE	0-91180-210-0	14	1	0710-0710	●
67	07.011 NUT; C/MBR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 04.085 M10 FLANGE	0-91180-210-0	14	1	0710-0710		●
67	07.011 NUT; C/MBR 04.085 M10 FLANGE	0-91180-210-0	18	1	0711-1002	●
67	07.011 NUT; C/MBR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 04.085 M10 FLANGE	0-91180-210-0	18	1	0711-1002		●
67	07.011 NUT; C/MBR 04.085 M10 FLANGE	0-91180-210-0	18	1	1003-	●	●
118	07.529 NUT; STOPPER M8 LOCK NUT	0-91370-008-0	02	1	0710-1002	●
118	07.529 NUT; STOPPER AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M8 LOCK NUT	0-91370-008-0	02	1	0710-1002		●
118	07.529 NUT; STOPPER M8 LOCK NUT	0-91370-008-0	02	1	1003-	●	●
176	04.085 BOLT; C/MBR,ENG MTG 09.171 (A) M10X25 FLANGE	0-28051-025-0	08	1	0710-0710	●
176	04.085 BOLT; C/MBR,ENG MTG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 09.171 (A) M10X25 FLANGE	0-28051-025-0	08	1	0710-0710		●
176	04.085 BOLT; C/MBR,ENG MTG 03.890 (B) M10X30 FLANGE	0-28051-030-0	04	1	0711-1002	●
176	04.085 BOLT; C/MBR,ENG MTG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 03.890 (B) M10X30 FLANGE	0-28051-030-0	04	1	0711-1002		●
176	04.085 BOLT; C/MBR,ENG MTG 03.890 (B) M10X30 FLANGE	0-28051-030-0	04	1	1003-	●	●
176	04.085 BOLT; C/MBR,ENG MTG 00.029 (A) M10X25 FLANGE	0-28651-025-0	02	1	0711-1002	●
176	04.085 BOLT; C/MBR,ENG MTG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 00.029 (A) M10X25 FLANGE	0-28651-025-0	02	1	0711-1002		●
176	04.085 BOLT; C/MBR,ENG MTG 00.029 (A) M10X25 FLANGE	0-28651-025-0	02	1	1003-	●	●
176	04.085 BOLT; C/MBR,ENG MTG 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	0711-1002	●
176	04.085 BOLT; C/MBR,ENG MTG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	0711-1002		●
176	04.085 BOLT; C/MBR,ENG MTG 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	1003-	●	●
221	01.270 BOLT; RAD MTG BRKT,FRAME 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-0710	●
221	01.270 BOLT; RAD MTG BRKT,FRAME AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-0710		●
221	01.270 BOLT; RAD MTG BRKT,FRAME 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0711-1002	●
221	01.270 BOLT; RAD MTG BRKT,FRAME AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0711-1002		●
221	01.270 BOLT; RAD MTG BRKT,FRAME 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1003-	●	●
222	07.039 NUT; RAD MTG BRKT,FRAME 01.540 M8 FLANGE	0-91180-208-0	02	1	0711-1002	●
222	07.039 NUT; RAD MTG BRKT,FRAME AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.540 M8 FLANGE	0-91180-208-0	02	1	0711-1002		●
222	07.039 NUT; RAD MTG BRKT,FRAME 01.540 M8 FLANGE	0-91180-208-0	02	1	1003-	●	●
296	07.039 BOLT; 3RD C/MBR 00.029 M10X30 FLANGE	0-28651-030-0	16	1	0710-1002	●
296	07.039 BOLT; 3RD C/MBR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 00.029 M10X30 FLANGE	0-28651-030-0	16	1	0710-1002		●
296	07.039 BOLT; 3RD C/MBR 00.029 M10X30 FLANGE	0-28651-030-0	16	1	1003-	●	●
376	07.039 RIVET; FRAME 07.011 (A) D8X24 TAPER END	9-06750-824-0	AR	1	0710-	●	●
376	07.039 RIVET; FRAME 07.395 (B) D8X26 TAPER END	9-06750-826-0	AR	1	0710-	●	●
376	07.039 RIVET; FRAME (C) D10X22 TAPER END	9-06751-022-0	AR	1	0710-	●	●
376	07.039 RIVET; FRAME (D) D10X24 TAPER END	9-06751-024-0	AR	1	0710-	●	●
376	07.039 RIVET; FRAME (E) D10X26 TAPER END	9-06751-026-0	AR	1	0710-	●	●
376	07.039 RIVET; FRAME (F) D10X28 TAPER END	9-06751-028-0	AR	1	0710-	●	●
376	07.039 RIVET; FRAME (G) D10X30 TAPER END	9-06751-030-0	AR	1	0710-	●	●
376	07.039 RIVET; FRAME (H) D10X32 TAPER END	9-06751-032-0	AR	1	0710-	●	●
376	07.039 RIVET; FRAME (I) D10X36 TAPER END	9-06751-036-0	AR	1	0710-	●	●
376	07.039 RIVET; FRAME (J) D11X26 TAPER END	9-06751-126-0	AR	1	0710-	●	●
376	07.039 RIVET; FRAME (K) D11X30 TAPER END	9-06751-130-0	AR	1	0710-	●	●
376	07.039 RIVET; FRAME 07.105 (L) D12X30 TAPER END	9-06751-230-0	AR	1	0710-	●	●
376	07.039 RIVET; FRAME 07.428 (M) D12X36 TAPER END	9-06751-236-0	AR	1	0710-	●	●
376	07.039 RIVET; FRAME 07.112 (N) D12X40 TAPER END	9-06751-240-0	AR	1	0710-	●	●

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

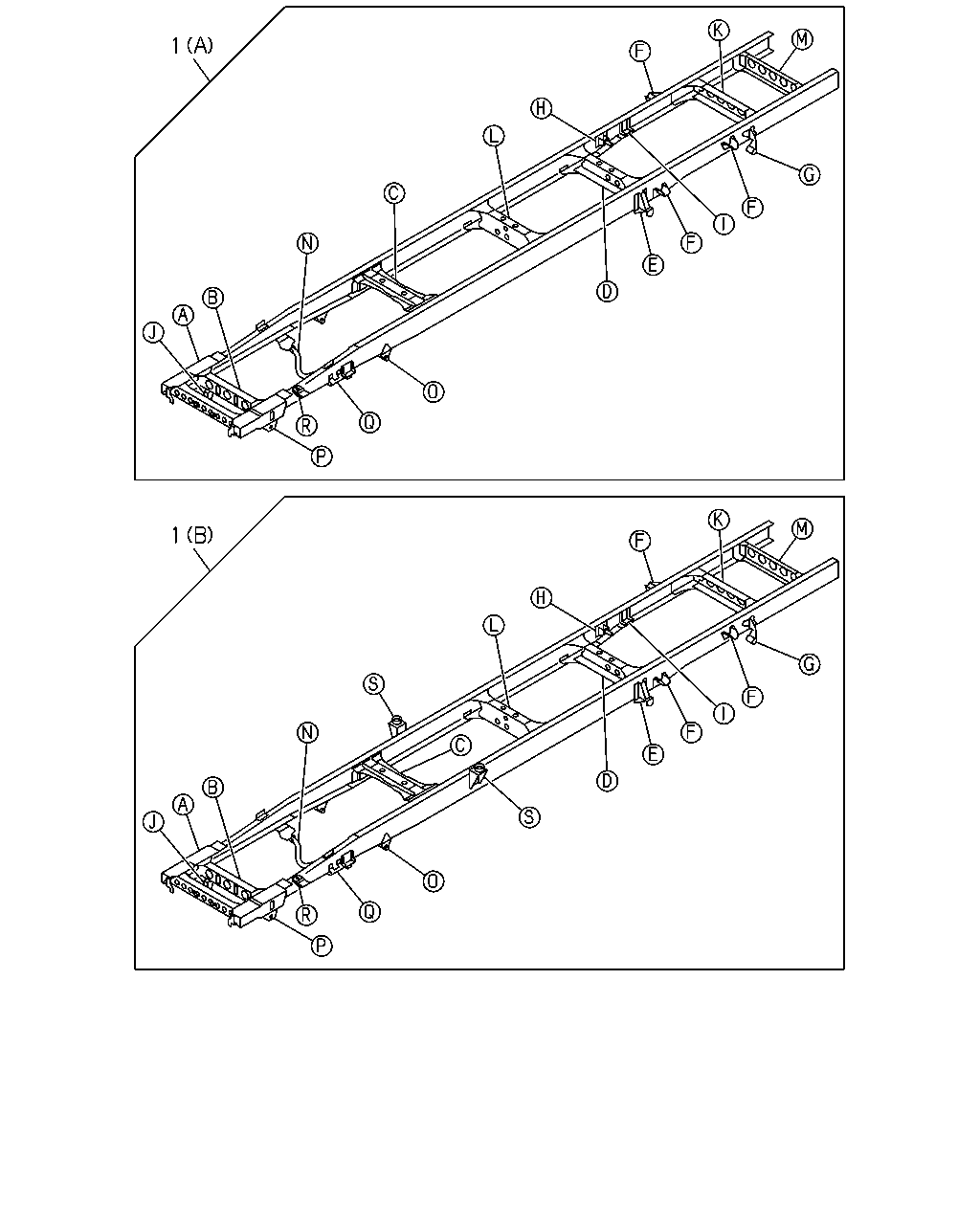

1	07.003 FRAME ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98071-749-3	01	1	0710-	●
1	07.003 FRAME ASM EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (A)	8-98071-748-3	01	1	0710-	●
1	07.003 FRAME ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98071-751-3	01	1	0710-		●
1	07.003 FRAME ASM EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (B)	8-98162-924-1	01	1	1003-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
