Isuzu WW
▶
TRUCKS
▶
NPS
▶
51410 - NPS(AUST)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-80 - ROAD WHEEL
▶
4-80 — ROAD WHEEL
(#33865) — 14 parça
Tümü
A - NPS5SN
B - NPS5WN
◀

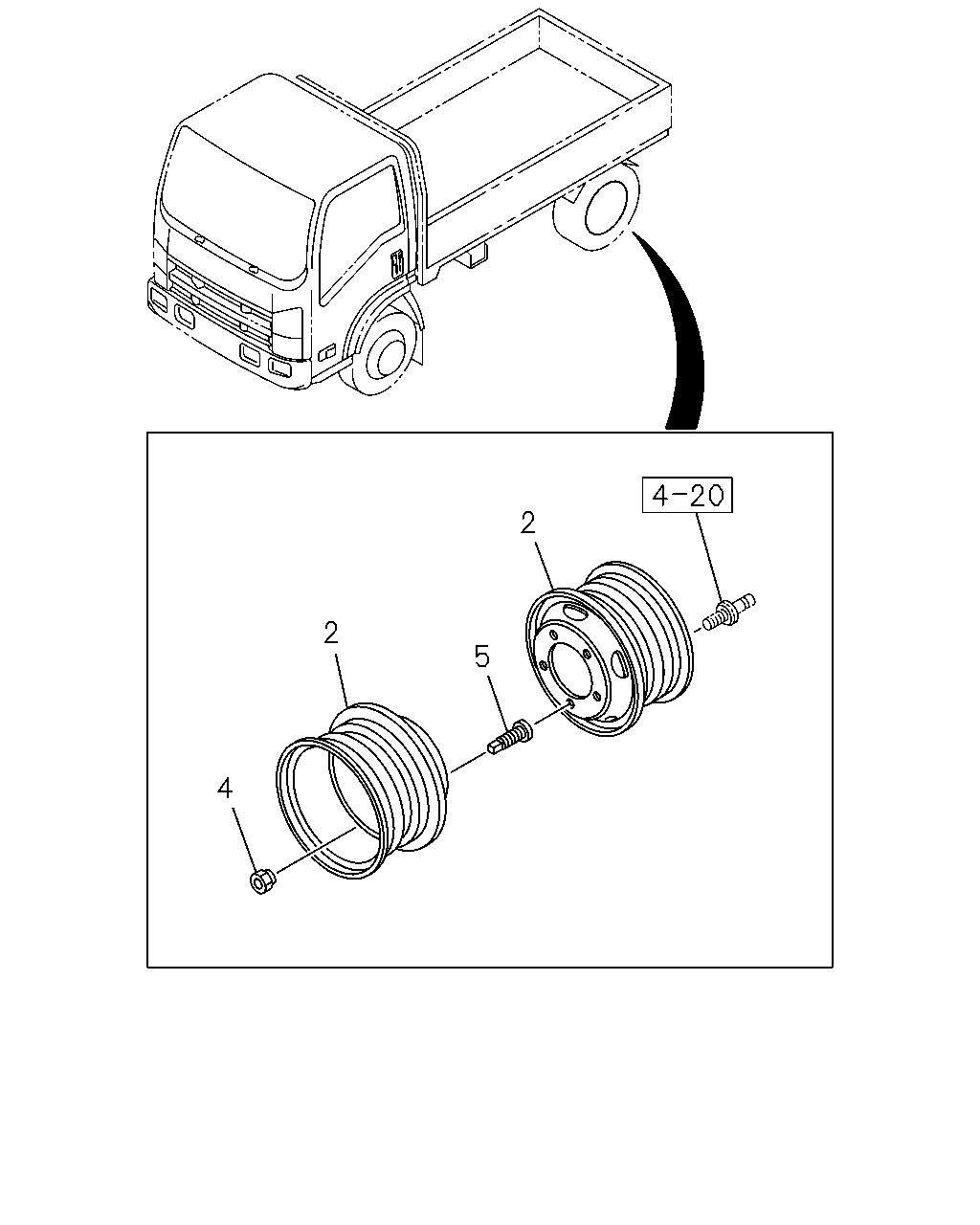

[480A] REAR (8 parça)

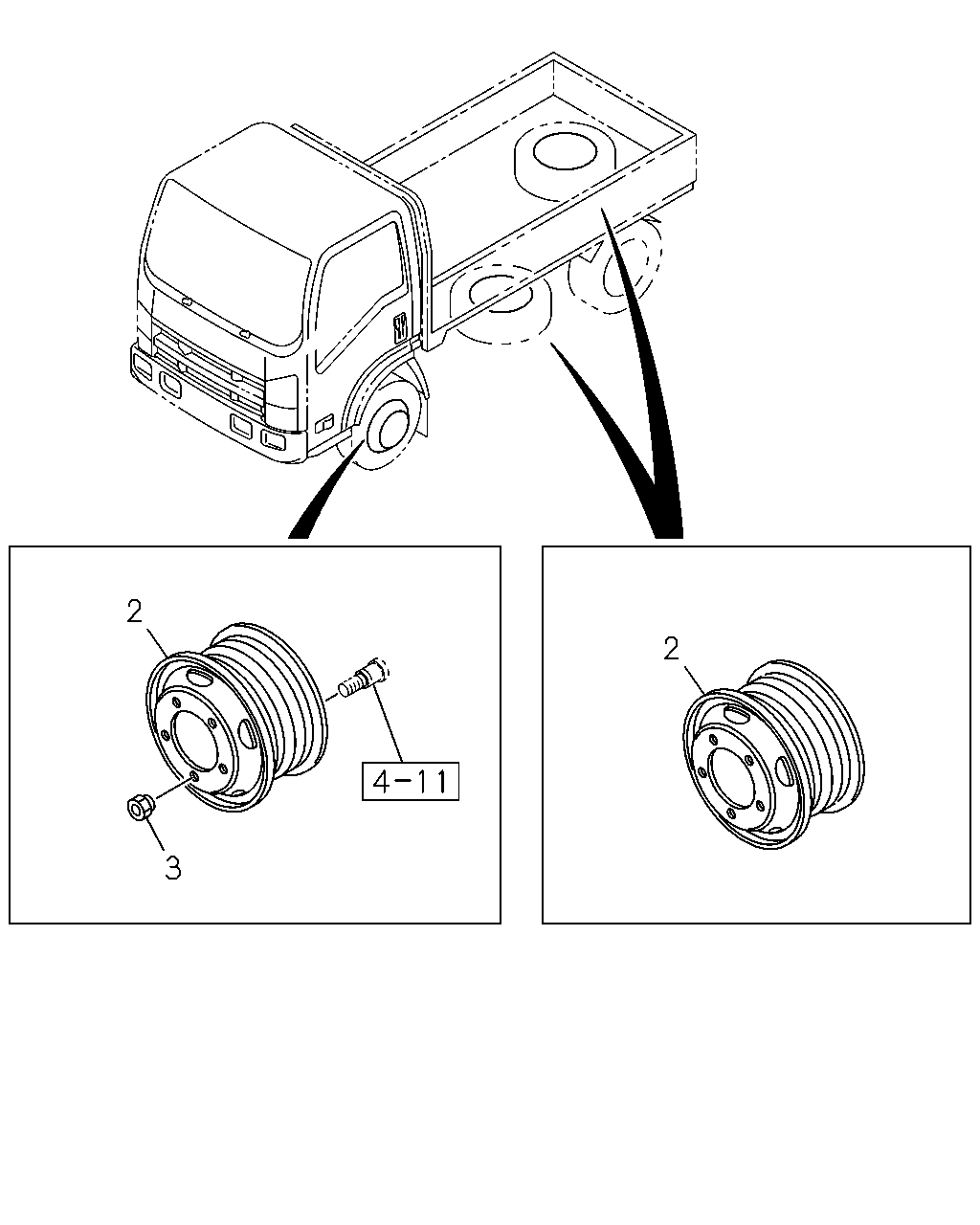

[480A] FRONT AND SPARE (6 parça)
▶
2
2
5
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
05.803 WHEEL; DISC
SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE
8-98012-855-0
01
1
0710-1010
●
●
2
05.803 WHEEL; DISC
SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE
8-98168-215-0
01
1
1011-
●
●
2
05.803 WHEEL; DISC
FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE
8-98012-855-0
06
1
0710-1010
●
●
2
05.803 WHEEL; DISC
FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE
8-98168-215-0
06
1
1011-
●
●
4
05.813 NUT; WHEEL,RR AXLE
M30 RH THREAD
8-97359-809-0
06
1
0710-
●
●
4
05.813 NUT; WHEEL,RR AXLE
M30 LH THREAD
8-97359-810-0
06
1
0710-
●
●
5
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD
8-97359-805-0
06
1
0710-
●
●
5
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD
8-97359-806-0
06
1
0710-
●
●
2
2
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
05.803 WHEEL; DISC
SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE
8-98012-855-0
01
1
0710-1010
●
●
2
05.803 WHEEL; DISC
SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE
8-98168-215-0
01
1
1011-
●
●
2
05.803 WHEEL; DISC
FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE
8-98012-855-0
06
1
0710-1010
●
●
2
05.803 WHEEL; DISC
FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE
8-98168-215-0
06
1
1011-
●
●
3
05.813 NUT; WHEEL,FRT AXLE
M20 RH THREAD
8-97359-807-0
06
1
0710-
●
●
3
05.813 NUT; WHEEL,FRT AXLE
M20 LH THREAD
8-97359-808-0
06
1
0710-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
