Isuzu WW
▶
TRUCKS
▶
NPS
▶
51410 - NPS(AUST)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-60 - REAR SUSPENSION
▶

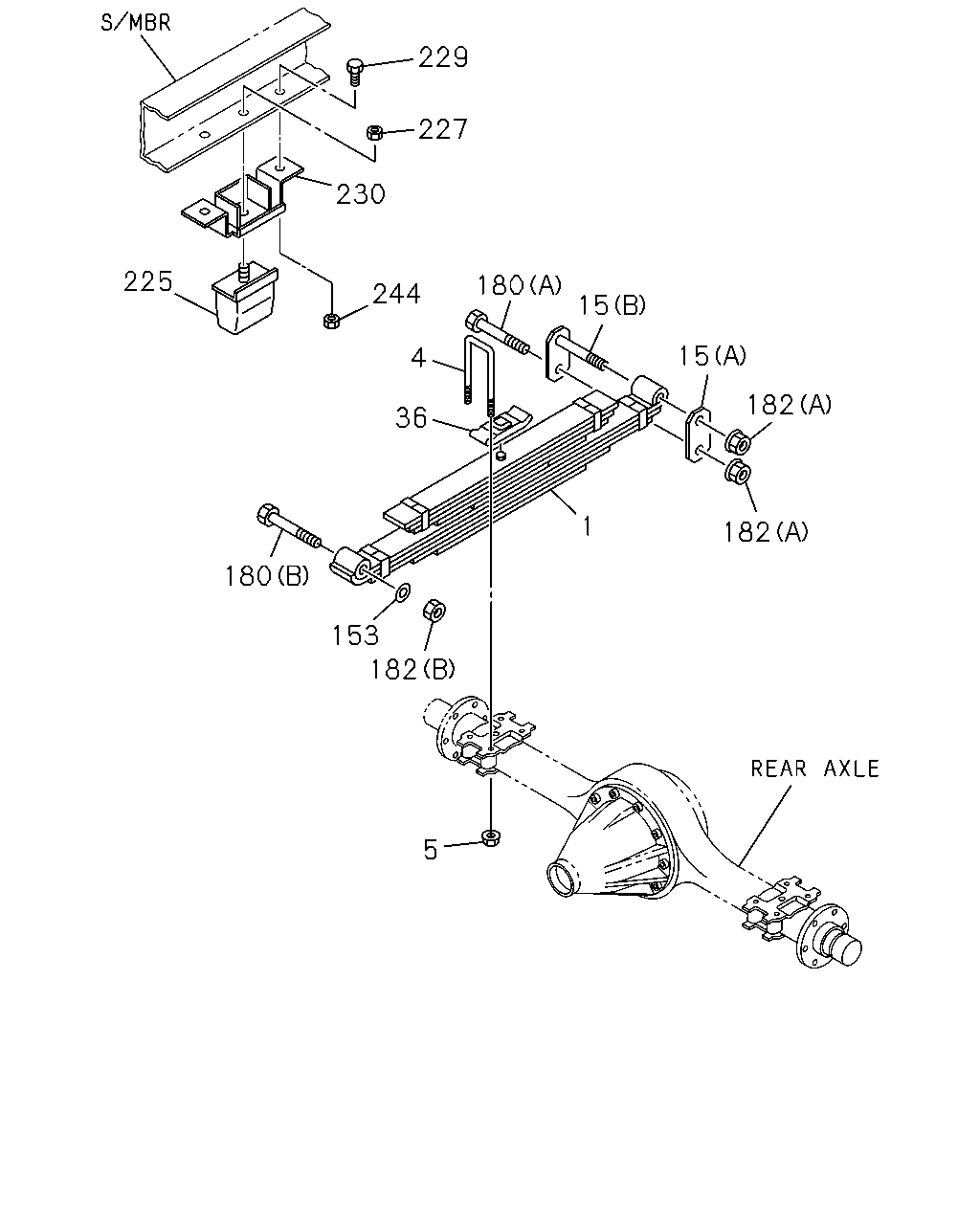

4-60 — REAR SUSPENSION
(#33862) — 16 parça
Tümü
A - NPS5SN
B - NPS5WN
229
227
230
225
180
244
15
15
4
182
36
1
182
180
153
182
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 13-LEAF
8-98089-683-1
02
1
0710-
●
●
4
07.516 U-BOLT; RR SPR
L=420
1-51371-196-2
04
1
0710-
●
●
5
07.529 NUT; U-BOLT,RR SPR
M18 FLANGE
1-09440-039-1
08
1
0710-
●
●
15
07.523 SHACKLE; RR SPR
(A)
8-94118-511-3
02
1
0710-
●
●
15
07.523 SHACKLE; RR SPR
(B)
8-97360-011-0
02
1
0710-
●
●
36
07.529 SEAT; HELPER RUBBER,RR SPR
07.518
1-51372-059-0
02
1
0710-
●
●
153
07.529 WASHER; PL,SPRING PIN
ID=19
8-97360-119-0
02
1
0710-
●
●
180
07.529 PIN; RR SPR
07.427 (A) M16X122 FLANGE
8-97360-110-0
02
1
0710-
●
●
180
07.529 PIN; RR SPR
(B) M18X130 FLANGE
8-97360-112-0
02
1
0710-
●
●
182
07.529 NUT; PIN,RR SPR
(B) M18
0-91110-518-0
02
1
0710-
●
●
182
07.529 NUT; PIN,RR SPR
07.427 (A) M16 FLANGE
8-97360-125-0
04
1
0710-
●
●
225
07.535 RUBBER; CUSHION,RR SPR
8-98025-096-1
02
1
0710-
●
●
227
07.535 NUT; CUSHION RUBBER
02.042 M12 FLANGE
0-91180-112-0
02
1
0710-
●
●
229
07.535 BOLT; BRKT
06.216 M8X25 FLANGE
0-28650-825-0
04
1
0710-
●
●
230
07.518 SPACER; CUSHION RUBBER
8-98049-968-0
02
1
0710-
●
●
244
07.242 NUT; BRKT
01.062 M8 FLANGE
0-91180-108-0
04
1
0710-
●
●
