Sayfa 3-78 - Isuzu EPC

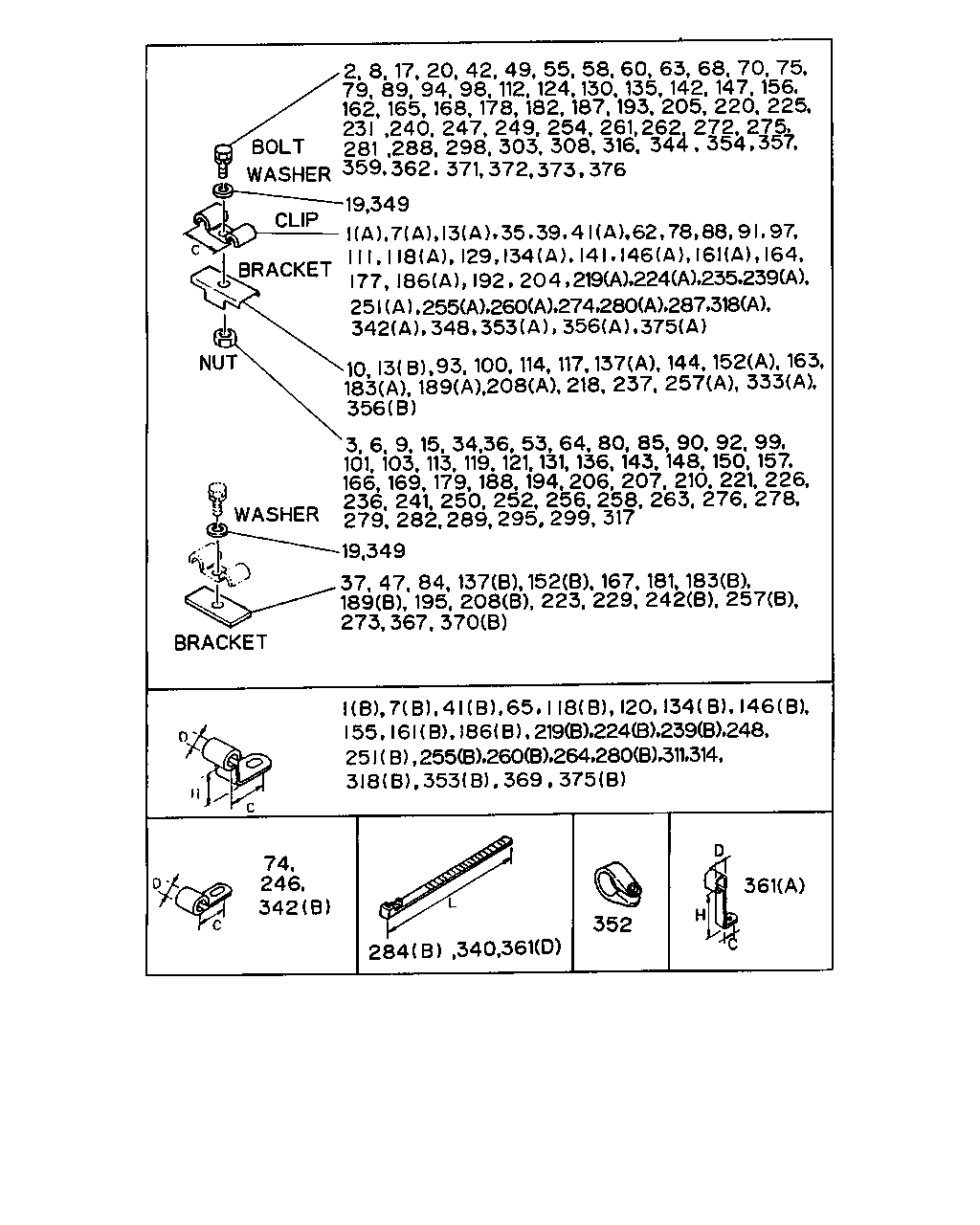

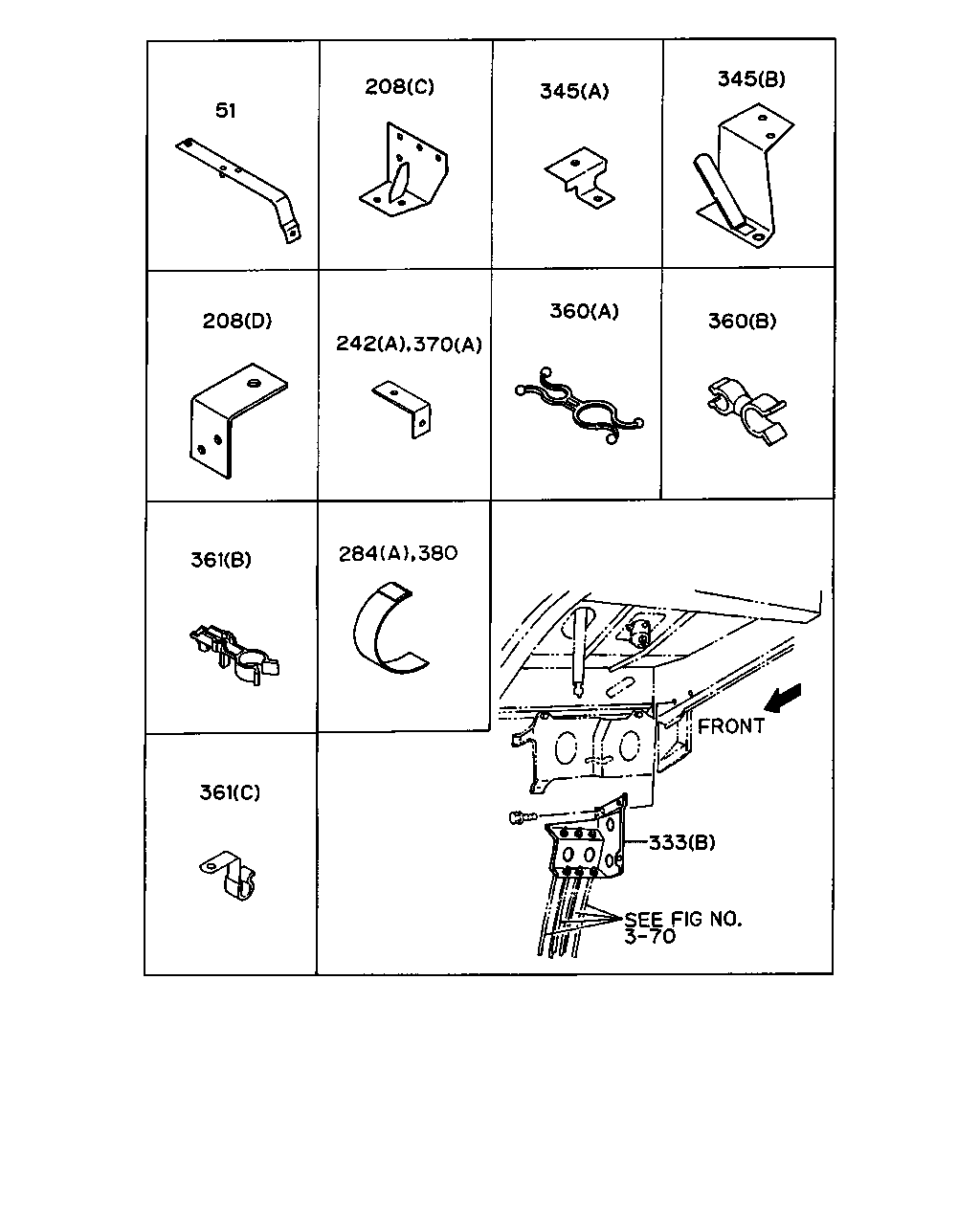

3-78 — FIXING PARTS; AIR PIPING (#3386) — 622 parça

361 352 361 340 284 342 246 74 375 369 353 318 314 311 280 264 260 255 251 248 239 224 219 186 161 155 146 134 120 118 65 41 7 1 370 367 273 257 242 229 223 208 195 189 183 167 181 152 137 84 47 37 349 19 317 299 295 289 282 279 278 276 263 258 256 252 250 241 236 226 221 210 207 206 194 188 179 169 166 157 150 148 143 136 131 121 119 113 103 101 3 6 9 15 34 36 53 64 80 85 90 92 99 356 183 189 208 218 237 257 333 163 152 144 137 117 114 100 93 13 10 375 356 353 348 342 251 260 274 255 280 287 318 239 235 224 219 204 192 186 177 111 118 129 134 141 146 161 164 97 91 88 78 62 41 39 35 131 7 1 349 19 376 373 372 371 362 359 281 288 298 303 308 316 344 354 357 275 272 262 261 254 249 247 240 231 162 165 168 178 182 187 193 205 220 225 156 147 142 135 130 124 112 98 94 89 79 2 8 17 20 42 49 55 58 60 63 68 70 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CLIP; AIR PIPE 10PD1 STD ENG(40L) (B) D=7,C=20,H=20	1-09700-603-0	01	1	9002-	●	●	●
1	CLIP; AIR PIPE 6RB1 STD ENG(07L) EXC. MIXER TRUCK<RA2> (B) D=7,C=20,H=20	1-09700-603-0	01	1	9002-		●	●
1	CLIP; AIR PIPE 10PD1 STD ENG(40L),12PD1 C ENG(43L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) C=35 ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9307-	●	●	●
1	CLIP; AIR PIPE 6RB1 STD ENG(07L) MIXER TRUCK<RA2> (B) D=7,C=20,H=20	1-09700-603-0	02	1	9002-		●
1	CLIP; AIR PIPE 6RB1 STD ENG(07L) EXC. MIXER TRUCK<RA2> (A) 7X7,C=30	1-09700-652-0	01	1	9002-		●
1	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MIXER TRUCK<RA2> (A) ID=11 & 7 L=15 & 15	1-09700-659-0	01	1	9002-		●	●
2	BOLT; CLIP FIX M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204	●	●	●
2	BOLT; CLIP FIX M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-	●	●	●
2	BOLT; CLIP FIX 10PD1 STD ENG(40L) M8X16 FLANGE	0-28010-816-0	01	1	9002-9204	●	●	●
2	BOLT; CLIP FIX 6RB1 STD ENG(07L) EXC. MIXER TRUCK<RA2> M8X16 FLANGE	0-28010-816-0	01	1	9002-9204		●	●
2	BOLT; CLIP FIX M8X16 FLANGE	0-28080-816-0	01	1	9205-	●	●	●
2	BOLT; CLIP FIX 6RB1 STD ENG(07L) MIXER TRUCK<RA2> M8X25 FLANGE	0-28010-825-0	02	1	9002-9204		●
2	BOLT; CLIP FIX 6RB1 STD ENG(07L) MIXER TRUCK<RA2> M8X25 FLANGE	0-28080-825-0	02	1	9205-9306		●
3	NUT; CLIP,AIR PIPE 10PD1 STD ENG(40L),12PD1 C ENG(43L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	01	1	9307-	●	●	●
3	NUT; CLIP,AIR PIPE 6RB1 STD ENG(07L) M8	9-09110-408-0	01	1	9307-		●	●
3	NUT; CLIP,AIR PIPE 10PD1 STD ENG(40L) EXC. MIXER TRUCK<RA2> M8	9-09110-408-0	01	1	9002-9306		●	●
3	NUT; CLIP,AIR PIPE 10PD1 STD ENG(40L) M8	9-09110-408-0	02	1	9002-	●	●	●
6	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-09110-508-0	01	1	9002-9103		●	●
7	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) D=7,C=20,H=20	1-09700-603-0	03	1	9002-9103		●
7	CLIP; AIR PIPE WHEEL BASE 5800MM(58W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) D=7,C=20,H=20	1-09700-603-0	03	1	9002-9103			●
7	CLIP; AIR PIPE WHEEL BASE 5800MM(58W),WHEEL BASE 6400MM(64W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) D=7,C=20,H=20	1-09700-603-0	03	1	9002-9103			●
7	CLIP; AIR PIPE (B) D=7,C=20,H=20	1-09700-603-0	01	1	9104-9306		●
7	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) D=7,C=20,H=20	1-09700-603-0	02	1	9002-9103		●
7	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 9X7,C=30	1-09700-653-0	01	1	9104-9306		●
7	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 9X7,C=30	1-09700-653-0	01	1	9002-9103		●
7	CLIP; AIR PIPE WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 9X7,C=30	1-09700-653-0	01	1	9002-9103			●
7	CLIP; AIR PIPE WHEEL BASE 5800MM(58W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) D=7,C=20,H=20	1-09700-603-0	03	1	9104-9306			●
7	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 9X7,C=30	1-09700-653-0	01	1	9307-		●
7	CLIP; AIR PIPE WHEEL BASE 5500MM(55W) (B) D=7,C=20,H=20	1-09700-603-0	04	1	9307-			●
7	CLIP; AIR PIPE WHEEL BASE 6400MM(64W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) D=7,C=20,H=20	1-09700-603-0	04	1	9307-			●
7	CLIP; AIR PIPE WHEEL BASE 5800MM(58W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) D=7,C=20,H=20	1-09700-603-0	03	1	9307-			●
7	CLIP; AIR PIPE WHEEL BASE 5800MM(58W),WHEEL BASE 6400MM(64W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 9X7,C=30	1-09700-653-0	02	1	9002-9103			●
7	CLIP; AIR PIPE WHEEL BASE 6400MM(64W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) D=7,C=20,H=20	1-09700-603-0	04	1	9002-9306			●
7	CLIP; AIR PIPE WHEEL BASE 5500MM(55W) (B) D=7,C=20,H=20	1-09700-603-0	04	1	9002-9306			●
7	CLIP; AIR PIPE (B) D=7,C=20,H=20	1-09700-603-0	01	1	9307-		●
7	CLIP; AIR PIPE WHEEL BASE 5800MM(58W),WHEEL BASE 6400MM(64W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) D=7,C=20,H=20	1-09700-603-0	02	1	9104-			●
8	BOLT; PIPE CLIP M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9204		●
8	BOLT; PIPE CLIP M8X30 W/LK WASHER	0-50040-830-0	01	1	9205-9302		●
8	BOLT; PIPE CLIP M8X30 FLANGE	0-28080-830-0	01	1	9303-		●
8	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X45 W/LK WASHER	9-01900-845-0	01	1	9002-9103		●
8	BOLT; PIPE CLIP WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X45 W/LK WASHER	9-01900-845-0	01	1	9002-9103			●
8	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X45 W/LK WASHER	9-01900-845-0	01	1	9104-9204		●
8	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X45 W/LK WASHER	0-50040-845-0	01	1	9205-9302		●
8	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X50 FLANGE	0-28080-850-0	01	1	9303-		●
8	BOLT; PIPE CLIP M8X30 W/LK WASHER	9-01900-830-0	04	1	9002-9204			●
8	BOLT; PIPE CLIP M8X30 W/LK WASHER	0-50040-830-0	04	1	9205-9302			●
8	BOLT; PIPE CLIP M8X30 FLANGE	0-28080-830-0	04	1	9303-			●
8	BOLT; PIPE CLIP WHEEL BASE 5800MM(58W),WHEEL BASE 6400MM(64W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X45 W/LK WASHER	9-01900-845-0	02	1	9002-9103			●
9	NUT; PIPE CLIP M8	9-09110-408-0	04	1	9002-		●	●
10	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47475-427-1	01	1	9002-		●	●
13	CLIP; AIR PIPE DUAL AIR GAUGE<UG2> (B) L=50	1-47466-005-0	01	1	9002-	●	●	●
13	CLIP; AIR PIPE DUAL AIR GAUGE<UG2> (A) 5X8,C=30	5-09700-165-0	01	1	9002-	●	●	●
15	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9002-9407	●	●	●
15	NUT; PIPE CLIP GOVERNOR CONTROL<W69> M8	9-09110-408-0	01	1	9002-9407			●
15	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9408-	●	●	●
15	NUT; PIPE CLIP GOVERNOR CONTROL<W69> L TYPE ENG<90L> M8	9-09110-408-0	01	1	9408-			●
17	BOLT; CLIP BRKT M8X22	9-01900-822-0	02	1	9002-9204	●	●	●
17	BOLT; CLIP BRKT M8X22 W/LK WASHER	0-50040-822-0	02	1	9205-9306	●	●	●
17	BOLT; CLIP BRKT M8X22 FLANGE	0-28080-822-0	02	1	9307-	●	●	●
19	WASHER; LK,CLIP BRKT ID=10.2	9-09150-510-0	04	1	9002-	●	●	●
20	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M8X16 W/LK WASHER	9-01900-816-0	02	1	9002-9204		●	●
20	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9306		●	●
20	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M8X16 FLANGE	0-28080-816-0	02	1	9307-		●	●
20	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204		●	●
20	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9306		●	●
20	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M8X20 FLANGE	0-28080-820-0	01	1	9307-		●	●
34	NUT; BRKT M8	9-09110-408-0	02	1	9002-	●	●	●
35	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 16X7,C=33	1-09700-661-0	02	1	9002-		●	●
35	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 16X7,C=38	1-09700-675-0	01	1	9002-		●	●
36	NUT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M8	9-09110-408-0	03	1	9002-		●	●
37	BRACKET; PIPE CLIP EXC. AIR DRYER<PS7> L=50	1-47475-299-2	01	1	9002-	●	●	●
37	BRACKET; PIPE CLIP 6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=50	1-47475-299-2	01	1	9002-		●	●
39	CLIP; AIR PIPE EXC. AIR DRYER<PS7> 16X7,C=38	1-09700-675-0	01	1	9002-	●	●	●
39	CLIP; AIR PIPE 6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 16X7,C=38	1-09700-675-0	01	1	9002-		●	●
41	CLIP; AIR PIPE (A) C=35 ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9003-9306	●	●	●
41	CLIP; AIR PIPE GOVERNOR CONTROL<W69> (B) D=7,C=20,H=20	1-09700-603-0	01	1	9002-9407			●
41	CLIP; AIR PIPE GOVERNOR CONTROL<W69> L TYPE ENG<90L> (B) D=7,C=20,H=20	1-09700-603-0	01	1	9408-			●
42	BOLT; CLIP,AIR PIPE DUAL AIR GAUGE<UG2> M6X16 W/LK WASHER	0-50000-616-0	01	1	9002-9204	●	●	●
42	BOLT; CLIP,AIR PIPE DUAL AIR GAUGE<UG2> M6X16 W/LK WASHER	0-50080-616-0	01	1	9205-9301	●	●	●
42	BOLT; CLIP,AIR PIPE DUAL AIR GAUGE<UG2> M6X16 W/LK WASHER	0-50040-616-0	01	1	9302-9302	●	●	●
42	BOLT; CLIP,AIR PIPE DUAL AIR GAUGE<UG2> M6X16 FLANGE	0-28080-616-0	01	1	9303-	●	●	●
47	BRACKET; PIPE CLIP L=50	1-47475-299-2	01	1	9104-		●	●
49	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28010-825-0	01	1	9002-9204			●
49	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	01	1	9205-	●		●
53	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-09984-073-0	01	1	9002-9302		●	●
53	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	0-91150-106-0	01	1	9303-9410		●	●
53	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M6 FLANGE	0-91150-106-0	01	1	9411-		●	●
55	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9204		●	●
55	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9210		●	●
55	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X35 W/LK WASHER	9-01900-835-0	01	1	9002-9103		●	●
55	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 W/LK WASHER	9-01900-816-0	01	1	9104-9204		●	●
55	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-		●	●
55	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X50 W/LK WASHER	0-50040-850-0	02	1	9211-		●	●
55	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 W/LK WASHER	0-50040-830-0	02	1	9307-		●	●
58	BOLT; CLIP BRKT M6X16 W/LK WASHER	0-50000-616-0	03	1	9002-9204	●	●	●
58	BOLT; CLIP BRKT M6X16 W/LK WASHER	0-50080-616-0	03	1	9205-9301	●	●	●
58	BOLT; CLIP BRKT M6X16 W/LK WASHER	0-50040-616-0	03	1	9302-9302	●	●	●
58	BOLT; CLIP BRKT M6X16 FLANGE	0-28080-616-0	03	1	9303-	●	●	●
60	BOLT; CLIP FIX M8X45 W/LK WASHER	9-01900-845-0	04	1	9002-9204			●
60	BOLT; CLIP FIX M8X45 W/LK WASHER	0-50040-845-0	04	1	9205-9302			●
60	BOLT; CLIP FIX M8X50 FLANGE	0-28080-850-0	04	1	9303-			●
62	CLIP; AIR PIPE ID=11 & 13 L=15 & 16	1-09700-077-0	01	1	9002-	●	●	●
63	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204		●	●
63	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9306		●	●
63	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 FLANGE	0-28080-816-0	01	1	9307-		●	●
64	NUT; CLIP POWER BRAKE LOCK SYSTEM(J50) M8	9-09110-408-0	02	1	9002-		●
65	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) D=11,C=20,H=20	5-09700-351-0	01	1	9002-9103		●	●
68	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28080-825-0	01	1	9307-	●
68	BOLT; CLIP,AIR PIPE TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X25 FLANGE	0-28010-825-0	01	1	9002-9204	●
68	BOLT; CLIP,AIR PIPE TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X25 FLANGE	0-28080-825-0	01	1	9205-9306	●
68	BOLT; CLIP,AIR PIPE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X25 FLANGE	0-28010-825-0	02	1	9002-9204	●
68	BOLT; CLIP,AIR PIPE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X25 FLANGE	0-28080-825-0	02	1	9205-9306	●
68	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28010-820-0	01	1	9002-9204	●	●	●
68	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28080-820-0	01	1	9205-	●	●	●
68	BOLT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28080-830-0	01	1	9307-		●	●
68	BOLT; CLIP,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X30 FLANGE	0-28080-830-0	01	1	9307-		●	●
68	BOLT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X30 FLANGE	0-28010-830-0	01	1	9002-9204		●	●
68	BOLT; CLIP,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X30 FLANGE	0-28010-830-0	01	1	9002-9204		●	●
68	BOLT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X30 FLANGE	0-28080-830-0	01	1	9205-9306		●	●
68	BOLT; CLIP,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X30 FLANGE	0-28080-830-0	01	1	9205-9306		●	●
68	BOLT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X30 FLANGE	0-28010-830-0	02	1	9002-9204		●	●
68	BOLT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X30 FLANGE	0-28080-830-0	02	1	9205-9306		●	●
70	BOLT; CLIP,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28010-825-0	01	1	9002-9103		●	●
74	CLIP; NYLON TUBE DRIVER ISRINGHAUSEN SEAT(SJA) D=7,C=28	9-09524-652-0	01	1	9306-	●	●	●
75	BOLT; CLIP EXC. DUAL AIR GAUGE<UG2> M8X16 FLANGE	0-28010-816-0	01	1	9002-9204	●	●	●
75	BOLT; CLIP EXC. DUAL AIR GAUGE<UG2> M8X16 FLANGE	0-28080-816-0	01	1	9205-	●	●	●
78	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 16X13,C=35	1-09700-658-0	01	1	9002-	●	●	●
78	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 16X7,C=33	1-09700-661-0	01	1	9002-9009	●	●	●
78	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) 16X7,C=33	1-09700-661-0	01	1	9002-9009		●
78	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 16X7,C=33	1-09700-661-0	01	1	9010-	●	●	●
78	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) 16X7,C=33	1-09700-661-0	01	1	9010-		●
78	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 16X7,C=33	1-09700-661-0	01	1	9010-		●
78	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 13X7,C=30	1-09700-665-0	03	1	9002-		●	●
79	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M8X16 W/LK WASHER	9-01900-816-0	02	1	9002-9204	●	●	●
79	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9306	●	●	●
79	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M8X16 FLANGE	0-28080-816-0	01	1	9307-	●	●	●
79	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M8X16 FLANGE	0-28080-816-0	02	1	9307-	●	●	●
80	NUT; CLIP,AIR PIPE M8	9-09110-408-0	03	1	9002-	●	●	●
84	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=50	1-47475-299-2	02	1	9002-	●	●	●
85	NUT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	02	1	9002-		●	●
88	CLIP; AIR PIPE POWER BRAKE LOCK SYSTEM(J50) 16X7,C=33	1-09700-661-0	02	1	9002-		●
88	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 16X11,C=35	1-09700-657-0	01	1	9002-		●	●
89	BOLT; PIPE CLIP M8X45 W/LK WASHER	9-01900-845-0	02	1	9003-9204	●	●	●
89	BOLT; PIPE CLIP M8X45 W/LK WASHER	0-50040-845-0	02	1	9205-	●	●	●
89	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X50 FLANGE	0-28080-850-0	01	1	9303-9306		●
89	BOLT; PIPE CLIP M8X50 W/LK WASHER	0-50040-850-0	01	1	9307-		●	●
89	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28010-830-0	01	1	9002-9204		●	●
89	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28080-830-0	01	1	9205-		●	●
89	BOLT; PIPE CLIP GOVERNOR CONTROL<W69> M8X20 FLANGE	0-28010-820-0	01	1	9002-9204			●
89	BOLT; PIPE CLIP GOVERNOR CONTROL<W69> M8X20 FLANGE	0-28080-820-0	01	1	9205-9407			●
89	BOLT; PIPE CLIP GOVERNOR CONTROL<W69> L TYPE ENG<90L> M8X20 FLANGE	0-28080-820-0	01	1	9408-			●
89	BOLT; PIPE CLIP WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X45 W/LK WASHER	9-01900-845-0	03	1	9002-9204			●
89	BOLT; PIPE CLIP WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X45 W/LK WASHER	0-50040-845-0	03	1	9205-9302			●
89	BOLT; PIPE CLIP WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X50 FLANGE	0-28080-850-0	03	1	9303-			●
89	BOLT; PIPE CLIP WHEEL BASE 5800MM(58W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X45 W/LK WASHER	9-01900-845-0	04	1	9002-9204			●
89	BOLT; PIPE CLIP WHEEL BASE 5800MM(58W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X45 W/LK WASHER	0-50040-845-0	04	1	9205-9302			●
89	BOLT; PIPE CLIP WHEEL BASE 5800MM(58W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X50 FLANGE	0-28080-850-0	04	1	9303-			●
89	BOLT; PIPE CLIP WHEEL BASE 6400MM(64W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X45 W/LK WASHER	9-01900-845-0	05	1	9002-9204			●
89	BOLT; PIPE CLIP WHEEL BASE 6400MM(64W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X45 W/LK WASHER	0-50040-845-0	05	1	9205-9302			●
89	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X50 FLANGE	0-28080-850-0	01	1	9307-		●
89	BOLT; PIPE CLIP WHEEL BASE 6400MM(64W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X50 FLANGE	0-28080-850-0	05	1	9303-			●
90	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	01	1	9002-		●	●
91	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 & 11 L=15 & 15	1-09700-656-0	01	1	9002-9103		●	●
91	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 & 9 L=15 & 15	1-09700-655-0	01	1	9104-		●	●
91	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 & 7 L=15 & 15	1-09700-659-0	02	1	9002-		●	●
92	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	01	1	9002-		●	●
93	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47475-427-1	02	1	9002-		●	●
94	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28010-830-0	02	1	9002-9204		●	●
94	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28080-830-0	02	1	9205-		●	●
97	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 11X9,C=30	1-09700-655-0	02	1	9002-		●	●
97	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 11X11,C=35	1-09700-739-0	01	1	9002-		●	●
98	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X45 W/LK WASHER	9-01900-845-0	03	1	9002-9204		●	●
98	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X45 W/LK WASHER	0-50040-845-0	03	1	9205-9306		●	●
98	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X50 W/LK WASHER	0-50040-850-0	03	1	9307-		●	●
99	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-508-0	02	1	9002-9103		●	●
99	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	03	1	9104-		●	●
100	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47475-427-1	03	1	9104-		●	●
101	NUT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-508-0	04	1	9002-9306		●	●
103	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	02	1	9002-		●	●
111	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 16X11,C=35	1-09700-657-0	01	1	9002-		●	●
111	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 16X16,C=43	1-09700-674-0	01	1	9002-		●	●
112	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X45 W/LK WASHER	9-01900-845-0	02	1	9002-9204		●	●
112	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X45 W/LK WASHER	0-50040-845-0	02	1	9205-9302		●	●
112	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X50 FLANGE	0-28080-850-0	02	1	9303-		●	●
113	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	02	1	9002-		●	●
114	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47475-427-1	02	1	9002-		●	●
117	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47475-427-1	01	1	9002-		●
117	BRACKET; PIPE CLIP WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47475-427-1	06	1	9002-			●
117	BRACKET; PIPE CLIP WHEEL BASE 5800MM(58W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47475-427-1	07	1	9002-			●
117	BRACKET; PIPE CLIP WHEEL BASE 6400MM(64W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47475-427-1	09	1	9002-			●
118	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 16X11,C=35	1-09700-657-0	01	1	9002-		●
118	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) D=15,C=20,H=20	1-09700-606-0	01	1	9002-		●	●
118	CLIP; AIR PIPE WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 16X11,C=35	1-09700-657-0	06	1	9002-			●
118	CLIP; AIR PIPE WHEEL BASE 5800MM(58W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 16X11,C=35	1-09700-657-0	07	1	9002-			●
118	CLIP; AIR PIPE WHEEL BASE 6400MM(64W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 16X11,C=35	1-09700-657-0	09	1	9002-			●
119	NUT; CLIP BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 5800MM(58W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	03	1	9002-			●
119	NUT; CLIP BRKT WHEEL BASE 6400MM(64W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	04	1	9002-			●
120	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) D=12,C=20,H=20	1-09700-605-0	01	1	9002-	●		●
121	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	02	1	9002-		●	●
121	NUT; PIPE CLIP WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	03	1	9002-			●
121	NUT; PIPE CLIP WHEEL BASE 5800MM(58W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	04	1	9002-			●
121	NUT; PIPE CLIP WHEEL BASE 6400MM(64W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	05	1	9002-			●
124	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50000-616-0	01	1	9002-9204	●	●	●
124	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50080-616-0	01	1	9205-9301	●	●	●
124	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50040-616-0	01	1	9302-9302	●	●	●
124	BOLT; PIPE CLIP M6X16 FLANGE	0-28080-616-0	01	1	9303-	●	●	●
124	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50000-616-0	02	1	9002-9204	●	●	●
124	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50080-616-0	02	1	9205-9301	●	●	●
124	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50040-616-0	02	1	9302-9302	●	●	●
124	BOLT; PIPE CLIP M6X16 FLANGE	0-28080-616-0	02	1	9303-	●	●	●
124	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8X16 W/LK WASHER	9-01910-816-0	01	1	9002-9005		●	●
124	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 W/LK WASHER	9-01910-816-0	01	1	9002-9005		●	●
124	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8X16 W/LK WASHER	0-50040-816-0	01	1	9006-9306		●	●
124	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 W/LK WASHER	0-50040-816-0	01	1	9006-9306		●	●
124	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8X16 W/LK WASHER	9-01910-816-0	02	1	9002-9005		●	●
124	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8X16 W/LK WASHER	0-50040-816-0	02	1	9006-9306		●	●
129	CLIP; AIR PIPE C=43 ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	9104-		●	●
130	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	9104-9204		●	●
130	BOLT; PIPE CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-		●	●
131	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9104-		●	●
134	CLIP; AIR PIPE (A) C=31 ID=11 & 13 L=15 & 16	1-09700-670-0	01	1	9307-	●
134	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) C=31 ID=11 & 13 L=15 & 16	1-09700-670-0	01	1	9307-		●	●
134	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) (A) C=31 ID=11 & 13 L=15 & 16	1-09700-670-0	01	1	9307-		●
134	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) (A) C=31 ID=11 & 13 L=15 & 16	1-09700-670-0	01	1	9002-9306		●
134	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) D=12,C=20,H=20	1-09700-605-0	01	1	9002-		●	●
135	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 W/LK WASHER	0-50040-816-0	01	1	9307-	●	●	●
135	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) M8X45 W/LK WASHER	9-01900-845-0	01	1	9002-9204		●
135	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) M8X45 W/LK WASHER	0-50040-845-0	01	1	9205-9306		●
135	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) M8X50 W/LK WASHER	0-50040-850-0	01	1	9307-		●
135	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28010-830-0	01	1	9002-9204		●	●
135	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28080-830-0	01	1	9205-		●	●
136	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9002-	●	●	●
137	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=50	1-47475-299-2	01	1	9307-	●	●	●
137	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47475-427-1	01	1	9002-		●	●
137	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) (A)	1-47475-427-1	01	1	9002-		●
141	CLIP; AIR PIPE ID=11 & 13 L=15 & 16	1-09700-670-0	02	1	9002-	●	●	●
142	BOLT; PIPE CLIP M8X45 W/LK WASHER	9-01900-845-0	02	1	9002-9204	●	●	●
142	BOLT; PIPE CLIP M8X45 W/LK WASHER	0-50040-845-0	02	1	9205-9306	●	●	●
142	BOLT; PIPE CLIP M8X45 W/LK WASHER	0-50040-845-0	02	1	9307-	●
142	BOLT; PIPE CLIP M8X50 W/LK WASHER	0-50040-850-0	02	1	9307-		●	●
143	NUT; PIPE CLIP M8	9-09110-408-0	02	1	9002-	●	●	●
144	BRACKET; PIPE CLIP	1-47475-427-1	02	1	9002-	●	●	●
146	CLIP; AIR PIPE (A) ID=11 & 13 L=15 & 16	1-09700-670-0	02	1	9002-	●	●	●
146	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) D=11,C=20,H=20	5-09700-351-0	02	1	9002-		●	●
147	BOLT; PIPE CLIP EXC. AUTO CAB TILT<WV2> M8X45 W/LK WASHER	0-50040-845-0	01	1	9307-	●
147	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●	●
147	BOLT; PIPE CLIP M8X45 W/LK WASHER	9-01900-845-0	01	1	9002-9204	●	●	●
147	BOLT; PIPE CLIP M8X45 W/LK WASHER	0-50040-845-0	01	1	9205-9306	●	●	●
147	BOLT; PIPE CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-	●	●	●
147	BOLT; PIPE CLIP AUTO CAB TILT<WV2> M8X16 W/LK WASHER	0-50040-816-0	01	1	9307-	●	●	●
147	BOLT; PIPE CLIP EXC. AUTO CAB TILT<WV2> M8X50 W/LK WASHER	0-50040-850-0	01	1	9307-		●	●
148	NUT; PIPE CLIP M8	9-09110-408-0	02	1	9002-	●	●	●
150	NUT; CLIP BRKT M10	9-09110-510-0	04	1	9002-	●	●	●
152	BRACKET; PIPE CLIP (A)	1-47475-427-1	01	1	9002-9103	●	●	●
152	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47475-427-1	01	1	9002-9103		●	●
152	BRACKET; PIPE CLIP AUTO CAB TILT<WV2> (B) L=50	1-47475-299-2	01	1	9104-	●	●	●
152	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=50	1-47475-299-2	01	1	9104-		●	●
152	BRACKET; PIPE CLIP EXC. AUTO CAB TILT<WV2> (A)	1-47475-427-1	01	1	9104-	●	●	●
155	CLIP; AIR PIPE 10PD1 STD ENG(40L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) D=11,C=20,H=20	5-09700-351-0	02	1	9002-	●	●	●
155	CLIP; AIR PIPE 6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) D=11,C=20,H=20	5-09700-351-0	01	1	9002-		●	●
155	CLIP; AIR PIPE BRAKE SYSTEM HEAVY DUTY(J55) D=11,C=20,H=20	5-09700-351-0	01	1	9002-		●
156	BOLT; PIPE CLIP M8X25 FLANGE	0-28010-825-0	02	1	9002-9204	●
156	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	02	1	9205-	●
156	BOLT; PIPE CLIP 10PD1 STD ENG(40L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) M8X30 FLANGE	0-28010-830-0	02	1	9002-9204		●	●
156	BOLT; PIPE CLIP 10PD1 STD ENG(40L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) M8X30 FLANGE	0-28080-830-0	02	1	9205-		●	●
156	BOLT; PIPE CLIP 6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) M8X30 FLANGE	0-28010-830-0	01	1	9002-9204		●	●
156	BOLT; PIPE CLIP BRAKE SYSTEM HEAVY DUTY(J55) M8X30 FLANGE	0-28010-830-0	01	1	9002-9204		●
156	BOLT; PIPE CLIP 6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) M8X30 FLANGE	0-28080-830-0	01	1	9205-		●	●
156	BOLT; PIPE CLIP BRAKE SYSTEM HEAVY DUTY(J55) M8X30 FLANGE	0-28080-830-0	01	1	9205-		●
157	NUT; PIPE CLIP 10PD1 STD ENG(40L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) M8	9-09110-408-0	02	1	9002-	●	●	●
157	NUT; PIPE CLIP 6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) M8	9-09110-408-0	01	1	9002-		●	●
157	NUT; PIPE CLIP BRAKE SYSTEM HEAVY DUTY(J55) M8	9-09110-408-0	01	1	9002-		●
161	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=11 & 7 L=15 & 15	1-09700-659-0	01	1	9002-		●	●
161	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) D=11,C=20,H=20	5-09700-351-0	02	1	9002-		●	●
162	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28010-830-0	02	1	9002-9204		●	●
162	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28080-830-0	02	1	9205-		●	●
162	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X40	0-28010-840-0	01	1	9002-9204		●	●
162	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X40 FLANGE	0-28080-840-0	01	1	9205-9306		●	●
162	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X50 W/LK WASHER	0-50040-850-0	01	1	9307-		●	●
163	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47475-427-1	01	1	9002-		●	●
164	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) ID=11 & 7 L=15 & 15	1-09700-659-0	01	1	9002-		●
164	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16 & 11 L=18 & 17	1-09700-657-0	01	1	9002-		●	●
165	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204		●
165	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-		●
166	NUT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) M8	9-09110-408-0	01	1	9002-		●
167	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) L=50	1-47475-299-2	01	1	9002-		●
168	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X45 W/LK WASHER	9-01900-845-0	01	1	9002-9204		●	●
168	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X45 W/LK WASHER	0-50040-845-0	01	1	9205-9306		●	●
168	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X50 W/LK WASHER	0-50040-850-0	01	1	9307-		●	●
169	NUT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	01	1	9002-		●	●
177	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=11 & 13 L=15 & 16	1-09700-670-0	01	1	9002-	●	●	●
178	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204	●	●	●
178	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-	●	●	●
179	NUT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	01	1	9002-	●	●	●
181	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=50	1-47475-299-2	01	1	9002-	●	●	●
182	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X16 W/LK WASHER	0-50000-616-0	01	1	9002-9204		●	●
182	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X16 W/LK WASHER	0-50080-616-0	01	1	9205-9301		●	●
182	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X16 W/LK WASHER	0-50040-616-0	01	1	9302-9302		●	●
182	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X16 FLANGE	0-28080-616-0	01	1	9303-		●	●
183	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47475-427-1	01	1	9002-	●	●	●
183	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=50	1-47475-299-2	01	1	9002-		●
186	CLIP; AIR PIPE (B) D=12,C=20,H=20	1-09700-605-0	01	1	9002-	●	●	●
186	CLIP; AIR PIPE (B) D=12,C=20,H=20	1-09700-605-0	01	1	9002-	●
186	CLIP; AIR PIPE BRAKE SYSTEM HEAVY DUTY(J55) (B) D=12,C=20,H=20	1-09700-605-0	01	1	9002-		●
186	CLIP; AIR PIPE (A) ID=11 & 13 L=15 & 16	1-09700-670-0	01	1	9002-	●	●	●
186	CLIP; AIR PIPE (A) ID=11 & 13 L=21.5 & 21.5	1-09700-688-0	01	1	9002-	●	●	●
186	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 13X7,C=37	1-09700-692-0	01	1	9002-		●
186	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 13X7,C=30	1-09700-665-0	01	1	9002-		●	●
187	BOLT; PIPE CLIP M8X25 FLANGE	0-28010-825-0	01	1	9002-9204	●
187	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9205-	●
187	BOLT; PIPE CLIP M8X45 W/LK WASHER	0-50040-845-0	01	1	9307-	●
187	BOLT; PIPE CLIP M8X30 FLANGE	0-28010-830-0	01	1	9002-9204	●	●	●
187	BOLT; PIPE CLIP M8X30 FLANGE	0-28080-830-0	01	1	9205-	●	●	●
187	BOLT; PIPE CLIP M8X45 W/LK WASHER	9-01900-845-0	02	1	9002-9204	●	●	●
187	BOLT; PIPE CLIP M8X45 W/LK WASHER	0-50040-845-0	02	1	9205-	●	●	●
187	BOLT; PIPE CLIP M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204		●
187	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204			●
187	BOLT; PIPE CLIP M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9301		●
187	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9301			●
187	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 W/LK WASHER	0-50040-816-0	01	1	9302-		●
187	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 W/LK WASHER	9-01900-835-0	01	1	9002-9204		●	●
187	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 W/LK WASHER	0-50040-835-0	01	1	9205-		●	●
187	BOLT; PIPE CLIP 10PD1 STD ENG(40L),12PD1 C ENG(43L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X50 W/LK WASHER	0-50040-850-0	01	1	9307-		●	●
188	NUT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	01	1	9002-	●	●	●
188	NUT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) M8	9-09110-408-0	01	1	9002-		●
188	NUT; PIPE CLIP M8	9-09110-408-0	03	1	9002-	●		●
188	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	02	1	9307-		●
189	BRACKET; PIPE CLIP (A)	1-47475-427-1	02	1	9002-	●	●	●
189	BRACKET; PIPE CLIP 10PD1 STD ENG(40L),12PD1 C ENG(43L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47475-427-1	01	1	9307-	●	●	●
189	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=50	1-47475-299-2	01	1	9002-9301		●	●
192	CLIP; AIR PIPE 12PD1 C ENG(43L) 11X7,C=35	1-09700-740-0	01	1	9307-		●
193	BOLT; PIPE CLIP 12PD1 C ENG(43L) M8X50 FLANGE	0-28080-850-0	01	1	9307-		●
194	NUT; PIPE CLIP 12PD1 C ENG(43L) M8	9-09110-408-0	01	1	9307-		●
195	BRACKET; PIPE CLIP EXC. DUAL AIR GAUGE<UG2> L=50	1-47475-299-2	02	1	9002-	●	●	●
195	BRACKET; PIPE CLIP L=50	1-47475-299-2	02	1	9002-	●	●	●
204	CLIP; AIR PIPE ID=13 & 13 L=16 & 16	1-09700-666-0	04	1	9002-9306	●	●	●
204	CLIP; AIR PIPE ID=13 & 13 L=16 & 16	1-09700-666-0	02	1	9307-	●	●	●
204	CLIP; AIR PIPE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) ID=13 & 13 L=16 & 16	1-09700-666-0	02	1	9307-	●	●	●
204	CLIP; AIR PIPE ID=13 & 13 L=21.5 & 21.5	1-09700-689-0	01	1	9002-	●	●	●
204	CLIP; AIR PIPE 12PD1 C ENG(43L) ID=13 & 13 L=16 & 16	1-09700-666-0	01	1	9307-		●
204	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2> ID=13 & 7 L=16 & 14	1-09700-665-0	02	1	9002-		●	●
205	BOLT; PIPE CLIP M8X16 W/LK WASHER	9-01900-816-0	03	1	9002-9204	●	●	●
205	BOLT; PIPE CLIP M8X16 W/LK WASHER	0-50040-816-0	03	1	9205-	●	●	●
205	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●	●
205	BOLT; PIPE CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-	●	●	●
205	BOLT; PIPE CLIP M8X45 W/LK WASHER	9-01900-845-0	01	1	9002-9204	●	●	●
205	BOLT; PIPE CLIP M8X45 W/LK WASHER	0-50040-845-0	01	1	9205-9306	●	●	●
205	BOLT; PIPE CLIP 6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X50 W/LK WASHER	0-50040-850-0	01	1	9307-		●	●
205	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X50 W/LK WASHER	0-50040-850-0	01	1	9307-		●	●
205	BOLT; PIPE CLIP EXC. DUAL AIR GAUGE<UG2> M8X16 W/LK WASHER	9-01900-816-0	02	1	9002-9204		●	●
205	BOLT; PIPE CLIP EXC. DUAL AIR GAUGE<UG2> M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9306		●	●
205	BOLT; PIPE CLIP M8X16 W/LK WASHER	0-50040-816-0	02	1	9307-	●	●	●
205	BOLT; PIPE CLIP EXC. DUAL AIR GAUGE<UG2> M8X16 W/LK WASHER	0-50040-816-0	02	1	9307-		●	●
206	NUT; PIPE CLIP M8	9-09110-408-0	04	1	9002-9306	●	●	●
206	NUT; PIPE CLIP 12PD1 C ENG(43L) M8	9-09110-408-0	01	1	9307-		●
206	NUT; PIPE CLIP EXC. DUAL AIR GAUGE<UG2> M8	9-09110-408-0	02	1	9002-9306		●	●
206	NUT; PIPE CLIP M8	9-09110-408-0	02	1	9307-	●	●	●
206	NUT; PIPE CLIP 6RB1 STD ENG(07L),10PD1 STD ENG(40L) M8	9-09110-408-0	02	1	9307-	●	●	●
206	NUT; PIPE CLIP EXC. DUAL AIR GAUGE<UG2> M8	9-09110-408-0	02	1	9307-		●	●
207	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9002-	●	●	●
208	BRACKET; PIPE CLIP (D)	1-47475-485-2	01	1	9002-	●
208	BRACKET; PIPE CLIP 6RB1 STD ENG(07L),10PD1 STD ENG(40L) (D)	1-47475-485-2	01	1	9002-		●	●
208	BRACKET; PIPE CLIP (B) L=50	1-47475-299-2	01	1	9002-	●	●	●
208	BRACKET; PIPE CLIP (A)	1-47475-427-1	01	1	9002-9306	●	●	●
208	BRACKET; PIPE CLIP 12PD1 C ENG(43L) (C)	1-47476-373-1	01	1	9307-		●
208	BRACKET; PIPE CLIP 6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47475-427-1	01	1	9307-		●	●
208	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47475-427-1	01	1	9307-		●	●
210	NUT; CLIP BRKT M10	9-09110-510-0	03	1	9002-	●	●	●
218	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47475-427-1	01	1	9002-	●	●	●
219	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) (A) ID=11 & 7 L=15 & 15	1-09700-659-0	01	1	9002-	●	●	●
219	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) (A) 11X7,C=30	1-09700-655-0	01	1	9002-		●
219	CLIP; AIR PIPE (B) D=11,C=20,H=20	5-09700-351-0	01	1	9002-9301		●	●
219	CLIP; AIR PIPE (B) D=11,C=20,H=20	5-09700-351-0	01	1	9302-		●	●
219	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) D=11,C=20,H=20	5-09700-351-0	01	1	9302-		●	●
220	BOLT; PIPE CLIP M8X45 W/LK WASHER	0-50040-845-0	01	1	9307-	●
220	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 W/LK WASHER	9-01900-835-0	01	1	9002-9204	●	●	●
220	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 W/LK WASHER	0-50040-835-0	01	1	9205-9306	●	●	●
220	BOLT; PIPE CLIP M8X30 FLANGE	0-28080-830-0	01	1	9307-		●	●
220	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28080-830-0	01	1	9307-		●	●
220	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28010-830-0	01	1	9003-9103		●	●
220	BOLT; PIPE CLIP M8X30 FLANGE	0-28010-830-0	01	1	9104-9204		●	●
220	BOLT; PIPE CLIP M8X30 FLANGE	0-28080-830-0	01	1	9205-9301		●	●
220	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28080-830-0	01	1	9302-9306		●	●
220	BOLT; PIPE CLIP M8X30 FLANGE	0-28080-830-0	01	1	9302-9306		●	●
220	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X50 W/LK WASHER	0-50040-850-0	01	1	9307-		●	●
221	NUT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	02	1	9002-	●	●	●
221	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	02	1	9002-		●	●
223	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) L=50	1-47475-299-2	01	1	9002-	●	●	●
224	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) (A) ID=11 & 7 L=15 & 15	1-09700-659-0	01	1	9002-	●	●	●
224	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) C=20	5-09700-351-0	01	1	9002-		●	●
225	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204	●	●	●
225	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-	●	●	●
225	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28010-830-0	01	1	9002-9204		●	●
225	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28080-830-0	01	1	9205-		●	●
226	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9002-	●		●
226	NUT; PIPE CLIP EXC. BRAKE SYSTEM HEAVY DUTY(J55) M8	9-09110-408-0	01	1	9002-		●
229	BRACKET; PIPE CLIP L=50	1-47466-005-0	01	1	9002-	●	●	●
231	BOLT; CLIP FULL TRACTOR TRUCK<RD6> M6X16 W/LK WASHER	0-50040-616-0	01	1	9306-9306			●
235	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) 16X11,C=35	1-09700-657-0	01	1	9002-		●	●
236	NUT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8	9-09110-408-0	01	1	9002-		●	●
237	BRACKET; PIPE CLIP WHEEL BASE 6400MM(64W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-47475-427-1	02	1	9002-			●
239	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) 11X9,C=30	1-09700-655-0	04	1	9002-9103		●	●
239	CLIP; AIR PIPE 6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) 11X9,C=30	1-09700-655-0	04	1	9104-		●	●
239	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) D=11,C=20,H=20	5-09700-351-0	03	1	9002-9103		●	●
239	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) D=11,C=20,H=20	5-09700-351-0	02	1	9104-		●	●
239	CLIP; AIR PIPE 10PD1 STD ENG(40L),12PD1 C ENG(43L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 11X9,C=30	1-09700-655-0	05	1	9104-		●	●
240	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8X30 FLANGE	0-28010-830-0	03	1	9002-9204		●	●
240	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8X30 FLANGE	0-28080-830-0	03	1	9205-		●	●
240	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8X16 W/LK WASHER	9-01900-816-0	04	1	9002-9103		●	●
240	BOLT; PIPE CLIP 6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8X16 W/LK WASHER	9-01900-816-0	04	1	9104-9204		●	●
240	BOLT; PIPE CLIP 6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8X16 W/LK WASHER	0-50040-816-0	04	1	9205-9306		●	●
240	BOLT; PIPE CLIP 6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 FLANGE	0-28080-816-0	04	1	9307-		●	●
240	BOLT; PIPE CLIP 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 W/LK WASHER	9-01900-816-0	05	1	9104-9204		●	●
240	BOLT; PIPE CLIP 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 W/LK WASHER	0-50040-816-0	05	1	9205-9306		●	●
240	BOLT; PIPE CLIP 10PD1 STD ENG(40L),12PD1 C ENG(43L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 FLANGE	0-28080-816-0	05	1	9307-		●	●
241	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8	9-09110-408-0	07	1	9002-		●	●
241	NUT; PIPE CLIP 10PD1 STD ENG(40L),12PD1 C ENG(43L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8	9-09110-408-0	02	1	9002-		●	●
242	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) L=50	1-47475-299-2	02	1	9002-9103		●	●
242	BRACKET; PIPE CLIP 6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) L=50	1-47475-299-2	02	1	9104-		●	●
242	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) L=55	1-47475-304-0	01	1	9307-		●	●
242	BRACKET; PIPE CLIP 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) L=55	1-47475-304-0	01	1	9002-9112		●	●
242	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) L=55	1-47475-304-0	01	1	9201-9306		●	●
242	BRACKET; PIPE CLIP 10PD1 STD ENG(40L),12PD1 C ENG(43L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=50	1-47475-299-2	03	1	9104-		●	●
246	CLIP; AIR PIPE 10PD1 STD ENG(40L),12PD1 C ENG(43L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) D=9,C=28	9-09524-835-0	01	1	9002-		●	●
247	BOLT; PIPE CLIP 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204		●	●
247	BOLT; PIPE CLIP 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9306		●	●
247	BOLT; PIPE CLIP 10PD1 STD ENG(40L),12PD1 C ENG(43L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 FLANGE	0-28080-816-0	01	1	9307-		●	●
248	CLIP; AIR PIPE 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) D=8,C=20,H=20	1-09700-604-0	01	1	9002-9103		●	●
249	BOLT; PIPE CLIP 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28010-830-0	01	1	9002-9103		●	●
250	NUT; PIPE CLIP 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-508-0	01	1	9002-9103		●	●
251	CLIP; AIR PIPE WHEEL BASE 6400MM(64W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) D=8,C=20,H=20	1-09700-604-0	01	1	9002-			●
251	CLIP; AIR PIPE WHEEL BASE 6400MM(64W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) 16X9,C=35	1-09700-669-0	02	1	9002-			●
252	NUT; PIPE CLIP WHEEL BASE 6400MM(64W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8	9-09110-408-0	03	1	9002-			●
254	BOLT; PIPE CLIP M8X20 W/LK&PL WASHER	1-09980-512-0	04	1	9002-	●	●	●
255	CLIP; AIR PIPE (B) D=8,C=20,H=20	1-09700-604-0	01	1	9002-	●	●	●
255	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) 16X9,C=35	1-09700-669-0	01	1	9002-		●
255	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) ID=9 & 9 L=15 & 15	1-09700-654-0	01	1	9002-9103			●
255	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) 16X9,C=35	1-09700-669-0	04	1	9002-			●
256	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9002-	●	●	●
256	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8	9-09110-408-0	04	1	9002-			●
257	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A)	1-47475-427-1	01	1	9002-		●
257	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) L=50	1-47475-299-2	01	1	9002-			●
257	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A)	1-47475-427-1	03	1	9002-			●
258	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8	9-09110-408-0	01	1	9002-		●	●
260	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 11X11,C=30	1-09700-656-0	01	1	9002-9306		●	●
260	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) D=11,C=17,H=30	1-09700-113-0	01	1	9002-9306		●	●
260	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) D=15,C=20,H=24	1-09700-606-0	01	1	9002-		●	●
260	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) 11X11,C=30	1-09700-656-0	02	1	9002-9306		●	●
261	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8X30 FLANGE	0-28010-830-0	01	1	9002-9204		●	●
261	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8X30 FLANGE	0-28080-830-0	01	1	9205-		●	●
262	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28010-825-0	01	1	9002-9204			●
262	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	01	1	9205-9410			●
262	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28080-830-0	01	1	9411-			●
263	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8	9-09110-408-0	02	1	9008-		●	●
263	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	01	1	9002-			●
264	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) D=12,C=20,H=24	1-09700-605-0	01	1	9002-	●		●
272	BOLT; CLIP POWER BRAKE LOCK SYSTEM(J50) M8X16 W/LK WASHER	9-01900-816-0	02	1	9002-9204		●
272	BOLT; CLIP POWER BRAKE LOCK SYSTEM(J50) M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9302		●
272	BOLT; CLIP POWER BRAKE LOCK SYSTEM(J50) M8X16 FLANGE	0-28080-816-0	02	1	9303-		●
273	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=50	1-47475-299-2	01	1	9002-	●	●	●
274	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=11 & 7 L=15 & 15	1-09700-659-0	01	1	9002-	●	●	●
275	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204	●	●	●
275	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-	●	●	●
276	NUT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	01	1	9002-	●	●	●
278	NUT; CLIP,AIR PIPE M8	9-09110-408-0	02	1	9002-	●	●	●
278	NUT; CLIP,AIR PIPE M8	9-09110-408-0	02	1	9002-	●	●	●
279	NUT; BRKT M8	9-09110-408-0	02	1	9002-	●	●	●
280	CLIP; AIR PIPE (B) D=7,C=20,H=20	1-09700-603-0	01	1	9002-9103	●	●	●
280	CLIP; AIR PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9307-	●	●	●
281	BOLT; CLIP M8X30 FLANGE	0-28010-830-0	01	1	9002-9103	●	●	●
282	NUT; CLIP M8	9-09110-508-0	01	1	9002-9103	●	●	●
284	CLIP; FLEX HOSE (B) L=250	5-09707-030-0	01	1	9002-	●	●	●
284	CLIP; FLEX HOSE (A) L=175	1-09707-178-0	01	1	9307-	●	●	●
287	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> ID=13 & 7 L=16 & 14	1-09700-665-0	01	1	9002-9009		●	●
288	BOLT; CLIP,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9009		●	●
289	NUT; CLIP,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M8	9-09110-508-0	01	1	9002-9009		●	●
295	NUT; CLIP,AIR PIPE M8	9-09110-408-0	01	1	9002-	●	●	●
298	BOLT; CLIP AIR DRYER<PS7> M8X20 FLANGE	0-28010-820-0	01	1	9002-9204		●	●
298	BOLT; CLIP AIR DRYER<PS7> M8X20 FLANGE	0-28080-820-0	01	1	9205-		●	●
298	BOLT; CLIP 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204		●	●
298	BOLT; CLIP 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9302		●	●
298	BOLT; CLIP 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M8X16 FLANGE	0-28080-816-0	01	1	9303-		●	●
299	NUT; CLIP AIR DRYER<PS7> M8	9-09110-408-0	01	1	9002-		●	●
299	NUT; CLIP 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M8	9-09110-408-0	01	1	9002-		●	●
303	BOLT; PIPE CLIP M8X30 FLANGE	0-28010-830-0	01	1	9002-9204	●	●	●
303	BOLT; PIPE CLIP M8X30 FLANGE	0-28080-830-0	01	1	9205-	●	●	●
303	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8X45 W/LK WASHER	9-01900-845-0	01	1	9002-9204		●
303	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8X45 W/LK WASHER	0-50040-845-0	01	1	9205-9306		●
303	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X50 FLANGE	0-28080-850-0	01	1	9307-		●
303	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X16 W/LK WASHER	0-50000-616-0	01	1	9002-9204		●	●
303	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X16 W/LK WASHER	0-50080-616-0	01	1	9205-9301		●	●
303	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X16 FLANGE	0-28080-616-0	01	1	9303-9305		●	●
303	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X16 W/LK WASHER	0-50040-616-0	01	1	9306-		●	●
303	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204			●
303	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9306		●	●
303	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8X16 FLANGE	0-28080-816-0	01	1	9307-		●	●
303	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8X45 W/LK WASHER	9-01900-845-0	03	1	9002-9204			●
303	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8X45 W/LK WASHER	0-50040-845-0	03	1	9205-9306			●
303	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X50 FLANGE	0-28080-850-0	03	1	9307-			●
308	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28010-825-0	02	1	9002-9204	●	●	●
308	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28080-825-0	02	1	9205-	●	●	●
311	CLIP; AIR PIPE MAG6W M/T(X8B) EXC. ASSISTER SHIFT CONTROL<WX8> D=7,C=20,H=20	1-09700-603-0	01	1	9002-	●	●	●
311	CLIP; AIR PIPE MAF6Q M/T(X3U),MAF5D M/T(X4G) D=7,C=20,H=20	1-09700-603-0	01	1	9002-	●	●	●
314	CLIP; AIR PIPE D=7,C=20,H=20	1-09700-603-0	02	1	9002-9306	●	●	●
314	CLIP; AIR PIPE D=7,C=20,H=20	1-09700-603-0	01	1	9002-	●	●	●
316	BOLT; CLIP EXC. AIR DRYER<PS7> M8X25 FLANGE	0-28010-825-0	01	1	9002-9204	●	●	●
316	BOLT; CLIP EXC. AIR DRYER<PS7> M8X25 FLANGE	0-28080-825-0	01	1	9205-	●	●	●
316	BOLT; CLIP 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204		●	●
316	BOLT; CLIP 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9302		●	●
317	NUT; CLIP EXC. AIR DRYER<PS7> M8	9-09110-408-0	01	1	9002-9306	●	●	●
317	NUT; CLIP 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M8	9-09110-408-0	01	1	9002-9306		●	●
317	NUT; CLIP 6RB1 STD ENG(07L),10PD1 STD ENG(40L) EXC. AIR DRYER<PS7> M8	9-09110-408-0	01	1	9307-	●	●	●
317	NUT; CLIP 10PD1 STD ENG(40L),12PD1 C ENG(43L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M8	9-09110-408-0	01	1	9307-		●	●
318	CLIP; AIR PIPE EXC. AIR DRYER<PS7> (B) D=7,C=20,H=20	1-09700-603-0	01	1	9002-9306	●	●	●
318	CLIP; AIR PIPE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) EXC. AIR DRYER<PS7> (B) D=7,C=20,H=20	1-09700-603-0	01	1	9307-	●	●	●
318	CLIP; AIR PIPE 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) 13X7,C=30	1-09700-665-0	01	1	9002-		●	●
333	BRACKET; BRK AIR PIPE (B)	1-65670-793-4	01	1	9002-	●	●	●
333	BRACKET; BRK AIR PIPE (B)	1-65670-780-1	01	1	9002-	●	●	●
333	BRACKET; BRK AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47475-427-1	01	1	9002-		●	●
340	CLIP; BAND,FLEX HOSE L=250	5-09707-030-0	01	1	9002-	●	●	●
340	CLIP; BAND,FLEX HOSE EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=250	5-09707-030-0	01	1	9002-		●	●
342	CLIP; AIR PIPE (A) 9X7,C=30	1-09700-060-0	01	1	9002-	●	●	●
342	CLIP; AIR PIPE (B) D=11,C=16	9-09525-025-0	01	1	9002-	●	●	●
344	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50000-616-0	01	1	9002-9204	●	●	●
344	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50000-616-0	01	1	9002-9204		●	●
344	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50080-616-0	01	1	9205-9301	●	●	●
344	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50080-616-0	01	1	9205-9301		●	●
344	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50040-616-0	01	1	9302-9302		●	●
344	BOLT; PIPE CLIP M6X16 FLANGE	0-28080-616-0	01	1	9303-9305	●	●	●
344	BOLT; PIPE CLIP M6X16 FLANGE	0-28080-616-0	01	1	9303-9305		●	●
344	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50040-616-0	01	1	9306-	●	●	●
344	BOLT; PIPE CLIP M6X16 FLANGE	0-28080-616-0	01	1	9306-		●	●
348	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) ID=11 & 9 L=15 & 15	1-09700-062-0	02	1	9002-		●	●
349	WASHER; LK,PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-09985-118-0	01	1	9002-9302		●	●
352	CLIP; EXH HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) ID=15	9-09715-098-0	02	1	9002-		●	●
353	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) ID=11 & 9 L=15 & 15	1-09700-062-0	02	1	9002-		●	●
353	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) D=11,C=20,H=20	9-09527-010-0	01	1	9002-		●	●
354	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X16 W/LK WASHER	9-01900-616-0	01	1	9002-9204		●	●
354	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X16 W/LK WASHER	9-01900-616-0	02	1	9002-9204		●	●
354	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X16 FLANGE	0-28080-616-0	01	1	9303-9305		●	●
354	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X16 FLANGE	0-28080-616-0	02	1	9303-9305		●	●
354	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X16 W/LK WASHER	0-50040-616-0	01	1	9306-9410		●	●
354	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M6X16 W/LK WASHER	0-50040-616-0	01	1	9411-		●	●
354	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X16 W/LK WASHER	0-50040-616-0	02	1	9306-9410		●	●
356	CLIP; AIR PIPE MAG6W M/T(X8B) EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-47466-005-0	01	1	9407-	●	●	●
356	CLIP; AIR PIPE MAF6Q M/T(X3U),MAF5D M/T(X4G) (B)	1-47466-005-0	01	1	9407-	●	●	●
356	CLIP; AIR PIPE MAG6W M/T(X8B) EXC. ASSISTER SHIFT CONTROL<WX8> (A) ID=5 & 8	5-09700-165-0	01	1	9407-	●	●	●
356	CLIP; AIR PIPE MAF6Q M/T(X3U),MAF5D M/T(X4G) (A) ID=5 & 8	5-09700-165-0	01	1	9407-	●	●	●
357	BOLT; CLIP FIX MAG6W M/T(X8B) EXC. ASSISTER SHIFT CONTROL<WX8> M6X16 W/LK WASHER	0-50040-616-0	01	1	9407-	●	●	●
357	BOLT; CLIP FIX MAF6Q M/T(X3U),MAF5D M/T(X4G) M6X16 W/LK WASHER	0-50040-616-0	01	1	9407-	●	●	●
359	BOLT; CLIP DUAL AIR GAUGE<UG2> M8X20 W/LK&PL WASHER	9-01960-820-0	02	1	9002-9204	●	●	●
359	BOLT; CLIP DUAL AIR GAUGE<UG2> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9205-	●	●	●
359	BOLT; CLIP EXC. DUAL AIR GAUGE<UG2> M8X20 W/LK&PL WASHER	9-01960-820-0	01	1	9002-9204	●	●	●
359	BOLT; CLIP EXC. DUAL AIR GAUGE<UG2> M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9205-	●	●	●
361	CLIP; FLEX HOSE,AIR PRESS GAGE (D) L=140	5-09707-031-0	01	1	9002-	●	●	●
361	CLIP; FLEX HOSE,AIR PRESS GAGE DUAL AIR GAUGE<UG2> (A) D=13,C=25,H=50	1-09700-777-0	02	1	9002-	●	●	●
361	CLIP; FLEX HOSE,AIR PRESS GAGE DUAL AIR GAUGE<UG2> (B) ID=17	1-09987-105-1	02	1	9002-	●	●	●
361	CLIP; FLEX HOSE,AIR PRESS GAGE EXC. DUAL AIR GAUGE<UG2> (B) ID=17	1-09987-105-1	01	1	9002-	●	●	●
361	CLIP; FLEX HOSE,AIR PRESS GAGE (B) ID=17	1-09987-105-1	01	1	9002-	●	●	●
361	CLIP; FLEX HOSE,AIR PRESS GAGE MAG6W M/T(X8B) EXC. ASSISTER SHIFT CONTROL<WX8> (C) ID=14	8-94157-443-0	02	1	9002-	●	●	●
361	CLIP; FLEX HOSE,AIR PRESS GAGE MAF6Q M/T(X3U),MAF5D M/T(X4G) (C) ID=14	8-94157-443-0	02	1	9002-	●	●	●
362	BOLT; FLEX HOSE CLIP M8X20 W/LK&PL WASHER	9-01960-820-0	01	1	9002-9204	●	●	●
362	BOLT; FLEX HOSE CLIP M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9205-	●	●	●
367	BRACKET ASM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=50	1-47475-299-2	01	1	9307-		●	●
367	BRACKET ASM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=50	1-47475-299-2	03	1	9307-		●	●
369	CLIP; AIR PIPE D=7,C=20,H=20	1-09700-603-0	02	1	9002-	●	●	●
370	BRACKET; PIPE CLIP (A) L=55	1-47475-304-0	01	1	9002-	●	●	●
370	BRACKET; PIPE CLIP 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) L=50	1-47475-299-2	01	1	9002-		●	●
371	BOLT; CLIP,AIR PIPE EXC. AIR DRYER<PS7> M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204	●	●	●
371	BOLT; CLIP,AIR PIPE 6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204		●	●
371	BOLT; CLIP,AIR PIPE EXC. AIR DRYER<PS7> M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9306	●	●	●
371	BOLT; CLIP,AIR PIPE 6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9306		●	●
371	BOLT; CLIP,AIR PIPE EXC. AIR DRYER<PS7> M8X16 FLANGE	0-28080-816-0	01	1	9307-	●	●	●
371	BOLT; CLIP,AIR PIPE 6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 FLANGE	0-28080-816-0	01	1	9307-		●	●
372	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 W/LK WASHER	9-01900-825-0	04	1	9002-9204		●	●
372	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 W/LK WASHER	0-50040-825-0	04	1	9205-9306		●	●
372	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28080-820-0	04	1	9307-		●	●
373	BOLT; PIPE CLIP WHEEL BASE 6400MM(64W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8X30 FLANGE	0-28010-830-0	01	1	9002-9204			●
373	BOLT; PIPE CLIP WHEEL BASE 6400MM(64W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8X30 FLANGE	0-28080-830-0	01	1	9205-			●
373	BOLT; PIPE CLIP WHEEL BASE 6400MM(64W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8X45 W/LK WASHER	9-01900-845-0	02	1	9002-9204			●
373	BOLT; PIPE CLIP WHEEL BASE 6400MM(64W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8X45 W/LK WASHER	0-50040-845-0	02	1	9205-9306			●
373	BOLT; PIPE CLIP WHEEL BASE 6400MM(64W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X50 FLANGE	0-28080-850-0	02	1	9307-			●
375	CLIP; AIR PIPE AIR DRYER<PS7> (B) D=7,C=20,H=20	1-09700-603-0	01	1	9002-9306		●	●
375	CLIP; AIR PIPE 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) 13X7,C=30	1-09700-665-0	01	1	9002-		●	●
375	CLIP; AIR PIPE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) AIR DRYER<PS7> (B) D=7,C=20,H=20	1-09700-603-0	01	1	9307-		●	●
376	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9307-	●
376	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	01	1	9307-	●	●	●
376	BOLT; BRKT M8X30 FLANGE	0-28080-830-0	02	1	9307-		●	●

51 208 345 345 360 360 370 242 208 361 284 380 361 333

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
51	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-47475-564-0	01	1	9002-		●	●
208	BRACKET; PIPE CLIP (D)	1-47475-485-2	01	1	9002-	●
208	BRACKET; PIPE CLIP 6RB1 STD ENG(07L),10PD1 STD ENG(40L) (D)	1-47475-485-2	01	1	9002-		●	●
208	BRACKET; PIPE CLIP (B) L=50	1-47475-299-2	01	1	9002-	●	●	●
208	BRACKET; PIPE CLIP (A)	1-47475-427-1	01	1	9002-9306	●	●	●
208	BRACKET; PIPE CLIP 12PD1 C ENG(43L) (C)	1-47476-373-1	01	1	9307-		●
208	BRACKET; PIPE CLIP 6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47475-427-1	01	1	9307-		●	●
208	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47475-427-1	01	1	9307-		●	●
242	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) L=50	1-47475-299-2	02	1	9002-9103		●	●
242	BRACKET; PIPE CLIP 6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) L=50	1-47475-299-2	02	1	9104-		●	●
242	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) L=55	1-47475-304-0	01	1	9307-		●	●
242	BRACKET; PIPE CLIP 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) L=55	1-47475-304-0	01	1	9002-9112		●	●
242	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) L=55	1-47475-304-0	01	1	9201-9306		●	●
242	BRACKET; PIPE CLIP 10PD1 STD ENG(40L),12PD1 C ENG(43L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=50	1-47475-299-2	03	1	9104-		●	●
284	CLIP; FLEX HOSE (B) L=250	5-09707-030-0	01	1	9002-	●	●	●
284	CLIP; FLEX HOSE (A) L=175	1-09707-178-0	01	1	9307-	●	●	●
333	BRACKET; BRK AIR PIPE (B)	1-65670-793-4	01	1	9002-	●	●	●
333	BRACKET; BRK AIR PIPE (B)	1-65670-780-1	01	1	9002-	●	●	●
333	BRACKET; BRK AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47475-427-1	01	1	9002-		●	●
345	BRACKET; PIPE CLIP (A)	1-47465-169-1	01	1	9002-	●	●	●
345	BRACKET; PIPE CLIP (B)	1-47475-454-3	01	1	9002-	●	●	●
360	CLIP; HOSE & CABLE DUAL AIR GAUGE<UG2> (A) ID=8 & 16	5-09707-032-0	02	1	9002-	●	●	●
360	CLIP; HOSE & CABLE EXC. DUAL AIR GAUGE<UG2> (B) ID=8.3 & 12	1-09987-122-0	01	1	9002-	●	●	●
360	CLIP; HOSE & CABLE (B) ID=8.3 & 12	1-09987-122-0	01	1	9002-	●	●	●
361	CLIP; FLEX HOSE,AIR PRESS GAGE (D) L=140	5-09707-031-0	01	1	9002-	●	●	●
361	CLIP; FLEX HOSE,AIR PRESS GAGE DUAL AIR GAUGE<UG2> (A) D=13,C=25,H=50	1-09700-777-0	02	1	9002-	●	●	●
361	CLIP; FLEX HOSE,AIR PRESS GAGE DUAL AIR GAUGE<UG2> (B) ID=17	1-09987-105-1	02	1	9002-	●	●	●
361	CLIP; FLEX HOSE,AIR PRESS GAGE EXC. DUAL AIR GAUGE<UG2> (B) ID=17	1-09987-105-1	01	1	9002-	●	●	●
361	CLIP; FLEX HOSE,AIR PRESS GAGE (B) ID=17	1-09987-105-1	01	1	9002-	●	●	●
361	CLIP; FLEX HOSE,AIR PRESS GAGE MAG6W M/T(X8B) EXC. ASSISTER SHIFT CONTROL<WX8> (C) ID=14	8-94157-443-0	02	1	9002-	●	●	●
361	CLIP; FLEX HOSE,AIR PRESS GAGE MAF6Q M/T(X3U),MAF5D M/T(X4G) (C) ID=14	8-94157-443-0	02	1	9002-	●	●	●
370	BRACKET; PIPE CLIP (A) L=55	1-47475-304-0	01	1	9002-	●	●	●
370	BRACKET; PIPE CLIP 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) L=50	1-47475-299-2	01	1	9002-		●	●
380	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	9307-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
