Sayfa 3-77 - Isuzu EPC

3-77 — BRAKE PIPING; AIR,REAR (#3385) — 419 parça

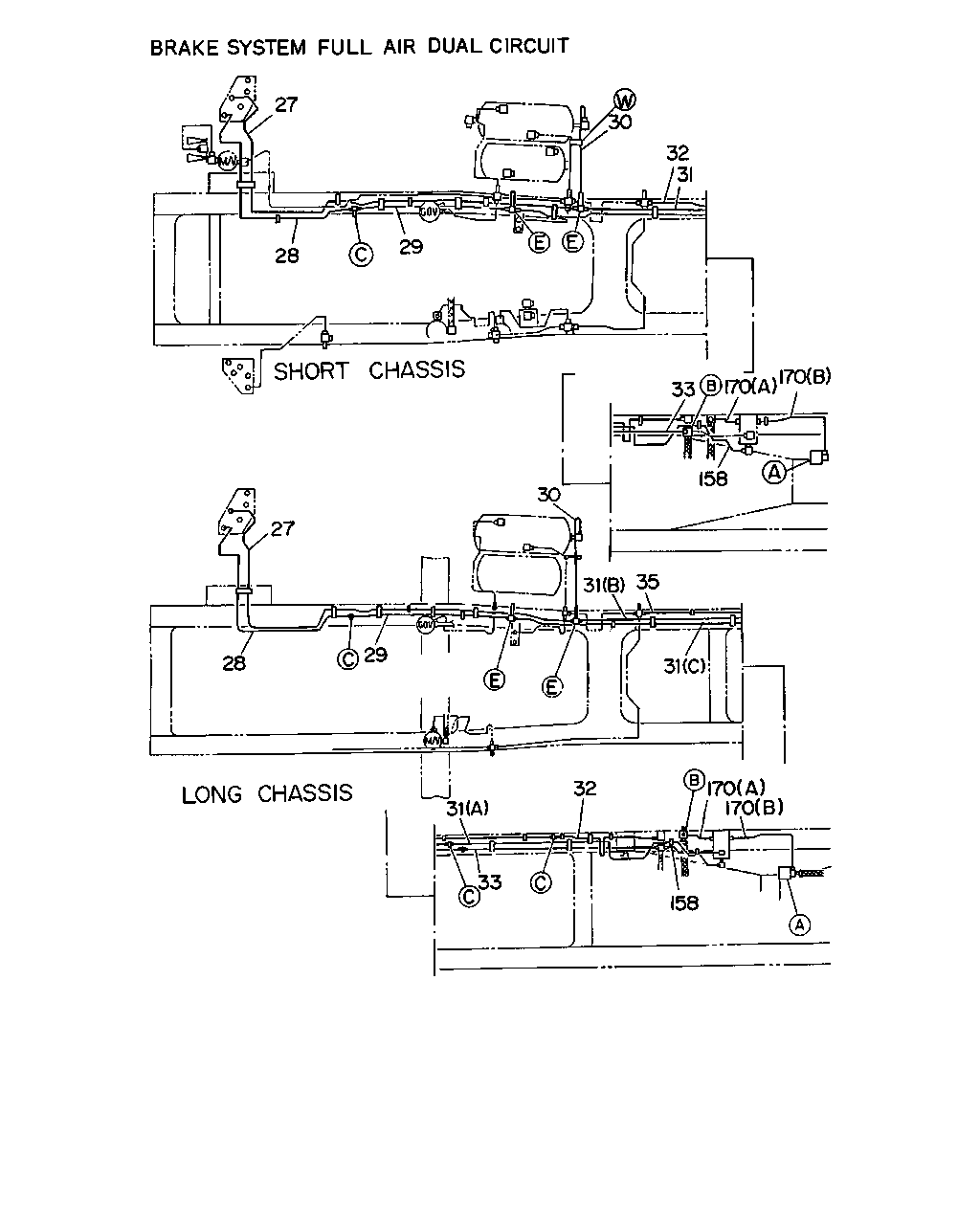

60 61 37 46 64 71 64 175 163 47 60 50 49 37 46 37 49 98 64 71 62 46 46 60 61 64 46 37 98 91 60 99 88 61 97 37 61 60 140 46 37 88 91 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
37	UNION; AIR PIPE (C) M20 2WAY	1-09654-218-1	01	1	9002-	●
37	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M20 2WAY	1-09654-218-1	01	1	9002-		●
37	UNION; AIR PIPE (A) M16	1-09654-148-1	01	1	9002-	●	●	●
37	UNION; AIR PIPE (B) M20&M16 M20 & M16 2 WAY	1-09654-177-1	01	1	9002-	●	●	●
37	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) (E) M20	9-09235-212-1	01	1	9002-	●	●	●
37	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M20 2WAY	1-09654-138-1	01	1	9002-			●
37	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) (B) M20 & M20	9-09233-312-1	01	1	9002-			●
37	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-09656-390-1	01	1	9002-		●	●
37	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M22 M22	9-09233-315-1	01	1	9002-		●	●
46	NIPPLE; AIR PIPE (B) M20 STRAIGHT	9-09233-012-1	01	1	9002-	●	●	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) (B) M16 L=74	9-09233-310-1	01	1	9002-	●	●	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) (D) M16 2WAY	1-09650-182-1	01	1	9002-			●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M27&PT3/8 M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9002-9306		●	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M27&PT3/8 M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9002-9306		●	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) M27&PT3/8 M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9002-9306		●	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M27&PT3/8 M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9002-9306		●	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E)	1-09650-251-1	01	1	9002-9306		●	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),TAIL PIPE SINGLE HORIZONTAL<NC2> (E)	1-09650-251-1	01	1	9002-9306		●	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E)	1-09650-251-1	01	1	9002-9306			●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (E)	1-09650-251-1	01	1	9002-9306			●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M16 L=42	9-09233-010-1	01	1	9002-		●	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M27&PT3/8 M27 & PT3/8 STRAIGHT	1-09650-250-0	02	1	9307-		●	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M27&PT3/8 M27 & PT3/8 STRAIGHT	1-09650-250-0	02	1	9307-			●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E)	1-09650-251-1	02	1	9307-		●	●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E)	1-09650-251-1	02	1	9307-			●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (C) M14 2WAY	1-09654-176-2	01	1	9002-		●	●
46	NIPPLE; AIR PIPE V TYPE ENG<91L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M12 STRAIGHT	9-09233-008-1	01	1	9307-9509		●	●
46	NIPPLE; AIR PIPE WHEEL BASE 6400MM(64W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M12 STRAIGHT	9-09233-008-1	01	1	9307-9509		●
46	NIPPLE; AIR PIPE V TYPE ENG<91L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M14 STRAIGHT	9-09223-008-1	01	1	9510-		●	●
46	NIPPLE; AIR PIPE WHEEL BASE 6400MM(64W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M14 STRAIGHT	9-09223-008-1	01	1	9510-		●
46	NIPPLE; AIR PIPE V TYPE ENG<91L> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) M14 STRAIGHT	9-09223-008-1	01	1	9002-9306		●	●
46	NIPPLE; AIR PIPE WHEEL BASE 6400MM(64W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) M14 STRAIGHT	9-09223-008-1	01	1	9002-9306		●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E)	1-09650-377-1	01	1	9002-9306		●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (E)	1-09650-377-1	01	1	9002-9306		●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M27&PT3/8 M27 & PT3/8 STRAIGHT	1-09650-250-0	02	1	9307-		●
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E)	1-09650-377-1	02	1	9307-		●
46	NIPPLE; AIR PIPE WHEEL BASE 5800MM(58W),WHEEL BASE 6400MM(64W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) M22	9-09233-015-1	01	1	9002-		●
46	NIPPLE; AIR PIPE WHEEL BASE 5800MM(58W),WHEEL BASE 6400MM(64W) (B) M12 L=40	9-09223-006-1	01	1	9002-		●
47	WASHER; LK,HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=20.2	9-09150-520-0	01	1	9002-9306		●	●
47	WASHER; LK,HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),TAIL PIPE SINGLE HORIZONTAL<NC2> ID=20.2	9-09150-520-0	01	1	9002-9306		●	●
47	WASHER; LK,HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=20.2	9-09150-520-0	02	1	9307-		●	●
49	WASHER; LK,PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2	9-09150-514-0	01	1	9002-9306		●	●
49	WASHER; LK,PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=22.5	9-09150-522-0	01	1	9002-9306		●	●
49	WASHER; LK,PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2	9-09150-514-0	01	1	9307-9312		●	●
49	WASHER; LK,PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=22.5	9-09150-522-0	01	1	9307-9312		●	●
50	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M22	9-09111-422-0	01	1	9002-		●	●
60	NUT; NIPPLE,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M20	9-99111-420-0	01	1	9002-9410		●	●
60	NUT; NIPPLE,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M20	9-99111-420-0	01	1	9002-9410		●	●
60	NUT; NIPPLE,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M20	9-99111-420-0	02	1	9411-			●
60	NUT; NIPPLE,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M22	9-09111-422-0	01	1	9307-		●	●
60	NUT; NIPPLE,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M22	9-09111-422-0	01	1	9002-9209		●	●
60	NUT; NIPPLE,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M22	9-09111-422-0	01	1	9210-9306		●	●
60	NUT; NIPPLE,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M22	9-09111-422-0	01	1	9210-9306		●
60	NUT; NIPPLE,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M22	9-09111-422-0	01	1	9210-9306		●
60	NUT; NIPPLE,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M12	9-99110-412-0	01	1	9002-9003		●	●
60	NUT; NIPPLE,AIR PIPE 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M12	9-99110-412-0	01	1	9002-9003		●	●
60	NUT; NIPPLE,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M12	9-99110-412-0	01	1	9004-9304		●	●
60	NUT; NIPPLE,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M12	9-99110-512-0	01	1	9305-		●	●
60	NUT; NIPPLE,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M22	9-09111-422-0	02	1	9411-		●
61	WASHER; LK,NIPPLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=20.2	9-09150-520-0	02	1	9002-9410		●	●
61	WASHER; LK,NIPPLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) ID=20.2	9-09150-520-0	02	1	9002-9410		●	●
61	WASHER; LK,NIPPLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=20.2	9-09150-520-0	02	1	9411-			●
61	WASHER; LK,NIPPLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) ID=12.2	9-09150-512-0	01	1	9002-9312		●	●
61	WASHER; LK,NIPPLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) ID=22.5	9-09150-522-0	01	1	9002-9312		●	●
62	HOSE; FLEX,FWD RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=550	0-07909-550-0	01	1	9002-		●	●
64	GASKET; FLEX HOSE DUAL AIR GAUGE<UG2> ID=11 OD=18	9-09572-510-0	01	1	9002-	●	●	●
64	GASKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=17.5	9-09572-515-0	04	1	9002-9306		●	●
64	GASKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) ID=17.5	9-09572-515-0	02	1	9002-9306		●	●
64	GASKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> ID=17.5	9-09572-515-0	02	1	9002-9306		●	●
64	GASKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=17.5	9-09572-515-0	01	1	9307-9410		●	●
64	GASKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=17.5	9-09572-515-0	02	1	9411-		●	●
64	GASKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=17.5	9-09572-515-0	06	1	9307-		●	●
71	HOSE; FLEX,RWD RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=550	0-07909-550-0	01	1	9002-		●	●
71	HOSE; FLEX,RWD RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=670	0-07909-670-0	02	1	9307-		●	●
71	HOSE; FLEX,RWD RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),TAIL PIPE SINGLE HORIZONTAL<NC2> L=670	0-07909-670-0	01	1	9002-9003		●	●
71	HOSE; FLEX,RWD RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),TAIL PIPE SINGLE HORIZONTAL<NC2> L=670	0-07909-670-0	01	1	9002-9003		●	●
71	HOSE; FLEX,RWD RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=670	0-07909-670-0	01	1	9004-9306		●	●
71	HOSE; FLEX,RWD RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),TAIL PIPE SINGLE HORIZONTAL<NC2> L=670	0-07909-670-0	01	1	9004-9306		●	●
88	WASHER; LK,PIPE UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2	9-09150-512-0	01	1	9002-9306	●	●	●
88	WASHER; LK,PIPE UNION AIR DRYER<PS7> ID=12.2	9-09150-512-0	01	1	9002-9306	●	●	●
88	WASHER; LK,PIPE UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) ID=12.2	9-09150-512-0	01	1	9002-9306			●
88	WASHER; LK,PIPE UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14.2	9-09150-514-0	01	1	9002-9306	●	●	●
88	WASHER; LK,PIPE UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=20.2	9-09150-520-0	01	1	9002-9306	●	●	●
88	WASHER; LK,PIPE UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2	9-09150-512-0	01	1	9307-9312	●	●	●
88	WASHER; LK,PIPE UNION AIR DRYER<PS7> ID=12.2	9-09150-512-0	01	1	9307-9312	●	●	●
88	WASHER; LK,PIPE UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) ID=12.2	9-09150-512-0	01	1	9307-9312			●
88	WASHER; LK,PIPE UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14.2	9-09150-514-0	01	1	9307-9312	●	●	●
88	WASHER; LK,PIPE UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=20.2	9-09150-520-0	01	1	9307-	●	●	●
88	WASHER; LK,PIPE UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) ID=16.2	9-09150-516-0	01	1	9002-9312	●	●	●
91	NUT; PIPE UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-99110-412-0	01	1	9002-9304	●	●	●
91	NUT; PIPE UNION AIR DRYER<PS7> M12	9-99110-412-0	01	1	9002-9304	●	●	●
91	NUT; PIPE UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) M12	9-99110-412-0	01	1	9002-9304			●
91	NUT; PIPE UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-99110-512-0	01	1	9305-	●	●	●
91	NUT; PIPE UNION AIR DRYER<PS7> M12	9-99110-512-0	01	1	9305-	●	●	●
91	NUT; PIPE UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) M12	9-99110-512-0	01	1	9305-			●
91	NUT; PIPE UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M14	9-99110-414-0	01	1	9002-	●	●	●
91	NUT; PIPE UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M20	9-99111-420-0	01	1	9002-	●	●	●
91	NUT; PIPE UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) M16	9-99111-416-0	01	1	9002-	●	●	●
97	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M22	1-09656-099-1	01	1	9002-		●	●
98	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14	9-99110-414-0	01	1	9002-		●	●
98	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M20	9-99111-420-0	01	1	9002-		●	●
98	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),TAIL PIPE SINGLE HORIZONTAL<NC2> M20	9-99111-420-0	01	1	9002-		●	●
99	WASHER; LK,BRKT ID=10.2	9-09150-510-0	03	1	9002-	●	●	●
140	BRACKET; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=50	1-47475-299-2	01	1	9002-9306		●	●
163	BRACKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47475-540-1	01	1	9002-9306		●	●
163	BRACKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),TAIL PIPE SINGLE HORIZONTAL<NC2>	1-47475-540-1	01	1	9002-9306		●	●
163	BRACKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47475-540-1	02	1	9307-		●	●
175	BOLT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X35 W/LK WASHER	9-01900-835-0	02	1	9002-9204		●	●
175	BOLT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),TAIL PIPE SINGLE HORIZONTAL<NC2> M8X35 W/LK WASHER	9-01900-835-0	02	1	9002-9204		●	●
175	BOLT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X35 W/LK WASHER	0-50040-835-0	02	1	9205-9302		●	●
175	BOLT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),TAIL PIPE SINGLE HORIZONTAL<NC2> M8X35 W/LK WASHER	0-50040-835-0	02	1	9205-9302		●	●
175	BOLT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),TAIL PIPE SINGLE HORIZONTAL<NC2> M8X35 W/LK WASHER	0-50040-835-0	02	1	9303-9306		●	●
175	BOLT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X35 FLANGE	0-28080-835-0	04	1	9303-		●	●

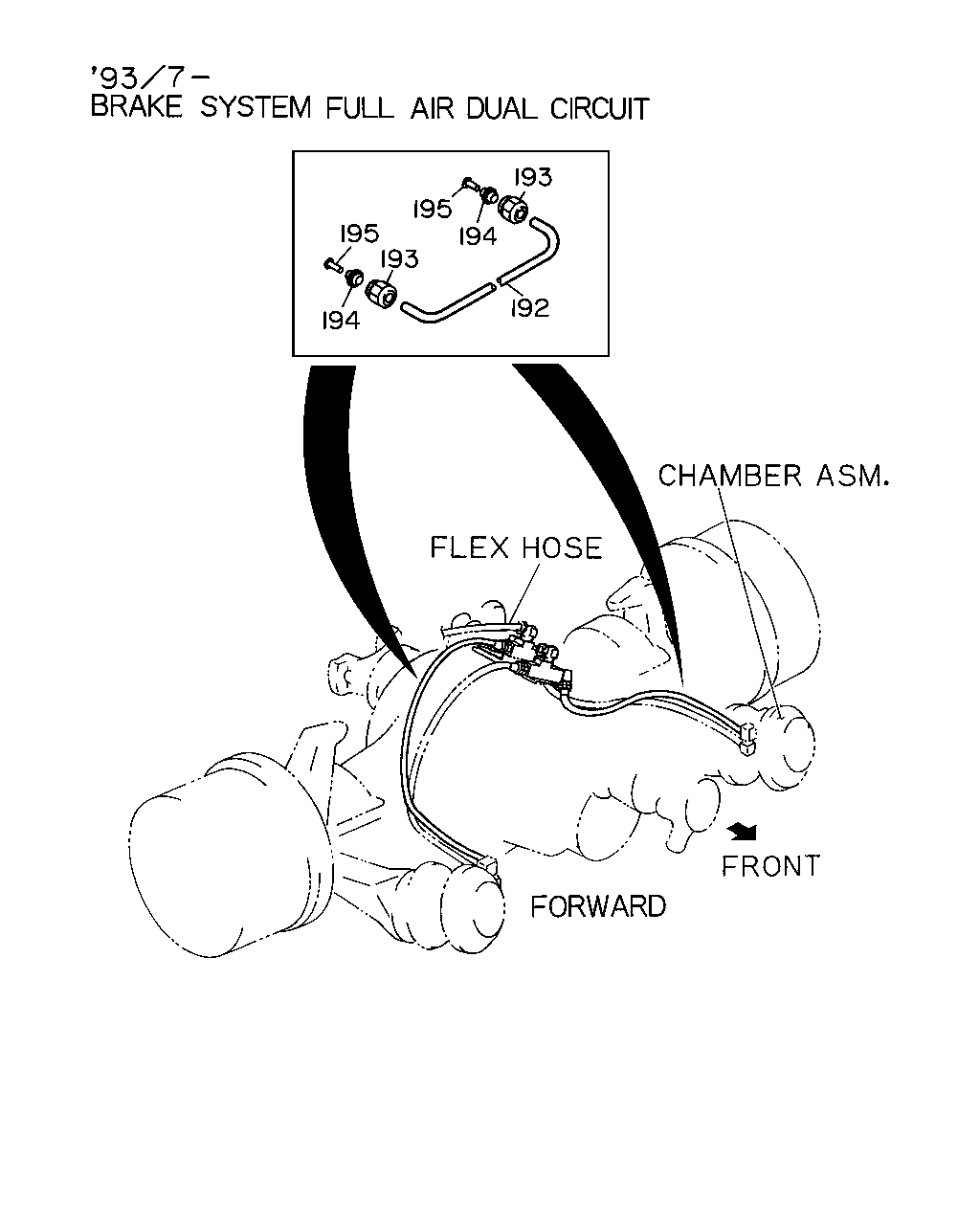

195 195 193 193 192 194 194

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=30000 OD=3/8"	1-09368-247-0	02	1	9307-	●	●
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=30000 OD=1/2"	1-09368-251-0	02	1	9307-	●	●
193	NUT; SLEEVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=3/8"	1-09660-557-0	04	1	9307-	●	●
193	NUT; SLEEVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=1/2"	1-09660-558-0	04	1	9307-	●	●
194	SLEEVE; TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=9.75 OD=12.17 L=9.91	1-09666-060-0	04	1	9307-	●	●
194	SLEEVE; TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.93 OD=15.85 L=10.92	1-09666-061-0	04	1	9307-	●	●
195	RING; INSERT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=1/2"	1-09669-107-0	04	1	9307-	●	●
195	RING; INSERT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=3/8"	1-09669-108-0	04	1	9307-	●	●

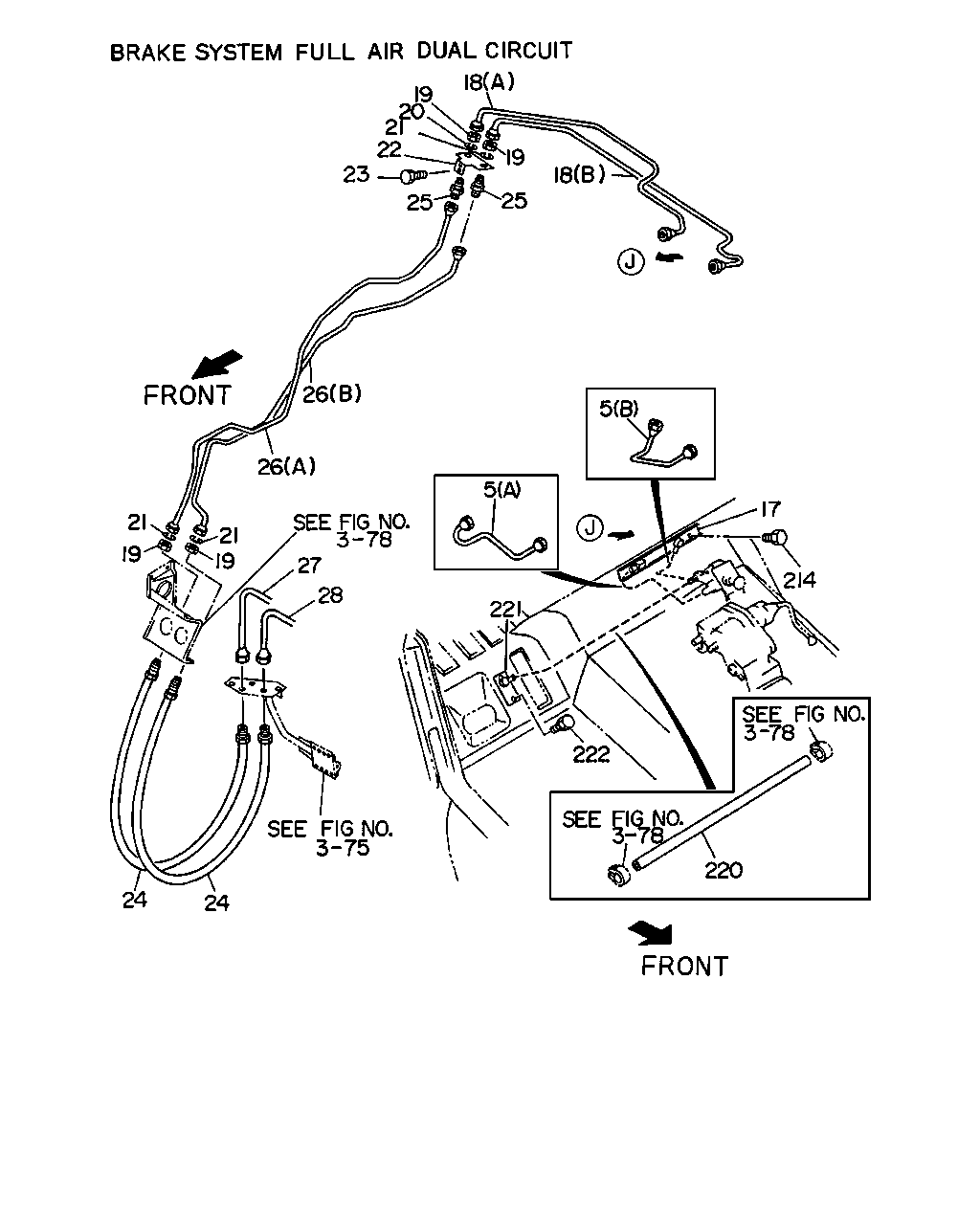

25 25 23 22 21 20 19 18 19 18 5 26 26 21 19 21 19 27 28 24 24 220 222 221 5 17 214

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
5	PIPE; AIR,UNION TO PARKING VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=431	1-47495-978-0	01	1	9307-	●	●
5	PIPE; AIR,UNION TO PARKING VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=256	1-47495-979-0	01	1	9307-	●	●
5	PIPE; AIR,UNION TO PARKING VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) L=431	1-47445-569-1	01	1	9002-9306	●	●
5	PIPE; AIR,UNION TO PARKING VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) L=240	1-47445-570-1	01	1	9002-9306	●	●
17	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-47470-170-4	01	1	9002-	●	●
18	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) L=1616 SERVICED BY L=1800	1-47434-413-0	01	1	9002-9306	●	●
18	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=1722 SERVICED BY L=1950	1-47426-393-0	01	1	9307-	●	●
18	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) L=1616 SERVICED BY L=1700	1-47434-478-0	01	1	9002-9306	●	●
18	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=1617 SERVICED BY L=1700	1-47426-420-0	01	1	9307-	●	●
19	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M14	9-99111-414-0	01	1	9002-	●	●
19	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M14	9-99111-414-0	02	1	9002-	●	●
19	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M16	9-99111-416-0	01	1	9002-	●	●
19	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M16	9-99111-416-0	02	1	9002-	●	●
20	WASHER; LK,PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) ID=16.2	9-09150-516-0	01	1	9002-	●	●
21	WASHER; LK,UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) ID=14.2	9-09150-514-0	01	1	9002-	●	●
21	WASHER; LK,UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) ID=14.2	9-09150-514-0	02	1	9002-	●	●
21	WASHER; LK,UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) ID=16.2	9-09150-516-0	02	1	9002-	●	●
22	BRACKET; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-47475-259-0	01	1	9002-	●	●
23	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X16 W/LK WASHER	9-01900-616-0	02	1	9002-9204	●	●
23	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X16 W/LK WASHER	0-50040-616-0	02	1	9205-9302	●	●
23	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X16 FLANGE	0-28080-616-0	02	1	9303-	●	●
24	HOSE; FLEX,PARKING BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=580	0-07404-580-0	01	1	9002-	●	●
24	HOSE; FLEX,PARKING BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=590	0-07424-590-0	01	1	9002-	●	●
25	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M14	9-09223-308-1	01	1	9002-	●	●
25	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M16 L=70 STRAIGHT	9-09233-210-1	01	1	9002-	●	●
26	PIPE; AIR,FLEX HOSE TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=1489	1-47495-961-0	01	1	9307-	●	●
26	PIPE; AIR,FLEX HOSE TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=1522	1-47495-972-0	01	1	9307-	●	●
26	PIPE; AIR,FLEX HOSE TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) L=1521 SERVICED BY L=1550	1-47437-957-0	01	1	9002-9306	●	●
26	PIPE; AIR,FLEX HOSE TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) L=1488	1-47447-663-2	01	1	9002-9306	●	●
27	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=3177 SERVICED BY L=3300	1-47437-975-0	01	1	9002-9306	●	●
27	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=3183 SERVICED BY L=3300	1-47426-426-0	01	1	9307-	●	●
27	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=3183 SERVICED BY L=3300	1-47437-975-0	01	1	9002-9306	●	●
27	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=3177 SERVICED BY L=3300	1-47426-426-0	01	1	9307-	●	●
28	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1697 SERVICED BY L=1700	1-47434-412-0	01	1	9002-9009	●	●
28	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1704 SERVICED BY L=1800	1-47434-413-0	01	1	9010-9306	●	●
28	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1739 SERVICED BY L=1800	1-47426-392-0	01	1	9307-	●	●
28	PIPE; AIR,FLEX HOSE TO UNION 6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=2981 SERVICED BY L=3000	1-47437-960-0	01	1	9002-9009	●	●
28	PIPE; AIR,FLEX HOSE TO UNION 6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=2988 SERVICED BY L=3000	1-47437-960-0	01	1	9010-9306	●	●
28	PIPE; AIR,FLEX HOSE TO UNION 6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=3027 SERVICED BY L=3300	1-47426-398-0	01	1	9307-	●	●
214	BOLT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X16 W/LK WASHER	9-01900-616-0	02	1	9002-9204	●	●
214	BOLT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X16 W/LK WASHER	0-50040-616-0	02	1	9205-9302	●	●
214	BOLT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X16 FLANGE	0-28080-616-0	02	1	9303-	●	●
220	HOSE; VINYL,EXH,PARKING BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=1200 SERVICED BY L=10000	9-09914-701-0	01	1	9002-	●	●
221	CONNECTOR; EXH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-47470-165-1	01	1	9002-	●	●
222	BOLT; CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X16 W/LK WASHER	9-01900-616-0	02	1	9002-9204	●	●
222	BOLT; CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X16 W/LK WASHER	0-50040-616-0	02	1	9205-9302	●	●
222	BOLT; CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X16 FLANGE	0-28080-616-0	02	1	9303-9312	●	●
222	BOLT; CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M6X20 FLANGE	0-28080-620-0	02	1	9401-	●	●

4 3 2 13 16 11 12 64 8 8 8 7 9 6 7 6 101 59 10 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; AIR,FLEX HOSE TO BRK VLV EXC. DUAL AIR GAUGE<UG2> L=372	1-47448-184-0	01	1	9002-9306	●	●	●
1	PIPE; AIR,FLEX HOSE TO BRK VLV EXC. DUAL AIR GAUGE<UG2> L=373	1-47495-941-0	01	1	9307-	●	●	●
1	PIPE; AIR,FLEX HOSE TO BRK VLV DUAL AIR GAUGE<UG2> L=352	1-47448-196-0	01	1	9002-9306		●	●
1	PIPE; AIR,FLEX HOSE TO BRK VLV DUAL AIR GAUGE<UG2> L=352	1-47495-942-0	01	1	9307-		●	●
2	UNION; AIR PIPE	1-47470-187-2	01	1	9002-	●	●	●
3	BOLT; PIPE UNION M6X16	1-09980-296-0	02	1	9002-	●	●	●
4	PIPE; AIR,UNION TO BRK VLV L=493 SERVICED BY L=550	1-47437-976-0	01	1	9002-9306	●	●	●
4	PIPE; AIR,UNION TO BRK VLV L=494 SERVICED BY L=500	1-49111-435-0	01	1	9307-	●	●	●
6	WASHER; LK,FLEX HOSE ID=20.2	9-09150-520-0	02	1	9002-	●	●	●
6	WASHER; LK,FLEX HOSE EXC. DUAL AIR GAUGE<UG2> ID=20.2	9-09150-520-0	02	1	9002-	●	●	●
6	WASHER; LK,FLEX HOSE DUAL AIR GAUGE<UG2> ID=20.2	9-09150-520-0	01	1	9002-	●	●	●
7	NUT; FLEX HOSE M20	9-99111-420-0	02	1	9002-	●	●	●
7	NUT; FLEX HOSE EXC. DUAL AIR GAUGE<UG2> M20	9-99111-420-0	02	1	9002-	●	●	●
7	NUT; FLEX HOSE DUAL AIR GAUGE<UG2> M20	9-99111-420-0	01	1	9002-	●	●	●
8	HOSE; FLEX,AIR,CAB SIDE L=830	0-07706-830-0	01	1	9409-9409	●	●	●
8	HOSE; FLEX,AIR,CAB SIDE EXC. DUAL AIR GAUGE<UG2> L=830	0-07706-830-0	01	1	9410-	●	●	●
8	HOSE; FLEX,AIR,CAB SIDE L=830	0-07706-830-0	01	1	9410-	●	●	●
8	HOSE; FLEX,AIR,CAB SIDE EXC. DUAL AIR GAUGE<UG2> L=850	0-07706-850-0	01	1	9002-9408	●	●	●
8	HOSE; FLEX,AIR,CAB SIDE L=850	0-07706-850-0	01	1	9002-9408	●	●	●
8	HOSE; FLEX,AIR,CAB SIDE EXC. DUAL AIR GAUGE<UG2> L=850	0-07706-850-0	01	1	9409-9409	●	●	●
8	HOSE; FLEX,AIR,CAB SIDE DUAL AIR GAUGE<UG2> L=770	1-09363-329-4	01	1	9002-		●	●
9	BRACKET; FLEX HOSE,CAB SIDE	1-47475-582-0	01	1	9002-	●	●	●
10	CONNECTOR; FLEX HOSE DUAL AIR GAUGE<UG2>	1-09656-359-1	01	1	9002-	●	●	●
11	WASHER; LK,CONNECTOR DUAL AIR GAUGE<UG2> ID=20.2	9-09150-520-0	01	1	9002-	●	●	●
12	NUT; CONNECTOR DUAL AIR GAUGE<UG2> M20	9-99111-420-0	01	1	9002-	●	●	●
13	PIPE; AIR,BRK VLV TO UNION L=422 SERVICED BY L=550	1-47437-976-0	01	1	9002-9306	●	●	●
13	PIPE; AIR,BRK VLV TO UNION L=423 SERVICED BY L=500	1-49111-435-0	01	1	9307-	●	●	●
16	PIPE; AIR,UNION TO FLEX HOSE L=675 SERVICED BY L=730	1-47437-979-0	01	1	9002-9306	●	●	●
16	PIPE; AIR,UNION TO FLEX HOSE L=611 SERVICED BY L=660	1-49111-438-0	01	1	9307-	●	●	●
59	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=1934 SERVICED BY L=2000	1-47437-986-0	01	1	9002-9306	●	●	●
59	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=1935 SERVICED BY L=2000	1-49111-450-0	01	1	9307-	●	●	●
59	PIPE; AIR,UNION TO FLEX HOSE 12PD1 C ENG(43L) L=1884 SERVICED BY L=2000	1-49111-450-0	01	1	9307-			●
59	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L) L=2262 SERVICED BY L=2500	1-47434-488-0	01	1	9002-9004		●	●
59	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L) L=2256 SERVICED BY L=2500	1-47434-488-0	01	1	9005-9306		●	●
59	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L) L=2256 SERVICED BY L=2500	1-49111-452-0	01	1	9307-		●	●
64	GASKET; FLEX HOSE DUAL AIR GAUGE<UG2> ID=11 OD=18	9-09572-510-0	01	1	9002-	●	●	●
64	GASKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=17.5	9-09572-515-0	04	1	9002-9306		●	●
64	GASKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) ID=17.5	9-09572-515-0	02	1	9002-9306		●	●
64	GASKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> ID=17.5	9-09572-515-0	02	1	9002-9306		●	●
64	GASKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=17.5	9-09572-515-0	01	1	9307-9410		●	●
64	GASKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=17.5	9-09572-515-0	02	1	9411-		●	●
64	GASKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=17.5	9-09572-515-0	06	1	9307-		●	●
101	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) L=1787 SERVICED BY L=1800	1-47434-487-0	01	1	9002-9306	●	●	●
101	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) L=1785 SERVICED BY L=1800	1-49111-449-0	01	1	9307-	●	●	●
101	PIPE; AIR,FLEX HOSE TO UNION 12PD1 C ENG(43L) L=1771 SERVICED BY L=1800	1-49111-449-0	01	1	9307-			●
101	PIPE; AIR,FLEX HOSE TO UNION 6RB1 STD ENG(07L) L=2002 SERVICED BY L=2250	1-47437-987-0	01	1	9002-9004		●	●
101	PIPE; AIR,FLEX HOSE TO UNION 6RB1 STD ENG(07L) L=1996 SERVICED BY L=2000	1-47437-986-0	01	1	9005-9306		●	●
101	PIPE; AIR,FLEX HOSE TO UNION 6RB1 STD ENG(07L) L=1996 SERVICED BY L=2000	1-49111-450-0	01	1	9307-		●	●

92 59 101 103 104 51 113 52 70 55 52 113 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
48	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=678 SERVICED BY L=1000	1-47434-491-0	01	1	9002-		●	●
51	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1816 SERVICED BY L=2000	1-47434-493-0	01	1	9002-9003		●	●
51	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1828 SERVICED BY L=2000	1-47434-493-0	01	1	9004-		●	●
52	PIPE; AIR,UNION TO RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=1260 SERVICED BY L=1350	1-47437-995-0	01	1	9002-			●
52	PIPE; AIR,UNION TO RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=1000 SERVICED BY L=1050	1-49111-458-0	01	1	9002-			●
52	PIPE; AIR,UNION TO RELAY VLV WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=1989 SERVICED BY L=2000	1-47434-493-0	01	1	9002-		●
52	PIPE; AIR,UNION TO RELAY VLV WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=2271 SERVISCED BY L=2500	1-47434-494-0	01	1	9002-		●
52	PIPE; AIR,UNION TO RELAY VLV WHEEL BASE 5800MM(58W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=2282 SERVISCED BY L=2500	1-47434-494-0	01	1	9002-		●
52	PIPE; AIR,UNION TO RELAY VLV WHEEL BASE 5800MM(58W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=2561 SERVICED BY L=2750	1-47437-999-0	01	1	9002-		●
52	PIPE; AIR,UNION TO RELAY VLV WHEEL BASE 6400MM(64W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=2829 SERVICED BY L=3000	1-47434-495-0	01	1	9002-		●
52	PIPE; AIR,UNION TO RELAY VLV WHEEL BASE 6400MM(64W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=3111 SERVICED BY L=3250	1-47438-001-0	01	1	9002-		●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=461 SERVICED BY L=550	1-47437-976-0	01	1	9002-9306			●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=455 SERVICED BY L=550	1-47437-976-0	01	1	9002-9306		●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=461 SERVICED BY L=500	1-49111-435-0	01	1	9307-			●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=455 SERVICED BY L=500	1-49111-435-0	01	1	9307-		●
59	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=1934 SERVICED BY L=2000	1-47437-986-0	01	1	9002-9306	●	●	●
59	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=1935 SERVICED BY L=2000	1-49111-450-0	01	1	9307-	●	●	●
59	PIPE; AIR,UNION TO FLEX HOSE 12PD1 C ENG(43L) L=1884 SERVICED BY L=2000	1-49111-450-0	01	1	9307-			●
59	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L) L=2262 SERVICED BY L=2500	1-47434-488-0	01	1	9002-9004		●	●
59	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L) L=2256 SERVICED BY L=2500	1-47434-488-0	01	1	9005-9306		●	●
59	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L) L=2256 SERVICED BY L=2500	1-49111-452-0	01	1	9307-		●	●
70	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=641	1-47447-260-1	01	1	9002-9306			●
70	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47496-047-0	01	1	9307-			●
70	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=703	1-47484-669-0	01	1	9002-9306		●
70	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47496-051-0	01	1	9307-		●
92	PIPE; AIR,UNION TO UNION (A) L=1607 SERVICED BY L=1800	1-47434-487-0	01	1	9002-9306	●
92	PIPE; AIR,UNION TO UNION (A) L=1609 SERVICED BY L=1800	1-49111-449-0	01	1	9307-	●
92	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) (A) L=2482 SERVICED BY L=2500	1-47434-488-0	01	1	9002-9306			●
92	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) (A) L=2501 SERVICED BY L=2800	1-49111-453-0	01	1	9307-			●
92	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) (A) L=1906 SERVICED BY L=2000	1-47437-986-0	01	1	9002-9306			●
92	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) (A) L=1915 SERVICED BY L=2000	1-49111-450-0	01	1	9307-			●
92	PIPE; AIR,UNION TO UNION 10PD1 STD ENG(40L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=2360 SERVICED BY L=2500	1-47434-488-0	01	1	9002-9006			●
92	PIPE; AIR,UNION TO UNION 10PD1 STD ENG(40L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=2364 SERVICED BY L=2500	1-47434-488-0	01	1	9007-9306			●
92	PIPE; AIR,UNION TO UNION 6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=2037 SERVICED BY L=2250	1-47437-987-0	01	1	9002-9006			●
92	PIPE; AIR,UNION TO UNION 6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=2042 SERVICED BY L=2250	1-47437-987-0	01	1	9007-9306			●
92	PIPE; AIR,UNION TO UNION 6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=2042 SERVICED BY L=2250	1-49111-451-0	01	1	9307-			●
92	PIPE; AIR,UNION TO UNION 6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=1972 SERVICED BY L=2000	1-47437-986-0	01	1	9002-9210			●
92	PIPE; AIR,UNION TO UNION 6RB1 STD ENG(07L) (B) L=1972 SERVICED BY L=2000	1-47437-986-0	01	1	9002-9210			●
92	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) L=1972 SERVICED BY L=2000	1-47437-986-0	01	1	9211-9306		●	●
92	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=1972 SERVICED BY L=2000	1-47437-986-0	01	1	9211-9306		●	●
92	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) L=1972 SERVICED BY L=2250	1-49111-451-0	01	1	9307-		●	●
92	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=1972 SERVICED BY L=2250	1-49111-451-0	01	1	9307-		●	●
92	PIPE; AIR,UNION TO UNION 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=2295 SERVICED BY L=2500	1-47434-488-0	01	1	9002-9306		●	●
92	PIPE; AIR,UNION TO UNION 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=2301 SERVICED BY L=2500	1-49111-452-0	01	1	9307-		●	●
92	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=1585 SERVICED BY L=1600	1-47437-985-0	01	1	9002-9306		●
92	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=1582 SERVICED BY L=1600	1-49111-448-0	01	1	9307-		●
101	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) L=1787 SERVICED BY L=1800	1-47434-487-0	01	1	9002-9306	●	●	●
101	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) L=1785 SERVICED BY L=1800	1-49111-449-0	01	1	9307-	●	●	●
101	PIPE; AIR,FLEX HOSE TO UNION 12PD1 C ENG(43L) L=1771 SERVICED BY L=1800	1-49111-449-0	01	1	9307-			●
101	PIPE; AIR,FLEX HOSE TO UNION 6RB1 STD ENG(07L) L=2002 SERVICED BY L=2250	1-47437-987-0	01	1	9002-9004		●	●
101	PIPE; AIR,FLEX HOSE TO UNION 6RB1 STD ENG(07L) L=1996 SERVICED BY L=2000	1-47437-986-0	01	1	9005-9306		●	●
101	PIPE; AIR,FLEX HOSE TO UNION 6RB1 STD ENG(07L) L=1996 SERVICED BY L=2000	1-49111-450-0	01	1	9307-		●	●
103	PIPE; AIR,UNION TO UNION L=1203 SERVICED BY L=1250	1-47437-968-0	01	1	9002-9209	●
103	PIPE; AIR,UNION TO UNION L=1220 SERVICED BY L=1250	1-47426-416-0	01	1	9210-9306	●
103	PIPE; AIR,UNION TO UNION L=1210 SERVICED BY L=1250	1-47426-416-0	01	1	9307-	●
103	PIPE; AIR,UNION TO UNION 12PD1 C ENG(43L) L=1214 SERVICED BY L=1250	1-47426-416-0	01	1	9307-			●
103	PIPE; AIR,UNION TO UNION 10PD1 STD ENG(40L) L=1206 SERVICED BY L=1250	1-47437-968-0	01	1	9002-9306		●	●
103	PIPE; AIR,UNION TO UNION 10PD1 STD ENG(40L) L=1208 SERVICED BY L=1250	1-47426-416-0	01	1	9307-		●	●
103	PIPE; AIR,UNION TO UNION 6RB1 STD ENG(07L) L=997 SERVICED BY L=1000	1-47434-476-0	01	1	9002-9306		●	●
103	PIPE; AIR,UNION TO UNION 6RB1 STD ENG(07L) L=997 SERVICED BY L=1000	1-47426-414-0	01	1	9307-		●	●
104	PIPE; AIR,UNION TO UNION L=2044 SERVICED BY L=2100	1-47437-972-0	01	1	9002-9306	●
104	PIPE; AIR,UNION TO UNION L=2044 SERVICED BY L=2100	1-47426-422-0	01	1	9307-	●
104	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) L=1788 SERVICED BY L=1900	1-47437-971-0	01	1	9002-9306			●
104	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) L=1789 SERVICED BY L=1900	1-47426-421-0	01	1	9307-			●
104	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) L=2031 SERVICED BY L=2100	1-47437-972-0	01	1	9002-9306		●	●
104	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) L=2031 SERVICED BY L=2100	1-47426-422-0	01	1	9307-		●	●
104	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1296 SERVICED BY L=1400	1-47437-969-0	01	1	9002-9306		●	●
104	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1296 SERVICED BY L=1300	1-47426-417-0	01	1	9307-		●	●
113	PIPE; AIR,UNION TO RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=412 SERVICED BY L=450	1-47437-962-0	01	1	9002-9306			●
113	PIPE; AIR,UNION TO RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=413 SERVICED BY L=450	1-47426-405-0	01	1	9307-			●
113	PIPE; AIR,UNION TO RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=1220 SERVICED BY L=1250	1-47437-968-0	01	1	9002-9306			●
113	PIPE; AIR,UNION TO RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=1216 SERVICED BY L=1250	1-47426-416-0	01	1	9307-			●
113	PIPE; AIR,UNION TO RELAY VLV WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=2229 SERVICED BY L=2500	1-47434-479-0	01	1	9002-9306		●
113	PIPE; AIR,UNION TO RELAY VLV WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=2225 SERVICED BY L=2500	1-47426-423-0	01	1	9307-		●
113	PIPE; AIR,UNION TO RELAY VLV WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=1407 SERVICED BY L=1550	1-47437-970-0	01	1	9002-9306		●
113	PIPE; AIR,UNION TO RELAY VLV WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=1407 SERVICED BY L=1550	1-47426-419-0	01	1	9307-		●
113	PIPE; AIR,UNION TO RELAY VLV WHEEL BASE 5800MM(58W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=1697 SERVICED BY L=1700	1-47434-478-0	01	1	9002-9306		●
113	PIPE; AIR,UNION TO RELAY VLV WHEEL BASE 5800MM(58W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=1697 SERVICED BY L=1700	1-47426-420-0	01	1	9307-		●
113	PIPE; AIR,UNION TO RELAY VLV WHEEL BASE 5800MM(58W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=2519 SERVICED BY L=2600	1-47437-973-0	01	1	9002-9306		●
113	PIPE; AIR,UNION TO RELAY VLV WHEEL BASE 5800MM(58W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=2515 SERVICED BY L=2600	1-47426-424-0	01	1	9307-		●
113	PIPE; AIR,UNION TO RELAY VLV WHEEL BASE 6400MM(64W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=2247 SERVICED BY L=2500	1-47434-479-0	01	1	9002-9306		●
113	PIPE; AIR,UNION TO RELAY VLV WHEEL BASE 6400MM(64W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=2247 SERVICED BY L=2500	1-47426-423-0	01	1	9307-		●
113	PIPE; AIR,UNION TO RELAY VLV WHEEL BASE 6400MM(64W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=3069 SERVICED BY L=3300	1-47437-975-0	01	1	9002-9306		●
113	PIPE; AIR,UNION TO RELAY VLV WHEEL BASE 6400MM(64W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=3065 SERVICED BY L=3300	1-47426-426-0	01	1	9307-		●

87 118 32 92 92 104 103 59 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
32	PIPE; AIR,UNION TO MAG VLV,DIFF LOCK L=968 SERVICED BY L=1000	1-47426-350-0	01	1	9002-9306			●
32	PIPE; AIR,UNION TO MAG VLV,DIFF LOCK L=945 SERVICED BY L=1000	1-47426-350-0	01	1	9307-			●
32	PIPE; AIR,UNION TO MAG VLV,DIFF LOCK WHEEL BASE 5500MM(55W) L=1976 SERVICED BY L=2000	1-47413-563-0	01	1	9002-		●
32	PIPE; AIR,UNION TO MAG VLV,DIFF LOCK WHEEL BASE 5800MM(58W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2084 SERVICED BY L=2200	1-47413-564-0	01	1	9002-		●
32	PIPE; AIR,UNION TO MAG VLV,DIFF LOCK WHEEL BASE 5800MM(58W),WHEEL BASE 6400MM(64W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=939 SERVICED BY L=1000	1-47413-554-0	01	1	9002-		●
32	PIPE; AIR,UNION TO MAG VLV,DIFF LOCK WHEEL BASE 6400MM(64W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2634 SERVICED BY L=2650	1-47413-567-0	01	1	9002-		●
59	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=1934 SERVICED BY L=2000	1-47437-986-0	01	1	9002-9306	●	●	●
59	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=1935 SERVICED BY L=2000	1-49111-450-0	01	1	9307-	●	●	●
59	PIPE; AIR,UNION TO FLEX HOSE 12PD1 C ENG(43L) L=1884 SERVICED BY L=2000	1-49111-450-0	01	1	9307-			●
59	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L) L=2262 SERVICED BY L=2500	1-47434-488-0	01	1	9002-9004		●	●
59	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L) L=2256 SERVICED BY L=2500	1-47434-488-0	01	1	9005-9306		●	●
59	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L) L=2256 SERVICED BY L=2500	1-49111-452-0	01	1	9307-		●	●
87	PIPE; AIR,AIR TANK TO UNION L=621 SERVICED BY L=660	1-47437-978-0	01	1	9002-9306	●
87	PIPE; AIR,AIR TANK TO UNION L=621 SERVICED BY L=660	1-49111-438-0	01	1	9307-	●
87	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=628 SERVICED BY L=660	1-47437-978-0	01	1	9002-9306		●	●
87	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=628 SERVICED BY L=660	1-49111-438-0	01	1	9307-		●	●
92	PIPE; AIR,UNION TO UNION (A) L=1607 SERVICED BY L=1800	1-47434-487-0	01	1	9002-9306	●
92	PIPE; AIR,UNION TO UNION (A) L=1609 SERVICED BY L=1800	1-49111-449-0	01	1	9307-	●
92	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) (A) L=2482 SERVICED BY L=2500	1-47434-488-0	01	1	9002-9306			●
92	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) (A) L=2501 SERVICED BY L=2800	1-49111-453-0	01	1	9307-			●
92	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) (A) L=1906 SERVICED BY L=2000	1-47437-986-0	01	1	9002-9306			●
92	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) (A) L=1915 SERVICED BY L=2000	1-49111-450-0	01	1	9307-			●
92	PIPE; AIR,UNION TO UNION 10PD1 STD ENG(40L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=2360 SERVICED BY L=2500	1-47434-488-0	01	1	9002-9006			●
92	PIPE; AIR,UNION TO UNION 10PD1 STD ENG(40L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=2364 SERVICED BY L=2500	1-47434-488-0	01	1	9007-9306			●
92	PIPE; AIR,UNION TO UNION 6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=2037 SERVICED BY L=2250	1-47437-987-0	01	1	9002-9006			●
92	PIPE; AIR,UNION TO UNION 6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=2042 SERVICED BY L=2250	1-47437-987-0	01	1	9007-9306			●
92	PIPE; AIR,UNION TO UNION 6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=2042 SERVICED BY L=2250	1-49111-451-0	01	1	9307-			●
92	PIPE; AIR,UNION TO UNION 6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=1972 SERVICED BY L=2000	1-47437-986-0	01	1	9002-9210			●
92	PIPE; AIR,UNION TO UNION 6RB1 STD ENG(07L) (B) L=1972 SERVICED BY L=2000	1-47437-986-0	01	1	9002-9210			●
92	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) L=1972 SERVICED BY L=2000	1-47437-986-0	01	1	9211-9306		●	●
92	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=1972 SERVICED BY L=2000	1-47437-986-0	01	1	9211-9306		●	●
92	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) L=1972 SERVICED BY L=2250	1-49111-451-0	01	1	9307-		●	●
92	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=1972 SERVICED BY L=2250	1-49111-451-0	01	1	9307-		●	●
92	PIPE; AIR,UNION TO UNION 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=2295 SERVICED BY L=2500	1-47434-488-0	01	1	9002-9306		●	●
92	PIPE; AIR,UNION TO UNION 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=2301 SERVICED BY L=2500	1-49111-452-0	01	1	9307-		●	●
92	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=1585 SERVICED BY L=1600	1-47437-985-0	01	1	9002-9306		●
92	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=1582 SERVICED BY L=1600	1-49111-448-0	01	1	9307-		●
101	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) L=1787 SERVICED BY L=1800	1-47434-487-0	01	1	9002-9306	●	●	●
101	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) L=1785 SERVICED BY L=1800	1-49111-449-0	01	1	9307-	●	●	●
101	PIPE; AIR,FLEX HOSE TO UNION 12PD1 C ENG(43L) L=1771 SERVICED BY L=1800	1-49111-449-0	01	1	9307-			●
101	PIPE; AIR,FLEX HOSE TO UNION 6RB1 STD ENG(07L) L=2002 SERVICED BY L=2250	1-47437-987-0	01	1	9002-9004		●	●
101	PIPE; AIR,FLEX HOSE TO UNION 6RB1 STD ENG(07L) L=1996 SERVICED BY L=2000	1-47437-986-0	01	1	9005-9306		●	●
101	PIPE; AIR,FLEX HOSE TO UNION 6RB1 STD ENG(07L) L=1996 SERVICED BY L=2000	1-49111-450-0	01	1	9307-		●	●
103	PIPE; AIR,UNION TO UNION L=1203 SERVICED BY L=1250	1-47437-968-0	01	1	9002-9209	●
103	PIPE; AIR,UNION TO UNION L=1220 SERVICED BY L=1250	1-47426-416-0	01	1	9210-9306	●
103	PIPE; AIR,UNION TO UNION L=1210 SERVICED BY L=1250	1-47426-416-0	01	1	9307-	●
103	PIPE; AIR,UNION TO UNION 12PD1 C ENG(43L) L=1214 SERVICED BY L=1250	1-47426-416-0	01	1	9307-			●
103	PIPE; AIR,UNION TO UNION 10PD1 STD ENG(40L) L=1206 SERVICED BY L=1250	1-47437-968-0	01	1	9002-9306		●	●
103	PIPE; AIR,UNION TO UNION 10PD1 STD ENG(40L) L=1208 SERVICED BY L=1250	1-47426-416-0	01	1	9307-		●	●
103	PIPE; AIR,UNION TO UNION 6RB1 STD ENG(07L) L=997 SERVICED BY L=1000	1-47434-476-0	01	1	9002-9306		●	●
103	PIPE; AIR,UNION TO UNION 6RB1 STD ENG(07L) L=997 SERVICED BY L=1000	1-47426-414-0	01	1	9307-		●	●
104	PIPE; AIR,UNION TO UNION L=2044 SERVICED BY L=2100	1-47437-972-0	01	1	9002-9306	●
104	PIPE; AIR,UNION TO UNION L=2044 SERVICED BY L=2100	1-47426-422-0	01	1	9307-	●
104	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) L=1788 SERVICED BY L=1900	1-47437-971-0	01	1	9002-9306			●
104	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) L=1789 SERVICED BY L=1900	1-47426-421-0	01	1	9307-			●
104	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) L=2031 SERVICED BY L=2100	1-47437-972-0	01	1	9002-9306		●	●
104	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) L=2031 SERVICED BY L=2100	1-47426-422-0	01	1	9307-		●	●
104	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1296 SERVICED BY L=1400	1-47437-969-0	01	1	9002-9306		●	●
104	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1296 SERVICED BY L=1300	1-47426-417-0	01	1	9307-		●	●
118	PIPE; AIR,UNION TO AIR MASTER L=780 SERVICED BY L=800	1-47434-475-0	01	1	9002-9306	●
118	PIPE; AIR,UNION TO AIR MASTER L=780 SERVICED BY L=800	1-47426-412-0	01	1	9307-	●
118	PIPE; AIR,UNION TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) EXC. POWER BRAKE LOCK SYSTEM(J50) L=572 SERVICED BY L=600	1-47434-473-0	01	1	9002-9003			●
118	PIPE; AIR,UNION TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) EXC. POWER BRAKE LOCK SYSTEM(J50) L=566 SERVICED BY L=600	1-47434-473-0	01	1	9004-9306			●
118	PIPE; AIR,UNION TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) EXC. POWER BRAKE LOCK SYSTEM(J50) L=583 SERVICED BY L=600	1-47426-408-0	01	1	9307-			●
118	PIPE; AIR,UNION TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) L=785 SERVICED BY L=800	1-47434-475-0	01	1	9002-9306			●
118	PIPE; AIR,UNION TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=785 SERVICED BY L=800	1-47434-475-0	01	1	9002-9306		●
118	PIPE; AIR,UNION TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) L=785 SERVICED BY L=800	1-47426-412-0	01	1	9307-		●	●
118	PIPE; AIR,UNION TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) BRAKE SYSTEM HEAVY DUTY(J55) L=618 SERVICED BY L=660	1-47437-964-0	01	1	9002-9003			●
118	PIPE; AIR,UNION TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) BRAKE SYSTEM HEAVY DUTY(J55) L=608 SERVICED BY L=660	1-47437-964-0	01	1	9004-9306			●
118	PIPE; AIR,UNION TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) BRAKE SYSTEM HEAVY DUTY(J55) L=611 SERVICED BY L=660	1-47426-409-0	01	1	9307-			●

32 31 30 27 28 29 33 158 35 31 27 28 29 31 32 33 158 170 170 170 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
27	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=3177 SERVICED BY L=3300	1-47437-975-0	01	1	9002-9306	●	●
27	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=3183 SERVICED BY L=3300	1-47426-426-0	01	1	9307-	●	●
27	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=3183 SERVICED BY L=3300	1-47437-975-0	01	1	9002-9306	●	●
27	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=3177 SERVICED BY L=3300	1-47426-426-0	01	1	9307-	●	●
28	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1697 SERVICED BY L=1700	1-47434-412-0	01	1	9002-9009	●	●
28	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1704 SERVICED BY L=1800	1-47434-413-0	01	1	9010-9306	●	●
28	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1739 SERVICED BY L=1800	1-47426-392-0	01	1	9307-	●	●
28	PIPE; AIR,FLEX HOSE TO UNION 6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=2981 SERVICED BY L=3000	1-47437-960-0	01	1	9002-9009	●	●
28	PIPE; AIR,FLEX HOSE TO UNION 6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=2988 SERVICED BY L=3000	1-47437-960-0	01	1	9010-9306	●	●
28	PIPE; AIR,FLEX HOSE TO UNION 6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=3027 SERVICED BY L=3300	1-47426-398-0	01	1	9307-	●	●
29	PIPE; AIR,UNION TO UNION 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1256 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306	●	●
29	PIPE; AIR,UNION TO UNION 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1256 SERVICED BY L=1400	1-47426-389-0	01	1	9307-	●	●
30	PIPE; AIR,AIR TANK TO JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=875 SERVICED BY L=1000	1-47434-491-0	01	1	9002-	●	●
31	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-47484-298-0	01	1	9002-		●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B)	1-47484-665-0	01	1	9002-	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 5800MM(58W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) L=2794 SERVICED BY L=3000	1-47434-495-0	01	1	9002-	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 5800MM(58W),WHEEL BASE 6400MM(64W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A)	1-47484-666-0	01	1	9002-	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 6400MM(64W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (C) L=1873 SERVICED BY L=1950	1-47434-414-0	01	1	9002-9306	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 6400MM(64W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) L=1873 SERVICED BY L=1950	1-47426-393-0	01	1	9307-	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 6400MM(64W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) L=1799 SERVICED BY L=1800	1-47437-997-0	01	1	9002-	●
32	PIPE; AIR,UNION TO MAG VLV,DIFF LOCK L=968 SERVICED BY L=1000	1-47426-350-0	01	1	9002-9306		●
32	PIPE; AIR,UNION TO MAG VLV,DIFF LOCK L=945 SERVICED BY L=1000	1-47426-350-0	01	1	9307-		●
32	PIPE; AIR,UNION TO MAG VLV,DIFF LOCK WHEEL BASE 5500MM(55W) L=1976 SERVICED BY L=2000	1-47413-563-0	01	1	9002-	●
32	PIPE; AIR,UNION TO MAG VLV,DIFF LOCK WHEEL BASE 5800MM(58W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2084 SERVICED BY L=2200	1-47413-564-0	01	1	9002-	●
32	PIPE; AIR,UNION TO MAG VLV,DIFF LOCK WHEEL BASE 5800MM(58W),WHEEL BASE 6400MM(64W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=939 SERVICED BY L=1000	1-47413-554-0	01	1	9002-	●
32	PIPE; AIR,UNION TO MAG VLV,DIFF LOCK WHEEL BASE 6400MM(64W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2634 SERVICED BY L=2650	1-47413-567-0	01	1	9002-	●
33	PIPE; AIR,UNION TO CONT VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=1606 SERVICED BY L=1700	1-47434-412-0	01	1	9002-9306		●
33	PIPE; AIR,UNION TO CONT VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1606 SERVICED BY L=1800	1-47426-392-0	01	1	9307-		●
33	PIPE; AIR,UNION TO CONT VLV WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=2618 SERVICED BY L=2700	1-47434-415-0	01	1	9002-9306	●
33	PIPE; AIR,UNION TO CONT VLV WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2618 SERVICED BY L=2700	1-47426-396-0	01	1	9307-	●
33	PIPE; AIR,UNION TO CONT VLV WHEEL BASE 5800MM(58W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=2908 SERVICED BY L=3000	1-47437-960-0	01	1	9002-9306	●
33	PIPE; AIR,UNION TO CONT VLV WHEEL BASE 5800MM(58W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2908 SERVICED BY L=3000	1-47426-397-0	01	1	9307-	●
33	PIPE; AIR,UNION TO CONT VLV WHEEL BASE 6400MM(64W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=1589 SERVICED BY L=1620	1-47434-392-0	01	1	9002-9306	●
33	PIPE; AIR,UNION TO CONT VLV WHEEL BASE 6400MM(64W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1589 SERVICED BY L=1700	1-47426-391-0	01	1	9307-	●
35	PIPE; AIR,UNION TO UNION,DIFF LOCK WHEEL BASE 5800MM(58W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1283 SERVICED BY L=1370	1-47434-390-0	01	1	9002-	●
35	PIPE; AIR,UNION TO UNION,DIFF LOCK WHEEL BASE 6400MM(64W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1833 SERVICED BY L=2000	1-47434-395-0	01	1	9002-	●
158	PIPE; AIR,PRESS CONT VALVE TO RELAY VL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=487 SERVICED BY L=500	9-47415-380-0	01	1	9002-9306		●
158	PIPE; AIR,PRESS CONT VALVE TO RELAY VL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=487 SERVICED BY L=500	1-47426-376-0	01	1	9307-		●
158	PIPE; AIR,PRESS CONT VALVE TO RELAY VL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=473 SERVICED BY L=500	9-47415-380-0	01	1	9002-9306	●
158	PIPE; AIR,PRESS CONT VALVE TO RELAY VL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=473 SERVICED BY L=500	1-47426-376-0	01	1	9307-	●
170	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) L=366 SERVICED BY L=550	1-47437-976-0	01	1	9002-9306		●
170	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=366 SERVICED BY L=400	1-49111-434-0	01	1	9307-		●
170	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) L=641 SERVICED BY L=660	1-47437-978-0	01	1	9002-9306		●
170	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=641 SERVICED BY L=660	1-49111-438-0	01	1	9307-		●
170	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) L=311 SERVICED BY L=550	1-47437-976-0	01	1	9002-9306	●
170	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=311 SERVICED BY L=400	1-49111-434-0	01	1	9307-	●
170	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) L=703 SERVICED BY L=730	1-47437-979-0	01	1	9002-9306	●
170	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=703 SERVICED BY L=730	1-49111-440-0	01	1	9307-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
