4-12 — FRONT DRIVE SHAFT (#33848) — 23 parça

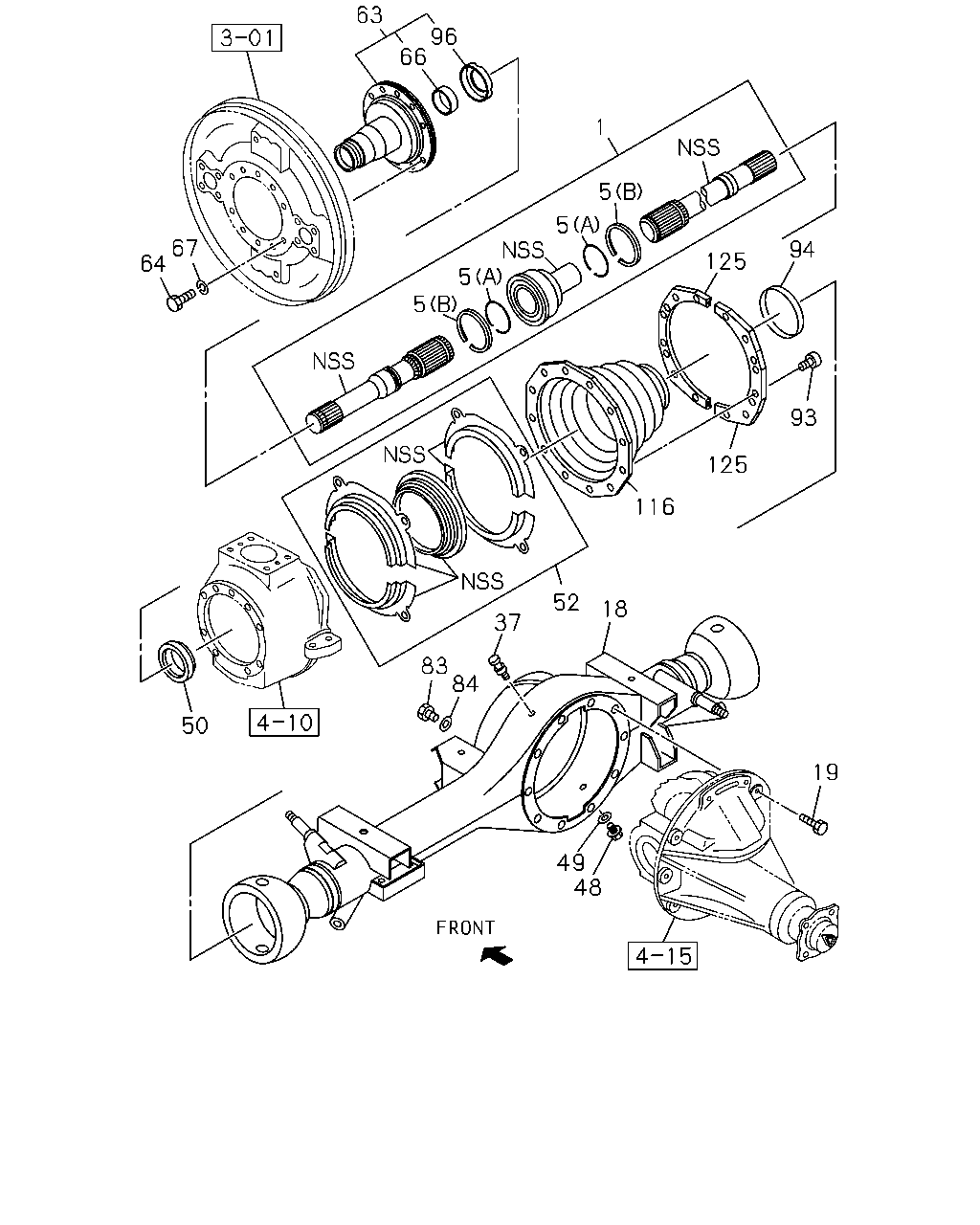

çizim 35296
63 66 96 5 5 5 5 125 125 94 93 116 52 18 37 83 84 19 49 48 50 64 67 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 06.055 SHAFT ASM; FRT DRIVE 8-97043-026-0 01 1 0710- ● ●
1 06.055 SHAFT ASM; FRT DRIVE 8-97043-027-0 01 1 0710- ● ●
5 06.061 RING; RET,FRT DRIVE SHAFT
(A) 		8-97106-944-0 04 1 0710- ● ●
5 06.061 RING; RET,FRT DRIVE SHAFT
(B) 		8-97106-945-0 04 1 0710- ● ●
18 06.008 CASE; FRT AXLE 8-97073-899-1 01 1 0710- ● ●
19 06.156 BOLT; FRT AXLE
05.387 M10X40 W/LK WASHER 		0-50061-040-0 10 1 0710-0909 ● ●
19 06.156 BOLT; FRT AXLE
M10X40 W/LK WASHER 		0-50561-040-0 10 1 0910- ● ●
37 06.008 BREATHER; FRT AXLE CASE
05.387 L=29 		8-98006-960-0 01 1 0710- ● ●
48 05.400 PLUG; DRAIN,AXLE CASE
05.508 M16X12.5 		8-97307-060-0 01 1 0710- ● ●
49 05.400 GASKET; DRAIN PLUG
01.252 ID=16.2 OD=24 		9-09571-416-0 01 1 0710- ● ●
50 06.061 SEAL; OIL,SHAFT,FRT AXLE 8-94459-416-0 02 1 0710- ● ●
52 06.061 SEAL; OIL,KNUCKLE 8-97125-754-0 02 1 0710- ● ●
63 06.020 SPINDLE; KNUCKLE,FRT AXLE SHAFT 8-94440-882-0 02 1 0710- ● ●
64 06.050 BOLT; SPINDLE 8-98049-683-0 18 1 0710- ● ●
66 06.021 BUSHING; SPINDLE,FRT AXLE SHAFT 8-97116-630-0 02 1 0710- ● ●
67 06.022 WASHER; LK,SPINDLE
07.347 ID=12.2 		0-91510-812-0 18 1 0710- ● ●
83 06.330 PLUG; OIL FILLER
05.400 M20X10.5 		8-98009-333-0 01 1 0710- ● ●
84 06.326 GASKET; PLUG,OIL FILLER
05.400 ID=20 OD=30 		8-94462-734-0 01 1 0710- ● ●
93 06.330 SCREW; TUBE END BOOT HOLDER,FRT
06.321 M6X12 		8-94477-783-0 24 1 0710- ● ●
94 06.330 BAND; TUBE END BOOT,FRT AXLE 8-94447-698-0 02 1 0710- ● ●
96 06.056 WASHER; THRUST,SPINDLE,FRT AXLE 8-94440-903-0 02 1 0710- ● ●
116 06.061 BOOT; TUBE END,FRT AXLE 8-94321-407-0 02 1 0710- ● ●
125 06.061 HOLDER; TUBE END BOOT,FRT AXLE 8-98049-388-0 04 1 0710- ● ●
