◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51410 - NPS(AUST) ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#33841) — 10 parça

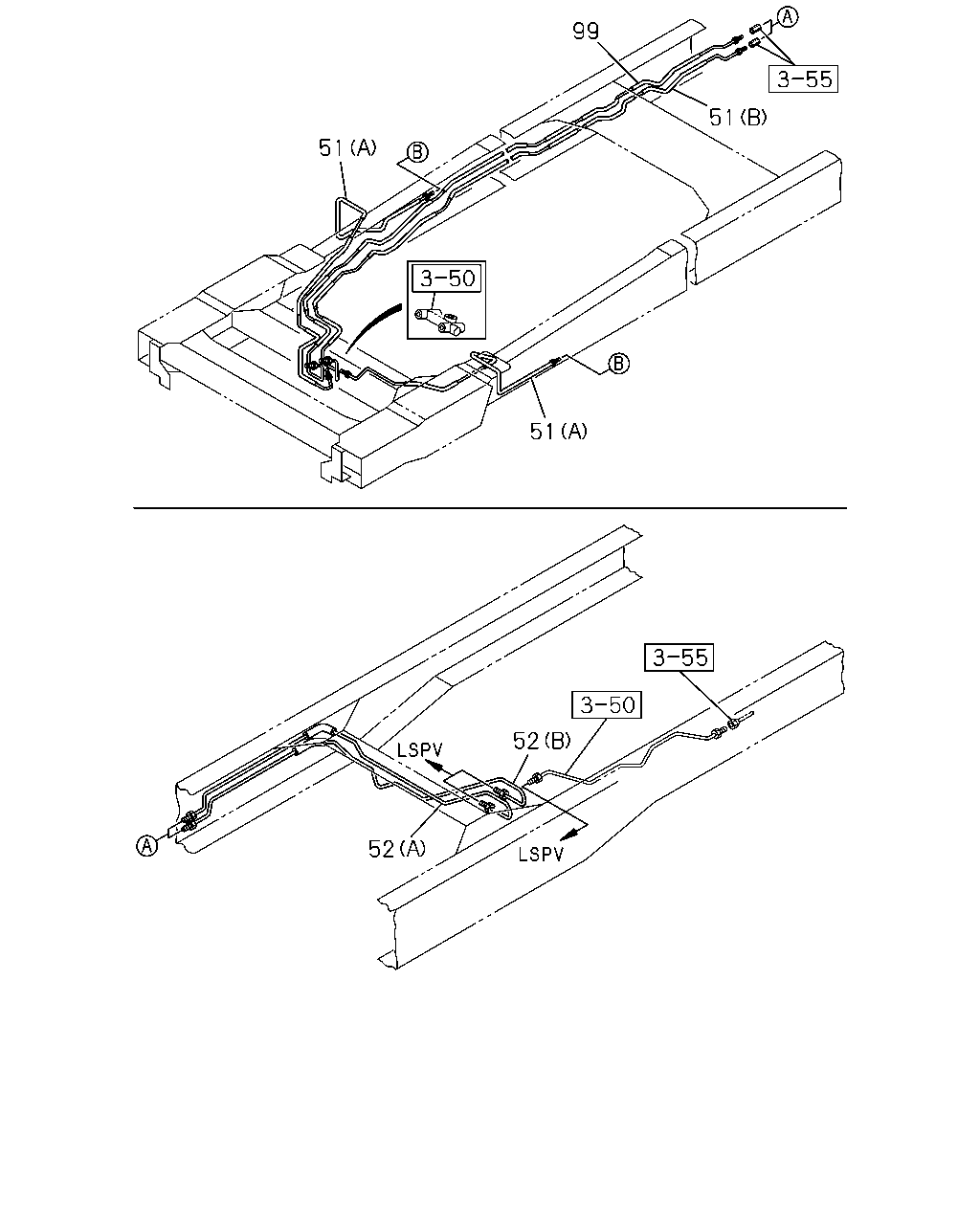

çizim 99716
99 51 51 51 52 52
BalonParca AdiParca NoAdetTipApplied Date A B
51 04.685 PIPE; BRK
(B) 4/6WAY TO 2WAY,FRONT 		8-98057-260-0 01 1 0710- ● ●
51 04.685 PIPE; BRK
(A) BRAKE SYSTEM,FRT RH 6WAY TO 2WAY,FRONT 		8-98060-402-1 01 1 0710- ● ●
51 04.685 PIPE; BRK
(A) BRAKE SYSTEM,FRT LH 6WAY TO 2WAY,FRONT 		8-98060-406-2 01 1 0710- ● ●
52 04.685 PIPE; BRK
(B) 2WAY TO LSPV,REAR 		8-98057-265-0 01 1 0710- ● ●
52 04.685 PIPE; BRK
(A) 2WAY TO LSPV,FRONT 		8-98057-268-0 01 1 0710- ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
4/6WAY TO 2WAY,REAR 		8-98057-259-0 01 1 0710- ● ●
çizim 99717
1 9 38 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.680 HOSE; FLEX,FRT BRK 8-97039-543-1 02 1 0710- ● ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK 8-98049-943-1 01 1 0710- ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0710- ● ●
38 04.686 CLIP 8-97360-054-0 02 1 0710- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
