3-75 — BRAKE PIPING; AIR,FRONT (#3384) — 192 parça

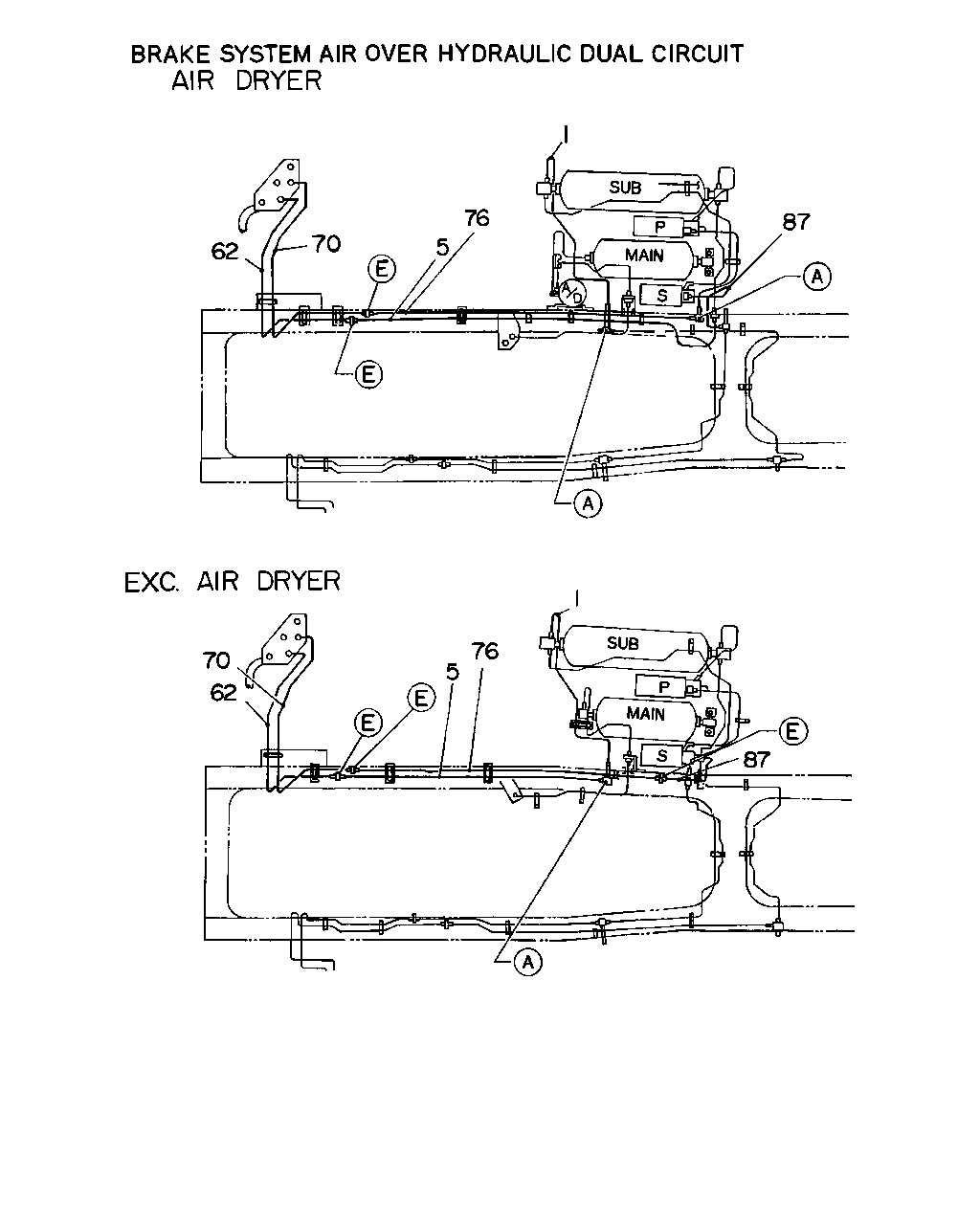

çizim 36105
62 70 76 87 1 5 62 70 76 87
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PIPE; AIR,AIR TANK TO UNION
L=996 SERVICED BY L=1000 		1-47434-485-0 01 1 9002-9306 ●
1 PIPE; AIR,AIR TANK TO UNION
L=1011 SERVICED BY L=1100 		1-49111-444-0 01 1 9307-9407 ●
1 PIPE; AIR,AIR TANK TO UNION
L=1003 SERVICED BY L=1100 		1-49111-444-0 01 1 9408- ●
1 PIPE; AIR,AIR TANK TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1003 SERVICED BY L=1100 		1-47437-982-0 01 1 9002-9306 ● ●
1 PIPE; AIR,AIR TANK TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1018 SERVICED BY L=1100 		1-49111-444-0 01 1 9307-9407 ● ●
1 PIPE; AIR,AIR TANK TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1010 SERVICED BY L=1100 		1-49111-444-0 01 1 9408- ● ●
1 PIPE; AIR,AIR TANK TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=667 SERVICED BY L=730 		1-47437-979-0 01 1 9002-9306 ● ●
1 PIPE; AIR,AIR TANK TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=667 SERVICED BY L=700 		1-49111-439-0 01 1 9307- ● ●
1 PIPE; AIR,AIR TANK TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-47446-490-0 01 1 9002- ● ●
5 PIPE; AIR,UNION TO UNION
L=1401 SERVICED BY L=1450 		1-47437-984-0 01 1 9002-9306 ●
5 PIPE; AIR,UNION TO UNION
L=1403 SERVICED BY L=1450 		1-49111-447-0 01 1 9307- ●
5 PIPE; AIR,UNION TO UNION
10PD1 STD ENG(40L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) L=1402 SERVICED BY L=1450 		1-47437-984-0 01 1 9002-9306 ● ●
5 PIPE; AIR,UNION TO UNION
10PD1 STD ENG(40L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) L=1404 SERVICED BY L=1450 		1-49111-447-0 01 1 9307- ● ●
5 PIPE; AIR,UNION TO UNION
10PD1 STD ENG(40L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) L=2082 SERVICED BY L=2250 		1-47437-987-0 03 1 9002-9003 ● ●
5 PIPE; AIR,UNION TO UNION
10PD1 STD ENG(40L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) L=2109 SERVICED BY L=2250 		1-47437-987-0 03 1 9004-9306 ● ●
5 PIPE; AIR,UNION TO UNION
10PD1 STD ENG(40L),12PD1 C ENG(43L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) L=2136 SERVICED BY L=2250 		1-49111-451-0 01 1 9307- ● ●
5 PIPE; AIR,UNION TO UNION
10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1860 SERVICED BY L=2000 		1-47437-986-0 01 1 9002-9306 ● ●
5 PIPE; AIR,UNION TO UNION
10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1860 SERVICED BY L=2000 		1-49111-450-0 01 1 9307- ● ●
5 PIPE; AIR,UNION TO UNION
6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1700 SERVICED BY L=1800 		1-47434-487-0 01 1 9002-9306 ● ●
5 PIPE; AIR,UNION TO UNION
6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1700 SERVICED BY L=1800 		1-49111-449-0 01 1 9307- ● ●
5 PIPE; AIR,UNION TO UNION
6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2157 SERVICED BY L=2250 		1-47437-987-0 01 1 9002-9306 ● ●
5 PIPE; AIR,UNION TO UNION
6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2157 SERVICED BY L=2250 		1-49111-451-0 01 1 9307- ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
10PD1 STD ENG(40L) L=1435 SERVICED BY L=1450 		1-47437-984-0 01 1 9002-9306 ● ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=1321 SERVICED BY L=1450 		1-49111-447-0 01 1 9307- ●
62 PIPE; AIR,UNION TO FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) V TYPE ENG<91L> L=1321 SERVICED BY L=1450 		1-49111-447-0 01 1 9307- ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1417 SERVICED BY L=1450 		1-49111-447-0 01 1 9307- ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
6RB1 STD ENG(07L) L=1139 SERVICED BY L=1200 		1-47437-983-0 01 1 9002-9306 ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
6RB1 STD ENG(07L) L=1121 SERVICED BY L=1200 		1-49111-445-0 01 1 9307- ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=1381 SERVICED BY L=1400 		1-47426-418-0 01 1 9307- ●
70 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) V TYPE ENG<91L> L=1381 SERVICED BY L=1400 		1-47426-418-0 01 1 9307- ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
10PD1 STD ENG(40L) L=1519 SERVICED BY L=1550 		1-47437-970-0 01 1 9002-9306 ● ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1501 SERVICED BY L=1550 		1-47426-419-0 01 1 9307- ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
6RB1 STD ENG(07L) L=1205 SERVICED BY L=1250 		1-47437-968-0 01 1 9002-9306 ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
6RB1 STD ENG(07L) L=1187 SERVICED BY L=1250 		1-47426-416-0 01 1 9307- ● ●
76 PIPE; AIR,UNION TO UNION
L=1523 SERVICED BY L=1550 		1-47437-970-0 01 1 9002-9306 ●
76 PIPE; AIR,UNION TO UNION
6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1510 SERVICED BY L=1550 		1-47426-419-0 01 1 9307- ● ●
76 PIPE; AIR,UNION TO UNION
L=1558 SERVICED BY L=1700 		1-47426-420-0 01 1 9307- ●
76 PIPE; AIR,UNION TO UNION
10PD1 STD ENG(40L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) L=1521 SERVICED BY L=1550 		1-47437-970-0 01 1 9002-9306 ● ●
76 PIPE; AIR,UNION TO UNION
10PD1 STD ENG(40L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) L=1556 SERVICED BY L=1700 		1-47426-420-0 01 1 9307- ● ●
76 PIPE; AIR,UNION TO UNION
10PD1 STD ENG(40L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) L=1783 SERVICED BY L=1900 		1-47437-971-0 01 1 9002-9003 ● ●
76 PIPE; AIR,UNION TO UNION
10PD1 STD ENG(40L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) L=1773 SERVICED BY L=1900 		1-47437-971-0 03 1 9004-9306 ● ●
76 PIPE; AIR,UNION TO UNION
10PD1 STD ENG(40L),12PD1 C ENG(43L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) L=1807 SERVICED BY L=1900 		1-47426-421-0 01 1 9307- ● ●
76 PIPE; AIR,UNION TO UNION
10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1204 SERVICED BY L=1250 		1-47437-968-0 01 1 9002-9306 ● ●
76 PIPE; AIR,UNION TO UNION
10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1204 SERVICED BY L=1250 		1-47426-416-0 01 1 9307- ● ●
76 PIPE; AIR,UNION TO UNION
6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1828 SERVICED BY L=1900 		1-47437-971-0 01 1 9002-9306 ● ●
76 PIPE; AIR,UNION TO UNION
6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1828 SERVICED BY L=1900 		1-47426-421-0 01 1 9307- ● ●
76 PIPE; AIR,UNION TO UNION
6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1510 SERVICED BY L=1550 		1-47437-970-0 01 1 9002-9306 ● ●
87 PIPE; AIR,UNION TO AIR MASTER
L=681 SERVICED BY L=730 		1-47437-965-0 01 1 9002-9306 ●
87 PIPE; AIR,UNION TO AIR MASTER
L=681 SERVICED BY L=700 		1-47426-410-0 01 1 9307- ●
87 PIPE; AIR,UNION TO AIR MASTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) EXC. POWER BRAKE LOCK SYSTEM(J50) L=785 SERVICED BY L=800 		1-47434-475-0 01 1 9002-9306 ●
87 PIPE; AIR,UNION TO AIR MASTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) EXC. POWER BRAKE LOCK SYSTEM(J50) L=785 SERVICED BY L=800 		1-47426-412-0 01 1 9307- ●
87 PIPE; AIR,UNION TO AIR MASTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) L=686 SERVICED BY L=730 		1-47437-965-0 01 1 9002-9306 ●
87 PIPE; AIR,UNION TO AIR MASTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FIRE TRUCK<RA9> L=686 SERVICED BY L=730 		1-47437-965-0 01 1 9002-9306 ●
87 PIPE; AIR,UNION TO AIR MASTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) L=686 SERVICED BY L=700 		1-47426-410-0 01 1 9307- ●
87 PIPE; AIR,UNION TO AIR MASTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FIRE TRUCK<RA9> L=686 SERVICED BY L=700 		1-47426-410-0 01 1 9307- ●
87 PIPE; AIR,UNION TO AIR MASTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) BRAKE SYSTEM HEAVY DUTY(J55) L=685 SERVICED BY L=730 		1-47437-965-0 01 1 9002-9306 ●
87 PIPE; AIR,UNION TO AIR MASTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) BRAKE SYSTEM HEAVY DUTY(J55) L=685 SERVICED BY L=700 		1-47426-410-0 01 1 9307- ●
87 PIPE; AIR,UNION TO AIR MASTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FIRE TRUCK<RA9> L=651 SERVICED BY L=660 		1-47437-964-0 01 1 9002-9306 ●
87 PIPE; AIR,UNION TO AIR MASTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FIRE TRUCK<RA9> L=651 SERVICED BY L=660 		1-47426-409-0 01 1 9307- ●

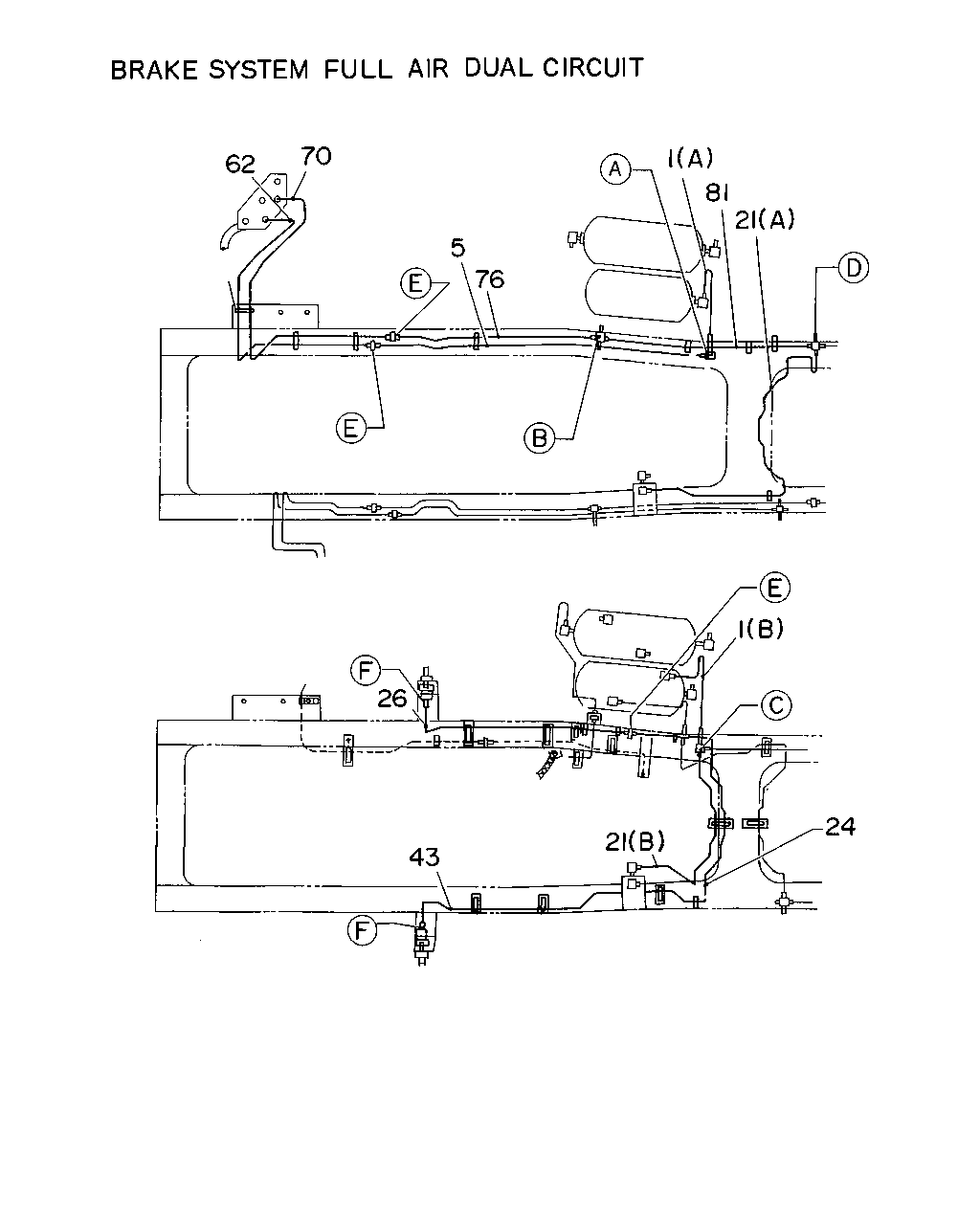

çizim 36118
62 70 5 1 81 21 76 1 24 21 43 26
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PIPE; AIR,AIR TANK TO UNION
L=996 SERVICED BY L=1000 		1-47434-485-0 01 1 9002-9306 ●
1 PIPE; AIR,AIR TANK TO UNION
L=1011 SERVICED BY L=1100 		1-49111-444-0 01 1 9307-9407 ●
1 PIPE; AIR,AIR TANK TO UNION
L=1003 SERVICED BY L=1100 		1-49111-444-0 01 1 9408- ●
1 PIPE; AIR,AIR TANK TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1003 SERVICED BY L=1100 		1-47437-982-0 01 1 9002-9306 ● ●
1 PIPE; AIR,AIR TANK TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1018 SERVICED BY L=1100 		1-49111-444-0 01 1 9307-9407 ● ●
1 PIPE; AIR,AIR TANK TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1010 SERVICED BY L=1100 		1-49111-444-0 01 1 9408- ● ●
1 PIPE; AIR,AIR TANK TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=667 SERVICED BY L=730 		1-47437-979-0 01 1 9002-9306 ● ●
1 PIPE; AIR,AIR TANK TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=667 SERVICED BY L=700 		1-49111-439-0 01 1 9307- ● ●
1 PIPE; AIR,AIR TANK TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-47446-490-0 01 1 9002- ● ●
5 PIPE; AIR,UNION TO UNION
L=1401 SERVICED BY L=1450 		1-47437-984-0 01 1 9002-9306 ●
5 PIPE; AIR,UNION TO UNION
L=1403 SERVICED BY L=1450 		1-49111-447-0 01 1 9307- ●
5 PIPE; AIR,UNION TO UNION
10PD1 STD ENG(40L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) L=1402 SERVICED BY L=1450 		1-47437-984-0 01 1 9002-9306 ● ●
5 PIPE; AIR,UNION TO UNION
10PD1 STD ENG(40L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) L=1404 SERVICED BY L=1450 		1-49111-447-0 01 1 9307- ● ●
5 PIPE; AIR,UNION TO UNION
10PD1 STD ENG(40L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) L=2082 SERVICED BY L=2250 		1-47437-987-0 03 1 9002-9003 ● ●
5 PIPE; AIR,UNION TO UNION
10PD1 STD ENG(40L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) L=2109 SERVICED BY L=2250 		1-47437-987-0 03 1 9004-9306 ● ●
5 PIPE; AIR,UNION TO UNION
10PD1 STD ENG(40L),12PD1 C ENG(43L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) L=2136 SERVICED BY L=2250 		1-49111-451-0 01 1 9307- ● ●
5 PIPE; AIR,UNION TO UNION
10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1860 SERVICED BY L=2000 		1-47437-986-0 01 1 9002-9306 ● ●
5 PIPE; AIR,UNION TO UNION
10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1860 SERVICED BY L=2000 		1-49111-450-0 01 1 9307- ● ●
5 PIPE; AIR,UNION TO UNION
6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1700 SERVICED BY L=1800 		1-47434-487-0 01 1 9002-9306 ● ●
5 PIPE; AIR,UNION TO UNION
6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1700 SERVICED BY L=1800 		1-49111-449-0 01 1 9307- ● ●
5 PIPE; AIR,UNION TO UNION
6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2157 SERVICED BY L=2250 		1-47437-987-0 01 1 9002-9306 ● ●
5 PIPE; AIR,UNION TO UNION
6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2157 SERVICED BY L=2250 		1-49111-451-0 01 1 9307- ● ●
21 PIPE; AIR,UNION TO RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=1990 SERVICED BY L=2100 		1-47437-972-0 01 1 9002-9306 ● ●
21 PIPE; AIR,UNION TO RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=1810 SERVICED BY L=1900 		1-47426-421-0 01 1 9307- ● ●
21 PIPE; AIR,UNION TO RELAY VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=1320 SERVICED BY L=1350 		1-47437-995-0 01 1 9002- ● ●
24 PIPE; AIR,RELAY VLV TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1732 SERVICED BY L=1900 		1-47437-971-0 01 1 9002-9306 ● ●
24 PIPE; AIR,RELAY VLV TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1730 SERVICED BY L=1900 		1-47426-421-0 01 1 9307-9310 ● ●
24 PIPE; AIR,RELAY VLV TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1751 SERVICED BY L=1900 		1-47426-421-0 01 1 9311- ● ●
26 PIPE; AIR,UNION TO FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1302 SERVICED BY L=1400 		1-47437-969-0 01 1 9002-9306 ● ●
26 PIPE; AIR,UNION TO FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1301 SERVICED BY L=1400 		1-47426-418-0 01 1 9307- ● ●
43 PIPE; AIR,RELAY VLV TO FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1310 SERVICED BY L=1400 		1-47437-969-0 01 1 9002-9306 ● ●
43 PIPE; AIR,RELAY VLV TO FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1310 SERVICED BY L=1400 		1-47426-418-0 01 1 9307- ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
10PD1 STD ENG(40L) L=1435 SERVICED BY L=1450 		1-47437-984-0 01 1 9002-9306 ● ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=1321 SERVICED BY L=1450 		1-49111-447-0 01 1 9307- ●
62 PIPE; AIR,UNION TO FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) V TYPE ENG<91L> L=1321 SERVICED BY L=1450 		1-49111-447-0 01 1 9307- ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1417 SERVICED BY L=1450 		1-49111-447-0 01 1 9307- ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
6RB1 STD ENG(07L) L=1139 SERVICED BY L=1200 		1-47437-983-0 01 1 9002-9306 ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
6RB1 STD ENG(07L) L=1121 SERVICED BY L=1200 		1-49111-445-0 01 1 9307- ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=1381 SERVICED BY L=1400 		1-47426-418-0 01 1 9307- ●
70 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) V TYPE ENG<91L> L=1381 SERVICED BY L=1400 		1-47426-418-0 01 1 9307- ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
10PD1 STD ENG(40L) L=1519 SERVICED BY L=1550 		1-47437-970-0 01 1 9002-9306 ● ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1501 SERVICED BY L=1550 		1-47426-419-0 01 1 9307- ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
6RB1 STD ENG(07L) L=1205 SERVICED BY L=1250 		1-47437-968-0 01 1 9002-9306 ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
6RB1 STD ENG(07L) L=1187 SERVICED BY L=1250 		1-47426-416-0 01 1 9307- ● ●
76 PIPE; AIR,UNION TO UNION
L=1523 SERVICED BY L=1550 		1-47437-970-0 01 1 9002-9306 ●
76 PIPE; AIR,UNION TO UNION
6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1510 SERVICED BY L=1550 		1-47426-419-0 01 1 9307- ● ●
76 PIPE; AIR,UNION TO UNION
L=1558 SERVICED BY L=1700 		1-47426-420-0 01 1 9307- ●
76 PIPE; AIR,UNION TO UNION
10PD1 STD ENG(40L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) L=1521 SERVICED BY L=1550 		1-47437-970-0 01 1 9002-9306 ● ●
76 PIPE; AIR,UNION TO UNION
10PD1 STD ENG(40L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) L=1556 SERVICED BY L=1700 		1-47426-420-0 01 1 9307- ● ●
76 PIPE; AIR,UNION TO UNION
10PD1 STD ENG(40L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) L=1783 SERVICED BY L=1900 		1-47437-971-0 01 1 9002-9003 ● ●
76 PIPE; AIR,UNION TO UNION
10PD1 STD ENG(40L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) L=1773 SERVICED BY L=1900 		1-47437-971-0 03 1 9004-9306 ● ●
76 PIPE; AIR,UNION TO UNION
10PD1 STD ENG(40L),12PD1 C ENG(43L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) L=1807 SERVICED BY L=1900 		1-47426-421-0 01 1 9307- ● ●
76 PIPE; AIR,UNION TO UNION
10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1204 SERVICED BY L=1250 		1-47437-968-0 01 1 9002-9306 ● ●
76 PIPE; AIR,UNION TO UNION
10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1204 SERVICED BY L=1250 		1-47426-416-0 01 1 9307- ● ●
76 PIPE; AIR,UNION TO UNION
6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1828 SERVICED BY L=1900 		1-47437-971-0 01 1 9002-9306 ● ●
76 PIPE; AIR,UNION TO UNION
6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1828 SERVICED BY L=1900 		1-47426-421-0 01 1 9307- ● ●
76 PIPE; AIR,UNION TO UNION
6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1510 SERVICED BY L=1550 		1-47437-970-0 01 1 9002-9306 ● ●
81 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1229 SERVICED BY L=1400 		1-47437-969-0 01 1 9002-9306 ● ●
81 PIPE; AIR,UNION TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1229 SERVICED BY L=1250 		1-47426-416-0 01 1 9307- ● ●

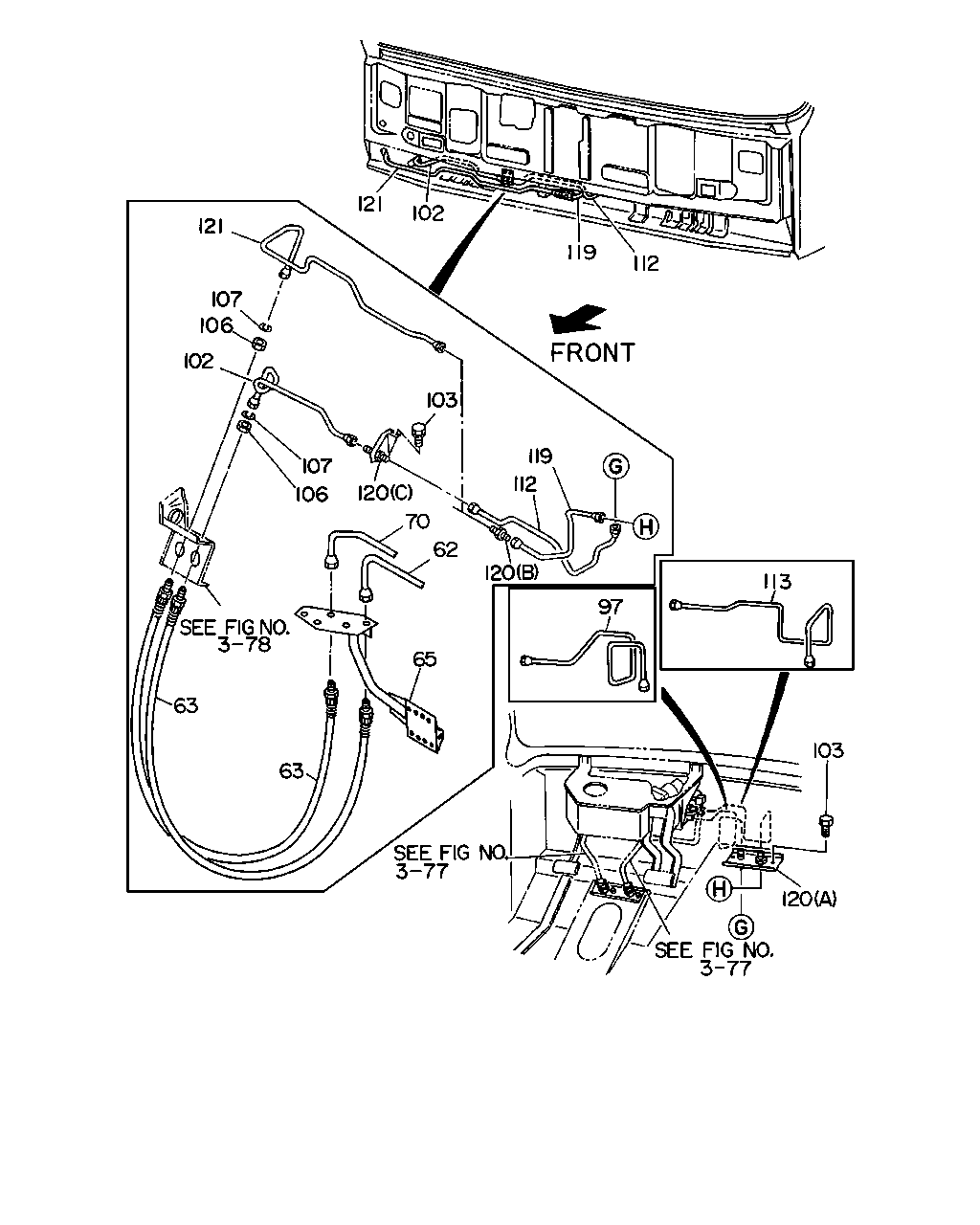

çizim 36145
121 121 102 119 112 107 106 102 103 107 106 62 70 120 119 112 120 113 97 103 120 65 63 63
BalonParca AdiParca NoAdetTipApplied Date A B C
62 PIPE; AIR,UNION TO FLEX HOSE
10PD1 STD ENG(40L) L=1435 SERVICED BY L=1450 		1-47437-984-0 01 1 9002-9306 ● ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
L=1321 SERVICED BY L=1450 		1-49111-447-0 01 1 9307- ●
62 PIPE; AIR,UNION TO FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) V TYPE ENG<91L> L=1321 SERVICED BY L=1450 		1-49111-447-0 01 1 9307- ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1417 SERVICED BY L=1450 		1-49111-447-0 01 1 9307- ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
6RB1 STD ENG(07L) L=1139 SERVICED BY L=1200 		1-47437-983-0 01 1 9002-9306 ● ●
62 PIPE; AIR,UNION TO FLEX HOSE
6RB1 STD ENG(07L) L=1121 SERVICED BY L=1200 		1-49111-445-0 01 1 9307- ● ●
63 HOSE; FLEX,BRK LINE,CAB SIDE
DELIVERY L=850 		0-07424-850-0 01 1 9002-9408 ● ● ●
63 HOSE; FLEX,BRK LINE,CAB SIDE
DELIVERY L=830 		0-07424-830-0 01 1 9409- ● ● ●
63 HOSE; FLEX,BRK LINE,CAB SIDE
SUPPLY L=850 		0-07706-850-0 01 1 9002-9408 ● ● ●
63 HOSE; FLEX,BRK LINE,CAB SIDE
SUPPLY L=830 		0-07706-830-0 01 1 9409- ● ● ●
65 BRACKET; FLEX HOSE 1-47475-603-0 01 1 9002- ● ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
L=1381 SERVICED BY L=1400 		1-47426-418-0 01 1 9307- ●
70 PIPE; AIR,FLEX HOSE TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) V TYPE ENG<91L> L=1381 SERVICED BY L=1400 		1-47426-418-0 01 1 9307- ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
10PD1 STD ENG(40L) L=1519 SERVICED BY L=1550 		1-47437-970-0 01 1 9002-9306 ● ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1501 SERVICED BY L=1550 		1-47426-419-0 01 1 9307- ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
6RB1 STD ENG(07L) L=1205 SERVICED BY L=1250 		1-47437-968-0 01 1 9002-9306 ● ●
70 PIPE; AIR,FLEX HOSE TO UNION
6RB1 STD ENG(07L) L=1187 SERVICED BY L=1250 		1-47426-416-0 01 1 9307- ● ●
97 PIPE; AIR,BRK VLV TO UNION
L=648 SERVICED BY L=660 		1-47437-964-0 01 1 9002-9306 ● ● ●
97 PIPE; AIR,BRK VLV TO UNION
L=649 SERVICED BY L=700 		1-47426-410-0 01 1 9307- ● ● ●
102 PIPE; AIR,FLEX HOSE TO UNION
L=843 SERVICED BY L=900 		1-47437-981-0 01 1 9002-9306 ● ● ●
102 PIPE; AIR,FLEX HOSE TO UNION
L=843 SERVICED BY L=900 		1-49111-442-0 01 1 9307- ● ● ●
103 BOLT; PIPE UNION
M6X16 W/LK WASHER 		0-50000-616-0 02 1 9002-9204 ● ● ●
103 BOLT; PIPE UNION
M6X16 W/LK WASHER 		0-50080-616-0 02 1 9205-9301 ● ● ●
103 BOLT; PIPE UNION
M6X16 W/LK WASHER 		0-50040-616-0 02 1 9302-9302 ● ● ●
103 BOLT; PIPE UNION
M6X16 FLANGE 		0-28080-616-0 02 1 9303- ● ● ●
103 BOLT; PIPE UNION
M6X16 		1-09980-296-0 02 1 9002- ● ● ●
106 NUT; FLEX HOSE
M16 		9-99111-416-0 02 1 9002- ● ● ●
106 NUT; FLEX HOSE
M20 		9-99111-420-0 02 1 9002- ● ● ●
107 WASHER; LK,FLEX HOSE
ID=16.2 		9-09150-516-0 02 1 9002- ● ● ●
107 WASHER; LK,FLEX HOSE
ID=20.2 		9-09150-520-0 02 1 9002- ● ● ●
112 PIPE; AIR,UNION TO UNION
EXC. DUAL AIR GAUGE<UG2> L=675 SERVICED BY L=730 		1-47437-979-0 01 1 9002-9306 ● ● ●
112 PIPE; AIR,UNION TO UNION
EXC. DUAL AIR GAUGE<UG2> L=681 		1-47495-935-0 01 1 9307- ● ● ●
112 PIPE; AIR,UNION TO UNION
DUAL AIR GAUGE<UG2> L=644 		1-47446-008-1 01 1 9002-9306 ● ●
112 PIPE; AIR,UNION TO UNION
DUAL AIR GAUGE<UG2> L=644 		1-47495-936-0 01 1 9307- ● ●
113 PIPE; AIR,UNION TO BRK VLV
L=608 SERVICED BY L=660 		1-47437-978-0 01 1 9002-9306 ● ● ●
113 PIPE; AIR,UNION TO BRK VLV
L=608 SERVICED BY L=660 		1-49111-438-0 01 1 9307- ● ● ●
119 PIPE; AIR,UNION TO UNION
L=446 SERVICED BY L=450 		1-47437-962-0 01 1 9002-9306 ● ● ●
119 PIPE; AIR,UNION TO UNION
L=446 SERVICED BY L=450 		1-47426-405-0 01 1 9307- ● ● ●
120 UNION; AIR PIPE
(A) 		1-47470-188-1 01 1 9002- ● ● ●
120 UNION; AIR PIPE
(B) M16 L=42 		9-09233-010-1 01 1 9002- ● ● ●
120 UNION; AIR PIPE
EXC. DUAL AIR GAUGE<UG2> (C) 		1-47470-189-3 01 1 9002- ● ● ●
120 UNION; AIR PIPE
DUAL AIR GAUGE<UG2> (C) 		1-47470-175-2 01 1 9002- ● ●
121 PIPE; AIR,UNION TO FLEX HOSE
L=1203 SERVICED BY L=1250 		1-47437-968-0 01 1 9002-9306 ● ● ●
121 PIPE; AIR,UNION TO FLEX HOSE
L=1203 SERVICED BY L=1300 		1-47426-417-0 01 1 9307- ● ● ●
çizim 36290
77 3 78 4 2 77 2 78 3 2 4 83 46 82 25 2 31 72 29 30 28 34 32 34
BalonParca AdiParca NoAdetTipApplied Date A B C
2 UNION; AIR PIPE
(B) M20 STRAIGHT 		9-09233-012-1 01 1 9002- ● ● ●
2 UNION; AIR PIPE
(A) M20 		9-09235-212-1 01 1 9002- ● ● ●
2 UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) (B) M16 L=42 		9-09233-010-1 01 1 9002- ● ● ●
2 UNION; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) (A) M16 ELBOW 		9-09235-210-1 01 1 9002- ●
2 UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M16 		1-09654-148-1 01 1 9002- ● ●
2 UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) M22 L=117 		9-09238-915-1 01 1 9002- ● ●
3 NUT; PIPE UNION
(A) M20 		9-99111-420-0 01 1 9002- ● ● ●
3 NUT; PIPE UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M22 		9-09111-422-0 01 1 9002- ● ●
4 WASHER; LK,PIPE UNION
(A) ID=20.2 		9-09150-520-0 01 1 9002- ● ● ●
4 WASHER; LK,PIPE UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=22.5 		9-09150-522-0 01 1 9002-9312 ● ●
25 UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 L=42 		9-09233-010-1 01 1 9002- ● ●
28 NIPPLE; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 		1-09654-174-1 02 1 9002- ● ●
29 NUT; NIPPLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M20 		9-99111-420-0 02 1 9002- ● ●
30 WASHER; LK,NIPPLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=20.2 		9-09150-520-0 02 1 9002- ● ●
31 BRACKET; NIPPLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-47475-106-0 02 1 9002- ● ●
32 HOSE; FLEX,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=530 		0-07847-530-1 02 1 9002- ● ●
34 GASKET; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 OD=18 		9-09572-510-0 04 1 9002- ● ●
46 WASHER; LK,PIPE UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.2 		9-09150-512-0 01 1 9002-9312 ● ●
72 UNION; AIR PIPE
M16 L=42 		9-09233-010-1 01 1 9002- ● ● ●
77 NUT; PIPE UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) M16 		9-99111-416-0 01 1 9002- ●
77 NUT; PIPE UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 		9-99110-412-0 01 1 9002-9304 ● ●
77 NUT; PIPE UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 		9-99110-512-0 01 1 9305- ● ●
78 WASHER; LK,PIPE UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) ID=16.2 		9-09150-516-0 01 1 9002-9312 ●
78 WASHER; LK,PIPE UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.2 		9-09150-512-0 01 1 9002-9312 ● ●
82 UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 		9-09238-310-1 01 1 9002- ● ●
83 NUT; PIPE UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 		9-09110-408-0 01 1 9002- ● ●
83 NUT; PIPE UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 		9-09110-408-0 02 1 9002-9201 ● ●
83 NUT; PIPE UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 		9-99110-412-0 01 1 9002-9304 ● ●
83 NUT; PIPE UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 		9-99110-512-0 01 1 9305- ● ●
83 NUT; PIPE UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 		9-09110-408-0 02 1 9202-9306 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
