Sayfa 3-70 - Isuzu EPC

3-70 — BRAKE PIPING; AIR,AIR MASTER (#3383) — 418 parça

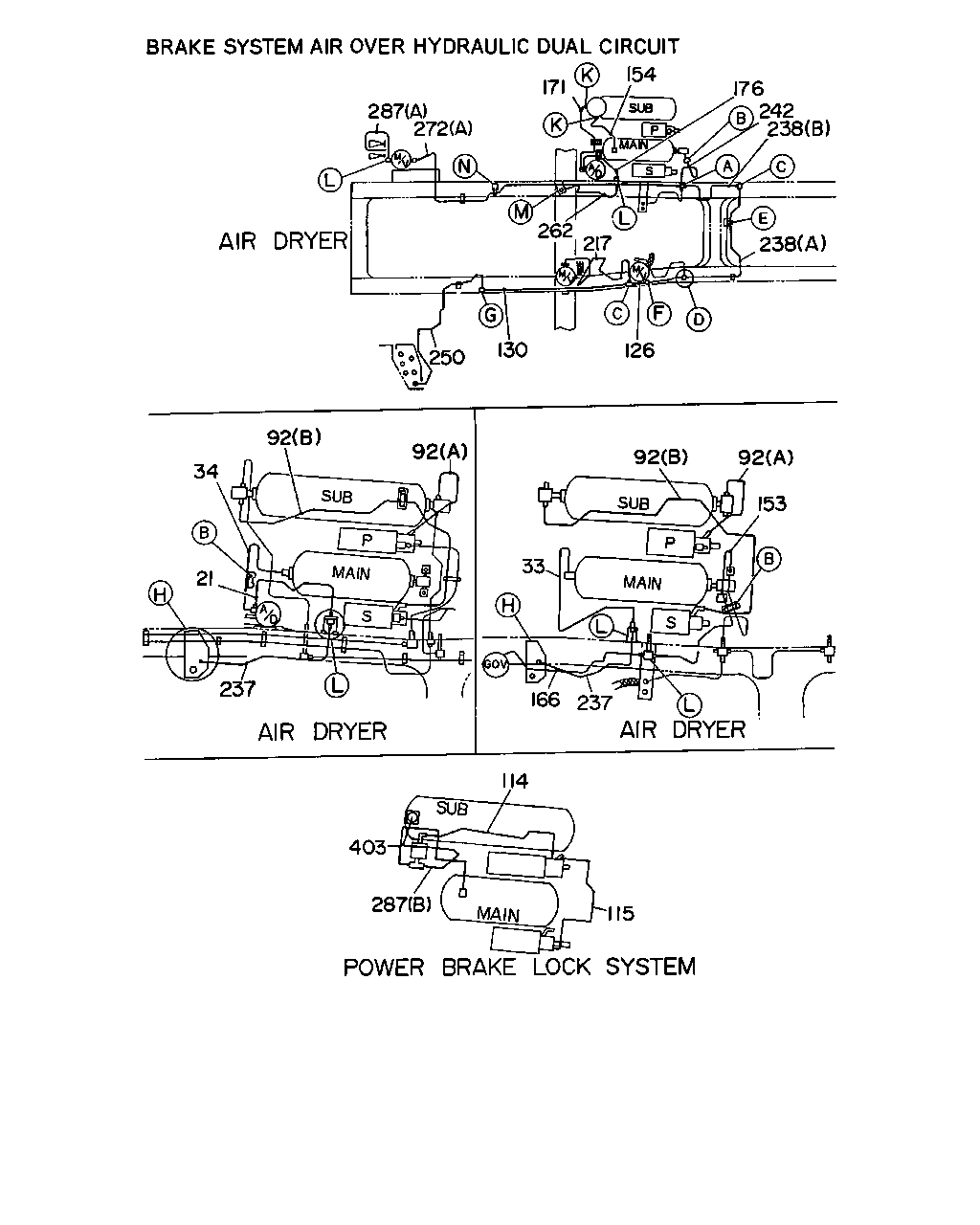

262 217 166 217 272

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
166	PIPE; AIR,UNION TO GOV EXC. AIR DRYER<PS7>	1-47487-520-0	01	1	9002-	●
166	PIPE; AIR,UNION TO GOV 12PD1 C ENG(43L) EXC. AIR DRYER<PS7>	1-49111-215-0	01	1	9308-		●
166	PIPE; AIR,UNION TO GOV 6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> EXC. AIR DRYER<PS7>	1-47487-465-0	01	1	9002-		●
166	PIPE; AIR,UNION TO GOV 6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> EXC. AIR DRYER<PS7> L=961	1-47482-945-0	01	1	9002-		●
166	PIPE; AIR,UNION TO GOV 10PD1 STD ENG(40L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7>	1-47487-464-0	01	1	9002-		●	●
166	PIPE; AIR,UNION TO GOV 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> L=1118	1-47482-946-0	01	1	9002-		●	●
166	PIPE; AIR,UNION TO GOV 6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7>,MIXER TRUCK<RA2>	1-47487-466-0	01	1	9002-		●	●
166	PIPE; AIR,UNION TO GOV 6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7>,MIXER TRUCK<RA2> L=945	1-47485-196-0	01	1	9002-		●	●
217	PIPE; VAC,UNION TO MAG VLV L=1185 SERVICED BY L=1200	1-47434-388-0	01	1	9002-9112	●
217	PIPE; VAC,UNION TO MAG VLV 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1185 SERVICED BY L=1200	1-47434-388-0	01	1	9002-9112		●
217	PIPE; VAC,UNION TO MAG VLV 10PD1 STD ENG(40L) EXC. GOVERNOR CONTROL<W69> L=1185 SERVICED BY L=1200	1-47434-388-0	01	1	9002-9112			●
217	PIPE; VAC,UNION TO MAG VLV L=1184 SERVICED BY L=1200	1-47434-388-0	01	1	9201-	●
217	PIPE; VAC,UNION TO MAG VLV 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1184 SERVICED BY L=1200	1-47434-388-0	01	1	9201-		●
217	PIPE; VAC,UNION TO MAG VLV 10PD1 STD ENG(40L) EXC. GOVERNOR CONTROL<W69> L=1184 SERVICED BY L=1200	1-47434-388-0	01	1	9201-			●
217	PIPE; VAC,UNION TO MAG VLV 10PD1 STD ENG(40L),12PD1 C ENG(43L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1217 SERVICED BY L=1250	1-47434-389-0	01	1	9002-		●
217	PIPE; VAC,UNION TO MAG VLV 6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1046 SERVICED BY L=1100	1-47434-387-0	01	1	9002-9306		●
217	PIPE; VAC,UNION TO MAG VLV 6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=881 SERVICED BY L=900	1-47426-349-0	01	1	9307-		●
217	PIPE; VAC,UNION TO MAG VLV 6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MIXER TRUCK<RA2> L=1176 SERVICED BY L=1200	1-47434-388-0	01	1	9002-9306		●
217	PIPE; VAC,UNION TO MAG VLV 6RB1 STD ENG(07L) L=1176 SERVICED BY L=1200	1-47434-388-0	01	1	9002-9306			●
217	PIPE; VAC,UNION TO MAG VLV 6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MIXER TRUCK<RA2> L=1003 SERVICED BY L=1100	1-47426-351-0	01	1	9307-		●
217	PIPE; VAC,UNION TO MAG VLV 6RB1 STD ENG(07L) L=1003 SERVICED BY L=1100	1-47426-351-0	01	1	9307-			●
217	PIPE; VAC,UNION TO MAG VLV 6RB1 STD ENG(07L) MIXER TRUCK<RA2> L=1089 SERVICED BY L=1100	1-47434-387-0	01	1	9002-9306		●
217	PIPE; VAC,UNION TO MAG VLV 6RB1 STD ENG(07L) MIXER TRUCK<RA2> L=932 SERVICED BY L=1000	1-47426-350-0	01	1	9307-		●
217	PIPE; VAC,UNION TO MAG VLV 10PD1 STD ENG(40L) GOVERNOR CONTROL<W69> L=1336 SERVICED BY L=1370	1-47434-390-0	01	1	9002-9407			●
217	PIPE; VAC,UNION TO MAG VLV 10PD1 STD ENG(40L) GOVERNOR CONTROL<W69> L=1355 SERVICED BY L=1370	1-47426-354-0	01	1	9408-			●
262	PIPE; AIR,UNION TO FLEX AIR DRYER<PS7> L=1099 SERVICED BY L=1100	1-47434-387-0	01	1	9002-	●
262	PIPE; AIR,UNION TO FLEX 12PD1 C ENG(43L) AIR DRYER<PS7> L=1064 SERVICED BY L=1100	1-47426-351-0	01	1	9307-9307		●
262	PIPE; AIR,UNION TO FLEX 12PD1 C ENG(43L) AIR DRYER<PS7> L=1068 SERVICED BY L=1100	1-47426-351-0	01	1	9308-		●
262	PIPE; AIR,UNION TO FLEX 6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> MIXER TRUCK<RA2> L=912 SERVICED BY L=1000	1-47434-386-0	01	1	9002-9306		●
262	PIPE; AIR,UNION TO FLEX 6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> MIXER TRUCK<RA2> L=945 SERVICED BY L=1000	1-47434-386-0	01	1	9002-9306		●
262	PIPE; AIR,UNION TO FLEX 10PD1 STD ENG(40L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=1092 SERVICED BY L=1100	1-47434-387-0	01	1	9002-		●	●
262	PIPE; AIR,UNION TO FLEX 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=1096 SERVICED BY L=1100	1-47413-555-0	01	1	9002-		●	●
262	PIPE; AIR,UNION TO FLEX 6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. MIXER TRUCK<RA2> L=874 SERVICED BY L=900	1-47434-385-0	01	1	9002-		●	●
262	PIPE; AIR,UNION TO FLEX 6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=930 SERVICED BY L=1000	1-47413-554-0	01	1	9002-		●	●
272	PIPE; AIR,MAG VLV TO UNION 10PD1 STD ENG(40L) (A) L=2838 SERVICED BY L=2900	1-47434-400-0	01	1	9002-9306	●	●	●
272	PIPE; AIR,MAG VLV TO UNION 10PD1 STD ENG(40L),12PD1 C ENG(43L) (A) L=2853 SERVICED BY L=2900	1-47426-364-0	01	1	9307-9308	●	●	●
272	PIPE; AIR,MAG VLV TO UNION 10PD1 STD ENG(40L),12PD1 C ENG(43L) (A) L=2862 SERVICED BY L=2900	1-47426-364-0	01	1	9309-	●	●	●
272	PIPE; AIR,MAG VLV TO UNION 10PD1 STD ENG(40L) GOVERNOR CONTROL<W69> (B) L=332	1-47481-166-1	01	1	9408-	●	●	●
272	PIPE; AIR,MAG VLV TO UNION 6RB1 STD ENG(07L) (A) L=2828 SERVICED BY L=2900	1-47434-400-0	01	1	9002-9306		●	●
272	PIPE; AIR,MAG VLV TO UNION 6RB1 STD ENG(07L) (A) L=2870 SERVICED BY L=2900	1-47426-364-0	01	1	9307-		●	●
272	PIPE; AIR,MAG VLV TO UNION GOVERNOR CONTROL<W69> (B) L=431 SERVICED BY L=460	9-47415-349-0	01	1	9002-9306			●
272	PIPE; AIR,MAG VLV TO UNION GOVERNOR CONTROL<W69> (B) L=431 SERVICED BY L=460	1-47426-342-0	01	1	9307-9407			●
272	PIPE; AIR,MAG VLV TO UNION GOVERNOR CONTROL<W69> L TYPE ENG<90L> (B) L=431 SERVICED BY L=460	1-47426-342-0	01	1	9408-			●

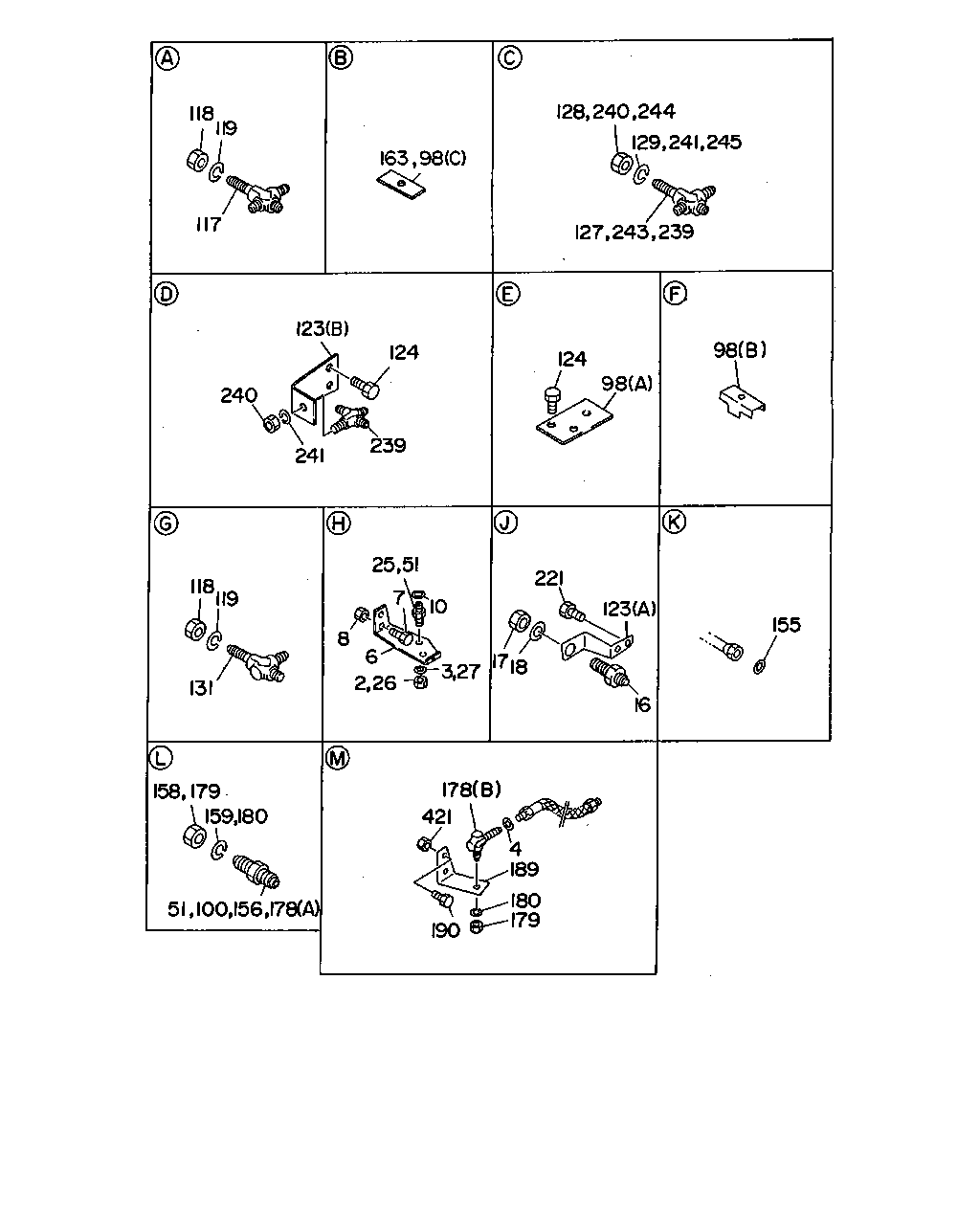

117 119 118 98 163 239 243 127 245 241 129 244 240 128 98 124 98 124 239 123 241 240 155 16 123 221 18 17 27 3 26 2 8 51 25 119 118 131 10 7 180 159 179 158 178 156 100 51 190 179 421 180 178 189 4 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	NUT; FLEX HOSE,AIR TANK AIR DRYER<PS7> M20	9-99111-420-0	01	1	9002-	●	●	●
3	WASHER; LK,FLEX HOSE,AIR TANK AIR DRYER<PS7> ID=20.2	9-09150-520-0	01	1	9002-	●	●	●
4	GASKET; FLEX HOSE AIR DRYER<PS7> ID=11 OD=18	9-09572-510-0	01	1	9002-	●	●	●
4	GASKET; FLEX HOSE EXC. AIR DRYER<PS7> ID=11 OD=18	9-09572-510-0	02	1	9002-	●	●	●
6	BRACKET; FLEX HOSE,AIR TANK 10PD1 STD ENG(40L)	1-47476-363-1	01	1	9002-	●	●	●
6	BRACKET; FLEX HOSE,AIR TANK 12PD1 C ENG(43L)	1-47475-969-4	01	1	9307-		●
6	BRACKET; FLEX HOSE,AIR TANK 6RB1 STD ENG(07L)	1-47475-572-0	01	1	9002-		●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204	●	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9306	●	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 FLANGE	0-28080-825-0	02	1	9307-	●	●	●
8	NUT; BRKT,FLEX HOSE,AIR TANK M8	9-09110-408-0	02	1	9002-	●	●	●
10	GASKET; CHECK VLV ID=11 OD=18	9-09572-510-0	01	1	9002-	●	●	●
16	UNION; AIR PIPE M22	9-09233-315-1	01	1	9002-	●	●	●
17	NUT; UNION M22	9-09111-422-0	01	1	9002-	●	●	●
18	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9002-	●	●	●
25	VALVE; CHECK EXC. AIR DRYER<PS7>	1-48410-138-1	01	1	9002-	●	●	●
26	NUT; CHECK VLV EXC. AIR DRYER<PS7> M20	9-99111-420-0	01	1	9002-	●	●	●
27	WASHER; LK,CHECK VLV EXC. AIR DRYER<PS7> ID=20.2	9-09150-520-0	01	1	9002-	●	●	●
51	UNION AIR DRYER<PS7> M20 & M22 STRAIGHT	1-09654-166-1	01	1	9002-	●	●	●
98	BRACKET; AIR PIPE (A)	1-47475-303-1	01	1	9002-	●	●	●
98	BRACKET; AIR PIPE (B)	1-47475-427-1	01	1	9002-	●	●	●
98	BRACKET; AIR PIPE POWER BRAKE LOCK SYSTEM(J50) (C) L=50	1-47475-299-2	02	1	9002-		●
98	BRACKET; AIR PIPE 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (C) L=50	1-47475-299-2	01	1	9002-		●	●
100	CONNECTOR; AIR PIPE M14	1-09650-031-0	01	1	9002-9103	●	●	●
100	CONNECTOR; AIR PIPE M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	9104-	●	●	●
117	UNION; AIR PIPE	1-09656-426-1	01	1	9002-	●
117	UNION; AIR PIPE ISUZU M/T<X9A>	1-09656-426-1	01	1	9002-		●	●
117	UNION; AIR PIPE FULLER M/T<X9B>	1-09656-444-1	01	1	9002-		●	●
118	NUT; UNION M16	9-99111-416-0	01	1	9002-	●	●	●
118	NUT; UNION EXC. DUAL AIR GAUGE<UG2> M12	9-99110-412-0	01	1	9002-9304	●	●	●
118	NUT; UNION EXC. DUAL AIR GAUGE<UG2> M12	9-99110-512-0	01	1	9305-	●	●	●
119	WASHER; LK,UNION ID=16.2	9-09150-516-0	01	1	9002-9312	●	●	●
119	WASHER; LK,UNION EXC. DUAL AIR GAUGE<UG2> ID=12.2	9-09150-512-0	01	1	9002-9312	●	●	●
123	BRACKET; UNION (B)	1-47475-432-3	01	1	9002-9103	●	●	●
123	BRACKET; UNION TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-47475-432-3	01	1	9104-	●	●	●
123	BRACKET; UNION FULLER M/T<X9B> (B)	1-47475-432-3	01	1	9104-		●	●
123	BRACKET; UNION (A)	1-47475-857-1	01	1	9002-	●	●	●
124	BOLT; BRKT M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9103	●
124	BOLT; BRKT TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X25 W/LK WASHER	9-01900-825-0	02	1	9104-9204	●
124	BOLT; BRKT TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9306	●
124	BOLT; BRKT TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X25 FLANGE	0-28080-825-0	02	1	9307-	●
124	BOLT; BRKT M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●	●	●
124	BOLT; BRKT M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9306	●	●	●
124	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	02	1	9307-	●	●	●
124	BOLT; BRKT M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9103		●	●
124	BOLT; BRKT TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X30 W/LK WASHER	9-01900-830-0	02	1	9104-9204		●	●
124	BOLT; BRKT FULLER M/T<X9B> M8X30 W/LK WASHER	9-01900-830-0	02	1	9104-9204		●	●
124	BOLT; BRKT TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9306		●	●
124	BOLT; BRKT FULLER M/T<X9B> M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9306		●	●
124	BOLT; BRKT TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X30 FLANGE	0-28080-830-0	02	1	9307-		●	●
124	BOLT; BRKT FULLER M/T<X9B> M8X30 FLANGE	0-28080-830-0	02	1	9307-		●	●
127	UNION; AIR PIPE TRANSMISSION SIDE PTO WO/LEVER(SH5) DUAL AIR GAUGE<UG2> M12 2WAY	1-09654-059-2	01	1	9002-	●	●	●
127	UNION; AIR PIPE FULLER M/T<X9B> DUAL AIR GAUGE<UG2> M12 2WAY	1-09654-059-2	01	1	9002-		●	●
127	UNION; AIR PIPE TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUAL AIR GAUGE<UG2> M12	9-09228-306-1	01	1	9002-	●	●	●
127	UNION; AIR PIPE FULLER M/T<X9B> EXC. DUAL AIR GAUGE<UG2> M12	9-09228-306-1	01	1	9002-		●	●
128	NUT; PIPE UNION M12	9-99110-412-0	01	1	9002-9110	●	●	●
128	NUT; PIPE UNION TRANSMISSION SIDE PTO WO/LEVER(SH5) M12	9-99110-412-0	01	1	9111-9304	●	●	●
128	NUT; PIPE UNION FULLER M/T<X9B> M12	9-99110-412-0	01	1	9111-9304		●	●
128	NUT; PIPE UNION TRANSMISSION SIDE PTO WO/LEVER(SH5) M12	9-99110-512-0	01	1	9305-	●	●	●
128	NUT; PIPE UNION FULLER M/T<X9B> M12	9-99110-512-0	01	1	9305-		●	●
129	WASHER; LK,PIPE UNION ID=12.2	9-09150-512-0	01	1	9002-9110	●	●	●
129	WASHER; LK,PIPE UNION TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=12.2	9-09150-512-0	01	1	9111-9312	●	●	●
129	WASHER; LK,PIPE UNION FULLER M/T<X9B> ID=12.2	9-09150-512-0	01	1	9111-9312		●	●
131	UNION; AIR PIPE EXC. DUAL AIR GAUGE<UG2> M12 2WAY	1-09654-059-2	01	1	9002-	●	●	●
155	GASKET; AIR PIPE AIR DRYER<PS7> ID=11 OD=18	9-09572-510-0	02	1	9002-	●	●	●
156	UNION; AIR PIPE EXC. AIR DRYER<PS7> M12 L=66.5	9-09223-306-1	01	1	9002-	●	●	●
158	NUT; UNION,AIR PIPE EXC. AIR DRYER<PS7> M12	9-09840-280-0	01	1	9002-	●	●	●
159	WASHER; LK,UNION,AIR PIPE EXC. AIR DRYER<PS7> ID=12.2	9-09150-512-0	01	1	9002-9312	●	●	●
163	BRACKET; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=50	1-47475-299-2	06	1	9002-9005		●	●
163	BRACKET; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=50	1-47475-299-2	05	1	9006-9306		●	●
163	BRACKET; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=50	1-47475-299-2	02	1	9307-		●	●
163	BRACKET; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> L=50	1-47475-299-2	01	1	9002-		●	●
178	UNION; AIR PIPE AIR DRYER<PS7> (B) M12	1-09654-087-1	01	1	9002-	●	●	●
178	UNION; AIR PIPE AIR DRYER<PS7> (A) M12 L=66.5	9-09223-306-1	01	1	9002-		●	●
179	NUT; UNION AIR DRYER<PS7> M12	9-09840-280-0	01	1	9002-	●	●	●
179	NUT; UNION AIR DRYER<PS7> M12	9-09840-280-0	01	1	9002-		●	●
180	WASHER; LK,UNION AIR DRYER<PS7> ID=12.2	9-09150-512-0	01	1	9002-9306	●	●	●
180	WASHER; LK,UNION AIR DRYER<PS7> ID=12.2	9-09150-512-0	01	1	9002-9306		●	●
180	WASHER; LK,UNION AIR DRYER<PS7> ID=12.2	9-09150-512-0	01	1	9307-9312		●	●
180	WASHER; LK,UNION AIR DRYER<PS7> ID=12.2	9-09150-512-0	01	1	9405-	●	●	●
189	BRACKET; FLEX HOSE AIR DRYER<PS7>	1-47475-874-0	01	1	9002-	●	●	●
190	BOLT; FLEX HOSE AIR DRYER<PS7> M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204	●	●	●
190	BOLT; FLEX HOSE AIR DRYER<PS7> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302	●	●	●
190	BOLT; FLEX HOSE AIR DRYER<PS7> M8X25 FLANGE	0-28080-825-0	02	1	9303-9306	●	●	●
190	BOLT; FLEX HOSE AIR DRYER<PS7> M8X20 FLANGE	0-28080-820-0	02	1	9307-	●	●	●
221	BOLT; BRKT M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9010	●
221	BOLT; BRKT M8X25 W/LK WASHER	9-01900-825-0	02	1	9011-9204	●
221	BOLT; BRKT M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9306	●
221	BOLT; BRKT M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9204		●	●
221	BOLT; BRKT M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9306		●	●
221	BOLT; BRKT FULL TRACTOR TRUCK<RD6> M10X25 W/LK WASHER	0-50041-025-0	01	1	9211-9306			●
221	BOLT; BRKT FULL TRACTOR TRUCK<RD6> M10X33	9-09808-590-0	01	1	9211-9306			●
239	UNION; AIR PIPE ISUZU M/T<X9A> DUAL AIR GAUGE<UG2> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 2WAY	1-09654-059-2	01	1	9002-	●	●	●
239	UNION; AIR PIPE ISUZU M/T<X9A> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),DUAL AIRGAUGE<UG2> M12	9-09228-306-1	01	1	9002-	●	●	●
239	UNION; AIR PIPE TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 3WAY	9-09228-906-1	01	1	9002-	●	●	●
239	UNION; AIR PIPE FULLER M/T<X9B> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09656-392-2	01	1	9002-		●	●
240	NUT; UNION,AIR PIPE ISUZU M/T<X9A> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12	9-99110-412-0	01	1	9002-9304	●	●	●
240	NUT; UNION,AIR PIPE ISUZU M/T<X9A> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12	9-99110-512-0	01	1	9305-	●	●	●
240	NUT; UNION,AIR PIPE TRANSMISSION SIDE PTO WO/LEVER(SH5) M12	9-09840-280-0	01	1	9002-	●	●	●
240	NUT; UNION,AIR PIPE FULLER M/T<X9B> M12	9-09840-280-0	01	1	9002-		●	●
241	WASHER; LK,UNION,AIR PIPE ID=12.2	9-09150-512-0	01	1	9002-	●	●	●
243	UNION; AIR PIPE	1-09654-220-1	01	1	9002-	●
243	UNION; AIR PIPE	1-09656-283-1	01	1	9002-		●	●
244	NUT; UNION,AIR PIPE M12	9-99111-412-0	01	1	9002-	●	●	●
245	WASHER; LK,UNION,AIR PIPE ID=12.2	9-09150-512-0	01	1	9002-9312	●	●	●
421	NUT; BRKT AIR DRYER<PS7> M8	9-09110-408-0	02	1	9002-	●	●	●

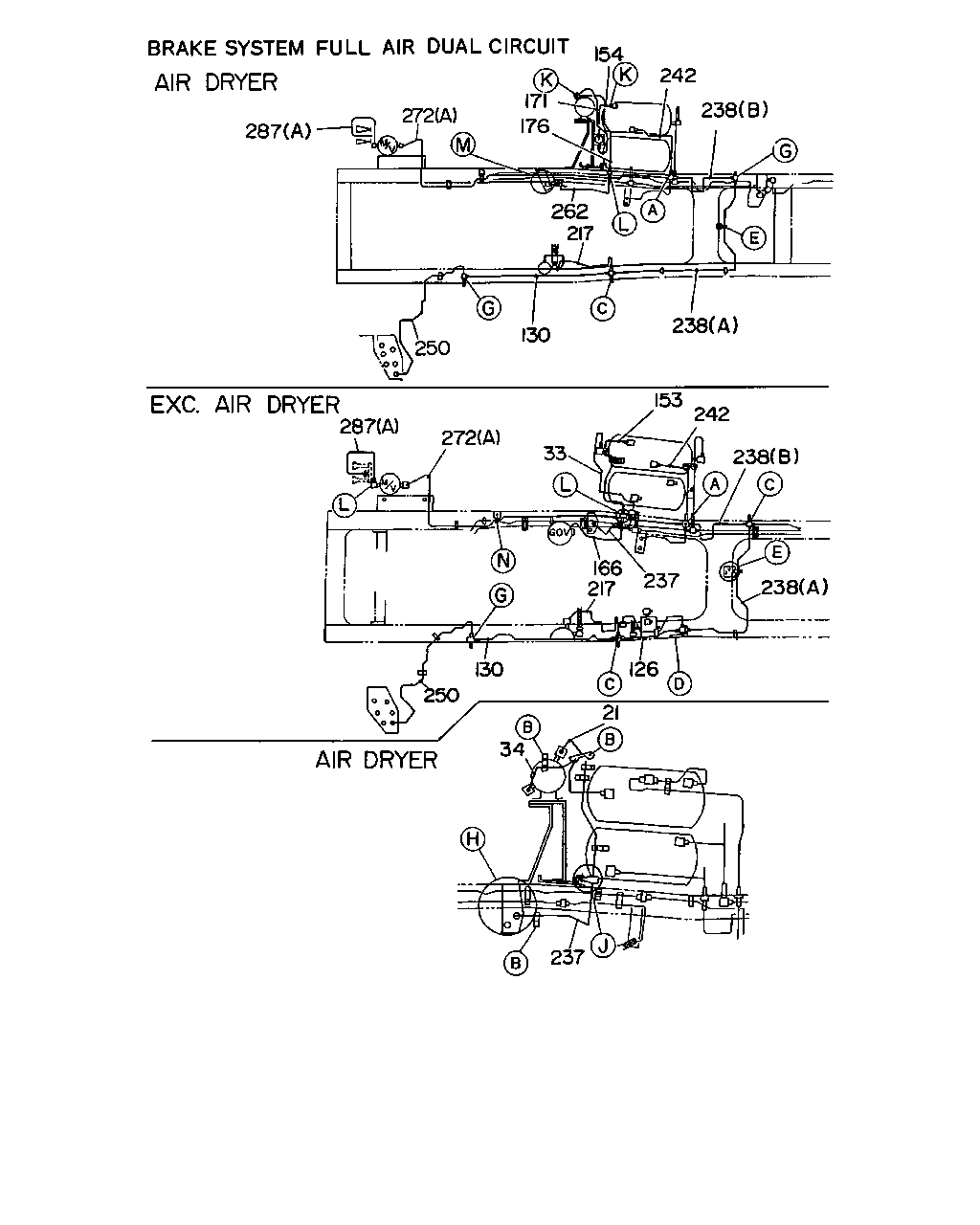

287 272 176 171 154 242 238 262 217 238 130 250 153 242 238 238 33 166 237 217 272 287 130 250 126 34 237 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=691 SERVICED BY L=1000	1-47434-491-0	01	1	9002-9306	●	●	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=787 SERVICED BY L=1000	1-49111-457-0	01	1	9307-9407	●	●	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=738	1-49114-075-0	01	1	9408-	●	●	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=827	1-47487-501-0	01	1	9002-		●	●
33	PIPE; AIR,UNION TO AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> L=882 SERVICED BY L=1000	1-47434-491-1	01	1	9002-	●	●	●
33	PIPE; AIR,UNION TO AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7>	1-47482-402-0	01	1	9002-		●	●
34	PIPE; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=735 SERVICED BY L=800	1-47437-980-0	01	1	9002-9306	●	●	●
34	PIPE; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=609 SERVICED BY L=660	1-49111-438-0	01	1	9307-9407	●	●	●
34	PIPE; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=622 SERVICED BY L=660	1-49111-438-0	01	1	9408-	●	●	●
34	PIPE; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=973 SERVICED BY L=1000	1-47434-485-1	01	1	9002-9306		●	●
34	PIPE; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=973 SERVICED BY L=1000	1-49111-443-0	01	1	9307-		●	●
126	PIPE; AIR,UNION TO UNION TRANSMISSION SIDE PTO WO/LEVER(SH5) L=477 SERVICED BY L=500	9-47415-350-0	01	1	9002-	●		●
126	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION SIDE PTO WO/LEVER(SH5) L=477 SERVICED BY L=500	9-47415-350-0	01	1	9002-		●
126	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION SIDE PTO WO/LEVER(SH5) L=532 SERVICED BY L=550	9-47415-351-0	01	1	9002-		●
126	PIPE; AIR,UNION TO UNION FULLER M/T<X9B> L=471	1-47488-493-0	01	1	9002-		●	●
130	PIPE; AIR,UNION TO UNION EXC. DUAL AIR GAUGE<UG2> L=1242 SERVICED BY L=1250	1-47434-389-0	01	1	9002-9306	●		●
130	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUAL AIR GAUGE<UG2> L=1242 SERVICED BY L=1250	1-47434-389-0	01	1	9002-9306		●
130	PIPE; AIR,UNION TO UNION EXC. DUAL AIR GAUGE<UG2> L=1244 SERVICED BY L=1250	1-47426-353-0	01	1	9307-	●		●
130	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUAL AIR GAUGE<UG2> L=1244 SERVICED BY L=1250	1-47426-353-0	01	1	9307-		●
130	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1198 SERVICED BY L=1200	1-47434-388-0	01	1	9002-		●
153	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> L=586 SERVICED BY L=600	9-47415-352-0	01	1	9002-		●	●
153	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> L=859 SERVICED BY L=900	1-47434-385-0	01	1	9002-9306		●	●
153	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> L=1005 SERVICED BY L=1100	1-47426-351-0	01	1	9307-		●	●
154	PIPE; AIR,AIR TANK TO AIR GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. POWER BRAKE LOCK SYSTEM(J50)	1-47487-470-0	01	1	9002-	●	●	●
154	PIPE; AIR,AIR TANK TO AIR GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-47487-299-0	01	1	9002-		●	●
166	PIPE; AIR,UNION TO GOV EXC. AIR DRYER<PS7>	1-47487-520-0	01	1	9002-	●
166	PIPE; AIR,UNION TO GOV 12PD1 C ENG(43L) EXC. AIR DRYER<PS7>	1-49111-215-0	01	1	9308-		●
166	PIPE; AIR,UNION TO GOV 6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> EXC. AIR DRYER<PS7>	1-47487-465-0	01	1	9002-		●
166	PIPE; AIR,UNION TO GOV 6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> EXC. AIR DRYER<PS7> L=961	1-47482-945-0	01	1	9002-		●
166	PIPE; AIR,UNION TO GOV 10PD1 STD ENG(40L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7>	1-47487-464-0	01	1	9002-		●	●
166	PIPE; AIR,UNION TO GOV 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> L=1118	1-47482-946-0	01	1	9002-		●	●
166	PIPE; AIR,UNION TO GOV 6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7>,MIXER TRUCK<RA2>	1-47487-466-0	01	1	9002-		●	●
166	PIPE; AIR,UNION TO GOV 6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7>,MIXER TRUCK<RA2> L=945	1-47485-196-0	01	1	9002-		●	●
171	PIPE; AIR,GOV TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=892 SERVICED BY L=900	1-47426-349-0	01	1	9002-	●	●	●
171	PIPE; AIR,GOV TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=992	1-47487-300-0	01	1	9002-		●	●
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> L=603 SERVICED BY L=650	9-47415-353-0	01	1	9002-9306	●
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> L=524 SERVICED BY L=550	1-47426-344-0	01	1	9307-9407	●
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> L=693 SERVICED BY L=800	1-47426-348-0	01	1	9408-	●
176	PIPE; AIR,AIR DRYER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=610 SERVICED BY L=650	9-47415-353-0	01	1	9002-9306		●	●
176	PIPE; AIR,AIR DRYER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=531 SERVICED BY L=550	1-47426-344-0	01	1	9307-9407		●	●
176	PIPE; AIR,AIR DRYER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=700 SERVICED BY L=800	1-47426-348-0	01	1	9408-		●	●
176	PIPE; AIR,AIR DRYER TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=1216 SERVICED BY L=1250	1-47434-389-0	01	1	9002-		●	●
217	PIPE; VAC,UNION TO MAG VLV L=1185 SERVICED BY L=1200	1-47434-388-0	01	1	9002-9112	●
217	PIPE; VAC,UNION TO MAG VLV 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1185 SERVICED BY L=1200	1-47434-388-0	01	1	9002-9112		●
217	PIPE; VAC,UNION TO MAG VLV 10PD1 STD ENG(40L) EXC. GOVERNOR CONTROL<W69> L=1185 SERVICED BY L=1200	1-47434-388-0	01	1	9002-9112			●
217	PIPE; VAC,UNION TO MAG VLV L=1184 SERVICED BY L=1200	1-47434-388-0	01	1	9201-	●
217	PIPE; VAC,UNION TO MAG VLV 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1184 SERVICED BY L=1200	1-47434-388-0	01	1	9201-		●
217	PIPE; VAC,UNION TO MAG VLV 10PD1 STD ENG(40L) EXC. GOVERNOR CONTROL<W69> L=1184 SERVICED BY L=1200	1-47434-388-0	01	1	9201-			●
217	PIPE; VAC,UNION TO MAG VLV 10PD1 STD ENG(40L),12PD1 C ENG(43L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1217 SERVICED BY L=1250	1-47434-389-0	01	1	9002-		●
217	PIPE; VAC,UNION TO MAG VLV 6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1046 SERVICED BY L=1100	1-47434-387-0	01	1	9002-9306		●
217	PIPE; VAC,UNION TO MAG VLV 6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=881 SERVICED BY L=900	1-47426-349-0	01	1	9307-		●
217	PIPE; VAC,UNION TO MAG VLV 6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MIXER TRUCK<RA2> L=1176 SERVICED BY L=1200	1-47434-388-0	01	1	9002-9306		●
217	PIPE; VAC,UNION TO MAG VLV 6RB1 STD ENG(07L) L=1176 SERVICED BY L=1200	1-47434-388-0	01	1	9002-9306			●
217	PIPE; VAC,UNION TO MAG VLV 6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MIXER TRUCK<RA2> L=1003 SERVICED BY L=1100	1-47426-351-0	01	1	9307-		●
217	PIPE; VAC,UNION TO MAG VLV 6RB1 STD ENG(07L) L=1003 SERVICED BY L=1100	1-47426-351-0	01	1	9307-			●
217	PIPE; VAC,UNION TO MAG VLV 6RB1 STD ENG(07L) MIXER TRUCK<RA2> L=1089 SERVICED BY L=1100	1-47434-387-0	01	1	9002-9306		●
217	PIPE; VAC,UNION TO MAG VLV 6RB1 STD ENG(07L) MIXER TRUCK<RA2> L=932 SERVICED BY L=1000	1-47426-350-0	01	1	9307-		●
217	PIPE; VAC,UNION TO MAG VLV 10PD1 STD ENG(40L) GOVERNOR CONTROL<W69> L=1336 SERVICED BY L=1370	1-47434-390-0	01	1	9002-9407			●
217	PIPE; VAC,UNION TO MAG VLV 10PD1 STD ENG(40L) GOVERNOR CONTROL<W69> L=1355 SERVICED BY L=1370	1-47426-354-0	01	1	9408-			●
237	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47487-557-0	01	1	9002-	●	●	●
237	PIPE; AIR,FLEX HOSE TO UNION 12PD1 C ENG(43L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-49111-065-0	01	1	9307-		●
237	PIPE; AIR,FLEX HOSE TO UNION 6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2>	1-47487-559-0	01	1	9002-9306		●
237	PIPE; AIR,FLEX HOSE TO UNION 6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2>	1-47485-191-0	01	1	9002-9306		●
237	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47481-704-0	01	1	9002-		●	●
237	PIPE; AIR,FLEX HOSE TO UNION 6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. MIXER TRUCK<RA2>	1-47487-558-0	01	1	9002-		●	●
237	PIPE; AIR,FLEX HOSE TO UNION 6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MIXER TRUCK<RA2>	1-47482-400-0	01	1	9002-		●	●
238	PIPE; AIR,UNION TO UNION TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) L=1360 SERVICED BY L=1370	1-47434-390-0	01	1	9002-	●
238	PIPE; AIR,UNION TO UNION EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) L=1919 SERVICED BY L=2000	1-47426-359-0	01	1	9002-	●
238	PIPE; AIR,UNION TO UNION (B) L=619 SERVICED BY L=660	1-47437-964-0	01	1	9002-9007	●	●	●
238	PIPE; AIR,UNION TO UNION (B) L=490 SERVICED BY L=500	1-47434-472-0	01	1	9008-9306	●	●	●
238	PIPE; AIR,UNION TO UNION (B) L=497 SERVICED BY L=550	1-47426-407-0	01	1	9307-	●	●	●
238	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) L=1946 SERVICED BY L=2000	1-47434-395-0	01	1	9002-		●
238	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) L=1898 SERVICED BY L=2000	1-47434-395-0	01	1	9002-		●	●
238	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) L=1898 SERVICED BY L=2000	1-47434-395-0	01	1	9002-			●
238	PIPE; AIR,UNION TO UNION FULLER M/T<X9B> (A) L=1346 SERVICED BY L=1370	1-47434-390-0	01	1	9002-		●	●
238	PIPE; AIR,UNION TO UNION TRANSMISSION SIDE PTO WO/LEVER(SH5) ISUZU M/T<X9A> (A) L=1339 SERVICED BY L=1370	1-47434-390-0	01	1	9002-		●	●
242	PIPE; AIR,AIR TANK TO UNION L=663 SERVICED BY L=730	1-47437-955-0	01	1	9002-9306	●
242	PIPE; AIR,AIR TANK TO UNION L=656 SERVICED BY L=660	1-47426-409-0	01	1	9307-	●
242	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=662 SERVICED BY L=730	1-47437-955-0	01	1	9002-9306		●	●
242	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=663 SERVICED BY L=700	1-47426-410-0	01	1	9307-		●	●
242	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=956 SERVICED BY L=1000	1-47434-476-0	01	1	9002-9306		●	●
242	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=956 SERVICED BY L=1000	1-47426-414-0	01	1	9307-		●	●
250	PIPE; AIR,UNION TO FLEX HOSE EXC. DUAL AIR GAUGE<UG2> L=1411 SERVICED BY L=1500	1-47434-391-0	01	1	9002-9003	●	●	●
250	PIPE; AIR,UNION TO FLEX HOSE EXC. DUAL AIR GAUGE<UG2> L=1401 SERVICED BY L=1500	1-47434-391-0	01	1	9004-9306	●	●	●
250	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9>,DUAL AIR GAUGE<UG2> L=1401 SERVICED BY L=1500	1-47434-391-0	01	1	9307-9308	●	●	●
250	PIPE; AIR,UNION TO FLEX HOSE TAIWAN EQUIPMENT(WW5) L=1541 SERVICED BY L=1620	1-47426-356-0	01	1	9307-9308	●	●	●
250	PIPE; AIR,UNION TO FLEX HOSE EXC. DUAL AIR GAUGE<UG2> L=1566 SERVICED BY L=1620	1-47426-356-0	01	1	9309-	●	●
250	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) EXC. DUAL AIR GAUGE<UG2> L=1566 SERVICED BY L=1620	1-47426-356-0	01	1	9309-			●
262	PIPE; AIR,UNION TO FLEX AIR DRYER<PS7> L=1099 SERVICED BY L=1100	1-47434-387-0	01	1	9002-	●
262	PIPE; AIR,UNION TO FLEX 12PD1 C ENG(43L) AIR DRYER<PS7> L=1064 SERVICED BY L=1100	1-47426-351-0	01	1	9307-9307		●
262	PIPE; AIR,UNION TO FLEX 12PD1 C ENG(43L) AIR DRYER<PS7> L=1068 SERVICED BY L=1100	1-47426-351-0	01	1	9308-		●
262	PIPE; AIR,UNION TO FLEX 6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> MIXER TRUCK<RA2> L=912 SERVICED BY L=1000	1-47434-386-0	01	1	9002-9306		●
262	PIPE; AIR,UNION TO FLEX 6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> MIXER TRUCK<RA2> L=945 SERVICED BY L=1000	1-47434-386-0	01	1	9002-9306		●
262	PIPE; AIR,UNION TO FLEX 10PD1 STD ENG(40L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=1092 SERVICED BY L=1100	1-47434-387-0	01	1	9002-		●	●
262	PIPE; AIR,UNION TO FLEX 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=1096 SERVICED BY L=1100	1-47413-555-0	01	1	9002-		●	●
262	PIPE; AIR,UNION TO FLEX 6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. MIXER TRUCK<RA2> L=874 SERVICED BY L=900	1-47434-385-0	01	1	9002-		●	●
262	PIPE; AIR,UNION TO FLEX 6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=930 SERVICED BY L=1000	1-47413-554-0	01	1	9002-		●	●
272	PIPE; AIR,MAG VLV TO UNION 10PD1 STD ENG(40L) (A) L=2838 SERVICED BY L=2900	1-47434-400-0	01	1	9002-9306	●	●	●
272	PIPE; AIR,MAG VLV TO UNION 10PD1 STD ENG(40L),12PD1 C ENG(43L) (A) L=2853 SERVICED BY L=2900	1-47426-364-0	01	1	9307-9308	●	●	●
272	PIPE; AIR,MAG VLV TO UNION 10PD1 STD ENG(40L),12PD1 C ENG(43L) (A) L=2862 SERVICED BY L=2900	1-47426-364-0	01	1	9309-	●	●	●
272	PIPE; AIR,MAG VLV TO UNION 10PD1 STD ENG(40L) GOVERNOR CONTROL<W69> (B) L=332	1-47481-166-1	01	1	9408-	●	●	●
272	PIPE; AIR,MAG VLV TO UNION 6RB1 STD ENG(07L) (A) L=2828 SERVICED BY L=2900	1-47434-400-0	01	1	9002-9306		●	●
272	PIPE; AIR,MAG VLV TO UNION 6RB1 STD ENG(07L) (A) L=2870 SERVICED BY L=2900	1-47426-364-0	01	1	9307-		●	●
272	PIPE; AIR,MAG VLV TO UNION GOVERNOR CONTROL<W69> (B) L=431 SERVICED BY L=460	9-47415-349-0	01	1	9002-9306			●
272	PIPE; AIR,MAG VLV TO UNION GOVERNOR CONTROL<W69> (B) L=431 SERVICED BY L=460	1-47426-342-0	01	1	9307-9407			●
272	PIPE; AIR,MAG VLV TO UNION GOVERNOR CONTROL<W69> L TYPE ENG<90L> (B) L=431 SERVICED BY L=460	1-47426-342-0	01	1	9408-			●
287	PIPE; AIR,MAG VLV (A)	1-47488-299-0	01	1	9002-9306	●	●	●
287	PIPE; AIR,MAG VLV (A)	1-47496-264-0	01	1	9307-	●	●	●
287	PIPE; AIR,MAG VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) AIR DRYER<PS7> (B)	1-47489-509-0	01	1	9002-		●

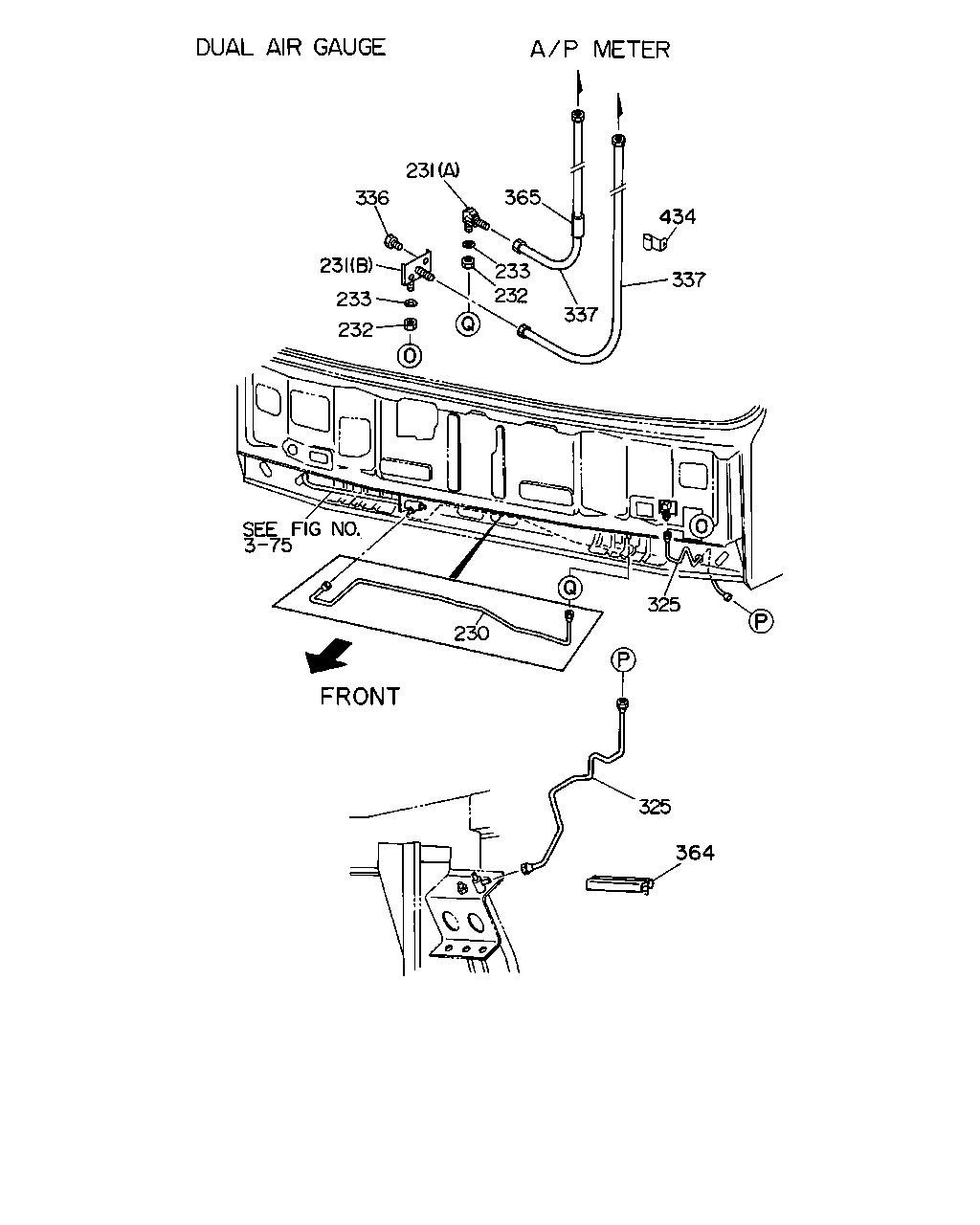

337 434 365 337 232 233 231 336 231 232 233 230 325 325 364

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
230	PIPE; AIR,UNION TO UNION DUAL AIR GAUGE<UG2> L=964	1-47448-808-0	01	1	9002-		●	●
231	UNION; AIR PIPE EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (A)	1-09654-180-3	01	1	9002-	●	●	●
231	UNION; AIR PIPE DRIVER ISRINGHAUSEN SEAT(SJA) (C)	1-09656-167-1	01	1	9206-9302	●	●	●
231	UNION; AIR PIPE DRIVER ISRINGHAUSEN SEAT(SJA) (C)	1-09656-161-1	01	1	9303-	●	●	●
231	UNION; AIR PIPE DRIVER ISRINGHAUSEN SEAT(SJA) (D)	1-09660-565-0	01	1	9303-	●	●	●
231	UNION; AIR PIPE DUAL AIR GAUGE<UG2> (B)	1-47470-194-1	01	1	9002-	●	●	●
232	NUT; UNION,AIR PIPE M10 H=8	1-09400-029-0	01	1	9002-	●	●	●
233	WASHER; LK,UNION,AIR PIPE ID=10.2	9-09150-510-0	01	1	9002-	●	●	●
325	PIPE; AIR,FLEX HOSE TO UNION EXC. DUAL AIR GAUGE<UG2> L=720	1-47448-807-1	01	1	9002-	●	●	●
325	PIPE; AIR,FLEX HOSE TO UNION DUAL AIR GAUGE<UG2> L=577	1-47448-182-0	01	1	9002-		●	●
336	BOLT; PIPE UNION DUAL AIR GAUGE<UG2> M6X16 W/LK WASHER	0-50000-616-0	02	1	9002-9204	●	●	●
336	BOLT; PIPE UNION DUAL AIR GAUGE<UG2> M6X16 W/LK WASHER	0-50080-616-0	02	1	9205-9301	●	●	●
336	BOLT; PIPE UNION DUAL AIR GAUGE<UG2> M6X16 W/LK WASHER	0-50040-616-0	02	1	9302-9302	●	●	●
336	BOLT; PIPE UNION DUAL AIR GAUGE<UG2> M6X16 FLANGE	0-28080-616-0	02	1	9303-	●	●	●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=720	1-09363-431-1	02	1	9002-	●	●	●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE EXC. DUAL AIR GAUGE<UG2> L=720	1-09363-431-1	01	1	9002-	●	●	●
364	PROTECTOR; AIR GAUGE HOSE DUAL AIR GAUGE<UG2> L=240	1-71998-400-0	01	1	9002-	●	●	●
365	SLEEVE; RUBBER,FLEX HOSE DUAL AIR GAUGE<UG2> ID=10 OD=14 L=30	9-09956-682-0	02	1	9002-	●	●	●
365	SLEEVE; RUBBER,FLEX HOSE EXC. DUAL AIR GAUGE<UG2> ID=10 OD=14 L=30	9-09956-682-0	01	1	9002-	●	●	●
434	CLIP DUAL AIR GAUGE<UG2> ID=13X2 H=25 L=50	1-09700-777-0	01	1	9307-	●	●	●
434	CLIP EXC. DUAL AIR GAUGE<UG2> ID=14	8-94157-443-0	01	1	9307-	●	●	●

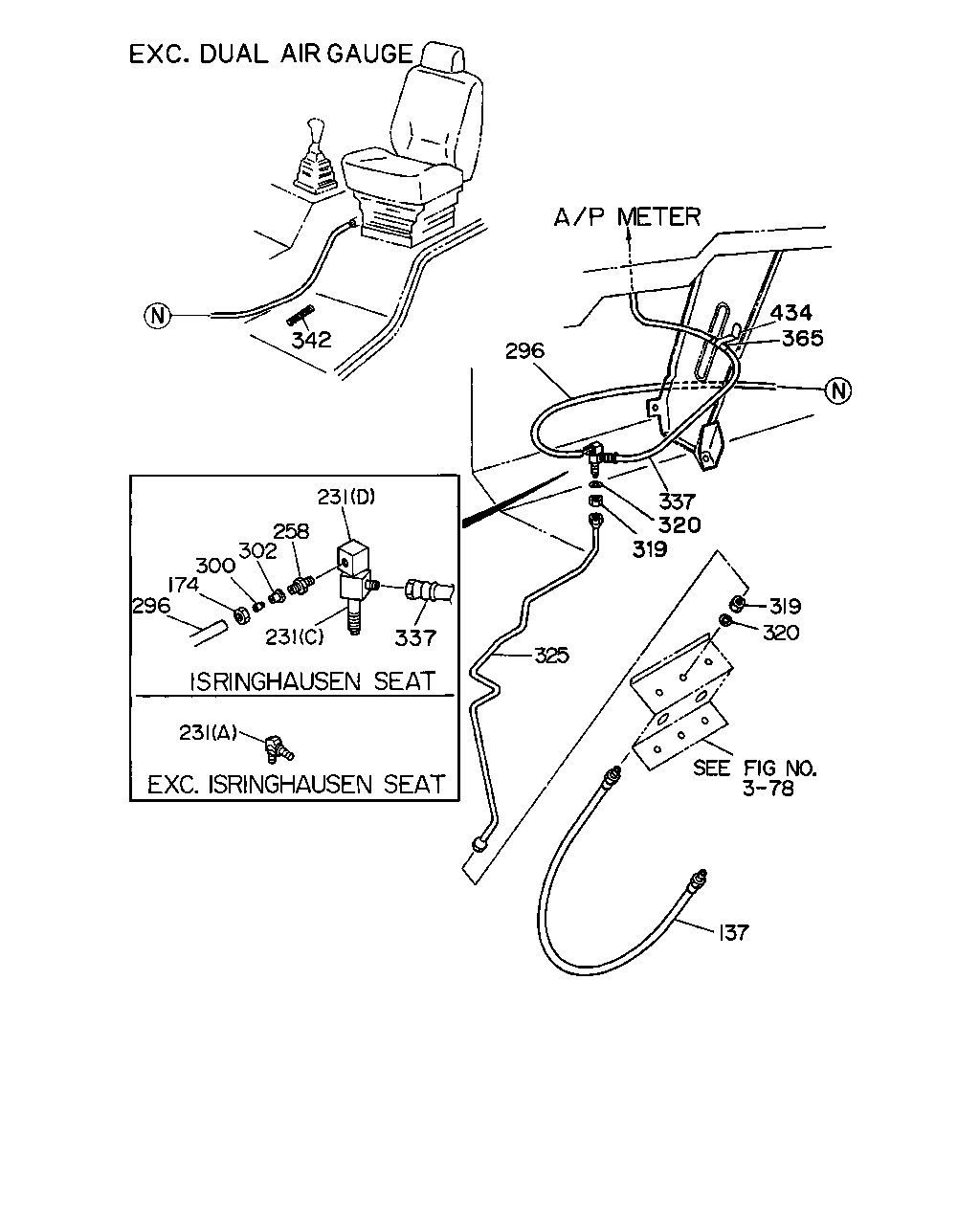

137 325 320 319 319 320 337 296 365 434 337 231 231 258 302 300 174 296 342 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
137	HOSE; FLEX,AIR PRESSURE GAGE EXC. DUAL AIR GAUGE<UG2> L=840	1-09363-368-1	01	1	9002-	●	●	●
174	NUT; SLEEVE,AIR PIPE DRIVER ISRINGHAUSEN SEAT(SJA)	1-09660-589-0	02	1	9206-	●	●	●
231	UNION; AIR PIPE EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (A)	1-09654-180-3	01	1	9002-	●	●	●
231	UNION; AIR PIPE DRIVER ISRINGHAUSEN SEAT(SJA) (C)	1-09656-167-1	01	1	9206-9302	●	●	●
231	UNION; AIR PIPE DRIVER ISRINGHAUSEN SEAT(SJA) (C)	1-09656-161-1	01	1	9303-	●	●	●
231	UNION; AIR PIPE DRIVER ISRINGHAUSEN SEAT(SJA) (D)	1-09660-565-0	01	1	9303-	●	●	●
231	UNION; AIR PIPE DUAL AIR GAUGE<UG2> (B)	1-47470-194-1	01	1	9002-	●	●	●
258	CONNECTOR; NYLON TUBE DRIVER ISRINGHAUSEN SEAT(SJA)	1-09660-599-1	01	1	9206-	●	●	●
296	TUBE; NYLON DRIVER ISRINGHAUSEN SEAT(SJA) SERVICED BY L=30000 OD=6	1-09366-235-0	01	1	9206-9306	●	●	●
300	SLEEVE; TUBE DRIVER ISRINGHAUSEN SEAT(SJA)	1-09666-064-0	02	1	9206-	●	●	●
302	RING; INSERT DRIVER ISRINGHAUSEN SEAT(SJA)	1-09669-106-0	02	1	9206-	●	●	●
319	NUT; FLEX HOSE,CAB SIDE EXC. DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	9002-	●	●	●
319	NUT; FLEX HOSE,CAB SIDE EXC. DUAL AIR GAUGE<UG2> M12	9-09840-280-0	01	1	9002-	●	●	●
320	WASHER; LK,FLEX HOSE,CAB SIDE EXC. DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	9002-	●	●	●
320	WASHER; LK,FLEX HOSE,CAB SIDE EXC. DUAL AIR GAUGE<UG2> ID=12.2	9-09150-512-0	01	1	9002-	●	●	●
325	PIPE; AIR,FLEX HOSE TO UNION EXC. DUAL AIR GAUGE<UG2> L=720	1-47448-807-1	01	1	9002-	●	●	●
325	PIPE; AIR,FLEX HOSE TO UNION DUAL AIR GAUGE<UG2> L=577	1-47448-182-0	01	1	9002-		●	●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=720	1-09363-431-1	02	1	9002-	●	●	●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE EXC. DUAL AIR GAUGE<UG2> L=720	1-09363-431-1	01	1	9002-	●	●	●
342	TUBE; CORRUGATE DRIVER ISRINGHAUSEN SEAT(SJA) L=400 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9307-	●	●	●
365	SLEEVE; RUBBER,FLEX HOSE DUAL AIR GAUGE<UG2> ID=10 OD=14 L=30	9-09956-682-0	02	1	9002-	●	●	●
365	SLEEVE; RUBBER,FLEX HOSE EXC. DUAL AIR GAUGE<UG2> ID=10 OD=14 L=30	9-09956-682-0	01	1	9002-	●	●	●
434	CLIP DUAL AIR GAUGE<UG2> ID=13X2 H=25 L=50	1-09700-777-0	01	1	9307-	●	●	●
434	CLIP EXC. DUAL AIR GAUGE<UG2> ID=14	8-94157-443-0	01	1	9307-	●	●	●

171 154 176 242 238 238 272 287 250 130 126 217 262 92 92 34 21 237 33 92 92 153 237 166 114 115 403 287

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=691 SERVICED BY L=1000	1-47434-491-0	01	1	9002-9306	●	●	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=787 SERVICED BY L=1000	1-49111-457-0	01	1	9307-9407	●	●	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=738	1-49114-075-0	01	1	9408-	●	●	●
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=827	1-47487-501-0	01	1	9002-		●	●
33	PIPE; AIR,UNION TO AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> L=882 SERVICED BY L=1000	1-47434-491-1	01	1	9002-	●	●	●
33	PIPE; AIR,UNION TO AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7>	1-47482-402-0	01	1	9002-		●	●
34	PIPE; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=735 SERVICED BY L=800	1-47437-980-0	01	1	9002-9306	●	●	●
34	PIPE; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=609 SERVICED BY L=660	1-49111-438-0	01	1	9307-9407	●	●	●
34	PIPE; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=622 SERVICED BY L=660	1-49111-438-0	01	1	9408-	●	●	●
34	PIPE; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=973 SERVICED BY L=1000	1-47434-485-1	01	1	9002-9306		●	●
34	PIPE; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=973 SERVICED BY L=1000	1-49111-443-0	01	1	9307-		●	●
92	PIPE; AIR,AIR TANK TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=1453 SERVICED BY L=1500	1-47434-492-0	01	1	9002-	●	●	●
92	PIPE; AIR,AIR TANK TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=534	1-47482-332-1	01	1	9002-9306	●	●	●
92	PIPE; AIR,AIR TANK TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=541	1-47492-107-0	01	1	9307-	●	●	●
114	PIPE; AIR,UNION TO AIR MASTER POWER BRAKE LOCK SYSTEM(J50) L=655	1-47481-387-0	01	1	9002-		●
115	PIPE; AIR,AIR MASTER TO AIR MASTER POWER BRAKE LOCK SYSTEM(J50) L=746	1-47481-388-1	01	1	9002-		●
126	PIPE; AIR,UNION TO UNION TRANSMISSION SIDE PTO WO/LEVER(SH5) L=477 SERVICED BY L=500	9-47415-350-0	01	1	9002-	●		●
126	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION SIDE PTO WO/LEVER(SH5) L=477 SERVICED BY L=500	9-47415-350-0	01	1	9002-		●
126	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION SIDE PTO WO/LEVER(SH5) L=532 SERVICED BY L=550	9-47415-351-0	01	1	9002-		●
126	PIPE; AIR,UNION TO UNION FULLER M/T<X9B> L=471	1-47488-493-0	01	1	9002-		●	●
130	PIPE; AIR,UNION TO UNION EXC. DUAL AIR GAUGE<UG2> L=1242 SERVICED BY L=1250	1-47434-389-0	01	1	9002-9306	●		●
130	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUAL AIR GAUGE<UG2> L=1242 SERVICED BY L=1250	1-47434-389-0	01	1	9002-9306		●
130	PIPE; AIR,UNION TO UNION EXC. DUAL AIR GAUGE<UG2> L=1244 SERVICED BY L=1250	1-47426-353-0	01	1	9307-	●		●
130	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DUAL AIR GAUGE<UG2> L=1244 SERVICED BY L=1250	1-47426-353-0	01	1	9307-		●
130	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1198 SERVICED BY L=1200	1-47434-388-0	01	1	9002-		●
153	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> L=586 SERVICED BY L=600	9-47415-352-0	01	1	9002-		●	●
153	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> L=859 SERVICED BY L=900	1-47434-385-0	01	1	9002-9306		●	●
153	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> L=1005 SERVICED BY L=1100	1-47426-351-0	01	1	9307-		●	●
154	PIPE; AIR,AIR TANK TO AIR GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. POWER BRAKE LOCK SYSTEM(J50)	1-47487-470-0	01	1	9002-	●	●	●
154	PIPE; AIR,AIR TANK TO AIR GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-47487-299-0	01	1	9002-		●	●
166	PIPE; AIR,UNION TO GOV EXC. AIR DRYER<PS7>	1-47487-520-0	01	1	9002-	●
166	PIPE; AIR,UNION TO GOV 12PD1 C ENG(43L) EXC. AIR DRYER<PS7>	1-49111-215-0	01	1	9308-		●
166	PIPE; AIR,UNION TO GOV 6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> EXC. AIR DRYER<PS7>	1-47487-465-0	01	1	9002-		●
166	PIPE; AIR,UNION TO GOV 6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> EXC. AIR DRYER<PS7> L=961	1-47482-945-0	01	1	9002-		●
166	PIPE; AIR,UNION TO GOV 10PD1 STD ENG(40L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7>	1-47487-464-0	01	1	9002-		●	●
166	PIPE; AIR,UNION TO GOV 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> L=1118	1-47482-946-0	01	1	9002-		●	●
166	PIPE; AIR,UNION TO GOV 6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7>,MIXER TRUCK<RA2>	1-47487-466-0	01	1	9002-		●	●
166	PIPE; AIR,UNION TO GOV 6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7>,MIXER TRUCK<RA2> L=945	1-47485-196-0	01	1	9002-		●	●
171	PIPE; AIR,GOV TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=892 SERVICED BY L=900	1-47426-349-0	01	1	9002-	●	●	●
171	PIPE; AIR,GOV TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=992	1-47487-300-0	01	1	9002-		●	●
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> L=603 SERVICED BY L=650	9-47415-353-0	01	1	9002-9306	●
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> L=524 SERVICED BY L=550	1-47426-344-0	01	1	9307-9407	●
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> L=693 SERVICED BY L=800	1-47426-348-0	01	1	9408-	●
176	PIPE; AIR,AIR DRYER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=610 SERVICED BY L=650	9-47415-353-0	01	1	9002-9306		●	●
176	PIPE; AIR,AIR DRYER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=531 SERVICED BY L=550	1-47426-344-0	01	1	9307-9407		●	●
176	PIPE; AIR,AIR DRYER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=700 SERVICED BY L=800	1-47426-348-0	01	1	9408-		●	●
176	PIPE; AIR,AIR DRYER TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=1216 SERVICED BY L=1250	1-47434-389-0	01	1	9002-		●	●
217	PIPE; VAC,UNION TO MAG VLV L=1185 SERVICED BY L=1200	1-47434-388-0	01	1	9002-9112	●
217	PIPE; VAC,UNION TO MAG VLV 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1185 SERVICED BY L=1200	1-47434-388-0	01	1	9002-9112		●
217	PIPE; VAC,UNION TO MAG VLV 10PD1 STD ENG(40L) EXC. GOVERNOR CONTROL<W69> L=1185 SERVICED BY L=1200	1-47434-388-0	01	1	9002-9112			●
217	PIPE; VAC,UNION TO MAG VLV L=1184 SERVICED BY L=1200	1-47434-388-0	01	1	9201-	●
217	PIPE; VAC,UNION TO MAG VLV 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1184 SERVICED BY L=1200	1-47434-388-0	01	1	9201-		●
217	PIPE; VAC,UNION TO MAG VLV 10PD1 STD ENG(40L) EXC. GOVERNOR CONTROL<W69> L=1184 SERVICED BY L=1200	1-47434-388-0	01	1	9201-			●
217	PIPE; VAC,UNION TO MAG VLV 10PD1 STD ENG(40L),12PD1 C ENG(43L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1217 SERVICED BY L=1250	1-47434-389-0	01	1	9002-		●
217	PIPE; VAC,UNION TO MAG VLV 6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1046 SERVICED BY L=1100	1-47434-387-0	01	1	9002-9306		●
217	PIPE; VAC,UNION TO MAG VLV 6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=881 SERVICED BY L=900	1-47426-349-0	01	1	9307-		●
217	PIPE; VAC,UNION TO MAG VLV 6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MIXER TRUCK<RA2> L=1176 SERVICED BY L=1200	1-47434-388-0	01	1	9002-9306		●
217	PIPE; VAC,UNION TO MAG VLV 6RB1 STD ENG(07L) L=1176 SERVICED BY L=1200	1-47434-388-0	01	1	9002-9306			●
217	PIPE; VAC,UNION TO MAG VLV 6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MIXER TRUCK<RA2> L=1003 SERVICED BY L=1100	1-47426-351-0	01	1	9307-		●
217	PIPE; VAC,UNION TO MAG VLV 6RB1 STD ENG(07L) L=1003 SERVICED BY L=1100	1-47426-351-0	01	1	9307-			●
217	PIPE; VAC,UNION TO MAG VLV 6RB1 STD ENG(07L) MIXER TRUCK<RA2> L=1089 SERVICED BY L=1100	1-47434-387-0	01	1	9002-9306		●
217	PIPE; VAC,UNION TO MAG VLV 6RB1 STD ENG(07L) MIXER TRUCK<RA2> L=932 SERVICED BY L=1000	1-47426-350-0	01	1	9307-		●
217	PIPE; VAC,UNION TO MAG VLV 10PD1 STD ENG(40L) GOVERNOR CONTROL<W69> L=1336 SERVICED BY L=1370	1-47434-390-0	01	1	9002-9407			●
217	PIPE; VAC,UNION TO MAG VLV 10PD1 STD ENG(40L) GOVERNOR CONTROL<W69> L=1355 SERVICED BY L=1370	1-47426-354-0	01	1	9408-			●
237	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47487-557-0	01	1	9002-	●	●	●
237	PIPE; AIR,FLEX HOSE TO UNION 12PD1 C ENG(43L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-49111-065-0	01	1	9307-		●
237	PIPE; AIR,FLEX HOSE TO UNION 6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2>	1-47487-559-0	01	1	9002-9306		●
237	PIPE; AIR,FLEX HOSE TO UNION 6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2>	1-47485-191-0	01	1	9002-9306		●
237	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47481-704-0	01	1	9002-		●	●
237	PIPE; AIR,FLEX HOSE TO UNION 6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. MIXER TRUCK<RA2>	1-47487-558-0	01	1	9002-		●	●
237	PIPE; AIR,FLEX HOSE TO UNION 6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MIXER TRUCK<RA2>	1-47482-400-0	01	1	9002-		●	●
238	PIPE; AIR,UNION TO UNION TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) L=1360 SERVICED BY L=1370	1-47434-390-0	01	1	9002-	●
238	PIPE; AIR,UNION TO UNION EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) L=1919 SERVICED BY L=2000	1-47426-359-0	01	1	9002-	●
238	PIPE; AIR,UNION TO UNION (B) L=619 SERVICED BY L=660	1-47437-964-0	01	1	9002-9007	●	●	●
238	PIPE; AIR,UNION TO UNION (B) L=490 SERVICED BY L=500	1-47434-472-0	01	1	9008-9306	●	●	●
238	PIPE; AIR,UNION TO UNION (B) L=497 SERVICED BY L=550	1-47426-407-0	01	1	9307-	●	●	●
238	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) L=1946 SERVICED BY L=2000	1-47434-395-0	01	1	9002-		●
238	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) L=1898 SERVICED BY L=2000	1-47434-395-0	01	1	9002-		●	●
238	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) L=1898 SERVICED BY L=2000	1-47434-395-0	01	1	9002-			●
238	PIPE; AIR,UNION TO UNION FULLER M/T<X9B> (A) L=1346 SERVICED BY L=1370	1-47434-390-0	01	1	9002-		●	●
238	PIPE; AIR,UNION TO UNION TRANSMISSION SIDE PTO WO/LEVER(SH5) ISUZU M/T<X9A> (A) L=1339 SERVICED BY L=1370	1-47434-390-0	01	1	9002-		●	●
242	PIPE; AIR,AIR TANK TO UNION L=663 SERVICED BY L=730	1-47437-955-0	01	1	9002-9306	●
242	PIPE; AIR,AIR TANK TO UNION L=656 SERVICED BY L=660	1-47426-409-0	01	1	9307-	●
242	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=662 SERVICED BY L=730	1-47437-955-0	01	1	9002-9306		●	●
242	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=663 SERVICED BY L=700	1-47426-410-0	01	1	9307-		●	●
242	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=956 SERVICED BY L=1000	1-47434-476-0	01	1	9002-9306		●	●
242	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=956 SERVICED BY L=1000	1-47426-414-0	01	1	9307-		●	●
250	PIPE; AIR,UNION TO FLEX HOSE EXC. DUAL AIR GAUGE<UG2> L=1411 SERVICED BY L=1500	1-47434-391-0	01	1	9002-9003	●	●	●
250	PIPE; AIR,UNION TO FLEX HOSE EXC. DUAL AIR GAUGE<UG2> L=1401 SERVICED BY L=1500	1-47434-391-0	01	1	9004-9306	●	●	●
250	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9>,DUAL AIR GAUGE<UG2> L=1401 SERVICED BY L=1500	1-47434-391-0	01	1	9307-9308	●	●	●
250	PIPE; AIR,UNION TO FLEX HOSE TAIWAN EQUIPMENT(WW5) L=1541 SERVICED BY L=1620	1-47426-356-0	01	1	9307-9308	●	●	●
250	PIPE; AIR,UNION TO FLEX HOSE EXC. DUAL AIR GAUGE<UG2> L=1566 SERVICED BY L=1620	1-47426-356-0	01	1	9309-	●	●
250	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) EXC. DUAL AIR GAUGE<UG2> L=1566 SERVICED BY L=1620	1-47426-356-0	01	1	9309-			●
262	PIPE; AIR,UNION TO FLEX AIR DRYER<PS7> L=1099 SERVICED BY L=1100	1-47434-387-0	01	1	9002-	●
262	PIPE; AIR,UNION TO FLEX 12PD1 C ENG(43L) AIR DRYER<PS7> L=1064 SERVICED BY L=1100	1-47426-351-0	01	1	9307-9307		●
262	PIPE; AIR,UNION TO FLEX 12PD1 C ENG(43L) AIR DRYER<PS7> L=1068 SERVICED BY L=1100	1-47426-351-0	01	1	9308-		●
262	PIPE; AIR,UNION TO FLEX 6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> MIXER TRUCK<RA2> L=912 SERVICED BY L=1000	1-47434-386-0	01	1	9002-9306		●
262	PIPE; AIR,UNION TO FLEX 6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> MIXER TRUCK<RA2> L=945 SERVICED BY L=1000	1-47434-386-0	01	1	9002-9306		●
262	PIPE; AIR,UNION TO FLEX 10PD1 STD ENG(40L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=1092 SERVICED BY L=1100	1-47434-387-0	01	1	9002-		●	●
262	PIPE; AIR,UNION TO FLEX 10PD1 STD ENG(40L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=1096 SERVICED BY L=1100	1-47413-555-0	01	1	9002-		●	●
262	PIPE; AIR,UNION TO FLEX 6RB1 STD ENG(07L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. MIXER TRUCK<RA2> L=874 SERVICED BY L=900	1-47434-385-0	01	1	9002-		●	●
262	PIPE; AIR,UNION TO FLEX 6RB1 STD ENG(07L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=930 SERVICED BY L=1000	1-47413-554-0	01	1	9002-		●	●
272	PIPE; AIR,MAG VLV TO UNION 10PD1 STD ENG(40L) (A) L=2838 SERVICED BY L=2900	1-47434-400-0	01	1	9002-9306	●	●	●
272	PIPE; AIR,MAG VLV TO UNION 10PD1 STD ENG(40L),12PD1 C ENG(43L) (A) L=2853 SERVICED BY L=2900	1-47426-364-0	01	1	9307-9308	●	●	●
272	PIPE; AIR,MAG VLV TO UNION 10PD1 STD ENG(40L),12PD1 C ENG(43L) (A) L=2862 SERVICED BY L=2900	1-47426-364-0	01	1	9309-	●	●	●
272	PIPE; AIR,MAG VLV TO UNION 10PD1 STD ENG(40L) GOVERNOR CONTROL<W69> (B) L=332	1-47481-166-1	01	1	9408-	●	●	●
272	PIPE; AIR,MAG VLV TO UNION 6RB1 STD ENG(07L) (A) L=2828 SERVICED BY L=2900	1-47434-400-0	01	1	9002-9306		●	●
272	PIPE; AIR,MAG VLV TO UNION 6RB1 STD ENG(07L) (A) L=2870 SERVICED BY L=2900	1-47426-364-0	01	1	9307-		●	●
272	PIPE; AIR,MAG VLV TO UNION GOVERNOR CONTROL<W69> (B) L=431 SERVICED BY L=460	9-47415-349-0	01	1	9002-9306			●
272	PIPE; AIR,MAG VLV TO UNION GOVERNOR CONTROL<W69> (B) L=431 SERVICED BY L=460	1-47426-342-0	01	1	9307-9407			●
272	PIPE; AIR,MAG VLV TO UNION GOVERNOR CONTROL<W69> L TYPE ENG<90L> (B) L=431 SERVICED BY L=460	1-47426-342-0	01	1	9408-			●
287	PIPE; AIR,MAG VLV (A)	1-47488-299-0	01	1	9002-9306	●	●	●
287	PIPE; AIR,MAG VLV (A)	1-47496-264-0	01	1	9307-	●	●	●
287	PIPE; AIR,MAG VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) AIR DRYER<PS7> (B)	1-47489-509-0	01	1	9002-		●
403	PIPE; AIR,AIR TANK TO MAG VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) L=572 SERVICED BY L=600	9-47415-352-0	01	1	9002-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
