◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51156 - NPR BUS(LHD) ▶ 3 - Brakes, Brake System ▶ 3-01 - FRONT WHEEL BRAKE ▶
3-01 — FRONT WHEEL BRAKE (#33824) — 83 parça

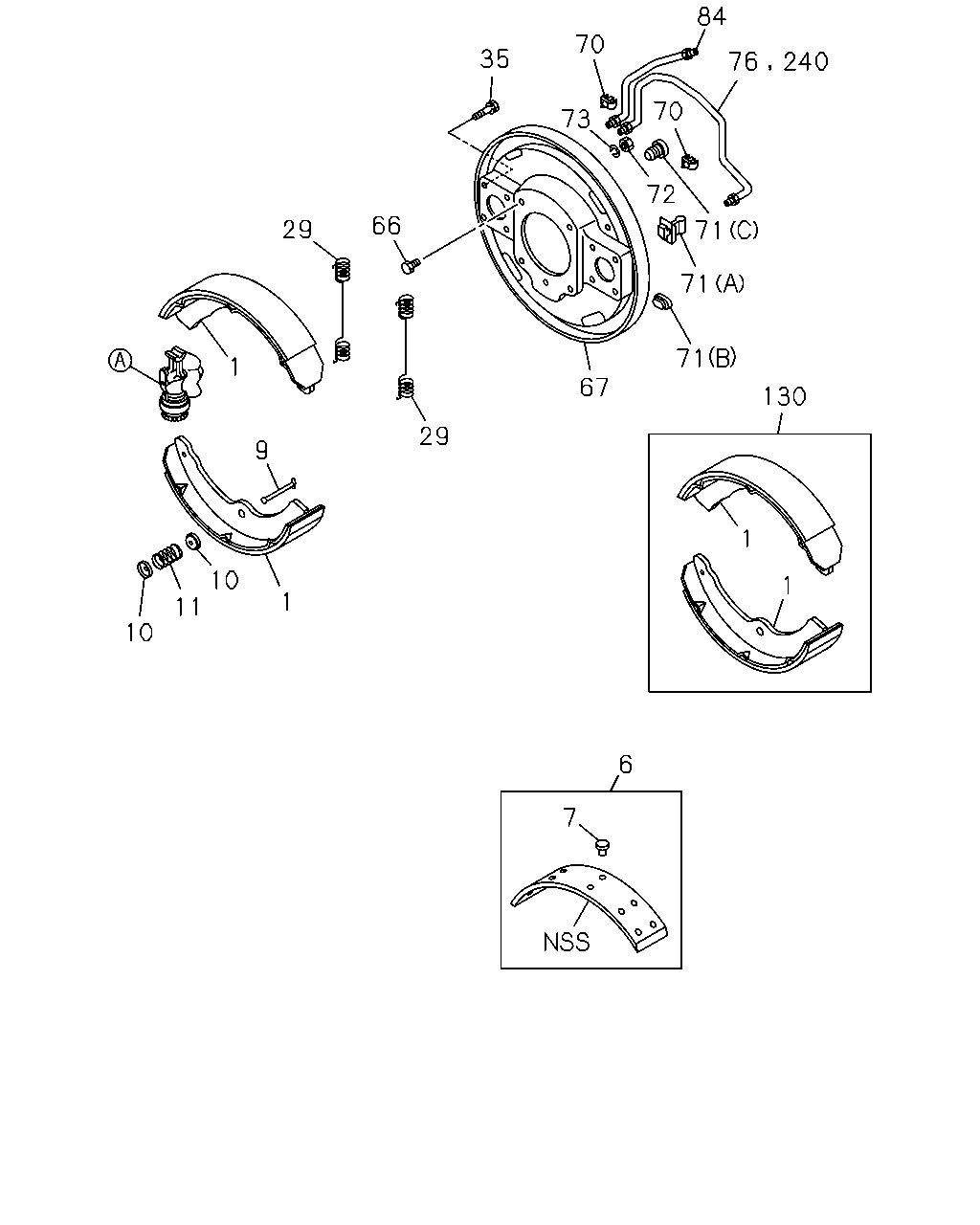

çizim 120566
84 70 35 70 73 72 66 29 71 71 71 1 67 130 29 9 1 10 1 1 11 10 6 7 76 240
BalonParca AdiParca NoAdetTipApplied Date
1 05.017 SHOE; BRK,FRT
G.V.W. 7.0-7.5TON(RPX) 		8-97201-061-0 04 1 0803-
1 05.017 SHOE; BRK,FRT
G.V.W. 7.5-8.0TON(RPY) 		8-97188-455-0 04 1 0803-
6 05.018 LINING KIT; FRT BRK
G.V.W. 7.0-7.5TON(RPX) 		5-87831-774-0 01 1 0803-
6 05.018 LINING KIT; FRT BRK
G.V.W. 7.5-8.0TON(RPY) 		5-87831-692-0 01 1 0803-
6 05.018 LINING KIT; FRT BRK
G.V.W. 7.0-7.5TON(RPX) BEST VALUE PARTS 		5-87610-120-0 01 1 0803-
6 05.018 LINING KIT; FRT BRK
G.V.W. 7.5-8.0TON(RPY) BEST VALUE PARTS 		5-87610-119-0 01 1 0803-
7 05.019 RIVET; LINING,FRT BRK
G.V.W. 7.0-7.5TON(RPX) 		1-09732-029-0 48 1 0803-
7 05.019 RIVET; LINING,FRT BRK
G.V.W. 7.5-8.0TON(RPY) 		1-09732-029-0 64 1 0803-
9 05.026 PIN; SHOE HOLDER
G.V.W. 7.0-7.5TON(RPX) 05.043 		8-97022-089-0 04 1 0803-
9 05.026 PIN; SHOE HOLDER
G.V.W. 7.5-8.0TON(RPY) 05.043 		8-97122-870-0 04 1 0803-
10 05.043 CUP; SHOE HOLDING 9-47165-096-0 08 1 0803-
11 05.027 SPRING; SHOE HOLDING
05.043 		5-09580-101-1 04 1 0803-
29 05.026 SPRING; RETURN,FRT BRK SHOE
G.V.W. 7.0-7.5TON(RPX) 		8-97022-087-0 04 1 0803-
29 05.026 SPRING; RETURN,FRT BRK SHOE
G.V.W. 7.5-8.0TON(RPY) 		8-97122-869-0 04 1 0803-
35 04.665 BOLT; FRT WHEEL CYL 8-97081-305-0 16 1 0803-
66 05.815 BOLT; OIL SHIELD COVER
05.002 M14X40 		8-98007-879-0 08 1 0803-
67 05.001 PLATE; BACK,FRT BRK
G.V.W. 7.0-7.5TON(RPX) 		8-98072-848-0 01 1 0803-
67 05.001 PLATE; BACK,FRT BRK
G.V.W. 7.0-7.5TON(RPX) 		8-98072-847-0 01 1 0803-
67 05.001 PLATE; BACK,FRT BRK
G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) EXC. TAIWAN EQUIPMENT(B04) 		8-97160-411-0 01 1 0803-
67 05.001 PLATE; BACK,FRT BRK
G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) EXC. TAIWAN EQUIPMENT(B04) 		8-97160-410-0 01 1 0803-
67 05.001 PLATE; BACK,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. TAIWAN EQUIPMENT(B04),HYDRO BRAKE BOOSTER(7QQ) 		8-97122-859-0 01 1 0803-
67 05.001 PLATE; BACK,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. TAIWAN EQUIPMENT(B04),HYDRO BRAKE BOOSTER(7QQ) 		8-97122-858-0 01 1 0803-
67 05.001 PLATE; BACK,FRT BRK
TAIWAN EQUIPMENT(B04) G.V.W. 7.5-8.0TON(RPY) 		8-98077-949-0 01 1 0803-
67 05.001 PLATE; BACK,FRT BRK
TAIWAN EQUIPMENT(B04) G.V.W. 7.5-8.0TON(RPY) 		8-98077-948-0 01 1 0803-
70 04.685 CLIP; PIPE HOLD 8-97022-086-0 04 1 0803-
71 05.002 GROMMET; CHECK HOLE
G.V.W. 7.0-7.5TON(RPX) (B) 		8-97017-507-0 02 1 0803-
71 05.002 GROMMET; CHECK HOLE
G.V.W. 7.5-8.0TON(RPY) EXC. TAIWAN EQUIPMENT(B04) (B) 		8-97017-507-0 02 1 0803-
71 05.002 GROMMET; CHECK HOLE
G.V.W. 7.0-7.5TON(RPX) (A) 		8-97044-742-1 04 1 0803-
71 05.002 GROMMET; CHECK HOLE
G.V.W. 7.5-8.0TON(RPY) EXC. TAIWAN EQUIPMENT(B04) (A) 		8-97044-742-1 04 1 0803-
71 05.002 GROMMET; CHECK HOLE
TAIWAN EQUIPMENT(B04) G.V.W. 7.5-8.0TON(RPY) 04.670 (C) 		1-47154-008-0 04 1 0803-
71 05.002 GROMMET; CHECK HOLE
TAIWAN EQUIPMENT(B04) G.V.W. 7.5-8.0TON(RPY) (B) 		8-97017-507-0 08 1 0803-
72 05.815 NUT; OIL SHIELD COVER
07.833 M14 		0-91110-514-0 08 1 0803-
73 05.815 WASHER; LK,OIL SHIELD COVER
06.174 ID=14.2 		0-91510-814-0 08 1 0803-
76 04.685 PIPE; OIL,BACKWARD,FRT BRK
G.V.W. 7.0-7.5TON(RPX) 		8-97079-847-0 02 1 0803-
76 04.685 PIPE; OIL,BACKWARD,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. TAIWAN EQUIPMENT(B04) 		8-97079-847-0 02 1 0803-
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE 8-97039-677-0 01 1 0803-
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE 8-97039-676-0 01 1 0803-
130 05.017 SHOE KIT; BRK,FRT
G.V.W. 7.0-7.5TON(RPX) 		5-87831-775-0 01 1 0803-
130 05.017 SHOE KIT; BRK,FRT
G.V.W. 7.5-8.0TON(RPY) 		5-87831-693-0 01 1 0803-
240 04.685 PIPE; OIL,FRT BRK
TAIWAN EQUIPMENT(B04) G.V.W. 7.5-8.0TON(RPY) 		8-97079-847-0 02 1 0803-
çizim 120567
15 15 17 16 17 16 18 255 302 19 24 254 253 24 25 25 252 26
BalonParca AdiParca NoAdetTipApplied Date
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.0-7.5TON(RPX) (A) REAR 		8-97139-819-0 01 1 0803-
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.0-7.5TON(RPX) (A) FRONT 		8-97139-821-0 01 1 0803-
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.0-7.5TON(RPX) (A) REAR 		8-97139-818-0 01 1 0803-
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.0-7.5TON(RPX) (A) FRONT 		8-97139-820-0 01 1 0803-
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) EXC. TAIWAN EQUIPMENT(B04) (A) FRONT 		8-97353-574-0 01 1 0803-
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) EXC. TAIWAN EQUIPMENT(B04) (A) REAR 		8-97353-576-0 01 1 0803-
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) EXC. TAIWAN EQUIPMENT(B04) (A) FRONT 		8-97353-573-0 01 1 0803-
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) EXC. TAIWAN EQUIPMENT(B04) (A) REAR 		8-97353-575-0 01 1 0803-
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. TAIWAN EQUIPMENT(B04),HYDRO BRAKE BOOSTER(7QQ) (A) REAR 		8-97144-796-0 01 1 0803-
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. TAIWAN EQUIPMENT(B04),HYDRO BRAKE BOOSTER(7QQ) (A) FRONT 		8-97144-798-0 01 1 0803-
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. TAIWAN EQUIPMENT(B04),HYDRO BRAKE BOOSTER(7QQ) (A) REAR 		8-97144-795-0 01 1 0803-
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. TAIWAN EQUIPMENT(B04),HYDRO BRAKE BOOSTER(7QQ) (A) FRONT 		8-97144-797-0 01 1 0803-
15 04.665 CYLINDER; WHEEL,FRT BRK
TAIWAN EQUIPMENT(B04) G.V.W. 7.5-8.0TON(RPY) (B) FRONT 		8-98081-291-0 01 1 0803-
15 04.665 CYLINDER; WHEEL,FRT BRK
TAIWAN EQUIPMENT(B04) G.V.W. 7.5-8.0TON(RPY) (B) REAR 		8-98081-293-0 01 1 0803-
15 04.665 CYLINDER; WHEEL,FRT BRK
TAIWAN EQUIPMENT(B04) G.V.W. 7.5-8.0TON(RPY) (B) FRONT 		8-98081-290-0 01 1 0803-
15 04.665 CYLINDER; WHEEL,FRT BRK
TAIWAN EQUIPMENT(B04) G.V.W. 7.5-8.0TON(RPY) (B) REAR 		8-98081-292-0 01 1 0803-
16 04.666 SCREW; BLEEDER,FRT BRK
G.V.W. 7.0-7.5TON(RPX) 		8-98050-476-0 02 1 0803-
16 04.666 SCREW; BLEEDER,FRT BRK
G.V.W. 7.5-8.0TON(RPY) 		8-98050-477-0 02 1 0803-
17 04.666 CAP; BLEEDER,FRT WHEEL CYL 8-98050-479-0 02 1 0803-
18 05.107 STOPPER; ADJ SCREW
G.V.W. 7.0-7.5TON(RPX) 		8-94128-486-0 04 1 0803-
18 05.107 STOPPER; ADJ SCREW
G.V.W. 7.5-8.0TON(RPY) EXC. TAIWAN EQUIPMENT(B04) 		8-94128-486-0 04 1 0803-
19 05.107 SCREW; STOPPER SETTING
G.V.W. 7.0-7.5TON(RPX) 		8-94128-727-0 04 1 0803-
19 05.107 SCREW; STOPPER SETTING
G.V.W. 7.5-8.0TON(RPY) EXC. TAIWAN EQUIPMENT(B04) 		8-94128-727-0 04 1 0803-
24 04.668 PISTON; FRT WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) 		8-94414-700-1 04 1 0803-
24 04.668 PISTON; FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. TAIWAN EQUIPMENT(B04),HYDRO BRAKE BOOSTER(7QQ) 		8-94414-700-1 04 1 0803-
24 04.668 PISTON; FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) EXC. TAIWAN EQUIPMENT(B04) 		8-97353-579-0 04 1 0803-
24 04.668 PISTON; FRT WHEEL CYL
TAIWAN EQUIPMENT(B04) G.V.W. 7.5-8.0TON(RPY) 		8-97349-731-0 02 1 0803-
24 04.668 PISTON; FRT WHEEL CYL
TAIWAN EQUIPMENT(B04) G.V.W. 7.5-8.0TON(RPY) 		8-97349-732-0 02 1 0803-
25 05.110 SCREW; ADJ,FRT WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) 04.666 		8-94414-702-0 04 1 0803-
25 05.110 SCREW; ADJ,FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. TAIWAN EQUIPMENT(B04) 04.666 		8-94414-702-0 04 1 0803-
25 05.110 SCREW; ADJ,FRT WHEEL CYL
TAIWAN EQUIPMENT(B04) G.V.W. 7.5-8.0TON(RPY) 04.666 		8-97349-741-0 02 1 0803-
25 05.110 SCREW; ADJ,FRT WHEEL CYL
TAIWAN EQUIPMENT(B04) G.V.W. 7.5-8.0TON(RPY) 04.666 		8-97349-742-0 02 1 0803-
26 04.667 CUP SET; FRT WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) 04.665 		5-87831-598-0 01 1 0803-
26 04.667 CUP SET; FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. TAIWAN EQUIPMENT(B04),HYDRO BRAKE BOOSTER(7QQ) 04.665 		5-87831-598-0 01 1 0803-
26 04.667 CUP SET; FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) EXC. TAIWAN EQUIPMENT(B04) 04.665 		5-87832-080-0 01 1 0803-
26 04.667 CUP SET; FRT WHEEL CYL
TAIWAN EQUIPMENT(B04) G.V.W. 7.5-8.0TON(RPY) 04.665 		5-87832-051-0 01 1 0803-
252 04.665 GEAR; ADJ,FRT WHEEL CYL
TAIWAN EQUIPMENT(B04) G.V.W. 7.5-8.0TON(RPY) 		8-97358-894-0 02 1 0803-
252 04.665 GEAR; ADJ,FRT WHEEL CYL
TAIWAN EQUIPMENT(B04) G.V.W. 7.5-8.0TON(RPY) 		8-97358-895-0 02 1 0803-
253 04.665 WASHER; THRUST
TAIWAN EQUIPMENT(B04) G.V.W. 7.5-8.0TON(RPY) 05.110 		8-97349-736-0 04 1 0803-
254 04.665 SPRING; ADJ LEVER
TAIWAN EQUIPMENT(B04) G.V.W. 7.5-8.0TON(RPY) 05.107 		8-97349-745-0 04 1 0803-
255 04.665 LEVER; ADJ
TAIWAN EQUIPMENT(B04) G.V.W. 7.5-8.0TON(RPY) 05.103 		8-97349-743-0 02 1 0803-
255 04.665 LEVER; ADJ
TAIWAN EQUIPMENT(B04) G.V.W. 7.5-8.0TON(RPY) 05.103 		8-97349-744-0 02 1 0803-
302 04.665 SCREW; ADJ LEVER
TAIWAN EQUIPMENT(B04) G.V.W. 7.5-8.0TON(RPY) 04.666 		8-97349-747-0 04 1 0803-
