Sayfa 2-53 - Isuzu EPC

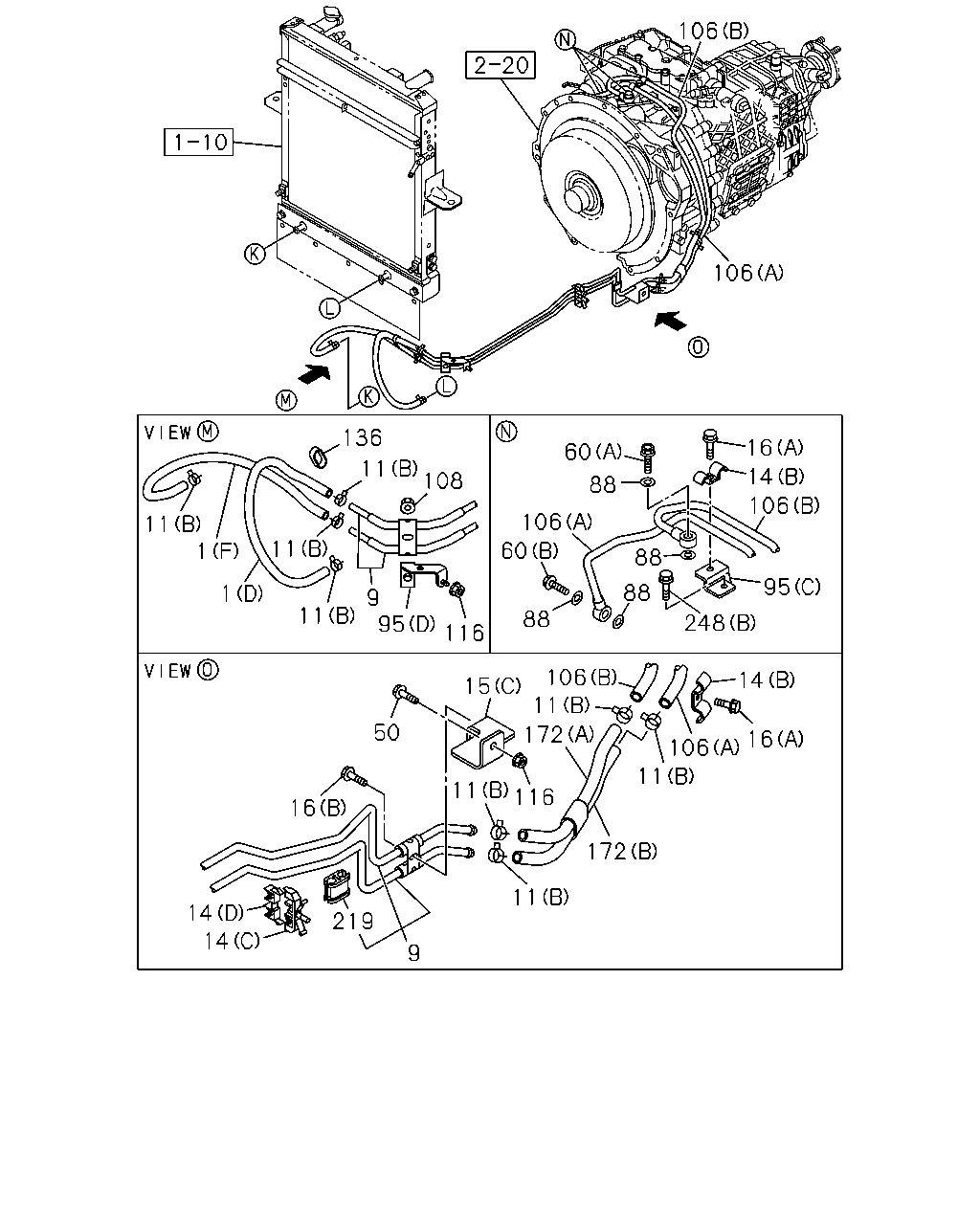

2-53 — TRANSMISSION OIL COOLER SYSTEM (#33823) — 136 parça

106 106 136 16 60 11 108 14 88 106 106 11 1 11 60 88 95 88 1 9 95 11 88 248 116 106 11 14 15 50 16 106 11 11 116 16 1 11 14 14 219 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98041-422-2	01	1	0803-	●	●
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98041-423-2	01	1	0803-0810	●	●
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98041-425-2	01	1	0803-	●	●
1	04.128 HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98086-370-0	01	1	0803-0906	●	●
1	04.128 HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98086-377-0	01	1	0803-0810	●	●
1	04.128 HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98086-374-0	01	1	0811-0906	●	●
1	04.128 HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98086-380-0	02	1	0803-0906	●	●
9	04.128 PIPE; ATF,INL,A/T FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98092-312-2	01	1	0803-0810	●	●
9	04.128 PIPE; ATF,INL,A/T FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98135-507-0	01	1	0811-0903	●	●
9	04.128 PIPE; ATF,INL,A/T FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98140-324-0	01	1	0904-1402	●	●
9	04.128 PIPE; ATF,INL,A/T FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98207-455-0	01	1	1403-	●	●
9	04.128 PIPE; ATF,INL,A/T TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98057-610-0	01	1	0803-0810	●	●
9	04.128 PIPE; ATF,INL,A/T TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98135-505-0	01	1	0811-0906	●	●
11	04.128 CLIP; PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.097 (B) ID=16	8-97329-628-0	08	1	0803-	●	●
11	04.128 CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 06.672 (A) ID=10X2 H=22	8-94252-455-2	01	1	0803-0906	●	●
11	04.128 CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.097 (B) ID=16	8-97329-628-0	12	1	0803-0906	●	●
14	04.128 CLIP; PIPE TO ENG SIDE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.930 (D) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0803-	●	●
14	04.128 CLIP; PIPE TO ENG SIDE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.686 (C) ID=10 & 4.76X3	8-97326-158-1	01	1	0803-	●	●
14	04.128 CLIP; PIPE TO ENG SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) 00.854 (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	0803-	●	●
14	04.128 CLIP; PIPE TO ENG SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	0803-0906	●	●
15	04.128 BRACKET; ATF PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98041-180-3	01	1	0803-	●	●
15	04.128 BRACKET; ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98035-763-0	01	1	0803-0906	●	●
15	04.128 BRACKET; ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98035-764-0	02	1	0803-0906	●	●
16	04.128 BOLT; CLIP,ENG SIDE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	0803-	●	●
16	04.128 BOLT; CLIP,ENG SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0803-	●	●
50	04.128 BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0803-0906	●	●
50	04.128 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0907-	●	●
60	04.128 BOLT; EYE,ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.855 (B) M14X30 EYE-BOLT	1-09675-146-0	01	1	0803-0805	●	●
60	04.128 BOLT; EYE,ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-	●	●
60	04.128 BOLT; EYE,ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M14X35.5 EYE-BOLT	8-98060-382-0	01	1	0803-	●	●
88	04.128 GASKET; EYE BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) 08.955 ID=14.2 OD=20.0	9-09571-414-0	04	1	0803-	●	●
95	04.128 BRACKET; CLIP FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98033-840-5	01	1	0803-	●	●
95	04.128 BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97349-876-0	01	1	0803-	●	●
95	04.128 BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98035-762-0	01	1	0803-0906	●	●
95	04.128 BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98057-619-0	01	1	0803-0906	●	●
106	04.128 PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98094-577-0	01	1	0803-	●
106	04.128 PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98035-638-0	01	1	0803-	●	●
106	04.128 PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98017-110-0	01	1	0803-		●
108	04.128 NUT; PIPE CLIP FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M6 FLANGE	0-91180-106-0	01	1	0803-	●	●
116	04.128 NUT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	02	1	0803-	●	●
136	04.128 CLIP; FLEX HOSE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 02.559 L=250	5-09707-030-1	01	1	0803-	●	●
219	04.128 CLIP; ATF PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 ID=10X2 H=22	8-94252-455-2	01	1	0803-1402	●	●
219	04.128 CLIP; ATF PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 ID=10X2 H=22	8-94252-455-2	02	1	1403-	●	●
248	04.128 BOLT; RETAINER TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0803-	●	●
248	04.128 BOLT; RETAINER TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0803-0906	●	●

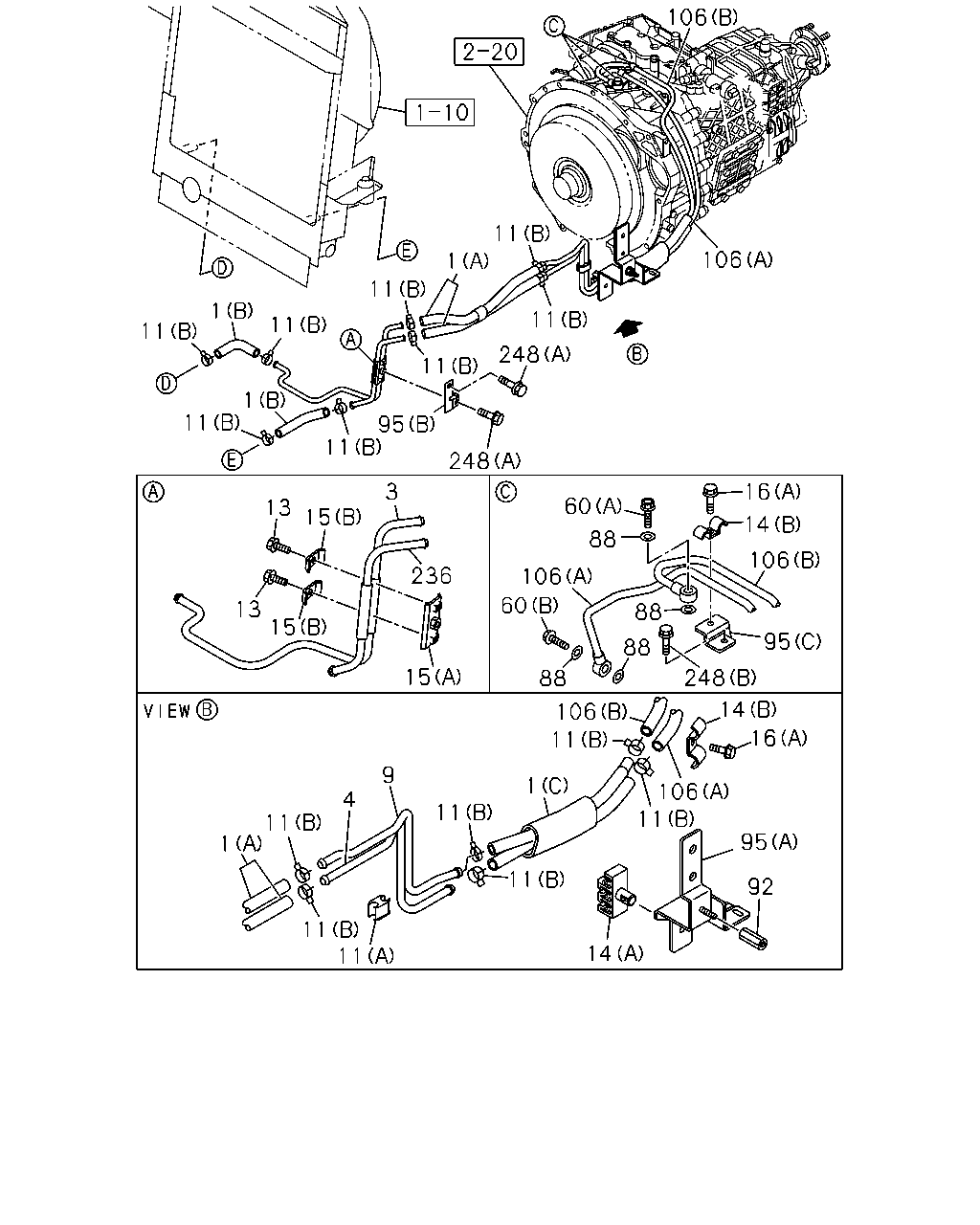

106 11 106 1 11 1 11 11 11 248 11 1 11 95 11 248 3 16 60 13 15 14 88 106 236 106 60 13 88 15 95 88 15 248 88 14 106 11 16 9 1 106 11 4 11 11 95 1 11 92 11 11 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98041-422-2	01	1	0803-	●	●
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98041-423-2	01	1	0803-0810	●	●
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98041-425-2	01	1	0803-	●	●
1	04.128 HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98086-370-0	01	1	0803-0906	●	●
1	04.128 HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98086-377-0	01	1	0803-0810	●	●
1	04.128 HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98086-374-0	01	1	0811-0906	●	●
1	04.128 HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98086-380-0	02	1	0803-0906	●	●
3	04.128 PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98006-093-1	01	1	0803-0906	●	●
4	04.128 PIPE; ATF,OUTLET,A/T TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98081-268-0	01	1	0803-0810	●	●
4	04.128 PIPE; ATF,OUTLET,A/T TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98135-506-0	01	1	0811-0906	●	●
9	04.128 PIPE; ATF,INL,A/T FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98092-312-2	01	1	0803-0810	●	●
9	04.128 PIPE; ATF,INL,A/T FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98135-507-0	01	1	0811-0903	●	●
9	04.128 PIPE; ATF,INL,A/T FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98140-324-0	01	1	0904-1402	●	●
9	04.128 PIPE; ATF,INL,A/T FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98207-455-0	01	1	1403-	●	●
9	04.128 PIPE; ATF,INL,A/T TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98057-610-0	01	1	0803-0810	●	●
9	04.128 PIPE; ATF,INL,A/T TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98135-505-0	01	1	0811-0906	●	●
11	04.128 CLIP; PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.097 (B) ID=16	8-97329-628-0	08	1	0803-	●	●
11	04.128 CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 06.672 (A) ID=10X2 H=22	8-94252-455-2	01	1	0803-0906	●	●
11	04.128 CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.097 (B) ID=16	8-97329-628-0	12	1	0803-0906	●	●
13	04.128 BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> M6X25 W/LK WASHER	0-50540-625-0	02	1	0803-0906	●	●
14	04.128 CLIP; PIPE TO ENG SIDE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.930 (D) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0803-	●	●
14	04.128 CLIP; PIPE TO ENG SIDE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.686 (C) ID=10 & 4.76X3	8-97326-158-1	01	1	0803-	●	●
14	04.128 CLIP; PIPE TO ENG SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) 00.854 (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	0803-	●	●
14	04.128 CLIP; PIPE TO ENG SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	0803-0906	●	●
15	04.128 BRACKET; ATF PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98041-180-3	01	1	0803-	●	●
15	04.128 BRACKET; ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98035-763-0	01	1	0803-0906	●	●
15	04.128 BRACKET; ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98035-764-0	02	1	0803-0906	●	●
16	04.128 BOLT; CLIP,ENG SIDE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	0803-	●	●
16	04.128 BOLT; CLIP,ENG SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0803-	●	●
60	04.128 BOLT; EYE,ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.855 (B) M14X30 EYE-BOLT	1-09675-146-0	01	1	0803-0805	●	●
60	04.128 BOLT; EYE,ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-	●	●
60	04.128 BOLT; EYE,ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M14X35.5 EYE-BOLT	8-98060-382-0	01	1	0803-	●	●
88	04.128 GASKET; EYE BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) 08.955 ID=14.2 OD=20.0	9-09571-414-0	04	1	0803-	●	●
92	04.128 NUT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 00.837 M10	8-98034-487-0	01	1	0803-0906	●	●
95	04.128 BRACKET; CLIP FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98033-840-5	01	1	0803-	●	●
95	04.128 BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97349-876-0	01	1	0803-	●	●
95	04.128 BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98035-762-0	01	1	0803-0906	●	●
95	04.128 BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98057-619-0	01	1	0803-0906	●	●
106	04.128 PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98094-577-0	01	1	0803-	●
106	04.128 PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98035-638-0	01	1	0803-	●	●
106	04.128 PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98017-110-0	01	1	0803-		●
236	04.128 PIPE; OIL,OIL COOLER TO A/T TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98006-094-1	01	1	0803-0906	●	●
248	04.128 BOLT; RETAINER TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0803-	●	●
248	04.128 BOLT; RETAINER TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0803-0906	●	●

106 106 136 16 60 11 108 14 88 106 106 11 1 11 60 88 95 88 1 9 95 11 88 248 116 106 11 14 15 50 172 16 106 11 11 116 16 172 11 14 14 219 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98041-422-2	01	1	0803-	●	●
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98041-423-2	01	1	0803-0810	●	●
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98041-425-2	01	1	0803-	●	●
1	04.128 HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98086-370-0	01	1	0803-0906	●	●
1	04.128 HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98086-377-0	01	1	0803-0810	●	●
1	04.128 HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98086-374-0	01	1	0811-0906	●	●
1	04.128 HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98086-380-0	02	1	0803-0906	●	●
9	04.128 PIPE; ATF,INL,A/T FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98092-312-2	01	1	0803-0810	●	●
9	04.128 PIPE; ATF,INL,A/T FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98135-507-0	01	1	0811-0903	●	●
9	04.128 PIPE; ATF,INL,A/T FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98140-324-0	01	1	0904-1402	●	●
9	04.128 PIPE; ATF,INL,A/T FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98207-455-0	01	1	1403-	●	●
9	04.128 PIPE; ATF,INL,A/T TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98057-610-0	01	1	0803-0810	●	●
9	04.128 PIPE; ATF,INL,A/T TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98135-505-0	01	1	0811-0906	●	●
11	04.128 CLIP; PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.097 (B) ID=16	8-97329-628-0	08	1	0803-	●	●
11	04.128 CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 06.672 (A) ID=10X2 H=22	8-94252-455-2	01	1	0803-0906	●	●
11	04.128 CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.097 (B) ID=16	8-97329-628-0	12	1	0803-0906	●	●
14	04.128 CLIP; PIPE TO ENG SIDE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.930 (D) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0803-	●	●
14	04.128 CLIP; PIPE TO ENG SIDE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.686 (C) ID=10 & 4.76X3	8-97326-158-1	01	1	0803-	●	●
14	04.128 CLIP; PIPE TO ENG SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) 00.854 (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	0803-	●	●
14	04.128 CLIP; PIPE TO ENG SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	0803-0906	●	●
15	04.128 BRACKET; ATF PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98041-180-3	01	1	0803-	●	●
15	04.128 BRACKET; ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98035-763-0	01	1	0803-0906	●	●
15	04.128 BRACKET; ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98035-764-0	02	1	0803-0906	●	●
16	04.128 BOLT; CLIP,ENG SIDE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	0803-	●	●
16	04.128 BOLT; CLIP,ENG SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0803-	●	●
50	04.128 BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0803-0906	●	●
50	04.128 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0907-	●	●
60	04.128 BOLT; EYE,ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.855 (B) M14X30 EYE-BOLT	1-09675-146-0	01	1	0803-0805	●	●
60	04.128 BOLT; EYE,ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-	●	●
60	04.128 BOLT; EYE,ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M14X35.5 EYE-BOLT	8-98060-382-0	01	1	0803-	●	●
88	04.128 GASKET; EYE BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) 08.955 ID=14.2 OD=20.0	9-09571-414-0	04	1	0803-	●	●
95	04.128 BRACKET; CLIP FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98033-840-5	01	1	0803-	●	●
95	04.128 BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97349-876-0	01	1	0803-	●	●
95	04.128 BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98035-762-0	01	1	0803-0906	●	●
95	04.128 BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98057-619-0	01	1	0803-0906	●	●
106	04.128 PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98094-577-0	01	1	0803-	●
106	04.128 PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98035-638-0	01	1	0803-	●	●
106	04.128 PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98017-110-0	01	1	0803-		●
108	04.128 NUT; PIPE CLIP FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M6 FLANGE	0-91180-106-0	01	1	0803-	●	●
116	04.128 NUT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	02	1	0803-	●	●
136	04.128 CLIP; FLEX HOSE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 02.559 L=250	5-09707-030-1	01	1	0803-	●	●
172	04.128 HOSE; FLEX,ATF FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98135-562-0	01	1	0811-	●	●
172	04.128 HOSE; FLEX,ATF FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98135-563-0	01	1	0811-	●	●
219	04.128 CLIP; ATF PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 ID=10X2 H=22	8-94252-455-2	01	1	0803-1402	●	●
219	04.128 CLIP; ATF PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 ID=10X2 H=22	8-94252-455-2	02	1	1403-	●	●
248	04.128 BOLT; RETAINER TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0803-	●	●
248	04.128 BOLT; RETAINER TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0803-0906	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
