Isuzu WW
▶
TRUCKS
▶
NPR
▶
51156 - NPR BUS(LHD)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE
▶

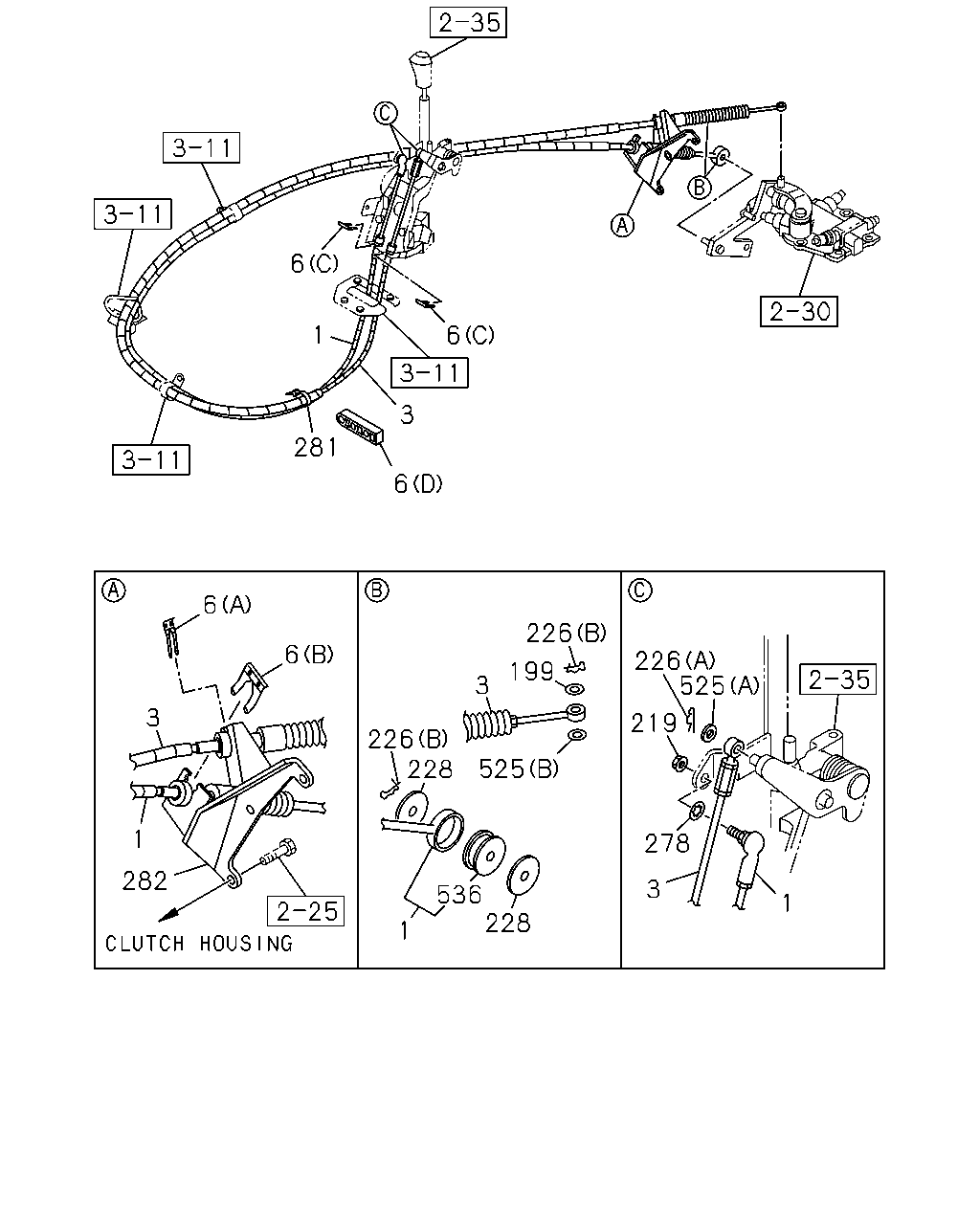

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE
(#33820) — 22 parça
Tümü
A - M/T MZZ6F
B - M/T MYY6S
6
1
6
3
281
6
6
226
6
226
525
199
3
3
219
226
228
525
1
278
282
3
536
228
1
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
00.854 CABLE; SHIFT,TRANS CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3140
8-98025-440-3
01
1
0803-0911
●
1
00.854 CABLE; SHIFT,TRANS CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3140
8-98146-879-0
01
1
0912-
●
1
00.854 CABLE; SHIFT,TRANS CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3115
8-98025-439-3
01
1
0803-0911
●
1
00.854 CABLE; SHIFT,TRANS CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3115
8-98146-878-0
01
1
0912-
●
3
00.852 CABLE; SELECT,TRANS CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3279
8-98025-446-5
01
1
0803-
●
3
00.852 CABLE; SELECT,TRANS CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3247
8-98025-445-4
01
1
0803-
●
6
04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.854 (A) ID=22.2
1-09701-209-1
01
1
0803-
●
●
6
04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)
8-97011-448-0
02
1
0803-
●
●
6
04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.008 (D)
8-97093-491-1
01
1
0803-
●
●
6
04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=19.2
8-97211-011-0
01
1
0803-
●
●
199
04.012 WASHER; PL,SELECT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.417 ID=8.4 OD=16
0-91610-508-0
01
1
0803-
●
●
219
04.047 NUT; FLANGE,SHAFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.037 M8 T=8.0
8-94363-045-0
01
1
0803-
●
●
226
04.047 PIN; SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (A) L=27.7
8-94111-137-0
01
1
0803-
●
●
226
04.047 PIN; SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=23
8-94170-378-0
02
1
0803-
●
●
228
04.047 WASHER; PL,SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=8.2 OD=40
8-97182-975-0
02
1
0803-
●
●
278
00.854 WASHER; LK,SHIFT WIRE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=8.4 TOOTH LK INT
0-91541-208-0
01
1
0803-
●
●
281
04.042 CLIP; BAND
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 L=140
5-09707-031-1
01
1
0803-
●
●
282
04.010 BRACKET; TRANS SIDE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98032-396-2
01
1
0803-
●
282
04.010 BRACKET; TRANS SIDE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98032-395-1
01
1
0803-
●
525
04.047 WASHER; SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 06.056 (A) ID=8.4 OD=16
0-91614-508-0
01
1
0803-
●
●
525
04.047 WASHER; SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.854 (B) ID=8.4 OD=14
5-09550-002-0
01
1
0803-
●
●
536
00.854 DAMPER; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98097-681-0
01
1
0803-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
