Sayfa 3-58 - Isuzu EPC

3-58 — FIXING PARTS; OIL PIPING (#3382) — 312 parça

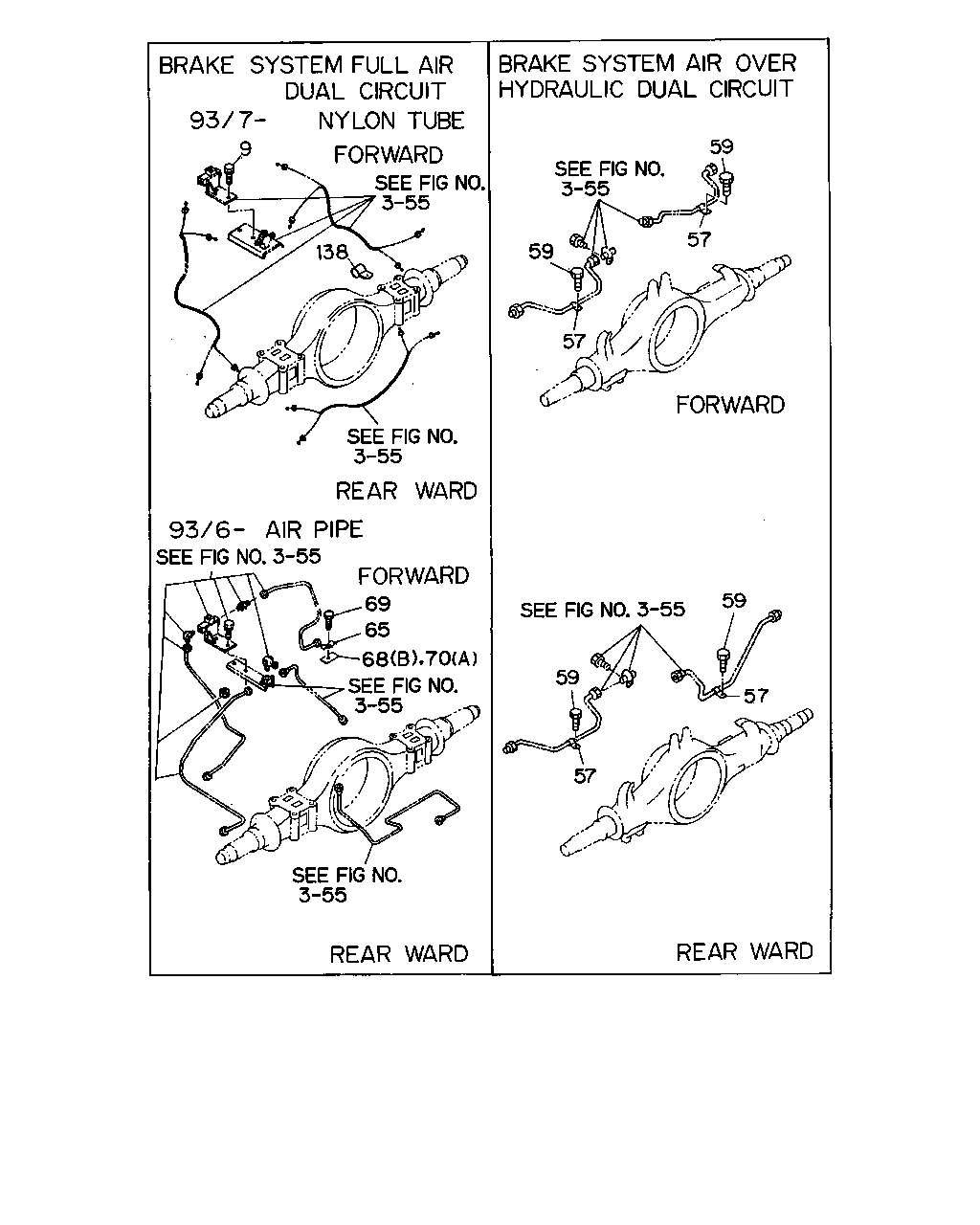

9 138 69 68 70 57 59 57 59 57 57 59 59 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	BOLT; BRKT M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204	●
9	BOLT; BRKT M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302	●
9	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9303-	●
9	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 W/LK WASHER	9-01900-835-0	02	1	9002-9204		●	●
9	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 W/LK WASHER	0-50040-835-0	02	1	9205-9302		●	●
9	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28080-835-0	02	1	9303-		●	●
9	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 FLANGE	0-28080-816-0	02	1	9307-		●	●
57	CLIP; BRK PIPE,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=7 L=20	9-09524-635-0	04	1	9002-	●	●	●
57	CLIP; BRK PIPE,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=7 L=20	9-09524-635-0	03	1	9002-		●	●
59	BOLT; BRK PIPE,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X12 W/LK WASHER	9-01900-812-0	04	1	9002-9010	●	●	●
59	BOLT; BRK PIPE,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X12 W/LK WASHER	9-01900-812-0	03	1	9002-9010		●	●
59	BOLT; BRK PIPE,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X12 W/LK WASHER	0-50040-812-0	04	1	9011-	●	●	●
59	BOLT; BRK PIPE,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X12 W/LK WASHER	0-50040-812-0	03	1	9011-		●	●
65	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) ID=11 & 13 L=15 & 16	1-09700-670-0	01	1	9002-9306		●	●
68	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47475-427-1	01	1	9002-		●
68	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) M8 W/NUT	1-47475-729-0	01	1	9002-9007		●	●
68	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) L=50	1-47475-299-2	01	1	9008-9306		●	●
68	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47475-427-1	03	1	9002-			●
69	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8X16 W/LK WASHER	9-01910-816-0	01	1	9002-9005		●	●
69	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8X16 W/LK WASHER	0-50040-816-0	01	1	9006-9306		●	●
69	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X12 W/LK WASHER	0-50040-812-0	03	1	9307-		●	●
70	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=50	1-47475-299-2	01	1	9002-9005	●	●	●
70	BRACKET; CLIP (A) L=50	1-47475-299-2	01	1	9006-9306	●	●	●
70	BRACKET; CLIP 6RB1 STD ENG(07L),10PD1 STD ENG(40L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47475-427-1	03	1	9002-	●	●	●
70	BRACKET; CLIP 12PD1 C ENG(43L) (B)	1-47475-427-1	01	1	9307-		●
70	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8 W/NUT	1-47475-729-0	01	1	9002-9005		●	●
70	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) M8 W/NUT	1-47475-729-0	02	1	9002-9007		●	●
70	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) L=50	1-47475-299-2	02	1	9008-9306		●	●
138	CLIP; TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=25 L=50	1-09701-019-0	01	1	9307-		●	●

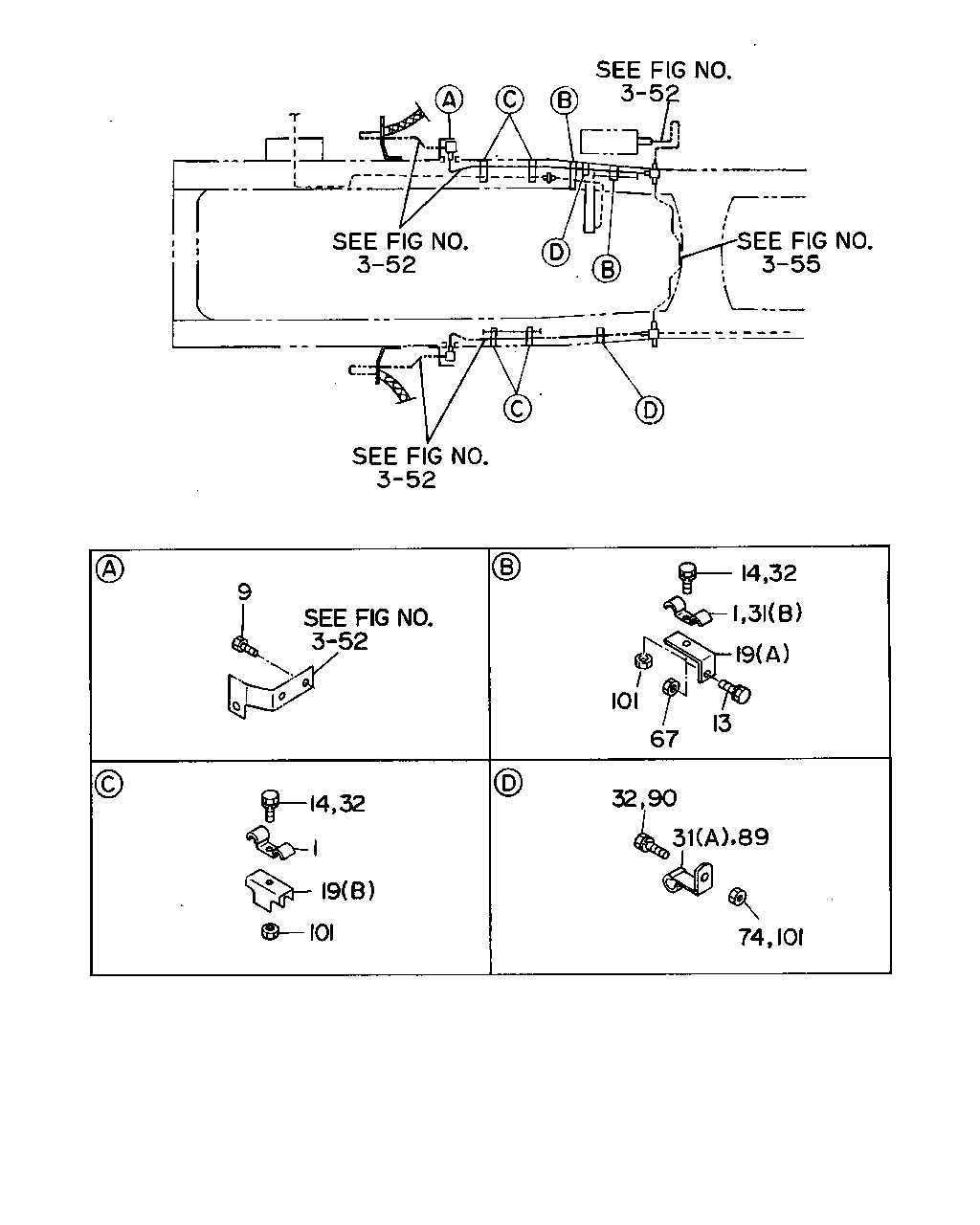

9 14 32 1 19 101 14 32 19 31 1 101 67 13 32 90 31 89 74 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CLIP; OIL PIPE TO BODY ID=9 & 7 L=15 & 15	1-09700-653-0	02	1	9307-	●
1	CLIP; OIL PIPE TO BODY 6RB1 STD ENG(07L),10PD1 STD ENG(40L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=9 & 7 L=15 & 15	1-09700-653-0	02	1	9307-		●	●
1	CLIP; OIL PIPE TO BODY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=7 & 7 L=15 & 15	1-09700-652-0	01	1	9002-	●	●	●
1	CLIP; OIL PIPE TO BODY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=9 & 7 L=15 & 15	1-09700-653-0	02	1	9002-9306	●	●	●
1	CLIP; OIL PIPE TO BODY 12PD1 C ENG(43L) ID=9 & 7 L=15 & 15	1-09700-653-0	01	1	9307-		●
9	BOLT; BRKT M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204	●
9	BOLT; BRKT M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302	●
9	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9303-	●
9	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 W/LK WASHER	9-01900-835-0	02	1	9002-9204		●	●
9	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 W/LK WASHER	0-50040-835-0	02	1	9205-9302		●	●
9	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28080-835-0	02	1	9303-		●	●
9	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 FLANGE	0-28080-816-0	02	1	9307-		●	●
13	BOLT; BRKT,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 W/LK WASHER	9-01910-825-0	01	1	9002-9005	●	●	●
13	BOLT; BRKT,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 W/LK WASHER	0-50040-825-0	01	1	9006-9302	●	●	●
13	BOLT; BRKT,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28080-825-0	01	1	9303-	●	●	●
14	BOLT; CLIP,OIL PIPE M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204	●
14	BOLT; CLIP,OIL PIPE M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302	●
14	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	02	1	9303-	●
14	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X45 W/LK WASHER	9-01900-845-0	03	1	9002-9204	●	●	●
14	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X45 W/LK WASHER	0-50040-845-0	03	1	9205-9302	●	●	●
14	BOLT; CLIP,OIL PIPE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X50 FLANGE	0-28080-850-0	03	1	9303-	●	●	●
14	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 W/LK WASHER	0-50040-816-0	01	1	9307-	●	●	●
14	BOLT; CLIP,OIL PIPE 12PD1 C ENG(43L) M8X50 W/LK WASHER	0-50040-850-0	01	1	9307-		●
19	BRACKET; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=55	1-47475-304-0	01	1	9002-	●	●	●
19	BRACKET; OIL PIPE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47475-427-1	02	1	9002-	●	●	●
19	BRACKET; OIL PIPE 12PD1 C ENG(43L) (B)	1-47475-427-1	01	1	9307-		●
31	CLIP; OIL PIPE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9002-	●
31	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9002-			●
31	CLIP; OIL PIPE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=7 & 7 L=15 & 15	1-09700-652-0	03	1	9002-	●	●	●
31	CLIP; OIL PIPE 12PD1 C ENG(43L) (B) ID=7 & 7 L=15 & 15	1-09700-652-0	01	1	9307-		●
32	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28010-825-0	01	1	9002-9204	●
32	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	01	1	9205-	●
32	BOLT; CLIP,OIL PIPE M8X45 W/LK WASHER	9-01900-845-0	01	1	9002-9204	●
32	BOLT; CLIP,OIL PIPE M8X45 W/LK WASHER	0-50040-845-0	01	1	9205-9302	●
32	BOLT; CLIP,OIL PIPE M8X50 FLANGE	0-28080-850-0	01	1	9303-	●
32	BOLT; CLIP,OIL PIPE M8X50 FLANGE	0-28080-850-0	03	1	9307-	●
32	BOLT; CLIP,OIL PIPE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X50 FLANGE	0-28080-850-0	03	1	9307-		●	●
32	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 FLANGE	0-28010-816-0	01	1	9002-9204	●	●	●
32	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 FLANGE	0-28080-816-0	01	1	9205-9306	●	●	●
32	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X45 W/LK WASHER	9-01900-845-0	02	1	9002-9204	●	●	●
32	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X45 W/LK WASHER	0-50040-845-0	02	1	9205-9302	●	●	●
32	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X50 FLANGE	0-28080-850-0	02	1	9303-9306	●	●	●
32	BOLT; CLIP,OIL PIPE 12PD1 C ENG(43L) M8X50 W/LK WASHER	0-50040-850-0	01	1	9307-		●
32	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 W/LK WASHER	9-01900-830-0	01	1	9002-9204			●
32	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 W/LK WASHER	0-50040-830-0	01	1	9205-9302			●
32	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28080-830-0	01	1	9303-			●
67	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	01	1	9002-	●	●	●
74	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	01	1	9002-	●	●	●
74	NUT; CLIP,OIL PIPE 12PD1 C ENG(43L) M8	9-09110-408-0	01	1	9002-		●
89	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	01	1	9002-	●	●	●
89	CLIP; OIL PIPE 12PD1 C ENG(43L) ID=6 H=20 L=20	1-09700-603-0	01	1	9002-		●
90	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28010-825-0	01	1	9002-9204	●
90	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	01	1	9205-	●
90	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28010-825-0	03	1	9002-9204	●
90	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	03	1	9205-	●
90	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28010-830-0	01	1	9002-9204		●	●
90	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28080-830-0	01	1	9205-		●	●
90	BOLT; CLIP,OIL PIPE 12PD1 C ENG(43L) M8X30 FLANGE	0-28080-830-0	01	1	9205-		●
90	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) M8X30 FLANGE	0-28010-830-0	02	1	9002-9204		●	●
90	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) M8X30 FLANGE	0-28080-830-0	02	1	9205-		●	●
101	NUT; CLIP,OIL PIPE M8	9-09110-408-0	01	1	9002-	●
101	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	01	1	9002-			●
101	NUT; CLIP,OIL PIPE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	06	1	9002-	●	●	●
101	NUT; CLIP,OIL PIPE 12PD1 C ENG(43L) M8	9-09110-408-0	02	1	9307-		●

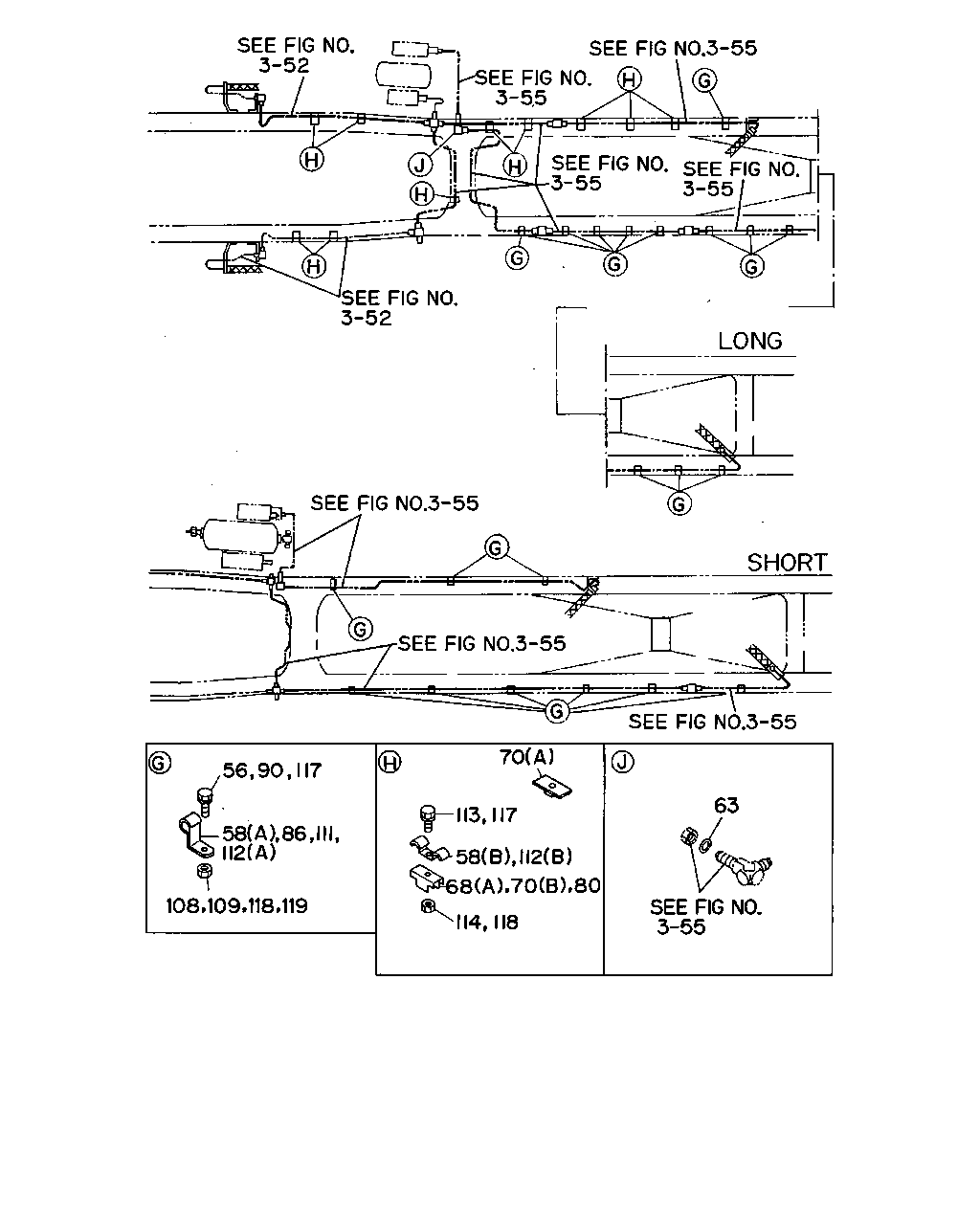

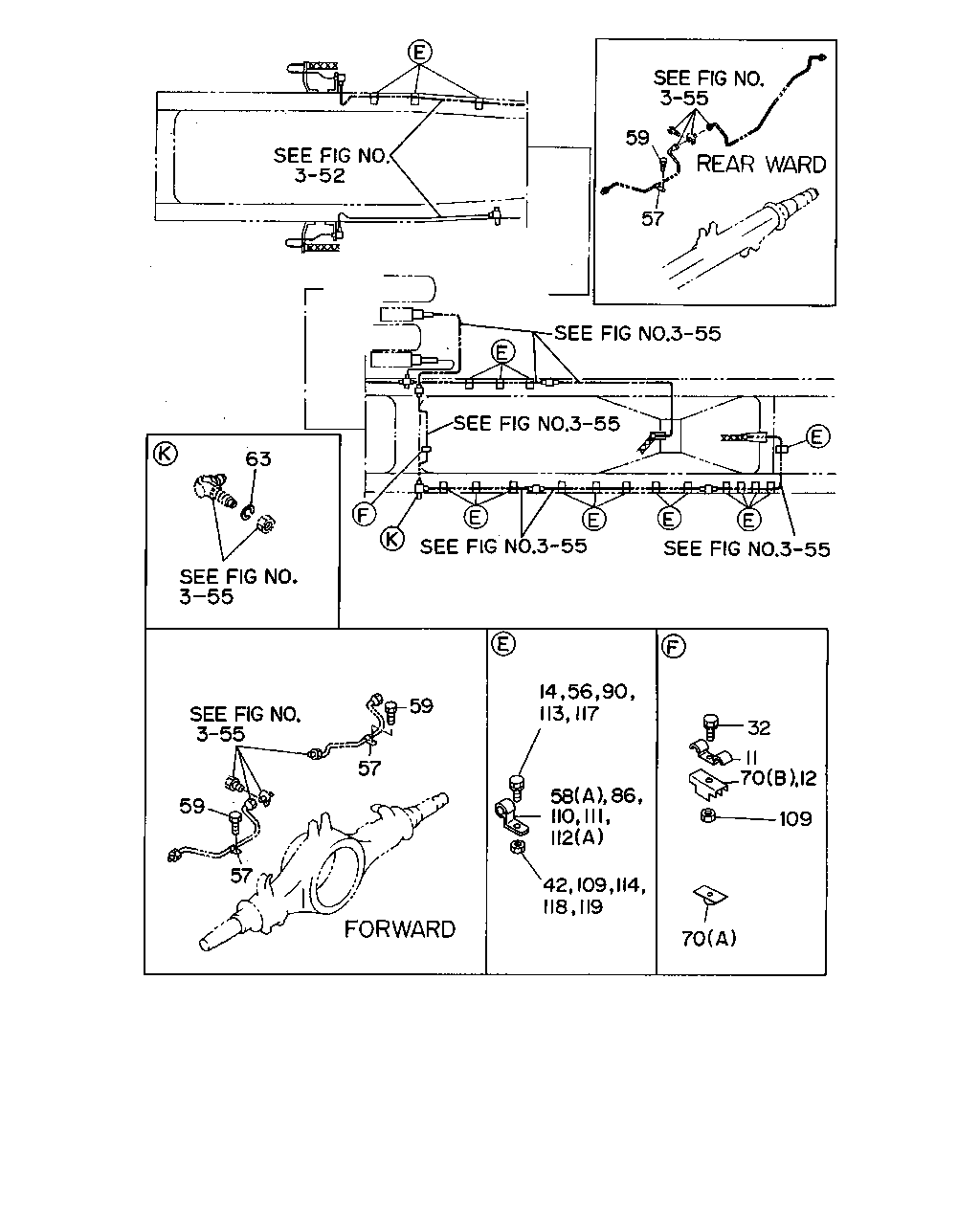

59 57 63 59 59 57 14 56 90 32 11 70 12 109 58 86 110 111 112 42 109 114 118 119 57 113 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
11	CLIP; OIL PIPE ID=7 & 7 L=15 & 15	1-09700-652-0	01	1	9002-	●
12	BRACKET; OIL PIPE	1-47475-427-1	01	1	9002-	●
14	BOLT; CLIP,OIL PIPE M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204	●
14	BOLT; CLIP,OIL PIPE M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302	●
14	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	02	1	9303-	●
14	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X45 W/LK WASHER	9-01900-845-0	03	1	9002-9204	●	●	●
14	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X45 W/LK WASHER	0-50040-845-0	03	1	9205-9302	●	●	●
14	BOLT; CLIP,OIL PIPE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X50 FLANGE	0-28080-850-0	03	1	9303-	●	●	●
14	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 W/LK WASHER	0-50040-816-0	01	1	9307-	●	●	●
14	BOLT; CLIP,OIL PIPE 12PD1 C ENG(43L) M8X50 W/LK WASHER	0-50040-850-0	01	1	9307-		●
32	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28010-825-0	01	1	9002-9204	●
32	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	01	1	9205-	●
32	BOLT; CLIP,OIL PIPE M8X45 W/LK WASHER	9-01900-845-0	01	1	9002-9204	●
32	BOLT; CLIP,OIL PIPE M8X45 W/LK WASHER	0-50040-845-0	01	1	9205-9302	●
32	BOLT; CLIP,OIL PIPE M8X50 FLANGE	0-28080-850-0	01	1	9303-	●
32	BOLT; CLIP,OIL PIPE M8X50 FLANGE	0-28080-850-0	03	1	9307-	●
32	BOLT; CLIP,OIL PIPE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X50 FLANGE	0-28080-850-0	03	1	9307-		●	●
32	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 FLANGE	0-28010-816-0	01	1	9002-9204	●	●	●
32	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 FLANGE	0-28080-816-0	01	1	9205-9306	●	●	●
32	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X45 W/LK WASHER	9-01900-845-0	02	1	9002-9204	●	●	●
32	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X45 W/LK WASHER	0-50040-845-0	02	1	9205-9302	●	●	●
32	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X50 FLANGE	0-28080-850-0	02	1	9303-9306	●	●	●
32	BOLT; CLIP,OIL PIPE 12PD1 C ENG(43L) M8X50 W/LK WASHER	0-50040-850-0	01	1	9307-		●
32	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 W/LK WASHER	9-01900-830-0	01	1	9002-9204			●
32	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 W/LK WASHER	0-50040-830-0	01	1	9205-9302			●
32	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28080-830-0	01	1	9303-			●
42	NUT; CLIP,OIL PIPE M8	9-09110-408-0	02	1	9002-	●
56	BOLT; CLIP WHEEL BASE 5700MM(57W) M8X25 FLANGE	0-28010-825-0	03	1	9002-9204	●
56	BOLT; CLIP WHEEL BASE 5700MM(57W) M8X25 FLANGE	0-28080-825-0	03	1	9205-	●
56	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28010-825-0	05	1	9002-9204	●		●
56	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28080-825-0	05	1	9205-	●		●
56	BOLT; CLIP WHEEL BASE 5800MM(58W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28010-825-0	04	1	9002-9204			●
56	BOLT; CLIP WHEEL BASE 5800MM(58W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28080-825-0	04	1	9205-			●
57	CLIP; BRK PIPE,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=7 L=20	9-09524-635-0	04	1	9002-	●	●	●
57	CLIP; BRK PIPE,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=7 L=20	9-09524-635-0	03	1	9002-		●	●
58	CLIP; OIL PIPE (A) ID=6 H=20 L=20	1-09700-603-0	08	1	9002-	●
58	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=6 H=20 L=20	1-09700-603-0	05	1	9002-		●
58	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=7 & 7 L=15 & 15	1-09700-652-0	01	1	9002-		●
58	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=6 H=20 L=20	1-09700-603-0	06	1	9002-9201			●
58	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=6 H=20 L=20	1-09700-603-0	07	1	9202-			●
58	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=7 & 7 L=15 & 15	1-09700-652-0	03	1	9002-			●
59	BOLT; BRK PIPE,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X12 W/LK WASHER	9-01900-812-0	04	1	9002-9010	●	●	●
59	BOLT; BRK PIPE,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X12 W/LK WASHER	9-01900-812-0	03	1	9002-9010		●	●
59	BOLT; BRK PIPE,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X12 W/LK WASHER	0-50040-812-0	04	1	9011-	●	●	●
59	BOLT; BRK PIPE,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X12 W/LK WASHER	0-50040-812-0	03	1	9011-		●	●
63	WASHER; LK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) WHEEL BASE 6600MM(66W) ID=12.2	9-09150-512-0	01	1	9002-9306	●	●	●
63	WASHER; LK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2	9-09150-512-0	01	1	9002-9306			●
70	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=50	1-47475-299-2	01	1	9002-9005	●	●	●
70	BRACKET; CLIP (A) L=50	1-47475-299-2	01	1	9006-9306	●	●	●
70	BRACKET; CLIP 6RB1 STD ENG(07L),10PD1 STD ENG(40L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47475-427-1	03	1	9002-	●	●	●
70	BRACKET; CLIP 12PD1 C ENG(43L) (B)	1-47475-427-1	01	1	9307-		●
70	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8 W/NUT	1-47475-729-0	01	1	9002-9005		●	●
70	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) M8 W/NUT	1-47475-729-0	02	1	9002-9007		●	●
70	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) L=50	1-47475-299-2	02	1	9008-9306		●	●
86	CLIP; OIL PIPE WHEEL BASE 5700MM(57W) ID=6 H=20 L=20	1-09700-603-0	03	1	9002-	●
86	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) WHEEL BASE 6600MM(66W) ID=6 H=20 L=20	1-09700-603-0	05	1	9002-	●		●
86	CLIP; OIL PIPE WHEEL BASE 5800MM(58W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	04	1	9002-			●
90	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28010-825-0	01	1	9002-9204	●
90	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	01	1	9205-	●
90	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28010-825-0	03	1	9002-9204	●
90	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	03	1	9205-	●
90	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28010-830-0	01	1	9002-9204		●	●
90	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28080-830-0	01	1	9205-		●	●
90	BOLT; CLIP,OIL PIPE 12PD1 C ENG(43L) M8X30 FLANGE	0-28080-830-0	01	1	9205-		●
90	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) M8X30 FLANGE	0-28010-830-0	02	1	9002-9204		●	●
90	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) M8X30 FLANGE	0-28080-830-0	02	1	9205-		●	●
109	NUT; CLIP,OIL PIPE M8	9-09110-408-0	01	1	9002-	●
109	NUT; CLIP,OIL PIPE M8	9-09110-408-0	03	1	9002-	●
109	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) M8	9-09110-408-0	02	1	9002-		●	●
110	CLIP; OIL PIPE ID=6 H=20 L=20	1-09700-603-0	02	1	9002-	●
111	CLIP; OIL PIPE ID=6 H=20 L=20	1-09700-603-0	03	1	9002-	●
111	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) ID=6 H=20 L=20	1-09700-603-0	02	1	9002-		●	●
112	CLIP; OIL PIPE WHEEL BASE 5700MM(57W) (A) ID=6 H=20 L=20	1-09700-603-0	03	1	9002-	●
112	CLIP; OIL PIPE WHEEL BASE 6600MM(66W) (A) ID=6 H=20 L=20	1-09700-603-0	05	1	9002-	●
112	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) (A) ID=6 H=20 L=20	1-09700-603-0	05	1	9002-		●
112	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) (A) ID=6 H=20 L=20	1-09700-603-0	04	1	9002-		●
112	CLIP; OIL PIPE WHEEL BASE 5800MM(58W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=7 & 7 L=15 & 15	1-09700-652-0	01	1	9002-			●
112	CLIP; OIL PIPE WHEEL BASE 5800MM(58W),WHEEL BASE 6400MM(64W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9002-			●
112	CLIP; OIL PIPE WHEEL BASE 6400MM(64W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=7 & 7 L=15 & 15	1-09700-652-0	03	1	9002-			●
113	BOLT; CLIP,OIL PIPE WHEEL BASE 5700MM(57W) M8X25 FLANGE	0-28010-825-0	03	1	9002-9204	●
113	BOLT; CLIP,OIL PIPE WHEEL BASE 5700MM(57W) M8X25 FLANGE	0-28080-825-0	03	1	9205-	●
113	BOLT; CLIP,OIL PIPE WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28010-825-0	05	1	9002-9204	●
113	BOLT; CLIP,OIL PIPE WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28080-825-0	05	1	9205-	●
113	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) M8X30 FLANGE	0-28010-830-0	05	1	9002-9204		●
113	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) M8X30 FLANGE	0-28080-830-0	05	1	9205-		●
113	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) M8X30 FLANGE	0-28010-830-0	04	1	9002-9204		●
113	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) M8X30 FLANGE	0-28080-830-0	04	1	9205-		●
113	BOLT; CLIP,OIL PIPE WHEEL BASE 5800MM(58W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X45 W/LK WASHER	9-01900-845-0	01	1	9002-9204			●
113	BOLT; CLIP,OIL PIPE WHEEL BASE 5800MM(58W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X45 W/LK WASHER	0-50040-845-0	01	1	9205-9302			●
113	BOLT; CLIP,OIL PIPE WHEEL BASE 5800MM(58W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X50 FLANGE	0-28080-850-0	01	1	9303-			●
113	BOLT; CLIP,OIL PIPE WHEEL BASE 5800MM(58W),WHEEL BASE 6400MM(64W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28010-830-0	01	1	9002-9204			●
113	BOLT; CLIP,OIL PIPE WHEEL BASE 5800MM(58W),WHEEL BASE 6400MM(64W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28080-830-0	01	1	9205-			●
113	BOLT; CLIP,OIL PIPE WHEEL BASE 6400MM(64W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X45 W/LK WASHER	9-01900-845-0	03	1	9002-9204			●
113	BOLT; CLIP,OIL PIPE WHEEL BASE 6400MM(64W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X45 W/LK WASHER	0-50040-845-0	03	1	9205-9302			●
113	BOLT; CLIP,OIL PIPE WHEEL BASE 6400MM(64W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X50 FLANGE	0-28080-850-0	03	1	9303-			●
114	NUT; CLIP,OIL PIPE WHEEL BASE 5700MM(57W) M8	9-09110-408-0	03	1	9002-	●
114	NUT; CLIP,OIL PIPE WHEEL BASE 6600MM(66W) M8	9-09110-408-0	05	1	9002-	●
114	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) M8	9-09110-408-0	05	1	9002-		●
114	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) M8	9-09110-408-0	04	1	9002-		●
114	NUT; CLIP,OIL PIPE WHEEL BASE 6400MM(64W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	04	1	9002-			●
114	NUT; CLIP,OIL PIPE WHEEL BASE 5800MM(58W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	02	1	9002-			●
117	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28010-825-0	08	1	9002-9204	●
117	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	08	1	9205-	●
117	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28010-830-0	05	1	9002-9204		●
117	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28080-830-0	05	1	9205-		●
117	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X45	0-28010-845-0	01	1	9002-9204		●
117	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X45 FLANGE	0-28080-845-0	01	1	9205-9306		●
117	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X50 FLANGE	0-28080-850-0	01	1	9307-		●
117	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28010-830-0	03	1	9002-9201			●
117	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28010-835-0	03	1	9002-9204			●
117	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28080-835-0	03	1	9205-			●
117	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X45	0-28010-845-0	03	1	9002-9204			●
117	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X45 FLANGE	0-28080-845-0	03	1	9205-9306			●
117	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X50 FLANGE	0-28080-850-0	03	1	9307-			●
117	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28080-830-0	04	1	9205-			●
118	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	02	1	9002-		●
118	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	05	1	9002-9201			●
118	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	04	1	9002-	●	●	●
118	NUT; CLIP,OIL PIPE M8	9-09110-408-0	04	1	9002-	●
118	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	06	1	9002-			●
119	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) WHEEL BASE 6600MM(66W) M8	9-09110-408-0	05	1	9002-	●		●
119	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) M8	9-09110-408-0	03	1	9002-		●	●
119	NUT; CLIP WHEEL BASE 5800MM(58W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	04	1	9002-			●

56 90 117 58 86 111 108 109 118 119 70 113 117 58 112 68 70 80 114 118 63 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
56	BOLT; CLIP WHEEL BASE 5700MM(57W) M8X25 FLANGE	0-28010-825-0	03	1	9002-9204	●
56	BOLT; CLIP WHEEL BASE 5700MM(57W) M8X25 FLANGE	0-28080-825-0	03	1	9205-	●
56	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28010-825-0	05	1	9002-9204	●		●
56	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28080-825-0	05	1	9205-	●		●
56	BOLT; CLIP WHEEL BASE 5800MM(58W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28010-825-0	04	1	9002-9204			●
56	BOLT; CLIP WHEEL BASE 5800MM(58W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28080-825-0	04	1	9205-			●
58	CLIP; OIL PIPE (A) ID=6 H=20 L=20	1-09700-603-0	08	1	9002-	●
58	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=6 H=20 L=20	1-09700-603-0	05	1	9002-		●
58	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=7 & 7 L=15 & 15	1-09700-652-0	01	1	9002-		●
58	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=6 H=20 L=20	1-09700-603-0	06	1	9002-9201			●
58	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=6 H=20 L=20	1-09700-603-0	07	1	9202-			●
58	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=7 & 7 L=15 & 15	1-09700-652-0	03	1	9002-			●
63	WASHER; LK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) WHEEL BASE 6600MM(66W) ID=12.2	9-09150-512-0	01	1	9002-9306	●	●	●
63	WASHER; LK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2	9-09150-512-0	01	1	9002-9306			●
68	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47475-427-1	01	1	9002-		●
68	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) M8 W/NUT	1-47475-729-0	01	1	9002-9007		●	●
68	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) L=50	1-47475-299-2	01	1	9008-9306		●	●
68	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47475-427-1	03	1	9002-			●
70	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=50	1-47475-299-2	01	1	9002-9005	●	●	●
70	BRACKET; CLIP (A) L=50	1-47475-299-2	01	1	9006-9306	●	●	●
70	BRACKET; CLIP 6RB1 STD ENG(07L),10PD1 STD ENG(40L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47475-427-1	03	1	9002-	●	●	●
70	BRACKET; CLIP 12PD1 C ENG(43L) (B)	1-47475-427-1	01	1	9307-		●
70	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8 W/NUT	1-47475-729-0	01	1	9002-9005		●	●
70	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) M8 W/NUT	1-47475-729-0	02	1	9002-9007		●	●
70	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) L=50	1-47475-299-2	02	1	9008-9306		●	●
80	BRACKET; CLIP,OIL PIPE WHEEL BASE 5800MM(58W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47475-427-1	01	1	9002-			●
80	BRACKET; CLIP,OIL PIPE WHEEL BASE 6400MM(64W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47475-427-1	03	1	9002-			●
86	CLIP; OIL PIPE WHEEL BASE 5700MM(57W) ID=6 H=20 L=20	1-09700-603-0	03	1	9002-	●
86	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) WHEEL BASE 6600MM(66W) ID=6 H=20 L=20	1-09700-603-0	05	1	9002-	●		●
86	CLIP; OIL PIPE WHEEL BASE 5800MM(58W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	04	1	9002-			●
90	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28010-825-0	01	1	9002-9204	●
90	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	01	1	9205-	●
90	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28010-825-0	03	1	9002-9204	●
90	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	03	1	9205-	●
90	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28010-830-0	01	1	9002-9204		●	●
90	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28080-830-0	01	1	9205-		●	●
90	BOLT; CLIP,OIL PIPE 12PD1 C ENG(43L) M8X30 FLANGE	0-28080-830-0	01	1	9205-		●
90	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) M8X30 FLANGE	0-28010-830-0	02	1	9002-9204		●	●
90	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) M8X30 FLANGE	0-28080-830-0	02	1	9205-		●	●
108	NUT; CLIP,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8	9-09110-508-0	01	1	9008-9306		●	●
109	NUT; CLIP,OIL PIPE M8	9-09110-408-0	01	1	9002-	●
109	NUT; CLIP,OIL PIPE M8	9-09110-408-0	03	1	9002-	●
109	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) M8	9-09110-408-0	02	1	9002-		●	●
111	CLIP; OIL PIPE ID=6 H=20 L=20	1-09700-603-0	03	1	9002-	●
111	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) ID=6 H=20 L=20	1-09700-603-0	02	1	9002-		●	●
112	CLIP; OIL PIPE WHEEL BASE 5700MM(57W) (A) ID=6 H=20 L=20	1-09700-603-0	03	1	9002-	●
112	CLIP; OIL PIPE WHEEL BASE 6600MM(66W) (A) ID=6 H=20 L=20	1-09700-603-0	05	1	9002-	●
112	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) (A) ID=6 H=20 L=20	1-09700-603-0	05	1	9002-		●
112	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) (A) ID=6 H=20 L=20	1-09700-603-0	04	1	9002-		●
112	CLIP; OIL PIPE WHEEL BASE 5800MM(58W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=7 & 7 L=15 & 15	1-09700-652-0	01	1	9002-			●
112	CLIP; OIL PIPE WHEEL BASE 5800MM(58W),WHEEL BASE 6400MM(64W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9002-			●
112	CLIP; OIL PIPE WHEEL BASE 6400MM(64W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=7 & 7 L=15 & 15	1-09700-652-0	03	1	9002-			●
113	BOLT; CLIP,OIL PIPE WHEEL BASE 5700MM(57W) M8X25 FLANGE	0-28010-825-0	03	1	9002-9204	●
113	BOLT; CLIP,OIL PIPE WHEEL BASE 5700MM(57W) M8X25 FLANGE	0-28080-825-0	03	1	9205-	●
113	BOLT; CLIP,OIL PIPE WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28010-825-0	05	1	9002-9204	●
113	BOLT; CLIP,OIL PIPE WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28080-825-0	05	1	9205-	●
113	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) M8X30 FLANGE	0-28010-830-0	05	1	9002-9204		●
113	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) M8X30 FLANGE	0-28080-830-0	05	1	9205-		●
113	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) M8X30 FLANGE	0-28010-830-0	04	1	9002-9204		●
113	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) M8X30 FLANGE	0-28080-830-0	04	1	9205-		●
113	BOLT; CLIP,OIL PIPE WHEEL BASE 5800MM(58W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X45 W/LK WASHER	9-01900-845-0	01	1	9002-9204			●
113	BOLT; CLIP,OIL PIPE WHEEL BASE 5800MM(58W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X45 W/LK WASHER	0-50040-845-0	01	1	9205-9302			●
113	BOLT; CLIP,OIL PIPE WHEEL BASE 5800MM(58W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X50 FLANGE	0-28080-850-0	01	1	9303-			●
113	BOLT; CLIP,OIL PIPE WHEEL BASE 5800MM(58W),WHEEL BASE 6400MM(64W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28010-830-0	01	1	9002-9204			●
113	BOLT; CLIP,OIL PIPE WHEEL BASE 5800MM(58W),WHEEL BASE 6400MM(64W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28080-830-0	01	1	9205-			●
113	BOLT; CLIP,OIL PIPE WHEEL BASE 6400MM(64W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X45 W/LK WASHER	9-01900-845-0	03	1	9002-9204			●
113	BOLT; CLIP,OIL PIPE WHEEL BASE 6400MM(64W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X45 W/LK WASHER	0-50040-845-0	03	1	9205-9302			●
113	BOLT; CLIP,OIL PIPE WHEEL BASE 6400MM(64W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X50 FLANGE	0-28080-850-0	03	1	9303-			●
114	NUT; CLIP,OIL PIPE WHEEL BASE 5700MM(57W) M8	9-09110-408-0	03	1	9002-	●
114	NUT; CLIP,OIL PIPE WHEEL BASE 6600MM(66W) M8	9-09110-408-0	05	1	9002-	●
114	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) M8	9-09110-408-0	05	1	9002-		●
114	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) M8	9-09110-408-0	04	1	9002-		●
114	NUT; CLIP,OIL PIPE WHEEL BASE 6400MM(64W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	04	1	9002-			●
114	NUT; CLIP,OIL PIPE WHEEL BASE 5800MM(58W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	02	1	9002-			●
117	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28010-825-0	08	1	9002-9204	●
117	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	08	1	9205-	●
117	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28010-830-0	05	1	9002-9204		●
117	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28080-830-0	05	1	9205-		●
117	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X45	0-28010-845-0	01	1	9002-9204		●
117	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X45 FLANGE	0-28080-845-0	01	1	9205-9306		●
117	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X50 FLANGE	0-28080-850-0	01	1	9307-		●
117	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28010-830-0	03	1	9002-9201			●
117	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28010-835-0	03	1	9002-9204			●
117	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28080-835-0	03	1	9205-			●
117	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X45	0-28010-845-0	03	1	9002-9204			●
117	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X45 FLANGE	0-28080-845-0	03	1	9205-9306			●
117	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X50 FLANGE	0-28080-850-0	03	1	9307-			●
117	BOLT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28080-830-0	04	1	9205-			●
118	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	02	1	9002-		●
118	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	05	1	9002-9201			●
118	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	04	1	9002-	●	●	●
118	NUT; CLIP,OIL PIPE M8	9-09110-408-0	04	1	9002-	●
118	NUT; CLIP,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	06	1	9002-			●
119	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) WHEEL BASE 6600MM(66W) M8	9-09110-408-0	05	1	9002-	●		●
119	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) M8	9-09110-408-0	03	1	9002-		●	●
119	NUT; CLIP WHEEL BASE 5800MM(58W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	04	1	9002-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
