Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#33817) — 332 parça

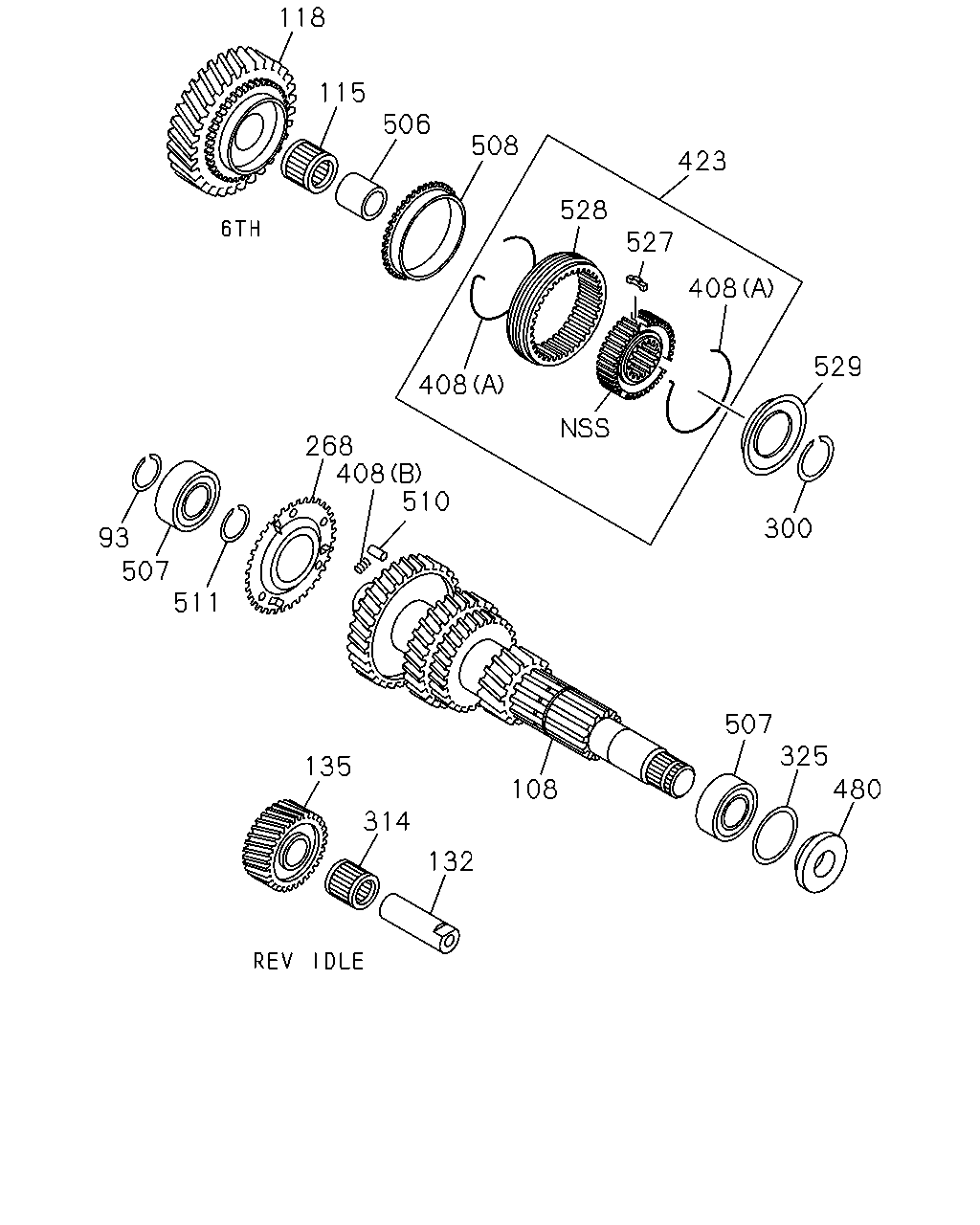

118 115 506 508 423 528 527 408 529 408 268 408 510 300 93 507 511 507 325 135 480 108 314 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=1.9	8-97254-735-0	01	1	0803-	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.1	8-97254-738-0	01	1	0803-	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.3	8-97254-741-0	01	1	0803-	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=1.9	8-97254-734-0	01	1	0803-		●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.1	8-97254-740-0	01	1	0803-		●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.3	8-97254-742-0	01	1	0803-		●
108	04.428 SHAFT; COUNTER Z=46-38-29-21	8-97349-881-0	01	1	0803-0910	●
108	04.428 SHAFT; COUNTER Z=46-38-29-21	8-98113-224-0	01	1	0911-1308	●
108	04.428 SHAFT; COUNTER Z=46-38-29-21	8-98249-489-0	01	1	1309-	●
108	04.428 SHAFT; COUNTER 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=47-39-33-20	8-97380-627-1	01	1	0803-		●
108	04.428 SHAFT; COUNTER 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=47-39-33-20	8-97252-639-1	01	1	0803-		●
115	04.352 BEARING; NEEDLE,6TH,COUNTER OD=49.8	8-98286-084-0	01	1	1411-	●	●
115	04.352 BEARING; NEEDLE,6TH,COUNTER OD=49.75	8-97253-113-0	01	1	0803-	●	●
118	04.421 GEAR; 6TH,COUNTER Z=47	8-97241-246-0	01	1	0803-	●
118	04.421 GEAR; 6TH,COUNTER Z=50	8-97386-580-0	01	1	0803-		●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	0803-	●	●
135	04.430 GEAR; REV IDLER Z=26	8-97241-292-2	01	1	0803-	●
135	04.430 GEAR; REV IDLER Z=25	8-98031-869-1	01	1	0803-		●
268	04.537 PLATE; ANTI LASH,COUNTER 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97252-684-1	01	1	0803-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.7	8-97288-618-0	01	1	0803-	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.8	8-97288-619-0	01	1	0803-	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.9	8-97288-620-0	01	1	0803-	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.6	8-97365-616-0	01	1	0803-	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.7	8-97254-727-0	01	1	0803-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 04.384 ID=30.7 T=1.8	8-97254-728-0	01	1	0803-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.9	8-97254-734-0	01	1	0803-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.6	8-97365-617-0	01	1	0803-		●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	0803-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.38	8-97252-656-0	01	1	0803-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.44	8-97252-657-0	01	1	0803-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.50	8-97252-658-0	01	1	0803-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.56	8-97252-659-0	01	1	0803-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.62	8-97252-660-0	01	1	0803-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.68	8-97252-661-0	01	1	0803-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.74	8-97252-662-0	01	1	0803-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.80	8-97252-663-0	01	1	0803-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.86	8-97252-664-0	01	1	0803-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.92	8-97252-665-0	01	1	0803-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.98	8-97257-621-0	01	1	0803-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.20	8-97306-185-0	01	1	0803-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.26	8-97306-186-0	01	1	0803-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.32	8-97306-187-0	01	1	0803-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.29	8-97252-666-0	01	1	0803-		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.35	8-97252-667-0	01	1	0803-		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.41	8-97252-668-0	01	1	0803-		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.47	8-97252-669-0	01	1	0803-		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.53	8-97252-670-0	01	1	0803-		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.59	8-97252-671-0	01	1	0803-		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.65	8-97252-672-0	01	1	0803-		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.71	8-97252-673-0	01	1	0803-		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.77	8-97252-674-0	01	1	0803-		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.83	8-97252-675-0	01	1	0803-		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.89	8-97257-622-0	01	1	0803-		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.11	8-97306-188-0	01	1	0803-		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.17	8-97306-189-0	01	1	0803-		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.23	8-97306-190-0	01	1	0803-		●
408	04.384 SPRING (A)	8-97366-040-1	04	1	0803-		●
408	04.384 SPRING 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.422 (B)	8-94148-196-0	03	1	0803-		●
423	04.384 SLEEVE & HUB ASM; 6TH	8-97367-022-0	01	1	0803-		●
480	04.419 WASHER; THRUST,6TH	8-97253-122-1	01	1	0803-	●
480	04.419 WASHER; THRUST,6TH	8-97253-123-1	01	1	0803-		●
506	04.419 COLLAR; 6TH,COUNTER	8-97253-120-1	01	1	0803-	●
506	04.419 COLLAR; 6TH,COUNTER	8-97253-121-1	01	1	0803-		●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR	8-97253-106-0	02	1	0803-	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR	8-97253-107-0	02	1	0803-		●
508	04.383 RING; BLOCK,6TH Z=45	8-97241-306-1	01	1	0803-	●
508	04.383 RING; BLOCK,6TH 04.395 Z=45	8-97309-532-0	01	1	0803-		●
510	04.540 PIN; STRAIGHT,ANTI LASH 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.862	9-08160-825-0	03	1	0803-		●
511	04.416 RING; SNAP,ANTI LASH PLATE 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97254-767-0	01	1	0803-		●
527	04.384 INSERT; 6TH	8-94448-202-2	03	1	0803-		●
528	04.384 SLEEVE; 6TH 04.535 Z=45	8-94421-871-1	01	1	0803-		●
529	04.384 PLATE; STOPPER,6TH	8-97248-952-0	01	1	0803-		●

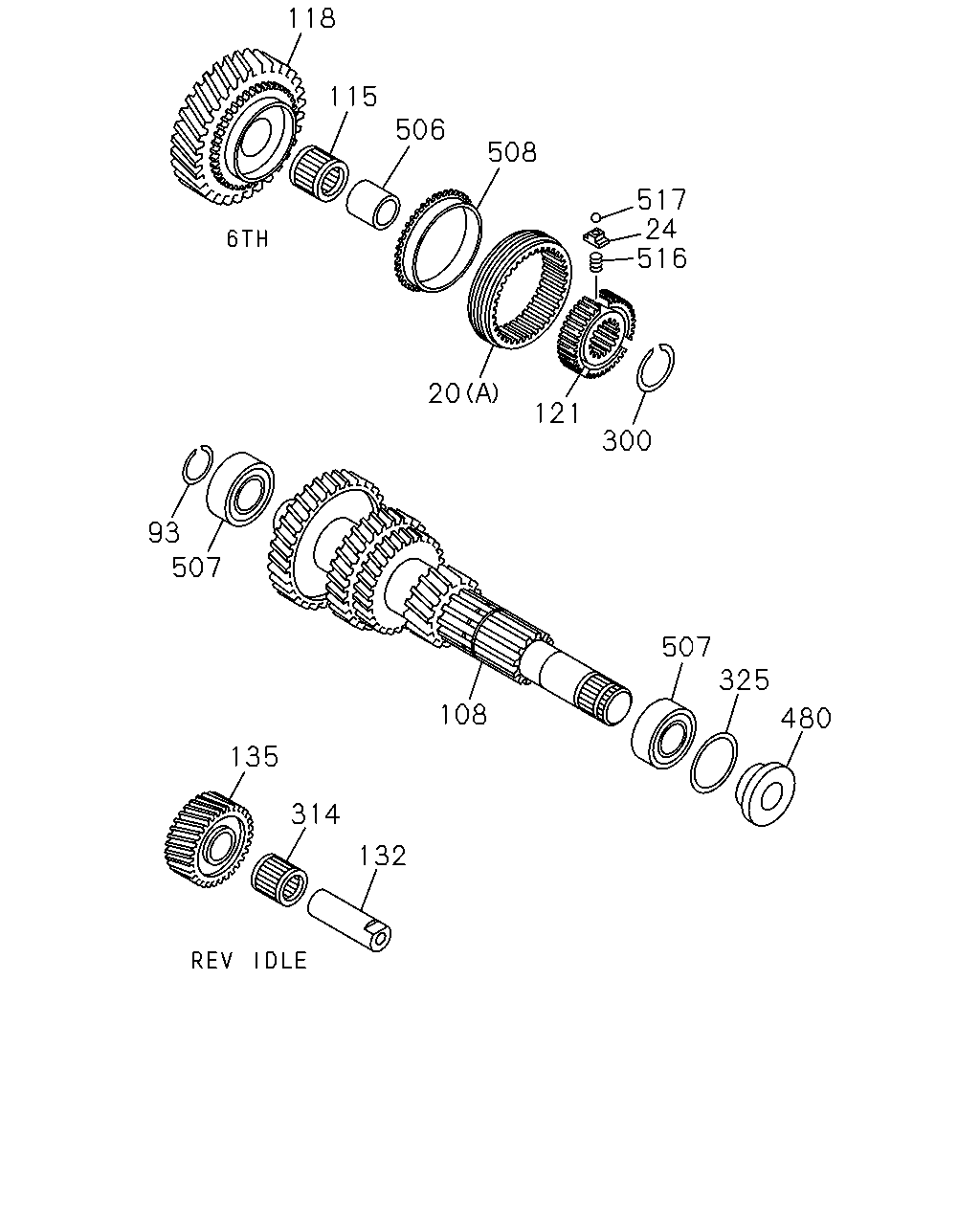

118 115 506 508 517 24 516 20 121 300 93 507 507 325 108 480 135 314 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	04.383 SLEEVE (B) Z=54	8-97241-295-2	01	1	0803-	●
20	04.383 SLEEVE (B) Z=54	8-97241-295-2	01	1	0803-	●
20	04.383 SLEEVE (A) Z=45	8-97241-296-1	02	1	0803-1311	●
20	04.383 SLEEVE (A) Z=45	8-98258-279-0	02	1	1312-	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	09	1	0803-	●
24	04.383 BLOCK; INDEX,SYN TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-313-1	03	1	0803-	●	●
24	04.383 BLOCK; INDEX,SYN 4HK1-TCN ENG(RDQ)	8-97241-313-1	03	1	0803-		●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=1.9	8-97254-735-0	01	1	0803-	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.1	8-97254-738-0	01	1	0803-	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.3	8-97254-741-0	01	1	0803-	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=1.9	8-97254-734-0	01	1	0803-		●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.1	8-97254-740-0	01	1	0803-		●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.3	8-97254-742-0	01	1	0803-		●
108	04.428 SHAFT; COUNTER Z=46-38-29-21	8-97349-881-0	01	1	0803-0910	●
108	04.428 SHAFT; COUNTER Z=46-38-29-21	8-98113-224-0	01	1	0911-1308	●
108	04.428 SHAFT; COUNTER Z=46-38-29-21	8-98249-489-0	01	1	1309-	●
108	04.428 SHAFT; COUNTER 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=47-39-33-20	8-97380-627-1	01	1	0803-		●
108	04.428 SHAFT; COUNTER 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=47-39-33-20	8-97252-639-1	01	1	0803-		●
115	04.352 BEARING; NEEDLE,6TH,COUNTER OD=49.8	8-98286-084-0	01	1	1411-	●	●
115	04.352 BEARING; NEEDLE,6TH,COUNTER OD=49.75	8-97253-113-0	01	1	0803-	●	●
118	04.421 GEAR; 6TH,COUNTER Z=47	8-97241-246-0	01	1	0803-	●
118	04.421 GEAR; 6TH,COUNTER Z=50	8-97386-580-0	01	1	0803-		●
121	04.384 HUB; CLU,6TH	8-97241-301-2	01	1	0803-	●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	0803-	●	●
135	04.430 GEAR; REV IDLER Z=26	8-97241-292-2	01	1	0803-	●
135	04.430 GEAR; REV IDLER Z=25	8-98031-869-1	01	1	0803-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.7	8-97288-618-0	01	1	0803-	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.8	8-97288-619-0	01	1	0803-	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.9	8-97288-620-0	01	1	0803-	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.6	8-97365-616-0	01	1	0803-	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.7	8-97254-727-0	01	1	0803-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 04.384 ID=30.7 T=1.8	8-97254-728-0	01	1	0803-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.9	8-97254-734-0	01	1	0803-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.6	8-97365-617-0	01	1	0803-		●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	0803-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.38	8-97252-656-0	01	1	0803-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.44	8-97252-657-0	01	1	0803-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.50	8-97252-658-0	01	1	0803-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.56	8-97252-659-0	01	1	0803-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.62	8-97252-660-0	01	1	0803-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.68	8-97252-661-0	01	1	0803-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.74	8-97252-662-0	01	1	0803-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.80	8-97252-663-0	01	1	0803-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.86	8-97252-664-0	01	1	0803-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.92	8-97252-665-0	01	1	0803-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.98	8-97257-621-0	01	1	0803-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.20	8-97306-185-0	01	1	0803-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.26	8-97306-186-0	01	1	0803-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.32	8-97306-187-0	01	1	0803-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.29	8-97252-666-0	01	1	0803-		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.35	8-97252-667-0	01	1	0803-		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.41	8-97252-668-0	01	1	0803-		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.47	8-97252-669-0	01	1	0803-		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.53	8-97252-670-0	01	1	0803-		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.59	8-97252-671-0	01	1	0803-		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.65	8-97252-672-0	01	1	0803-		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.71	8-97252-673-0	01	1	0803-		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.77	8-97252-674-0	01	1	0803-		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.83	8-97252-675-0	01	1	0803-		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.89	8-97257-622-0	01	1	0803-		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.11	8-97306-188-0	01	1	0803-		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.17	8-97306-189-0	01	1	0803-		●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.23	8-97306-190-0	01	1	0803-		●
480	04.419 WASHER; THRUST,6TH	8-97253-122-1	01	1	0803-	●
480	04.419 WASHER; THRUST,6TH	8-97253-123-1	01	1	0803-		●
506	04.419 COLLAR; 6TH,COUNTER	8-97253-120-1	01	1	0803-	●
506	04.419 COLLAR; 6TH,COUNTER	8-97253-121-1	01	1	0803-		●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR	8-97253-106-0	02	1	0803-	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR	8-97253-107-0	02	1	0803-		●
508	04.383 RING; BLOCK,6TH Z=45	8-97241-306-1	01	1	0803-	●
508	04.383 RING; BLOCK,6TH 04.395 Z=45	8-97309-532-0	01	1	0803-		●
516	04.384 SPRING; SYNCHRO,INDEX	8-97305-803-1	09	1	0803-	●
516	04.384 SPRING; SYNCHRO,INDEX 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97305-803-1	03	1	0803-	●
516	04.384 SPRING; SYNCHRO,INDEX 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97254-835-0	03	1	0803-		●
516	04.384 SPRING; SYNCHRO,INDEX 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97254-835-0	03	1	0803-		●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	09	1	0803-	●
517	04.384 BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97252-935-0	03	1	0803-	●	●
517	04.384 BALL; SYNCHRO,INDEX 4HK1-TCN ENG(RDQ)	8-97252-935-0	03	1	0803-		●

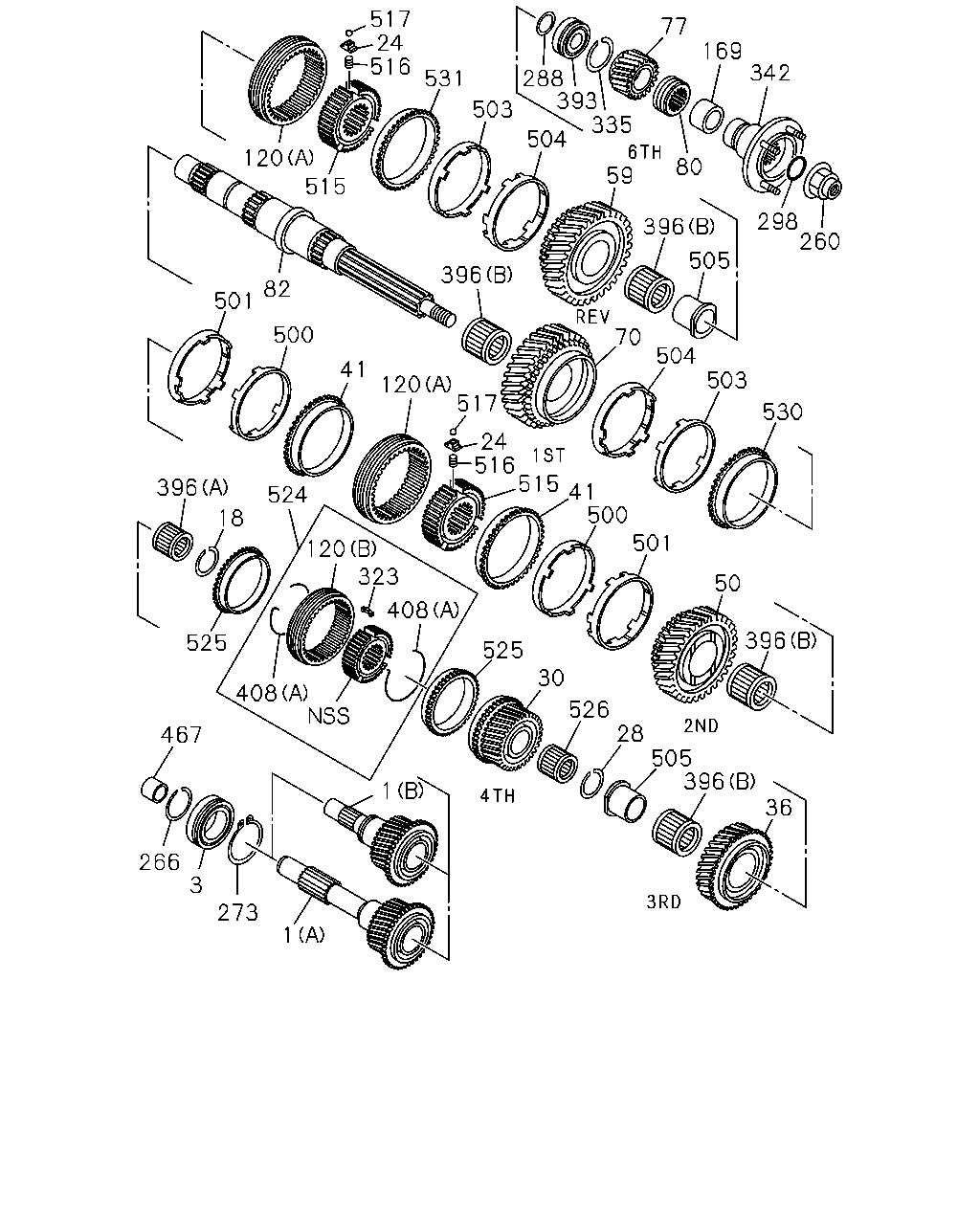

517 24 516 77 169 342 288 393 335 531 503 504 59 120 80 515 298 260 396 505 396 82 501 70 500 504 41 503 120 517 530 24 516 515 396 41 500 524 18 501 120 323 50 408 396 525 525 30 408 526 28 505 396 36 467 1 266 3 273 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.351 SHAFT; TOP GEAR,TRANS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) Z=25	8-97371-090-0	01	1	0803-	●
1	04.351 SHAFT; TOP GEAR,TRANS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) Z=25	8-97371-091-0	01	1	0803-	●
1	04.351 SHAFT; TOP GEAR,TRANS 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=26	8-98021-266-0	01	1	0803-		●
1	04.351 SHAFT; TOP GEAR,TRANS 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=26	8-98021-267-0	01	1	0803-		●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-097-1	01	1	0803-	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-098-1	01	1	0803-		●
18	04.384 RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	0803-	●
18	04.384 RING; SNAP,CLU HUB ID=30.7 T=1.8	8-97254-728-0	01	1	0803-		●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	09	1	0803-	●
24	04.383 BLOCK; INDEX,SYN TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-313-1	03	1	0803-	●	●
24	04.383 BLOCK; INDEX,SYN 4HK1-TCN ENG(RDQ)	8-97241-313-1	03	1	0803-		●
28	04.416 RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	0803-	●	●
30	04.415 GEAR; 4TH,MAINSHAFT Z=28	8-97252-628-0	01	1	0803-	●
30	04.415 GEAR; 4TH,MAINSHAFT Z=28	8-97241-230-0	01	1	0803-		●
36	04.415 GEAR; 3RD,MAINSHAFT Z=31	8-97252-630-1	01	1	0803-	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=34	8-97241-234-0	01	1	0803-		●
41	04.383 RING; BLOCK,2ND & 3RD Z=54	8-97241-305-2	02	1	0803-	●
41	04.383 RING; BLOCK,2ND & 3RD Z=45	8-97241-306-1	02	1	0803-		●
50	04.395 GEAR; 2ND,MAINSHAFT Z=43	8-97241-236-1	01	1	0803-	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=38	8-97241-237-1	01	1	0803-		●
59	04.417 GEAR; REV MAINSHAFT Z=45	8-97241-243-0	01	1	0803-	●
59	04.417 GEAR; REV MAINSHAFT 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=41	8-97350-011-0	01	1	0803-1006		●
59	04.417 GEAR; REV MAINSHAFT 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=41	8-97241-244-0	01	1	0803-1006		●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97241-244-0	01	1	1007-		●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97241-241-0	01	1	0803-	●
70	04.417 GEAR; 1ST,MAINSHAFT 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=43	8-97350-010-0	01	1	0803-		●
70	04.417 GEAR; 1ST,MAINSHAFT 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=43	8-97352-815-0	01	1	0803-		●
77	04.421 GEAR; 6TH,MAINSHAFT Z=20	8-97252-634-0	01	1	0803-	●
77	04.421 GEAR; 6TH,MAINSHAFT Z=21	8-97386-582-0	01	1	0803-		●
80	04.343 GEAR; SPD DRIVE 4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=6	8-97327-118-0	01	1	0803-	●
80	04.343 GEAR; SPD DRIVE 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C) Z=4	8-97253-555-0	01	1	0803-0809	●
80	04.343 GEAR; SPD DRIVE 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) FINAL GEAR RATIO 41/10(GT5) FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) ,FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-W HL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-12 7 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) EXC. FRT&RR 215/75R17.5 17.5X6.00-127 SIL VER(CQU) Z=4	8-97253-555-0	01	1	0803-0809	●
80	04.343 GEAR; SPD DRIVE 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C) Z=4	8-97253-555-0	01	1	0810-1005	●
80	04.343 GEAR; SPD DRIVE 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) FINAL GEAR RATIO 41/10(GT5) FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) ,FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6 -WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) EXC. KD PREPARATORY PACK<6HF> Z=4	8-97253-555-0	01	1	0810-1005	●
80	04.343 GEAR; SPD DRIVE Z=4	8-97253-556-0	01	1	0803-		●
82	04.403 SHAFT; MAIN,TRANS Z=26-42-23	8-97253-115-3	01	1	0803-	●
82	04.403 SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-116-3	01	1	0803-		●
120	04.383 SLEEVE 04.535 (B) Z=45	8-94421-871-1	01	1	0803-		●
120	04.383 SLEEVE (A) Z=45	8-97241-296-1	01	1	0803-1311		●
120	04.383 SLEEVE (A) Z=45	8-97241-296-1	01	1	0803-1311		●
120	04.383 SLEEVE (A) Z=45	8-98258-279-0	01	1	1312-		●
120	04.383 SLEEVE (A) Z=45	8-98258-279-0	01	1	1312-		●
169	04.419 COLLAR; MAINSHAFT	8-97252-937-1	01	1	0803-		●
260	04.412 NUT; MAINSHAFT END 04.525 M27 H=25	8-97360-410-0	01	1	0803-	●	●
266	04.525 RING; SNAP,BRG INNER	8-97286-915-0	01	1	0803-	●
266	04.525 RING; SNAP,BRG INNER	8-97286-916-0	01	1	0803-		●
273	04.525 RING; SNAP,BRG OUTER	8-97254-609-0	01	1	0803-	●
273	04.525 RING; SNAP,BRG OUTER	8-97254-610-0	01	1	0803-		●
288	04.399 SPACER; BRG,MAINSHAFT	8-97252-941-0	01	1	0803-	●
288	04.399 SPACER; BRG,MAINSHAFT	8-97252-942-0	01	1	0803-		●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 05.595 ID=35.7 T=5	1-09623-379-0	01	1	0803-	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7	8-98028-226-0	01	1	0803-		●
323	04.384 INSERT	8-94448-202-2	03	1	0803-		●
335	04.383 RING; SNAP,BEARING	8-97254-720-0	01	1	0803-	●
335	04.383 RING; SNAP,BEARING	8-97254-722-0	01	1	0803-		●
342	05.545 FLANGE; OUTPUT	8-98031-862-0	01	1	0803-		●
393	04.352 BEARING; MAINSHAFT END	8-97253-104-0	01	1	0803-	●
393	04.352 BEARING; MAINSHAFT END	8-97253-105-1	01	1	0803-		●
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-97253-099-1	01	1	0803-	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	0803-	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-97253-102-1	01	1	0803-		●
408	04.384 SPRING (A)	8-97366-040-1	04	1	0803-		●
408	04.384 SPRING 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.422 (B)	8-94148-196-0	03	1	0803-		●
467	04.317 COLLAR; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-183-1	01	1	0803-	●	●
500	04.383 RING; OUTSIDE,3RD & 2ND	8-97241-307-1	02	1	0803-	●
500	04.383 RING; OUTSIDE,3RD & 2ND	8-97241-309-1	02	1	0803-		●
501	04.383 RING; INSIDE,3RD & 2ND	8-97241-311-1	02	1	0803-	●
501	04.383 RING; INSIDE,3RD & 2ND	8-97241-312-1	02	1	0803-		●
503	04.383 RING; OUTSIDE,LOW & REV 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-307-1	02	1	0803-	●
503	04.383 RING; OUTSIDE,LOW & REV 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-309-1	02	1	0803-1006		●
503	04.383 RING; OUTSIDE,LOW & REV 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-309-1	01	1	1007-		●
504	04.383 RING; INSIDE,LOW & REV 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-311-1	02	1	0803-	●
504	04.383 RING; INSIDE,LOW & REV 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-312-1	02	1	0803-1006		●
504	04.383 RING; INSIDE,LOW & REV 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-312-1	01	1	1007-		●
505	04.419 COLLAR; 3RD & REV	8-97253-119-2	02	1	0803-	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97239-155-2	01	1	0803-	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97239-155-2	01	1	0803-	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	01	1	0803-		●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	01	1	0803-		●
516	04.384 SPRING; SYNCHRO,INDEX	8-97305-803-1	09	1	0803-	●
516	04.384 SPRING; SYNCHRO,INDEX 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97305-803-1	03	1	0803-	●
516	04.384 SPRING; SYNCHRO,INDEX 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97254-835-0	03	1	0803-		●
516	04.384 SPRING; SYNCHRO,INDEX 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97254-835-0	03	1	0803-		●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	09	1	0803-	●
517	04.384 BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97252-935-0	03	1	0803-	●	●
517	04.384 BALL; SYNCHRO,INDEX 4HK1-TCN ENG(RDQ)	8-97252-935-0	03	1	0803-		●
524	04.395 SLEEVE & HUB ASM; TOP-4TH,OD	8-97366-526-0	01	1	0803-		●
525	04.395 RING; BLOCK,TOP & 4TH,OD Z=45	8-97309-532-0	02	1	0803-		●
526	04.352 BEARING; NEEDLE,4TH & 5TH	8-97253-112-0	01	1	0803-		●
530	04.383 RING; BLOCK,LOW 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=54	8-97241-305-2	01	1	0803-	●
530	04.383 RING; BLOCK,LOW 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-97241-306-1	01	1	0803-		●
531	04.383 RING; BLOCK,REV 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=54	8-97241-305-2	01	1	0803-	●
531	04.383 RING; BLOCK,REV 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-97241-306-1	01	1	0803-1006		●
531	04.383 RING; BLOCK,REV 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-97368-343-0	01	1	1007-		●

517 24 516 77 531 288 393 335 503 504 59 20 515 80 298 260 396 82 505 396 501 70 500 504 503 41 530 20 517 24 516 41 396 500 18 501 517 24 516 50 515 396 19 19 30 432 28 505 396 36 467 20 21 1 266 3 273 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.351 SHAFT; TOP GEAR,TRANS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) Z=25	8-97371-090-0	01	1	0803-	●
1	04.351 SHAFT; TOP GEAR,TRANS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) Z=25	8-97371-091-0	01	1	0803-	●
1	04.351 SHAFT; TOP GEAR,TRANS 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=26	8-98021-266-0	01	1	0803-		●
1	04.351 SHAFT; TOP GEAR,TRANS 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=26	8-98021-267-0	01	1	0803-		●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-097-1	01	1	0803-	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-098-1	01	1	0803-		●
18	04.384 RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	0803-	●
18	04.384 RING; SNAP,CLU HUB ID=30.7 T=1.8	8-97254-728-0	01	1	0803-		●
19	04.383 RING; BLOCK,4TH & 5TH Z=45	8-97241-306-1	02	1	0803-	●
20	04.383 SLEEVE (B) Z=54	8-97241-295-2	01	1	0803-	●
20	04.383 SLEEVE (B) Z=54	8-97241-295-2	01	1	0803-	●
20	04.383 SLEEVE (A) Z=45	8-97241-296-1	02	1	0803-1311	●
20	04.383 SLEEVE (A) Z=45	8-98258-279-0	02	1	1312-	●
21	04.384 HUB; CLU,4TH & 5TH	8-97241-299-3	01	1	0803-	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	09	1	0803-	●
24	04.383 BLOCK; INDEX,SYN TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-313-1	03	1	0803-	●	●
24	04.383 BLOCK; INDEX,SYN 4HK1-TCN ENG(RDQ)	8-97241-313-1	03	1	0803-		●
28	04.416 RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	0803-	●	●
30	04.415 GEAR; 4TH,MAINSHAFT Z=28	8-97252-628-0	01	1	0803-	●
30	04.415 GEAR; 4TH,MAINSHAFT Z=28	8-97241-230-0	01	1	0803-		●
36	04.415 GEAR; 3RD,MAINSHAFT Z=31	8-97252-630-1	01	1	0803-	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=34	8-97241-234-0	01	1	0803-		●
41	04.383 RING; BLOCK,2ND & 3RD Z=54	8-97241-305-2	02	1	0803-	●
41	04.383 RING; BLOCK,2ND & 3RD Z=45	8-97241-306-1	02	1	0803-		●
50	04.395 GEAR; 2ND,MAINSHAFT Z=43	8-97241-236-1	01	1	0803-	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=38	8-97241-237-1	01	1	0803-		●
59	04.417 GEAR; REV MAINSHAFT Z=45	8-97241-243-0	01	1	0803-	●
59	04.417 GEAR; REV MAINSHAFT 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=41	8-97350-011-0	01	1	0803-1006		●
59	04.417 GEAR; REV MAINSHAFT 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=41	8-97241-244-0	01	1	0803-1006		●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97241-244-0	01	1	1007-		●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97241-241-0	01	1	0803-	●
70	04.417 GEAR; 1ST,MAINSHAFT 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=43	8-97350-010-0	01	1	0803-		●
70	04.417 GEAR; 1ST,MAINSHAFT 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=43	8-97352-815-0	01	1	0803-		●
77	04.421 GEAR; 6TH,MAINSHAFT Z=20	8-97252-634-0	01	1	0803-	●
77	04.421 GEAR; 6TH,MAINSHAFT Z=21	8-97386-582-0	01	1	0803-		●
80	04.343 GEAR; SPD DRIVE 4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=6	8-97327-118-0	01	1	0803-	●
80	04.343 GEAR; SPD DRIVE 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C) Z=4	8-97253-555-0	01	1	0803-0809	●
80	04.343 GEAR; SPD DRIVE 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) FINAL GEAR RATIO 41/10(GT5) FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) ,FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-W HL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-12 7 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) EXC. FRT&RR 215/75R17.5 17.5X6.00-127 SIL VER(CQU) Z=4	8-97253-555-0	01	1	0803-0809	●
80	04.343 GEAR; SPD DRIVE 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C) Z=4	8-97253-555-0	01	1	0810-1005	●
80	04.343 GEAR; SPD DRIVE 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) FINAL GEAR RATIO 41/10(GT5) FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) ,FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6 -WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) EXC. KD PREPARATORY PACK<6HF> Z=4	8-97253-555-0	01	1	0810-1005	●
80	04.343 GEAR; SPD DRIVE Z=4	8-97253-556-0	01	1	0803-		●
82	04.403 SHAFT; MAIN,TRANS Z=26-42-23	8-97253-115-3	01	1	0803-	●
82	04.403 SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-116-3	01	1	0803-		●
260	04.412 NUT; MAINSHAFT END 04.525 M27 H=25	8-97360-410-0	01	1	0803-	●	●
266	04.525 RING; SNAP,BRG INNER	8-97286-915-0	01	1	0803-	●
266	04.525 RING; SNAP,BRG INNER	8-97286-916-0	01	1	0803-		●
273	04.525 RING; SNAP,BRG OUTER	8-97254-609-0	01	1	0803-	●
273	04.525 RING; SNAP,BRG OUTER	8-97254-610-0	01	1	0803-		●
288	04.399 SPACER; BRG,MAINSHAFT	8-97252-941-0	01	1	0803-	●
288	04.399 SPACER; BRG,MAINSHAFT	8-97252-942-0	01	1	0803-		●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 05.595 ID=35.7 T=5	1-09623-379-0	01	1	0803-	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7	8-98028-226-0	01	1	0803-		●
335	04.383 RING; SNAP,BEARING	8-97254-720-0	01	1	0803-	●
335	04.383 RING; SNAP,BEARING	8-97254-722-0	01	1	0803-		●
393	04.352 BEARING; MAINSHAFT END	8-97253-104-0	01	1	0803-	●
393	04.352 BEARING; MAINSHAFT END	8-97253-105-1	01	1	0803-		●
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-97253-099-1	01	1	0803-	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	0803-	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-97253-102-1	01	1	0803-		●
432	04.419 BEARING; NEEDLE,4TH NSK	8-97253-111-0	01	1	0803-	●
467	04.317 COLLAR; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-183-1	01	1	0803-	●	●
500	04.383 RING; OUTSIDE,3RD & 2ND	8-97241-307-1	02	1	0803-	●
500	04.383 RING; OUTSIDE,3RD & 2ND	8-97241-309-1	02	1	0803-		●
501	04.383 RING; INSIDE,3RD & 2ND	8-97241-311-1	02	1	0803-	●
501	04.383 RING; INSIDE,3RD & 2ND	8-97241-312-1	02	1	0803-		●
503	04.383 RING; OUTSIDE,LOW & REV 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-307-1	02	1	0803-	●
503	04.383 RING; OUTSIDE,LOW & REV 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-309-1	02	1	0803-1006		●
503	04.383 RING; OUTSIDE,LOW & REV 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-309-1	01	1	1007-		●
504	04.383 RING; INSIDE,LOW & REV 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-311-1	02	1	0803-	●
504	04.383 RING; INSIDE,LOW & REV 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-312-1	02	1	0803-1006		●
504	04.383 RING; INSIDE,LOW & REV 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-312-1	01	1	1007-		●
505	04.419 COLLAR; 3RD & REV	8-97253-119-2	02	1	0803-	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97239-155-2	01	1	0803-	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97239-155-2	01	1	0803-	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	01	1	0803-		●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	01	1	0803-		●
516	04.384 SPRING; SYNCHRO,INDEX	8-97305-803-1	09	1	0803-	●
516	04.384 SPRING; SYNCHRO,INDEX 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97305-803-1	03	1	0803-	●
516	04.384 SPRING; SYNCHRO,INDEX 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97254-835-0	03	1	0803-		●
516	04.384 SPRING; SYNCHRO,INDEX 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97254-835-0	03	1	0803-		●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	09	1	0803-	●
517	04.384 BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97252-935-0	03	1	0803-	●	●
517	04.384 BALL; SYNCHRO,INDEX 4HK1-TCN ENG(RDQ)	8-97252-935-0	03	1	0803-		●
530	04.383 RING; BLOCK,LOW 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=54	8-97241-305-2	01	1	0803-	●
530	04.383 RING; BLOCK,LOW 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-97241-306-1	01	1	0803-		●
531	04.383 RING; BLOCK,REV 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=54	8-97241-305-2	01	1	0803-	●
531	04.383 RING; BLOCK,REV 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-97241-306-1	01	1	0803-1006		●
531	04.383 RING; BLOCK,REV 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-97368-343-0	01	1	1007-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
