2-25 — SPEEDOMETER DRIVEN GEAR (#33816) — 31 parça

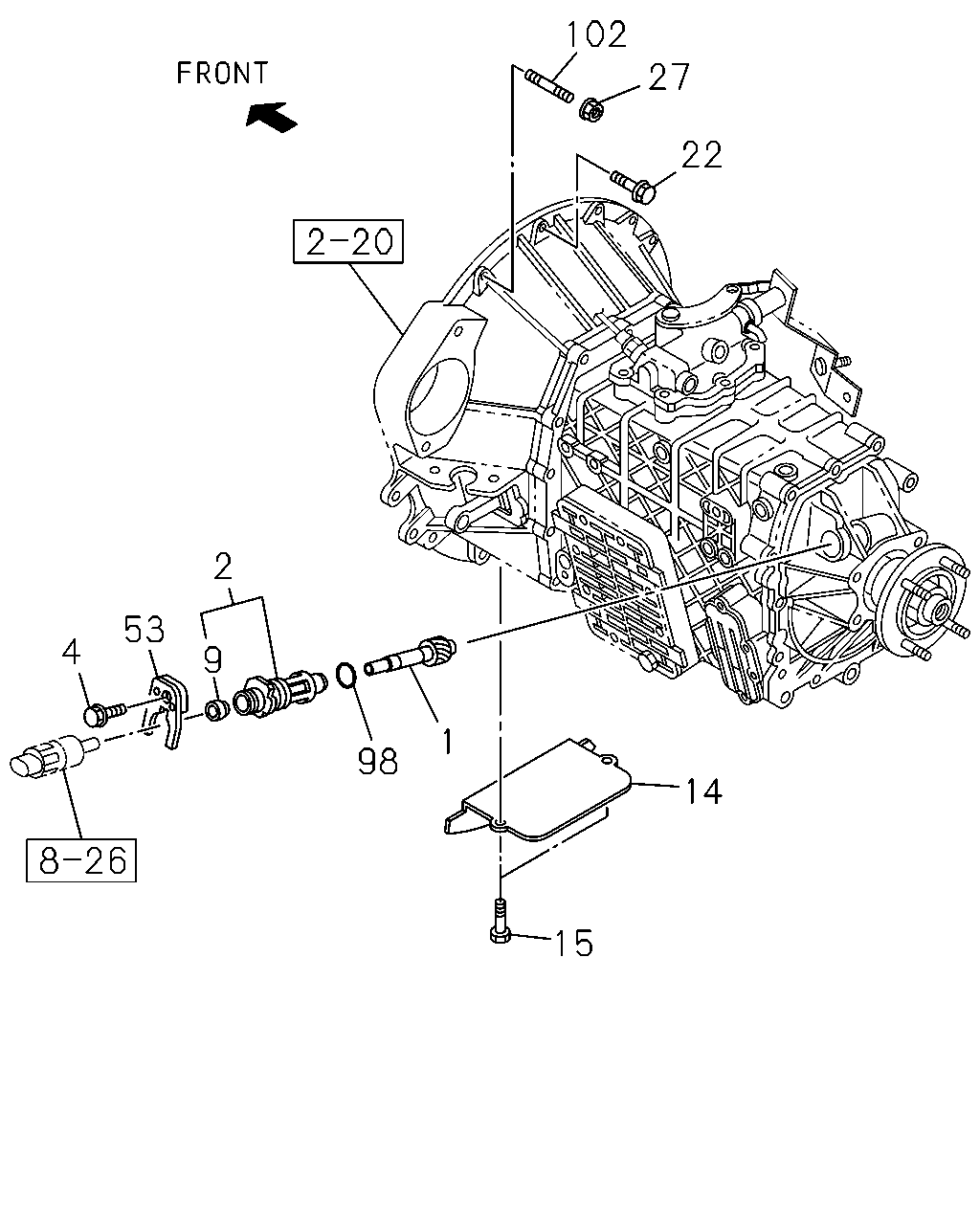

çizim 120559
102 27 22 2 53 4 9 1 98 14 15
BalonParca AdiParca NoAdetTipApplied Date
1 04.337 GEAR; DRIVEN,SPD
M/T MYY6S(RST) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) Z=11 		8-97253-559-1 01 1 0803-0803
1 04.337 GEAR; DRIVEN,SPD
M/T MYY6S(RST) FINAL GEAR RATIO 43/10(S7C) FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) Z=11 		8-97253-559-1 01 1 0803-
1 04.337 GEAR; DRIVEN,SPD
M/T MYY6S(RST) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) Z=10 		8-97253-579-1 01 1 0803-
1 04.337 GEAR; DRIVEN,SPD
M/T MZZ6F(RSR) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) Z=16 		8-97329-097-1 01 1 0803-
1 04.337 GEAR; DRIVEN,SPD
M/T MZZ6F(RSR),M/T MYY6S(RST) FINAL GEAR RATIO 43/9(S2J) FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL /NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6W HL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) Z=12 		8-97253-563-1 01 1 0803-0803
1 04.337 GEAR; DRIVEN,SPD
M/T MYY6S(RST) FINAL GEAR RATIO 43/9(S2J) FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL /NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6W HL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) Z=12 		8-97253-563-1 01 1 0803-0809
1 04.337 GEAR; DRIVEN,SPD
M/T MYY6S(RST) FINAL GEAR RATIO 43/9(S2J) FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6 -WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-1276-WHL/NUT(83V) Z=12 		8-97253-563-1 01 1 0810-
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY6S(RST) FINAL GEAR RATIO 43/10(S7C) FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) MARK "10,11,16,17" 		8-97253-124-0 01 1 0803-0804
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MZZ6F(RSR),M/T MYY6S(RST) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) MARK "10,11,16,17" 		8-97253-124-0 01 1 0803-0804
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MZZ6F(RSR) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) MARK "10,11,16,17" 		8-97253-124-0 01 1 0805-0809
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY6S(RST) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) MARK "10,11,16,17" 		8-97253-124-0 01 1 0805-0809
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY6S(RST) FINAL GEAR RATIO 43/10(S7C) FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) MARK "10,11,16,17" 		8-97253-124-0 01 1 0810-0910
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MZZ6F(RSR),M/T MYY6S(RST) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) MARK "10,11,16,17" 		8-97253-124-0 01 1 0810-0910
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MZZ6F(RSR) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) MARK "10,11,16,17" 		8-97253-124-0 01 1 0911-
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY6S(RST) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C) FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) MARK "10,11,16,17" 		8-97253-124-0 01 1 0911-
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MZZ6F(RSR),M/T MYY6S(RST) FINAL GEAR RATIO 43/9(S2J) FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL /NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6W HL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) MARK "12,13,14,15" 		8-97253-125-0 01 1 0803-0803
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY6S(RST) FINAL GEAR RATIO 43/9(S2J) FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL /NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6W HL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) MARK "12,13,14,15" 		8-97253-125-0 01 1 0803-0809
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY6S(RST) FINAL GEAR RATIO 43/9(S2J) FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6 -WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-1276-WHL/NUT(83V) MARK "12,13,14,15" 		8-97253-125-0 01 1 0810-
4 04.338 BOLT; RET,DRIVEN GEAR
M/T MZZ6F(RSR),M/T MYY6S(RST) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0803-
9 04.338 SEAL; OIL,DRIVEN GEAR
NOK 		8-97131-328-1 01 1 0803-
14 00.679 COVER; UNDER,TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97308-233-0 01 1 0803-
15 00.685 BOLT; UNDER COVER TO TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0803-
22 00.685 BOLT; TRANS CASE TO ENG
EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER(8GF) 02.042 M10X50 FLANGE 		0-28151-050-0 03 1 0803-
22 00.685 BOLT; TRANS CASE TO ENG
EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER(8GF) 00.683 M10X55 FLANGE 		8-97365-449-0 04 1 0803-
22 00.685 BOLT; TRANS CASE TO ENG
M/T MZZ6F(RSR),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 09.171 M10X30 FLANGE 		0-28151-030-0 02 1 0803-
22 00.685 BOLT; TRANS CASE TO ENG
M/T MZZ6F(RSR),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.670 M10X35 FLANGE 		0-28151-035-0 03 1 0803-
22 00.685 BOLT; TRANS CASE TO ENG
M/T MZZ6F(RSR),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.683 M10X55 FLANGE 		8-97365-449-0 02 1 0803-
27 00.685 NUT; CLU HSG TO TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.085 M10 FLANGE 		0-91180-210-0 02 1 0803-
53 04.338 PLATE; LOCK,DRIVEN GEAR
M/T MZZ6F(RSR),M/T MYY6S(RST) 		8-98046-217-0 01 1 0803-
98 04.338 SEAL; OIL,BUSH
04.439 		9-09561-324-0 01 1 0803-
102 00.683 STUD; TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) M10X50 L=99 		0-49241-050-0 02 1 0803-
