Sayfa 3-55 - Isuzu EPC

3-55 — BRAKE PIPING; OIL,REAR (#3381) — 233 parça

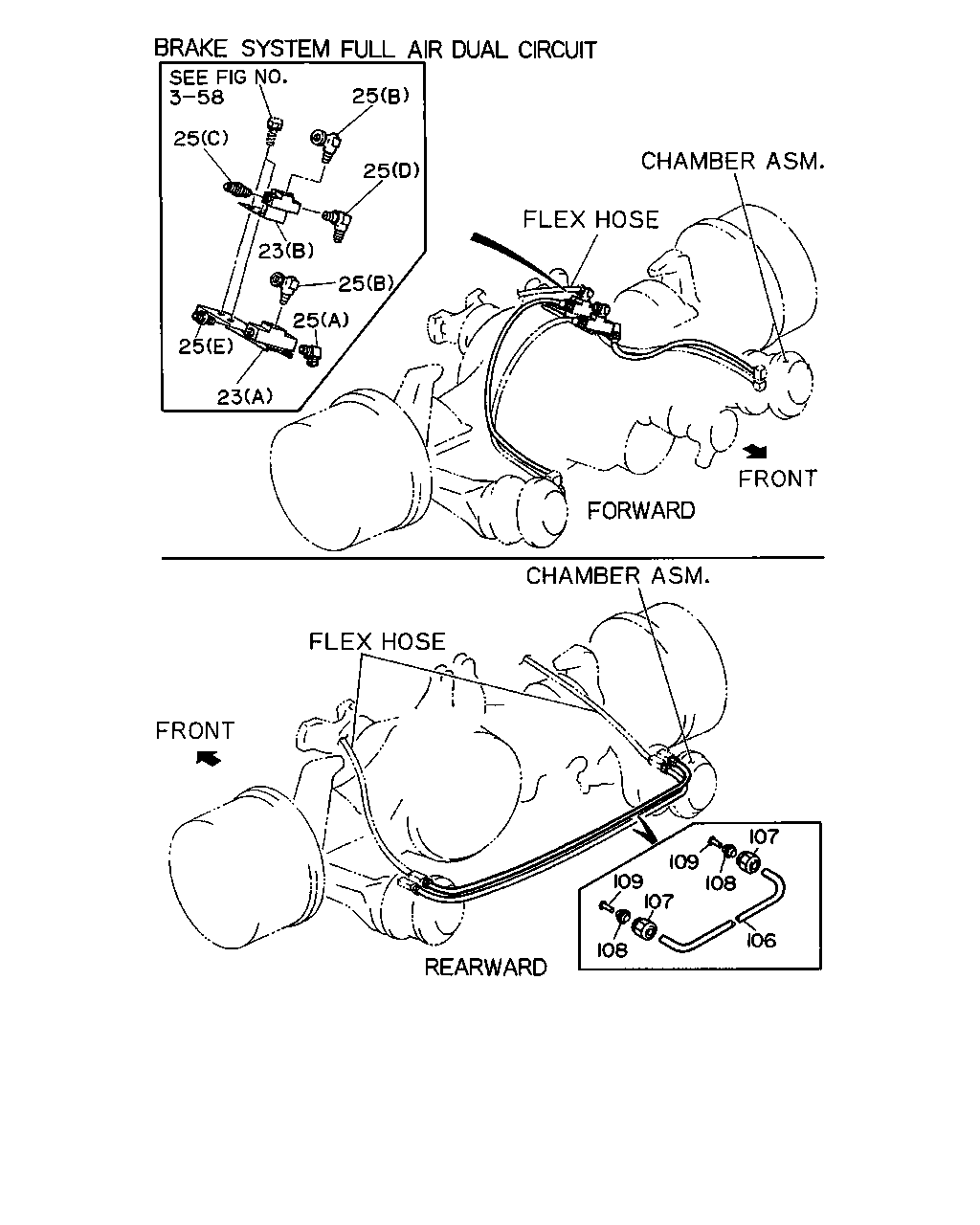

25 25 25 25 25 23 25 23 107 109 108 106 109 107 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	NIPPLE; W/BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47475-543-0	01	1	9002-9306	●	●
23	NIPPLE; W/BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47470-373-1	01	1	9307-	●	●
23	NIPPLE; W/BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B)	1-47475-536-0	01	1	9002-	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M27 & PT3/8 ELBOW	1-09660-136-0	01	1	9002-	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) M27 & PT3/8 ELBOW	1-09660-136-0	01	1	9002-	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-09660-569-0	01	1	9307-	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-09660-570-0	01	1	9307-	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E)	1-09660-572-0	01	1	9307-	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09660-574-0	01	1	9307-	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B)	1-09654-196-1	01	1	9002-9306	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (C) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	9002-9306	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (D) M16 & PT3/8 ELBOW	1-09650-180-1	01	1	9002-9302	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (D) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9303-9306	●	●
106	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> ORANGE SERVICED BY L=30000 OD=3/8"	1-09368-247-0	01	1	9307-	●	●
106	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> GREEN SERVICED BY L=30000 OD=1/2"	1-09368-251-0	01	1	9307-	●	●
107	NUT; SLEEVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> OD=3/8"	1-09660-557-0	02	1	9307-	●	●
107	NUT; SLEEVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> OD=1/2"	1-09660-558-0	02	1	9307-	●	●
108	SLEEVE; TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> ID=9.75 OD=12.17 L=9.91	1-09666-060-0	02	1	9307-	●	●
108	SLEEVE; TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> ID=12.93 OD=15.85 L=10.92	1-09666-061-0	02	1	9307-	●	●
109	RING; INSERT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> OD=1/2"	1-09669-107-0	02	1	9307-	●	●
109	RING; INSERT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) POWER CHAMBER BRAKE UPPERWARD<C1T> OD=3/8"	1-09669-108-0	02	1	9307-	●	●

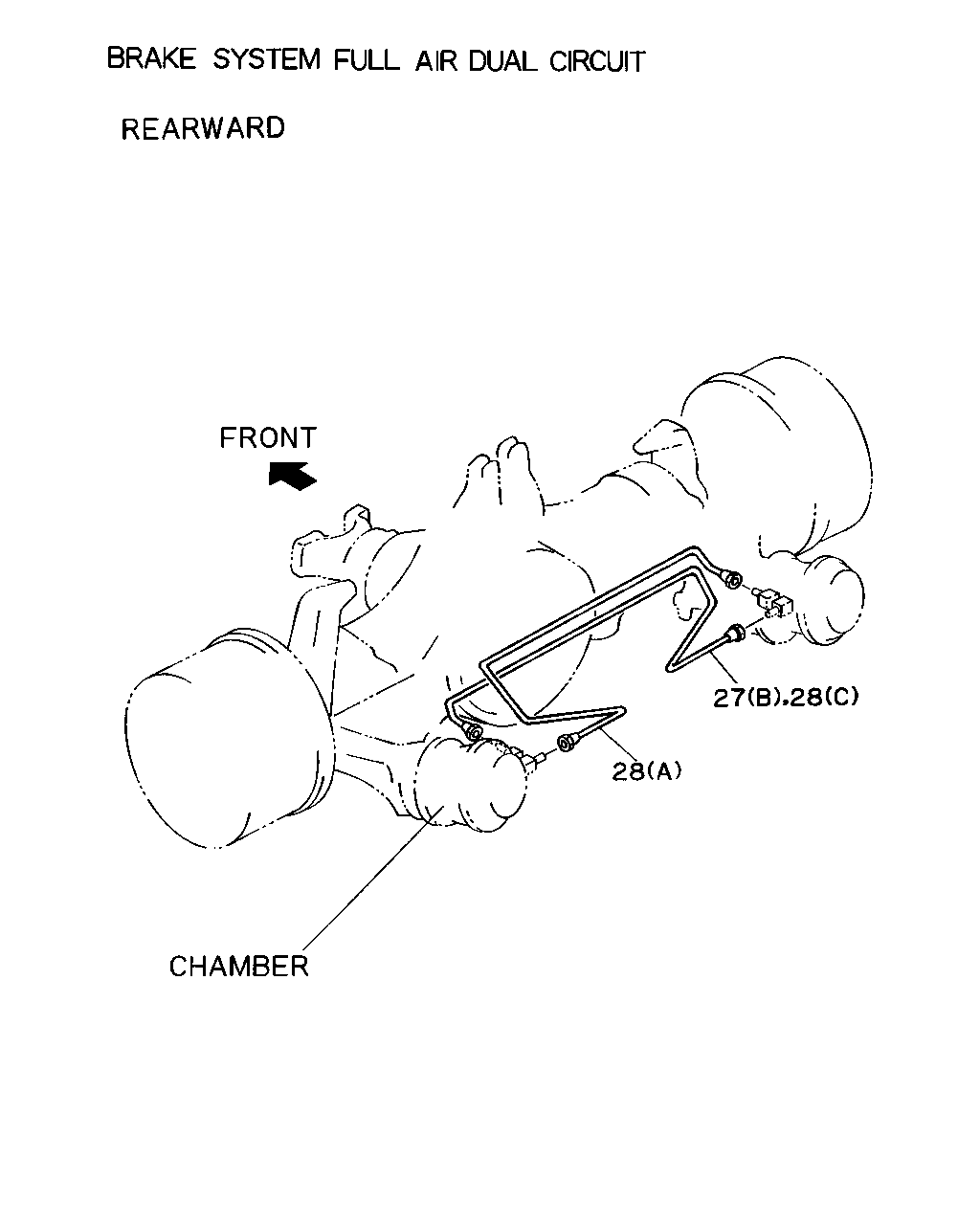

28 27 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	PIPE; AIR,3 WAY TO MAXI BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) L=657 SERVICED BY L=660	1-47437-964-0	01	1	9002-9212	●	●
27	PIPE; AIR,3 WAY TO MAXI BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) L=658 SERVICED BY L=660	1-47426-409-0	01	1	9301-9306	●	●
27	PIPE; AIR,3 WAY TO MAXI BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) L=731 SERVICED BY L=800	1-47434-475-0	01	1	9002-9306	●	●
27	PIPE; AIR,3 WAY TO MAXI BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) L=881 SERVICED BY L=1000	1-47434-476-0	01	1	9002-9306	●	●
28	PIPE; AIR,3 WAY TO POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) REARWARD L=481 SERVICED BY L=500	1-47434-472-0	01	1	9002-9306	●	●
28	PIPE; AIR,3 WAY TO POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) L=900 SERVICED BY L=1000	1-47426-414-0	01	1	9002-9306	●	●
28	PIPE; AIR,3 WAY TO POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (C) REARWARD L=417 SERVICED BY L=900	1-47437-981-0	01	1	9002-9306	●	●
28	PIPE; AIR,3 WAY TO POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) L=1100 SERVICED BY L=1250	1-47426-416-0	01	1	9002-9306	●	●
28	PIPE; AIR,3 WAY TO POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) L=731 SERVICED BY L=800	1-47434-475-0	01	1	9002-9212	●	●
28	PIPE; AIR,3 WAY TO POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) L=731 SERVICED BY L=800	1-47426-412-0	01	1	9301-9306	●	●
28	PIPE; AIR,3 WAY TO POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) L=745 SERVICED BY L=800	1-47434-475-0	01	1	9002-9306	●	●
28	PIPE; AIR,3 WAY TO POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) L=945 SERVICED BY L=1000	1-47434-476-0	01	1	9002-9306	●	●

61 11 60 10 11 10 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
10	NIPPLE; RR AXLE CASE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09903-668-3	01	1	9002-	●	●	●
10	NIPPLE; RR AXLE CASE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T>	9-09903-668-3	01	1	9002-	●	●	●
11	BOLT; NIPPLE,RR AXLE CASE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 W/LK WASHER	9-01901-025-0	01	1	9002-9204	●	●	●
11	BOLT; NIPPLE,RR AXLE CASE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> M10X25 W/LK WASHER	9-01901-025-0	01	1	9002-9204	●	●	●
11	BOLT; NIPPLE,RR AXLE CASE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 W/LK WASHER	0-50041-025-0	01	1	9205-9306	●	●	●
11	BOLT; NIPPLE,RR AXLE CASE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> M10X25 W/LK WASHER	0-50041-025-0	01	1	9205-9306	●	●	●
11	BOLT; NIPPLE,RR AXLE CASE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X20 FLANGE	0-28681-020-0	01	1	9307-9410	●	●	●
11	BOLT; NIPPLE,RR AXLE CASE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> M10X20 FLANGE	0-28681-020-0	01	1	9307-9410	●	●	●
11	BOLT; NIPPLE,RR AXLE CASE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 W/LK WASHER	0-50041-025-0	01	1	9411-	●	●	●
11	BOLT; NIPPLE,RR AXLE CASE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> M10X25 W/LK WASHER	0-50041-025-0	01	1	9411-	●	●	●
13	PIPE; BRK,RR AXLE REARWARD	1-47416-070-0	01	1	9002-			●
13	PIPE; BRK,RR AXLE REARWARD	1-47416-069-0	01	1	9002-			●
13	PIPE; BRK,RR AXLE FORWARD	1-47415-518-0	01	1	9007-			●
13	PIPE; BRK,RR AXLE FORWARD	1-47415-517-0	01	1	9007-			●
13	PIPE; BRK,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) REARWARD L=856	1-47422-496-0	01	1	9002-	●
13	PIPE; BRK,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) REARWARD L=986	1-47422-495-0	01	1	9002-	●
13	PIPE; BRK,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) REARWARD	1-47416-068-1	01	1	9002-	●	●
13	PIPE; BRK,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) REARWARD	1-47416-066-1	01	1	9002-	●	●
60	PIPE ASM; BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) L=773	1-47422-493-0	01	1	9002-	●
60	PIPE ASM; BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55)	1-47416-714-0	01	1	9002-	●	●
61	PIPE ASM; BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) L=1186	1-47422-494-0	01	1	9002-	●
61	PIPE ASM; BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55)	1-47416-715-0	01	1	9002-	●	●

43 42 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
42	HOSE; FLEX,DIFF LOCK	0-07151-630-0	01	1	9002-9306	●	●
42	HOSE; FLEX,DIFF LOCK	0-07151-560-0	01	1	9307-	●	●
43	GASKET; FLEX TUBE ID=11 OD=18	9-09572-510-0	02	1	9002-	●	●

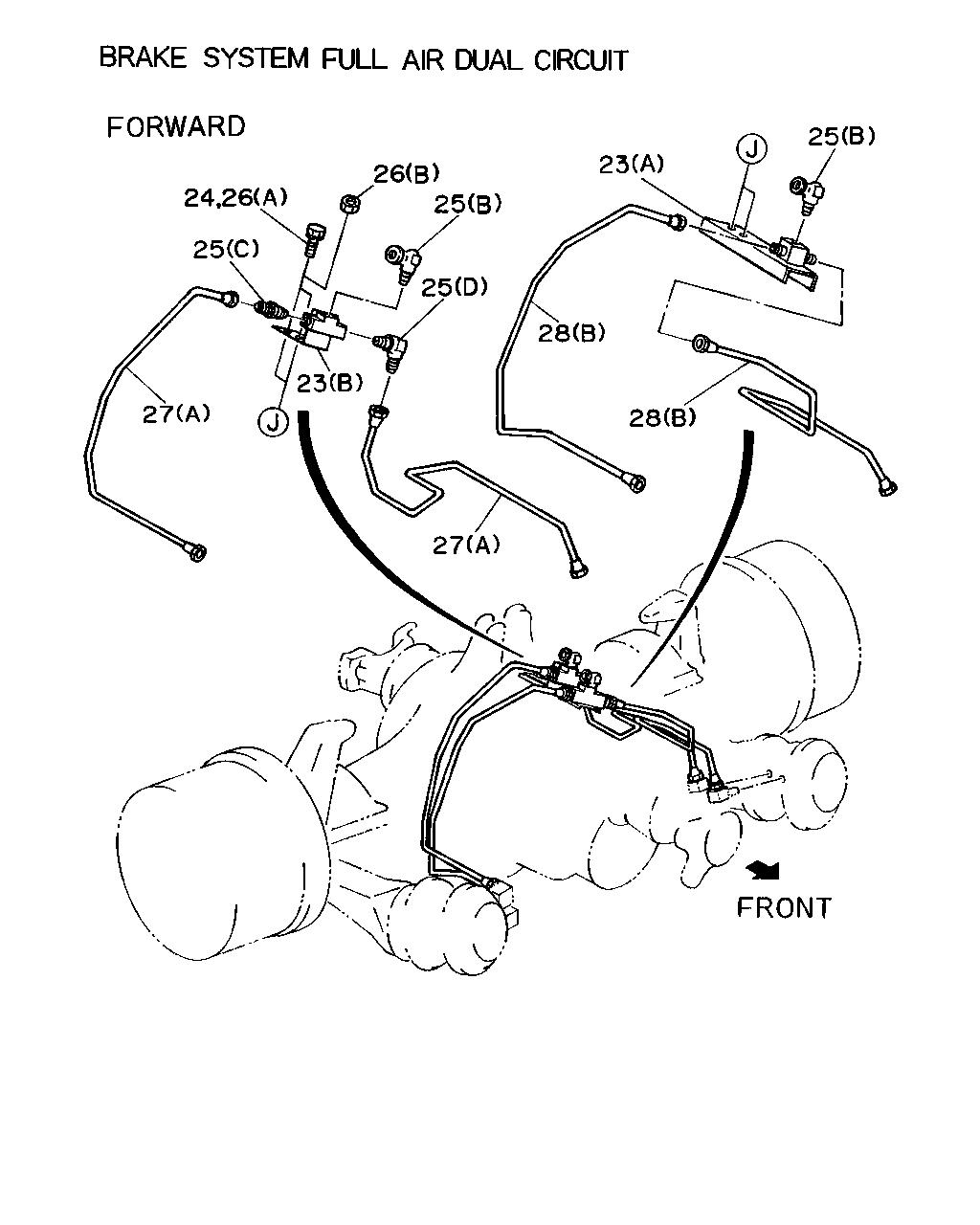

24 26 26 25 25 25 23 27 23 25 28 28 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	NIPPLE; W/BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47475-543-0	01	1	9002-9306	●	●
23	NIPPLE; W/BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47470-373-1	01	1	9307-	●	●
23	NIPPLE; W/BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B)	1-47475-536-0	01	1	9002-	●	●
24	BOLT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X18 W/LK WASHER	9-01910-818-0	02	1	9002-9005	●	●
24	BOLT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X18 W/LK WASHER	0-50040-818-0	02	1	9006-9306	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M27 & PT3/8 ELBOW	1-09660-136-0	01	1	9002-	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) M27 & PT3/8 ELBOW	1-09660-136-0	01	1	9002-	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-09660-569-0	01	1	9307-	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-09660-570-0	01	1	9307-	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E)	1-09660-572-0	01	1	9307-	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09660-574-0	01	1	9307-	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B)	1-09654-196-1	01	1	9002-9306	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (C) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	9002-9306	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (D) M16 & PT3/8 ELBOW	1-09650-180-1	01	1	9002-9302	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (D) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9303-9306	●	●
26	NUT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204	●	●
26	NUT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9306	●	●
26	NUT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) M8	9-09110-508-0	02	1	9002-9306	●	●
26	NUT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) M20	9-99111-420-0	01	1	9002-9306	●	●
27	PIPE; AIR,3 WAY TO MAXI BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) L=657 SERVICED BY L=660	1-47437-964-0	01	1	9002-9212	●	●
27	PIPE; AIR,3 WAY TO MAXI BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) L=658 SERVICED BY L=660	1-47426-409-0	01	1	9301-9306	●	●
27	PIPE; AIR,3 WAY TO MAXI BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) L=731 SERVICED BY L=800	1-47434-475-0	01	1	9002-9306	●	●
27	PIPE; AIR,3 WAY TO MAXI BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) L=881 SERVICED BY L=1000	1-47434-476-0	01	1	9002-9306	●	●
28	PIPE; AIR,3 WAY TO POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) REARWARD L=481 SERVICED BY L=500	1-47434-472-0	01	1	9002-9306	●	●
28	PIPE; AIR,3 WAY TO POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) L=900 SERVICED BY L=1000	1-47426-414-0	01	1	9002-9306	●	●
28	PIPE; AIR,3 WAY TO POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (C) REARWARD L=417 SERVICED BY L=900	1-47437-981-0	01	1	9002-9306	●	●
28	PIPE; AIR,3 WAY TO POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) L=1100 SERVICED BY L=1250	1-47426-416-0	01	1	9002-9306	●	●
28	PIPE; AIR,3 WAY TO POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) L=731 SERVICED BY L=800	1-47434-475-0	01	1	9002-9212	●	●
28	PIPE; AIR,3 WAY TO POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) L=731 SERVICED BY L=800	1-47426-412-0	01	1	9301-9306	●	●
28	PIPE; AIR,3 WAY TO POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) L=745 SERVICED BY L=800	1-47434-475-0	01	1	9002-9306	●	●
28	PIPE; AIR,3 WAY TO POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) L=945 SERVICED BY L=1000	1-47434-476-0	01	1	9002-9306	●	●

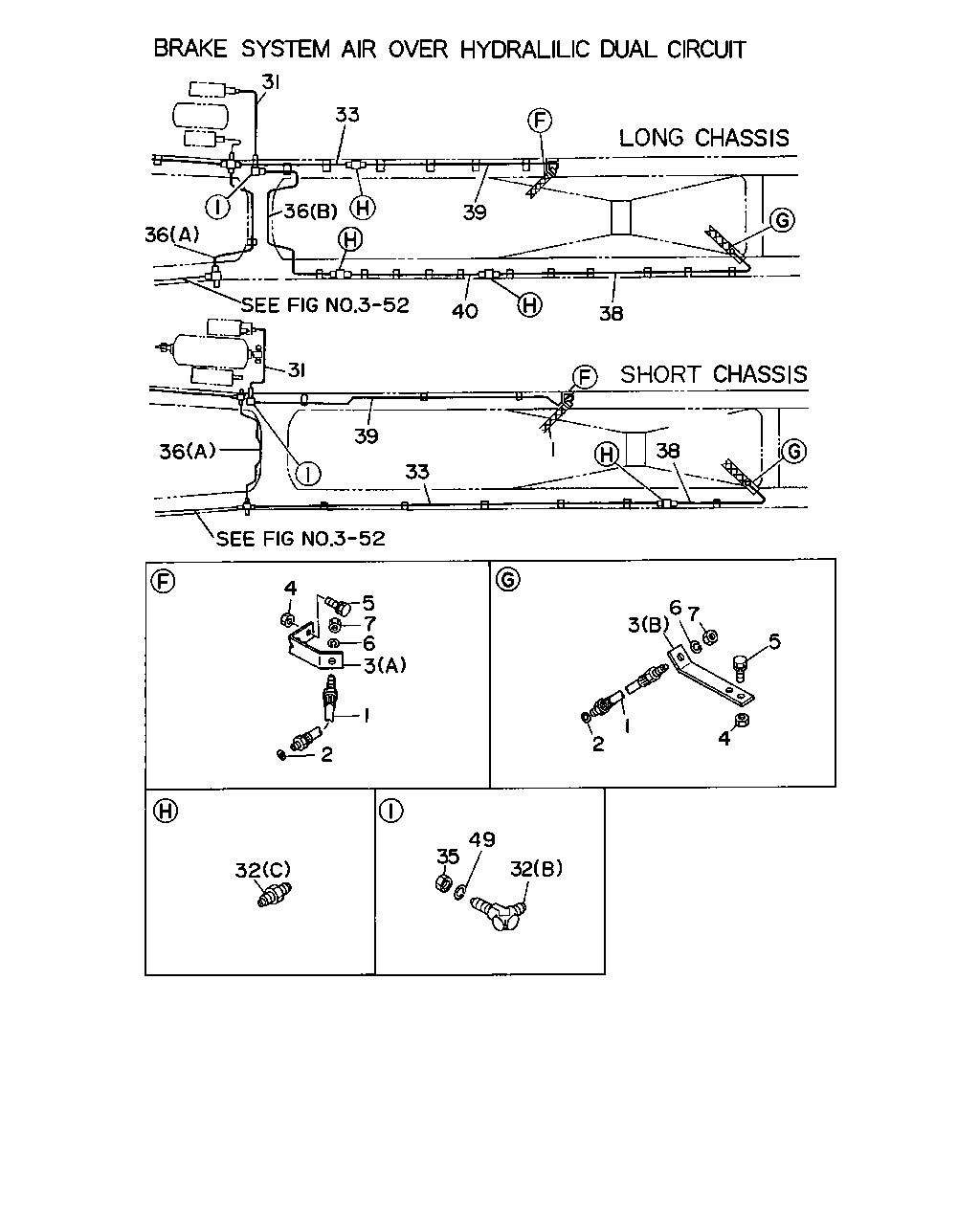

31 36 33 39 38 40 36 31 39 36 33 38 5 4 7 6 3 4 2 32 35 49 32 2 3 1 6 4 7 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HOSE; FLEX,RR BRK FORWARD L=475	1-09364-189-0	01	1	9002-			●
1	HOSE; FLEX,RR BRK REARWARD L=500	1-09364-190-0	01	1	9002-			●
1	HOSE; FLEX,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=450	1-09364-188-0	02	1	9002-	●	●
2	GASKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=9 OD=17	9-09920-472-0	02	1	9002-	●	●	●
3	BRACKET; FLEX HOSE,RR BRK (A)	1-47465-930-0	01	1	9002-9211			●
3	BRACKET; FLEX HOSE,RR BRK (A)	1-47476-569-1	01	1	9212-			●
3	BRACKET; FLEX HOSE,RR BRK (B)	1-47475-463-1	01	1	9002-9211			●
3	BRACKET; FLEX HOSE,RR BRK (B)	1-47476-572-1	01	1	9212-			●
3	BRACKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47465-781-0	01	1	9002-9103	●	●
3	BRACKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47475-357-2	01	1	9002-	●	●
3	BRACKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47476-573-1	01	1	9104-	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK M8	9-09110-408-0	04	1	9002-			●
4	NUT; BRKT,FLEX HOSE,RR BRK M8	9-09110-408-0	02	1	9002-			●
4	NUT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	02	1	9002-	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK M8	9-09110-408-0	02	1	9002-	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X25 W/LK WASHER	0-50040-825-0	02	1	9002-9302			●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X20 W/LK WASHER	9-01910-820-0	04	1	9002-9005			●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X20 W/LK WASHER	0-50040-820-0	04	1	9006-9302			●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X20 FLANGE	0-28080-820-0	04	1	9303-			●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X25 FLANGE	0-28080-825-0	02	1	9303-			●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 W/LK WASHER	0-50040-835-0	02	1	9002-9302	●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28080-835-0	02	1	9303-	●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 W/LK WASHER	0-50040-830-0	02	1	9002-9302	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28080-830-0	02	1	9303-9306	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X40 W/LK WASHER	0-50040-840-0	02	1	9002-9302		●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X40 FLANGE	0-28080-840-0	02	1	9303-		●
6	WASHER; LK,FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2	9-09150-512-0	02	1	9002-	●	●	●
7	NUT; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-09840-280-0	02	1	9002-	●	●	●
31	PIPE; OIL,AIR MASTER TO UNION L=538	1-47421-306-0	01	1	9002-			●
31	PIPE; OIL,AIR MASTER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=545	1-47421-161-0	01	1	9002-	●	●
32	UNION; OIL PIPE (A)	1-09656-232-1	01	1	9002-			●
32	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12 ELBOW	9-09225-206-1	01	1	9002-	●	●	●
32	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) (C) M12 L=40	9-09223-006-1	04	1	9002-	●	●	●
32	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M12 2WAY	1-09654-234-0	01	1	9002-9201		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5700MM(57W) L=1883 SERVICED BY L=2000	1-47434-395-0	01	1	9002-			●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 6600MM(66W) L=2711 SERVICED BY L=2900	1-47434-400-0	01	1	9002-			●
33	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) L=2648 SERVICED BY L=2650	1-47434-399-0	01	1	9002-	●
33	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) L=1821 SERVICED BY L=2000	1-47426-359-0	01	1	9002-	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5800MM(58W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1262 SERVICED BY L=1370	1-47434-390-0	01	1	9002-		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 6400MM(64W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1812 SERVICED BY L=1820	1-47434-394-0	01	1	9002-		●
35	NUT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-09840-280-0	01	1	9002-	●	●	●
35	NUT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-99110-412-0	01	1	9002-9304		●
35	NUT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-99110-512-0	01	1	9305-		●
36	PIPE; OIL,UNION TO UNION (B) L=2163 SERVICED BY L=2200	1-47434-396-0	01	1	9002-			●
36	PIPE; OIL,UNION TO UNION (A) L=1073 SERVICED BY L=1100	1-47434-409-0	01	1	9002-			●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) (A) L=1003 SERVICED BY L=1100	1-47434-409-0	01	1	9002-9306	●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) (A) L=1003 SERVICED BY L=1100	1-47426-387-0	01	1	9307-	●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) (A) L=1003 SERVICED BY L=1100	1-47434-387-0	01	1	9002-	●	●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) (B) L=1743 SERVICED BY L=1820	1-47434-394-0	01	1	9002-9308	●	●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) (B) L=1786 SERVICED BY L=1820	1-47426-358-0	01	1	9309-	●	●
38	PIPE; OIL,UNION TO FLEX HOSE L=2268 SERVICED BY L=2350	1-47434-397-0	01	1	9002-			●
38	PIPE; OIL,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47421-163-0	01	1	9002-	●
38	PIPE; OIL,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47422-061-0	01	1	9002-		●
39	PIPE; OIL,UNION TO RR FLEX HOSE L=1514 SERVICED BY L=1620	1-47434-392-0	01	1	9002-			●
39	PIPE; OIL,UNION TO RR FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) L=2009 SERVICED BY L=2200	1-47434-396-0	01	1	9002-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) L=2005 SERVICED BY L=2200	1-47413-564-0	01	1	9002-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1962 SERVICED BY L=2000	1-47434-395-0	01	1	9002-		●
40	PIPE; BRK,UNION TO UNION WHEEL BASE 5800MM(58W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47422-060-0	01	1	9002-9201		●
40	PIPE; BRK,UNION TO UNION WHEEL BASE 5800MM(58W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47424-658-0	01	1	9202-		●
40	PIPE; BRK,UNION TO UNION WHEEL BASE 6400MM(64W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47422-059-0	01	1	9002-9201		●
40	PIPE; BRK,UNION TO UNION WHEEL BASE 6400MM(64W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47424-657-0	01	1	9202-		●
49	WASHER; LK,UNION,OIL PIPE ID=12.2	9-09150-512-0	01	1	9307-9312			●
49	WASHER; LK,UNION,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2	9-09150-512-0	01	1	9307-9312	●	●
49	WASHER; LK,UNION,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2	9-09150-512-0	01	1	9307-9312		●

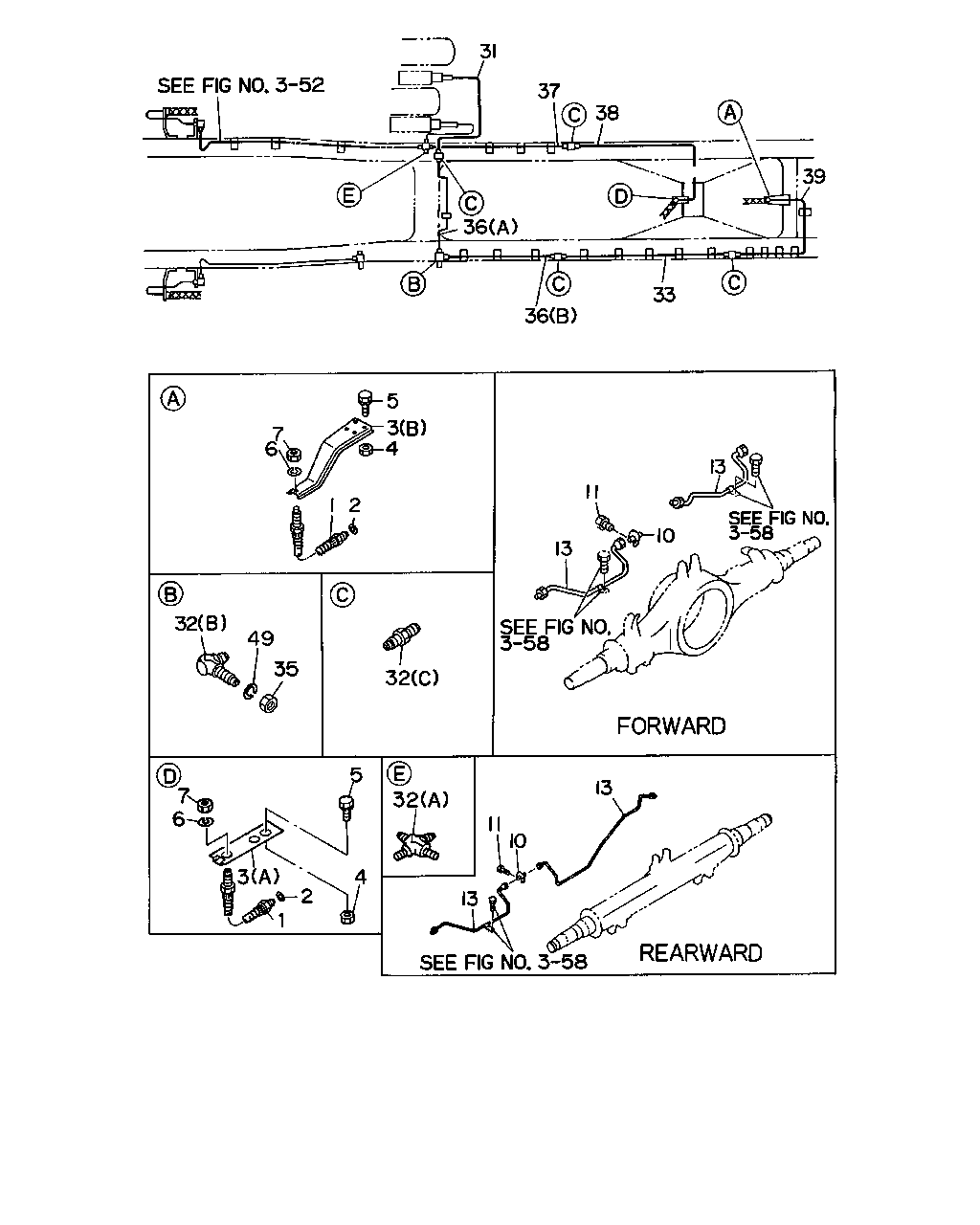

31 38 36 33 39 36 5 7 6 3 1 2 4 32 49 35 5 7 6 3 2 1 32 4 11 13 13 10 13 11 10 13 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HOSE; FLEX,RR BRK FORWARD L=475	1-09364-189-0	01	1	9002-			●
1	HOSE; FLEX,RR BRK REARWARD L=500	1-09364-190-0	01	1	9002-			●
1	HOSE; FLEX,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=450	1-09364-188-0	02	1	9002-	●	●
2	GASKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=9 OD=17	9-09920-472-0	02	1	9002-	●	●	●
3	BRACKET; FLEX HOSE,RR BRK (A)	1-47465-930-0	01	1	9002-9211			●
3	BRACKET; FLEX HOSE,RR BRK (A)	1-47476-569-1	01	1	9212-			●
3	BRACKET; FLEX HOSE,RR BRK (B)	1-47475-463-1	01	1	9002-9211			●
3	BRACKET; FLEX HOSE,RR BRK (B)	1-47476-572-1	01	1	9212-			●
3	BRACKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47465-781-0	01	1	9002-9103	●	●
3	BRACKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47475-357-2	01	1	9002-	●	●
3	BRACKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47476-573-1	01	1	9104-	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK M8	9-09110-408-0	04	1	9002-			●
4	NUT; BRKT,FLEX HOSE,RR BRK M8	9-09110-408-0	02	1	9002-			●
4	NUT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	02	1	9002-	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK M8	9-09110-408-0	02	1	9002-	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X25 W/LK WASHER	0-50040-825-0	02	1	9002-9302			●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X20 W/LK WASHER	9-01910-820-0	04	1	9002-9005			●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X20 W/LK WASHER	0-50040-820-0	04	1	9006-9302			●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X20 FLANGE	0-28080-820-0	04	1	9303-			●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X25 FLANGE	0-28080-825-0	02	1	9303-			●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 W/LK WASHER	0-50040-835-0	02	1	9002-9302	●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28080-835-0	02	1	9303-	●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 W/LK WASHER	0-50040-830-0	02	1	9002-9302	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28080-830-0	02	1	9303-9306	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X40 W/LK WASHER	0-50040-840-0	02	1	9002-9302		●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X40 FLANGE	0-28080-840-0	02	1	9303-		●
6	WASHER; LK,FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2	9-09150-512-0	02	1	9002-	●	●	●
7	NUT; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-09840-280-0	02	1	9002-	●	●	●
10	NIPPLE; RR AXLE CASE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09903-668-3	01	1	9002-	●	●	●
10	NIPPLE; RR AXLE CASE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T>	9-09903-668-3	01	1	9002-	●	●	●
11	BOLT; NIPPLE,RR AXLE CASE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 W/LK WASHER	9-01901-025-0	01	1	9002-9204	●	●	●
11	BOLT; NIPPLE,RR AXLE CASE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> M10X25 W/LK WASHER	9-01901-025-0	01	1	9002-9204	●	●	●
11	BOLT; NIPPLE,RR AXLE CASE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 W/LK WASHER	0-50041-025-0	01	1	9205-9306	●	●	●
11	BOLT; NIPPLE,RR AXLE CASE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> M10X25 W/LK WASHER	0-50041-025-0	01	1	9205-9306	●	●	●
11	BOLT; NIPPLE,RR AXLE CASE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X20 FLANGE	0-28681-020-0	01	1	9307-9410	●	●	●
11	BOLT; NIPPLE,RR AXLE CASE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> M10X20 FLANGE	0-28681-020-0	01	1	9307-9410	●	●	●
11	BOLT; NIPPLE,RR AXLE CASE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 W/LK WASHER	0-50041-025-0	01	1	9411-	●	●	●
11	BOLT; NIPPLE,RR AXLE CASE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) P60 PROP SHAFT<C2M>,P90 PROP SHAFT<C5T> M10X25 W/LK WASHER	0-50041-025-0	01	1	9411-	●	●	●
13	PIPE; BRK,RR AXLE REARWARD	1-47416-070-0	01	1	9002-			●
13	PIPE; BRK,RR AXLE REARWARD	1-47416-069-0	01	1	9002-			●
13	PIPE; BRK,RR AXLE FORWARD	1-47415-518-0	01	1	9007-			●
13	PIPE; BRK,RR AXLE FORWARD	1-47415-517-0	01	1	9007-			●
13	PIPE; BRK,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) REARWARD L=856	1-47422-496-0	01	1	9002-	●
13	PIPE; BRK,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) REARWARD L=986	1-47422-495-0	01	1	9002-	●
13	PIPE; BRK,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) REARWARD	1-47416-068-1	01	1	9002-	●	●
13	PIPE; BRK,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) REARWARD	1-47416-066-1	01	1	9002-	●	●
31	PIPE; OIL,AIR MASTER TO UNION L=538	1-47421-306-0	01	1	9002-			●
31	PIPE; OIL,AIR MASTER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=545	1-47421-161-0	01	1	9002-	●	●
32	UNION; OIL PIPE (A)	1-09656-232-1	01	1	9002-			●
32	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12 ELBOW	9-09225-206-1	01	1	9002-	●	●	●
32	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) (C) M12 L=40	9-09223-006-1	04	1	9002-	●	●	●
32	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M12 2WAY	1-09654-234-0	01	1	9002-9201		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5700MM(57W) L=1883 SERVICED BY L=2000	1-47434-395-0	01	1	9002-			●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 6600MM(66W) L=2711 SERVICED BY L=2900	1-47434-400-0	01	1	9002-			●
33	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) L=2648 SERVICED BY L=2650	1-47434-399-0	01	1	9002-	●
33	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) L=1821 SERVICED BY L=2000	1-47426-359-0	01	1	9002-	●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5800MM(58W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1262 SERVICED BY L=1370	1-47434-390-0	01	1	9002-		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 6400MM(64W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1812 SERVICED BY L=1820	1-47434-394-0	01	1	9002-		●
35	NUT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-09840-280-0	01	1	9002-	●	●	●
35	NUT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-99110-412-0	01	1	9002-9304		●
35	NUT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-99110-512-0	01	1	9305-		●
36	PIPE; OIL,UNION TO UNION (B) L=2163 SERVICED BY L=2200	1-47434-396-0	01	1	9002-			●
36	PIPE; OIL,UNION TO UNION (A) L=1073 SERVICED BY L=1100	1-47434-409-0	01	1	9002-			●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) (A) L=1003 SERVICED BY L=1100	1-47434-409-0	01	1	9002-9306	●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) (A) L=1003 SERVICED BY L=1100	1-47426-387-0	01	1	9307-	●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) (A) L=1003 SERVICED BY L=1100	1-47434-387-0	01	1	9002-	●	●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) (B) L=1743 SERVICED BY L=1820	1-47434-394-0	01	1	9002-9308	●	●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) (B) L=1786 SERVICED BY L=1820	1-47426-358-0	01	1	9309-	●	●
37	PIPE; BRK,UNION TO UNION WHEEL BASE 5700MM(57W)	1-47418-757-0	01	1	9002-			●
37	PIPE; BRK,UNION TO UNION WHEEL BASE 6600MM(66W)	1-47418-754-0	01	1	9002-			●
38	PIPE; OIL,UNION TO FLEX HOSE L=2268 SERVICED BY L=2350	1-47434-397-0	01	1	9002-			●
38	PIPE; OIL,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47421-163-0	01	1	9002-	●
38	PIPE; OIL,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47422-061-0	01	1	9002-		●
39	PIPE; OIL,UNION TO RR FLEX HOSE L=1514 SERVICED BY L=1620	1-47434-392-0	01	1	9002-			●
39	PIPE; OIL,UNION TO RR FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) L=2009 SERVICED BY L=2200	1-47434-396-0	01	1	9002-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) L=2005 SERVICED BY L=2200	1-47413-564-0	01	1	9002-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1962 SERVICED BY L=2000	1-47434-395-0	01	1	9002-		●
49	WASHER; LK,UNION,OIL PIPE ID=12.2	9-09150-512-0	01	1	9307-9312			●
49	WASHER; LK,UNION,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2	9-09150-512-0	01	1	9307-9312	●	●
49	WASHER; LK,UNION,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2	9-09150-512-0	01	1	9307-9312		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
