Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#33805) — 445 parça

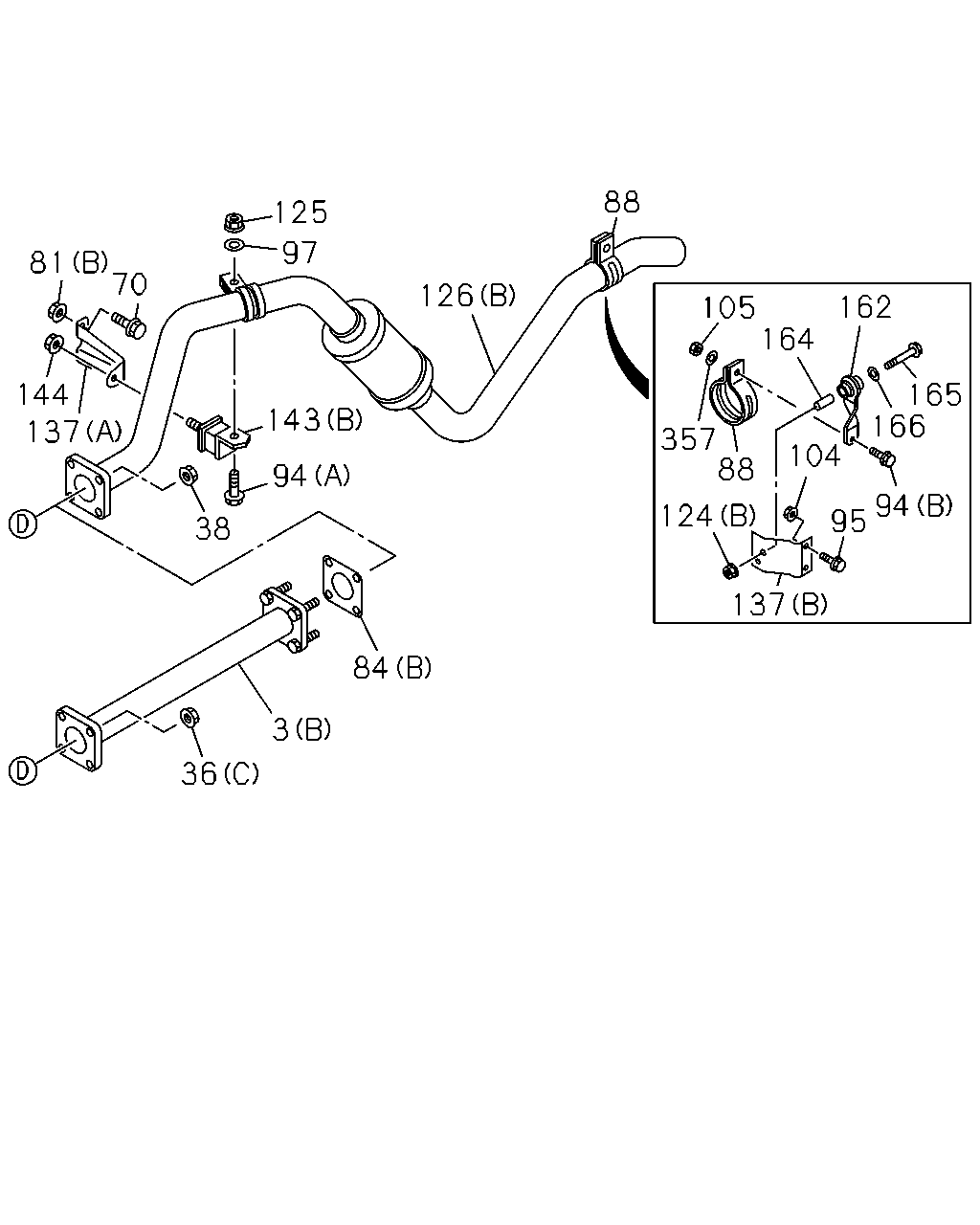

88 125 97 81 70 126 162 105 164 165 166 144 137 143 357 88 104 94 94 95 124 38 137 84 3 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	03.609 PIPE; EXH,CENTER EURO2 SPECIFICATION(NT2) (A)	8-97089-322-0	01	1	0803-0811
3	03.609 PIPE; EXH,CENTER EURO2 SPECIFICATION(NT2) (C)	8-98134-199-0	01	1	0812-
3	03.609 PIPE; EXH,CENTER EURO4 SPECIFICATION(NT4) (B)	8-98020-602-0	01	1	0803-
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	0803-
36	03.613 NUT; EXH PIPE EURO2 SPECIFICATION(NT2) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0803-
36	03.613 NUT; EXH PIPE EURO4 SPECIFICATION(NT4) 03.162 (C) M10 FLANGE	0-91180-110-0	04	1	0803-
38	00.002 NUT; SILENCER EURO2 SPECIFICATION(NT2) 03.162 M10 FLANGE	0-91180-110-0	02	1	0803-
38	00.002 NUT; SILENCER EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE	0-91180-110-0	04	1	0803-
70	03.706 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0803-
81	03.704 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0803-
81	03.704 NUT; BRKT 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0803-
84	03.611 GASKET; EXH PIPE EURO2 SPECIFICATION(NT2) 03.704 (A) ID=64.7	8-94328-352-0	01	1	0803-
84	03.611 GASKET; EXH PIPE EURO2 SPECIFICATION(NT2) 03.704 (A) ID=64.7	8-94328-352-0	01	1	0803-
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) (C) ID=64	8-97373-108-0	01	1	0803-
84	03.611 GASKET; EXH PIPE 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.704 (B) ID=85.8	1-22116-043-0	01	1	0803-
84	03.611 GASKET; EXH PIPE EURO4 SPECIFICATION(NT4) 03.704 (B) ID=85.8	1-22116-043-0	01	1	0803-
88	03.708 CLAMP; EXH PIPE EURO2 SPECIFICATION(NT2)	8-97373-158-0	01	1	0803-0811
88	03.708 CLAMP; EXH PIPE EURO2 SPECIFICATION(NT2)	8-97373-158-0	01	1	0803-0811
88	03.708 CLAMP; EXH PIPE EURO2 SPECIFICATION(NT2)	8-97373-158-0	01	1	0803-0811
88	03.708 CLAMP; EXH PIPE EURO2 SPECIFICATION(NT2)	8-97373-158-0	01	1	0803-0811
88	03.708 CLAMP; EXH PIPE EURO2 SPECIFICATION(NT2)	8-97373-158-0	01	1	0812-
88	03.708 CLAMP; EXH PIPE EURO2 SPECIFICATION(NT2)	8-97373-158-0	01	1	0812-
88	03.708 CLAMP; EXH PIPE EURO2 SPECIFICATION(NT2)	8-97373-158-0	01	1	0812-
88	03.708 CLAMP; EXH PIPE EURO4 SPECIFICATION(NT4)	8-98034-766-0	01	1	0803-
94	03.704 BOLT; CLAMP 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0803-
94	03.704 BOLT; CLAMP EURO2 SPECIFICATION(NT2) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0803-
94	03.704 BOLT; CLAMP 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	0803-
95	03.708 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0803-
97	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0803-
104	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0803-
105	03.704 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	0803-
105	03.704 NUT; CLAMP EURO2 SPECIFICATION(NT2) 00.833 M10	0-91110-510-0	01	1	0803-
124	03.704 NUT; SUPPORT RUBBER 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0803-
124	03.704 NUT; SUPPORT RUBBER 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0803-
124	03.704 NUT; SUPPORT RUBBER EURO2 SPECIFICATION(NT2) 02.334 (A) M8	0-91110-508-0	02	1	0803-
125	03.708 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	0803-
126	03.705 PIPE; EXH,RR EURO2 SPECIFICATION(NT2) (A)	8-98090-128-1	01	1	0803-0811
126	03.705 PIPE; EXH,RR EURO2 SPECIFICATION(NT2) (A)	8-98134-798-0	01	1	0812-
126	03.705 PIPE; EXH,RR EURO4 SPECIFICATION(NT4) (B)	8-98045-047-0	01	1	0803-
137	03.706 BRACKET; TAIL PIPE 03.613 (A)	8-97096-651-0	01	1	0803-
137	03.706 BRACKET; TAIL PIPE (B)	8-97116-588-2	01	1	0803-
143	03.704 RUBBER; SUPPORT (B)	8-98034-767-0	01	1	0803-
143	03.704 RUBBER; SUPPORT EURO2 SPECIFICATION(NT2) (A)	8-97080-694-0	01	1	0803-
143	03.704 RUBBER; SUPPORT EURO4 SPECIFICATION(NT4) (C)	8-94457-277-1	01	1	0803-
143	03.704 RUBBER; SUPPORT EURO4 SPECIFICATION(NT4) (D)	8-94457-278-1	01	1	0803-
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-
162	03.706 RUBBER; SUPPORT,TAIL PIPE EURO2 SPECIFICATION(NT2) L=115	8-98034-765-0	01	1	0803-
162	03.706 RUBBER; SUPPORT,TAIL PIPE L=115	8-98034-765-0	01	1	0803-
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	0803-
165	03.706 BOLT; SUPPORT RUBBER EURO2 SPECIFICATION(NT2) M10X70 FLANGE	0-28051-070-0	01	1	0803-
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	0803-
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0803-
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI EURO2 SPECIFICATION(NT2) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0803-
357	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0803-
357	03.708 WASHER; PL,CLAMP EURO2 SPECIFICATION(NT2) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0803-

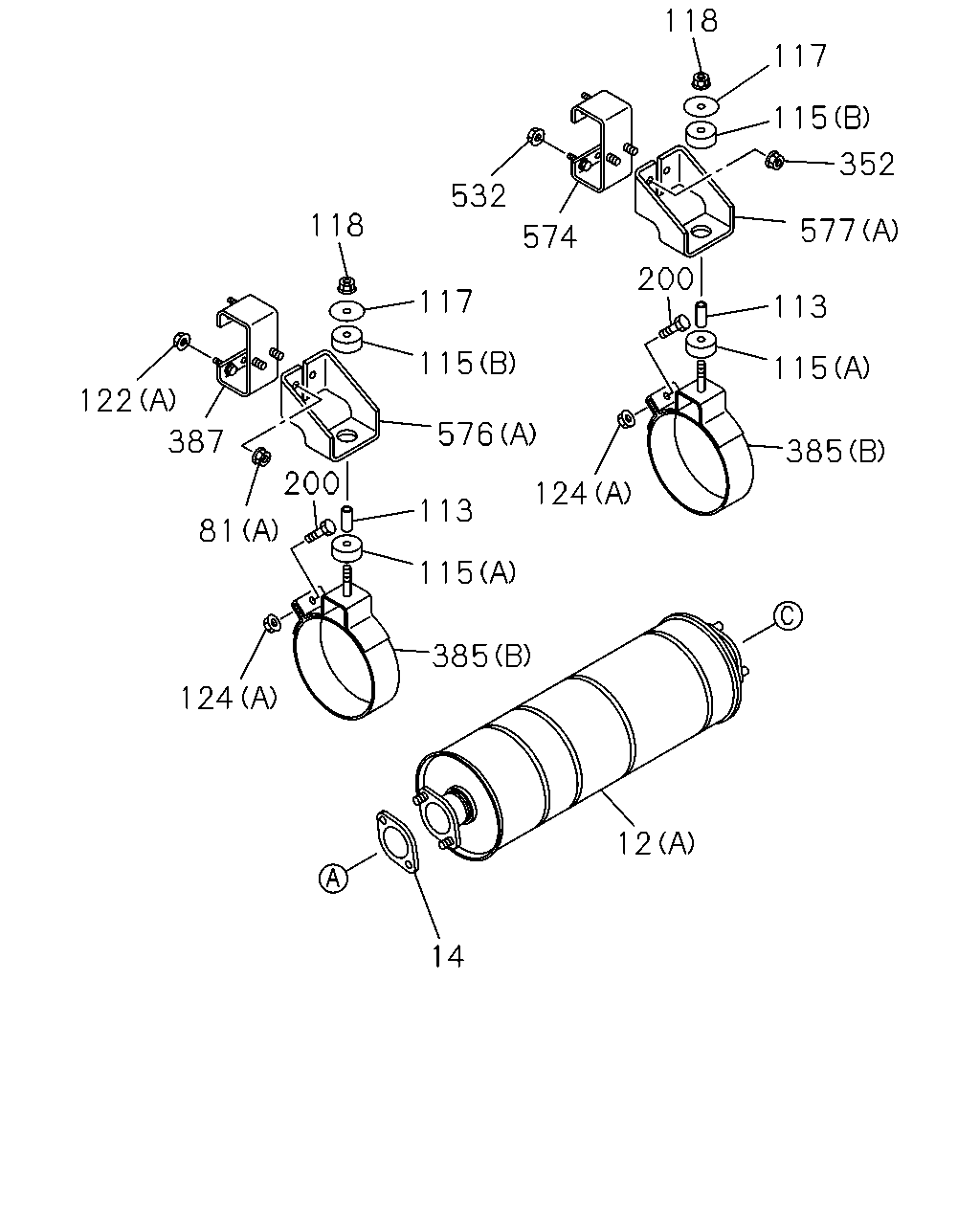

118 117 115 352 532 118 577 574 200 117 113 115 115 122 576 387 385 200 124 113 81 115 385 124 12 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	03.701 SILENCER ASM; EXH EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98214-243-0	01	1	1204-
12	03.701 SILENCER ASM; EXH EURO2 SPECIFICATION(NT2) (A)	8-98090-839-0	01	1	0803-
12	03.701 SILENCER ASM; EXH EURO4 SPECIFICATION(NT4) (B)	8-98020-562-1	01	1	0803-1203
12	03.701 SILENCER ASM; EXH EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98020-562-1	01	1	1204-
14	03.704 GASKET; SILENCER TO EXH PIPE EURO2 SPECIFICATION(NT2) ID=64.7	8-94328-352-0	01	1	0803-
14	03.704 GASKET; SILENCER TO EXH PIPE EURO4 SPECIFICATION(NT4) ID=85.8	1-22116-043-0	01	1	0803-
81	03.704 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0803-
81	03.704 NUT; BRKT 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0803-
113	03.704 COLLAR; DIST,MTG BRKT 4HK1-TCN ENG(RDQ) 03.706 L=37.5	9-22151-217-0	02	1	0803-
113	03.704 COLLAR; DIST,MTG BRKT 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2) 03.706 L=37.5	9-22151-217-0	02	1	0803-
113	03.704 COLLAR; DIST,MTG BRKT 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.706 L=37.5	9-22151-217-0	03	1	0803-
115	03.704 RUBBER; MTG,SILENCER EURO2 SPECIFICATION(NT2) (A)	8-97379-882-0	02	1	0803-
115	03.704 RUBBER; MTG,SILENCER EURO2 SPECIFICATION(NT2) (B)	8-97379-927-0	02	1	0803-
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) (C)	8-94457-277-1	02	1	0803-
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) (D)	8-94457-278-1	02	1	0803-
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (C)	8-94457-277-1	03	1	0803-
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (D)	8-94457-278-1	03	1	0803-
117	03.704 WASHER; PL,SILENCER MTG BRKT 4HK1-TCN ENG(RDQ) OD=55	9-09852-169-0	02	1	0803-
117	03.704 WASHER; PL,SILENCER MTG BRKT 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2) OD=55	9-09852-169-0	02	1	0803-
117	03.704 WASHER; PL,SILENCER MTG BRKT 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) OD=55	9-09852-169-0	03	1	0803-
118	03.704 NUT; SILENCER MTG BRKT 4HK1-TCN ENG(RDQ) 07.874 M10 FLANGE	5-09440-006-0	02	1	0803-
118	03.704 NUT; SILENCER MTG BRKT 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2) 07.874 M10 FLANGE	5-09440-006-0	02	1	0803-
118	03.704 NUT; SILENCER MTG BRKT 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 07.874 M10 FLANGE	5-09440-006-0	03	1	0803-
122	03.275 NUT; HANGER BRKT EURO2 SPECIFICATION(NT2) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0803-
122	03.275 NUT; HANGER BRKT EURO4 SPECIFICATION(NT4) 07.874 (B) M10 FLANGE	5-09440-006-0	01	1	0803-
124	03.704 NUT; SUPPORT RUBBER 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0803-
124	03.704 NUT; SUPPORT RUBBER 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0803-
124	03.704 NUT; SUPPORT RUBBER EURO2 SPECIFICATION(NT2) 02.334 (A) M8	0-91110-508-0	02	1	0803-
200	03.704 BOLT; SUPPORT RUBBER EURO2 SPECIFICATION(NT2) 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	0803-0909
200	03.704 BOLT; SUPPORT RUBBER EURO2 SPECIFICATION(NT2) M8X45 W/LK WASHER	0-50540-845-0	02	1	0910-
200	03.704 BOLT; SUPPORT RUBBER EURO4 SPECIFICATION(NT4) 00.685 M10X40 FLANGE	0-28051-040-0	01	1	0803-
352	03.613 NUT; BRKT EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE	0-91180-110-0	02	1	0803-
352	03.613 NUT; BRKT EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE	0-91180-110-0	02	1	0803-
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0803-
385	03.704 BRACKET; SILENCER MTG EURO2 SPECIFICATION(NT2) (B)	8-97207-224-0	02	1	0803-
385	03.704 BRACKET; SILENCER MTG EURO2 SPECIFICATION(NT2) (A)	8-98074-495-1	01	1	0803-
385	03.704 BRACKET; SILENCER MTG EURO4 SPECIFICATION(NT4) (C)	8-98006-776-1	01	1	0803-
385	03.704 BRACKET; SILENCER MTG EURO4 SPECIFICATION(NT4) (D)	8-98073-376-0	01	1	0803-
387	03.704 SPACER; BRKT EURO2 SPECIFICATION(NT2) 03.706	8-98044-774-0	01	1	0803-
532	03.704 NUT EURO2 SPECIFICATION(NT2) 03.162 M10 FLANGE	0-91180-110-0	02	1	0803-
532	03.704 NUT 03.162 M10 FLANGE	0-91180-110-0	02	1	0803-
574	03.706 SPACER; DPD EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4)	8-98044-774-0	01	1	0803-
576	03.706 BRACKET; DPD FRT TO FRAME EURO2 SPECIFICATION(NT2) (A)	8-98074-124-1	01	1	0803-
576	03.706 BRACKET; DPD FRT TO FRAME 4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) (C)	8-98073-065-0	01	1	0803-
576	03.706 BRACKET; DPD FRT TO FRAME 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B)	8-98006-770-0	01	1	0803-
577	03.706 BRACKET; DPD RR TO FRAME EURO2 SPECIFICATION(NT2) (A)	8-98074-124-1	01	1	0803-
577	03.706 BRACKET; DPD RR TO FRAME 4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) (B)	8-98038-469-0	01	1	0803-
577	03.706 BRACKET; DPD RR TO FRAME 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B)	8-98048-292-1	01	1	0803-

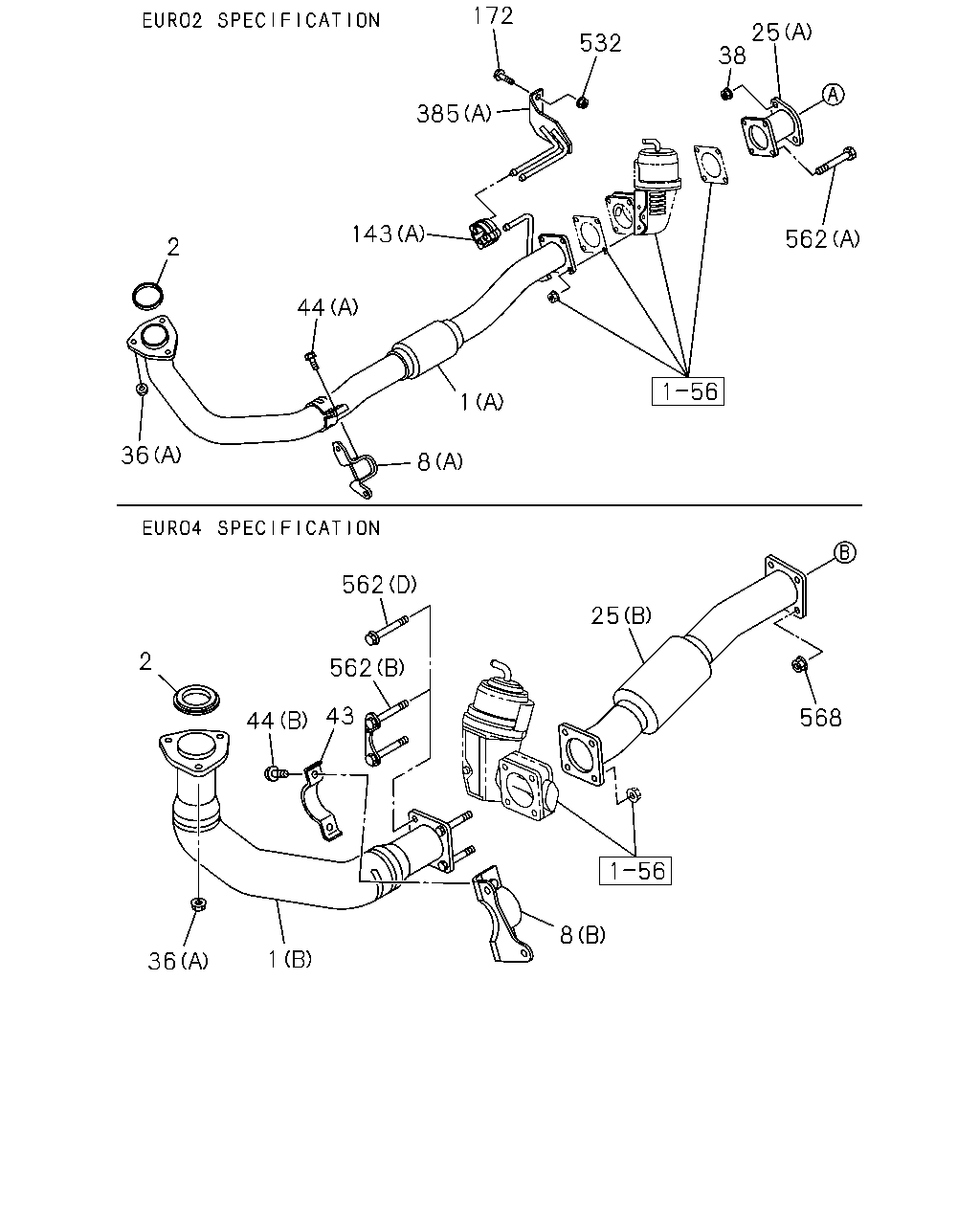

143 44 2 36 8 1 385 172 532 38 25 562 25 562 562 2 44 43 568 8 1 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.609 PIPE; EXH EURO2 SPECIFICATION(NT2) (A)	8-98074-108-1	01	1	0803-
1	03.609 PIPE; EXH EURO4 SPECIFICATION(NT4) (B)	8-98006-765-2	01	1	0803-
2	03.611 GASKET; PIPE TO MANIF	8-97381-455-0	01	1	0803-
8	03.704 BRACKET; EXH PIPE EURO2 SPECIFICATION(NT2) 03.613 (A)	8-97365-228-0	01	1	0803-
8	03.704 BRACKET; EXH PIPE EURO4 SPECIFICATION(NT4) 03.613 (B)	8-98020-555-0	01	1	0803-
25	03.609 PIPE; EXH,BRK VLV TO SILENCER EURO2 SPECIFICATION(NT2) (A)	8-98074-109-0	01	1	0803-
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) (B)	8-98072-179-0	01	1	0803-
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B)	8-98006-766-0	01	1	0803-
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	0803-
36	03.613 NUT; EXH PIPE EURO2 SPECIFICATION(NT2) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0803-
36	03.613 NUT; EXH PIPE EURO4 SPECIFICATION(NT4) 03.162 (C) M10 FLANGE	0-91180-110-0	04	1	0803-
38	00.002 NUT; SILENCER EURO2 SPECIFICATION(NT2) 03.162 M10 FLANGE	0-91180-110-0	02	1	0803-
38	00.002 NUT; SILENCER EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE	0-91180-110-0	04	1	0803-
43	03.611 CLAMP; EXH PIPE EURO4 SPECIFICATION(NT4)	8-97351-200-1	01	1	0803-
44	03.613 BOLT; BRKT EURO2 SPECIFICATION(NT2) 00.685 (A) M10X40 FLANGE	0-28051-040-0	01	1	0803-
44	03.613 BOLT; BRKT EURO4 SPECIFICATION(NT4) 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	0803-
44	03.613 BOLT; BRKT EURO4 SPECIFICATION(NT4) 02.277 (C) M10X35 FLANGE	0-28651-035-0	02	1	0803-
143	03.704 RUBBER; SUPPORT (B)	8-98034-767-0	01	1	0803-
143	03.704 RUBBER; SUPPORT EURO2 SPECIFICATION(NT2) (A)	8-97080-694-0	01	1	0803-
143	03.704 RUBBER; SUPPORT EURO4 SPECIFICATION(NT4) (C)	8-94457-277-1	01	1	0803-
143	03.704 RUBBER; SUPPORT EURO4 SPECIFICATION(NT4) (D)	8-94457-278-1	01	1	0803-
172	03.708 BOLT EURO2 SPECIFICATION(NT2) 02.277 M10X35 FLANGE	0-28651-035-0	02	1	0803-
385	03.704 BRACKET; SILENCER MTG EURO2 SPECIFICATION(NT2) (B)	8-97207-224-0	02	1	0803-
385	03.704 BRACKET; SILENCER MTG EURO2 SPECIFICATION(NT2) (A)	8-98074-495-1	01	1	0803-
385	03.704 BRACKET; SILENCER MTG EURO4 SPECIFICATION(NT4) (C)	8-98006-776-1	01	1	0803-
385	03.704 BRACKET; SILENCER MTG EURO4 SPECIFICATION(NT4) (D)	8-98073-376-0	01	1	0803-
532	03.704 NUT EURO2 SPECIFICATION(NT2) 03.162 M10 FLANGE	0-91180-110-0	02	1	0803-
532	03.704 NUT 03.162 M10 FLANGE	0-91180-110-0	02	1	0803-
562	03.690 PLATE; STUD,BOLT EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> 00.206 (D) M8X70 FLANGE	0-28050-870-0	02	1	1206-
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> 03.162 (E) M8X35 FLANGE	0-28050-835-0	04	1	1206-
562	03.690 PLATE; STUD,BOLT 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> 00.685 (E) M12X35 FLANGE	0-28051-235-0	04	1	1206-
562	03.690 PLATE; STUD,BOLT EURO2 SPECIFICATION(NT2) 03.632 (A) M8X70	0-10855-870-0	04	1	0803-
562	03.690 PLATE; STUD,BOLT EURO4 SPECIFICATION(NT4) (B)	8-98030-175-0	01	1	0803-1205
562	03.690 PLATE; STUD,BOLT EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98030-175-0	01	1	1206-
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) (C)	8-97373-966-0	02	1	0803-1205
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C)	8-97373-966-0	02	1	1206-
562	03.690 PLATE; STUD,BOLT 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.685 (C) M12X35	1-22131-963-0	02	1	0803-1205
562	03.690 PLATE; STUD,BOLT 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.613 (C)	1-22131-962-0	02	1	1206-
568	03.704 NUT; DPD 4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) 01.062 M8 FLANGE	0-91180-108-0	04	1	0803-
568	03.704 NUT; DPD 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 02.042 M12 FLANGE	0-91180-112-0	04	1	0803-

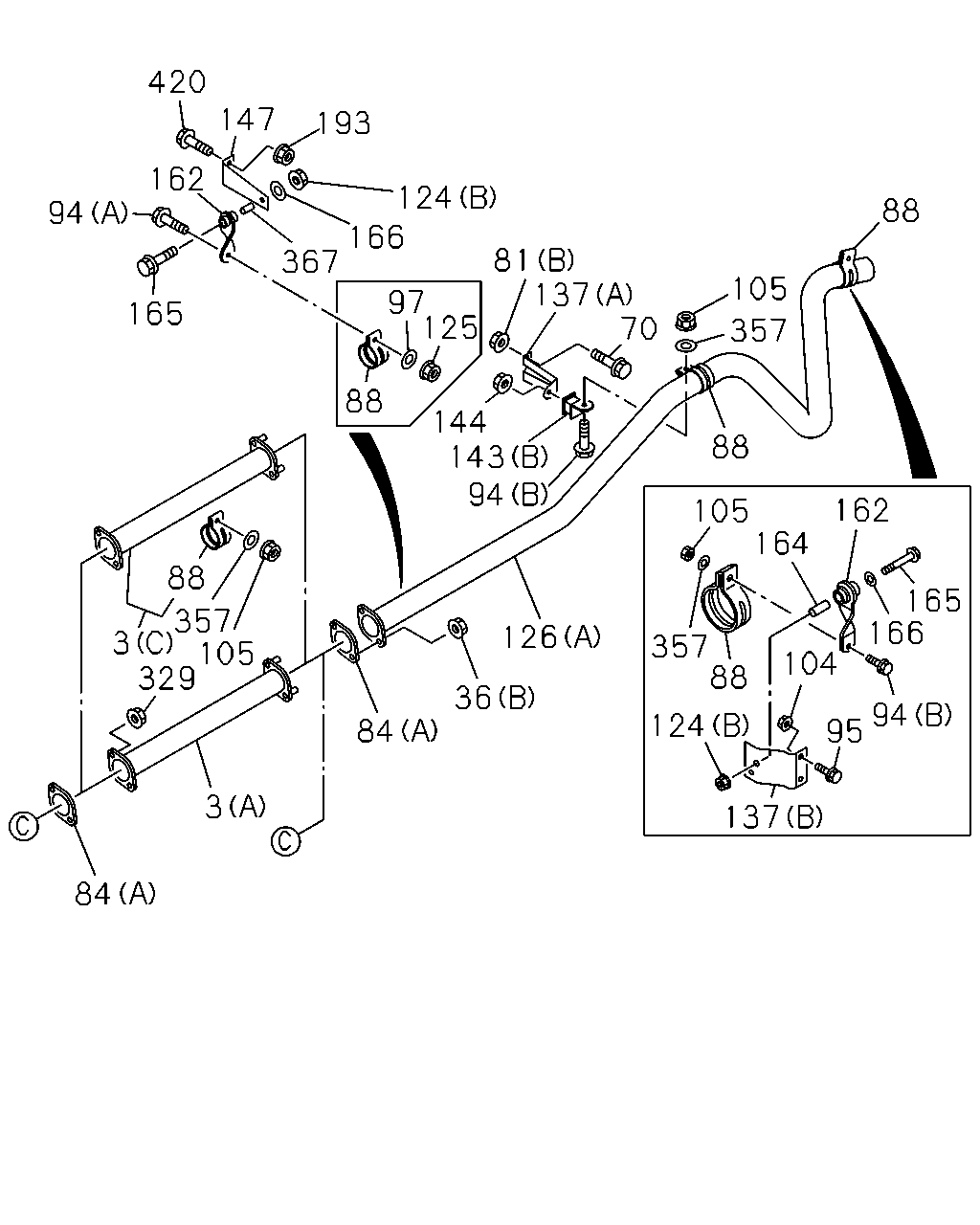

420 147 193 162 124 166 367 88 94 81 137 105 70 97 125 165 357 88 144 143 94 88 162 105 164 88 165 166 357 3 105 329 126 357 88 104 36 94 95 124 84 3 137 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	03.609 PIPE; EXH,CENTER EURO2 SPECIFICATION(NT2) (A)	8-97089-322-0	01	1	0803-0811
3	03.609 PIPE; EXH,CENTER EURO2 SPECIFICATION(NT2) (C)	8-98134-199-0	01	1	0812-
3	03.609 PIPE; EXH,CENTER EURO4 SPECIFICATION(NT4) (B)	8-98020-602-0	01	1	0803-
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	0803-
36	03.613 NUT; EXH PIPE EURO2 SPECIFICATION(NT2) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0803-
36	03.613 NUT; EXH PIPE EURO4 SPECIFICATION(NT4) 03.162 (C) M10 FLANGE	0-91180-110-0	04	1	0803-
70	03.706 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0803-
81	03.704 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0803-
81	03.704 NUT; BRKT 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0803-
84	03.611 GASKET; EXH PIPE EURO2 SPECIFICATION(NT2) 03.704 (A) ID=64.7	8-94328-352-0	01	1	0803-
84	03.611 GASKET; EXH PIPE EURO2 SPECIFICATION(NT2) 03.704 (A) ID=64.7	8-94328-352-0	01	1	0803-
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) (C) ID=64	8-97373-108-0	01	1	0803-
84	03.611 GASKET; EXH PIPE 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.704 (B) ID=85.8	1-22116-043-0	01	1	0803-
84	03.611 GASKET; EXH PIPE EURO4 SPECIFICATION(NT4) 03.704 (B) ID=85.8	1-22116-043-0	01	1	0803-
88	03.708 CLAMP; EXH PIPE EURO2 SPECIFICATION(NT2)	8-97373-158-0	01	1	0803-0811
88	03.708 CLAMP; EXH PIPE EURO2 SPECIFICATION(NT2)	8-97373-158-0	01	1	0803-0811
88	03.708 CLAMP; EXH PIPE EURO2 SPECIFICATION(NT2)	8-97373-158-0	01	1	0803-0811
88	03.708 CLAMP; EXH PIPE EURO2 SPECIFICATION(NT2)	8-97373-158-0	01	1	0803-0811
88	03.708 CLAMP; EXH PIPE EURO2 SPECIFICATION(NT2)	8-97373-158-0	01	1	0812-
88	03.708 CLAMP; EXH PIPE EURO2 SPECIFICATION(NT2)	8-97373-158-0	01	1	0812-
88	03.708 CLAMP; EXH PIPE EURO2 SPECIFICATION(NT2)	8-97373-158-0	01	1	0812-
88	03.708 CLAMP; EXH PIPE EURO4 SPECIFICATION(NT4)	8-98034-766-0	01	1	0803-
94	03.704 BOLT; CLAMP 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0803-
94	03.704 BOLT; CLAMP EURO2 SPECIFICATION(NT2) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0803-
94	03.704 BOLT; CLAMP 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	0803-
95	03.708 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0803-
97	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0803-
104	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0803-
105	03.704 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	0803-
105	03.704 NUT; CLAMP EURO2 SPECIFICATION(NT2) 00.833 M10	0-91110-510-0	01	1	0803-
124	03.704 NUT; SUPPORT RUBBER 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0803-
124	03.704 NUT; SUPPORT RUBBER 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0803-
124	03.704 NUT; SUPPORT RUBBER EURO2 SPECIFICATION(NT2) 02.334 (A) M8	0-91110-508-0	02	1	0803-
125	03.708 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	0803-
126	03.705 PIPE; EXH,RR EURO2 SPECIFICATION(NT2) (A)	8-98090-128-1	01	1	0803-0811
126	03.705 PIPE; EXH,RR EURO2 SPECIFICATION(NT2) (A)	8-98134-798-0	01	1	0812-
126	03.705 PIPE; EXH,RR EURO4 SPECIFICATION(NT4) (B)	8-98045-047-0	01	1	0803-
137	03.706 BRACKET; TAIL PIPE 03.613 (A)	8-97096-651-0	01	1	0803-
137	03.706 BRACKET; TAIL PIPE (B)	8-97116-588-2	01	1	0803-
143	03.704 RUBBER; SUPPORT (B)	8-98034-767-0	01	1	0803-
143	03.704 RUBBER; SUPPORT EURO2 SPECIFICATION(NT2) (A)	8-97080-694-0	01	1	0803-
143	03.704 RUBBER; SUPPORT EURO4 SPECIFICATION(NT4) (C)	8-94457-277-1	01	1	0803-
143	03.704 RUBBER; SUPPORT EURO4 SPECIFICATION(NT4) (D)	8-94457-278-1	01	1	0803-
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-
147	03.704 BRACKET; VERTICAL PIPE EURO2 SPECIFICATION(NT2)	8-98090-125-1	01	1	0803-0811
147	03.704 BRACKET; VERTICAL PIPE EURO2 SPECIFICATION(NT2)	8-98117-604-0	01	1	0812-
162	03.706 RUBBER; SUPPORT,TAIL PIPE EURO2 SPECIFICATION(NT2) L=115	8-98034-765-0	01	1	0803-
162	03.706 RUBBER; SUPPORT,TAIL PIPE L=115	8-98034-765-0	01	1	0803-
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	0803-
165	03.706 BOLT; SUPPORT RUBBER EURO2 SPECIFICATION(NT2) M10X70 FLANGE	0-28051-070-0	01	1	0803-
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	0803-
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0803-
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI EURO2 SPECIFICATION(NT2) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0803-
193	03.704 NUT; BRKT,VERTICAL PIPE EURO2 SPECIFICATION(NT2) 03.162 M10 FLANGE	0-91180-110-0	02	1	0803-
329	03.613 NUT; EXH PIPE TO PIPE EURO2 SPECIFICATION(NT2) 03.162 M10 FLANGE	0-91180-110-0	02	1	0803-
329	03.613 NUT; EXH PIPE TO PIPE 4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) 01.062 M8 FLANGE	0-91180-108-0	04	1	0803-
329	03.613 NUT; EXH PIPE TO PIPE 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE	0-91180-110-0	04	1	0803-
357	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0803-
357	03.708 WASHER; PL,CLAMP EURO2 SPECIFICATION(NT2) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0803-
367	03.704 COLLAR; DIST,SUPPORT RUBBER EURO2 SPECIFICATION(NT2) 03.706 L=37.5	9-22151-217-0	01	1	0803-
420	03.704 BOLT; BRKT,VERTICAL PIPE EURO2 SPECIFICATION(NT2) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0803-

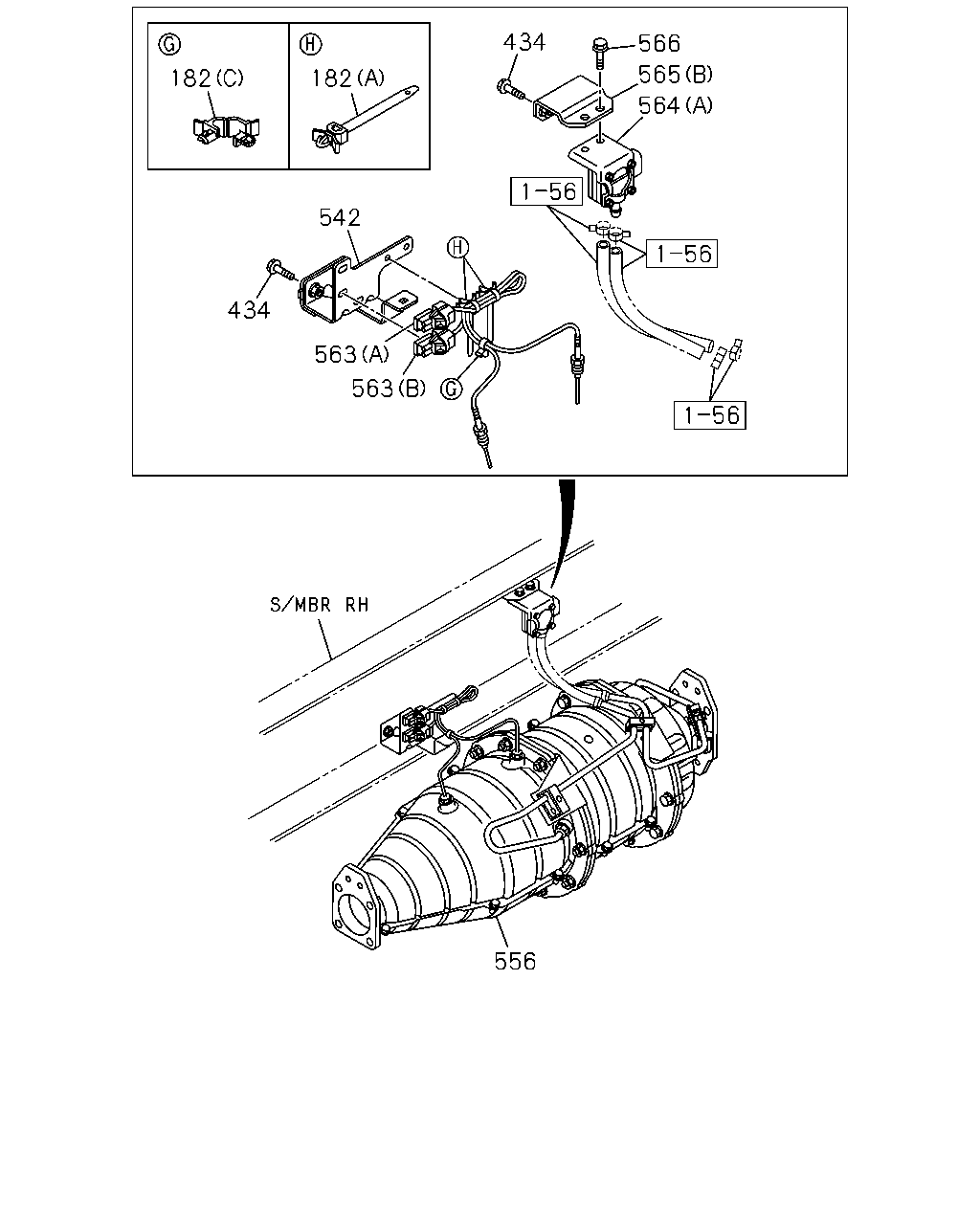

434 566 565 182 182 564 542 434 563 563 556

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
182	03.682 CLIP; HARNESS 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 02.587 (A) L=112	8-94232-618-0	01	1	0803-
182	03.682 CLIP; HARNESS 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (B) ID=7	8-98002-767-0	01	1	0803-
182	03.682 CLIP; HARNESS 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) 02.587 (A) L=112	8-94232-618-0	02	1	0803-
182	03.682 CLIP; HARNESS 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (C) ID=7 L=7.5	8-97369-561-0	01	1	0803-
434	03.613 BOLT; BRKT 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0803-
434	03.613 BOLT; BRKT 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0803-
542	03.704 BRACKET 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM)	8-98039-602-0	01	1	0803-
556	03.701 DPD ASM 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM)	8-98036-810-7	01	1	0803-1011
556	03.701 DPD ASM 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM)	8-98084-595-4	01	1	1012-
556	03.701 DPD ASM 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM)	8-98039-162-6	01	1	0803-1010
556	03.701 DPD ASM 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM)	8-98084-602-4	01	1	1011-
563	01.150 SENSOR; TEMPERATURE,DPD CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98004-329-0	01	1	0803-
563	01.150 SENSOR; TEMPERATURE,DPD CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98004-330-0	01	1	0803-
564	01.150 SENSOR; PRESSURE,DPD 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-97360-368-2	01	1	0803-
564	01.150 SENSOR; PRESSURE,DPD 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97359-985-2	01	1	0803-
565	03.706 BRACKET; SENSOR,PRESSURE 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98063-129-0	01	1	0803-
565	03.706 BRACKET; SENSOR,PRESSURE 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98029-347-0	01	1	0803-
566	03.706 BOLT; SENSOR CATALYSIS CONTROL WITH DPD(8JM) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0803-

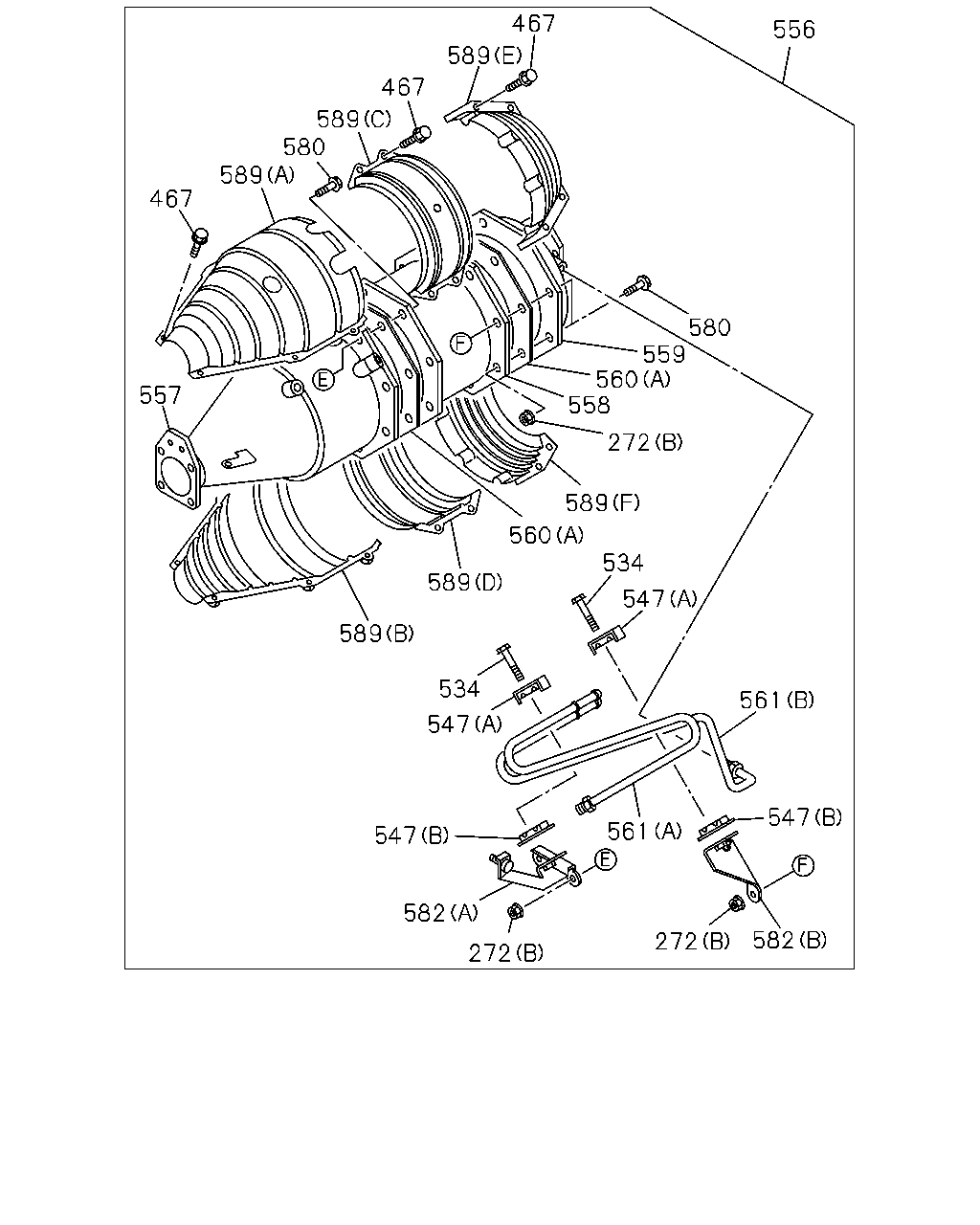

467 556 589 467 589 580 589 467 580 559 560 558 557 272 589 560 534 589 547 589 534 561 547 547 561 547 582 582 272 272

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
272	03.685 NUT; FLANGE 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0803-
272	03.685 NUT; FLANGE 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	0803-
272	03.685 NUT; FLANGE 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) 01.062 (B) M8 FLANGE	0-91180-108-0	20	1	0803-
467	03.685 BOLT; PROTECTOR CATALYSIS CONTROL WITH DPD(8JM) M6X16	8-98019-179-0	14	1	0803-
534	03.704 BOLT; CLIP 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M6X35 FLANGE	0-28650-635-0	02	1	0803-
534	03.704 BOLT; CLIP 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M6X35 FLANGE	0-28650-635-0	03	1	0803-
547	03.682 CLIP; PIPE 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97381-635-0	02	1	0803-
547	03.682 CLIP; PIPE 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-97381-636-0	02	1	0803-
547	03.682 CLIP; PIPE 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97381-635-0	03	1	0803-
547	03.682 CLIP; PIPE 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-97381-636-0	03	1	0803-
556	03.701 DPD ASM 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM)	8-98036-810-7	01	1	0803-1011
556	03.701 DPD ASM 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM)	8-98084-595-4	01	1	1012-
556	03.701 DPD ASM 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM)	8-98039-162-6	01	1	0803-1010
556	03.701 DPD ASM 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM)	8-98084-602-4	01	1	1011-
557	03.701 CATALYST ASM 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM)	8-98036-815-7	01	1	0803-
557	03.701 CATALYST ASM 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM)	8-97608-055-8	01	1	0803-
558	03.634 FILTER ASM 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM)	8-98032-908-2	01	1	0803-
558	03.634 FILTER ASM 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM)	8-97608-057-3	01	1	0803-
559	03.602 COVER; RR 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM)	8-98084-599-0	01	1	0803-1011
559	03.602 COVER; RR 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM)	8-98093-507-0	01	1	1012-
559	03.602 COVER; RR 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM)	8-97611-078-0	01	1	0803-1010
559	03.602 COVER; RR 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM)	8-97622-887-0	01	1	1011-
560	03.611 GASKET; DPD 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97331-947-0	02	1	0803-
560	03.611 GASKET; DPD 4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) (B) ID=64	8-97373-108-0	01	1	0803-
560	03.611 GASKET; DPD 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-97611-080-0	02	1	0803-
560	03.611 GASKET; DPD 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B)	1-22116-040-0	01	1	0803-
561	03.609 PIPE; DPD 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98032-910-0	01	1	0803-1011
561	03.609 PIPE; DPD 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98084-600-0	01	1	1012-
561	03.609 PIPE; DPD 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98032-911-1	01	1	0803-1011
561	03.609 PIPE; DPD 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98084-601-0	01	1	1012-
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98039-239-0	01	1	0803-1010
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98084-603-0	01	1	1011-
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98039-241-0	01	1	0803-1010
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98084-604-0	01	1	1011-
580	03.704 BOLT; FLANGE 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 01.060 M8X35 FLANGE	0-28650-835-0	16	1	0803-
580	03.704 BOLT; FLANGE 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) 01.060 M8X35 FLANGE	0-28650-835-0	20	1	0803-
582	03.706 BRACKET; PIPE 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98032-919-0	01	1	0803-
582	03.706 BRACKET; PIPE 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98032-920-0	01	1	0803-
582	03.706 BRACKET; PIPE 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-97611-083-0	01	1	0803-
582	03.706 BRACKET; PIPE 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-97611-084-0	01	1	0803-
582	03.706 BRACKET; PIPE 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (E)	8-97611-085-0	01	1	0803-
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-97383-660-0	01	1	0803-
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (F)	8-97383-663-0	01	1	0803-
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98032-921-0	01	1	0803-
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98032-923-0	01	1	0803-
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98032-924-0	01	1	0803-
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98032-926-0	01	1	0803-
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (G)	8-97605-172-0	01	1	0803-
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (H)	8-97611-086-0	01	1	0803-
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (I)	8-97611-087-0	01	1	0803-
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (J)	8-97611-088-0	01	1	0803-
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (K)	8-97611-089-0	01	1	0803-
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (L)	8-97613-390-0	01	1	0803-

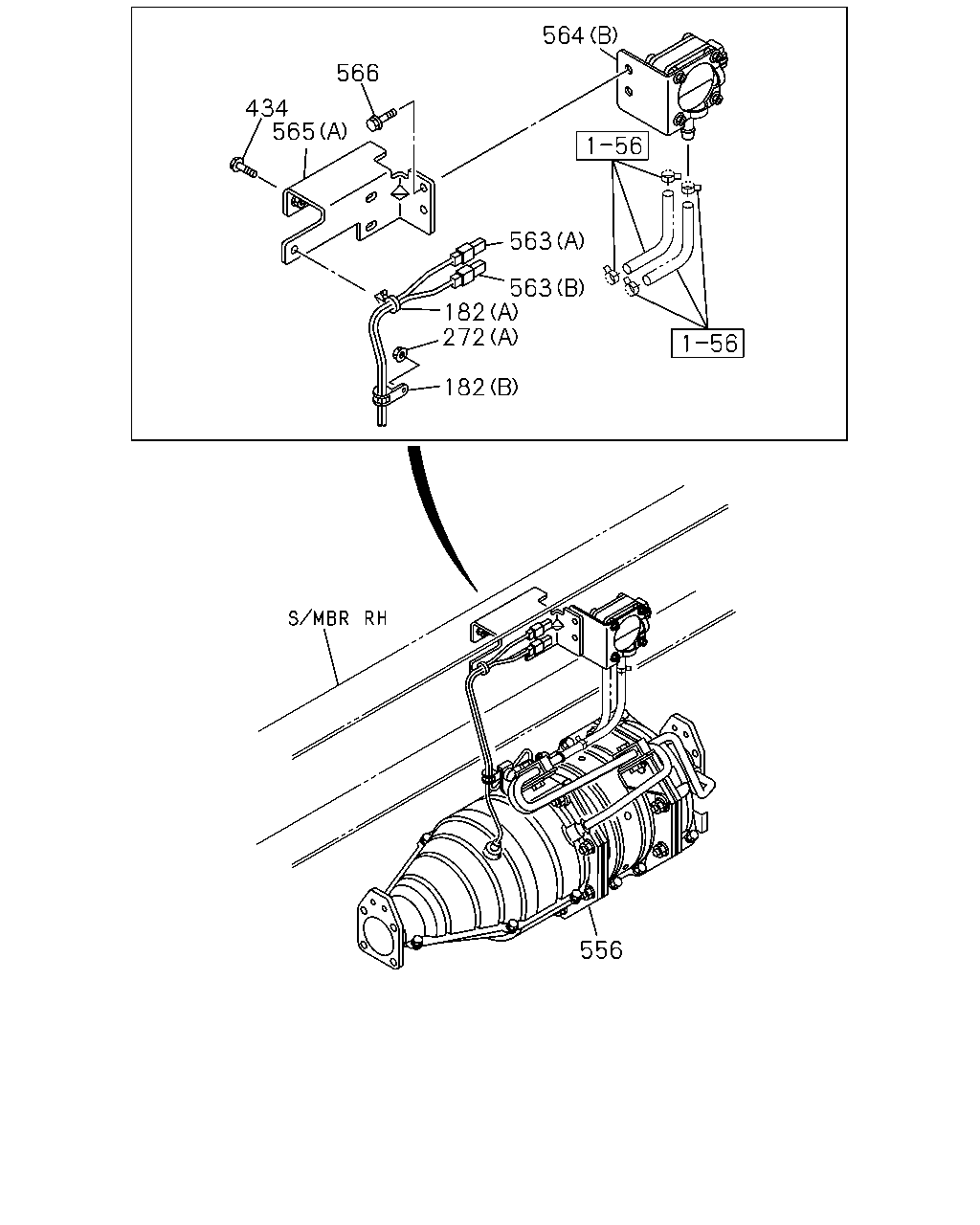

564 566 434 565 563 563 182 272 182 556

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
182	03.682 CLIP; HARNESS 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 02.587 (A) L=112	8-94232-618-0	01	1	0803-
182	03.682 CLIP; HARNESS 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (B) ID=7	8-98002-767-0	01	1	0803-
182	03.682 CLIP; HARNESS 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) 02.587 (A) L=112	8-94232-618-0	02	1	0803-
182	03.682 CLIP; HARNESS 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (C) ID=7 L=7.5	8-97369-561-0	01	1	0803-
272	03.685 NUT; FLANGE 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0803-
272	03.685 NUT; FLANGE 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	0803-
272	03.685 NUT; FLANGE 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) 01.062 (B) M8 FLANGE	0-91180-108-0	20	1	0803-
434	03.613 BOLT; BRKT 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0803-
434	03.613 BOLT; BRKT 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0803-
556	03.701 DPD ASM 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM)	8-98036-810-7	01	1	0803-1011
556	03.701 DPD ASM 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM)	8-98084-595-4	01	1	1012-
556	03.701 DPD ASM 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM)	8-98039-162-6	01	1	0803-1010
556	03.701 DPD ASM 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM)	8-98084-602-4	01	1	1011-
563	01.150 SENSOR; TEMPERATURE,DPD CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98004-329-0	01	1	0803-
563	01.150 SENSOR; TEMPERATURE,DPD CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98004-330-0	01	1	0803-
564	01.150 SENSOR; PRESSURE,DPD 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-97360-368-2	01	1	0803-
564	01.150 SENSOR; PRESSURE,DPD 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97359-985-2	01	1	0803-
565	03.706 BRACKET; SENSOR,PRESSURE 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98063-129-0	01	1	0803-
565	03.706 BRACKET; SENSOR,PRESSURE 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98029-347-0	01	1	0803-
566	03.706 BOLT; SENSOR CATALYSIS CONTROL WITH DPD(8JM) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0803-

118 117 115 578 337 113 115 118 576 117 115 113 118 117 115 113 578 337 376 577 115 81 576 44 560 562 562 556 376 34 376 376 84 84 570 329 361 12 14 12 352 115 124 579 579 532 200 385 143 385 24 143 121 122 574 377

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	03.701 SILENCER ASM; EXH EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98214-243-0	01	1	1204-
12	03.701 SILENCER ASM; EXH EURO2 SPECIFICATION(NT2) (A)	8-98090-839-0	01	1	0803-
12	03.701 SILENCER ASM; EXH EURO4 SPECIFICATION(NT4) (B)	8-98020-562-1	01	1	0803-1203
12	03.701 SILENCER ASM; EXH EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98020-562-1	01	1	1204-
14	03.704 GASKET; SILENCER TO EXH PIPE EURO2 SPECIFICATION(NT2) ID=64.7	8-94328-352-0	01	1	0803-
14	03.704 GASKET; SILENCER TO EXH PIPE EURO4 SPECIFICATION(NT4) ID=85.8	1-22116-043-0	01	1	0803-
24	03.613 COLLAR; DIST,CLAMP EURO4 SPECIFICATION(NT4) 03.706 L=37.5	9-22151-217-0	01	1	0803-
34	03.613 WASHER; EXH PIPE EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> 03.632 T=1.9	5-09500-012-0	04	1	1204-
44	03.613 BOLT; BRKT EURO2 SPECIFICATION(NT2) 00.685 (A) M10X40 FLANGE	0-28051-040-0	01	1	0803-
44	03.613 BOLT; BRKT EURO4 SPECIFICATION(NT4) 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	0803-
44	03.613 BOLT; BRKT EURO4 SPECIFICATION(NT4) 02.277 (C) M10X35 FLANGE	0-28651-035-0	02	1	0803-
81	03.704 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0803-
81	03.704 NUT; BRKT 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0803-
84	03.611 GASKET; EXH PIPE EURO2 SPECIFICATION(NT2) 03.704 (A) ID=64.7	8-94328-352-0	01	1	0803-
84	03.611 GASKET; EXH PIPE EURO2 SPECIFICATION(NT2) 03.704 (A) ID=64.7	8-94328-352-0	01	1	0803-
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) (C) ID=64	8-97373-108-0	01	1	0803-
84	03.611 GASKET; EXH PIPE 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.704 (B) ID=85.8	1-22116-043-0	01	1	0803-
84	03.611 GASKET; EXH PIPE EURO4 SPECIFICATION(NT4) 03.704 (B) ID=85.8	1-22116-043-0	01	1	0803-
113	03.704 COLLAR; DIST,MTG BRKT 4HK1-TCN ENG(RDQ) 03.706 L=37.5	9-22151-217-0	02	1	0803-
113	03.704 COLLAR; DIST,MTG BRKT 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2) 03.706 L=37.5	9-22151-217-0	02	1	0803-
113	03.704 COLLAR; DIST,MTG BRKT 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.706 L=37.5	9-22151-217-0	03	1	0803-
115	03.704 RUBBER; MTG,SILENCER EURO2 SPECIFICATION(NT2) (A)	8-97379-882-0	02	1	0803-
115	03.704 RUBBER; MTG,SILENCER EURO2 SPECIFICATION(NT2) (B)	8-97379-927-0	02	1	0803-
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) (C)	8-94457-277-1	02	1	0803-
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) (D)	8-94457-278-1	02	1	0803-
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (C)	8-94457-277-1	03	1	0803-
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (D)	8-94457-278-1	03	1	0803-
117	03.704 WASHER; PL,SILENCER MTG BRKT 4HK1-TCN ENG(RDQ) OD=55	9-09852-169-0	02	1	0803-
117	03.704 WASHER; PL,SILENCER MTG BRKT 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2) OD=55	9-09852-169-0	02	1	0803-
117	03.704 WASHER; PL,SILENCER MTG BRKT 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) OD=55	9-09852-169-0	03	1	0803-
118	03.704 NUT; SILENCER MTG BRKT 4HK1-TCN ENG(RDQ) 07.874 M10 FLANGE	5-09440-006-0	02	1	0803-
118	03.704 NUT; SILENCER MTG BRKT 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2) 07.874 M10 FLANGE	5-09440-006-0	02	1	0803-
118	03.704 NUT; SILENCER MTG BRKT 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 07.874 M10 FLANGE	5-09440-006-0	03	1	0803-
121	03.704 WASHER; PL,BRKT EURO4 SPECIFICATION(NT4) OD=55	9-09852-169-0	01	1	0803-
122	03.275 NUT; HANGER BRKT EURO2 SPECIFICATION(NT2) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0803-
122	03.275 NUT; HANGER BRKT EURO4 SPECIFICATION(NT4) 07.874 (B) M10 FLANGE	5-09440-006-0	01	1	0803-
124	03.704 NUT; SUPPORT RUBBER 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0803-
124	03.704 NUT; SUPPORT RUBBER 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0803-
124	03.704 NUT; SUPPORT RUBBER EURO2 SPECIFICATION(NT2) 02.334 (A) M8	0-91110-508-0	02	1	0803-
143	03.704 RUBBER; SUPPORT (B)	8-98034-767-0	01	1	0803-
143	03.704 RUBBER; SUPPORT EURO2 SPECIFICATION(NT2) (A)	8-97080-694-0	01	1	0803-
143	03.704 RUBBER; SUPPORT EURO4 SPECIFICATION(NT4) (C)	8-94457-277-1	01	1	0803-
143	03.704 RUBBER; SUPPORT EURO4 SPECIFICATION(NT4) (D)	8-94457-278-1	01	1	0803-
200	03.704 BOLT; SUPPORT RUBBER EURO2 SPECIFICATION(NT2) 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	0803-0909
200	03.704 BOLT; SUPPORT RUBBER EURO2 SPECIFICATION(NT2) M8X45 W/LK WASHER	0-50540-845-0	02	1	0910-
200	03.704 BOLT; SUPPORT RUBBER EURO4 SPECIFICATION(NT4) 00.685 M10X40 FLANGE	0-28051-040-0	01	1	0803-
329	03.613 NUT; EXH PIPE TO PIPE EURO2 SPECIFICATION(NT2) 03.162 M10 FLANGE	0-91180-110-0	02	1	0803-
329	03.613 NUT; EXH PIPE TO PIPE 4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) 01.062 M8 FLANGE	0-91180-108-0	04	1	0803-
329	03.613 NUT; EXH PIPE TO PIPE 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE	0-91180-110-0	04	1	0803-
337	03.706 BOLT; RUBBER,SUPPORT EURO4 SPECIFICATION(NT4) 02.277 M10X35 FLANGE	0-28651-035-0	02	1	0803-
352	03.613 NUT; BRKT EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE	0-91180-110-0	02	1	0803-
352	03.613 NUT; BRKT EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE	0-91180-110-0	02	1	0803-
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0803-
361	03.704 BOLT; EXH PIPE TO PIPE EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> M8X60 FLANGE	8-98213-301-0	04	1	1204-
376	03.708 BOLT; BRKT 4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> 03.890 (D) M10X30 FLANGE	0-28051-030-0	02	1	1206-
376	03.708 BOLT; BRKT EURO4 SPECIFICATION(NT4) 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0803-
376	03.708 BOLT; BRKT 4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) 03.690 (B) W/PLATE	8-98005-985-0	01	1	0803-1205
376	03.708 BOLT; BRKT 4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.690 (B) W/PLATE	8-98005-985-0	01	1	1206-
376	03.708 BOLT; BRKT 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 02.277 (C) M10X35 FLANGE	0-28651-035-0	02	1	0803-
377	03.704 NUT; BRKT EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE	0-91180-110-0	02	1	0803-
385	03.704 BRACKET; SILENCER MTG EURO2 SPECIFICATION(NT2) (B)	8-97207-224-0	02	1	0803-
385	03.704 BRACKET; SILENCER MTG EURO2 SPECIFICATION(NT2) (A)	8-98074-495-1	01	1	0803-
385	03.704 BRACKET; SILENCER MTG EURO4 SPECIFICATION(NT4) (C)	8-98006-776-1	01	1	0803-
385	03.704 BRACKET; SILENCER MTG EURO4 SPECIFICATION(NT4) (D)	8-98073-376-0	01	1	0803-
532	03.704 NUT EURO2 SPECIFICATION(NT2) 03.162 M10 FLANGE	0-91180-110-0	02	1	0803-
532	03.704 NUT 03.162 M10 FLANGE	0-91180-110-0	02	1	0803-
556	03.701 DPD ASM 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM)	8-98036-810-7	01	1	0803-1011
556	03.701 DPD ASM 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM)	8-98084-595-4	01	1	1012-
556	03.701 DPD ASM 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM)	8-98039-162-6	01	1	0803-1010
556	03.701 DPD ASM 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM)	8-98084-602-4	01	1	1011-
560	03.611 GASKET; DPD 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97331-947-0	02	1	0803-
560	03.611 GASKET; DPD 4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) (B) ID=64	8-97373-108-0	01	1	0803-
560	03.611 GASKET; DPD 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-97611-080-0	02	1	0803-
560	03.611 GASKET; DPD 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B)	1-22116-040-0	01	1	0803-
562	03.690 PLATE; STUD,BOLT EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> 00.206 (D) M8X70 FLANGE	0-28050-870-0	02	1	1206-
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> 03.162 (E) M8X35 FLANGE	0-28050-835-0	04	1	1206-
562	03.690 PLATE; STUD,BOLT 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> 00.685 (E) M12X35 FLANGE	0-28051-235-0	04	1	1206-
562	03.690 PLATE; STUD,BOLT EURO2 SPECIFICATION(NT2) 03.632 (A) M8X70	0-10855-870-0	04	1	0803-
562	03.690 PLATE; STUD,BOLT EURO4 SPECIFICATION(NT4) (B)	8-98030-175-0	01	1	0803-1205
562	03.690 PLATE; STUD,BOLT EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98030-175-0	01	1	1206-
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) (C)	8-97373-966-0	02	1	0803-1205
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C)	8-97373-966-0	02	1	1206-
562	03.690 PLATE; STUD,BOLT 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.685 (C) M12X35	1-22131-963-0	02	1	0803-1205
562	03.690 PLATE; STUD,BOLT 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.613 (C)	1-22131-962-0	02	1	1206-
570	03.704 ADAPTER; EXH PIPE 4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4)	8-98073-217-0	01	1	0803-
570	03.704 ADAPTER; EXH PIPE 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4)	8-98073-373-0	01	1	0803-
574	03.706 SPACER; DPD EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4)	8-98044-774-0	01	1	0803-
576	03.706 BRACKET; DPD FRT TO FRAME EURO2 SPECIFICATION(NT2) (A)	8-98074-124-1	01	1	0803-
576	03.706 BRACKET; DPD FRT TO FRAME 4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) (C)	8-98073-065-0	01	1	0803-
576	03.706 BRACKET; DPD FRT TO FRAME 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B)	8-98006-770-0	01	1	0803-
577	03.706 BRACKET; DPD RR TO FRAME EURO2 SPECIFICATION(NT2) (A)	8-98074-124-1	01	1	0803-
577	03.706 BRACKET; DPD RR TO FRAME 4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) (B)	8-98038-469-0	01	1	0803-
577	03.706 BRACKET; DPD RR TO FRAME 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B)	8-98048-292-1	01	1	0803-
578	03.706 BRACKET; DPD FRT 4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) (B)	8-98077-474-0	01	1	0803-
578	03.706 BRACKET; DPD FRT 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A)	8-98048-296-0	01	1	0803-
579	03.704 BRACKET; DPD RR 4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) (A)	8-98058-136-0	01	1	0803-
579	03.704 BRACKET; DPD RR 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B)	8-98048-300-1	01	1	0803-

556 589 467 467 589 534 547 547 582 589 272 559 560 547 580 558 534 560 547 582 580 557 534 547 547 582 580 561 272 589 589 561 589

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
272	03.685 NUT; FLANGE 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0803-
272	03.685 NUT; FLANGE 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	0803-
272	03.685 NUT; FLANGE 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) 01.062 (B) M8 FLANGE	0-91180-108-0	20	1	0803-
467	03.685 BOLT; PROTECTOR CATALYSIS CONTROL WITH DPD(8JM) M6X16	8-98019-179-0	14	1	0803-
534	03.704 BOLT; CLIP 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M6X35 FLANGE	0-28650-635-0	02	1	0803-
534	03.704 BOLT; CLIP 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M6X35 FLANGE	0-28650-635-0	03	1	0803-
547	03.682 CLIP; PIPE 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97381-635-0	02	1	0803-
547	03.682 CLIP; PIPE 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-97381-636-0	02	1	0803-
547	03.682 CLIP; PIPE 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97381-635-0	03	1	0803-
547	03.682 CLIP; PIPE 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-97381-636-0	03	1	0803-
556	03.701 DPD ASM 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM)	8-98036-810-7	01	1	0803-1011
556	03.701 DPD ASM 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM)	8-98084-595-4	01	1	1012-
556	03.701 DPD ASM 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM)	8-98039-162-6	01	1	0803-1010
556	03.701 DPD ASM 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM)	8-98084-602-4	01	1	1011-
557	03.701 CATALYST ASM 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM)	8-98036-815-7	01	1	0803-
557	03.701 CATALYST ASM 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM)	8-97608-055-8	01	1	0803-
558	03.634 FILTER ASM 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM)	8-98032-908-2	01	1	0803-
558	03.634 FILTER ASM 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM)	8-97608-057-3	01	1	0803-
559	03.602 COVER; RR 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM)	8-98084-599-0	01	1	0803-1011
559	03.602 COVER; RR 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM)	8-98093-507-0	01	1	1012-
559	03.602 COVER; RR 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM)	8-97611-078-0	01	1	0803-1010
559	03.602 COVER; RR 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM)	8-97622-887-0	01	1	1011-
560	03.611 GASKET; DPD 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97331-947-0	02	1	0803-
560	03.611 GASKET; DPD 4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) (B) ID=64	8-97373-108-0	01	1	0803-
560	03.611 GASKET; DPD 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-97611-080-0	02	1	0803-
560	03.611 GASKET; DPD 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B)	1-22116-040-0	01	1	0803-
561	03.609 PIPE; DPD 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98032-910-0	01	1	0803-1011
561	03.609 PIPE; DPD 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98084-600-0	01	1	1012-
561	03.609 PIPE; DPD 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98032-911-1	01	1	0803-1011
561	03.609 PIPE; DPD 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98084-601-0	01	1	1012-
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98039-239-0	01	1	0803-1010
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98084-603-0	01	1	1011-
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98039-241-0	01	1	0803-1010
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98084-604-0	01	1	1011-
580	03.704 BOLT; FLANGE 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 01.060 M8X35 FLANGE	0-28650-835-0	16	1	0803-
580	03.704 BOLT; FLANGE 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) 01.060 M8X35 FLANGE	0-28650-835-0	20	1	0803-
582	03.706 BRACKET; PIPE 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98032-919-0	01	1	0803-
582	03.706 BRACKET; PIPE 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98032-920-0	01	1	0803-
582	03.706 BRACKET; PIPE 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-97611-083-0	01	1	0803-
582	03.706 BRACKET; PIPE 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-97611-084-0	01	1	0803-
582	03.706 BRACKET; PIPE 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (E)	8-97611-085-0	01	1	0803-
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-97383-660-0	01	1	0803-
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (F)	8-97383-663-0	01	1	0803-
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98032-921-0	01	1	0803-
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98032-923-0	01	1	0803-
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98032-924-0	01	1	0803-
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98032-926-0	01	1	0803-
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (G)	8-97605-172-0	01	1	0803-
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (H)	8-97611-086-0	01	1	0803-
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (I)	8-97611-087-0	01	1	0803-
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (J)	8-97611-088-0	01	1	0803-
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (K)	8-97611-089-0	01	1	0803-
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (L)	8-97613-390-0	01	1	0803-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
