Sayfa 1-41 - Isuzu EPC

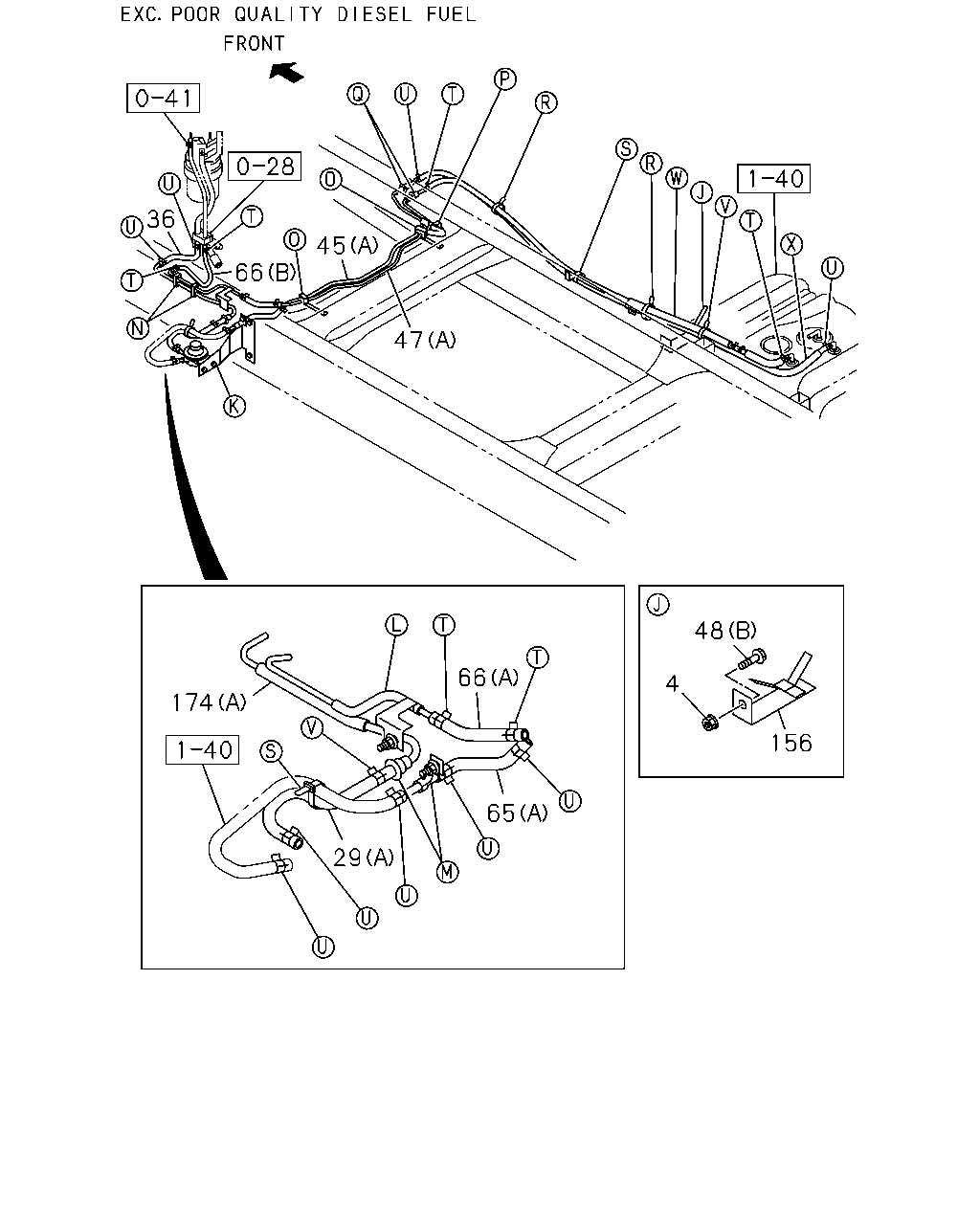

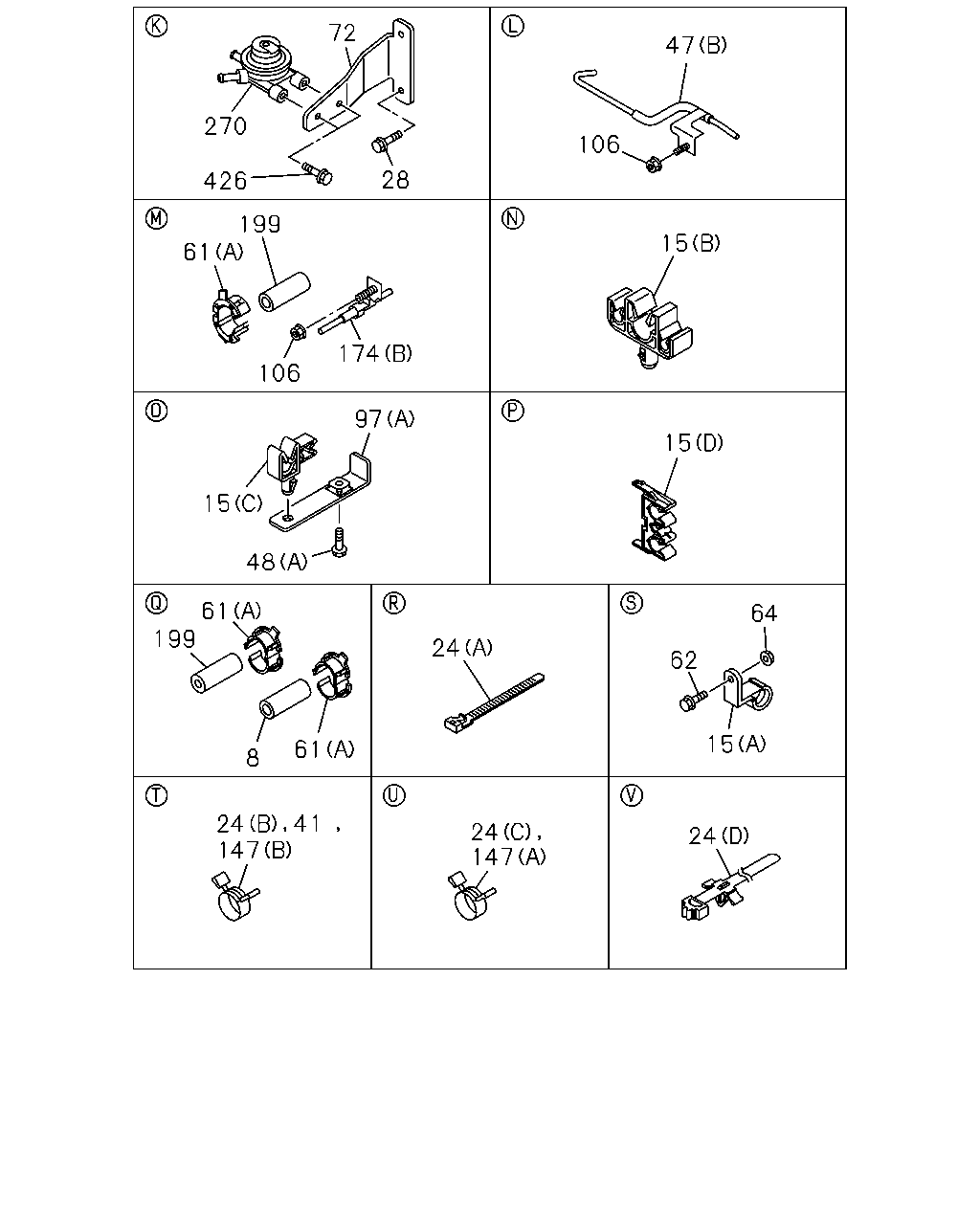

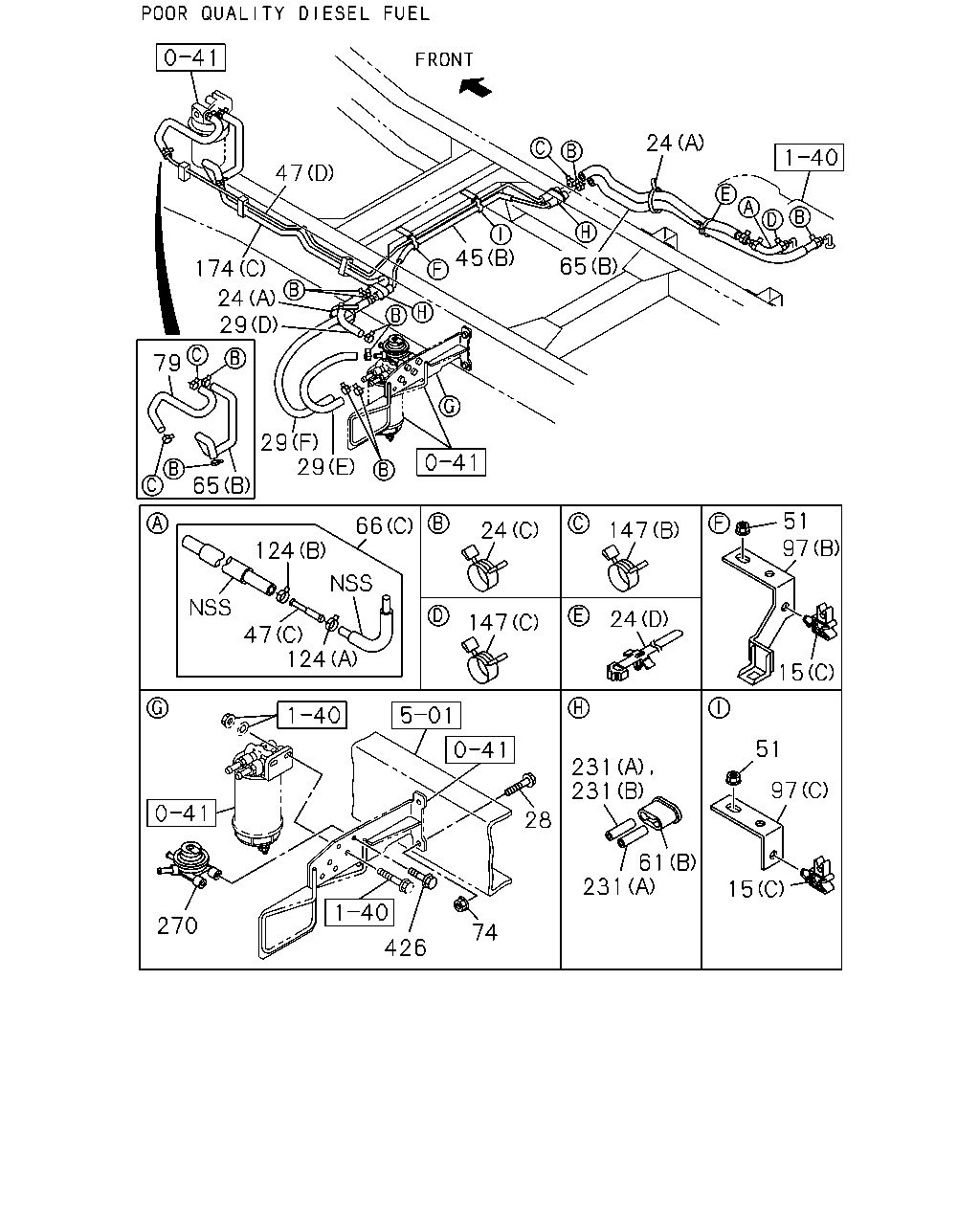

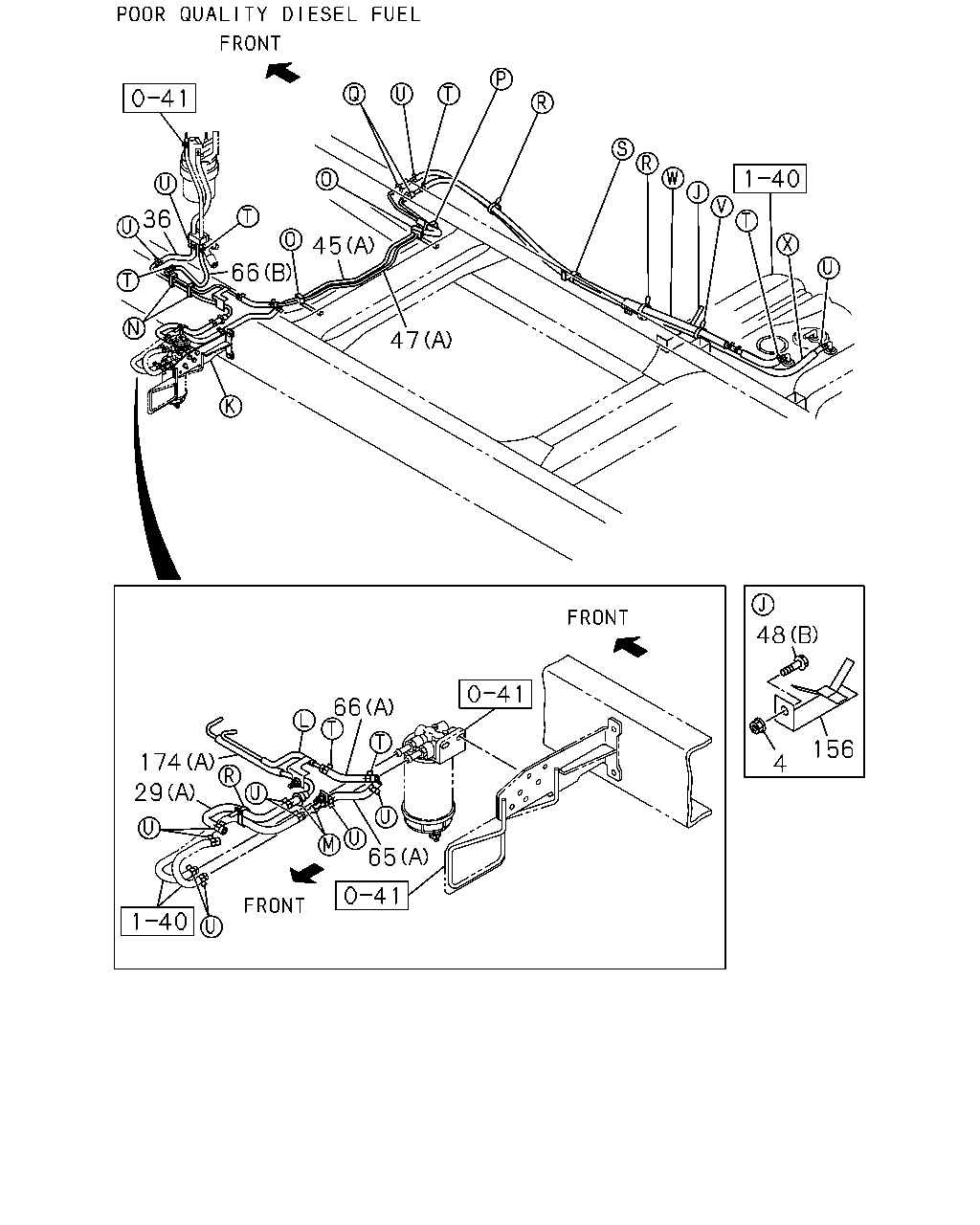

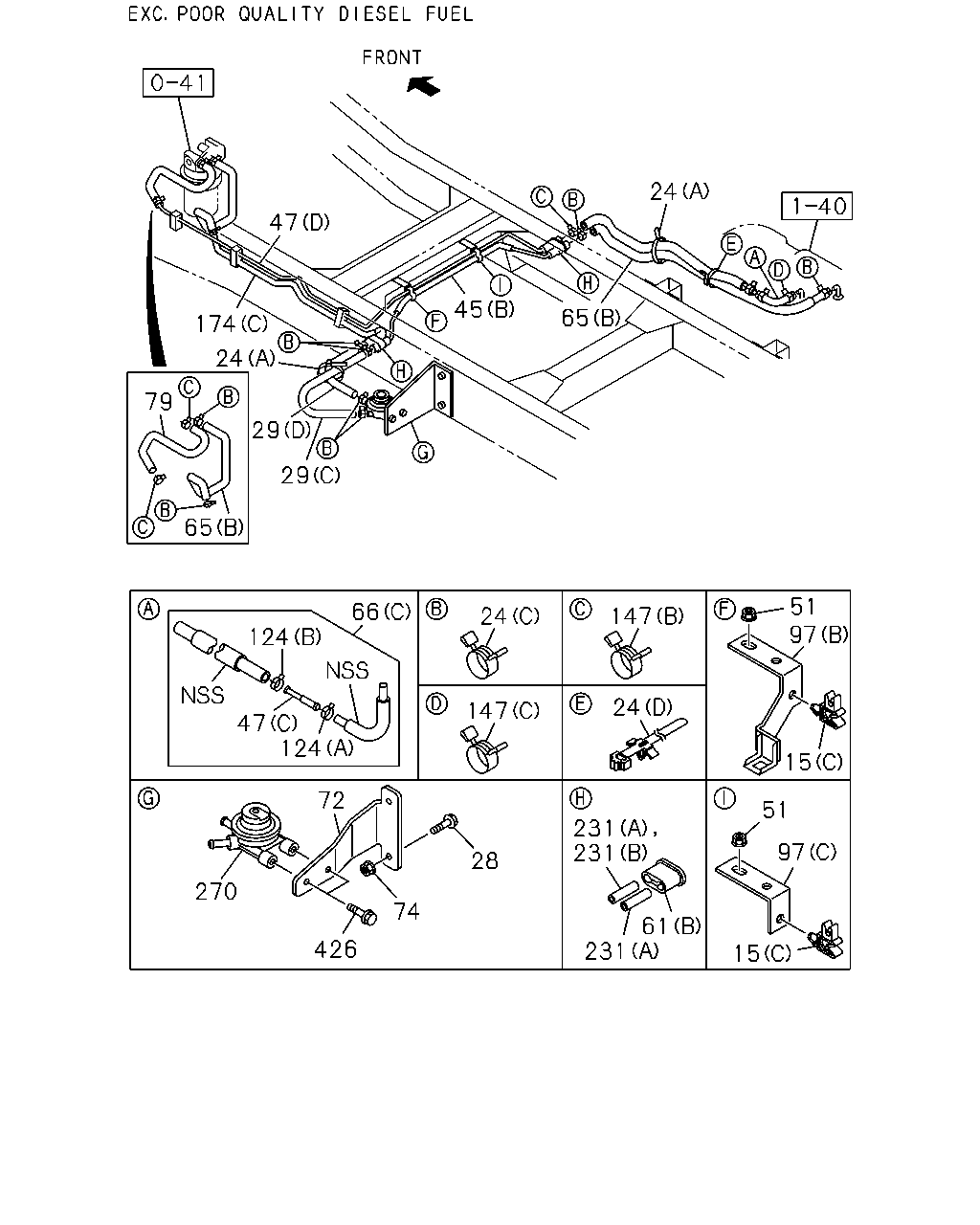

1-41 — FUEL PIPING; CHASSIS (#33804) — 388 parça

47 174 79 29 29 24 45 65 24 65 124 47 124 24 66 147 147 51 97 24 72 28 74 426 270 231 231 51 97 61 231 15 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	03.162 CLIP; FUEL PIPE (C) ID=12 & 6.35	8-97215-437-0	02	1	0803-
15	03.162 CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0803-
15	03.162 CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0803-
15	03.162 CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> 04.686 (B) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	0803-
15	03.162 CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> 04.930 (D) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0803-
24	03.162 CLIP; FUEL HOSE 02.559 (D) L=170.3	1-09987-182-0	01	1	0803-0906
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> 02.559 (D) L=170.3	1-09987-182-0	01	1	0907-
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0803-0906
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0907-
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	02	1	0803-0906
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	02	1	0803-
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> 04.930 (C) ID=16	8-94238-568-0	04	1	0803-0911
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (C) ID=16	8-98008-098-0	04	1	0912-
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=12	8-94238-610-0	02	1	0803-0911
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> 01.240 (B) ID=12	8-98150-358-0	02	1	0912-
24	03.162 CLIP; FUEL HOSE EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	08	1	0803-0906
24	03.162 CLIP; FUEL HOSE EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250	5-09707-030-1	01	1	0803-0906
28	03.330 BOLT; BRKT,FUEL PUMP 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0803-
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (A)	8-98099-502-0	01	1	0803-
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-98105-710-0	01	1	0803-0906
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98105-757-1	01	1	0803-0906
29	03.163 HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL(KF0),FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=360 SERVICED BY L=3000	0-01259-300-0	01	1	0803-0906
29	03.163 HOSE; FUEL FRAME STRAIGHT TYPE<7KJ> (B)	8-98067-563-4	01	1	0803-
29	03.163 HOSE; FUEL FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98037-758-0	01	1	0803-
29	03.163 HOSE; FUEL EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (D) L=280 SERVICED BY L=3000	0-01259-300-0	01	1	0803-0906
45	03.163 PIPE; FUEL,DELIVERY EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSIONCONTROL-SMOOTHER(8GF) (B)	8-98070-973-0	01	1	0803-0906
45	03.163 PIPE; FUEL,DELIVERY M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98046-936-3	01	1	0803-
45	03.163 PIPE; FUEL,DELIVERY M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98043-681-1	01	1	0803-
45	03.163 PIPE; FUEL,DELIVERY M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98043-638-3	01	1	0803-
45	03.163 PIPE; FUEL,DELIVERY M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98057-486-1	01	1	0803-
45	03.163 PIPE; FUEL,DELIVERY TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98070-974-0	01	1	0803-0906
47	03.163 PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> (C)	8-98036-483-0	01	1	0803-
47	03.163 PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98033-864-0	01	1	0803-
47	03.163 PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-618-1	01	1	0803-
47	03.163 PIPE; FUEL,RETURN EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSIONCONTROL-SMOOTHER(8GF) (D)	8-98070-975-0	01	1	0803-0906
47	03.163 PIPE; FUEL,RETURN M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98046-937-1	01	1	0803-
47	03.163 PIPE; FUEL,RETURN M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98043-639-0	01	1	0803-
47	03.163 PIPE; FUEL,RETURN M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98082-163-1	01	1	0803-
47	03.163 PIPE; FUEL,RETURN M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98057-487-1	01	1	0803-
47	03.163 PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98070-976-0	01	1	0803-0906
51	03.162 NUT; CLIP,PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 00.787 M10	0-91111-510-0	02	1	0803-0906
61	03.162 GROMMET; PIPE TO FRAME FRAME STRAIGHT TYPE<7KJ> 02.343 (A) ID=17	8-94128-319-2	01	1	0803-
61	03.162 GROMMET; PIPE TO FRAME FRAME STRAIGHT TYPE<7KJ> 02.343 (A) ID=17	8-94128-319-2	02	1	0803-
61	03.162 GROMMET; PIPE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98038-801-0	02	1	0803-0906
65	03.163 HOSE; FUEL,DELIVERY PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98043-671-0	01	1	0803-
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97389-774-0	01	1	0803-0906
65	03.163 HOSE; FUEL,DELIVERY PIPE M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0803-
65	03.163 HOSE; FUEL,DELIVERY PIPE M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.003 (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0803-
66	03.163 HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> (C)	8-98067-566-2	01	1	0803-
66	03.163 HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> (B)	8-98093-616-0	01	1	0803-
66	03.163 HOSE; FUEL,RETURN PIPE M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	0803-
66	03.163 HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	0803-
66	03.163 HOSE; FUEL,RETURN PIPE M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=200 SERVICED BY L=3000	0-01855-300-0	01	1	0803-
72	03.901 BRACKET; FUEL PUMP & FILTER FRAME STRAIGHT TYPE<7KJ>	8-98084-815-1	01	1	0803-0810
72	03.901 BRACKET; FUEL PUMP & FILTER FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0)	8-98084-815-1	01	1	0811-
72	03.901 BRACKET; FUEL PUMP & FILTER 4HK1-TCN ENG(RDQ) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98028-752-2	01	1	0803-0803
72	03.901 BRACKET; FUEL PUMP & FILTER 4HK1-TCN ENG(RDQ) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98107-370-0	01	1	0804-
74	03.901 NUT; BRKT,FUEL PUMP 4HK1-TCN ENG(RDQ) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	0803-
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN EXC. FRAME STRAIGHT TYPE<7KJ>	8-97389-778-1	01	1	0803-0906
97	03.162 BRACKET; CLIP FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98057-653-0	02	1	0803-
97	03.162 BRACKET; CLIP FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98041-203-0	02	1	0803-
97	03.162 BRACKET; CLIP EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98039-929-1	01	1	0803-0906
97	03.162 BRACKET; CLIP EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98006-480-1	01	1	0803-0906
124	03.162 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> 01.219 (A) ID=13	8-94238-571-0	01	1	0803-0911
124	03.162 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=13	8-98150-357-0	01	1	0912-
124	03.162 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> (B) ID=12	8-97358-961-0	01	1	0803-1002
124	03.162 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> 01.240 (B) ID=12	8-98150-358-0	01	1	1003-
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (C) ID=13	8-94238-571-0	01	1	0803-0911
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=13	8-98150-357-0	01	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	04	1	0803-0911
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	04	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	02	1	0803-0906
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	02	1	0803-0906
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	02	1	0803-0906
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	02	1	0907-0911
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	02	1	0907-0911
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	02	1	0907-0911
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	02	1	0907-0911
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=12	8-94238-610-0	01	1	0803-0911
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> 01.240 (B) ID=12	8-98150-358-0	01	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=12	8-94238-610-0	03	1	0803-0906
174	03.163 PIPE; FUEL,FEED,FRT FRAME STRAIGHT TYPE<7KJ> (A)	8-98033-844-1	01	1	0803-
174	03.163 PIPE; FUEL,FEED,FRT FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-615-0	01	1	0803-
174	03.163 PIPE; FUEL,FEED,FRT FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-616-0	01	1	0803-
174	03.163 PIPE; FUEL,FEED,FRT EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98070-972-0	01	1	0803-0906
231	03.162 RUBBER; SUPPORT,FUEL PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) OD=17 L=50	8-94157-054-1	01	1	0803-0906
231	03.162 RUBBER; SUPPORT,FUEL PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) OD=16.5 L=50	8-97214-235-0	03	1	0803-0906
270	03.900 PUMP ASM; FUEL	8-98018-187-4	01	1	0803-1408
270	03.900 PUMP ASM; FUEL	8-97948-892-0	01	1	1409-
426	03.330 BOLT; FUEL PUMP 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0803-

72 47 270 106 28 426 199 15 61 174 106 97 15 15 48 61 199 64 24 62 15 61 8 147 24 147 24 24 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	03.162 RUBBER; MTG FRAME STRAIGHT TYPE<7KJ> OD=17 L=50	8-94157-054-1	01	1	0803-
15	03.162 CLIP; FUEL PIPE (C) ID=12 & 6.35	8-97215-437-0	02	1	0803-
15	03.162 CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0803-
15	03.162 CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0803-
15	03.162 CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> 04.686 (B) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	0803-
15	03.162 CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> 04.930 (D) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0803-
24	03.162 CLIP; FUEL HOSE 02.559 (D) L=170.3	1-09987-182-0	01	1	0803-0906
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> 02.559 (D) L=170.3	1-09987-182-0	01	1	0907-
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0803-0906
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0907-
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	02	1	0803-0906
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	02	1	0803-
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> 04.930 (C) ID=16	8-94238-568-0	04	1	0803-0911
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (C) ID=16	8-98008-098-0	04	1	0912-
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=12	8-94238-610-0	02	1	0803-0911
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> 01.240 (B) ID=12	8-98150-358-0	02	1	0912-
24	03.162 CLIP; FUEL HOSE EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	08	1	0803-0906
24	03.162 CLIP; FUEL HOSE EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250	5-09707-030-1	01	1	0803-0906
28	03.330 BOLT; BRKT,FUEL PUMP 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0803-
41	03.162 CLIP; FUEL PIPE,FUEL TANK FRAME STRAIGHT TYPE<7KJ> 01.219 ID=12	8-94238-610-0	02	1	0803-0911
41	03.162 CLIP; FUEL PIPE,FUEL TANK FRAME STRAIGHT TYPE<7KJ> 01.240 ID=12	8-98150-358-0	02	1	0912-
47	03.163 PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> (C)	8-98036-483-0	01	1	0803-
47	03.163 PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98033-864-0	01	1	0803-
47	03.163 PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-618-1	01	1	0803-
47	03.163 PIPE; FUEL,RETURN EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSIONCONTROL-SMOOTHER(8GF) (D)	8-98070-975-0	01	1	0803-0906
47	03.163 PIPE; FUEL,RETURN M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98046-937-1	01	1	0803-
47	03.163 PIPE; FUEL,RETURN M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98043-639-0	01	1	0803-
47	03.163 PIPE; FUEL,RETURN M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98082-163-1	01	1	0803-
47	03.163 PIPE; FUEL,RETURN M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98057-487-1	01	1	0803-
47	03.163 PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98070-976-0	01	1	0803-0906
48	03.162 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0803-
48	03.162 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0803-
61	03.162 GROMMET; PIPE TO FRAME FRAME STRAIGHT TYPE<7KJ> 02.343 (A) ID=17	8-94128-319-2	01	1	0803-
61	03.162 GROMMET; PIPE TO FRAME FRAME STRAIGHT TYPE<7KJ> 02.343 (A) ID=17	8-94128-319-2	02	1	0803-
61	03.162 GROMMET; PIPE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98038-801-0	02	1	0803-0906
62	03.162 BOLT; CLIP FIX FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0803-
62	03.162 BOLT; CLIP FIX FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0803-
64	03.162 NUT; CLIP FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-
64	03.162 NUT; CLIP FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-
72	03.901 BRACKET; FUEL PUMP & FILTER FRAME STRAIGHT TYPE<7KJ>	8-98084-815-1	01	1	0803-0810
72	03.901 BRACKET; FUEL PUMP & FILTER FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0)	8-98084-815-1	01	1	0811-
72	03.901 BRACKET; FUEL PUMP & FILTER 4HK1-TCN ENG(RDQ) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98028-752-2	01	1	0803-0803
72	03.901 BRACKET; FUEL PUMP & FILTER 4HK1-TCN ENG(RDQ) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98107-370-0	01	1	0804-
97	03.162 BRACKET; CLIP FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98057-653-0	02	1	0803-
97	03.162 BRACKET; CLIP FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98041-203-0	02	1	0803-
97	03.162 BRACKET; CLIP EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98039-929-1	01	1	0803-0906
97	03.162 BRACKET; CLIP EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98006-480-1	01	1	0803-0906
106	03.162 NUT; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91180-110-0	01	1	0803-
106	03.162 NUT; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91180-110-0	01	1	0803-
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (C) ID=13	8-94238-571-0	01	1	0803-0911
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=13	8-98150-357-0	01	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	04	1	0803-0911
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	04	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	02	1	0803-0906
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	02	1	0803-0906
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	02	1	0803-0906
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	02	1	0907-0911
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	02	1	0907-0911
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	02	1	0907-0911
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	02	1	0907-0911
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=12	8-94238-610-0	01	1	0803-0911
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> 01.240 (B) ID=12	8-98150-358-0	01	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=12	8-94238-610-0	03	1	0803-0906
174	03.163 PIPE; FUEL,FEED,FRT FRAME STRAIGHT TYPE<7KJ> (A)	8-98033-844-1	01	1	0803-
174	03.163 PIPE; FUEL,FEED,FRT FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-615-0	01	1	0803-
174	03.163 PIPE; FUEL,FEED,FRT FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-616-0	01	1	0803-
174	03.163 PIPE; FUEL,FEED,FRT EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98070-972-0	01	1	0803-0906
199	03.162 PROTECTOR; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> OD=15 L=50	8-97077-629-0	01	1	0803-
199	03.162 PROTECTOR; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> OD=15 L=50	8-97077-629-0	01	1	0803-
270	03.900 PUMP ASM; FUEL	8-98018-187-4	01	1	0803-1408
270	03.900 PUMP ASM; FUEL	8-97948-892-0	01	1	1409-
426	03.330 BOLT; FUEL PUMP 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0803-

36 45 66 47 48 66 4 174 156 65 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	03.130 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	01	1	0803-
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (A)	8-98099-502-0	01	1	0803-
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-98105-710-0	01	1	0803-0906
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98105-757-1	01	1	0803-0906
29	03.163 HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL(KF0),FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=360 SERVICED BY L=3000	0-01259-300-0	01	1	0803-0906
29	03.163 HOSE; FUEL FRAME STRAIGHT TYPE<7KJ> (B)	8-98067-563-4	01	1	0803-
29	03.163 HOSE; FUEL FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98037-758-0	01	1	0803-
29	03.163 HOSE; FUEL EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (D) L=280 SERVICED BY L=3000	0-01259-300-0	01	1	0803-0906
36	03.163 HOSE; FUEL,FILTER TO TANK EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ>	8-98093-615-0	01	1	0803-1008
36	03.163 HOSE; FUEL,FILTER TO TANK EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ>	8-98171-618-0	01	1	1009-
36	03.163 HOSE; FUEL,FILTER TO TANK EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ>	8-98034-028-1	01	1	0803-
45	03.163 PIPE; FUEL,DELIVERY EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSIONCONTROL-SMOOTHER(8GF) (B)	8-98070-973-0	01	1	0803-0906
45	03.163 PIPE; FUEL,DELIVERY M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98046-936-3	01	1	0803-
45	03.163 PIPE; FUEL,DELIVERY M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98043-681-1	01	1	0803-
45	03.163 PIPE; FUEL,DELIVERY M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98043-638-3	01	1	0803-
45	03.163 PIPE; FUEL,DELIVERY M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98057-486-1	01	1	0803-
45	03.163 PIPE; FUEL,DELIVERY TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98070-974-0	01	1	0803-0906
47	03.163 PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> (C)	8-98036-483-0	01	1	0803-
47	03.163 PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98033-864-0	01	1	0803-
47	03.163 PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-618-1	01	1	0803-
47	03.163 PIPE; FUEL,RETURN EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSIONCONTROL-SMOOTHER(8GF) (D)	8-98070-975-0	01	1	0803-0906
47	03.163 PIPE; FUEL,RETURN M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98046-937-1	01	1	0803-
47	03.163 PIPE; FUEL,RETURN M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98043-639-0	01	1	0803-
47	03.163 PIPE; FUEL,RETURN M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98082-163-1	01	1	0803-
47	03.163 PIPE; FUEL,RETURN M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98057-487-1	01	1	0803-
47	03.163 PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98070-976-0	01	1	0803-0906
48	03.162 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0803-
48	03.162 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0803-
65	03.163 HOSE; FUEL,DELIVERY PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98043-671-0	01	1	0803-
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97389-774-0	01	1	0803-0906
65	03.163 HOSE; FUEL,DELIVERY PIPE M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0803-
65	03.163 HOSE; FUEL,DELIVERY PIPE M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.003 (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0803-
66	03.163 HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> (C)	8-98067-566-2	01	1	0803-
66	03.163 HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> (B)	8-98093-616-0	01	1	0803-
66	03.163 HOSE; FUEL,RETURN PIPE M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	0803-
66	03.163 HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	0803-
66	03.163 HOSE; FUEL,RETURN PIPE M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=200 SERVICED BY L=3000	0-01855-300-0	01	1	0803-
156	03.162 BRACKET; FUEL HOSE FRAME STRAIGHT TYPE<7KJ>	8-98041-250-2	01	1	0803-
174	03.163 PIPE; FUEL,FEED,FRT FRAME STRAIGHT TYPE<7KJ> (A)	8-98033-844-1	01	1	0803-
174	03.163 PIPE; FUEL,FEED,FRT FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-615-0	01	1	0803-
174	03.163 PIPE; FUEL,FEED,FRT FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-616-0	01	1	0803-
174	03.163 PIPE; FUEL,FEED,FRT EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98070-972-0	01	1	0803-0906

472 24 65 45 174 79 24 29 29 29 66 124 47 24 147 124 147 51 97 15 24 51 231 231 28 270 15 61 231 74 426 97 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	03.162 CLIP; FUEL PIPE (C) ID=12 & 6.35	8-97215-437-0	02	1	0803-
15	03.162 CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0803-
15	03.162 CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> 02.559 (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0803-
15	03.162 CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> 04.686 (B) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	0803-
15	03.162 CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> 04.930 (D) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0803-
24	03.162 CLIP; FUEL HOSE 02.559 (D) L=170.3	1-09987-182-0	01	1	0803-0906
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> 02.559 (D) L=170.3	1-09987-182-0	01	1	0907-
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0803-0906
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0907-
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	02	1	0803-0906
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	02	1	0803-
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> 04.930 (C) ID=16	8-94238-568-0	04	1	0803-0911
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (C) ID=16	8-98008-098-0	04	1	0912-
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=12	8-94238-610-0	02	1	0803-0911
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> 01.240 (B) ID=12	8-98150-358-0	02	1	0912-
24	03.162 CLIP; FUEL HOSE EXC. FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	08	1	0803-0906
24	03.162 CLIP; FUEL HOSE EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) L=250	5-09707-030-1	01	1	0803-0906
28	03.330 BOLT; BRKT,FUEL PUMP 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0803-
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (A)	8-98099-502-0	01	1	0803-
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-98105-710-0	01	1	0803-0906
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98105-757-1	01	1	0803-0906
29	03.163 HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL(KF0),FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=360 SERVICED BY L=3000	0-01259-300-0	01	1	0803-0906
29	03.163 HOSE; FUEL FRAME STRAIGHT TYPE<7KJ> (B)	8-98067-563-4	01	1	0803-
29	03.163 HOSE; FUEL FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98037-758-0	01	1	0803-
29	03.163 HOSE; FUEL EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (D) L=280 SERVICED BY L=3000	0-01259-300-0	01	1	0803-0906
45	03.163 PIPE; FUEL,DELIVERY EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSIONCONTROL-SMOOTHER(8GF) (B)	8-98070-973-0	01	1	0803-0906
45	03.163 PIPE; FUEL,DELIVERY M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98046-936-3	01	1	0803-
45	03.163 PIPE; FUEL,DELIVERY M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98043-681-1	01	1	0803-
45	03.163 PIPE; FUEL,DELIVERY M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98043-638-3	01	1	0803-
45	03.163 PIPE; FUEL,DELIVERY M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98057-486-1	01	1	0803-
45	03.163 PIPE; FUEL,DELIVERY TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98070-974-0	01	1	0803-0906
47	03.163 PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> (C)	8-98036-483-0	01	1	0803-
47	03.163 PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98033-864-0	01	1	0803-
47	03.163 PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-618-1	01	1	0803-
47	03.163 PIPE; FUEL,RETURN EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSIONCONTROL-SMOOTHER(8GF) (D)	8-98070-975-0	01	1	0803-0906
47	03.163 PIPE; FUEL,RETURN M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98046-937-1	01	1	0803-
47	03.163 PIPE; FUEL,RETURN M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98043-639-0	01	1	0803-
47	03.163 PIPE; FUEL,RETURN M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98082-163-1	01	1	0803-
47	03.163 PIPE; FUEL,RETURN M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98057-487-1	01	1	0803-
47	03.163 PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98070-976-0	01	1	0803-0906
51	03.162 NUT; CLIP,PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 00.787 M10	0-91111-510-0	02	1	0803-0906
61	03.162 GROMMET; PIPE TO FRAME FRAME STRAIGHT TYPE<7KJ> 02.343 (A) ID=17	8-94128-319-2	01	1	0803-
61	03.162 GROMMET; PIPE TO FRAME FRAME STRAIGHT TYPE<7KJ> 02.343 (A) ID=17	8-94128-319-2	02	1	0803-
61	03.162 GROMMET; PIPE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98038-801-0	02	1	0803-0906
65	03.163 HOSE; FUEL,DELIVERY PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98043-671-0	01	1	0803-
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97389-774-0	01	1	0803-0906
65	03.163 HOSE; FUEL,DELIVERY PIPE M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0803-
65	03.163 HOSE; FUEL,DELIVERY PIPE M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.003 (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0803-
66	03.163 HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> (C)	8-98067-566-2	01	1	0803-
66	03.163 HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> (B)	8-98093-616-0	01	1	0803-
66	03.163 HOSE; FUEL,RETURN PIPE M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	0803-
66	03.163 HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	0803-
66	03.163 HOSE; FUEL,RETURN PIPE M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=200 SERVICED BY L=3000	0-01855-300-0	01	1	0803-
74	03.901 NUT; BRKT,FUEL PUMP 4HK1-TCN ENG(RDQ) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	0803-
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN EXC. FRAME STRAIGHT TYPE<7KJ>	8-97389-778-1	01	1	0803-0906
97	03.162 BRACKET; CLIP FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98057-653-0	02	1	0803-
97	03.162 BRACKET; CLIP FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98041-203-0	02	1	0803-
97	03.162 BRACKET; CLIP EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98039-929-1	01	1	0803-0906
97	03.162 BRACKET; CLIP EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98006-480-1	01	1	0803-0906
124	03.162 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> 01.219 (A) ID=13	8-94238-571-0	01	1	0803-0911
124	03.162 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=13	8-98150-357-0	01	1	0912-
124	03.162 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> (B) ID=12	8-97358-961-0	01	1	0803-1002
124	03.162 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> 01.240 (B) ID=12	8-98150-358-0	01	1	1003-
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (C) ID=13	8-94238-571-0	01	1	0803-0911
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=13	8-98150-357-0	01	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	04	1	0803-0911
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	04	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	02	1	0803-0906
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	02	1	0803-0906
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	02	1	0803-0906
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	02	1	0907-0911
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	02	1	0907-0911
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	02	1	0907-0911
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	02	1	0907-0911
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=12	8-94238-610-0	01	1	0803-0911
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> 01.240 (B) ID=12	8-98150-358-0	01	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=12	8-94238-610-0	03	1	0803-0906
174	03.163 PIPE; FUEL,FEED,FRT FRAME STRAIGHT TYPE<7KJ> (A)	8-98033-844-1	01	1	0803-
174	03.163 PIPE; FUEL,FEED,FRT FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-615-0	01	1	0803-
174	03.163 PIPE; FUEL,FEED,FRT FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-616-0	01	1	0803-
174	03.163 PIPE; FUEL,FEED,FRT EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98070-972-0	01	1	0803-0906
231	03.162 RUBBER; SUPPORT,FUEL PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) OD=17 L=50	8-94157-054-1	01	1	0803-0906
231	03.162 RUBBER; SUPPORT,FUEL PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) OD=16.5 L=50	8-97214-235-0	03	1	0803-0906
270	03.900 PUMP ASM; FUEL	8-98018-187-4	01	1	0803-1408
270	03.900 PUMP ASM; FUEL	8-97948-892-0	01	1	1409-
426	03.330 BOLT; FUEL PUMP 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0803-

36 45 66 47 48 66 156 174 4 29 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	03.130 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	01	1	0803-
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (A)	8-98099-502-0	01	1	0803-
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-98105-710-0	01	1	0803-0906
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98105-757-1	01	1	0803-0906
29	03.163 HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL(KF0),FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=360 SERVICED BY L=3000	0-01259-300-0	01	1	0803-0906
29	03.163 HOSE; FUEL FRAME STRAIGHT TYPE<7KJ> (B)	8-98067-563-4	01	1	0803-
29	03.163 HOSE; FUEL FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98037-758-0	01	1	0803-
29	03.163 HOSE; FUEL EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (D) L=280 SERVICED BY L=3000	0-01259-300-0	01	1	0803-0906
36	03.163 HOSE; FUEL,FILTER TO TANK EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ>	8-98093-615-0	01	1	0803-1008
36	03.163 HOSE; FUEL,FILTER TO TANK EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ>	8-98171-618-0	01	1	1009-
36	03.163 HOSE; FUEL,FILTER TO TANK EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ>	8-98034-028-1	01	1	0803-
45	03.163 PIPE; FUEL,DELIVERY EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSIONCONTROL-SMOOTHER(8GF) (B)	8-98070-973-0	01	1	0803-0906
45	03.163 PIPE; FUEL,DELIVERY M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98046-936-3	01	1	0803-
45	03.163 PIPE; FUEL,DELIVERY M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98043-681-1	01	1	0803-
45	03.163 PIPE; FUEL,DELIVERY M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98043-638-3	01	1	0803-
45	03.163 PIPE; FUEL,DELIVERY M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98057-486-1	01	1	0803-
45	03.163 PIPE; FUEL,DELIVERY TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98070-974-0	01	1	0803-0906
47	03.163 PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> (C)	8-98036-483-0	01	1	0803-
47	03.163 PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98033-864-0	01	1	0803-
47	03.163 PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-618-1	01	1	0803-
47	03.163 PIPE; FUEL,RETURN EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSIONCONTROL-SMOOTHER(8GF) (D)	8-98070-975-0	01	1	0803-0906
47	03.163 PIPE; FUEL,RETURN M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98046-937-1	01	1	0803-
47	03.163 PIPE; FUEL,RETURN M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98043-639-0	01	1	0803-
47	03.163 PIPE; FUEL,RETURN M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98082-163-1	01	1	0803-
47	03.163 PIPE; FUEL,RETURN M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98057-487-1	01	1	0803-
47	03.163 PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98070-976-0	01	1	0803-0906
48	03.162 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0803-
48	03.162 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0803-
65	03.163 HOSE; FUEL,DELIVERY PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98043-671-0	01	1	0803-
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97389-774-0	01	1	0803-0906
65	03.163 HOSE; FUEL,DELIVERY PIPE M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0803-
65	03.163 HOSE; FUEL,DELIVERY PIPE M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.003 (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0803-
66	03.163 HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> (C)	8-98067-566-2	01	1	0803-
66	03.163 HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> (B)	8-98093-616-0	01	1	0803-
66	03.163 HOSE; FUEL,RETURN PIPE M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	0803-
66	03.163 HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	0803-
66	03.163 HOSE; FUEL,RETURN PIPE M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=200 SERVICED BY L=3000	0-01855-300-0	01	1	0803-
156	03.162 BRACKET; FUEL HOSE FRAME STRAIGHT TYPE<7KJ>	8-98041-250-2	01	1	0803-
174	03.163 PIPE; FUEL,FEED,FRT FRAME STRAIGHT TYPE<7KJ> (A)	8-98033-844-1	01	1	0803-
174	03.163 PIPE; FUEL,FEED,FRT FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-615-0	01	1	0803-
174	03.163 PIPE; FUEL,FEED,FRT FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-616-0	01	1	0803-
174	03.163 PIPE; FUEL,FEED,FRT EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98070-972-0	01	1	0803-0906

66 124 47 124 29 147 311 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (A)	8-98099-502-0	01	1	0803-
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-98105-710-0	01	1	0803-0906
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98105-757-1	01	1	0803-0906
29	03.163 HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL(KF0),FRAME STRAIGHT TYPE<7KJ> 03.003 (C) L=360 SERVICED BY L=3000	0-01259-300-0	01	1	0803-0906
29	03.163 HOSE; FUEL FRAME STRAIGHT TYPE<7KJ> (B)	8-98067-563-4	01	1	0803-
29	03.163 HOSE; FUEL FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98037-758-0	01	1	0803-
29	03.163 HOSE; FUEL EXC. FRAME STRAIGHT TYPE<7KJ> 03.003 (D) L=280 SERVICED BY L=3000	0-01259-300-0	01	1	0803-0906
47	03.163 PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> (C)	8-98036-483-0	01	1	0803-
47	03.163 PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98033-864-0	01	1	0803-
47	03.163 PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98041-618-1	01	1	0803-
47	03.163 PIPE; FUEL,RETURN EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSIONCONTROL-SMOOTHER(8GF) (D)	8-98070-975-0	01	1	0803-0906
47	03.163 PIPE; FUEL,RETURN M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98046-937-1	01	1	0803-
47	03.163 PIPE; FUEL,RETURN M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98043-639-0	01	1	0803-
47	03.163 PIPE; FUEL,RETURN M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98082-163-1	01	1	0803-
47	03.163 PIPE; FUEL,RETURN M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98057-487-1	01	1	0803-
47	03.163 PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98070-976-0	01	1	0803-0906
66	03.163 HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> (C)	8-98067-566-2	01	1	0803-
66	03.163 HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> (B)	8-98093-616-0	01	1	0803-
66	03.163 HOSE; FUEL,RETURN PIPE M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	0803-
66	03.163 HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	0803-
66	03.163 HOSE; FUEL,RETURN PIPE M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=200 SERVICED BY L=3000	0-01855-300-0	01	1	0803-
124	03.162 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> 01.219 (A) ID=13	8-94238-571-0	01	1	0803-0911
124	03.162 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=13	8-98150-357-0	01	1	0912-
124	03.162 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> (B) ID=12	8-97358-961-0	01	1	0803-1002
124	03.162 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> 01.240 (B) ID=12	8-98150-358-0	01	1	1003-
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (C) ID=13	8-94238-571-0	01	1	0803-0911
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=13	8-98150-357-0	01	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	04	1	0803-0911
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	04	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	02	1	0803-0906
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	02	1	0803-0906
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	02	1	0803-0906
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	02	1	0907-0911
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	02	1	0907-0911
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	02	1	0907-0911
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	02	1	0907-0911
147	03.162 CLIP; FUEL PIPE TO HOSE POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=16	8-94238-568-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=12	8-94238-610-0	01	1	0803-0911
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> 01.240 (B) ID=12	8-98150-358-0	01	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FRAME STRAIGHT TYPE<7KJ> 01.219 (B) ID=12	8-94238-610-0	03	1	0803-0906
311	03.163 JOINT; HOSE FRAME STRAIGHT TYPE<7KJ>	8-97353-668-0	01	1	0803-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
