Sayfa 1-40 - Isuzu EPC

1-40 — FUEL TANK (#33803) — 58 parça

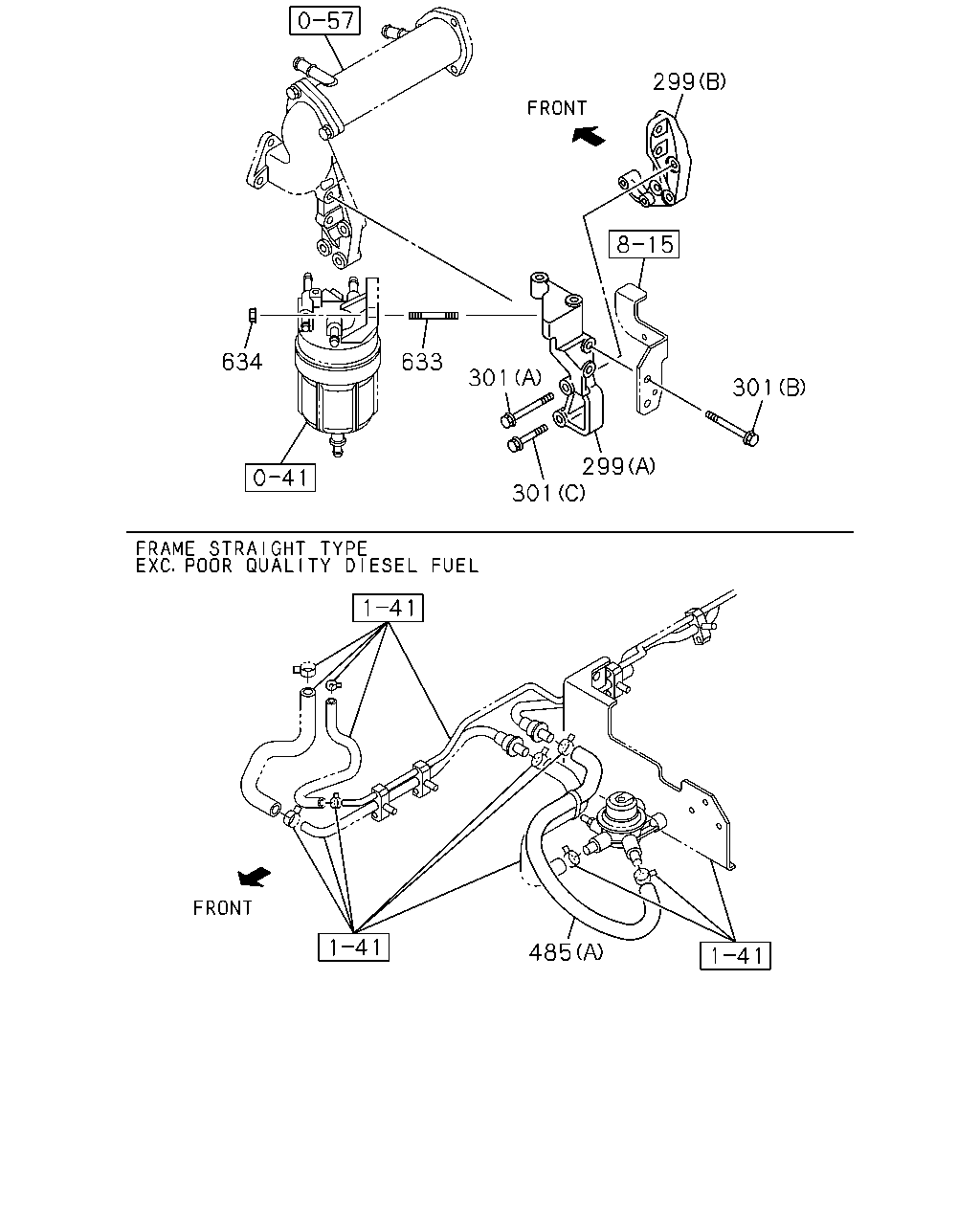

299 301 633 634 301 299 301 485

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
299	03.162 BRACKET; FUEL FILTER (A)	8-98023-175-3	01	1	0803-
299	03.162 BRACKET; FUEL FILTER EURO2 SPECIFICATION(NT2) (B)	8-98074-132-1	01	1	0803-
301	03.162 BOLT; BRKT TO SEDIMENTER 09.181 (C) M12X80	0-28151-280-0	01	1	0905-
301	03.162 BOLT; BRKT TO SEDIMENTER 00.206 (A) M12X70 FLANGE	0-28151-270-0	01	1	0803-0811
301	03.162 BOLT; BRKT TO SEDIMENTER 02.510 (A) M12X100 FLANGE	0-28151-200-0	01	1	0803-
301	03.162 BOLT; BRKT TO SEDIMENTER 00.685 (B) M12X50 FLANGE	0-28151-250-0	02	1	0803-0811
301	03.162 BOLT; BRKT TO SEDIMENTER 00.685 (B) M12X50 FLANGE	0-28151-250-0	01	1	0812-
301	03.162 BOLT; BRKT TO SEDIMENTER 09.181 (C) M12X80	0-28151-280-0	01	1	0803-0811
485	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (B)	8-98099-503-0	01	1	0803-0906
485	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (B)	8-98099-503-0	01	1	0907-
485	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (B)	8-98099-503-0	01	1	0907-
485	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (C)	8-98105-710-0	01	1	0803-
485	03.163 HOSE; FUEL FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98041-728-0	01	1	0803-
633	03.162 STUD; BRKT TO SEDIMENTER 03.275 M8X25 L=37	0-41010-825-0	02	1	0803-
634	03.162 NUT; BRKT TO SEDIMENTER 01.062 M8 FLANGE	0-91180-108-0	02	1	0803-

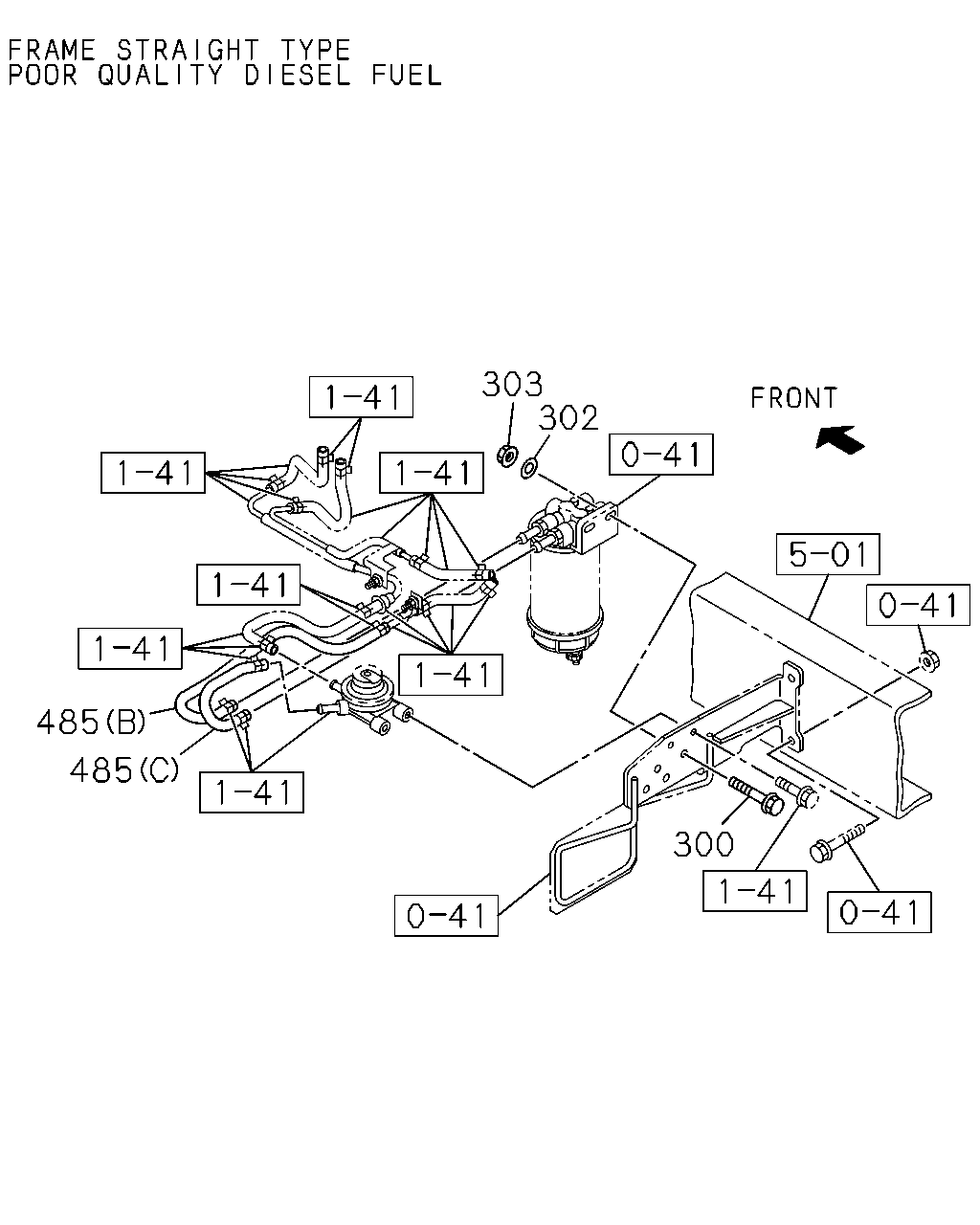

303 302 485 485 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
300	03.162 BOLT; BRKT TO BODY POOR QUALITY DIESEL FUEL(KF0) 03.613 M10X40 FLANGE	0-28651-040-0	02	1	0803-
302	03.162 WASHER; PL,SEDIMENTER POOR QUALITY DIESEL FUEL(KF0) 04.085 ID=10.5 OD=26	0-91614-710-0	02	1	0803-
303	03.162 NUT; SEDIMENTER BRKT POOR QUALITY DIESEL FUEL(KF0) M10 FLANGE	0-91180-110-0	02	1	0803-
485	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (B)	8-98099-503-0	01	1	0803-0906
485	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (B)	8-98099-503-0	01	1	0907-
485	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (B)	8-98099-503-0	01	1	0907-
485	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (C)	8-98105-710-0	01	1	0803-
485	03.163 HOSE; FUEL FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98041-728-0	01	1	0803-

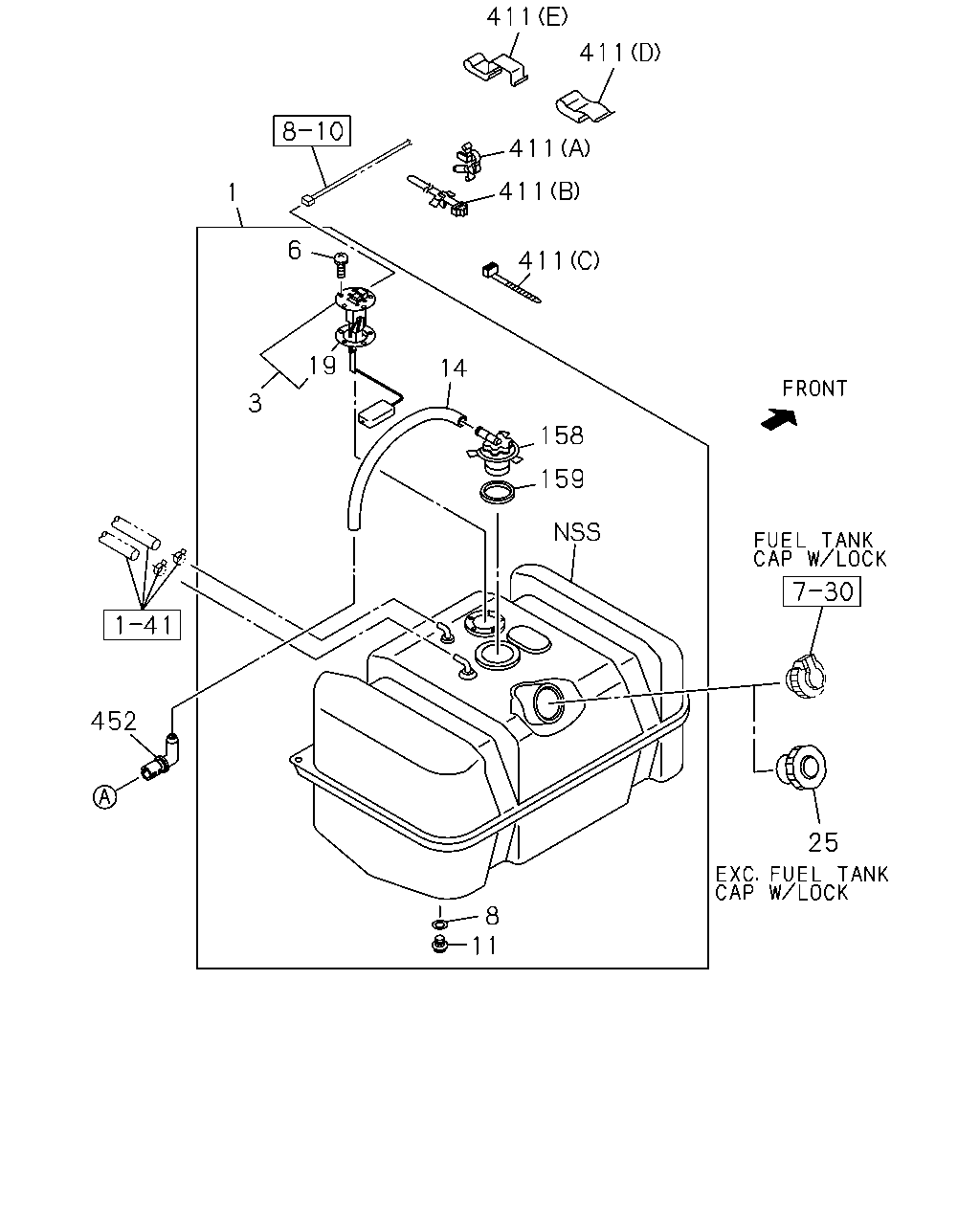

411 411 411 411 1 6 411 19 14 3 158 159 452 25 8 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.001 TANK; FUEL 756X482X376 100L	8-98062-738-4	01	1	0803-
3	03.107 UNIT; FUEL TANK,SUB	8-98056-705-0	01	1	0803-
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN M5X12 W/LK WASHER	0-36220-512-0	05	1	0803-
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	0803-
11	03.890 PLUG; DRAIN,FUEL TANK 01.453 M14X14	9-09862-156-0	01	1	0803-
14	03.163 HOSE; BREATHER,OUTLET L=480	8-97135-581-0	01	1	0803-1003
14	03.163 HOSE; BREATHER,OUTLET L=420	8-98157-809-0	01	1	1004-
19	03.112 GASKET; FUEL TANK UNIT	8-98051-797-0	01	1	0803-
25	03.028 CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP W/LOCK<N05>	8-97387-179-0	01	1	0803-
158	03.164 VALVE; ROLL OVER & FLOAT	8-97179-645-0	01	1	0803-
159	03.015 SEAL; ROLL OVER & FLOAT VALVE	8-97326-488-0	01	1	0803-
411	02.559 CLIP; FUEL TANK UNIT HARNESS EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (D) T=6.0	5-09709-012-0	05	1	0803-0804
411	02.559 CLIP; FUEL TANK UNIT HARNESS EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5	8-97371-951-0	05	1	0805-
411	02.559 CLIP; FUEL TANK UNIT HARNESS EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (E) T=6.0	5-09709-024-0	02	1	0803-0804
411	02.559 CLIP; FUEL TANK UNIT HARNESS EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9	8-97371-947-0	02	1	0805-
411	02.559 CLIP; FUEL TANK UNIT HARNESS 03.162 (C) L=140	5-09707-031-1	01	1	0803-
411	02.559 CLIP; FUEL TANK UNIT HARNESS (B) L=170.3	1-09987-182-0	01	1	0803-
411	02.559 CLIP; FUEL TANK UNIT HARNESS EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	0803-
411	02.559 CLIP; FUEL TANK UNIT HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	0803-
411	02.559 CLIP; FUEL TANK UNIT HARNESS EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (D) T=6.0	5-09709-012-0	04	1	0803-0804
411	02.559 CLIP; FUEL TANK UNIT HARNESS EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5	8-97371-951-0	04	1	0805-
411	02.559 CLIP; FUEL TANK UNIT HARNESS EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9	8-97371-947-0	01	1	0803-1407
411	02.559 CLIP; FUEL TANK UNIT HARNESS FRAME STRAIGHT TYPE<7KJ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) T=4.5 & 9	8-97371-947-0	01	1	1408-
411	02.559 CLIP; FUEL TANK UNIT HARNESS EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9	8-97371-947-0	01	1	1408-
411	02.559 CLIP; FUEL TANK UNIT HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5	8-97371-951-0	01	1	0803-
411	02.559 CLIP; FUEL TANK UNIT HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5	8-97371-951-0	02	1	0803-0809
411	02.559 CLIP; FUEL TANK UNIT HARNESS EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5	8-97371-951-0	02	1	0810-
452	03.028 BREATHER; FUEL TANK	8-97357-261-0	01	1	0803-

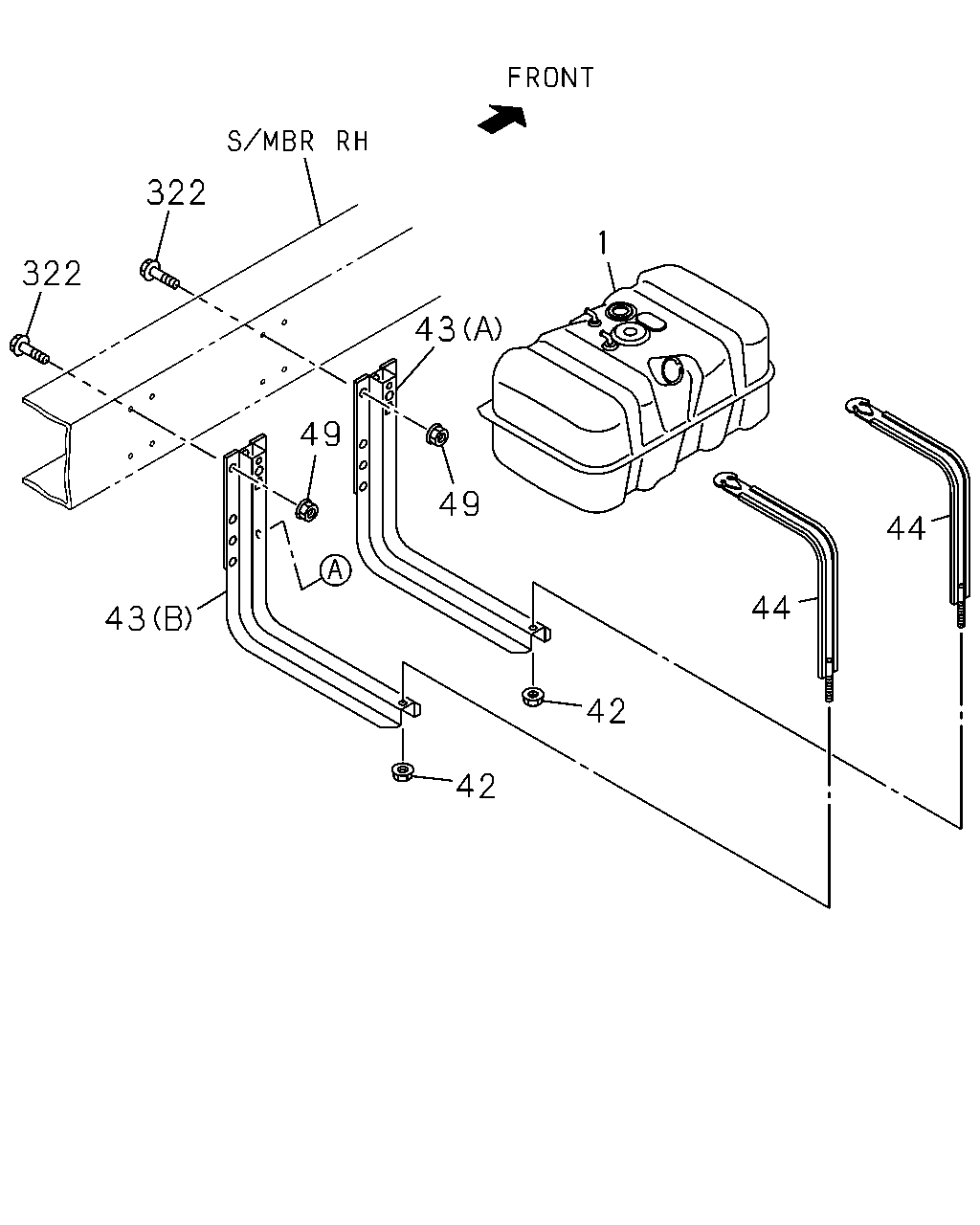

322 1 322 43 49 49 44 44 43 42 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.001 TANK; FUEL 756X482X376 100L	8-98062-738-4	01	1	0803-
42	03.023 NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	0803-
43	03.015 BRACKET; FUEL TANK (A)	8-97384-060-5	01	1	0803-
43	03.015 BRACKET; FUEL TANK (B)	8-97384-062-6	01	1	0803-
44	03.023 BAND; FUEL TANK L=795	8-97384-080-2	02	1	0803-
49	03.023 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	08	1	0803-
322	03.895 BOLT; BRKT FIX 03.613 M10X40 FLANGE	0-28661-040-0	08	1	0803-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
