Sayfa 1-31 - Isuzu EPC

1-31 — AIR DUCT (#33801) — 191 parça

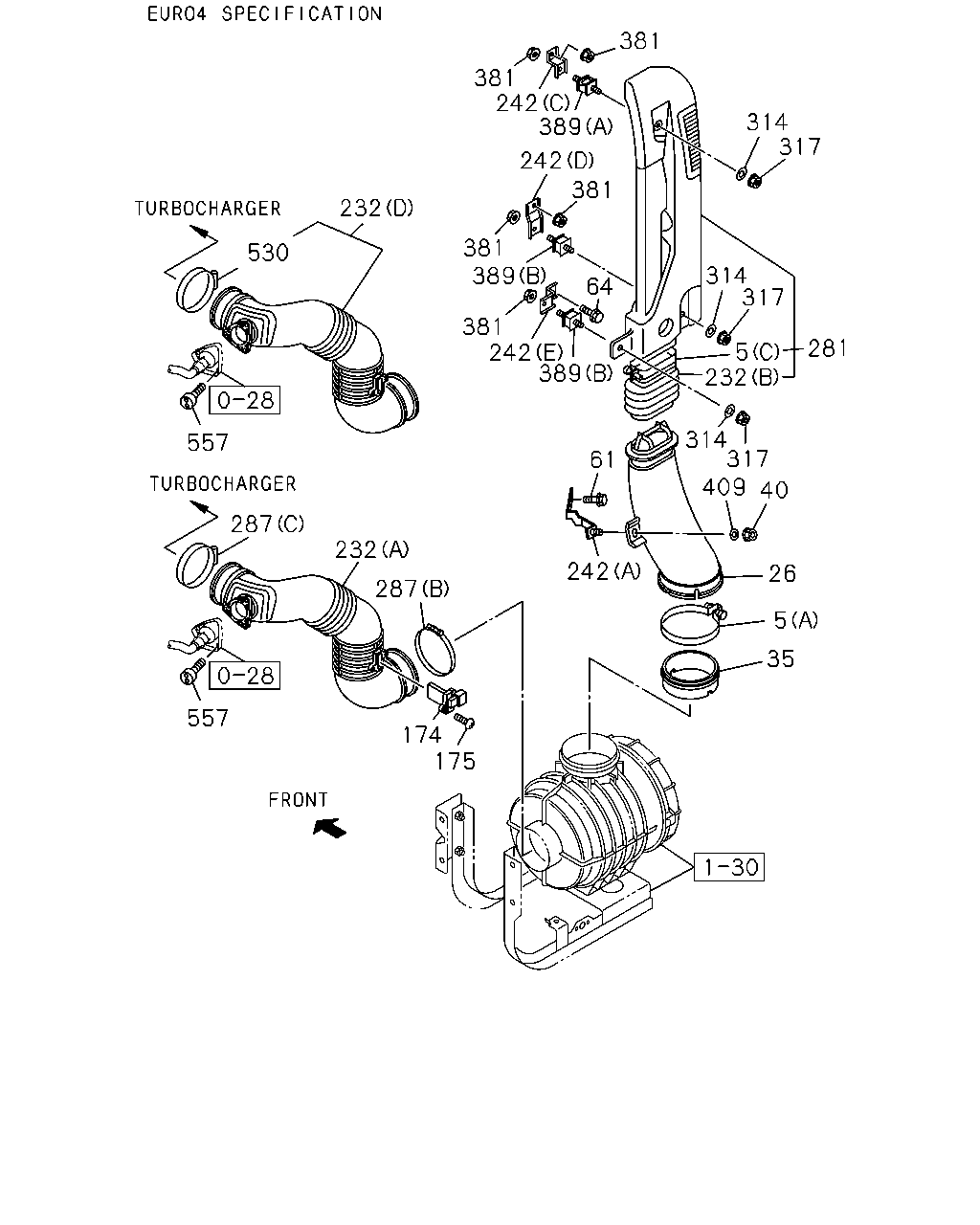

381 381 242 389 242 381 381 64 389 381 242 389 314 317 314 317 281 5 232 314 317 409 40 26 5 35 242 61 232 287 287 557 530 232 557 174 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=77-99	1-09707-141-0	02	1	0901-
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	01	1	0901-
5	03.407 CLIP; AIR DUCT (B) ID=77-95	1-09707-198-0	02	1	0803-0810
5	03.407 CLIP; AIR DUCT (B) ID=75-95	8-98133-357-0	02	1	0811-0812
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (B) ID=75-95	8-98133-357-0	02	1	0901-
5	03.407 CLIP; AIR DUCT (D) ID=68-85	1-09707-202-0	01	1	0803-0810
5	03.407 CLIP; AIR DUCT (D) ID=65-85	8-98133-350-0	01	1	0811-0812
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85	8-98133-350-0	01	1	0901-
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	0803-0812
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	0902-
5	03.407 CLIP; AIR DUCT 03.417 (A)	9-09915-504-1	01	1	0803-0803
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	0803-
26	03.417 DUCT; AIR INT	8-98025-626-0	01	1	0803-
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	0803-
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	0803-
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0803-
64	03.417 BOLT; BRKT,AIR DUCT M8X16	0-52000-816-0	01	1	0803-
174	03.682 SENSOR; AIR FLOW CONT EURO4 SPECIFICATION(NT4)	8-97601-967-0	01	1	0803-
175	03.682 BOLT; AIR FLOW CONT SENSOR EURO4 SPECIFICATION(NT4) 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0803-0804
175	03.682 BOLT; AIR FLOW CONT SENSOR EURO4 SPECIFICATION(NT4) 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0803-0804
175	03.682 BOLT; AIR FLOW CONT SENSOR EURO4 SPECIFICATION(NT4) 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0805-
232	03.417 HOSE; CONN (B)	8-98082-535-0	01	1	0803-0812
232	03.417 HOSE; CONN EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) EXC. HEAVY DUTY AIR CLEANER<K46> (B)	8-98082-535-0	01	1	0901-0901
232	03.417 HOSE; CONN (B)	8-98082-535-0	01	1	0902-1309
232	03.417 HOSE; CONN (B)	8-98231-785-0	01	1	1310-
232	03.417 HOSE; CONN EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (C)	8-98095-507-1	01	1	0803-
232	03.417 HOSE; CONN EURO4 SPECIFICATION(NT4) (A)	8-98059-989-2	01	1	0803-1402
232	03.417 HOSE; CONN EURO4 SPECIFICATION(NT4) (A)	8-98272-698-0	01	1	1403-1406
232	03.417 HOSE; CONN EURO4 SPECIFICATION(NT4) (D)	8-98281-176-0	01	1	1407-
232	03.417 HOSE; CONN HEAVY DUTY AIR CLEANER<K46> EURO2 SPECIFICATION(NT2) (C)	8-98070-857-1	01	1	0803-
242	03.417 BRACKET; AIR DUCT (A)	8-98004-416-0	01	1	0803-
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	0803-
242	03.417 BRACKET; AIR DUCT (B)	8-98032-143-1	01	1	0803-
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	0803-
242	03.417 BRACKET; AIR DUCT (B)	8-98032-142-1	01	1	0803-
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	0803-
281	03.417 DUCT; AIR,VERTICAL INT EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46>	8-98000-230-5	01	1	0803-
281	03.417 DUCT; AIR,VERTICAL INT EURO4 SPECIFICATION(NT4) EXC. HEAVY DUTY AIR CLEANER<K46>	8-98080-929-2	01	1	0803-
281	03.417 DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46>	8-98101-995-5	01	1	0803-
287	03.417 CLIP; AIR DUCT EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=58-79	1-09707-136-0	01	1	0901-
287	03.417 CLIP; AIR DUCT EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=77-99	1-09707-141-0	01	1	0901-1406
287	03.417 CLIP; AIR DUCT 03.407 (B) ID=112	9-09915-074-1	01	1	0803-
287	03.417 CLIP; AIR DUCT EURO2 SPECIFICATION(NT2) 03.407 (A) ID=68-85	1-09707-202-0	01	1	0803-0810
287	03.417 CLIP; AIR DUCT EURO2 SPECIFICATION(NT2) 03.407 (A) ID=65-85	8-98133-350-0	01	1	0811-0812
287	03.417 CLIP; AIR DUCT EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=55-75	8-98133-349-0	01	1	0901-
287	03.417 CLIP; AIR DUCT EURO4 SPECIFICATION(NT4) 03.407 (C) ID=77-95	1-09707-198-0	01	1	0803-0810
287	03.417 CLIP; AIR DUCT EURO4 SPECIFICATION(NT4) 03.407 (C) ID=75-95	8-98133-357-0	01	1	0811-0812
287	03.417 CLIP; AIR DUCT EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=75-95	8-98133-357-0	01	1	0901-1406
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	0803-
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	0803-
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	02	1	0803-
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	0803-
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	0803-
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	0803-
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0803-
530	03.407 CLAMP; AIR DUCT EURO4 SPECIFICATION(NT4) ID=77-99	1-09707-141-0	01	1	1407-
557	03.403 BOLT; HOSE CLIP EURO4 SPECIFICATION(NT4) 00.386 M6X20 FLANGE	0-28050-620-0	03	1	0803-

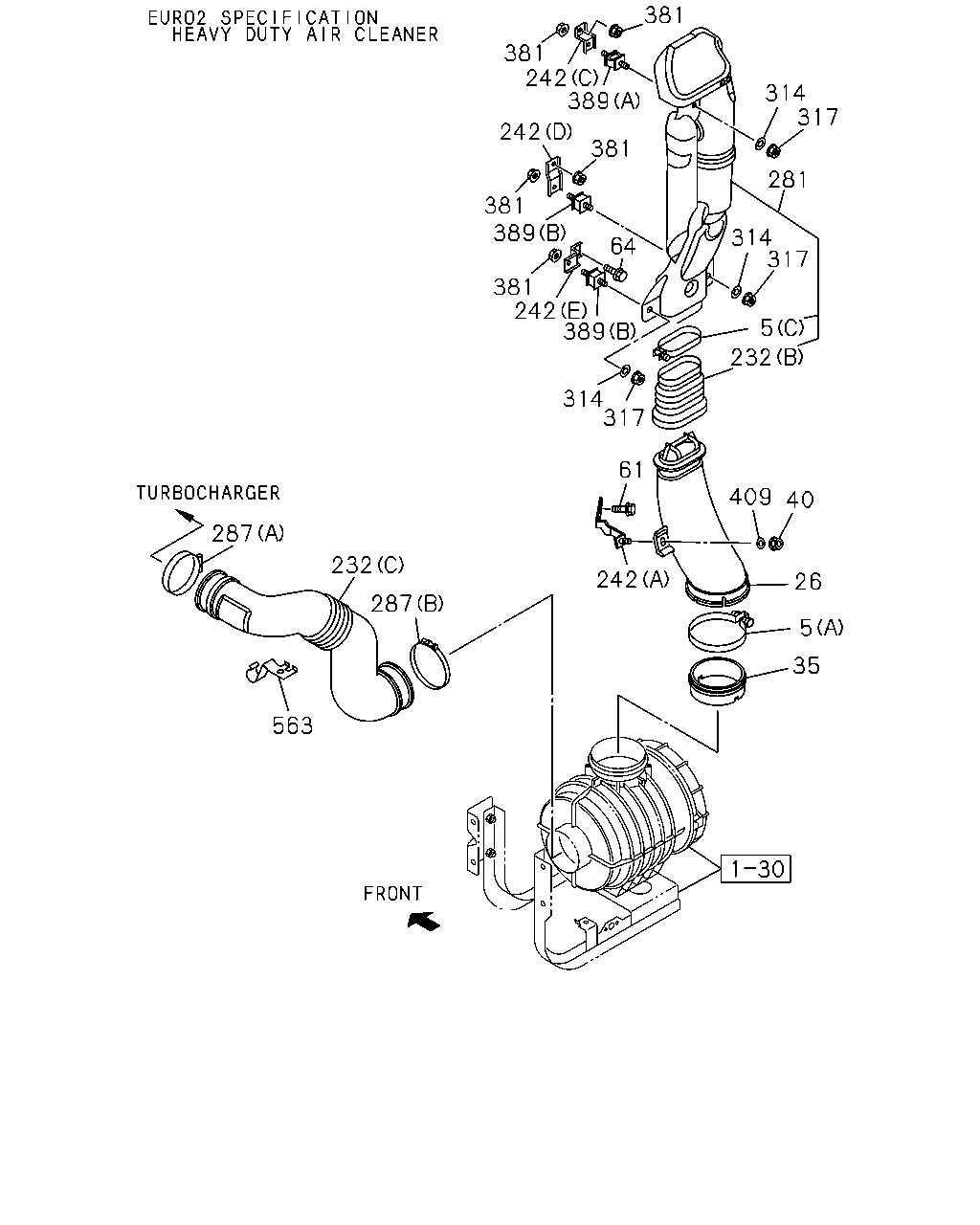

381 381 242 389 314 317 242 381 281 381 389 64 314 317 381 242 389 5 232 314 317 61 409 40 287 232 242 26 287 5 35 563

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=77-99	1-09707-141-0	02	1	0901-
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	01	1	0901-
5	03.407 CLIP; AIR DUCT (B) ID=77-95	1-09707-198-0	02	1	0803-0810
5	03.407 CLIP; AIR DUCT (B) ID=75-95	8-98133-357-0	02	1	0811-0812
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (B) ID=75-95	8-98133-357-0	02	1	0901-
5	03.407 CLIP; AIR DUCT (D) ID=68-85	1-09707-202-0	01	1	0803-0810
5	03.407 CLIP; AIR DUCT (D) ID=65-85	8-98133-350-0	01	1	0811-0812
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85	8-98133-350-0	01	1	0901-
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	0803-0812
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	0902-
5	03.407 CLIP; AIR DUCT 03.417 (A)	9-09915-504-1	01	1	0803-0803
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	0803-
26	03.417 DUCT; AIR INT	8-98025-626-0	01	1	0803-
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	0803-
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	0803-
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0803-
64	03.417 BOLT; BRKT,AIR DUCT M8X16	0-52000-816-0	01	1	0803-
232	03.417 HOSE; CONN (B)	8-98082-535-0	01	1	0803-0812
232	03.417 HOSE; CONN EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) EXC. HEAVY DUTY AIR CLEANER<K46> (B)	8-98082-535-0	01	1	0901-0901
232	03.417 HOSE; CONN (B)	8-98082-535-0	01	1	0902-1309
232	03.417 HOSE; CONN (B)	8-98231-785-0	01	1	1310-
232	03.417 HOSE; CONN EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (C)	8-98095-507-1	01	1	0803-
232	03.417 HOSE; CONN EURO4 SPECIFICATION(NT4) (A)	8-98059-989-2	01	1	0803-1402
232	03.417 HOSE; CONN EURO4 SPECIFICATION(NT4) (A)	8-98272-698-0	01	1	1403-1406
232	03.417 HOSE; CONN EURO4 SPECIFICATION(NT4) (D)	8-98281-176-0	01	1	1407-
232	03.417 HOSE; CONN HEAVY DUTY AIR CLEANER<K46> EURO2 SPECIFICATION(NT2) (C)	8-98070-857-1	01	1	0803-
242	03.417 BRACKET; AIR DUCT (A)	8-98004-416-0	01	1	0803-
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	0803-
242	03.417 BRACKET; AIR DUCT (B)	8-98032-143-1	01	1	0803-
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	0803-
242	03.417 BRACKET; AIR DUCT (B)	8-98032-142-1	01	1	0803-
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	0803-
281	03.417 DUCT; AIR,VERTICAL INT EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46>	8-98000-230-5	01	1	0803-
281	03.417 DUCT; AIR,VERTICAL INT EURO4 SPECIFICATION(NT4) EXC. HEAVY DUTY AIR CLEANER<K46>	8-98080-929-2	01	1	0803-
281	03.417 DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46>	8-98101-995-5	01	1	0803-
287	03.417 CLIP; AIR DUCT EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=58-79	1-09707-136-0	01	1	0901-
287	03.417 CLIP; AIR DUCT EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=77-99	1-09707-141-0	01	1	0901-1406
287	03.417 CLIP; AIR DUCT 03.407 (B) ID=112	9-09915-074-1	01	1	0803-
287	03.417 CLIP; AIR DUCT EURO2 SPECIFICATION(NT2) 03.407 (A) ID=68-85	1-09707-202-0	01	1	0803-0810
287	03.417 CLIP; AIR DUCT EURO2 SPECIFICATION(NT2) 03.407 (A) ID=65-85	8-98133-350-0	01	1	0811-0812
287	03.417 CLIP; AIR DUCT EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=55-75	8-98133-349-0	01	1	0901-
287	03.417 CLIP; AIR DUCT EURO4 SPECIFICATION(NT4) 03.407 (C) ID=77-95	1-09707-198-0	01	1	0803-0810
287	03.417 CLIP; AIR DUCT EURO4 SPECIFICATION(NT4) 03.407 (C) ID=75-95	8-98133-357-0	01	1	0811-0812
287	03.417 CLIP; AIR DUCT EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=75-95	8-98133-357-0	01	1	0901-1406
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	0803-
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	0803-
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	02	1	0803-
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	0803-
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	0803-
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	0803-
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0803-
563	03.417 BRACKET; CLIP EURO2 SPECIFICATION(NT2)	8-98090-587-0	01	1	0803-

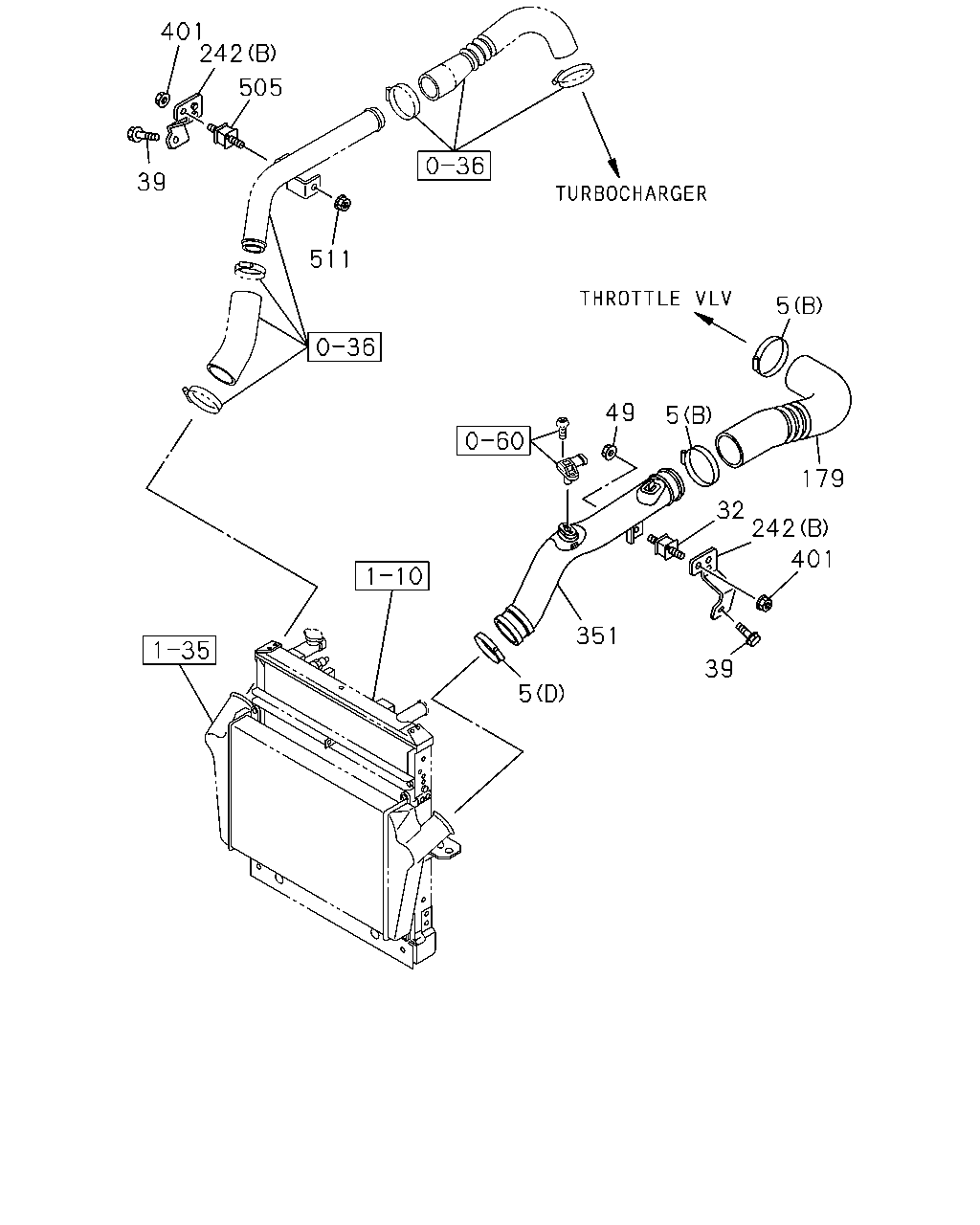

401 242 505 39 511 5 49 5 179 32 242 401 351 39 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=77-99	1-09707-141-0	02	1	0901-
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	01	1	0901-
5	03.407 CLIP; AIR DUCT (B) ID=77-95	1-09707-198-0	02	1	0803-0810
5	03.407 CLIP; AIR DUCT (B) ID=75-95	8-98133-357-0	02	1	0811-0812
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (B) ID=75-95	8-98133-357-0	02	1	0901-
5	03.407 CLIP; AIR DUCT (D) ID=68-85	1-09707-202-0	01	1	0803-0810
5	03.407 CLIP; AIR DUCT (D) ID=65-85	8-98133-350-0	01	1	0811-0812
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85	8-98133-350-0	01	1	0901-
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	0803-0812
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	0902-
5	03.407 CLIP; AIR DUCT 03.417 (A)	9-09915-504-1	01	1	0803-0803
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	0803-
32	03.417 RUBBER; AIR DUCT MTG	8-98036-826-0	01	1	0803-1106
32	03.417 RUBBER; AIR DUCT MTG	8-97081-886-0	01	1	1107-
39	03.417 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0803-
49	03.417 NUT; AIR DUCT 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-
179	03.417 HOSE; AIR INT	8-98106-255-0	01	1	0803-0803
179	03.417 HOSE; AIR INT	8-98114-719-0	01	1	0803-
242	03.417 BRACKET; AIR DUCT (A)	8-98004-416-0	01	1	0803-
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	0803-
242	03.417 BRACKET; AIR DUCT (B)	8-98032-143-1	01	1	0803-
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	0803-
242	03.417 BRACKET; AIR DUCT (B)	8-98032-142-1	01	1	0803-
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	0803-
351	03.407 DUCT; AIR	8-98105-722-1	01	1	0803-
401	03.403 NUT; BRKT,AIR INT 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-
401	03.403 NUT; BRKT,AIR INT 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-
505	03.406 RUBBER; MTG 03.417	8-98036-826-0	01	1	0803-1106
505	03.406 RUBBER; MTG 03.417	8-97081-886-0	01	1	1107-
511	03.417 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-

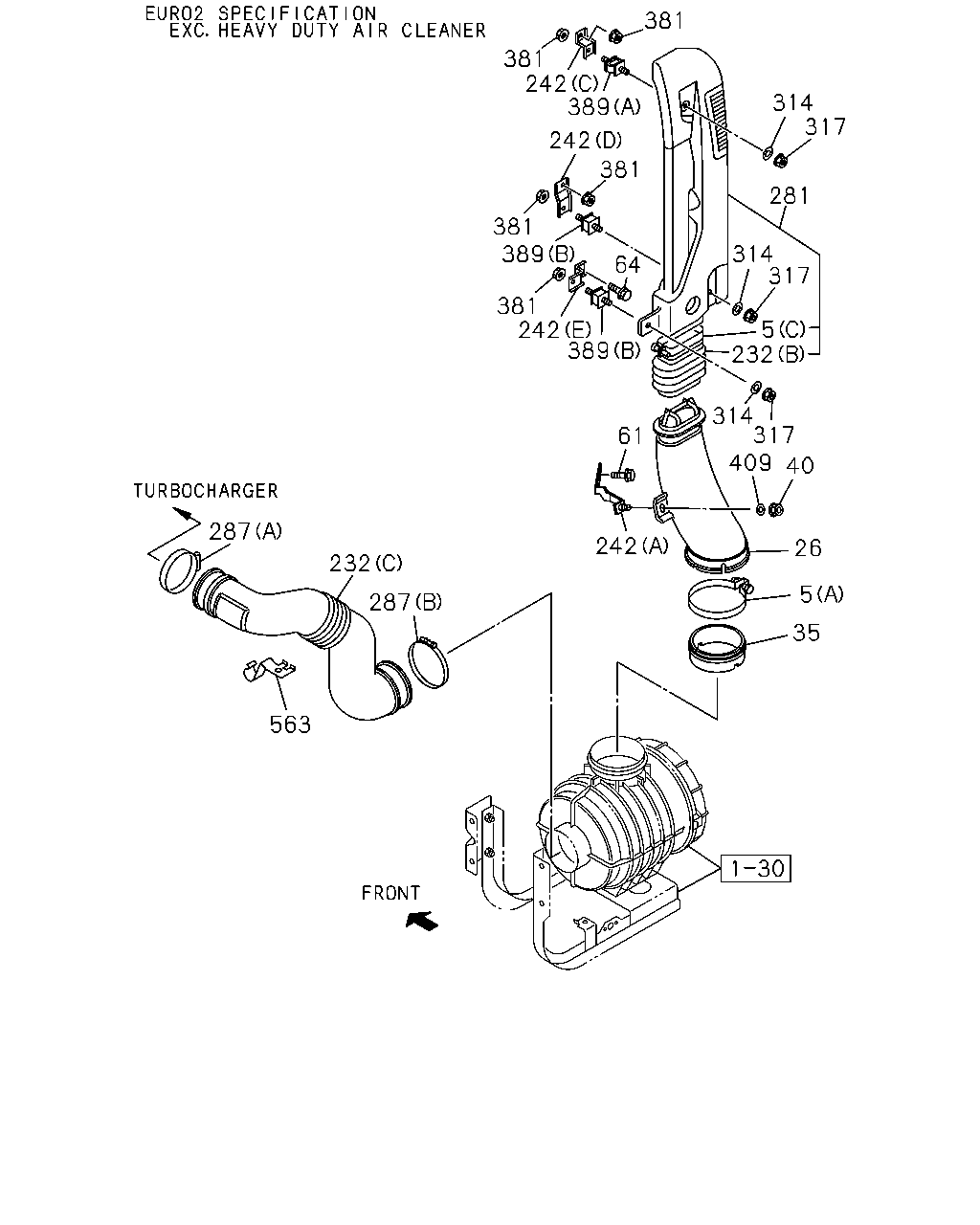

381 381 242 389 314 317 242 381 281 381 389 314 317 64 381 242 389 5 232 314 317 409 61 40 287 242 26 232 5 287 35 563

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=77-99	1-09707-141-0	02	1	0901-
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	01	1	0901-
5	03.407 CLIP; AIR DUCT (B) ID=77-95	1-09707-198-0	02	1	0803-0810
5	03.407 CLIP; AIR DUCT (B) ID=75-95	8-98133-357-0	02	1	0811-0812
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (B) ID=75-95	8-98133-357-0	02	1	0901-
5	03.407 CLIP; AIR DUCT (D) ID=68-85	1-09707-202-0	01	1	0803-0810
5	03.407 CLIP; AIR DUCT (D) ID=65-85	8-98133-350-0	01	1	0811-0812
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85	8-98133-350-0	01	1	0901-
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	0803-0812
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	0902-
5	03.407 CLIP; AIR DUCT 03.417 (A)	9-09915-504-1	01	1	0803-0803
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	0803-
26	03.417 DUCT; AIR INT	8-98025-626-0	01	1	0803-
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	0803-
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	0803-
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0803-
64	03.417 BOLT; BRKT,AIR DUCT M8X16	0-52000-816-0	01	1	0803-
232	03.417 HOSE; CONN (B)	8-98082-535-0	01	1	0803-0812
232	03.417 HOSE; CONN EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) EXC. HEAVY DUTY AIR CLEANER<K46> (B)	8-98082-535-0	01	1	0901-0901
232	03.417 HOSE; CONN (B)	8-98082-535-0	01	1	0902-1309
232	03.417 HOSE; CONN (B)	8-98231-785-0	01	1	1310-
232	03.417 HOSE; CONN EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (C)	8-98095-507-1	01	1	0803-
232	03.417 HOSE; CONN EURO4 SPECIFICATION(NT4) (A)	8-98059-989-2	01	1	0803-1402
232	03.417 HOSE; CONN EURO4 SPECIFICATION(NT4) (A)	8-98272-698-0	01	1	1403-1406
232	03.417 HOSE; CONN EURO4 SPECIFICATION(NT4) (D)	8-98281-176-0	01	1	1407-
232	03.417 HOSE; CONN HEAVY DUTY AIR CLEANER<K46> EURO2 SPECIFICATION(NT2) (C)	8-98070-857-1	01	1	0803-
242	03.417 BRACKET; AIR DUCT (A)	8-98004-416-0	01	1	0803-
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	0803-
242	03.417 BRACKET; AIR DUCT (B)	8-98032-143-1	01	1	0803-
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	0803-
242	03.417 BRACKET; AIR DUCT (B)	8-98032-142-1	01	1	0803-
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	0803-
281	03.417 DUCT; AIR,VERTICAL INT EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46>	8-98000-230-5	01	1	0803-
281	03.417 DUCT; AIR,VERTICAL INT EURO4 SPECIFICATION(NT4) EXC. HEAVY DUTY AIR CLEANER<K46>	8-98080-929-2	01	1	0803-
281	03.417 DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46>	8-98101-995-5	01	1	0803-
287	03.417 CLIP; AIR DUCT EURO2 SPECIFICATION(NT2) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=58-79	1-09707-136-0	01	1	0901-
287	03.417 CLIP; AIR DUCT EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=77-99	1-09707-141-0	01	1	0901-1406
287	03.417 CLIP; AIR DUCT 03.407 (B) ID=112	9-09915-074-1	01	1	0803-
287	03.417 CLIP; AIR DUCT EURO2 SPECIFICATION(NT2) 03.407 (A) ID=68-85	1-09707-202-0	01	1	0803-0810
287	03.417 CLIP; AIR DUCT EURO2 SPECIFICATION(NT2) 03.407 (A) ID=65-85	8-98133-350-0	01	1	0811-0812
287	03.417 CLIP; AIR DUCT EURO2 SPECIFICATION(NT2) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=55-75	8-98133-349-0	01	1	0901-
287	03.417 CLIP; AIR DUCT EURO4 SPECIFICATION(NT4) 03.407 (C) ID=77-95	1-09707-198-0	01	1	0803-0810
287	03.417 CLIP; AIR DUCT EURO4 SPECIFICATION(NT4) 03.407 (C) ID=75-95	8-98133-357-0	01	1	0811-0812
287	03.417 CLIP; AIR DUCT EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=75-95	8-98133-357-0	01	1	0901-1406
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	0803-
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	0803-
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	02	1	0803-
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	0803-
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	0803-
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	0803-
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0803-
563	03.417 BRACKET; CLIP EURO2 SPECIFICATION(NT2)	8-98090-587-0	01	1	0803-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
