3-52 — BRAKE PIPING; OIL,FRONT (#3380) — 48 parça

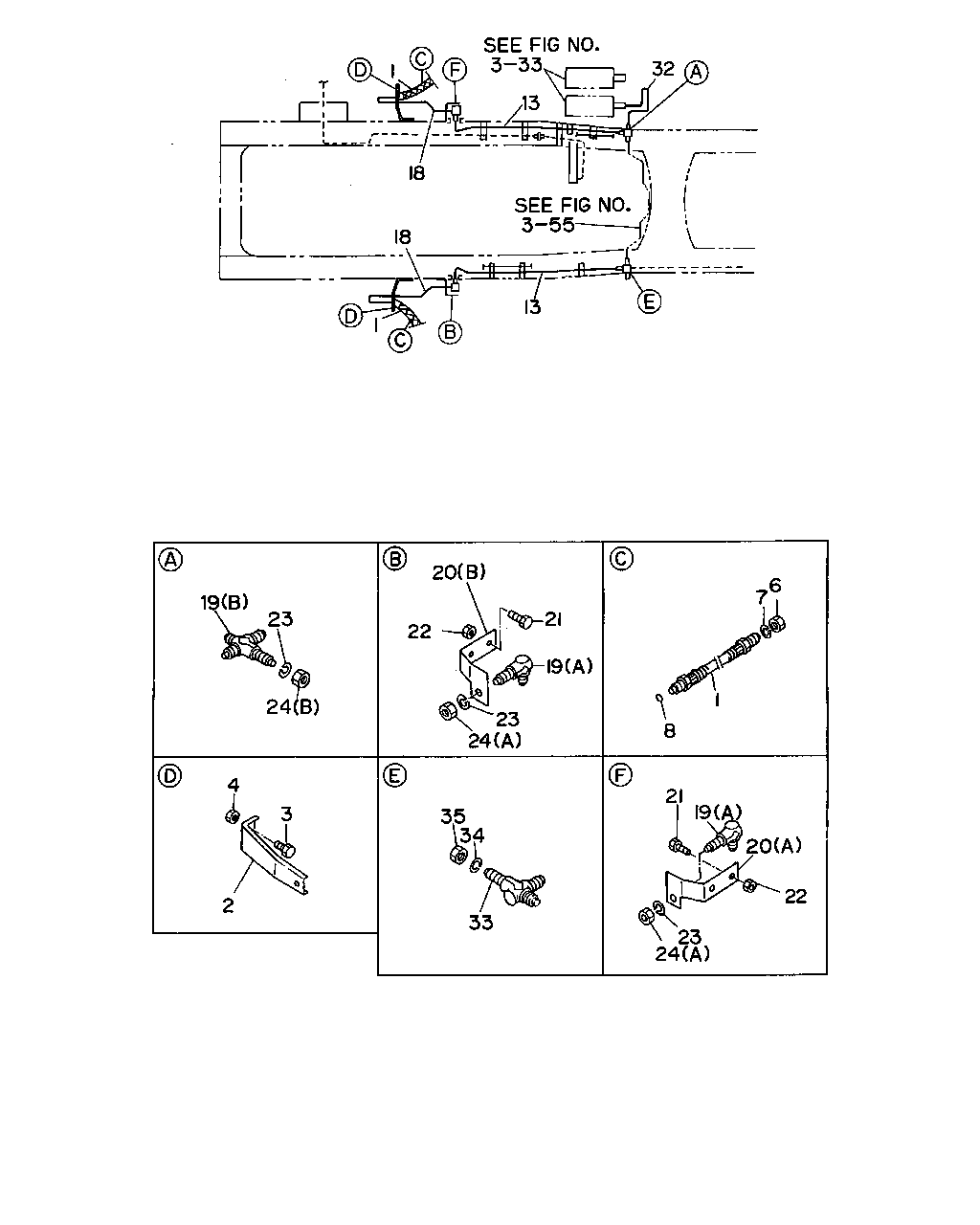

çizim 36270
1 13 32 18 18 1 13 19 23 24 20 22 21 19 23 24 6 7 1 8 21 19 20 22 23 24 33 34 35 3 2 4
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HOSE; FLEX,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=625 		1-09364-199-0 02 1 9002- ● ● ●
2 BRACKET; FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-47476-271-0 02 1 9002-9306 ● ● ●
2 BRACKET; FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-47476-271-0 01 1 9307- ● ● ●
2 BRACKET; FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-47476-685-0 01 1 9307- ● ● ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 W/LK WASHER 		9-01900-825-0 04 1 9002-9204 ● ● ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 W/LK WASHER 		0-50040-825-0 04 1 9205-9302 ● ● ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE 		0-28080-825-0 04 1 9303- ● ● ●
4 NUT; FLEX HOSE BRKT,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 		9-09110-408-0 04 1 9002- ● ● ●
6 NUT; FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 		9-09840-280-0 02 1 9002- ● ● ●
7 WASHER; LK,FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2 		9-09150-512-0 02 1 9002- ● ● ●
8 GASKET; FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=9 OD=17 		9-09920-472-0 02 1 9002- ● ● ●
13 PIPE; OIL,UNION TO UNION
L=1530 SERVICED BY L=1620 		1-47434-392-0 01 1 9002-9306 ●
13 PIPE; OIL,UNION TO UNION
L=1524 SERVICED BY L=1620 		1-47426-356-0 01 1 9002-9306 ●
13 PIPE; OIL,UNION TO UNION
L=1533 SERVICED BY L=1620 		1-47426-356-0 01 1 9307- ●
13 PIPE; OIL,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1548 SERVICED BY L=1620 		1-47426-356-0 01 1 9002-9306 ● ●
13 PIPE; OIL,UNION TO UNION
L=1531 SERVICED BY L=1620 		1-47426-356-0 01 1 9307- ●
13 PIPE; OIL,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1537 SERVICED BY L=1620 		1-47426-356-0 01 1 9002-9306 ● ●
13 PIPE; OIL,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1540 SERVICED BY L=1620 		1-47426-356-0 01 1 9307- ● ●
13 PIPE; OIL,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1542 SERVICED BY L=1620 		1-47426-356-0 01 1 9307- ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=451 SERVICED BY L=460 		9-47415-349-0 01 1 9002-9306 ● ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=455 SERVICED BY L=460 		1-47426-342-0 01 1 9307-9308 ● ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=455 SERVICED BY L=500 		1-47426-376-0 01 1 9309- ● ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=451 SERVICED BY L=460 		9-47415-349-0 01 1 9002-9306 ● ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=448 SERVICED BY L=460 		1-47426-342-0 01 1 9307- ● ● ●
19 UNION; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 ELBOW 		9-09225-206-1 02 1 9002- ● ● ●
19 UNION; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) (B) 		1-09656-232-1 01 1 9002- ●
19 UNION; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) (B) M12 2WAY 		1-09654-059-2 01 1 9002- ● ●
20 BRACKET; UNION,OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) 		1-47475-223-5 01 1 9002- ● ● ●
20 BRACKET; UNION,OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		1-47475-222-5 02 1 9002- ● ● ●
21 BOLT; UNION BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 W/LK WASHER 		9-01900-825-0 02 1 9002-9204 ● ● ●
21 BOLT; UNION BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 W/LK WASHER 		0-50040-825-0 02 1 9205-9302 ● ● ●
21 BOLT; UNION BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE 		0-28080-825-0 02 1 9303- ● ● ●
22 NUT; UNION BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 		9-09110-408-0 04 1 9002- ● ● ●
23 WASHER; LK,UNION,OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2 		9-09150-512-0 03 1 9002-9306 ● ● ●
23 WASHER; LK,UNION,OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2 		9-09150-512-0 01 1 9307-9312 ● ● ●
23 WASHER; LK,UNION,OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2 		9-09150-512-0 02 1 9401- ● ● ●
24 NUT; UNION,OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 		9-09840-280-0 02 1 9002- ● ● ●
24 NUT; UNION,OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12 		9-99110-412-0 01 1 9002-9304 ● ● ●
24 NUT; UNION,OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12 		9-99110-512-0 01 1 9305- ● ● ●
32 PIPE; OIL,AIR MASTER TO UNION
L=742 SERVICED BY L=900 		1-47434-407-0 01 1 9002-9306 ●
32 PIPE; OIL,AIR MASTER TO UNION 1-47425-262-1 01 1 9307- ●
32 PIPE; OIL,AIR MASTER TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=749 SERVICED BY L=730 		1-47437-955-0 01 1 9002-9306 ● ●
32 PIPE; OIL,AIR MASTER TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-47425-263-1 01 1 9307- ● ●
33 UNION; OIL PIPE
M12 & M14X2 3WAY 		1-09656-231-1 01 1 9002- ●
33 UNION; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE SYSTEM HEAVY DUTY(J55) M12 & M14X2 3WAY 		1-09656-231-1 01 1 9002- ●
33 UNION; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE SYSTEM HEAVY DUTY(J55) 		1-09656-019-1 01 1 9002- ● ●
34 WASHER; LK,UNION,OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14.2 		9-09150-514-0 01 1 9002-9312 ● ● ●
35 NUT; UNION,OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M14 		9-99110-414-0 01 1 9002- ● ● ●
