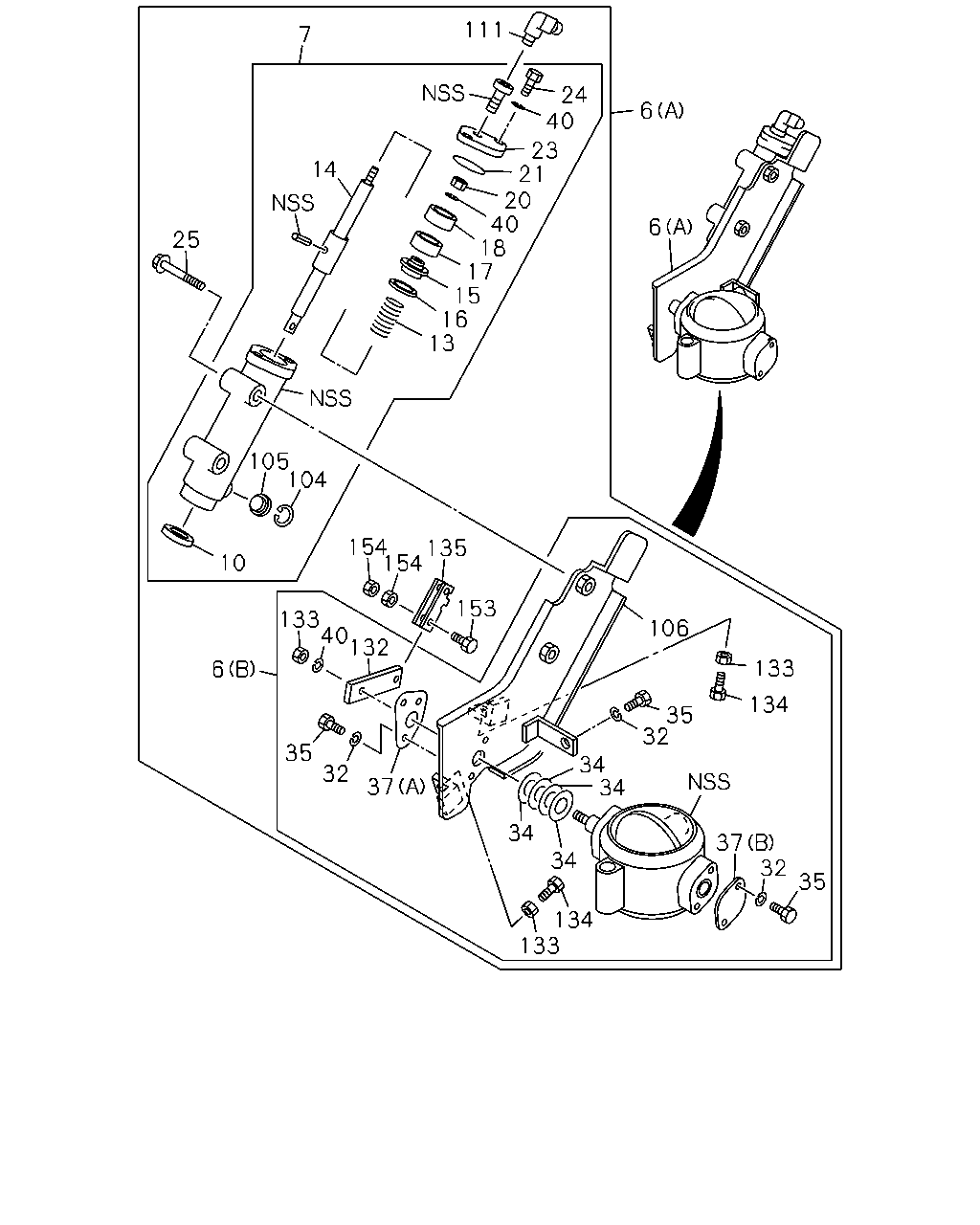

1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#338) — 51 parça

111 7 24 40 6 23 21 20 40 18 17 15 16 13 14 6 25 105 104 154 135 154 10 153 133 40 132 106 133 6 134 35 32 34 34 35 32 37 34 37 32 34 35 134 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	VALVE; EXH BRAKE EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) (A)	8-94393-930-1	01	1	9202-9404	●
6	VALVE; EXH BRAKE EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) (B)	8-94394-154-0	01	1	9202-9404	●
6	VALVE; EXH BRAKE EXHAUST BRAKE<NF8> EXC. AUSTRALIA EQUIPMENT(RR3) (B)	8-94393-394-0	01	1	9202-9404	●	●
6	VALVE; EXH BRAKE EXHAUST BRAKE<NF8> (B)	8-94393-394-0	01	1	9405-	●	●
6	VALVE; EXH BRAKE EXHAUST BRAKE<NF8> EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-94396-746-1	01	1	9202-9404	●	●
6	VALVE; EXH BRAKE EXHAUST BRAKE<NF8> (A)	8-94396-746-1	01	1	9405-	●	●
7	CYLINDER ASM; CONT EXHAUST BRAKE<NF8>	8-94396-813-0	01	1	9202-	●	●
10	SEAL; DUST,CONT EXHAUST BRAKE<NF8>	1-22199-071-0	01	1	9202-	●	●
13	SPRING; CONT CYL EXHAUST BRAKE<NF8>	1-09580-465-0	01	1	9202-	●	●
14	SHAFT; CONT CYL EXHAUST BRAKE<NF8>	1-22196-302-0	01	1	9202-	●	●
15	PLATE; CONT CYL EXHAUST BRAKE<NF8>	1-22199-001-0	01	1	9202-	●	●
16	RING; WEAR,CONT CYL EXHAUST BRAKE<NF8>	1-22199-002-0	01	1	9202-9210	●	●
16	RING; WEAR,CONT CYL EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3)	1-22199-002-0	01	1	9211-9404	●
16	RING; WEAR,CONT CYL EXHAUST BRAKE<NF8> EXC. AUSTRALIA EQUIPMENT(RR3)	1-22189-002-0	01	1	9211-9404	●	●
16	RING; WEAR,CONT CYL EXHAUST BRAKE<NF8>	1-22189-002-0	01	1	9405-	●	●
17	GASKET; CONT CYL EXHAUST BRAKE<NF8>	1-22199-110-0	01	1	9202-	●	●
18	RETAINER; CONT CYL EXHAUST BRAKE<NF8>	9-88510-324-0	01	1	9202-	●	●
20	NUT; CONT CYL EXHAUST BRAKE<NF8>	9-83315-085-0	01	1	9202-	●	●
21	GASKET; COVER EXHAUST BRAKE<NF8>	1-22199-072-0	01	1	9202-	●	●
23	COVER; CONT CYL EXHAUST BRAKE<NF8>	1-22199-066-0	01	1	9202-	●	●
24	BOLT; COVER EXHAUST BRAKE<NF8> M8X20	9-01000-820-0	02	1	9202-	●	●
25	BOLT; CONT CYL EXHAUST BRAKE<NF8> M10X55 FLANGE	8-94399-863-0	02	1	9202-	●	●
32	WASHER; LK EXHAUST BRAKE<NF8> ID=8.2	9-09150-508-0	06	1	9202-	●	●
34	RING; SEAL EXHAUST BRAKE<NF8> ID=15	8-94397-184-0	02	1	9202-	●	●
34	RING; SEAL EXHAUST BRAKE<NF8> ID=13.7	9-22189-124-0	02	1	9202-	●	●
35	BOLT; PLATE FIX EXHAUST BRAKE<NF8> M8X16	9-02050-816-0	05	1	9202-	●	●
37	COVER; BODY EXHAUST BRAKE<NF8> (A)	1-22199-130-0	01	1	9202-	●	●
37	COVER; BODY EXHAUST BRAKE<NF8> (B)	9-22189-160-0	01	1	9202-	●	●
40	WASHER; LK,COVER EXHAUST BRAKE<NF8> ID=8.2	9-09150-508-0	03	1	9202-	●	●
104	RING; RET EXHAUST BRAKE<NF8>	9-88510-331-0	01	1	9202-	●	●
105	FILTER; CONT CYL EXHAUST BRAKE<NF8>	9-88510-330-0	01	1	9202-	●	●
106	BRACKET; CONT CYL EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3)	8-94394-155-0	01	1	9202-9404	●
106	BRACKET; CONT CYL EXHAUST BRAKE<NF8> EXC. AUSTRALIA EQUIPMENT(RR3)	8-94396-192-0	01	1	9202-9404	●	●
106	BRACKET; CONT CYL EXHAUST BRAKE<NF8>	8-94396-192-0	01	1	9405-	●	●
111	ELBOW; CONT CYL EXHAUST BRAKE<NF8>	8-94393-086-1	01	1	9202-	●	●
132	LEVER; BRK VLV EXHAUST BRAKE<NF8>	8-94397-185-0	01	1	9202-	●	●
133	NUT; LK EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3)	8-94311-428-0	03	1	9202-9404	●
133	NUT; LK EXHAUST BRAKE<NF8> EXC. AUSTRALIA EQUIPMENT(RR3) M8	9-09111-408-0	03	1	9202-9404	●	●
133	NUT; LK EXHAUST BRAKE<NF8> M8	9-09111-408-0	03	1	9405-	●	●
134	BOLT; STOPPER EXHAUST BRAKE<NF8> M8X30	1-09000-112-1	02	1	9202-	●	●
135	CLEVIS; CONT CYL EXHAUST BRAKE<NF8>	1-22199-053-0	01	1	9202-	●	●
153	BOLT; CLEVIS,CONT CYL EXHAUST BRAKE<NF8> M6X30	1-09000-559-0	02	1	9202-	●	●
154	NUT; CLEVIS,CONT CYL EXHAUST BRAKE<NF8> M6	9-09110-406-0	02	1	9202-	●	●

82 45 44 80 43 42 81 42 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
42	HOSE; FLEX,EXH BRK EXHAUST BRAKE<NF8> L=350	0-07120-350-0	01	1	9202-	●	●
43	GASKET; FLEX HOSE EXHAUST BRAKE<NF8> ID=11 OD=18	9-09572-510-0	01	1	9202-	●	●
44	WASHER; LK,FLEX HOSE EXHAUST BRAKE<NF8> ID=12.2	9-09150-512-0	01	1	9202-	●	●
45	NUT; FLEX HOSE EXHAUST BRAKE<NF8> M12	9-09840-280-0	01	1	9202-	●	●
80	BRACKET; FLEX HOSE EXHAUST BRAKE<NF8>	1-47476-355-0	01	1	9202-	●	●
81	BOLT; HOSE BRKT EXHAUST BRAKE<NF8> M8X18	0-28010-818-0	02	1	9202-9204	●	●
81	BOLT; HOSE BRKT EXHAUST BRAKE<NF8> M8X18 FLANGE	0-28080-818-0	02	1	9205-	●	●
82	NUT; HOSE BRKT EXHAUST BRAKE<NF8> M8	9-09110-408-0	02	1	9202-	●	●
