◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51156 - NPR BUS(LHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#33791) — 85 parça

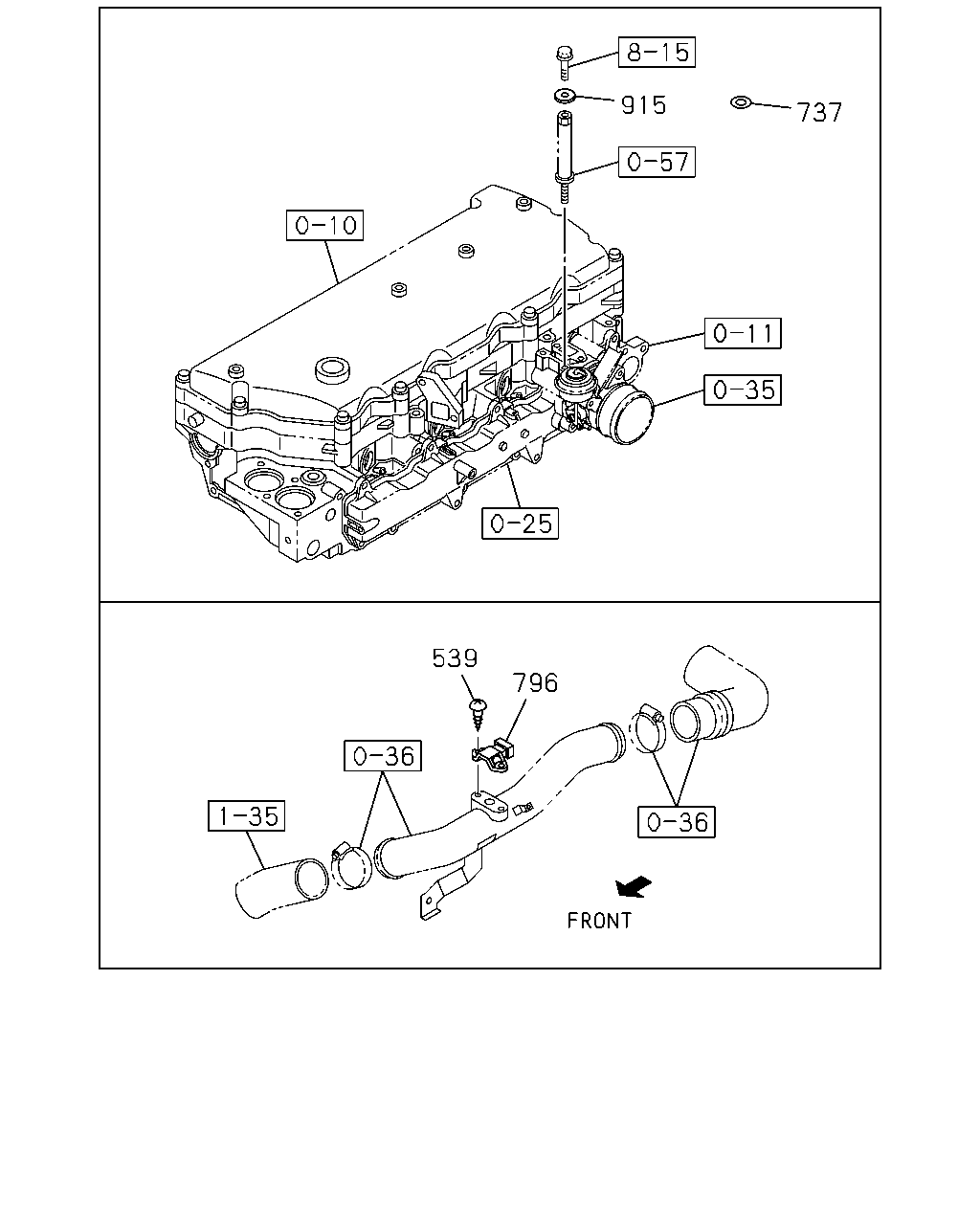

çizim 120793
915 737 539 796
BalonParca AdiParca NoAdetTipApplied Date A B
539 02.510 SCREW; SENSOR
M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0803- ● ●
737 03.901 WASHER; PL
EURO2 SPECIFICATION(NT2) 00.413 ID=6.4 		0-91610-606-0 01 1 0907- ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 0803- ● ●
915 02.500 SPACER; HARNESS
EURO2 SPECIFICATION(NT2) 00.662 ID=8.4 OD=19 		5-11779-001-0 01 1 0803-1301 ●
915 02.500 SPACER; HARNESS
EURO2 SPECIFICATION(NT2) 03.275 ID=9 OD=18 T=5 		9-14149-173-0 01 1 1302- ●

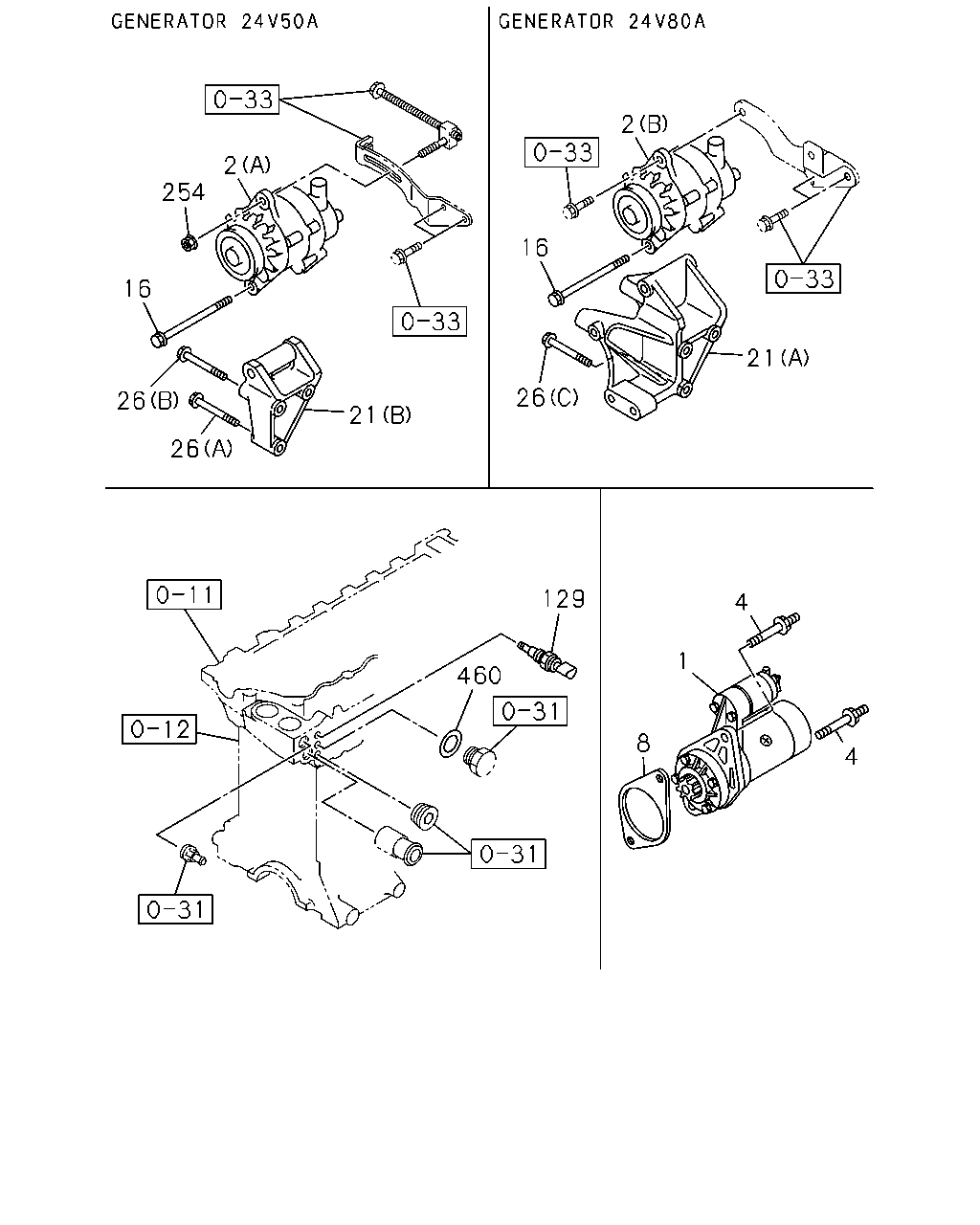

çizim 120794
2 2 254 16 16 21 26 26 21 26 129 4 1 460 8 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-97323-935-4 01 1 0803-1010 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98179-204-1 01 1 1011-1207 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98222-021-0 01 1 1208-1310 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98245-258-0 01 1 1311- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98054-984-0 01 1 0803-1006 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1007-1207 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98222-018-1 01 1 1208- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (A) 24V 50A 		8-98075-026-0 01 1 0803- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (B) 24V 80A 		8-98029-892-2 01 1 0803- ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0803- ● ●
8 02.042 SPACER; STARTER
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97350-947-0 01 1 0803- ●
16 02.277 BOLT; GEN
M10X120 FLANGE 		0-28056-012-0 01 1 0803- ● ●
21 02.277 BRACKET; GEN
GENERATOR 24V50A(6QN) (B) 		8-97075-884-2 01 1 0803- ● ●
21 02.277 BRACKET; GEN
GENERATOR 24V80A(7YN) (A) 		8-98036-551-0 01 1 0803- ● ●
26 02.277 BOLT; GEN BRKT
GENERATOR 24V50A(6QN) 02.042 (A) M10X50 FLANGE 		0-28151-050-0 01 1 0803- ● ●
26 02.277 BOLT; GEN BRKT
GENERATOR 24V50A(6QN) (B) M10X70 FLANGE 		0-28151-070-0 02 1 0803- ● ●
26 02.277 BOLT; GEN BRKT
GENERATOR 24V80A(7YN) 01.062 (C) M10X90 FLANGE 		0-28151-090-0 03 1 0803- ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
MITSUBISHI 		8-98023-883-0 01 1 0803-1503 ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NISHIDA 		8-98260-257-0 01 1 1504- ● ●
254 02.277 NUT; GEN BRKT
EXC. GENERATOR 24V80A(7YN) 01.540 M8 FLANGE 		0-91180-208-0 01 1 0803- ● ●
460 02.363 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). 04.868 ID=16.2 		1-09630-086-0 01 1 0803- ● ●
çizim 120795
395 395 393 393
BalonParca AdiParca NoAdetTipApplied Date A B
393 02.343 BRACKET; HARNESS TO BODY
BATTERY 115E41L<8MA> 02.483 (E) 		8-98018-251-1 02 1 0803- ● ●
393 02.343 BRACKET; HARNESS TO BODY
BATTERY 115E41L<8MA> (F) 		8-98018-894-1 01 1 0803- ● ●
393 02.343 BRACKET; HARNESS TO BODY
EXC. BATTERY 115E41L<8MA> 02.483 (E) 		8-98018-251-1 01 1 0803- ● ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98041-947-1 01 1 0803- ● ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MZZ6F(RSR),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98041-946-1 01 1 0803- ● ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98041-946-1 01 1 0803- ● ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ>,BATTERY 115E41L<8MA> (B) 		8-98030-138-2 01 1 0803- ● ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>,BATTERY 115E41L<8MA> (A) 		8-98030-139-2 01 1 0803- ● ●
395 02.343 NUT; BRKT FIX
01.062 M8 FLANGE 		0-91180-108-0 01 1 0803- ● ●
395 02.343 NUT; BRKT FIX
BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0803- ● ●

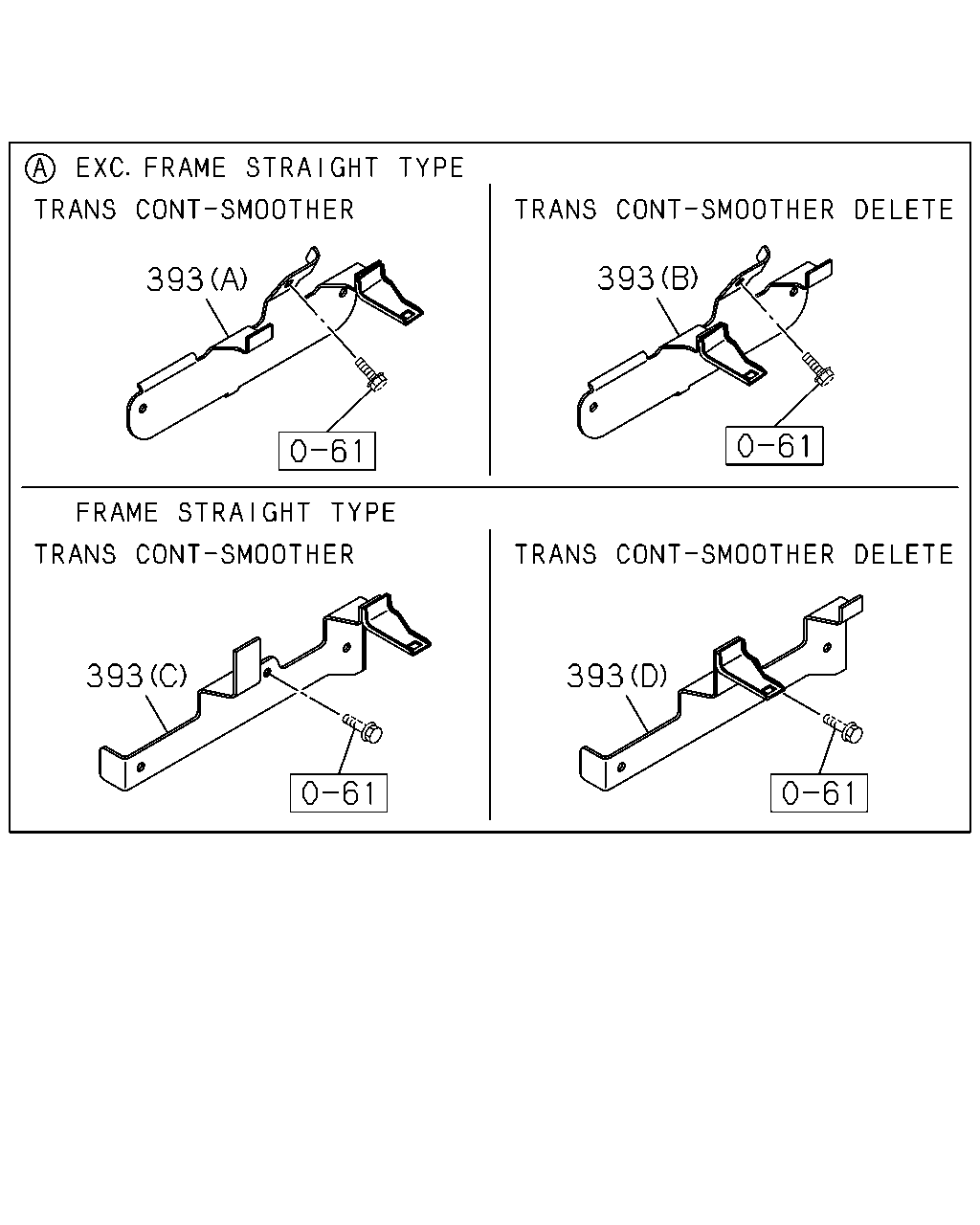

çizim 120796
393 393 393 393
BalonParca AdiParca NoAdetTipApplied Date A B
393 02.343 BRACKET; HARNESS TO BODY
BATTERY 115E41L<8MA> 02.483 (E) 		8-98018-251-1 02 1 0803- ● ●
393 02.343 BRACKET; HARNESS TO BODY
BATTERY 115E41L<8MA> (F) 		8-98018-894-1 01 1 0803- ● ●
393 02.343 BRACKET; HARNESS TO BODY
EXC. BATTERY 115E41L<8MA> 02.483 (E) 		8-98018-251-1 01 1 0803- ● ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98041-947-1 01 1 0803- ● ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MZZ6F(RSR),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98041-946-1 01 1 0803- ● ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98041-946-1 01 1 0803- ● ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ>,BATTERY 115E41L<8MA> (B) 		8-98030-138-2 01 1 0803- ● ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>,BATTERY 115E41L<8MA> (A) 		8-98030-139-2 01 1 0803- ● ●

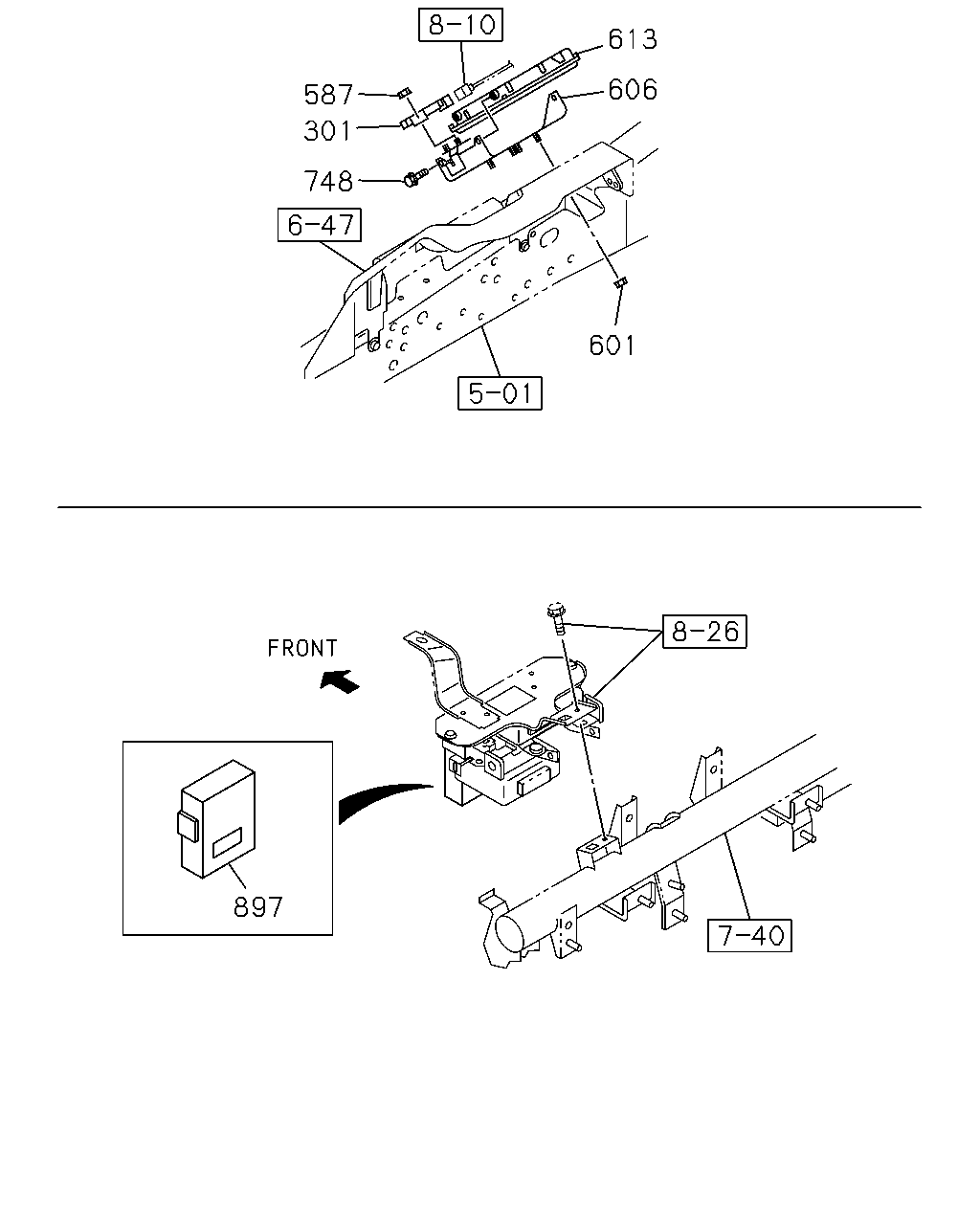

çizim 120797
613 606 587 301 748 601 897
BalonParca AdiParca NoAdetTipApplied Date A B
301 02.510 RESISTOR; DROPPING
EURO4 SPECIFICATION(NT4) 		8-97357-613-0 01 1 0803- ● ●
587 03.671 NUT; RESISTOR & RELAY
EURO4 SPECIFICATION(NT4) 01.062 M6 FLANGE 		0-91180-106-0 02 1 0803- ● ●
601 03.670 NUT; UNIT
04.115 M6 W/DISHED WASHER 		8-98029-921-0 04 1 0803- ● ●
606 03.680 BRACKET; CONT UNIT 8-98004-751-1 01 1 0803-0902 ● ●
606 03.680 BRACKET; CONT UNIT
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) 		8-98004-751-1 01 1 0903-1402 ● ●
606 03.680 BRACKET; CONT UNIT 8-98114-583-2 01 1 1403- ● ●
613 03.670 CONTROL UNIT; ENG
TAIWAN EQUIPMENT(B04) EURO2 SPECIFICATION(NT2) GLOW SYSTEM DELETE<7RK> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98299-047-0 01 1 1502- ●
613 03.670 CONTROL UNIT; ENG
EURO2 SPECIFICATION(NT2) GLOW SYSTEM DELETE<7RK> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TAIWAN EQUIPMENT(B04) 02.510 		8-98299-048-0 01 1 1502- ●
613 03.670 CONTROL UNIT; ENG
EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98081-076-1 01 1 0803-0803 ●
613 03.670 CONTROL UNIT; ENG
TAIWAN EQUIPMENT(B04) EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98081-076-1 01 1 0803-0803 ●
613 03.670 CONTROL UNIT; ENG
TAIWAN EQUIPMENT(B04) EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98120-023-0 01 1 0804-0905 ●
613 03.670 CONTROL UNIT; ENG
TAIWAN EQUIPMENT(B04) EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98081-076-5 01 1 0906-1105 ●
613 03.670 CONTROL UNIT; ENG
TAIWAN EQUIPMENT(B04) EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MINI BUS CHASSIS(V4B) 		8-98081-076-5 01 1 1106-1106 ●
613 03.670 CONTROL UNIT; ENG
TAIWAN EQUIPMENT(B04) EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98081-076-6 01 1 1107-1209 ●
613 03.670 CONTROL UNIT; ENG
TAIWAN EQUIPMENT(B04) EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98229-602-0 01 1 1210-1501 ●
613 03.670 CONTROL UNIT; ENG
TAIWAN EQUIPMENT(B04) EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GLOW SYSTEM DELETE<7RK> 		8-98229-602-0 01 1 1502- ●
613 03.670 CONTROL UNIT; ENG
EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98103-546-0 01 1 0803-0803 ●
613 03.670 CONTROL UNIT; ENG
EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TAIWAN EQUIPMENT(B04) 		8-98115-459-0 01 1 0803-0803 ●
613 03.670 CONTROL UNIT; ENG
EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TAIWAN EQUIPMENT(B04) 		8-98120-025-0 01 1 0804-0905 ●
613 03.670 CONTROL UNIT; ENG
EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TAIWAN EQUIPMENT(B04) 		8-98115-459-2 01 1 0906-1105 ●
613 03.670 CONTROL UNIT; ENG
EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TAIWAN EQUIPMENT(B04),MINI BUS CHASSIS(V4B) 		8-98115-459-2 01 1 1106-1106 ●
613 03.670 CONTROL UNIT; ENG
EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TAIWAN EQUIPMENT(B04) 		8-98115-459-3 01 1 1107-1209 ●
613 03.670 CONTROL UNIT; ENG
EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TAIWAN EQUIPMENT(B04) 		8-98229-603-0 01 1 1210-1501 ●
613 03.670 CONTROL UNIT; ENG
EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TAIWAN EQUIPMENT(B04),GLOW SYSTEM DELETE<7RK> 		8-98229-603-0 01 1 1502- ●
613 03.670 CONTROL UNIT; ENG
TAIWAN EQUIPMENT(B04) EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98093-077-5 01 1 0803- ●
613 03.670 CONTROL UNIT; ENG
TAIWAN EQUIPMENT(B04) EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98093-084-5 01 1 0803- ●
613 03.670 CONTROL UNIT; ENG
EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98081-090-1 01 1 0803-0803 ●
613 03.670 CONTROL UNIT; ENG
EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TAIWAN EQUIPMENT(B04) 		8-98115-461-0 01 1 0803-0803 ●
613 03.670 CONTROL UNIT; ENG
EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TAIWAN EQUIPMENT(B04) 		8-98120-026-0 01 1 0804-0905 ●
613 03.670 CONTROL UNIT; ENG
EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TAIWAN EQUIPMENT(B04) 		8-98115-461-2 01 1 0906-1105 ●
613 03.670 CONTROL UNIT; ENG
EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TAIWAN EQUIPMENT(B04),MINI BUS CHASSIS(V4B) 		8-98115-461-2 01 1 1106-1106 ●
613 03.670 CONTROL UNIT; ENG
EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98115-461-3 01 1 1107-1209 ●
613 03.670 CONTROL UNIT; ENG
EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98229-605-0 01 1 1210-1501 ●
613 03.670 CONTROL UNIT; ENG
EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TAIWAN EQUIPMENT(B04),GLOW SYSTEM DELETE<7RK> 		8-98229-605-0 01 1 1502- ●
613 03.670 CONTROL UNIT; ENG
TAIWAN EQUIPMENT(B04) EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98093-093-4 01 1 0803- ●
613 03.670 CONTROL UNIT; ENG
TAIWAN EQUIPMENT(B04) EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98093-099-4 01 1 0803- ●
748 02.500 BOLT; CONT UNIT
03.162 M6X12 FLANGE 		0-28050-612-0 03 1 0803- ● ●
897 02.510 DRM 8-98082-814-6 01 1 0803- ● ●
çizim 120798
10 46
BalonParca AdiParca NoAdetTipApplied Date A B
10 02.100 RELAY; STARTER
24V 50A 		8-97264-947-0 01 1 0803- ● ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 0803-1501 ● ●
46 02.510 RELAY; GLOW PLUG
EXC. GLOW SYSTEM DELETE<7RK> 24V 50A 		8-97173-947-0 01 1 1502- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
