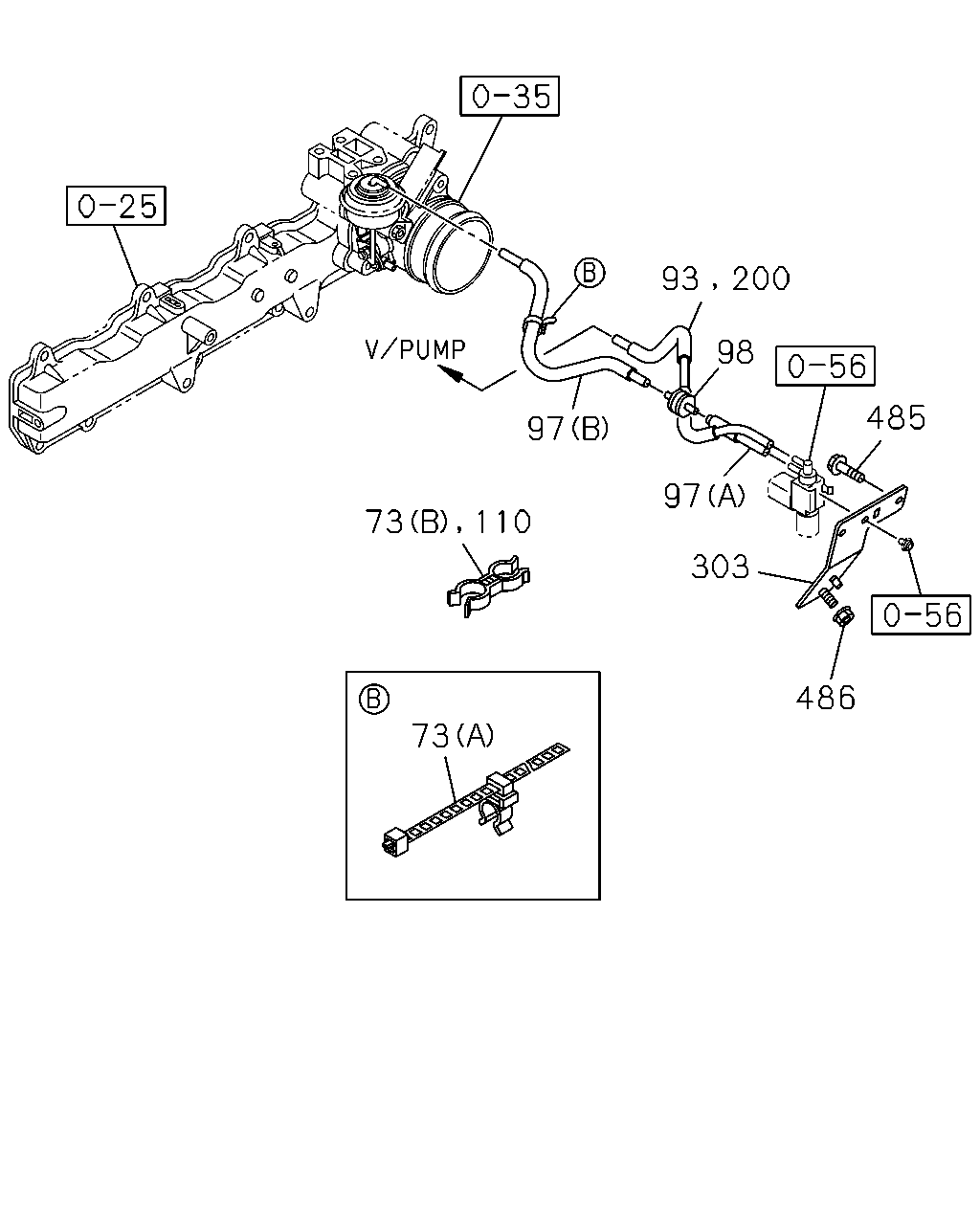

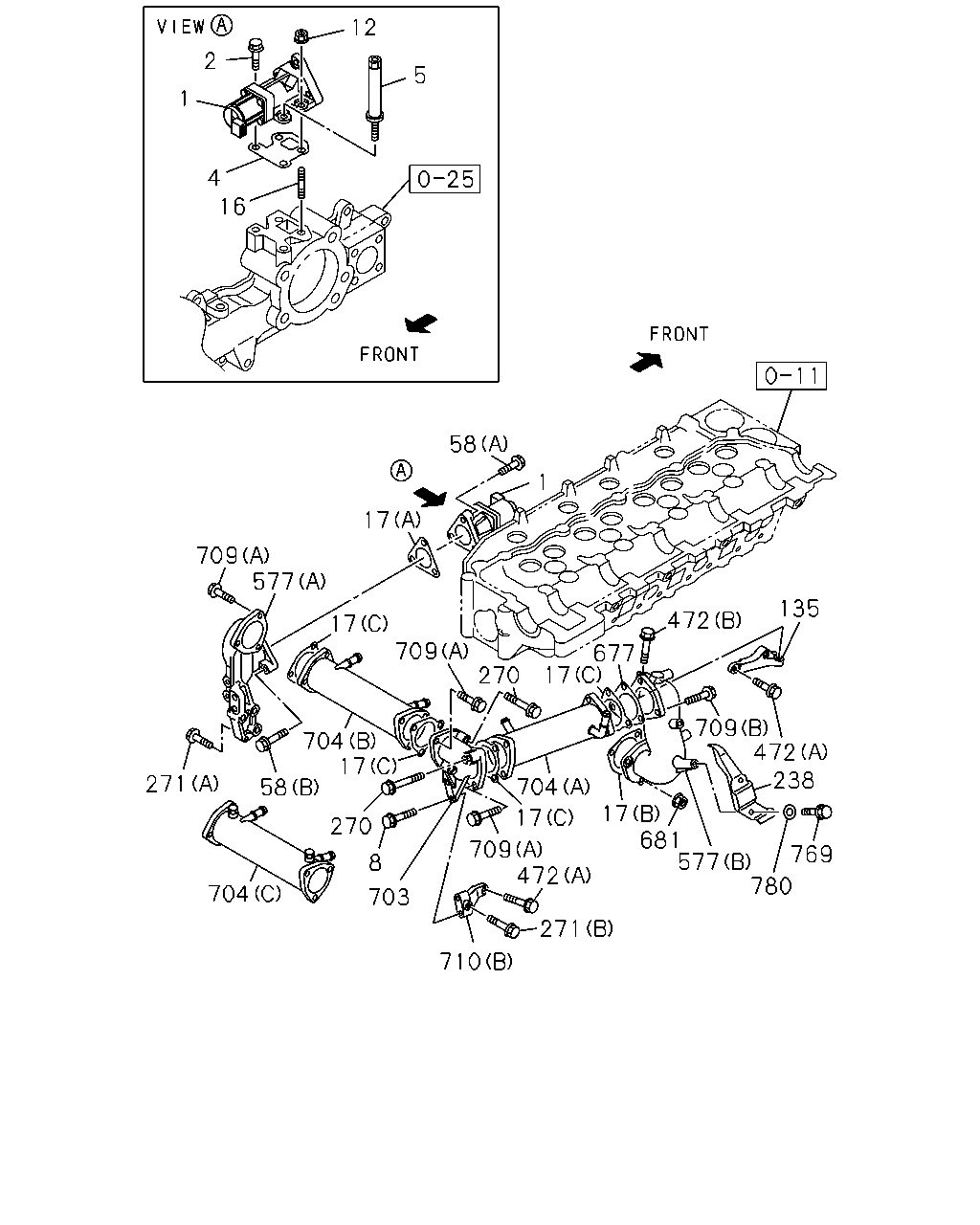

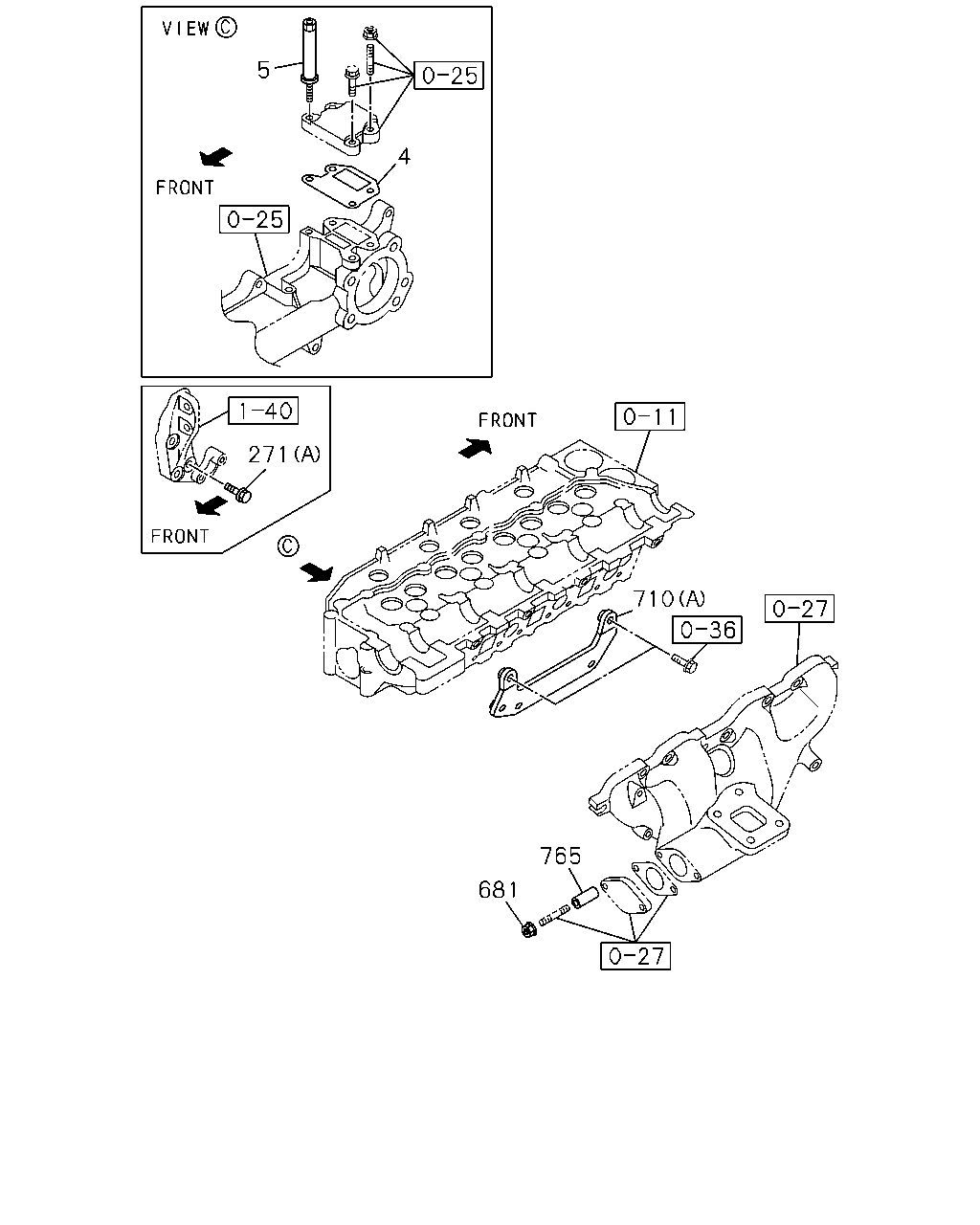

0-57 — EMISSION PIPING (#33790) — 57 parça

73 73 110 97 93 200 98 97 485 486 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
73	03.680 CLIP; VAC HOSE 03.162 (B) ID=13.2 & 14.5	8-94475-649-0	01	1	0811-0905	●	●
73	03.680 CLIP; VAC HOSE EURO2 SPECIFICATION(NT2) (A) L=350	8-97373-487-0	02	1	0803-	●	●
93	03.675 HOSE ASM EURO2 SPECIFICATION(NT2)	8-98105-295-1	01	1	0906-	●	●
97	03.675 HOSE; RUBBER EURO2 SPECIFICATION(NT2) (B)	8-98113-964-0	01	1	0803-	●	●
97	03.675 HOSE; RUBBER EURO2 SPECIFICATION(NT2) (A)	8-98113-965-0	01	1	0803-	●	●
98	03.670 VALVE; DELAY EURO2 SPECIFICATION(NT2)	8-94110-978-0	01	1	0803-	●	●
110	03.671 CLIP; VAC HOSE EURO2 SPECIFICATION(NT2) 03.162 ID=13.2 & 14.5	8-94475-649-0	01	1	0906-	●	●
200	03.675 HOSE; VAC EURO2 SPECIFICATION(NT2)	8-98105-295-1	01	1	0803-0905	●	●
303	03.671 BRACKET; VAC SW EURO2 SPECIFICATION(NT2)	8-98097-124-0	01	1	0803-	●	●
485	03.671 BOLT; VSV EURO2 SPECIFICATION(NT2) 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	01	1	0803-	●	●
486	03.671 NUT; BRKT EURO2 SPECIFICATION(NT2) 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-	●	●

12 2 5 1 4 16 58 1 17 709 577 135 472 17 709 270 677 17 704 17 709 472 238 704 271 58 17 681 577 780 17 270 709 472 769 8 704 703 271 710

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.670 VALVE; EGR EURO4 SPECIFICATION(NT4)	8-98018-264-6	01	1	0803-	●	●
2	03.670 BOLT; EGR VLV EURO4 SPECIFICATION(NT4) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0803-	●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97306-040-0	01	1	0803-	●	●
5	03.670 ADAPTER ASM 00.269	8-97377-804-0	01	1	0803-	●	●
8	03.670 BOLT; EGR ADAPTER EURO4 SPECIFICATION(NT4) 00.029 M10X40 FLANGE	0-28751-040-0	02	1	0803-	●	●
12	03.671 NUT; EGR VLV EURO4 SPECIFICATION(NT4) 01.062 M8 FLANGE	0-91180-108-0	02	1	0803-	●	●
16	03.275 STUD; EGR VLV EURO4 SPECIFICATION(NT4) 02.510 M8X20 L=32	0-41010-820-0	02	1	0803-	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) (C)	8-97388-919-0	04	1	0803-	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) (B)	8-97601-836-0	01	1	0803-	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) (A)	8-98036-507-0	01	1	0803-	●	●
58	03.417 BOLT; PIPE EURO4 SPECIFICATION(NT4) 09.173 (B) M8X45 FLANGE	0-28050-845-0	02	1	0803-	●	●
58	03.417 BOLT; PIPE EURO4 SPECIFICATION(NT4) 03.403 (A) M8X30 FLANGE	0-28650-830-0	01	1	0803-	●	●
135	03.680 BRACKET; EGR EURO4 SPECIFICATION(NT4)	8-98025-253-2	01	1	0803-	●	●
238	03.330 PROTECTOR; HEAT,EGR EURO4 SPECIFICATION(NT4)	8-97386-177-0	01	1	0803-	●	●
270	03.680 BOLT EURO4 SPECIFICATION(NT4) 00.683 M10X60 FLANGE	0-28151-060-0	03	1	0803-	●	●
271	03.675 BOLT; BRKT 00.685 (A) M12X50 FLANGE	0-28151-250-0	02	1	0803-	●	●
271	03.675 BOLT; BRKT EURO4 SPECIFICATION(NT4) 00.685 (B) M12X60 FLANGE	0-28151-260-0	01	1	0803-	●	●
472	03.671 BOLT; BRKT EURO4 SPECIFICATION(NT4) 02.277 (A) M8X25 FLANGE	0-28660-825-0	03	1	0803-	●	●
472	03.671 BOLT; BRKT EURO4 SPECIFICATION(NT4) 00.029 (B) M10X40 FLANGE	0-28751-040-0	01	1	0803-	●	●
577	03.675 PIPE; AIR,EGR EURO4 SPECIFICATION(NT4) (B)	8-98028-113-2	01	1	0803-	●	●
577	03.675 PIPE; AIR,EGR EURO4 SPECIFICATION(NT4) (A)	8-98055-858-2	01	1	0803-	●	●
677	03.680 PLATE; DUCT EURO4 SPECIFICATION(NT4)	8-98015-035-0	01	1	0803-	●	●
681	03.671 NUT; EGR PIPE EURO2 SPECIFICATION(NT2) 01.540 M8 FLANGE	0-91180-208-0	02	1	0803-	●
681	03.671 NUT; EGR PIPE EURO4 SPECIFICATION(NT4) 03.613 M8 FLANGE	8-97061-401-1	03	1	0803-	●	●
703	03.675 DUCT; EGR EURO4 SPECIFICATION(NT4)	8-98028-114-0	01	1	0803-	●	●
704	03.337 COOLER ASM; EGR EURO4 SPECIFICATION(NT4) (A)	8-98028-110-1	01	1	0803-1306	●	●
704	03.337 COOLER ASM; EGR EURO4 SPECIFICATION(NT4) (A)	8-98244-305-0	01	1	1307-	●	●
704	03.337 COOLER ASM; EGR EURO4 SPECIFICATION(NT4) (B)	8-98028-112-1	01	1	0803-1204	●	●
704	03.337 COOLER ASM; EGR EURO4 SPECIFICATION(NT4) (C)	8-98212-715-0	01	1	1205-	●	●
709	03.670 BOLT; EGR COOLER EURO4 SPECIFICATION(NT4) 00.780 (A) M10X30 FLANGE	0-28751-030-0	06	1	0803-0808	●	●
709	03.670 BOLT; EGR COOLER EURO4 SPECIFICATION(NT4) 00.029 (A) M10X35 FLANGE	0-28751-035-0	06	1	0809-	●	●
709	03.670 BOLT; EGR COOLER EURO4 SPECIFICATION(NT4) 03.604 (B) M10X30 FLANGE	8-98032-158-0	03	1	0803-	●	●
710	03.337 BRACKET; EGR COOLER EURO2 SPECIFICATION(NT2) (A)	8-98079-255-1	01	1	0803-	●
710	03.337 BRACKET; EGR COOLER EURO4 SPECIFICATION(NT4) (B)	8-98025-254-1	01	1	0803-	●	●
769	01.750 BOLT; HEAT PROTECTOR EURO4 SPECIFICATION(NT4) 03.604 M6X12 FLANGE	8-97108-669-0	04	1	0803-1011	●	●
769	01.750 BOLT; HEAT PROTECTOR EURO4 SPECIFICATION(NT4) 03.602 M6X12 W/PL WASHER	8-98054-289-0	04	1	1012-	●	●
780	03.671 WASHER; PROTECTOR EURO4 SPECIFICATION(NT4) 00.413 ID=6.4 OD=18	0-91610-706-0	04	1	0803-1107	●	●

5 4 271 710 765 681

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97306-040-0	01	1	0803-	●	●
5	03.670 ADAPTER ASM 00.269	8-97377-804-0	01	1	0803-	●	●
271	03.675 BOLT; BRKT 00.685 (A) M12X50 FLANGE	0-28151-250-0	02	1	0803-	●	●
271	03.675 BOLT; BRKT EURO4 SPECIFICATION(NT4) 00.685 (B) M12X60 FLANGE	0-28151-260-0	01	1	0803-	●	●
681	03.671 NUT; EGR PIPE EURO2 SPECIFICATION(NT2) 01.540 M8 FLANGE	0-91180-208-0	02	1	0803-	●
681	03.671 NUT; EGR PIPE EURO4 SPECIFICATION(NT4) 03.613 M8 FLANGE	8-97061-401-1	03	1	0803-	●	●
710	03.337 BRACKET; EGR COOLER EURO2 SPECIFICATION(NT2) (A)	8-98079-255-1	01	1	0803-	●
710	03.337 BRACKET; EGR COOLER EURO4 SPECIFICATION(NT4) (B)	8-98025-254-1	01	1	0803-	●	●
765	03.670 SPACER; EGR PIPE EURO2 SPECIFICATION(NT2) 03.613	8-94225-562-0	02	1	0803-	●
