Sayfa 3-46 - Isuzu EPC

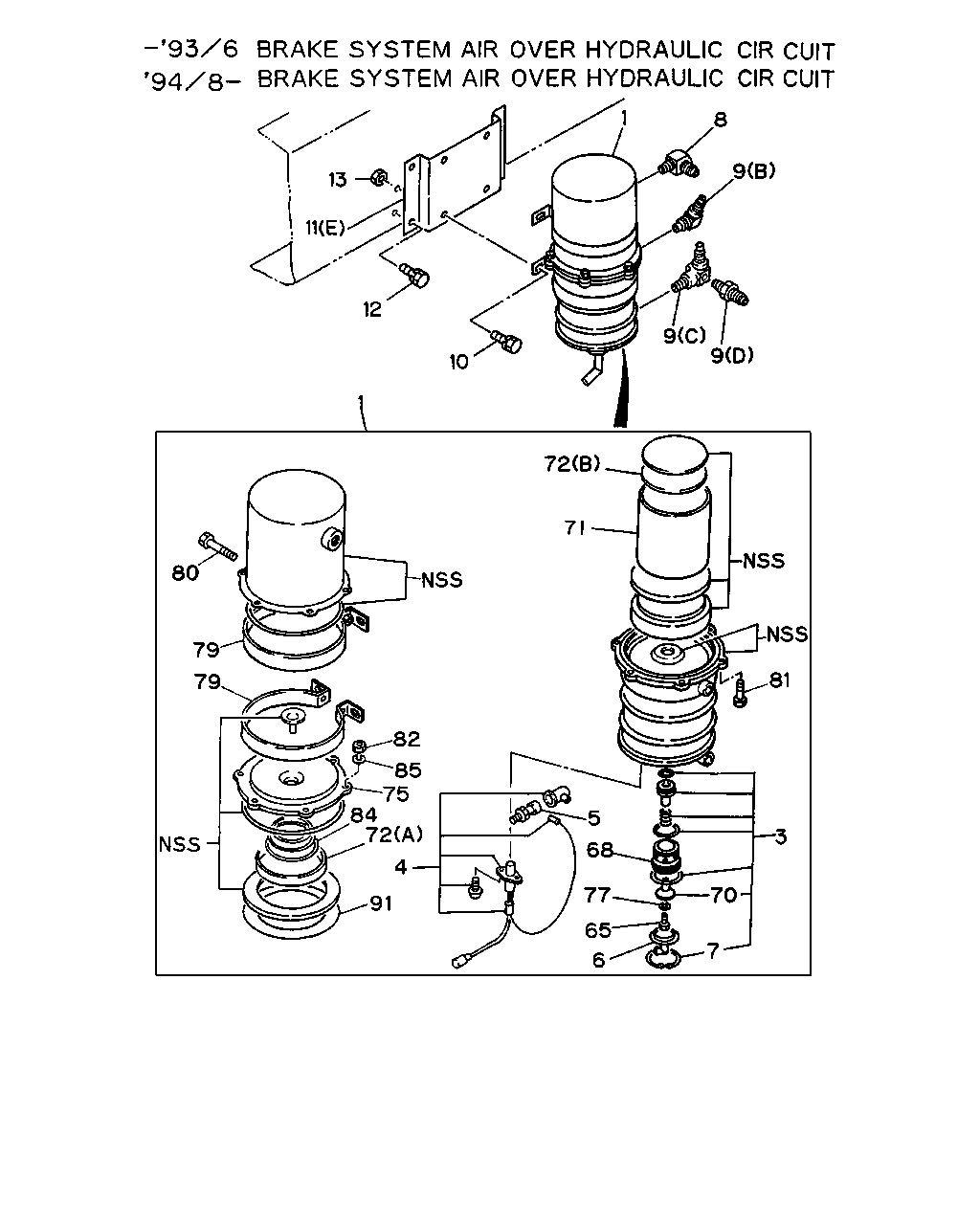

3-46 — AIR DRYER (#3379) — 277 parça

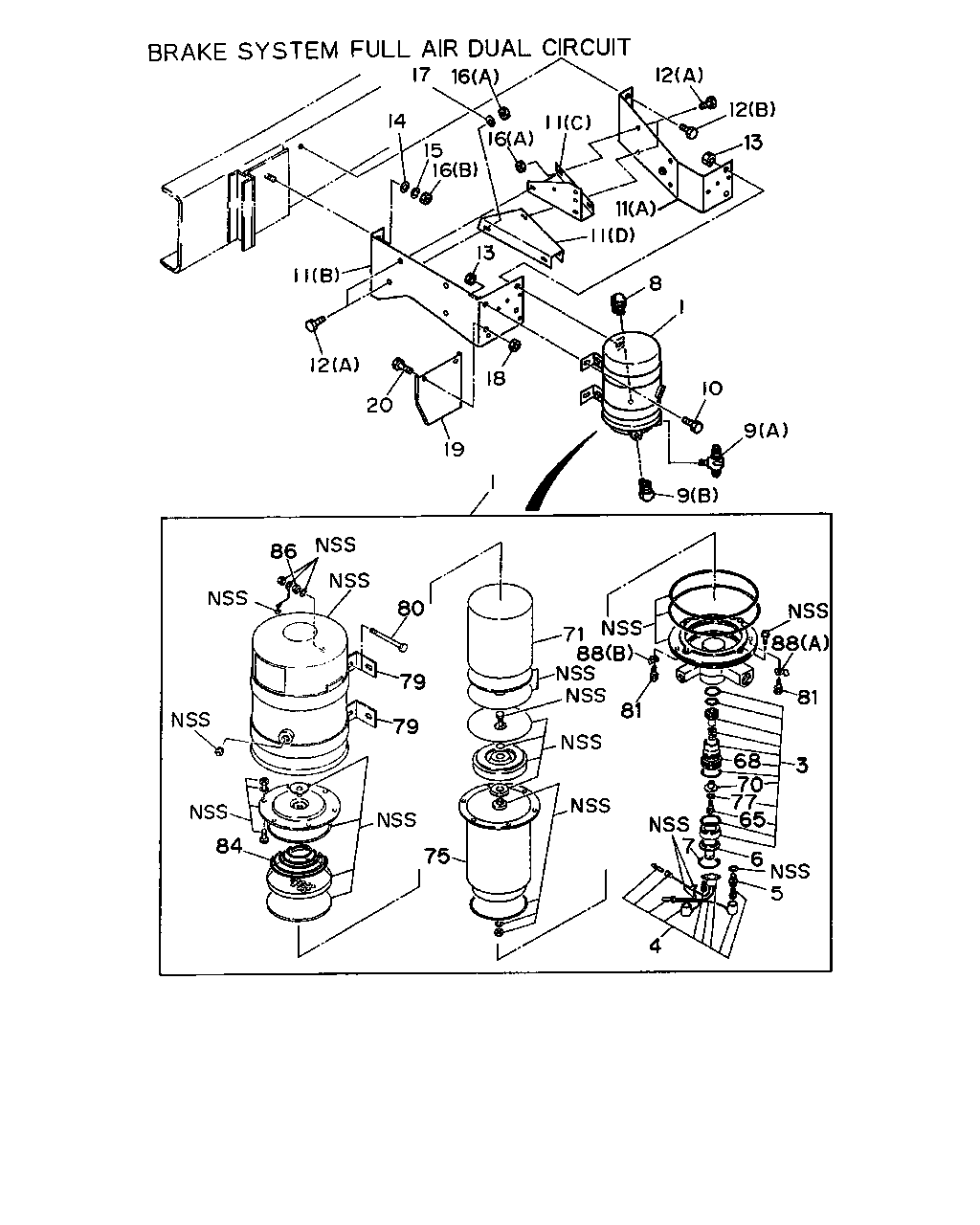

17 14 16 12 12 13 11 11 16 15 11 16 13 11 12 18 20 8 1 19 10 9 9 86 80 79 79 84 75 71 88 81 88 81 3 68 70 77 65 6 7 5 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRYER; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48190-060-1	01	1	9002-9306	●	●	●
1	DRYER; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48190-095-2	01	1	9307-9405	●	●	●
1	DRYER; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48190-173-0	01	1	9406-9407	●	●	●
1	DRYER; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48190-090-1	01	1	9408-	●	●	●
1	DRYER; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48190-054-1	01	1	9002-9306		●	●
1	DRYER; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48190-160-2	01	1	9307-		●	●
3	PISTON KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-85576-084-0	01	1	9002-9306	●	●	●
3	PISTON KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-85576-084-0	01	1	9408-	●	●	●
3	PISTON KIT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-85576-057-1	01	1	9002-		●	●
4	THERMOSTAT KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-85576-085-0	01	1	9002-9306	●	●	●
4	THERMOSTAT KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-318-0	01	1	9307-9405	●	●	●
4	THERMOSTAT KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-387-0	01	1	9406-9407	●	●	●
4	THERMOSTAT KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-85576-121-0	01	1	9408-	●	●	●
4	THERMOSTAT KIT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-85576-066-0	01	1	9002-9306		●	●
4	THERMOSTAT KIT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-85576-129-0	01	1	9307-		●	●
5	HEATER ASM; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-200-0	01	1	9002-9306	●	●	●
5	HEATER ASM; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-284-0	01	1	9307-9407	●	●	●
5	HEATER ASM; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-200-0	01	1	9408-	●	●	●
5	HEATER ASM; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-085-0	02	1	9002-		●	●
6	COVER; EXH,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-132-0	01	1	9002-9306	●	●	●
6	COVER; EXH,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-282-0	01	1	9307-9407	●	●	●
6	COVER; EXH,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-132-0	01	1	9408-	●	●	●
6	COVER; EXH,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-101-0	01	1	9002-		●	●
7	RING; SNAP,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-100-0	01	1	9002-9306	●	●	●
7	RING; SNAP,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-100-0	01	1	9408-	●	●	●
7	RING; SNAP,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-154-0	01	1	9002-		●	●
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> M20 & PT1/2 ELBOW	1-09650-178-1	01	1	9002-9302	●	●	●
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> M20 & PT1/2 ELBOW	1-09650-443-0	01	1	9303-	●	●	●
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> (B) M22 & PT1/2 ELBOW	9-09234-315-1	01	1	9002-9302	●	●	●
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> (B) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9303-	●	●	●
9	CONNECTOR; PIPE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9002-	●	●	●
9	CONNECTOR; PIPE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C) PT1/4 & M12 ELBOW	1-09656-485-1	01	1	9002-9302	●	●	●
9	CONNECTOR; PIPE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	9303-9306	●	●	●
9	CONNECTOR; PIPE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	9307-9407	●	●	●
9	CONNECTOR; PIPE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	9408-	●	●	●
9	CONNECTOR; PIPE,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) M12X2 & PT1/4 3WAY	1-09656-229-1	01	1	9002-		●	●
10	BOLT; AIR DRYER AIR DRYER<PS7> M10X30 W/LK&PL WASHER	0-50141-030-0	04	1	9205-	●	●	●
10	BOLT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M10X30 W/LK&PL WASHER	0-50141-030-0	04	1	9002-9204	●	●	●
10	BOLT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10X30 W/LK&PL WASHER	9-01961-030-0	04	1	9002-9204		●	●
11	BRACKET; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (E)	1-48195-040-1	01	1	9002-9306	●	●	●
11	BRACKET; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (E)	1-48317-582-0	01	1	9307-	●	●	●
11	BRACKET; AIR DRYER SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> (B)	1-53497-339-3	01	1	9002-	●	●	●
11	BRACKET; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A)	1-53497-338-1	01	1	9002-9301		●	●
11	BRACKET; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (C)	1-53497-340-1	01	1	9002-		●	●
11	BRACKET; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (D)	1-53497-341-1	01	1	9002-		●	●
11	BRACKET; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A)	1-53497-349-1	01	1	9302-		●	●
11	BRACKET; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-53497-364-0	01	1	9002-			●
12	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M10X25 W/LK WASHER	0-50041-025-0	04	1	9002-9306	●	●	●
12	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M10X35 W/LK WASHER	0-50041-035-0	04	1	9307-	●	●	●
12	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) M10X25 W/LK WASHER	9-01901-025-0	05	1	9002-9204		●	●
12	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) M10X25 W/LK WASHER	0-50041-025-0	05	1	9205-		●	●
12	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) M14X40	9-92051-440-0	02	1	9002-9005		●	●
12	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) M14X40	0-20801-440-0	02	1	9006-		●	●
13	NUT; AIR DRYER AIR DRYER<PS7> M10	9-09110-510-0	04	1	9002-	●	●	●
14	WASHER; PL,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ID=15 OD=26	9-09164-514-0	04	1	9002-		●	●
15	WASHER; LK,BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ID=14.2	9-09150-514-0	02	1	9002-		●	●
16	NUT; BRKT SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> (A) M10	9-09110-410-0	05	1	9002-9306	●	●	●
16	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. SILENCER SINGLE VERTICAL<N28> (A) M10	9-09110-410-0	05	1	9002-9306			●
16	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> (B) M14	9-99110-514-0	02	1	9002-	●		●
16	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) M10	9-09110-410-0	05	1	9307-		●	●
17	WASHER; PL,STAY,LWR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ID=10.5 OD=18	9-09160-510-0	04	1	9002-		●	●
18	NUT; PROTECTOR 10PD1 STD ENG(40L),12PD1 C ENG(43L) SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> M8	9-09110-408-0	02	1	9002-		●	●
19	PROTECTOR; HEAT,AIR DRYER 10PD1 STD ENG(40L),12PD1 C ENG(43L) SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7>	1-48195-039-0	01	1	9002-		●	●
20	BOLT; PROTECTOR 10PD1 STD ENG(40L) SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204	●	●	●
20	BOLT; PROTECTOR 10PD1 STD ENG(40L),12PD1 C ENG(43L) SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-	●	●	●
65	BOLT; PURGE VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-281-0	01	1	9307-9407	●	●	●
65	BOLT; PURGE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-102-0	01	1	9308-9407		●	●
65	BOLT; PURGE VLV AIR DRYER<PS7>	1-48199-102-0	01	1	9408-	●	●	●
68	BODY; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-216-0	01	1	9308-9407		●	●
68	BODY; VALVE AIR DRYER<PS7>	1-48199-216-0	01	1	9408-	●	●	●
70	VALVE; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-105-0	01	1	9308-9407		●	●
70	VALVE; AIR DRYER AIR DRYER<PS7>	1-48199-105-0	01	1	9408-	●	●	●
71	CASE; INNER,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-099-0	01	1	9408-	●	●	●
71	CASE; INNER,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-156-1	01	1	9308-		●	●
75	COVER; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-201-0	01	1	9408-	●	●	●
75	COVER; CASE,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-167-0	01	1	9308-		●	●
77	WASHER; LK,VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-103-0	01	1	9308-9407		●	●
77	WASHER; LK,VALVE AIR DRYER<PS7>	1-48199-103-0	01	1	9408-	●	●	●
79	BRACKET; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	1-48199-300-0	02	1	9308-9407	●	●	●
79	BRACKET; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-209-0	02	1	9408-	●	●	●
79	BRACKET; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A)	1-48199-313-0	01	1	9308-9407	●	●	●
79	BRACKET; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C)	1-48199-389-0	01	1	9308-9407	●	●	●
79	BRACKET; AIR DRYER SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7>	1-53497-352-1	01	1	9307-	●	●	●
79	BRACKET; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-189-0	02	1	9308-		●	●
79	BRACKET; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. SILENCER SINGLE VERTICAL<N28>	1-53497-363-2	01	1	9307-			●
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-301-0	02	1	9308-9407	●	●	●
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-212-0	02	1	9408-	●	●	●
80	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-190-0	02	1	9308-		●	●
81	BOLT; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-298-0	06	1	9308-9407	●	●	●
81	BOLT; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-208-0	06	1	9408-	●	●	●
81	BOLT; CASE,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-177-0	02	1	9308-		●	●
84	SPRING; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-092-0	01	1	9408-	●	●	●
84	SPRING; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-166-0	01	1	9308-		●	●
86	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	8-94402-611-0	02	1	9308-9407	●	●	●
86	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-320-0	02	1	9308-		●	●
88	PLATE; STOPPER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A)	1-48199-178-0	01	1	9308-		●	●
88	PLATE; STOPPER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B)	1-48199-179-0	01	1	9308-		●	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

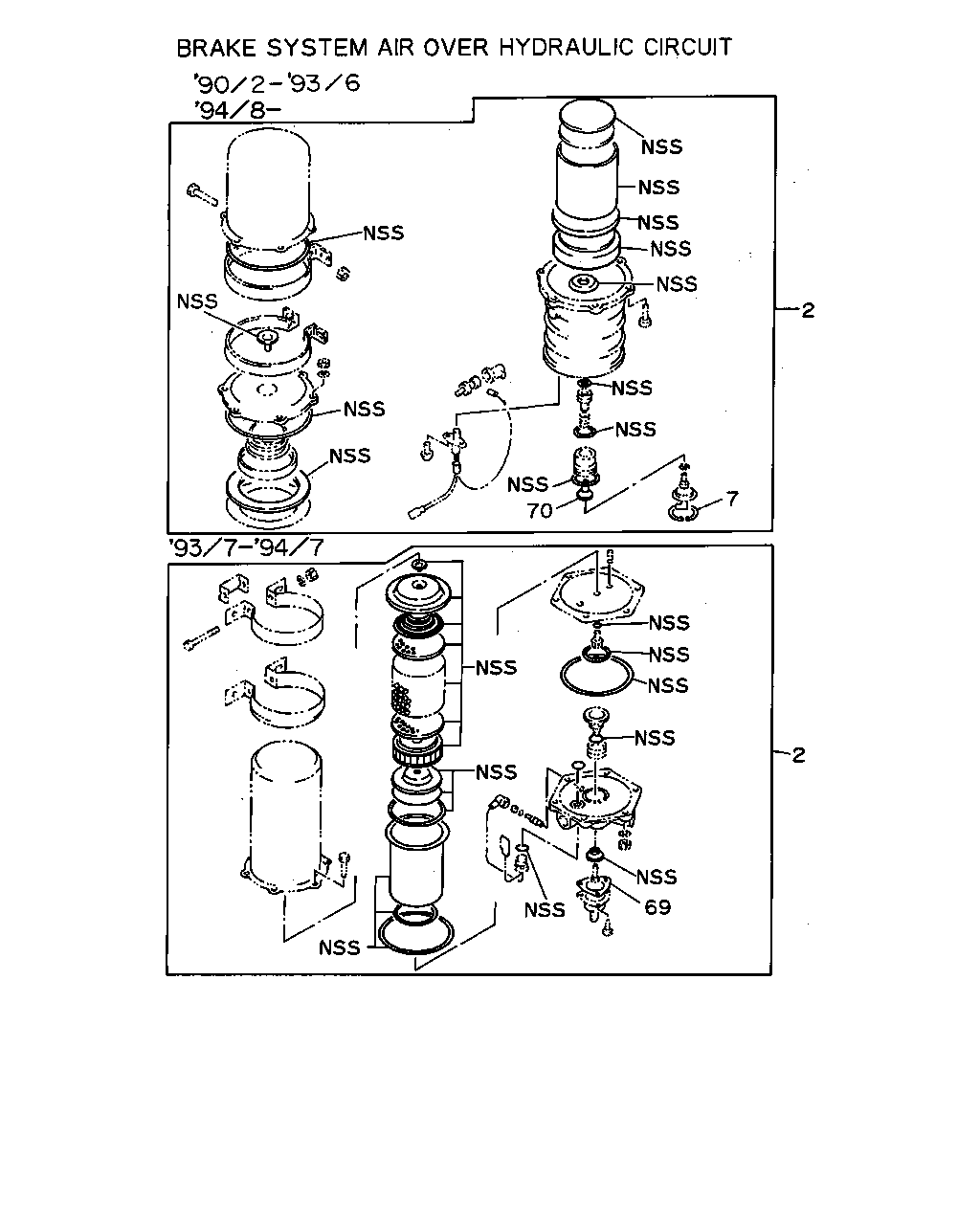

2	REPAIR KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-85576-083-0	01	1	9002-9306	●	●	●
2	REPAIR KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-275-1	01	1	9307-9405	●	●	●
2	REPAIR KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-388-0	01	1	9406-9407	●	●	●
2	REPAIR KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-85576-083-0	01	1	9408-	●	●	●
2	REPAIR KIT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-85576-055-1	01	1	9002-		●	●

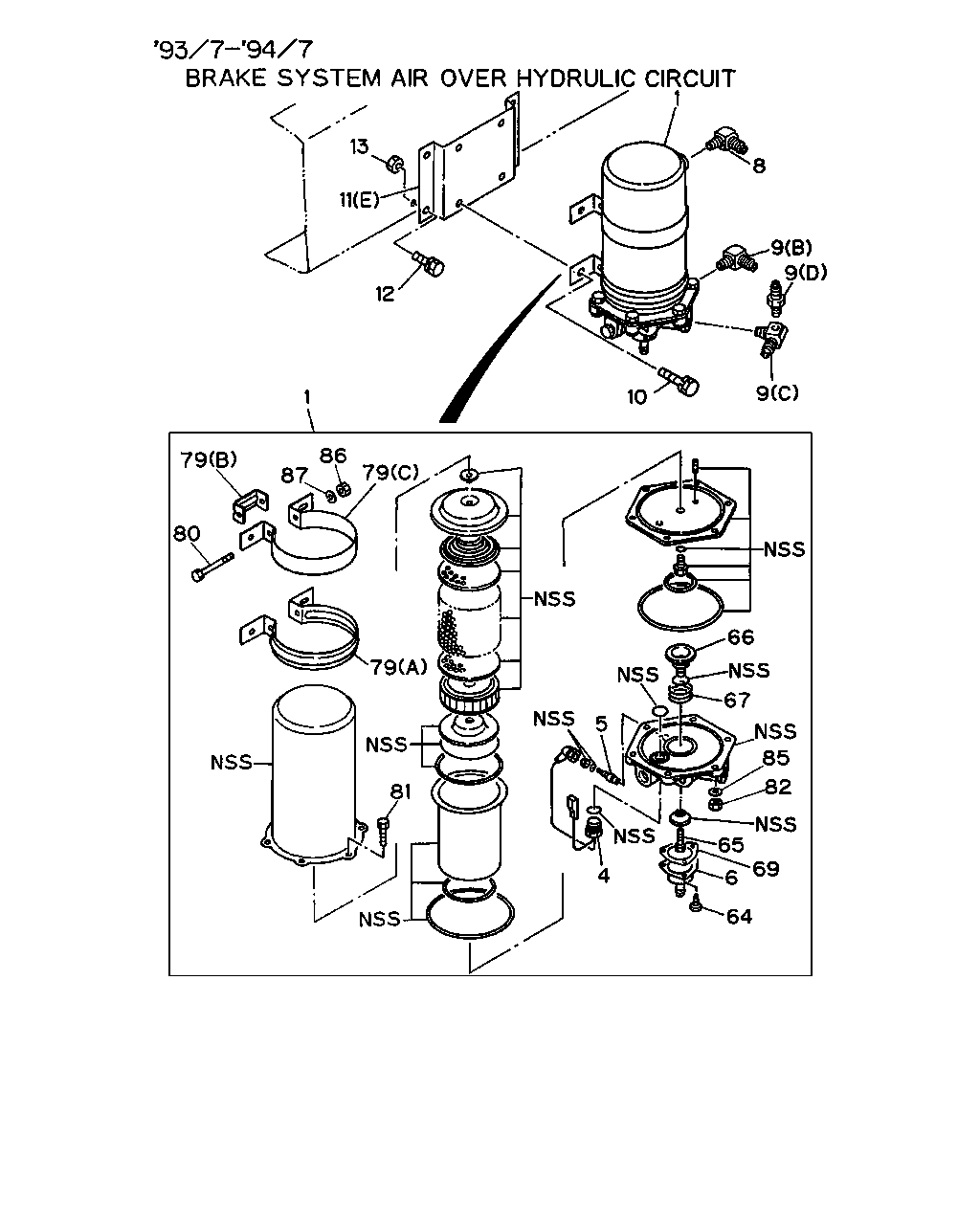

13 11 12 1 8 9 9 9 10 79 1 87 86 80 79 79 81 4 64 69 82 85 65 6 5 67 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRYER; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48190-060-1	01	1	9002-9306	●	●	●
1	DRYER; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48190-095-2	01	1	9307-9405	●	●	●
1	DRYER; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48190-173-0	01	1	9406-9407	●	●	●
1	DRYER; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48190-090-1	01	1	9408-	●	●	●
1	DRYER; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48190-054-1	01	1	9002-9306		●	●
1	DRYER; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48190-160-2	01	1	9307-		●	●
4	THERMOSTAT KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-85576-085-0	01	1	9002-9306	●	●	●
4	THERMOSTAT KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-318-0	01	1	9307-9405	●	●	●
4	THERMOSTAT KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-387-0	01	1	9406-9407	●	●	●
4	THERMOSTAT KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-85576-121-0	01	1	9408-	●	●	●
4	THERMOSTAT KIT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-85576-066-0	01	1	9002-9306		●	●
4	THERMOSTAT KIT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-85576-129-0	01	1	9307-		●	●
5	HEATER ASM; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-200-0	01	1	9002-9306	●	●	●
5	HEATER ASM; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-284-0	01	1	9307-9407	●	●	●
5	HEATER ASM; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-200-0	01	1	9408-	●	●	●
5	HEATER ASM; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-085-0	02	1	9002-		●	●
6	COVER; EXH,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-132-0	01	1	9002-9306	●	●	●
6	COVER; EXH,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-282-0	01	1	9307-9407	●	●	●
6	COVER; EXH,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-132-0	01	1	9408-	●	●	●
6	COVER; EXH,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-101-0	01	1	9002-		●	●
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> M20 & PT1/2 ELBOW	1-09650-178-1	01	1	9002-9302	●	●	●
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> M20 & PT1/2 ELBOW	1-09650-443-0	01	1	9303-	●	●	●
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> (B) M22 & PT1/2 ELBOW	9-09234-315-1	01	1	9002-9302	●	●	●
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> (B) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9303-	●	●	●
9	CONNECTOR; PIPE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9002-	●	●	●
9	CONNECTOR; PIPE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C) PT1/4 & M12 ELBOW	1-09656-485-1	01	1	9002-9302	●	●	●
9	CONNECTOR; PIPE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	9303-9306	●	●	●
9	CONNECTOR; PIPE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	9307-9407	●	●	●
9	CONNECTOR; PIPE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	9408-	●	●	●
9	CONNECTOR; PIPE,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) M12X2 & PT1/4 3WAY	1-09656-229-1	01	1	9002-		●	●
10	BOLT; AIR DRYER AIR DRYER<PS7> M10X30 W/LK&PL WASHER	0-50141-030-0	04	1	9205-	●	●	●
10	BOLT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M10X30 W/LK&PL WASHER	0-50141-030-0	04	1	9002-9204	●	●	●
10	BOLT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10X30 W/LK&PL WASHER	9-01961-030-0	04	1	9002-9204		●	●
11	BRACKET; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (E)	1-48195-040-1	01	1	9002-9306	●	●	●
11	BRACKET; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (E)	1-48317-582-0	01	1	9307-	●	●	●
11	BRACKET; AIR DRYER SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> (B)	1-53497-339-3	01	1	9002-	●	●	●
11	BRACKET; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A)	1-53497-338-1	01	1	9002-9301		●	●
11	BRACKET; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (C)	1-53497-340-1	01	1	9002-		●	●
11	BRACKET; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (D)	1-53497-341-1	01	1	9002-		●	●
11	BRACKET; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A)	1-53497-349-1	01	1	9302-		●	●
11	BRACKET; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-53497-364-0	01	1	9002-			●
12	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M10X25 W/LK WASHER	0-50041-025-0	04	1	9002-9306	●	●	●
12	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M10X35 W/LK WASHER	0-50041-035-0	04	1	9307-	●	●	●
12	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) M10X25 W/LK WASHER	9-01901-025-0	05	1	9002-9204		●	●
12	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) M10X25 W/LK WASHER	0-50041-025-0	05	1	9205-		●	●
12	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) M14X40	9-92051-440-0	02	1	9002-9005		●	●
12	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) M14X40	0-20801-440-0	02	1	9006-		●	●
13	NUT; AIR DRYER AIR DRYER<PS7> M10	9-09110-510-0	04	1	9002-	●	●	●
64	SCREW; EXH COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	9-88510-360-0	03	1	9307-9407	●	●	●
65	BOLT; PURGE VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-281-0	01	1	9307-9407	●	●	●
65	BOLT; PURGE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-102-0	01	1	9308-9407		●	●
65	BOLT; PURGE VLV AIR DRYER<PS7>	1-48199-102-0	01	1	9408-	●	●	●
66	PISTON; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-279-0	01	1	9307-9407	●	●	●
67	SPRING; PISTON BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-278-0	01	1	9307-9407	●	●	●
69	GASKET; EXH COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48129-293-0	01	1	9406-9407	●	●	●
79	BRACKET; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	1-48199-300-0	02	1	9308-9407	●	●	●
79	BRACKET; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-209-0	02	1	9408-	●	●	●
79	BRACKET; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A)	1-48199-313-0	01	1	9308-9407	●	●	●
79	BRACKET; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C)	1-48199-389-0	01	1	9308-9407	●	●	●
79	BRACKET; AIR DRYER SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7>	1-53497-352-1	01	1	9307-	●	●	●
79	BRACKET; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-189-0	02	1	9308-		●	●
79	BRACKET; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. SILENCER SINGLE VERTICAL<N28>	1-53497-363-2	01	1	9307-			●
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-301-0	02	1	9308-9407	●	●	●
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-212-0	02	1	9408-	●	●	●
80	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-190-0	02	1	9308-		●	●
81	BOLT; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-298-0	06	1	9308-9407	●	●	●
81	BOLT; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-208-0	06	1	9408-	●	●	●
81	BOLT; CASE,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-177-0	02	1	9308-		●	●
82	NUT; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	8-94402-611-0	06	1	9308-9407	●	●	●
82	NUT; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-211-0	08	1	9408-	●	●	●
85	WASHER; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> ID=8.2	9-09150-508-0	06	1	9308-9407	●	●	●
85	WASHER; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-024-0	08	1	9408-	●	●	●
86	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	8-94402-611-0	02	1	9308-9407	●	●	●
86	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-320-0	02	1	9308-		●	●
87	WASHER; LK,BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> ID=8.2	9-09150-508-0	02	1	9308-9407	●	●	●

13 12 11 10 1 9 9 9 8 1 72 71 81 80 79 79 82 85 75 84 72 4 91 5 68 77 65 6 7 70 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRYER; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48190-060-1	01	1	9002-9306	●	●	●
1	DRYER; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48190-095-2	01	1	9307-9405	●	●	●
1	DRYER; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48190-173-0	01	1	9406-9407	●	●	●
1	DRYER; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48190-090-1	01	1	9408-	●	●	●
1	DRYER; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48190-054-1	01	1	9002-9306		●	●
1	DRYER; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48190-160-2	01	1	9307-		●	●
3	PISTON KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-85576-084-0	01	1	9002-9306	●	●	●
3	PISTON KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-85576-084-0	01	1	9408-	●	●	●
3	PISTON KIT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-85576-057-1	01	1	9002-		●	●
4	THERMOSTAT KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-85576-085-0	01	1	9002-9306	●	●	●
4	THERMOSTAT KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-318-0	01	1	9307-9405	●	●	●
4	THERMOSTAT KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-387-0	01	1	9406-9407	●	●	●
4	THERMOSTAT KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-85576-121-0	01	1	9408-	●	●	●
4	THERMOSTAT KIT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-85576-066-0	01	1	9002-9306		●	●
4	THERMOSTAT KIT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-85576-129-0	01	1	9307-		●	●
5	HEATER ASM; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-200-0	01	1	9002-9306	●	●	●
5	HEATER ASM; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-284-0	01	1	9307-9407	●	●	●
5	HEATER ASM; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-200-0	01	1	9408-	●	●	●
5	HEATER ASM; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-085-0	02	1	9002-		●	●
6	COVER; EXH,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-132-0	01	1	9002-9306	●	●	●
6	COVER; EXH,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-282-0	01	1	9307-9407	●	●	●
6	COVER; EXH,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-132-0	01	1	9408-	●	●	●
6	COVER; EXH,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-101-0	01	1	9002-		●	●
7	RING; SNAP,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-100-0	01	1	9002-9306	●	●	●
7	RING; SNAP,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-100-0	01	1	9408-	●	●	●
7	RING; SNAP,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-154-0	01	1	9002-		●	●
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> M20 & PT1/2 ELBOW	1-09650-178-1	01	1	9002-9302	●	●	●
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> M20 & PT1/2 ELBOW	1-09650-443-0	01	1	9303-	●	●	●
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> (B) M22 & PT1/2 ELBOW	9-09234-315-1	01	1	9002-9302	●	●	●
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> (B) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9303-	●	●	●
9	CONNECTOR; PIPE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9002-	●	●	●
9	CONNECTOR; PIPE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C) PT1/4 & M12 ELBOW	1-09656-485-1	01	1	9002-9302	●	●	●
9	CONNECTOR; PIPE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	9303-9306	●	●	●
9	CONNECTOR; PIPE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	9307-9407	●	●	●
9	CONNECTOR; PIPE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	9408-	●	●	●
9	CONNECTOR; PIPE,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) M12X2 & PT1/4 3WAY	1-09656-229-1	01	1	9002-		●	●
10	BOLT; AIR DRYER AIR DRYER<PS7> M10X30 W/LK&PL WASHER	0-50141-030-0	04	1	9205-	●	●	●
10	BOLT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M10X30 W/LK&PL WASHER	0-50141-030-0	04	1	9002-9204	●	●	●
10	BOLT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10X30 W/LK&PL WASHER	9-01961-030-0	04	1	9002-9204		●	●
11	BRACKET; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (E)	1-48195-040-1	01	1	9002-9306	●	●	●
11	BRACKET; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (E)	1-48317-582-0	01	1	9307-	●	●	●
11	BRACKET; AIR DRYER SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> (B)	1-53497-339-3	01	1	9002-	●	●	●
11	BRACKET; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A)	1-53497-338-1	01	1	9002-9301		●	●
11	BRACKET; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (C)	1-53497-340-1	01	1	9002-		●	●
11	BRACKET; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (D)	1-53497-341-1	01	1	9002-		●	●
11	BRACKET; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A)	1-53497-349-1	01	1	9302-		●	●
11	BRACKET; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-53497-364-0	01	1	9002-			●
12	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M10X25 W/LK WASHER	0-50041-025-0	04	1	9002-9306	●	●	●
12	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M10X35 W/LK WASHER	0-50041-035-0	04	1	9307-	●	●	●
12	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) M10X25 W/LK WASHER	9-01901-025-0	05	1	9002-9204		●	●
12	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) M10X25 W/LK WASHER	0-50041-025-0	05	1	9205-		●	●
12	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) M14X40	9-92051-440-0	02	1	9002-9005		●	●
12	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) M14X40	0-20801-440-0	02	1	9006-		●	●
13	NUT; AIR DRYER AIR DRYER<PS7> M10	9-09110-510-0	04	1	9002-	●	●	●
65	BOLT; PURGE VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-281-0	01	1	9307-9407	●	●	●
65	BOLT; PURGE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-102-0	01	1	9308-9407		●	●
65	BOLT; PURGE VLV AIR DRYER<PS7>	1-48199-102-0	01	1	9408-	●	●	●
68	BODY; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-216-0	01	1	9308-9407		●	●
68	BODY; VALVE AIR DRYER<PS7>	1-48199-216-0	01	1	9408-	●	●	●
70	VALVE; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-105-0	01	1	9308-9407		●	●
70	VALVE; AIR DRYER AIR DRYER<PS7>	1-48199-105-0	01	1	9408-	●	●	●
71	CASE; INNER,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-099-0	01	1	9408-	●	●	●
71	CASE; INNER,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-156-1	01	1	9308-		●	●
72	PLATE; FILTER,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A)	1-48199-097-0	01	1	9408-	●	●	●
72	PLATE; FILTER,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	1-48199-098-0	01	1	9408-	●	●	●
75	COVER; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-201-0	01	1	9408-	●	●	●
75	COVER; CASE,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-167-0	01	1	9308-		●	●
77	WASHER; LK,VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-103-0	01	1	9308-9407		●	●
77	WASHER; LK,VALVE AIR DRYER<PS7>	1-48199-103-0	01	1	9408-	●	●	●
79	BRACKET; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	1-48199-300-0	02	1	9308-9407	●	●	●
79	BRACKET; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-209-0	02	1	9408-	●	●	●
79	BRACKET; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A)	1-48199-313-0	01	1	9308-9407	●	●	●
79	BRACKET; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C)	1-48199-389-0	01	1	9308-9407	●	●	●
79	BRACKET; AIR DRYER SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7>	1-53497-352-1	01	1	9307-	●	●	●
79	BRACKET; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-189-0	02	1	9308-		●	●
79	BRACKET; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. SILENCER SINGLE VERTICAL<N28>	1-53497-363-2	01	1	9307-			●
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-301-0	02	1	9308-9407	●	●	●
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-212-0	02	1	9408-	●	●	●
80	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-190-0	02	1	9308-		●	●
81	BOLT; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-298-0	06	1	9308-9407	●	●	●
81	BOLT; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-208-0	06	1	9408-	●	●	●
81	BOLT; CASE,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-177-0	02	1	9308-		●	●
82	NUT; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	8-94402-611-0	06	1	9308-9407	●	●	●
82	NUT; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-211-0	08	1	9408-	●	●	●
84	SPRING; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-092-0	01	1	9408-	●	●	●
84	SPRING; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-166-0	01	1	9308-		●	●
85	WASHER; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> ID=8.2	9-09150-508-0	06	1	9308-9407	●	●	●
85	WASHER; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-024-0	08	1	9408-	●	●	●
91	GUIDE; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-091-0	02	1	9408-	●	●	●

2 7 70 2 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	REPAIR KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-85576-083-0	01	1	9002-9306	●	●	●
2	REPAIR KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-275-1	01	1	9307-9405	●	●	●
2	REPAIR KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-388-0	01	1	9406-9407	●	●	●
2	REPAIR KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-85576-083-0	01	1	9408-	●	●	●
2	REPAIR KIT; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-85576-055-1	01	1	9002-		●	●
7	RING; SNAP,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-100-0	01	1	9002-9306	●	●	●
7	RING; SNAP,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-100-0	01	1	9408-	●	●	●
7	RING; SNAP,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-154-0	01	1	9002-		●	●
69	GASKET; EXH COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48129-293-0	01	1	9406-9407	●	●	●
70	VALVE; AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-105-0	01	1	9308-9407		●	●
70	VALVE; AIR DRYER AIR DRYER<PS7>	1-48199-105-0	01	1	9408-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
