0-52 — OIL AND VACUUM PIPING; ENGINE (#33788) — 53 parça

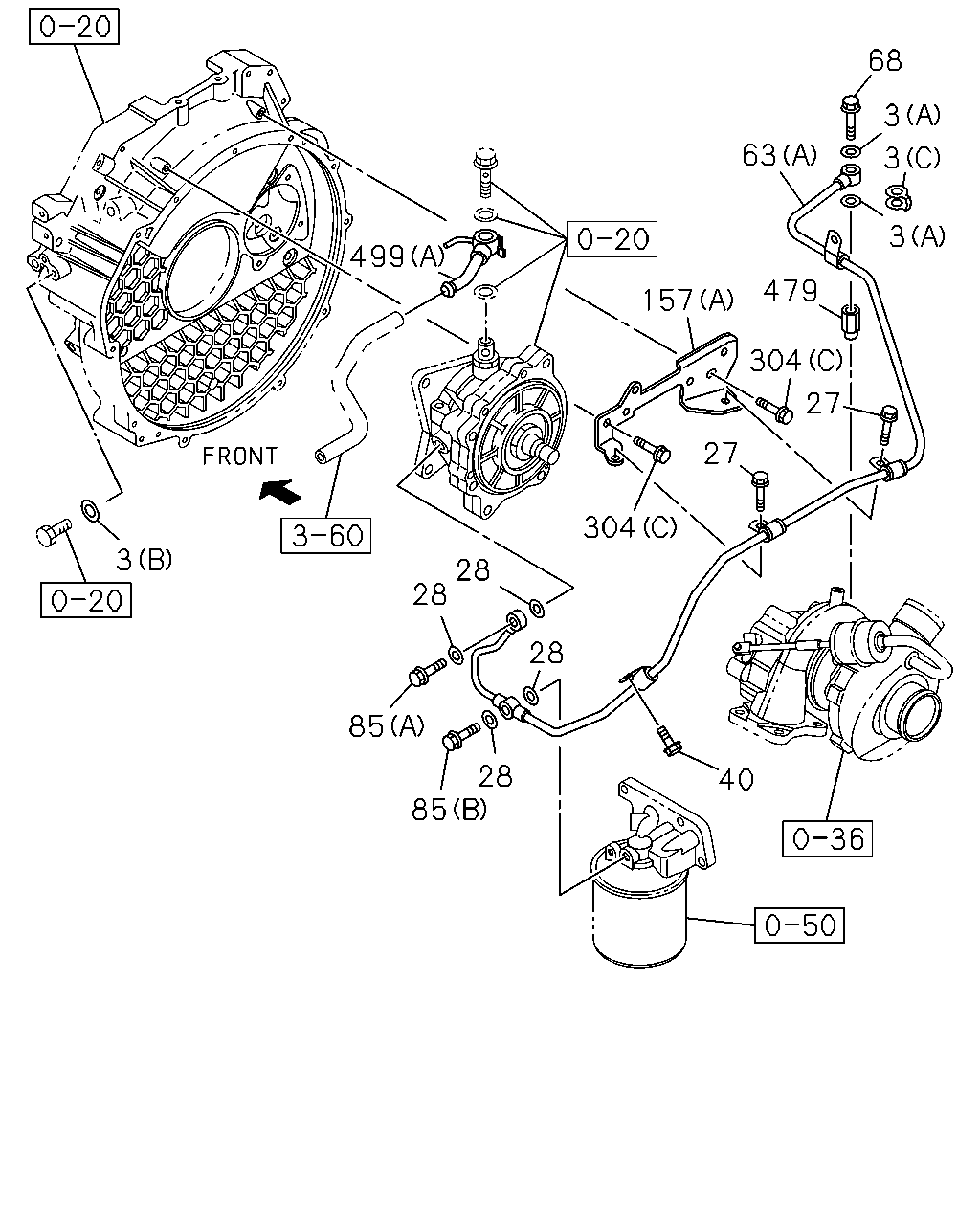

68 3 63 3 3 499 479 157 304 27 27 304 3 28 28 28 85 28 85 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2	1-09630-083-0	01	1	0803-	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2) 08.955 (A) ID=12.2	9-09571-412-0	02	1	0803-1101	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2) (C) ID=12.6	8-97331-137-1	01	1	1102-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 08.955 (A) ID=10.2 OD=16.0	9-09571-410-0	02	1	0803-	●	●
27	01.531 BOLT; OIL PIPE FIX 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0803-	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2) ID=10.2 OD=15.2	1-09630-083-0	04	1	0803-	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) ID=10.2 OD=15.2	1-09630-083-0	02	1	0803-	●	●
40	01.531 BOLT; OIL PIPE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0803-	●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO2 SPECIFICATION(NT2) (A)	8-98092-070-0	01	1	0803-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO4 SPECIFICATION(NT4) (B)	8-97386-643-2	01	1	0803-	●	●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER EURO2 SPECIFICATION(NT2) M12X28 FLANGE	8-97166-518-1	01	1	0803-	●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER EURO4 SPECIFICATION(NT4) M10X26	8-97081-817-0	01	1	0803-0805	●	●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER EURO4 SPECIFICATION(NT4) M10X26	8-98037-825-0	01	1	0806-	●	●
85	01.531 BOLT; EYE,OIL PIPE FIX (B) M10X28	8-98037-823-0	01	1	0803-	●	●
85	01.531 BOLT; EYE,OIL PIPE FIX EURO2 SPECIFICATION(NT2) (A) M10X22	1-09675-028-0	01	1	0803-	●
157	01.519 BRACKET; OIL PIPE EURO2 SPECIFICATION(NT2) (A)	8-98077-403-0	01	1	0803-	●
157	01.519 BRACKET; OIL PIPE EURO4 SPECIFICATION(NT4) (B)	8-98036-534-0	01	1	0803-	●	●
304	01.540 BOLT; BRKT,OIL PIPE EURO2 SPECIFICATION(NT2) 01.531 (C) M8X20 FLANGE	0-28650-820-0	02	1	0803-0811	●
304	01.540 BOLT; BRKT,OIL PIPE EURO2 SPECIFICATION(NT2) 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	0812-	●
304	01.540 BOLT; BRKT,OIL PIPE EURO4 SPECIFICATION(NT4) 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	0803-0811	●	●
304	01.540 BOLT; BRKT,OIL PIPE EURO4 SPECIFICATION(NT4) 02.483 (B) M10X16 FLANGE	0-28051-016-0	02	1	0803-0811	●	●
304	01.540 BOLT; BRKT,OIL PIPE 02.483 (B) M10X16 FLANGE	0-28051-016-0	02	1	0812-1001	●	●
304	01.540 BOLT; BRKT,OIL PIPE 00.029 (B) M10X16 FLANGE	0-28151-016-0	02	1	1002-	●	●
479	01.531 ADAPTER EURO2 SPECIFICATION(NT2) 01.800	8-94436-891-0	01	1	0803-	●
499	04.681 PIPE; VACUUM EURO2 SPECIFICATION(NT2) (A)	8-98075-832-0	01	1	0803-	●
499	04.681 PIPE; VACUUM EURO4 SPECIFICATION(NT4) (B)	8-98040-104-2	01	1	0803-	●	●

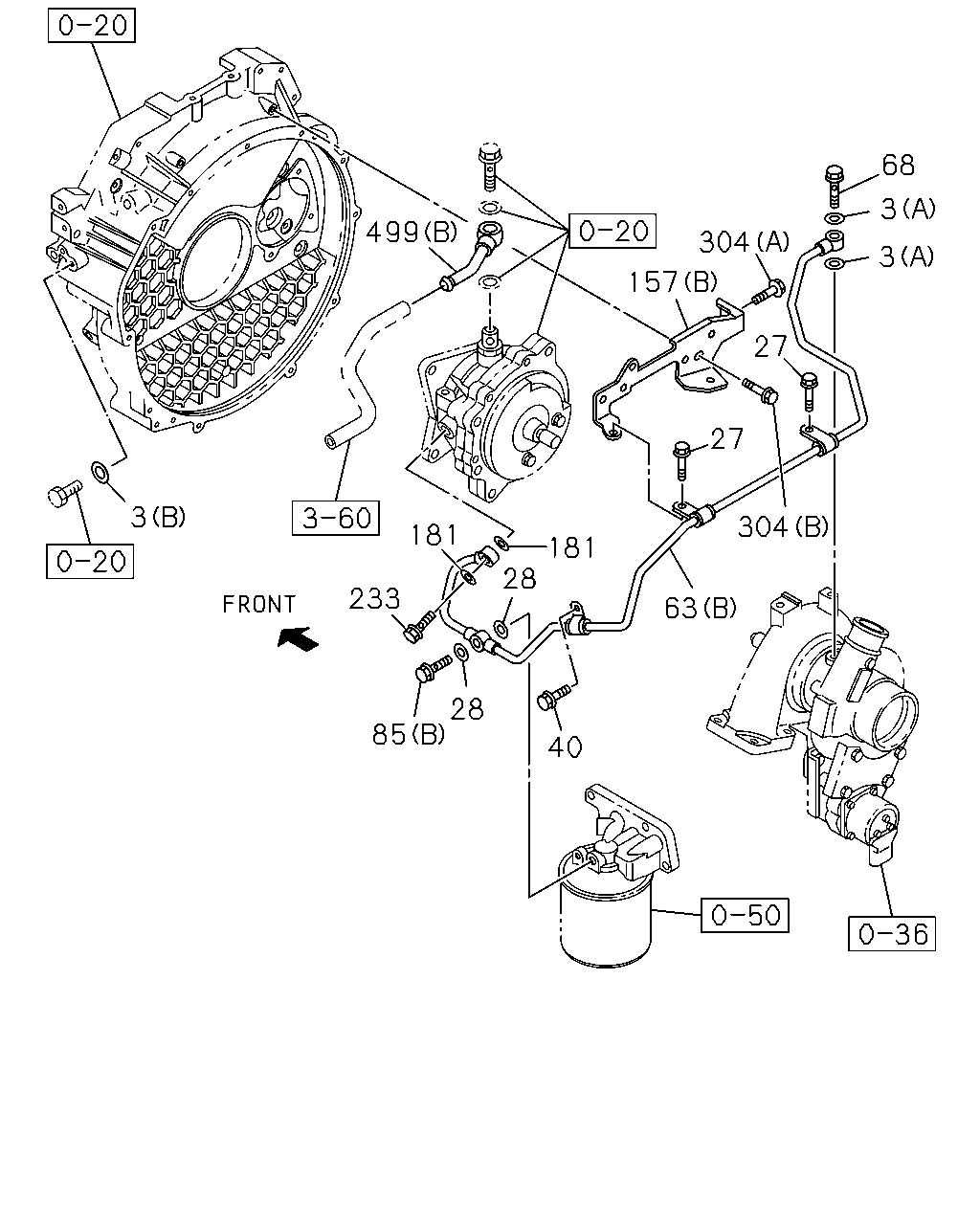

68 3 499 304 3 157 27 27 3 304 181 181 28 233 63 28 85 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2	1-09630-083-0	01	1	0803-	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2) 08.955 (A) ID=12.2	9-09571-412-0	02	1	0803-1101	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2) (C) ID=12.6	8-97331-137-1	01	1	1102-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 08.955 (A) ID=10.2 OD=16.0	9-09571-410-0	02	1	0803-	●	●
27	01.531 BOLT; OIL PIPE FIX 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0803-	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2) ID=10.2 OD=15.2	1-09630-083-0	04	1	0803-	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) ID=10.2 OD=15.2	1-09630-083-0	02	1	0803-	●	●
40	01.531 BOLT; OIL PIPE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0803-	●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO2 SPECIFICATION(NT2) (A)	8-98092-070-0	01	1	0803-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO4 SPECIFICATION(NT4) (B)	8-97386-643-2	01	1	0803-	●	●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER EURO2 SPECIFICATION(NT2) M12X28 FLANGE	8-97166-518-1	01	1	0803-	●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER EURO4 SPECIFICATION(NT4) M10X26	8-97081-817-0	01	1	0803-0805	●	●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER EURO4 SPECIFICATION(NT4) M10X26	8-98037-825-0	01	1	0806-	●	●
85	01.531 BOLT; EYE,OIL PIPE FIX (B) M10X28	8-98037-823-0	01	1	0803-	●	●
85	01.531 BOLT; EYE,OIL PIPE FIX EURO2 SPECIFICATION(NT2) (A) M10X22	1-09675-028-0	01	1	0803-	●
157	01.519 BRACKET; OIL PIPE EURO2 SPECIFICATION(NT2) (A)	8-98077-403-0	01	1	0803-	●
157	01.519 BRACKET; OIL PIPE EURO4 SPECIFICATION(NT4) (B)	8-98036-534-0	01	1	0803-	●	●
181	01.531 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) ID=10.2 OD=15.2	1-09630-083-0	04	1	0803-	●	●
233	01.531 BOLT; EYE EURO4 SPECIFICATION(NT4) M10X22	1-09675-028-0	01	1	0803-	●	●
304	01.540 BOLT; BRKT,OIL PIPE EURO2 SPECIFICATION(NT2) 01.531 (C) M8X20 FLANGE	0-28650-820-0	02	1	0803-0811	●
304	01.540 BOLT; BRKT,OIL PIPE EURO2 SPECIFICATION(NT2) 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	0812-	●
304	01.540 BOLT; BRKT,OIL PIPE EURO4 SPECIFICATION(NT4) 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	0803-0811	●	●
304	01.540 BOLT; BRKT,OIL PIPE EURO4 SPECIFICATION(NT4) 02.483 (B) M10X16 FLANGE	0-28051-016-0	02	1	0803-0811	●	●
304	01.540 BOLT; BRKT,OIL PIPE 02.483 (B) M10X16 FLANGE	0-28051-016-0	02	1	0812-1001	●	●
304	01.540 BOLT; BRKT,OIL PIPE 00.029 (B) M10X16 FLANGE	0-28151-016-0	02	1	1002-	●	●
499	04.681 PIPE; VACUUM EURO2 SPECIFICATION(NT2) (A)	8-98075-832-0	01	1	0803-	●
499	04.681 PIPE; VACUUM EURO4 SPECIFICATION(NT4) (B)	8-98040-104-2	01	1	0803-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
