0-50 — OIL COOLER AND OIL FILTER (#33786) — 25 parça

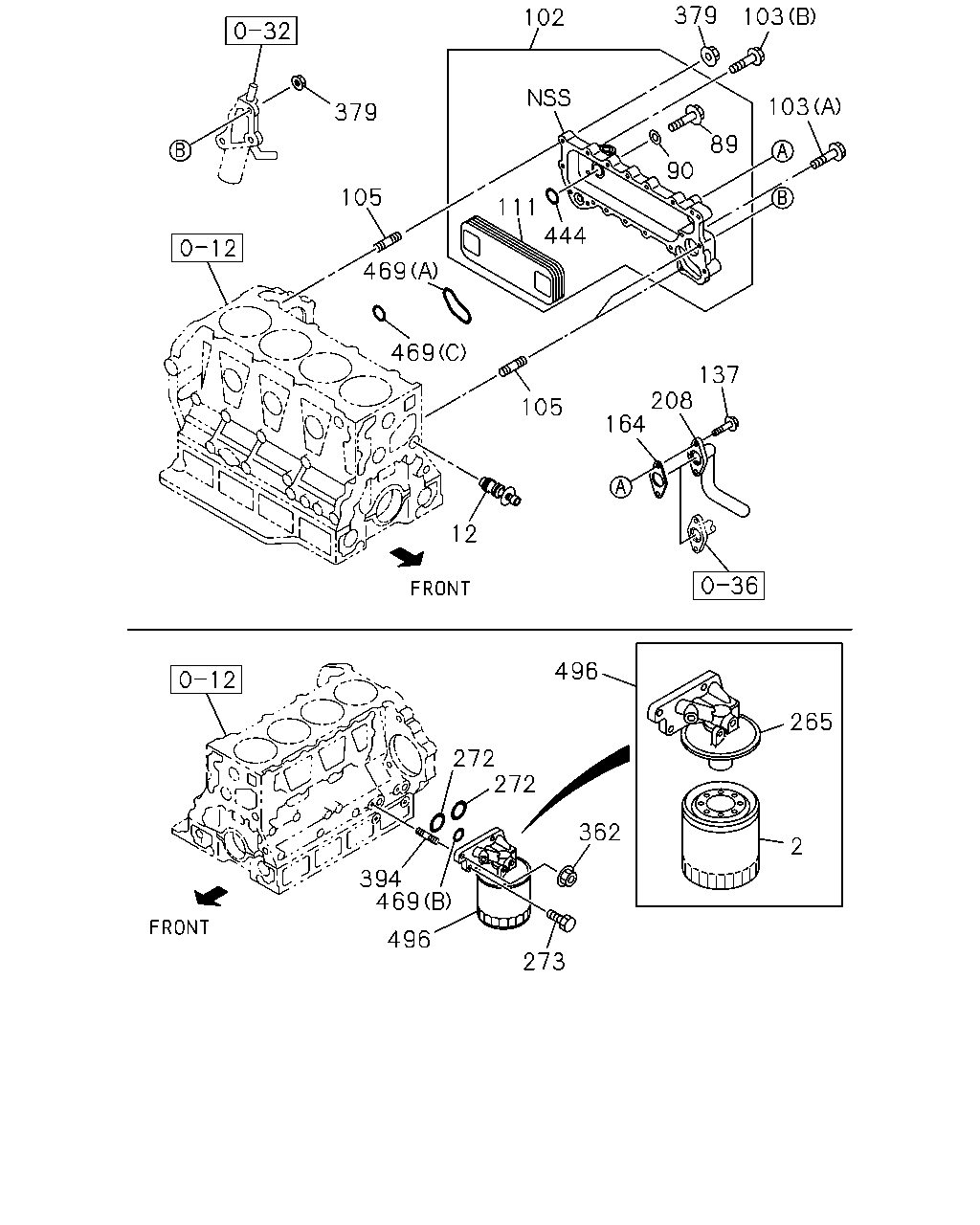

çizim 120786
379 103 102 103 379 89 90 105 111 444 469 469 137 208 164 105 12 496 265 272 272 362 2 394 469 496 273
BalonParca AdiParca NoAdetTipApplied Date A B
2 01.836 ELEMENT; OIL FILTER 8-97148-270-1 01 1 0803- ● ●
2 01.836 ELEMENT; OIL FILTER
BEST VALUE PARTS 		5-87610-031-0 01 1 0803- ● ●
12 01.540 VALVE ASM; BYPASS 8-97013-566-2 01 1 0803- ● ●
89 01.540 BOLT; ELEMENT TO CASE
02.343 M8X16 FLANGE 		0-28050-816-0 04 1 0803- ● ●
90 01.540 GASKET; BOLT,OIL COOLER
01.550 		1-21729-043-0 04 1 0803- ● ●
102 01.540 COOLER ASM; OIL 8-98085-312-5 01 1 0803- ● ●
103 01.540 BOLT; OIL COOLER
04.338 (A) M8X20 FLANGE 		0-28050-820-0 08 1 0803- ● ●
103 01.540 BOLT; OIL COOLER
03.162 (B) M8X35 FLANGE 		0-28050-835-0 08 1 0803- ● ●
105 01.540 STUD; OIL COOLER
M8X52 L=63 		8-97016-314-0 03 1 0803- ● ●
111 01.540 CORE; OIL COOLER 8-97334-100-2 01 1 0803- ● ●
137 01.840 BOLT
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0803- ● ●
164 01.550 GASKET; HTR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97146-684-0 01 1 0803- ● ●
208 01.540 PIPE; WATER,HTR
EURO2 SPECIFICATION(NT2) 		8-97146-519-0 01 1 0803- ●
265 01.837 BODY; OIL FILTER 8-97096-677-4 01 1 0803- ● ●
272 01.844 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1 		8-94399-399-0 02 1 0803- ● ●
273 01.840 BOLT; OIL FILTER
M10X30 		0-59311-030-0 03 1 0803-0805 ● ●
273 01.840 BOLT; OIL FILTER
M10X30 		0-59331-030-0 03 1 0806- ● ●
362 01.837 NUT; OIL FILTER
03.162 M10 FLANGE 		0-91180-110-0 01 1 0803- ● ●
379 01.540 NUT; OIL COOLER
01.062 M8 FLANGE 		0-91180-108-0 03 1 0803- ● ●
394 01.837 STUD; OIL FILTER
M10X25 L=48.5 		0-49241-025-0 01 1 0803- ● ●
444 01.550 GASKET; ELEMENT TO BODY 8-97384-130-0 02 1 0803- ● ●
469 01.550 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94338-878-1 01 1 0803- ● ●
469 01.550 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 01.844 (B) ID=9.8 		8-94399-339-0 01 1 0803- ● ●
469 01.550 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE 		8-98045-447-0 01 1 0803- ● ●
496 01.835 FILTER ASM; OIL 8-97148-268-4 01 1 0803- ● ●
