Isuzu WW
▶
TRUCKS
▶
NPR
▶
51156 - NPR BUS(LHD)
▶
0 - Engine, Emission, Engine Electrical
▶
0-42 - FUEL PUMP AND PIPE
▶

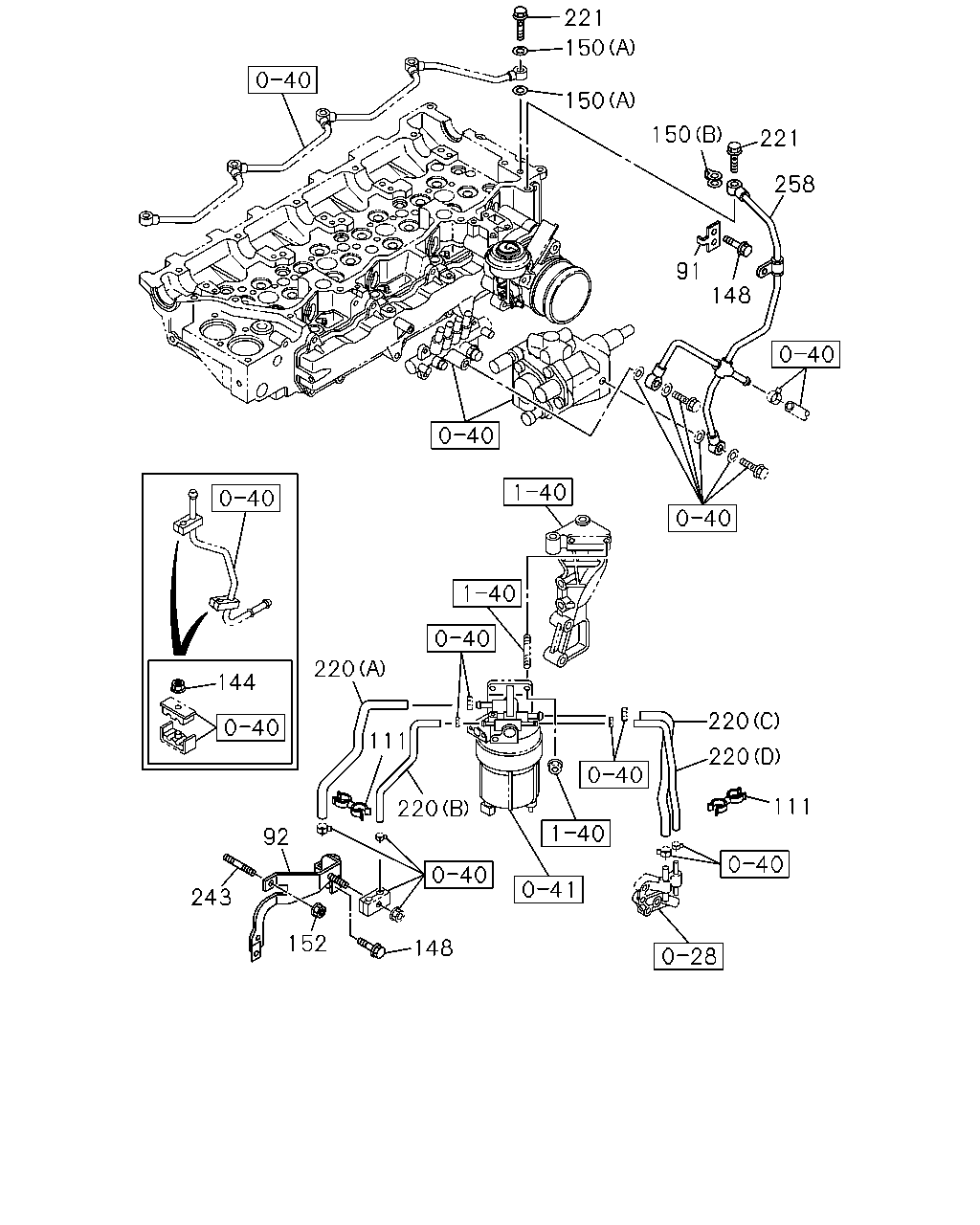

0-42 — FUEL PUMP AND PIPE
(#33785) — 19 parça
Tümü
A - 4HK1-TCN ENG
B - 4HK1-TCS ENG
221
150
150
150
221
258
148
91
220
220
111
220
220
152
148
92
243
144
111
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
91
03.162 BRACKET; FUEL PIPE TO INL MANIF
8-98033-979-0
01
1
0803-
●
●
92
03.162 BRACKET; FUEL PIPE
8-98051-532-1
01
1
0803-
●
●
111
03.162 CLIP; FUEL PIPE
02.589 ID=13 & 16.5
8-94169-028-0
03
1
0803-
●
●
144
03.162 NUT; CLIP
01.062 M6 FLANGE
0-91180-106-0
03
1
0803-
●
●
148
03.162 BOLT; BRKT
M6X12 FLANGE
0-28050-612-0
03
1
0803-
●
●
150
03.162 GASKET; FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.531 (A) ID=10.2 OD=15.2
1-09630-083-0
02
1
0803-
●
●
150
03.162 GASKET; FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.531 (B) ID=10.6
8-97240-975-0
01
1
0803-0908
●
●
150
03.162 GASKET; FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=10.2 OD=17
8-98079-755-0
01
1
0909-
●
●
152
03.890 NUT; BRKT
01.062 M8 FLANGE
0-91180-108-0
01
1
0803-
●
●
220
03.163 HOSE; FUEL
(C)
8-98036-180-3
01
1
0803-
●
●
220
03.163 HOSE; FUEL
(D)
8-98036-181-2
01
1
0803-
●
●
220
03.163 HOSE; FUEL
EURO2 SPECIFICATION(NT2) (A)
8-98076-056-1
01
1
0803-
●
220
03.163 HOSE; FUEL
EURO2 SPECIFICATION(NT2) (B)
8-98076-057-1
01
1
0803-
●
220
03.163 HOSE; FUEL
EURO4 SPECIFICATION(NT4) (A)
8-98029-244-0
01
1
0803-0812
●
●
220
03.163 HOSE; FUEL
EURO4 SPECIFICATION(NT4) (A)
8-98126-627-1
01
1
0901-
●
●
220
03.163 HOSE; FUEL
EURO4 SPECIFICATION(NT4) (B)
8-98029-245-1
01
1
0803-
●
●
221
03.163 BOLT; FUEL PIPE
01.531 M10X21 FLANGE
8-94396-711-0
02
1
0803-
●
●
243
03.278 STUD; BRKT
00.413 M8X15,M8X17 L=40
8-98009-913-0
01
1
0803-
●
●
258
03.163 PIPE ASM; FUEL,LEAK OFF
8-98033-718-0
01
1
0803-
●
●
