Sayfa 0-41 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51156 - NPR BUS(LHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-41 - FUEL FILTER AND BRACKET ▶

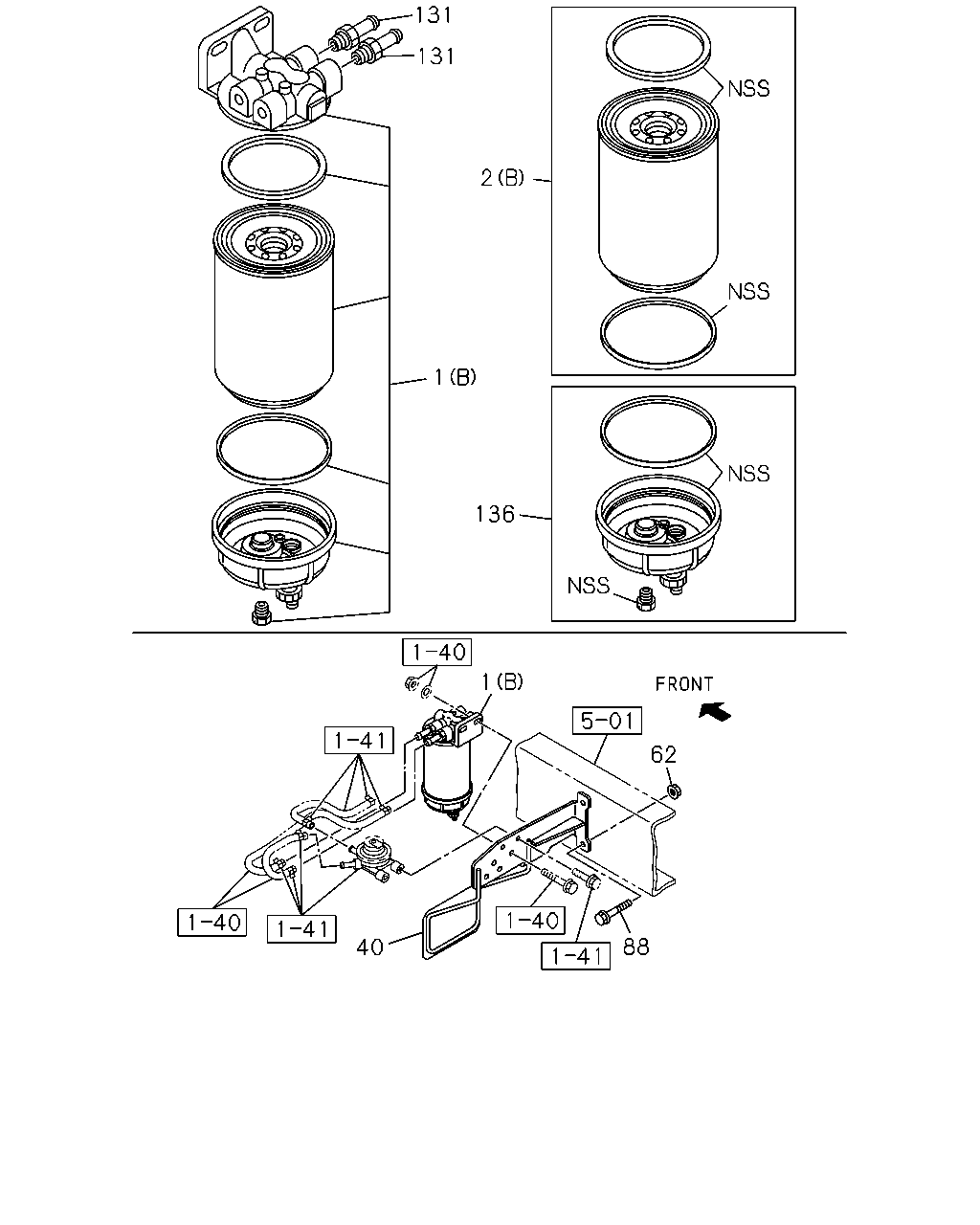

0-41 — FUEL FILTER AND BRACKET (#33784) — 30 parça

131 131 2 1 136 1 62 88 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.890 FILTER ASM; FUEL (A)	8-98060-050-1	01	1	0803-0912	●	●
1	03.890 FILTER ASM; FUEL (A)	8-98162-903-3	01	1	1001-	●	●
1	03.890 FILTER ASM; FUEL POOR QUALITY DIESEL FUEL(KF0) (B)	8-98095-980-1	01	1	0803-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98037-011-0	01	1	0803-0912	●	●
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98162-897-0	01	1	1001-1112	●	●
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98203-599-0	01	1	1201-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER POOR QUALITY DIESEL FUEL(KF0) (B)	8-98095-983-0	01	1	0803-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER (A) BEST VALUE PARTS	1-87610-093-0	01	1	1201-	●	●
40	03.890 BRACKET; FUEL FILTER POOR QUALITY DIESEL FUEL(KF0)	8-98107-354-3	01	1	0803-	●	●
62	03.895 NUT; FUEL FILTER POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	0803-	●	●
88	03.895 BOLT; BRKT,FUEL FILTER POOR QUALITY DIESEL FUEL(KF0) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0803-1009	●	●
88	03.895 BOLT; BRKT,FUEL FILTER POOR QUALITY DIESEL FUEL(KF0) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1010-	●	●
131	03.890 PIPE; FILTER POOR QUALITY DIESEL FUEL(KF0) 01.153	8-97358-699-0	02	1	0803-0908	●	●
131	03.890 PIPE; FILTER POOR QUALITY DIESEL FUEL(KF0) NPTF3/8-18 OD=10	8-98122-953-0	02	1	0909-	●	●
136	03.890 CAP KIT; FUEL FILTER POOR QUALITY DIESEL FUEL(KF0)	8-98096-004-0	01	1	0803-1408	●	●
136	03.890 CAP KIT; FUEL FILTER POOR QUALITY DIESEL FUEL(KF0)	8-98279-324-0	01	1	1409-	●	●

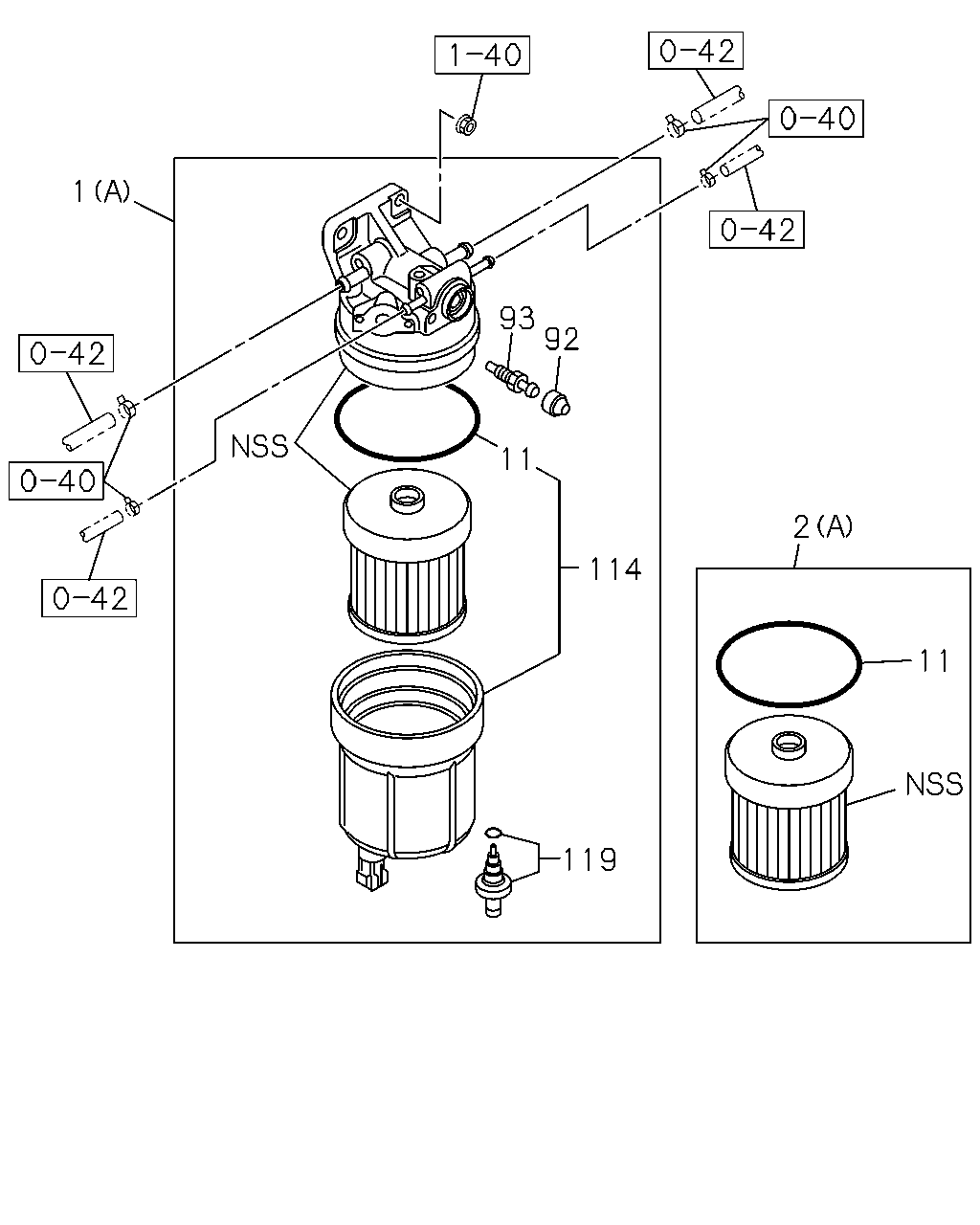

1 93 11 92 114 119 2 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.890 FILTER ASM; FUEL (A)	8-98060-050-1	01	1	0803-0912	●	●
1	03.890 FILTER ASM; FUEL (A)	8-98162-903-3	01	1	1001-	●	●
1	03.890 FILTER ASM; FUEL POOR QUALITY DIESEL FUEL(KF0) (B)	8-98095-980-1	01	1	0803-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98037-011-0	01	1	0803-0912	●	●
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98162-897-0	01	1	1001-1112	●	●
2	03.890 ELEMENT KIT; FUEL FILTER (A)	8-98203-599-0	01	1	1201-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER POOR QUALITY DIESEL FUEL(KF0) (B)	8-98095-983-0	01	1	0803-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER (A) BEST VALUE PARTS	1-87610-093-0	01	1	1201-	●	●
11	03.890 GASKET; CASE TO BODY,FUEL FILTER	8-98037-015-0	01	1	0803-1112	●	●
11	03.890 GASKET; CASE TO BODY,FUEL FILTER	8-98203-600-0	01	1	1201-	●	●
92	03.417 CAP; FUEL FILTER	8-98034-314-0	01	1	0803-	●	●
93	03.890 CONNECTOR; FUEL FILTER M8X10	8-98034-312-0	01	1	0803-	●	●
114	03.890 CASE ASM; FUEL FILTER	8-98039-987-1	01	1	0803-	●	●
119	03.890 PLUG; DRAIN,FUEL FILTER	8-98037-095-0	01	1	0803-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
