Sayfa 0-36 - Isuzu EPC

0-36 — TURBOCHARGER SYSTEM (#33781) — 194 parça

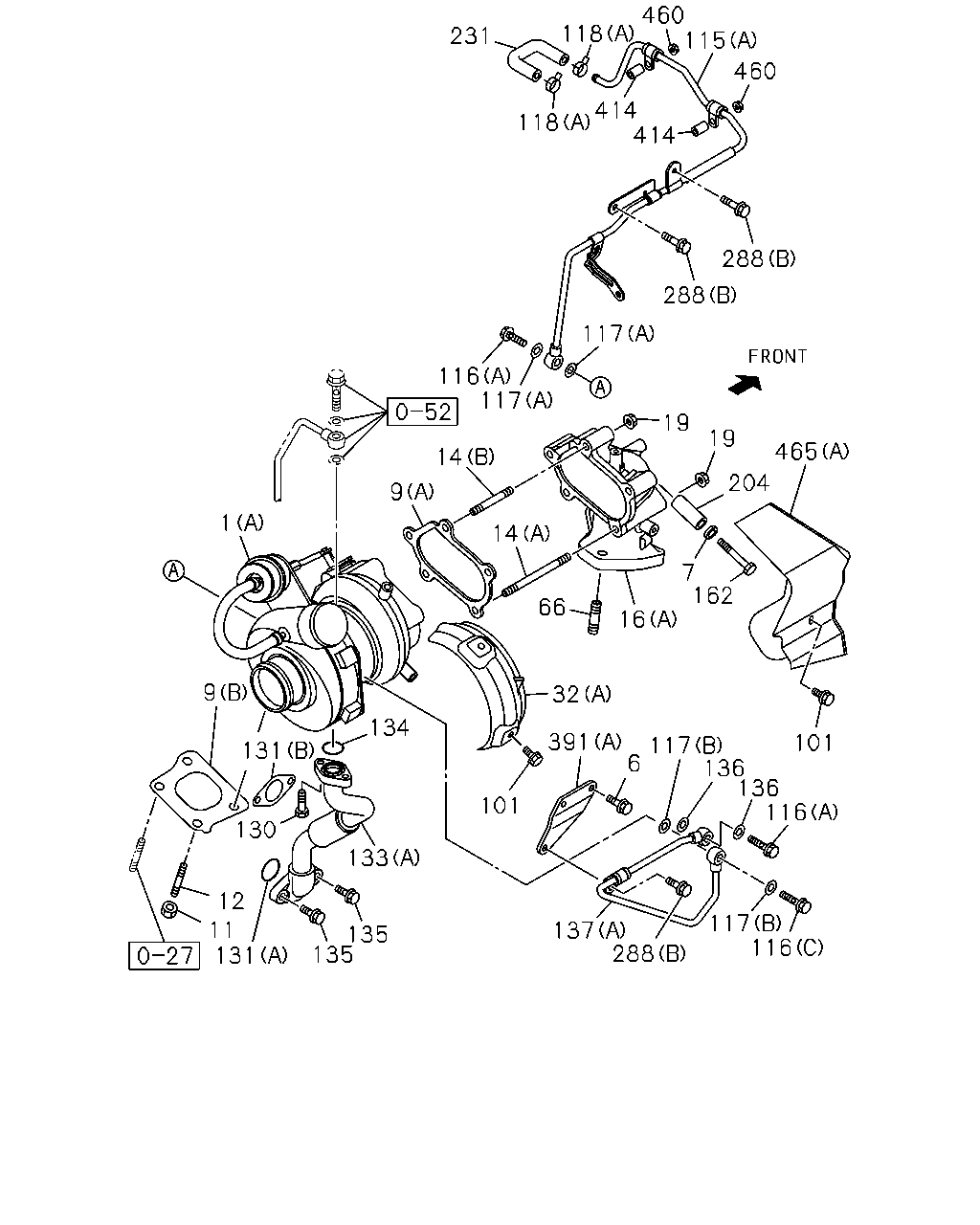

116 117 116 136 136 117 6 391 32 101 137 288 101 162 7 16 66 14 14 9 1 9 131 134 133 130 135 135 131 11 12 204 465 19 19 117 288 288 117 116 118 118 414 414 460 115 460 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) (A) SEE FIG-NO 0-37 FOR COMPONENT.	8-98079-569-2	01	1	0803-	●
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4) (B)	8-98027-772-5	01	1	0803-	●	●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) (A) SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-1	01	1	0803-0803		●
6	03.417 BOLT; BRKT TO C/BL 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0803-	●	●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0803-	●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION(NT2) (A)	8-97039-777-1	01	1	0803-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION(NT2) (B)	8-97374-412-0	01	1	0803-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION(NT4) (C)	8-97376-758-0	01	1	0803-	●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION(NT4) (D)	8-98046-241-0	01	1	0803-	●	●
11	03.342 NUT; TURBOCHARGER EURO2 SPECIFICATION(NT2) M10 P=1.5 H=8	9-09842-007-0	04	1	0803-	●
11	03.342 NUT; TURBOCHARGER EURO4 SPECIFICATION(NT4) M10	1-09420-005-0	04	1	0803-0805	●	●
11	03.342 NUT; TURBOCHARGER EURO4 SPECIFICATION(NT4) 03.604 M10 FLANGE	8-97381-617-0	04	1	0806-	●	●
12	03.342 STUD; TURBOCHARGER EURO2 SPECIFICATION(NT2) M10X28	9-04731-028-0	02	1	0803-	●
12	03.342 STUD; TURBOCHARGER EURO4 SPECIFICATION(NT4) M10X30,M10X22.5 L=45	9-04731-030-0	02	1	0803-0805	●	●
12	03.342 STUD; TURBOCHARGER EURO4 SPECIFICATION(NT4) M10X30 L=45	1-09302-106-0	02	1	0806-	●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0803-	●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EURO2 SPECIFICATION(NT2) (A) M8X94 L=108	8-97019-477-0	02	1	0803-	●
16	03.609 ADAPTER; EXH PIPE EURO2 SPECIFICATION(NT2) (A)	8-97039-749-2	01	1	0803-	●
16	03.609 ADAPTER; EXH PIPE EURO4 SPECIFICATION(NT4) (B)	8-98030-080-3	01	1	0803-	●	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER EURO2 SPECIFICATION(NT2) 03.604 M8 FLANGE	8-94170-486-0	05	1	0803-	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER EURO4 SPECIFICATION(NT4) 03.604 M8 FLANGE	8-94170-486-0	03	1	0803-	●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO2 SPECIFICATION(NT2) (A)	8-97351-168-0	01	1	0803-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO4 SPECIFICATION(NT4) (B)	8-98031-888-3	01	1	0803-	●	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0803-	●	●
101	03.602 BOLT; HEAT PROTECTOR M6X12 W/PL WASHER	8-98054-289-0	06	1	0803-	●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION(NT2) (A)	8-98096-928-0	01	1	0803-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO4 SPECIFICATION(NT4) (B)	8-98085-187-0	01	1	0803-	●	●
116	03.342 BOLT; WATER PIPE 01.531 (C) M12X24 EYE-BOLT	1-09675-081-0	01	1	0803-0803	●	●
116	03.342 BOLT; WATER PIPE EURO4 SPECIFICATION(NT4) 01.531 (C) M12X24 EYE-BOLT	1-09675-081-0	01	1	0803-0803	●	●
116	03.342 BOLT; WATER PIPE 01.531 (C) M12X24 EYE-BOLT	1-09675-081-0	01	1	0803-0804	●	●
116	03.342 BOLT; WATER PIPE EURO4 SPECIFICATION(NT4) 01.531 (C) M12X24 EYE-BOLT	1-09675-081-0	02	1	0805-	●	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	02	1	0803-0804	●	●
116	03.342 BOLT; WATER PIPE EURO4 SPECIFICATION(NT4) (A) M14X30 EYE-BOLT	8-94455-144-0	01	1	0805-	●	●
116	03.342 BOLT; WATER PIPE EURO2 SPECIFICATION(NT2) (A) M14X30 EYE-BOLT	8-94455-144-0	01	1	0803-0804	●
116	03.342 BOLT; WATER PIPE EURO2 SPECIFICATION(NT2) (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0805-	●
116	03.342 BOLT; WATER PIPE EURO4 SPECIFICATION(NT4) 02.343 (D) M8X16 FLANGE	0-28050-816-0	01	1	0803-	●	●
116	03.342 BOLT; WATER PIPE EURO4 SPECIFICATION(NT4) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0803-	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-412-0	02	1	0803-0803	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 08.955 (A) ID=12.2	9-09571-412-0	02	1	0803-0803	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=12.2	9-09571-412-0	02	1	0803-0804	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 08.955 (A) ID=12.2	9-09571-412-0	04	1	0805-	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2) 08.955 (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0803-0803	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2) 08.955 (B) ID=14.2 OD=20.0	9-09571-414-0	04	1	0804-	●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0803-	●	●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION(NT4) 08.846 (B) ID=20	1-09707-084-1	06	1	0803-	●	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D M6X20 W/LK WASHER	0-50540-620-0	02	1	0803-	●	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7	9-09566-228-0	01	1	0803-1006	●	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=30	8-94394-671-0	01	1	1007-	●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EURO2 SPECIFICATION(NT2) (A)	8-97148-925-2	01	1	0803-1006	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EURO2 SPECIFICATION(NT2) (A)	8-98172-658-0	01	1	1007-	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EURO4 SPECIFICATION(NT4) (B)	8-97386-642-1	01	1	0803-1006	●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EURO4 SPECIFICATION(NT4) (B)	8-98172-661-0	01	1	1007-	●	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0803-	●	●
135	01.531 BOLT; OIL PIPE TO C/BL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	0803-	●	●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0803-1312	●	●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO2 SPECIFICATION(NT2) (A)	8-98063-840-0	01	1	0803-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO4 SPECIFICATION(NT4) (B)	8-97387-271-0	01	1	0803-	●	●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0803-	●	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0803-	●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0803-	●	●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (B) M8X12 FLANGE	0-28050-812-0	01	1	0803-	●	●
288	03.342 BOLT; WATER PIPE CLIP EURO2 SPECIFICATION(NT2) 02.343 (B) M8X12 FLANGE	0-28050-812-0	02	1	0803-	●
288	03.342 BOLT; WATER PIPE CLIP EURO4 SPECIFICATION(NT4) 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	0803-	●	●
391	03.342 BRACKET; WATER PIPE (A)	8-97371-730-0	01	1	0803-	●	●
391	03.342 BRACKET; WATER PIPE EURO4 SPECIFICATION(NT4) (B)	8-98013-958-0	01	1	0803-	●	●
414	03.602 SPACER EURO2 SPECIFICATION(NT2) 01.429 M8X10	1-11369-081-0	02	1	0803-	●
460	03.374 NUT; PIPE EURO2 SPECIFICATION(NT2) 01.062 M8 FLANGE	0-91180-108-0	02	1	0803-	●
465	03.602 PROTECTOR; HEAT,EXH ADAPTER EURO2 SPECIFICATION(NT2) 03.417 (A)	8-97351-167-0	01	1	0803-1204	●
465	03.602 PROTECTOR; HEAT,EXH ADAPTER EURO2 SPECIFICATION(NT2) (A)	8-98176-248-0	01	1	1205-	●
465	03.602 PROTECTOR; HEAT,EXH ADAPTER EURO4 SPECIFICATION(NT4) 03.417 (B)	8-98052-394-0	01	1	0803-	●	●

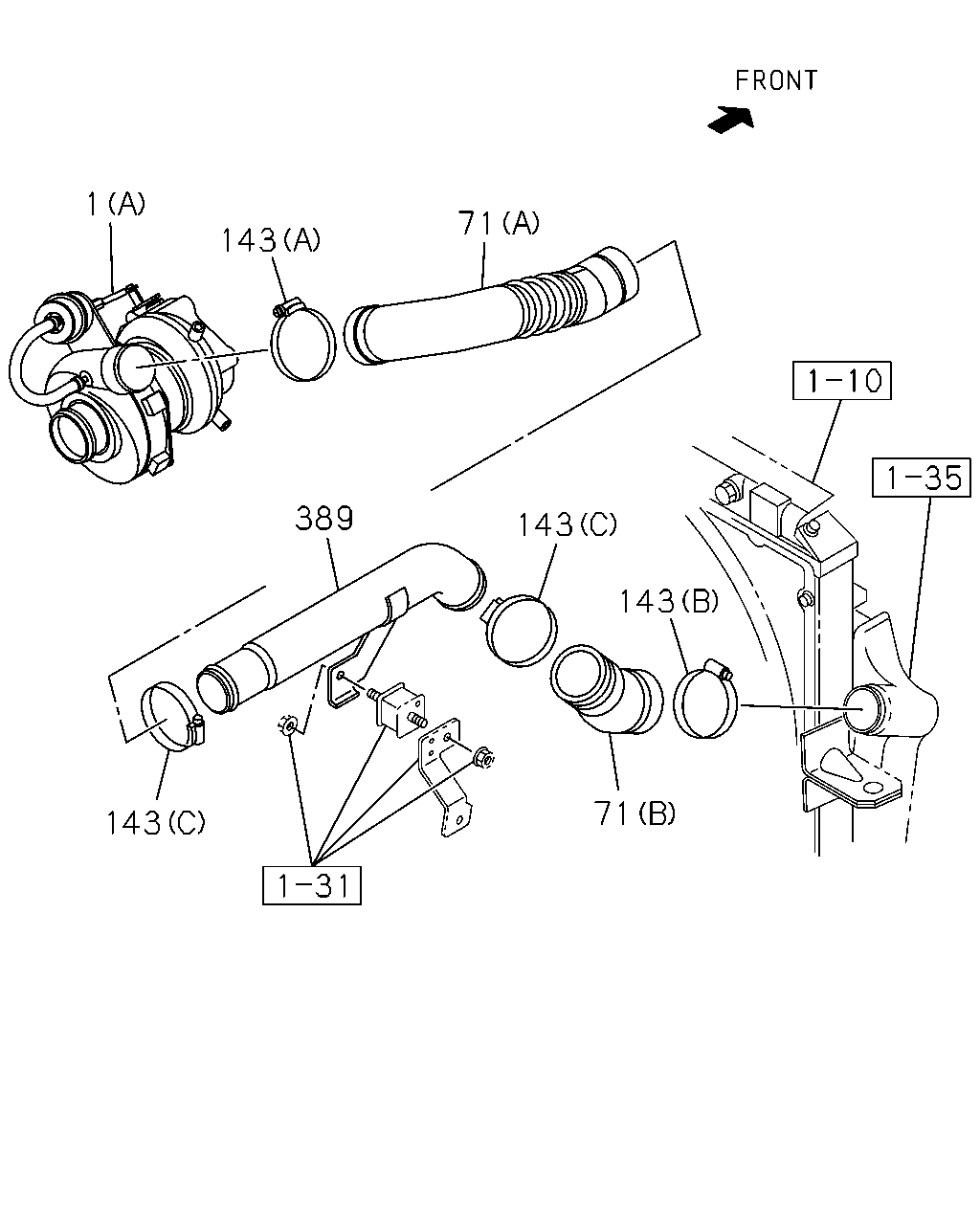

1 71 143 389 143 143 71 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) (A) SEE FIG-NO 0-37 FOR COMPONENT.	8-98079-569-2	01	1	0803-	●
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4) (B)	8-98027-772-5	01	1	0803-	●	●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) (A) SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-1	01	1	0803-0803		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO2 SPECIFICATION(NT2) (A)	8-98059-964-1	01	1	0803-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO2 SPECIFICATION(NT2) (B)	8-98107-509-1	01	1	0803-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO4 SPECIFICATION(NT4) (C)	8-98006-133-2	01	1	0803-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO4 SPECIFICATION(NT4) (D)	8-98039-732-3	01	1	0803-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=60-65	8-98096-418-0	02	1	0901-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	0901-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=68-85	1-09707-202-0	01	1	0803-0810	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=65-85	8-98133-350-0	01	1	0811-0812	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (B) ID=65-85	8-98133-350-0	01	1	0901-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 01.159 (C) ID=58-76	1-09707-203-0	02	1	0803-0811	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=55-75	8-98133-349-0	02	1	0812-0812	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (C) ID=45-65	8-98133-348-0	02	1	0901-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=60-65	8-98096-418-0	01	1	0803-	●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98042-688-1	01	1	0803-	●	●

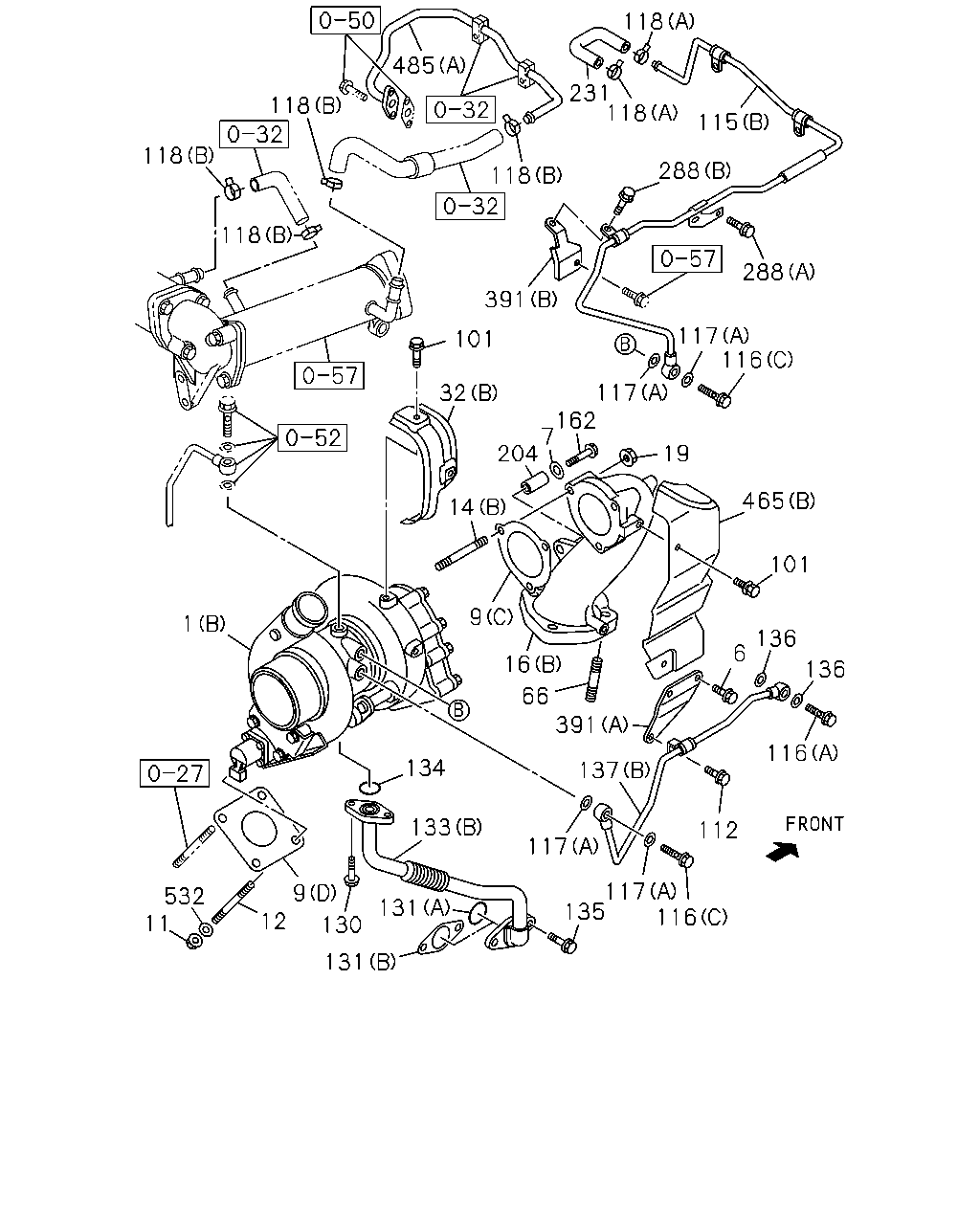

118 118 118 118 118 118 115 485 231 288 288 391 101 32 204 14 7 162 117 117 116 19 465 101 136 136 6 9 16 66 391 137 134 133 1 116 112 117 117 116 135 131 9 12 11 532 131 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) (A) SEE FIG-NO 0-37 FOR COMPONENT.	8-98079-569-2	01	1	0803-	●
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4) (B)	8-98027-772-5	01	1	0803-	●	●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) (A) SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-1	01	1	0803-0803		●
6	03.417 BOLT; BRKT TO C/BL 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0803-	●	●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0803-	●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION(NT2) (A)	8-97039-777-1	01	1	0803-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION(NT2) (B)	8-97374-412-0	01	1	0803-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION(NT4) (C)	8-97376-758-0	01	1	0803-	●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION(NT4) (D)	8-98046-241-0	01	1	0803-	●	●
11	03.342 NUT; TURBOCHARGER EURO2 SPECIFICATION(NT2) M10 P=1.5 H=8	9-09842-007-0	04	1	0803-	●
11	03.342 NUT; TURBOCHARGER EURO4 SPECIFICATION(NT4) M10	1-09420-005-0	04	1	0803-0805	●	●
11	03.342 NUT; TURBOCHARGER EURO4 SPECIFICATION(NT4) 03.604 M10 FLANGE	8-97381-617-0	04	1	0806-	●	●
12	03.342 STUD; TURBOCHARGER EURO2 SPECIFICATION(NT2) M10X28	9-04731-028-0	02	1	0803-	●
12	03.342 STUD; TURBOCHARGER EURO4 SPECIFICATION(NT4) M10X30,M10X22.5 L=45	9-04731-030-0	02	1	0803-0805	●	●
12	03.342 STUD; TURBOCHARGER EURO4 SPECIFICATION(NT4) M10X30 L=45	1-09302-106-0	02	1	0806-	●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0803-	●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EURO2 SPECIFICATION(NT2) (A) M8X94 L=108	8-97019-477-0	02	1	0803-	●
16	03.609 ADAPTER; EXH PIPE EURO2 SPECIFICATION(NT2) (A)	8-97039-749-2	01	1	0803-	●
16	03.609 ADAPTER; EXH PIPE EURO4 SPECIFICATION(NT4) (B)	8-98030-080-3	01	1	0803-	●	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER EURO2 SPECIFICATION(NT2) 03.604 M8 FLANGE	8-94170-486-0	05	1	0803-	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER EURO4 SPECIFICATION(NT4) 03.604 M8 FLANGE	8-94170-486-0	03	1	0803-	●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO2 SPECIFICATION(NT2) (A)	8-97351-168-0	01	1	0803-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO4 SPECIFICATION(NT4) (B)	8-98031-888-3	01	1	0803-	●	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0803-	●	●
101	03.602 BOLT; HEAT PROTECTOR M6X12 W/PL WASHER	8-98054-289-0	06	1	0803-	●	●
112	03.417 BOLT; CLIP EURO4 SPECIFICATION(NT4) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0803-	●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION(NT2) (A)	8-98096-928-0	01	1	0803-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO4 SPECIFICATION(NT4) (B)	8-98085-187-0	01	1	0803-	●	●
116	03.342 BOLT; WATER PIPE 01.531 (C) M12X24 EYE-BOLT	1-09675-081-0	01	1	0803-0803	●	●
116	03.342 BOLT; WATER PIPE EURO4 SPECIFICATION(NT4) 01.531 (C) M12X24 EYE-BOLT	1-09675-081-0	01	1	0803-0803	●	●
116	03.342 BOLT; WATER PIPE 01.531 (C) M12X24 EYE-BOLT	1-09675-081-0	01	1	0803-0804	●	●
116	03.342 BOLT; WATER PIPE EURO4 SPECIFICATION(NT4) 01.531 (C) M12X24 EYE-BOLT	1-09675-081-0	02	1	0805-	●	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	02	1	0803-0804	●	●
116	03.342 BOLT; WATER PIPE EURO4 SPECIFICATION(NT4) (A) M14X30 EYE-BOLT	8-94455-144-0	01	1	0805-	●	●
116	03.342 BOLT; WATER PIPE EURO2 SPECIFICATION(NT2) (A) M14X30 EYE-BOLT	8-94455-144-0	01	1	0803-0804	●
116	03.342 BOLT; WATER PIPE EURO2 SPECIFICATION(NT2) (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0805-	●
116	03.342 BOLT; WATER PIPE EURO4 SPECIFICATION(NT4) 02.343 (D) M8X16 FLANGE	0-28050-816-0	01	1	0803-	●	●
116	03.342 BOLT; WATER PIPE EURO4 SPECIFICATION(NT4) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0803-	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-412-0	02	1	0803-0803	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 08.955 (A) ID=12.2	9-09571-412-0	02	1	0803-0803	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=12.2	9-09571-412-0	02	1	0803-0804	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 08.955 (A) ID=12.2	9-09571-412-0	04	1	0805-	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2) 08.955 (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0803-0803	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2) 08.955 (B) ID=14.2 OD=20.0	9-09571-414-0	04	1	0804-	●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0803-	●	●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION(NT4) 08.846 (B) ID=20	1-09707-084-1	06	1	0803-	●	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D M6X20 W/LK WASHER	0-50540-620-0	02	1	0803-	●	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7	9-09566-228-0	01	1	0803-1006	●	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=30	8-94394-671-0	01	1	1007-	●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EURO2 SPECIFICATION(NT2) (A)	8-97148-925-2	01	1	0803-1006	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EURO2 SPECIFICATION(NT2) (A)	8-98172-658-0	01	1	1007-	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EURO4 SPECIFICATION(NT4) (B)	8-97386-642-1	01	1	0803-1006	●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EURO4 SPECIFICATION(NT4) (B)	8-98172-661-0	01	1	1007-	●	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0803-	●	●
135	01.531 BOLT; OIL PIPE TO C/BL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	0803-	●	●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0803-1312	●	●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO2 SPECIFICATION(NT2) (A)	8-98063-840-0	01	1	0803-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO4 SPECIFICATION(NT4) (B)	8-97387-271-0	01	1	0803-	●	●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0803-	●	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0803-	●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0803-	●	●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (B) M8X12 FLANGE	0-28050-812-0	01	1	0803-	●	●
288	03.342 BOLT; WATER PIPE CLIP EURO2 SPECIFICATION(NT2) 02.343 (B) M8X12 FLANGE	0-28050-812-0	02	1	0803-	●
288	03.342 BOLT; WATER PIPE CLIP EURO4 SPECIFICATION(NT4) 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	0803-	●	●
391	03.342 BRACKET; WATER PIPE (A)	8-97371-730-0	01	1	0803-	●	●
391	03.342 BRACKET; WATER PIPE EURO4 SPECIFICATION(NT4) (B)	8-98013-958-0	01	1	0803-	●	●
465	03.602 PROTECTOR; HEAT,EXH ADAPTER EURO2 SPECIFICATION(NT2) 03.417 (A)	8-97351-167-0	01	1	0803-1204	●
465	03.602 PROTECTOR; HEAT,EXH ADAPTER EURO2 SPECIFICATION(NT2) (A)	8-98176-248-0	01	1	1205-	●
465	03.602 PROTECTOR; HEAT,EXH ADAPTER EURO4 SPECIFICATION(NT4) 03.417 (B)	8-98052-394-0	01	1	0803-	●	●
485	01.097 PIPE; WATER EGR EURO4 SPECIFICATION(NT4) (A)	8-98032-267-0	01	1	0803-	●	●
485	01.097 PIPE; WATER EGR EURO4 SPECIFICATION(NT4) (B)	8-98041-637-1	01	1	0803-	●	●
532	03.407 WASHER; TURBOCHARGER EURO4 SPECIFICATION(NT4) 03.613 ID=10	1-09503-033-1	04	1	0803-0805	●	●

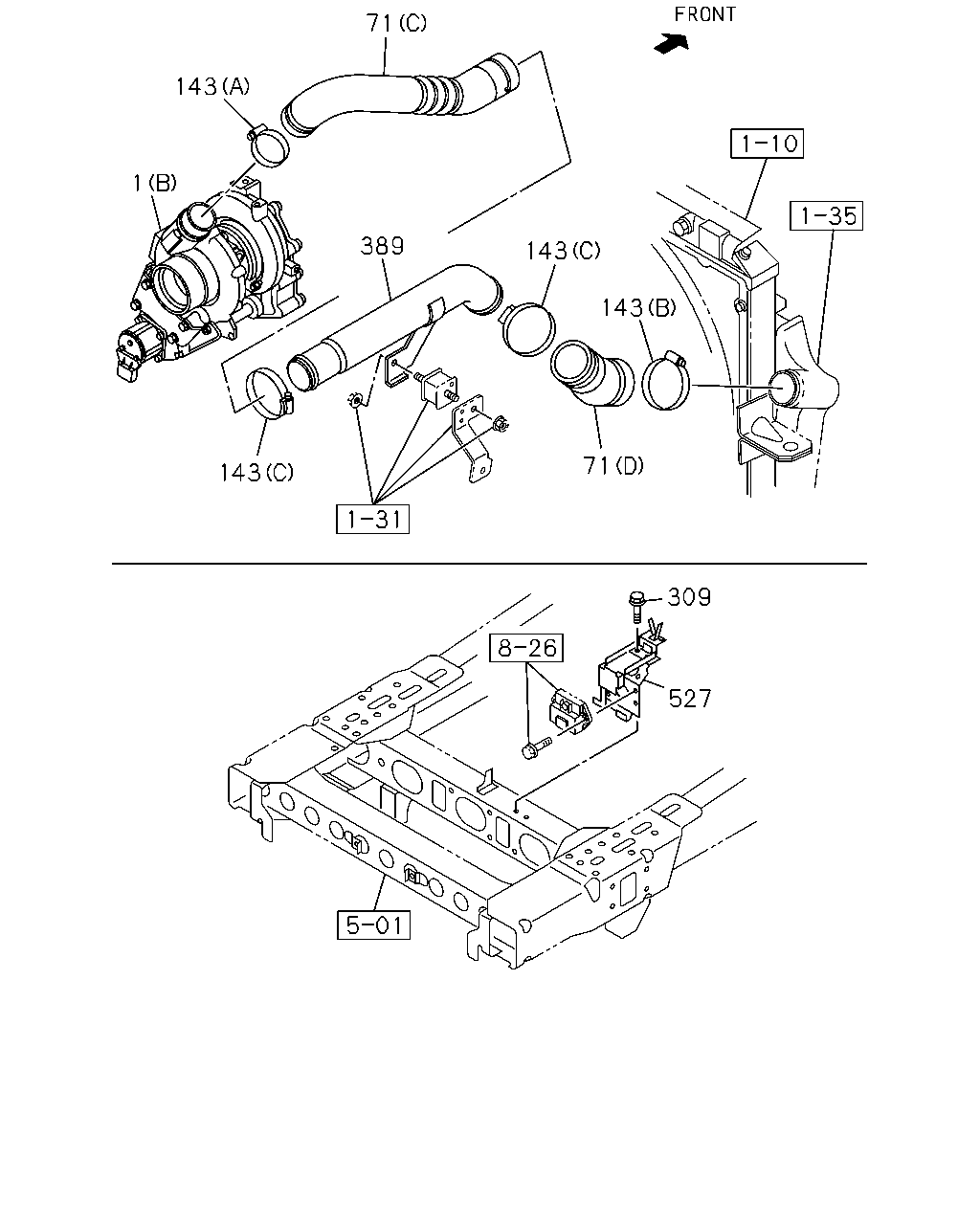

71 143 1 389 143 143 71 143 309 527

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) (A) SEE FIG-NO 0-37 FOR COMPONENT.	8-98079-569-2	01	1	0803-	●
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4) (B)	8-98027-772-5	01	1	0803-	●	●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) (A) SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-1	01	1	0803-0803		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO2 SPECIFICATION(NT2) (A)	8-98059-964-1	01	1	0803-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO2 SPECIFICATION(NT2) (B)	8-98107-509-1	01	1	0803-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO4 SPECIFICATION(NT4) (C)	8-98006-133-2	01	1	0803-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO4 SPECIFICATION(NT4) (D)	8-98039-732-3	01	1	0803-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=60-65	8-98096-418-0	02	1	0901-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	0901-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=68-85	1-09707-202-0	01	1	0803-0810	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=65-85	8-98133-350-0	01	1	0811-0812	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (B) ID=65-85	8-98133-350-0	01	1	0901-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 01.159 (C) ID=58-76	1-09707-203-0	02	1	0803-0811	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=55-75	8-98133-349-0	02	1	0812-0812	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (C) ID=45-65	8-98133-348-0	02	1	0901-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=60-65	8-98096-418-0	01	1	0803-	●	●
309	03.342 BOLT; TURBOCHARGER EURO4 SPECIFICATION(NT4) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0803-	●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98042-688-1	01	1	0803-	●	●
527	03.373 BRACKET; TURBOCHARGER EURO4 SPECIFICATION(NT4)	8-98105-299-0	01	1	0803-	●	●

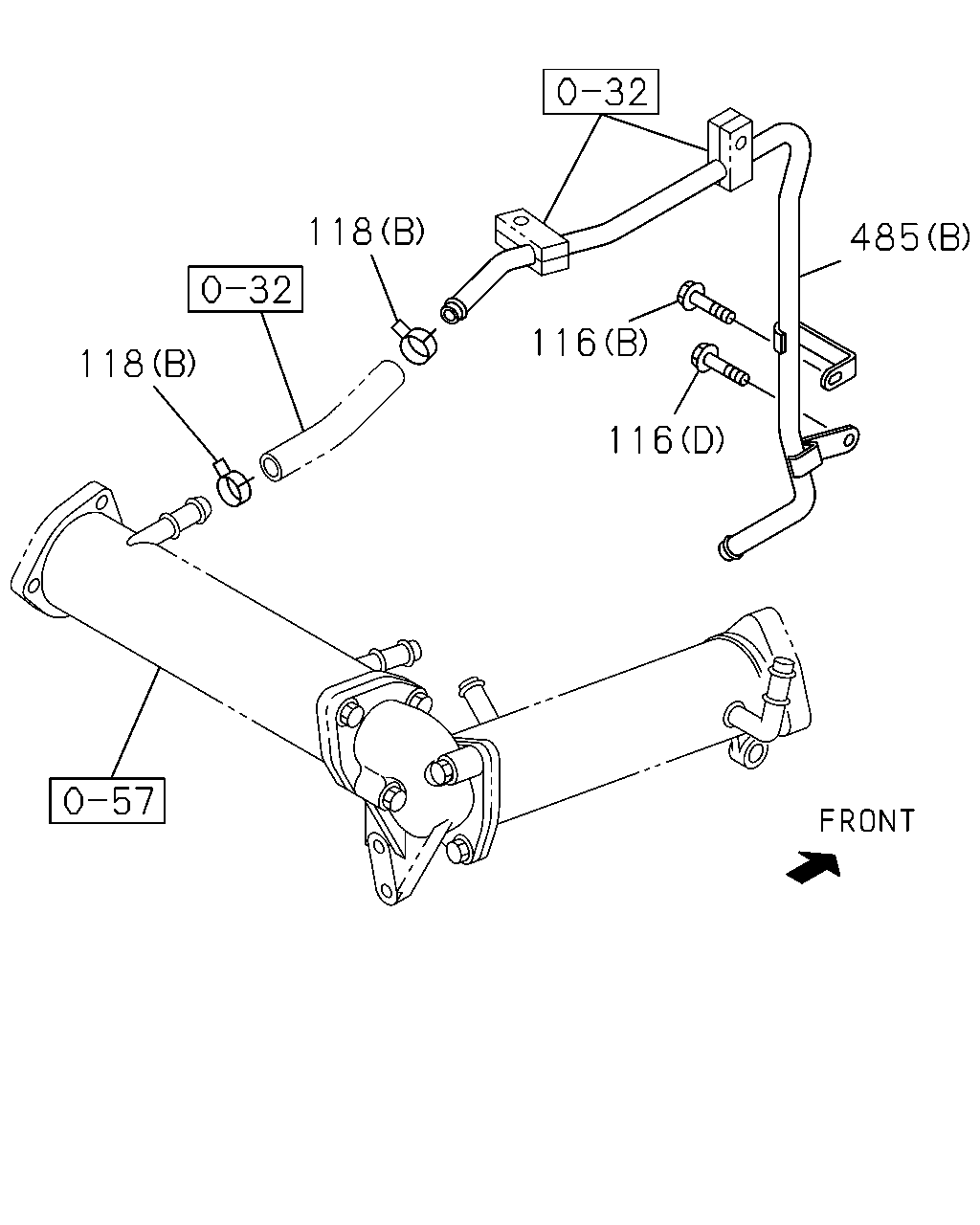

118 485 116 118 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
116	03.342 BOLT; WATER PIPE 01.531 (C) M12X24 EYE-BOLT	1-09675-081-0	01	1	0803-0803	●	●
116	03.342 BOLT; WATER PIPE EURO4 SPECIFICATION(NT4) 01.531 (C) M12X24 EYE-BOLT	1-09675-081-0	01	1	0803-0803	●	●
116	03.342 BOLT; WATER PIPE 01.531 (C) M12X24 EYE-BOLT	1-09675-081-0	01	1	0803-0804	●	●
116	03.342 BOLT; WATER PIPE EURO4 SPECIFICATION(NT4) 01.531 (C) M12X24 EYE-BOLT	1-09675-081-0	02	1	0805-	●	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	02	1	0803-0804	●	●
116	03.342 BOLT; WATER PIPE EURO4 SPECIFICATION(NT4) (A) M14X30 EYE-BOLT	8-94455-144-0	01	1	0805-	●	●
116	03.342 BOLT; WATER PIPE EURO2 SPECIFICATION(NT2) (A) M14X30 EYE-BOLT	8-94455-144-0	01	1	0803-0804	●
116	03.342 BOLT; WATER PIPE EURO2 SPECIFICATION(NT2) (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0805-	●
116	03.342 BOLT; WATER PIPE EURO4 SPECIFICATION(NT4) 02.343 (D) M8X16 FLANGE	0-28050-816-0	01	1	0803-	●	●
116	03.342 BOLT; WATER PIPE EURO4 SPECIFICATION(NT4) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0803-	●	●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0803-	●	●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION(NT4) 08.846 (B) ID=20	1-09707-084-1	06	1	0803-	●	●
485	01.097 PIPE; WATER EGR EURO4 SPECIFICATION(NT4) (A)	8-98032-267-0	01	1	0803-	●	●
485	01.097 PIPE; WATER EGR EURO4 SPECIFICATION(NT4) (B)	8-98041-637-1	01	1	0803-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
