Sayfa 3-41 - Isuzu EPC

3-41 — REAR BRAKE POWER CHAMBER (#3378) — 234 parça

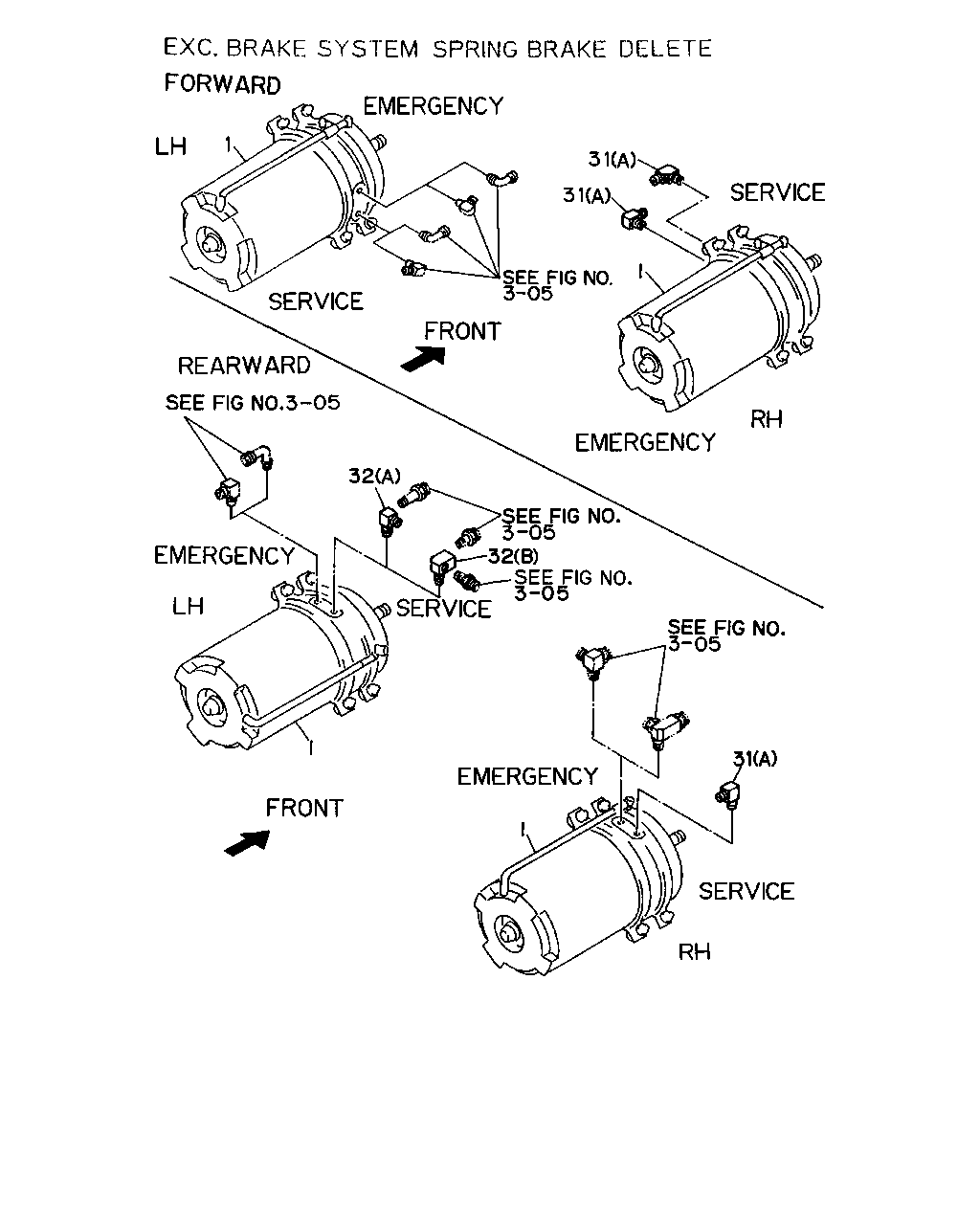

1 31 1 31 32 32 1 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD	1-48250-177-1	01	1	9002-	●	●
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD	1-48250-249-1	01	1	9002-	●	●
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD	1-48250-176-1	01	1	9002-	●	●
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD	1-48250-248-1	01	1	9002-	●	●
1	CHAMBER ASM; SPRING BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD	1-48250-185-1	02	1	9002-9306	●	●
1	CHAMBER ASM; SPRING BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD	1-48250-263-0	02	1	9002-9306	●	●
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD	1-48252-021-0	01	1	9002-	●	●
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD	1-48252-040-0	01	1	9002-	●	●
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD	1-48252-020-0	01	1	9002-	●	●
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD	1-48252-039-0	01	1	9002-	●	●
4	PIN; STRAIGHT,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-056-0	08	1	9002-	●	●
5	NUT; SHELL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-074-0	04	1	9002-	●	●
5	NUT; SHELL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-054-0	04	1	9002-	●	●
7	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-055-0	04	1	9002-	●	●
9	PIPE ASM; SHELL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-076-0	04	1	9002-	●	●
14	SPRING & SEAT SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B)	1-48259-037-0	04	1	9002-	●	●
14	SPRING & SEAT SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) REARWARD	8-83315-080-0	04	1	9002-	●	●
15	PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48262-005-0	04	1	9002-	●	●
16	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-048-0	04	1	9002-	●	●
17	BOLT ASM; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-073-0	04	1	9002-	●	●
19	COVER; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48269-011-0	04	1	9002-	●	●
20	RING; RET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-060-0	04	1	9002-	●	●
21	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-049-0	04	1	9002-	●	●
22	RING; BACKUP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-019-0	04	1	9002-	●	●
23	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-047-0	04	1	9002-	●	●
24	BEARING; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-020-0	04	1	9002-	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD	1-48259-088-0	01	1	9002-	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD	1-48259-140-0	01	1	9002-	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD	1-48259-087-0	01	1	9002-	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD	1-48259-138-0	01	1	9002-	●	●
26	NUT; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-058-0	04	1	9002-	●	●
27	WASHER; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD	1-48259-057-0	02	1	9002-	●	●
27	WASHER; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD ID=8.2	9-09150-508-0	02	1	9002-	●	●
28	BRACKET; PRESSURE PLATE,HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-059-0	04	1	9002-	●	●
29	STUD; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-050-0	04	1	9002-	●	●
31	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) FORWARD SERVICE	1-09660-570-0	01	1	9307-	●	●
31	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) FORWARD EMERGENCY,REARWARD	1-09660-574-0	02	1	9307-	●	●
31	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) FORWARD EMERGENCY,REARWARD	1-47815-006-1	02	1	9002-9306	●	●
31	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) FORWARD SERVICE	1-47815-006-1	01	1	9002-9306	●	●
31	CONNECTOR BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B)	1-47815-006-1	05	1	9002-9306	●	●
32	CONNECTOR; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-09660-697-1	01	1	9307-	●	●
32	CONNECTOR; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A)	1-09656-420-1	01	1	9002-9306	●	●
32	CONNECTOR; SPR CHAMBER BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (C) M16 & M20 & PT3/8 3WAY	1-09656-433-1	01	1	9002-9306	●	●
36	RETAINER; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A)	1-48259-033-0	04	1	9002-	●	●
36	RETAINER; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B)	1-48259-043-0	04	1	9002-	●	●
38	COVER; ROD & PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-066-0	04	1	9002-	●	●
41	PIPE ASM; LWR COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-080-0	04	1	9002-	●	●
67	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-053-0	04	1	9002-	●	●
69	HOSE; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-051-0	04	1	9002-	●	●
70	COVER; EXH,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-052-0	03	1	9002-	●	●

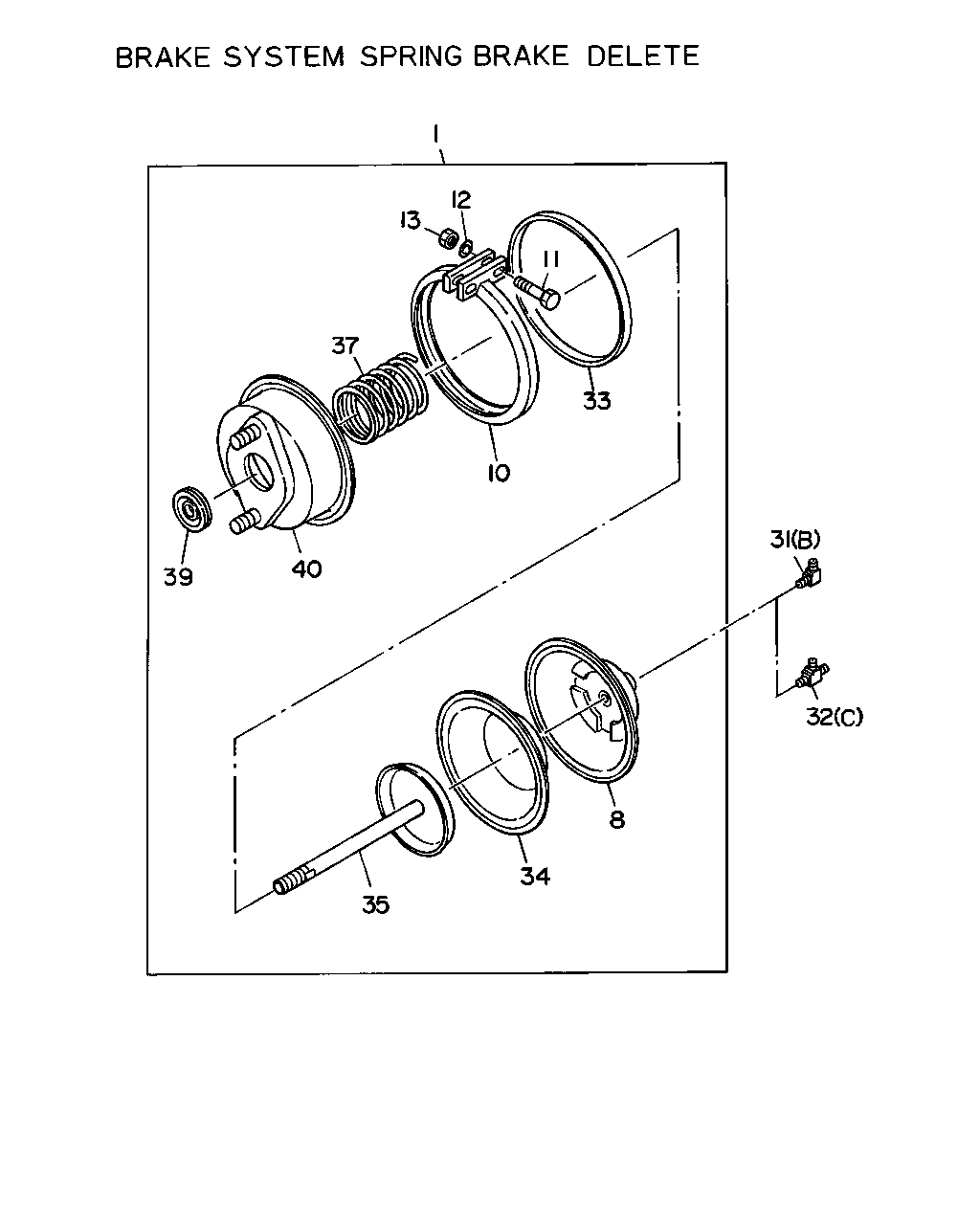

1 12 13 11 33 10 37 40 39 35 34 8 31 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD	1-48250-177-1	01	1	9002-	●	●
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD	1-48250-249-1	01	1	9002-	●	●
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD	1-48250-176-1	01	1	9002-	●	●
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD	1-48250-248-1	01	1	9002-	●	●
1	CHAMBER ASM; SPRING BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD	1-48250-185-1	02	1	9002-9306	●	●
1	CHAMBER ASM; SPRING BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD	1-48250-263-0	02	1	9002-9306	●	●
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD	1-48252-021-0	01	1	9002-	●	●
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD	1-48252-040-0	01	1	9002-	●	●
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD	1-48252-020-0	01	1	9002-	●	●
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD	1-48252-039-0	01	1	9002-	●	●
4	PIN; STRAIGHT,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-056-0	08	1	9002-	●	●
5	NUT; SHELL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-074-0	04	1	9002-	●	●
5	NUT; SHELL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-054-0	04	1	9002-	●	●
7	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-055-0	04	1	9002-	●	●
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD	1-48251-043-0	02	1	9002-	●	●
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD	1-48259-070-0	01	1	9002-	●	●
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD	1-48259-069-0	01	1	9002-	●	●
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD	1-48251-007-0	02	1	9002-9306	●	●
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD	1-48251-026-0	02	1	9002-9306	●	●
9	PIPE ASM; SHELL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-076-0	04	1	9002-	●	●
10	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A)	1-48259-016-0	08	1	9002-	●	●
10	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B)	1-48259-031-0	08	1	9002-	●	●
10	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD	1-48259-001-0	02	1	9002-9306	●	●
10	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD	1-48259-001-0	02	1	9002-9306	●	●
11	BOLT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-035-0	16	1	9002-	●	●
11	BOLT; CLAMP RING BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD	1-48259-002-0	04	1	9002-9306	●	●
11	BOLT; CLAMP RING BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD	1-48259-002-0	04	1	9002-9306	●	●
12	WASHER; LK,CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD	1-48259-046-0	08	1	9002-	●	●
12	WASHER; LK,CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD ID=10.2	9-09150-510-0	08	1	9002-	●	●
12	WASHER; LK,CLAMP RING BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD ID=10.2	9-09150-510-0	04	1	9002-9306	●	●
12	WASHER; LK,CLAMP RING BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD ID=10.2	9-09150-510-0	04	1	9002-9306	●	●
13	NUT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD M10	9-09110-510-0	08	1	9002-	●	●
13	NUT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD M10	9-09110-510-0	04	1	9002-	●	●
13	NUT; CLAMP RING BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD M10	9-09110-510-0	04	1	9002-9306	●	●
13	NUT; CLAMP RING BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD M10	9-09110-510-0	04	1	9002-9306	●	●
14	SPRING & SEAT SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B)	1-48259-037-0	04	1	9002-	●	●
14	SPRING & SEAT SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) REARWARD	8-83315-080-0	04	1	9002-	●	●
15	PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48262-005-0	04	1	9002-	●	●
16	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-048-0	04	1	9002-	●	●
17	BOLT ASM; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-073-0	04	1	9002-	●	●
19	COVER; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48269-011-0	04	1	9002-	●	●
20	RING; RET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-060-0	04	1	9002-	●	●
21	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-049-0	04	1	9002-	●	●
22	RING; BACKUP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-019-0	04	1	9002-	●	●
23	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-047-0	04	1	9002-	●	●
24	BEARING; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-020-0	04	1	9002-	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD	1-48259-088-0	01	1	9002-	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD	1-48259-140-0	01	1	9002-	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD	1-48259-087-0	01	1	9002-	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD	1-48259-138-0	01	1	9002-	●	●
26	NUT; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-058-0	04	1	9002-	●	●
27	WASHER; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD	1-48259-057-0	02	1	9002-	●	●
27	WASHER; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD ID=8.2	9-09150-508-0	02	1	9002-	●	●
28	BRACKET; PRESSURE PLATE,HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-059-0	04	1	9002-	●	●
29	STUD; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-050-0	04	1	9002-	●	●
31	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) FORWARD SERVICE	1-09660-570-0	01	1	9307-	●	●
31	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) FORWARD EMERGENCY,REARWARD	1-09660-574-0	02	1	9307-	●	●
31	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) FORWARD EMERGENCY,REARWARD	1-47815-006-1	02	1	9002-9306	●	●
31	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) FORWARD SERVICE	1-47815-006-1	01	1	9002-9306	●	●
31	CONNECTOR BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B)	1-47815-006-1	05	1	9002-9306	●	●
32	CONNECTOR; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-09660-697-1	01	1	9307-	●	●
32	CONNECTOR; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A)	1-09656-420-1	01	1	9002-9306	●	●
32	CONNECTOR; SPR CHAMBER BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (C) M16 & M20 & PT3/8 3WAY	1-09656-433-1	01	1	9002-9306	●	●
33	RETAINER; DIAPH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD	1-48250-044-0	02	1	9002-	●	●
33	RETAINER; DIAPH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD	1-48259-044-0	04	1	9002-	●	●
33	RETAINER; DIAPH BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-016-0	04	1	9002-9306	●	●
34	DIAPHRAGM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD	1-48252-011-0	02	1	9002-	●	●
34	DIAPHRAGM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD	1-48258-011-0	02	1	9002-	●	●
34	DIAPHRAGM BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48252-006-0	04	1	9002-9306	●	●
35	PLATE; ROD END,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD	1-48253-011-0	02	1	9002-	●	●
35	PLATE; ROD END,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD	1-48253-035-0	01	1	9002-	●	●
35	PLATE; ROD END,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD	1-48253-029-0	01	1	9002-	●	●
35	PLATE; ROD END,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD	1-48253-001-0	02	1	9002-9306	●	●
35	PLATE; ROD END,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD	1-48253-012-0	02	1	9002-9306	●	●
36	RETAINER; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A)	1-48259-033-0	04	1	9002-	●	●
36	RETAINER; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B)	1-48259-043-0	04	1	9002-	●	●
37	SPRING; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48255-003-0	04	1	9002-	●	●
37	SPRING; LWR,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD	1-48255-001-0	02	1	9002-9306	●	●
37	SPRING; LWR,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD	1-48255-001-0	02	1	9002-9306	●	●
38	COVER; ROD & PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-066-0	04	1	9002-	●	●
39	COVER; ROD & PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-065-0	04	1	9002-	●	●
39	COVER; ROD & PLATE BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48252-025-0	04	1	9002-9306	●	●
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD	1-48259-082-1	01	1	9002-	●	●
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD	1-48259-139-0	01	1	9002-	●	●
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD	1-48259-081-1	01	1	9002-	●	●
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD	1-48259-137-0	01	1	9002-	●	●
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD	1-48251-018-0	02	1	9002-9306	●	●
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD	1-48251-019-0	02	1	9002-9306	●	●
41	PIPE ASM; LWR COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-080-0	04	1	9002-	●	●
67	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-053-0	04	1	9002-	●	●
69	HOSE; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-051-0	04	1	9002-	●	●
70	COVER; EXH,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-052-0	03	1	9002-	●	●

1 12 13 11 33 10 37 40 39 35 34 8 32 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD	1-48250-177-1	01	1	9002-	●	●
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD	1-48250-249-1	01	1	9002-	●	●
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD	1-48250-176-1	01	1	9002-	●	●
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD	1-48250-248-1	01	1	9002-	●	●
1	CHAMBER ASM; SPRING BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD	1-48250-185-1	02	1	9002-9306	●	●
1	CHAMBER ASM; SPRING BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD	1-48250-263-0	02	1	9002-9306	●	●
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD	1-48252-021-0	01	1	9002-	●	●
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD	1-48252-040-0	01	1	9002-	●	●
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD	1-48252-020-0	01	1	9002-	●	●
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD	1-48252-039-0	01	1	9002-	●	●
4	PIN; STRAIGHT,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-056-0	08	1	9002-	●	●
5	NUT; SHELL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-074-0	04	1	9002-	●	●
5	NUT; SHELL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-054-0	04	1	9002-	●	●
7	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-055-0	04	1	9002-	●	●
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD	1-48251-043-0	02	1	9002-	●	●
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD	1-48259-070-0	01	1	9002-	●	●
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD	1-48259-069-0	01	1	9002-	●	●
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD	1-48251-007-0	02	1	9002-9306	●	●
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD	1-48251-026-0	02	1	9002-9306	●	●
9	PIPE ASM; SHELL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-076-0	04	1	9002-	●	●
10	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A)	1-48259-016-0	08	1	9002-	●	●
10	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B)	1-48259-031-0	08	1	9002-	●	●
10	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD	1-48259-001-0	02	1	9002-9306	●	●
10	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD	1-48259-001-0	02	1	9002-9306	●	●
11	BOLT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-035-0	16	1	9002-	●	●
11	BOLT; CLAMP RING BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD	1-48259-002-0	04	1	9002-9306	●	●
11	BOLT; CLAMP RING BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD	1-48259-002-0	04	1	9002-9306	●	●
12	WASHER; LK,CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD	1-48259-046-0	08	1	9002-	●	●
12	WASHER; LK,CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD ID=10.2	9-09150-510-0	08	1	9002-	●	●
12	WASHER; LK,CLAMP RING BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD ID=10.2	9-09150-510-0	04	1	9002-9306	●	●
12	WASHER; LK,CLAMP RING BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD ID=10.2	9-09150-510-0	04	1	9002-9306	●	●
13	NUT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD M10	9-09110-510-0	08	1	9002-	●	●
13	NUT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD M10	9-09110-510-0	04	1	9002-	●	●
13	NUT; CLAMP RING BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD M10	9-09110-510-0	04	1	9002-9306	●	●
13	NUT; CLAMP RING BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD M10	9-09110-510-0	04	1	9002-9306	●	●
14	SPRING & SEAT SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B)	1-48259-037-0	04	1	9002-	●	●
14	SPRING & SEAT SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) REARWARD	8-83315-080-0	04	1	9002-	●	●
15	PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48262-005-0	04	1	9002-	●	●
16	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-048-0	04	1	9002-	●	●
17	BOLT ASM; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-073-0	04	1	9002-	●	●
19	COVER; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48269-011-0	04	1	9002-	●	●
20	RING; RET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-060-0	04	1	9002-	●	●
21	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-049-0	04	1	9002-	●	●
22	RING; BACKUP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-019-0	04	1	9002-	●	●
23	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-047-0	04	1	9002-	●	●
24	BEARING; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-020-0	04	1	9002-	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD	1-48259-088-0	01	1	9002-	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD	1-48259-140-0	01	1	9002-	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD	1-48259-087-0	01	1	9002-	●	●
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD	1-48259-138-0	01	1	9002-	●	●
26	NUT; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-058-0	04	1	9002-	●	●
27	WASHER; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD	1-48259-057-0	02	1	9002-	●	●
27	WASHER; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD ID=8.2	9-09150-508-0	02	1	9002-	●	●
28	BRACKET; PRESSURE PLATE,HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-059-0	04	1	9002-	●	●
29	STUD; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-050-0	04	1	9002-	●	●
31	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) FORWARD SERVICE	1-09660-570-0	01	1	9307-	●	●
31	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) FORWARD EMERGENCY,REARWARD	1-09660-574-0	02	1	9307-	●	●
31	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) FORWARD EMERGENCY,REARWARD	1-47815-006-1	02	1	9002-9306	●	●
31	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) FORWARD SERVICE	1-47815-006-1	01	1	9002-9306	●	●
31	CONNECTOR BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B)	1-47815-006-1	05	1	9002-9306	●	●
32	CONNECTOR; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-09660-697-1	01	1	9307-	●	●
32	CONNECTOR; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A)	1-09656-420-1	01	1	9002-9306	●	●
32	CONNECTOR; SPR CHAMBER BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (C) M16 & M20 & PT3/8 3WAY	1-09656-433-1	01	1	9002-9306	●	●
33	RETAINER; DIAPH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD	1-48250-044-0	02	1	9002-	●	●
33	RETAINER; DIAPH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD	1-48259-044-0	04	1	9002-	●	●
33	RETAINER; DIAPH BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-016-0	04	1	9002-9306	●	●
34	DIAPHRAGM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD	1-48252-011-0	02	1	9002-	●	●
34	DIAPHRAGM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD	1-48258-011-0	02	1	9002-	●	●
34	DIAPHRAGM BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48252-006-0	04	1	9002-9306	●	●
35	PLATE; ROD END,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD	1-48253-011-0	02	1	9002-	●	●
35	PLATE; ROD END,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD	1-48253-035-0	01	1	9002-	●	●
35	PLATE; ROD END,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD	1-48253-029-0	01	1	9002-	●	●
35	PLATE; ROD END,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD	1-48253-001-0	02	1	9002-9306	●	●
35	PLATE; ROD END,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD	1-48253-012-0	02	1	9002-9306	●	●
36	RETAINER; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A)	1-48259-033-0	04	1	9002-	●	●
36	RETAINER; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B)	1-48259-043-0	04	1	9002-	●	●
37	SPRING; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48255-003-0	04	1	9002-	●	●
37	SPRING; LWR,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD	1-48255-001-0	02	1	9002-9306	●	●
37	SPRING; LWR,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD	1-48255-001-0	02	1	9002-9306	●	●
38	COVER; ROD & PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-066-0	04	1	9002-	●	●
39	COVER; ROD & PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-065-0	04	1	9002-	●	●
39	COVER; ROD & PLATE BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48252-025-0	04	1	9002-9306	●	●
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD	1-48259-082-1	01	1	9002-	●	●
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD	1-48259-139-0	01	1	9002-	●	●
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD	1-48259-081-1	01	1	9002-	●	●
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD	1-48259-137-0	01	1	9002-	●	●
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE DELETE(JE2) REARWARD	1-48251-018-0	02	1	9002-9306	●	●
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM SPRING BRAKE DELETE(JE2) FORWARD	1-48251-019-0	02	1	9002-9306	●	●
41	PIPE ASM; LWR COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-080-0	04	1	9002-	●	●
67	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-053-0	04	1	9002-	●	●
69	HOSE; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-051-0	04	1	9002-	●	●
70	COVER; EXH,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2)	1-48259-052-0	03	1	9002-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
